SPECIFICATIONS

Description:

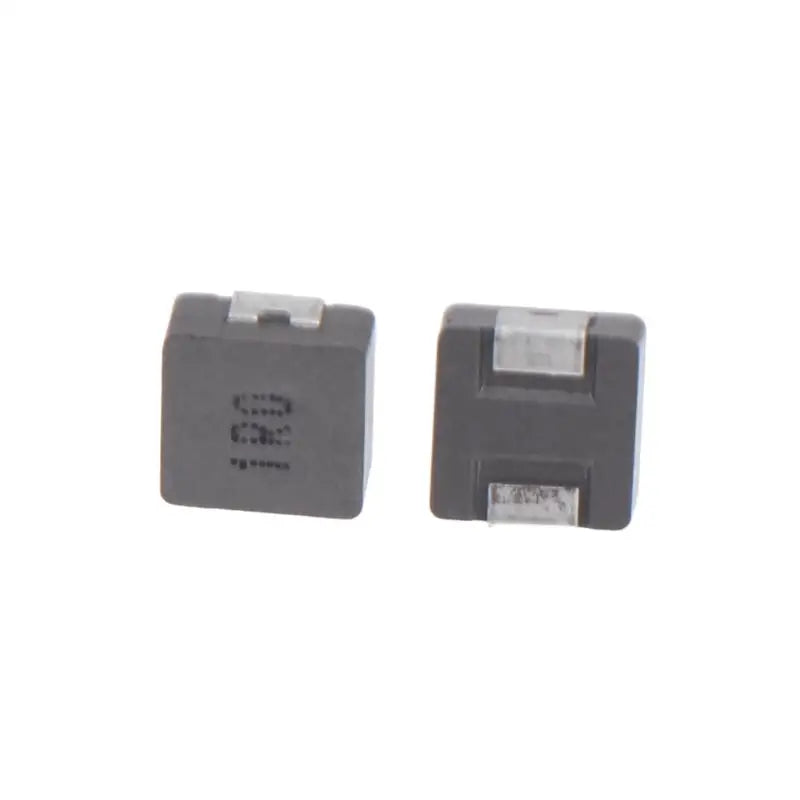

0630 Series High-performance Alloy Powder SMD Power Inductors, Ideal for Stable Circuit Filtering, Voltage Regulation and Power Supply Module Applications

Features:

1. Alloy powder integrated molding structure ensures stable high-current carrying capacity and resistance to saturation. The integrated die-casting process prevents magnetic saturation under high current operation, ensuring stable performance over extended periods.

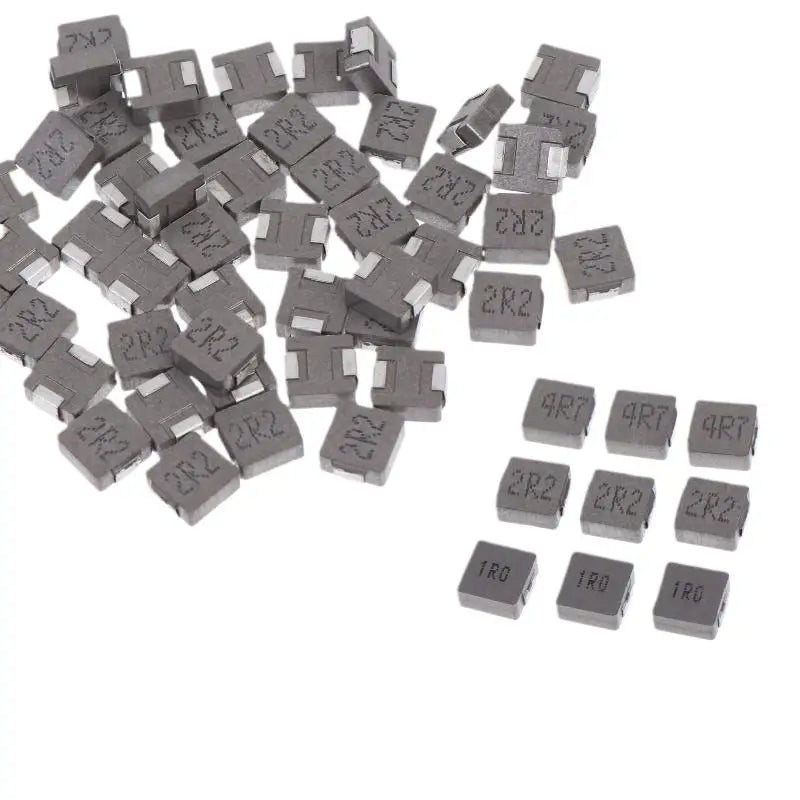

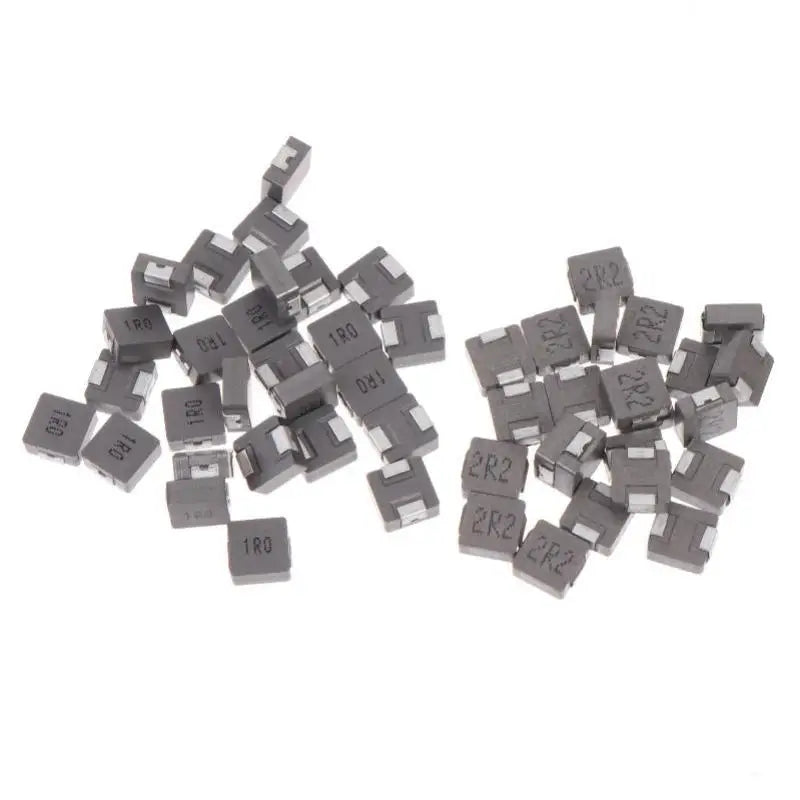

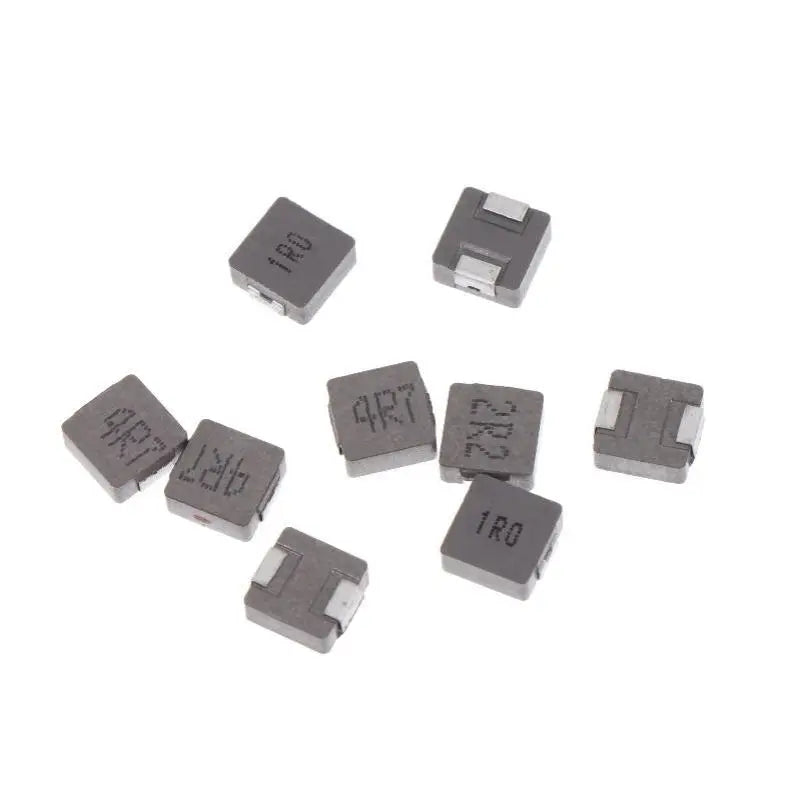

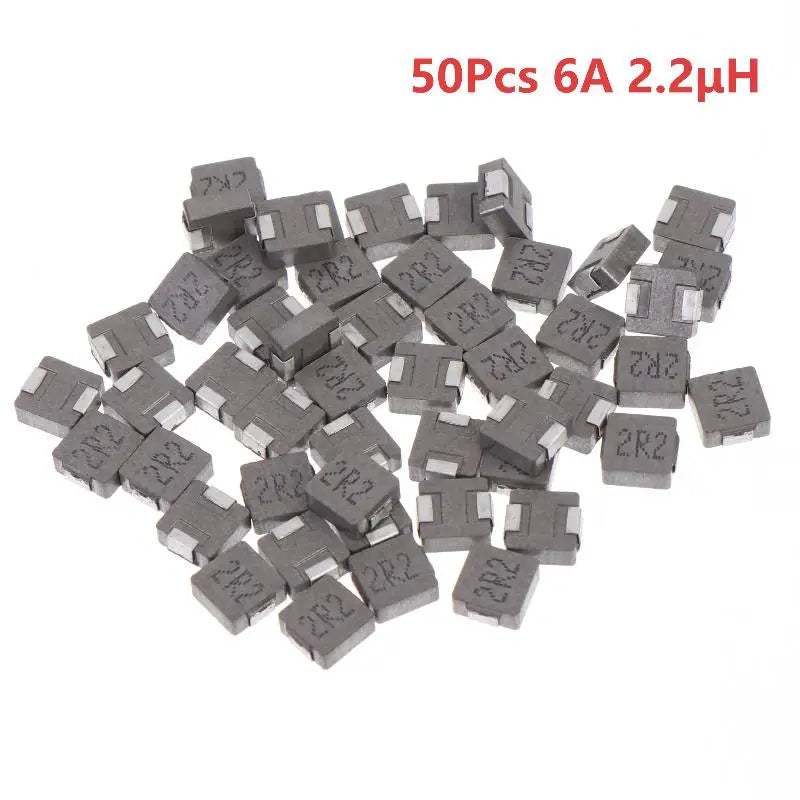

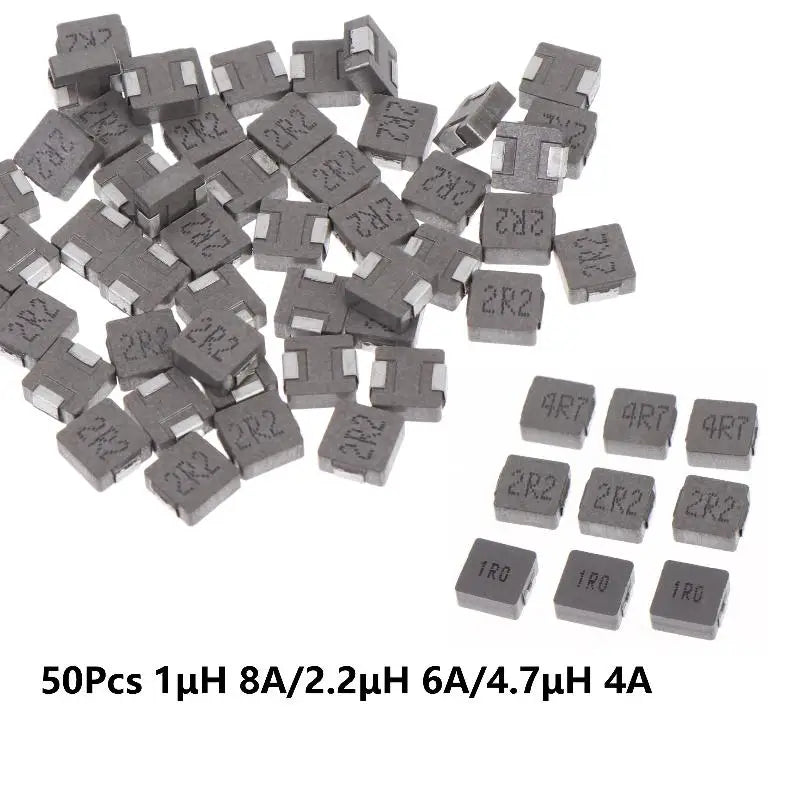

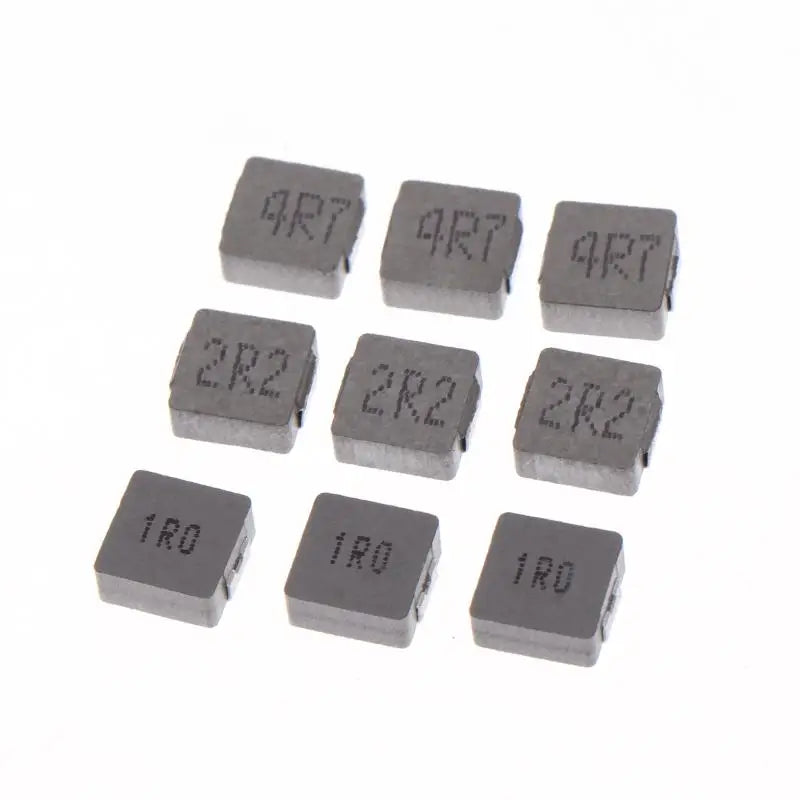

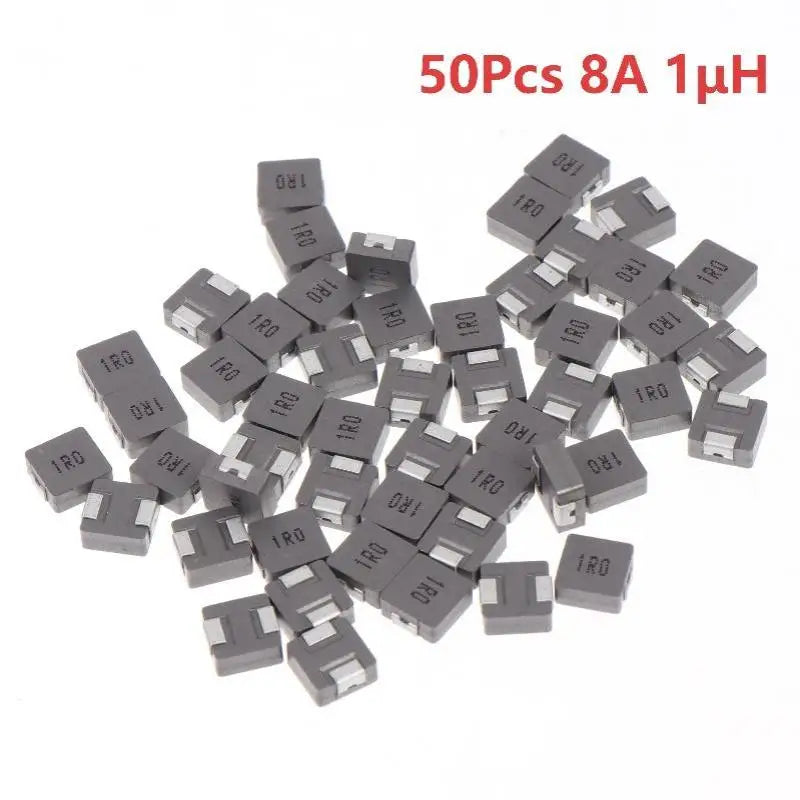

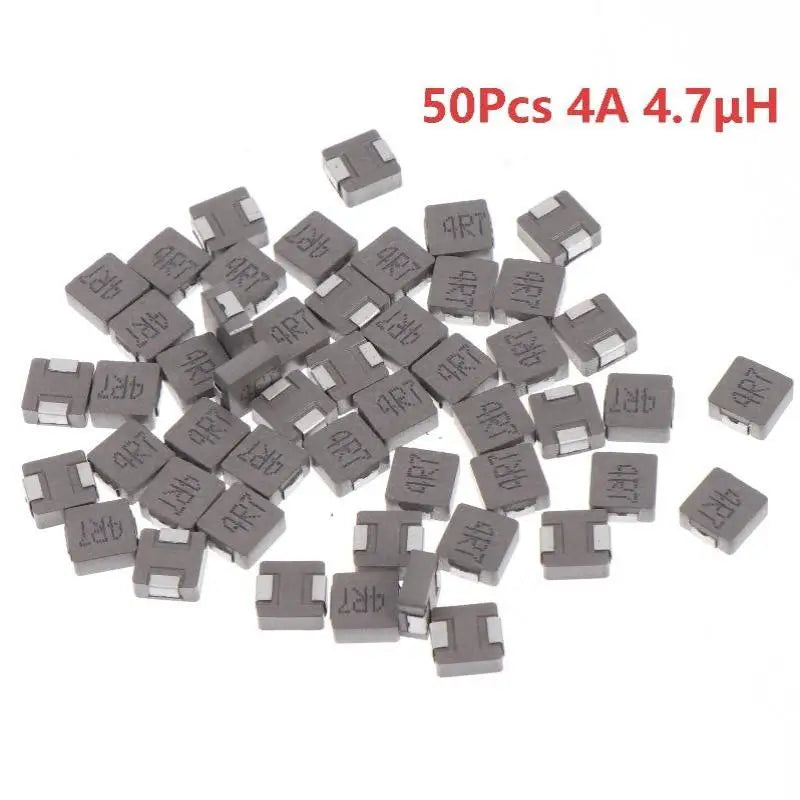

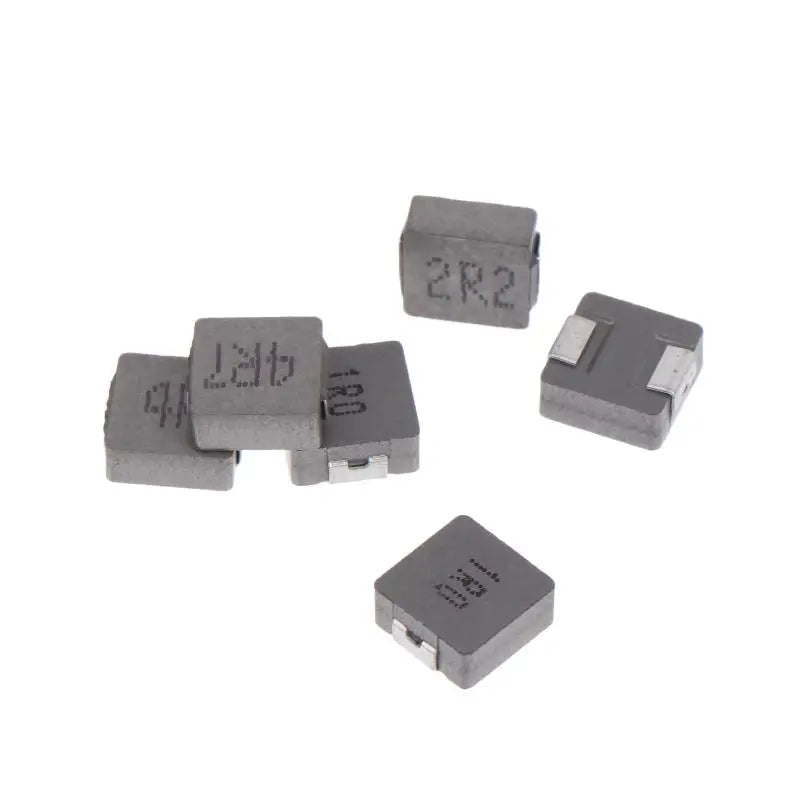

2. Three mainstream inductor specifications cover most power circuit design needs: 1uH 8A, 2.2uH 6A, 4.7uH 4A. Popular models are compatible with most PCB circuit modifications.

3. Low DC internal resistance and low heat generation extend the lifespan of the entire device. Optimized internal resistance parameters result in low temperature rise during power-on, reducing the probability of high-temperature failures.

4. Standard 0630 surface mount size adapts to automated SMT assembly production. A unified specification of 6.5-6.53mm ensures compatibility with fully automatic pick-and-place machines.

5. Sealed encapsulation structure provides dust and moisture protection, adapting to complex operating environments. The fully enclosed integrated shell isolates dust and moisture, making it suitable for industrial control and outdoor digital equipment.

Specifications:

Installation height: 3mm

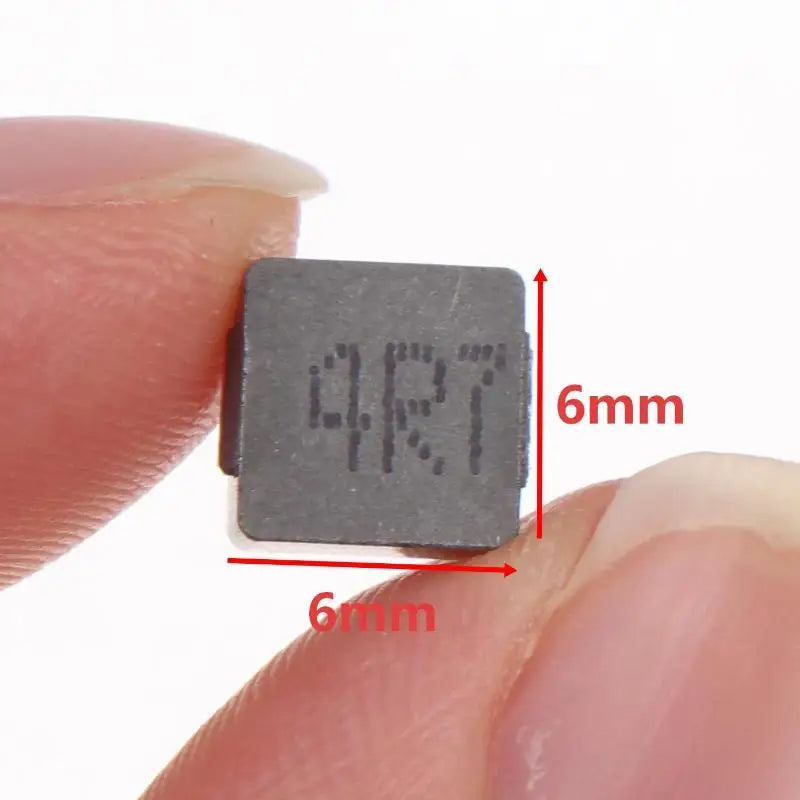

Size: As shown in the picture

Color: As shown in the picture

Quantity: 50Pcs/set

Note:

1. Please note that the photo does not show actual size, please refer to Description for size details.

2. Please allow differences due to manual measurement, thanks.

3. Due to the difference between different monitors, the image may not reflect the actual color of the item.
