50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket

50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket

2x2P
$22.41
$22.41 $0.00
Skip to product information
50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
  • 50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
  • 50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
  • 50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
  • 50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
  • 50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
  • 50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
  • 50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
  • 50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket
$22.41
$22.41 $0.00
Color
Description

SPECIFICATIONS

Application: PCB, Lighting

Brand Name: E-SIMPO

Choice: yes

Contact Material: Phosphor bronze

Current Rating: 3Amps

Dielectric Withstanding: AC 1000V

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Finish: Gold-plated

Gender: Female

High-concerned chemical: None

Insulator Resistance: >=1000Megohms min

Keyword: 2.54mm Female Header, 2*40P, SMT. Double Row,Straight

Model Number: 2.54-Fe-SMT-PH8.5

Origin: Mainland China

Type: Female header

Voltage: 5 V 12 V 20 V 30 V

is_customized: Yes

semi_Choice: yes

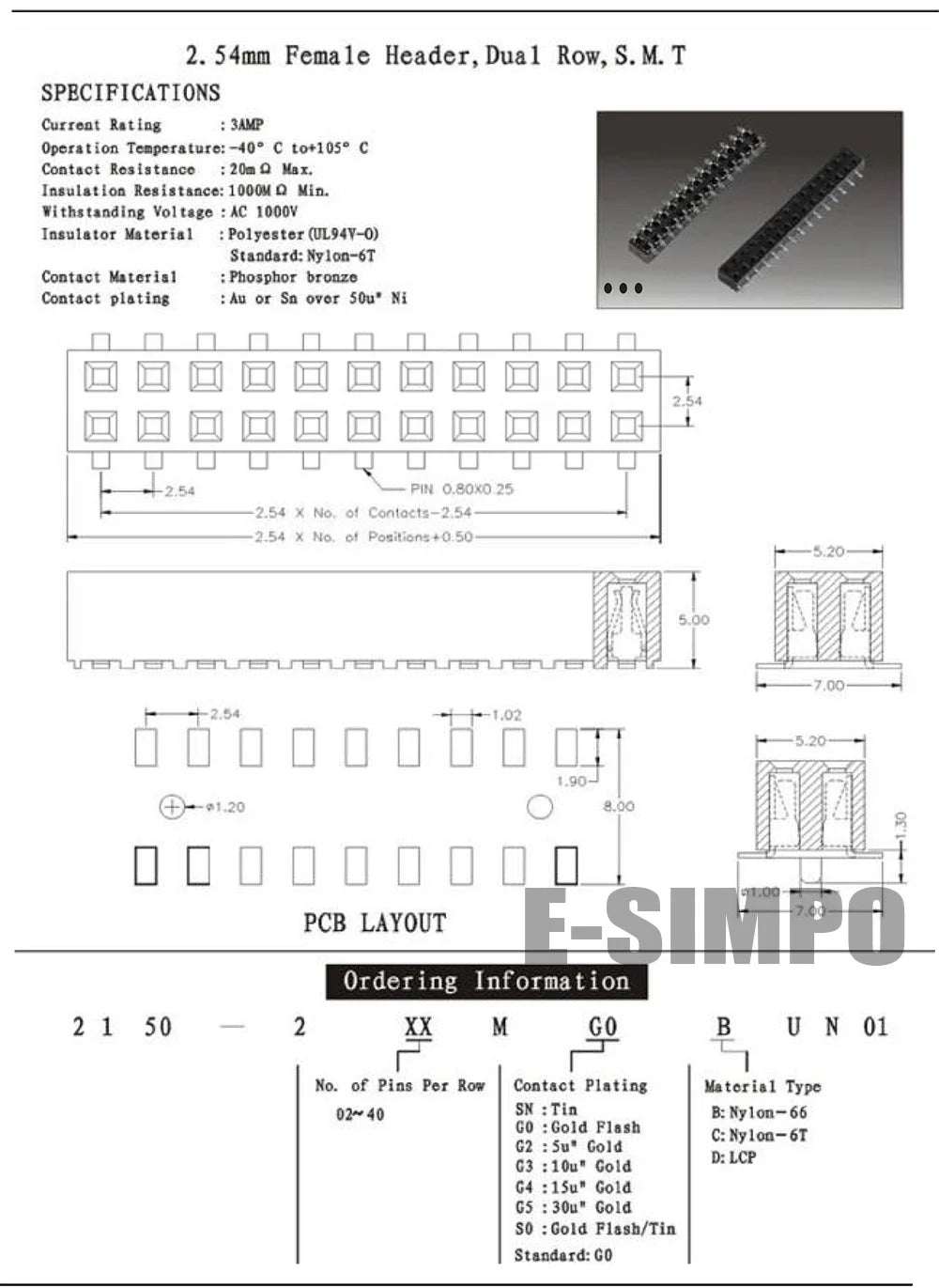

50pcs 2.54mm SMT 2*3P/4/5/6/8/10/12/15/20/40Pin Dual Double Row Horizontal SMD Gold Rohs Reflow PH8.5 Female Pin Header Socket

Pin-Pin Distance/Pitch: 2.54mm

Row Qty:Row Double

SMT Type, NOT Straight, NOT Right Angle

Plastic Height 8.5mm

Total Height: 8.9mm

Width: 7.1mm

Current Rating: 3Amps

Insulator Resistance: 5000Megohms min

Dielectric Withstanding: AC 1000V

Operating Temperature: -40-105 Celsuis Degree

Contact Material: Phosphor bronze

Finish: Gold Flash

Tolerance: +/-0.2mm

Package Content

50pcs/bag
