SPECIFICATIONS

Application: 5.0mm PCB Screw Terminal Block Connector

Brand Name: ALLiSHOP

Certification: NONE

Choice: yes

Color: Blue

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features1: KF301 PCB connector 5.0mm

Features2: KF301 Screw Terminal Block

Features3: KF301 5.0mm pcb Terminal Block

High-concerned chemical: none

Model Number: KF301

Origin: Mainland China

Pins: 2/3/4Pin

Pitch: 5.0mm

Quantity: 50Pcs

Type: PCB Screw Terminal Block Connector

Voltage: none

is_customized: Yes

semi_Choice: yes

50Pcs/Box KF301 5mm Pitch 2P 3P 4Pin PCB Screw Terminal Block Connector KF301-2P KF301-3P KF-301-4P Blue

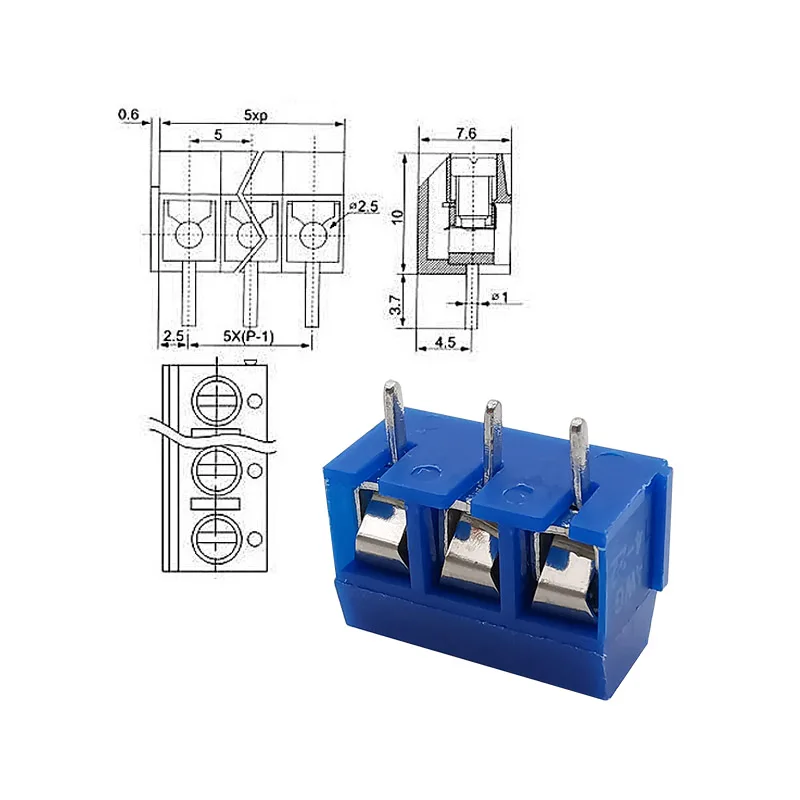

Product description:

Material: Plastic, Metal
Pitch: 5.0mm

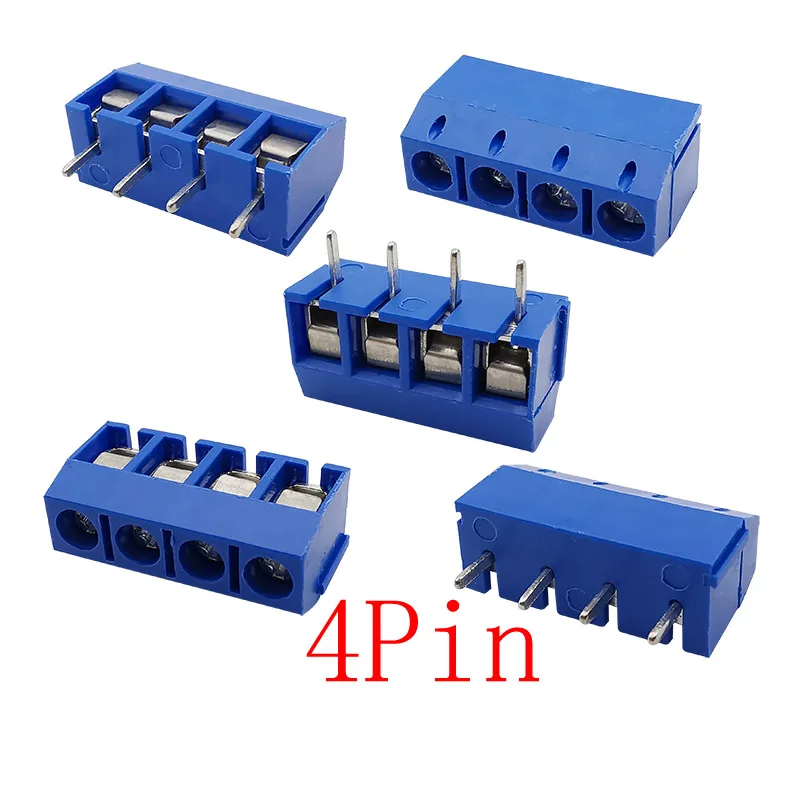

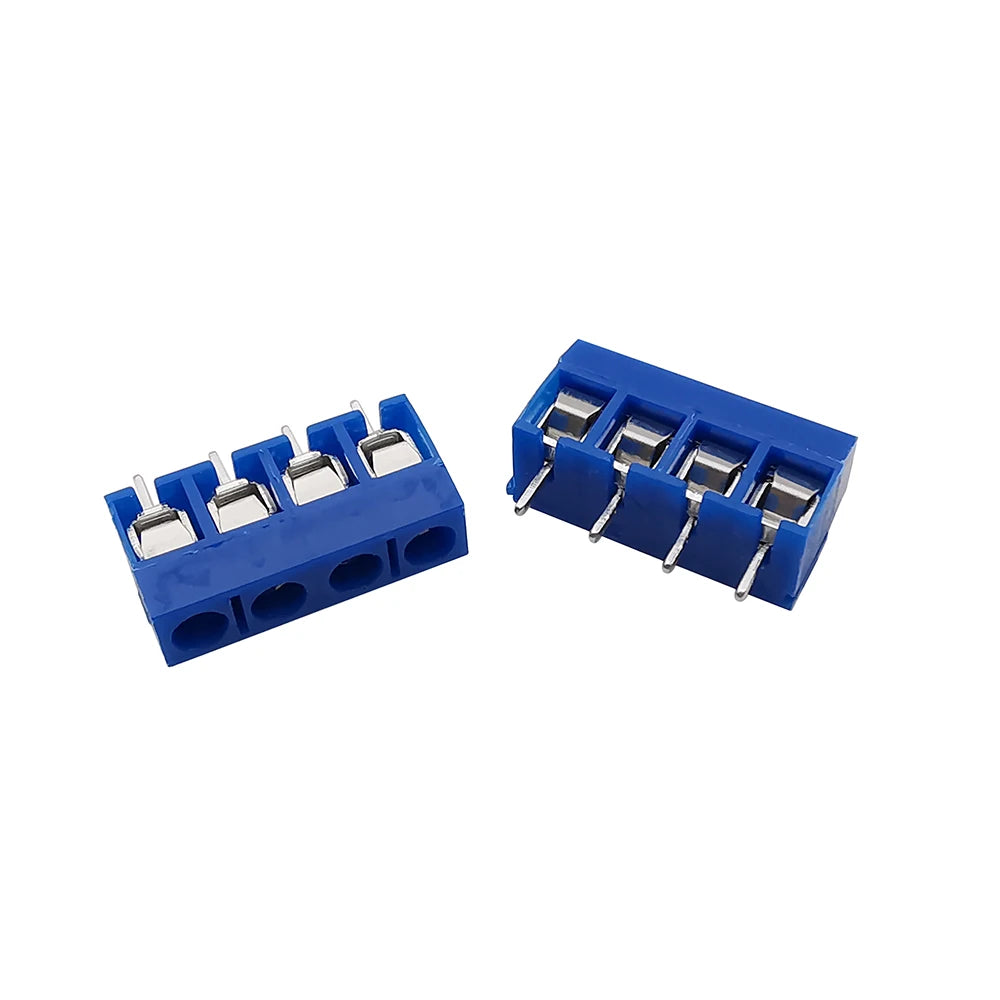

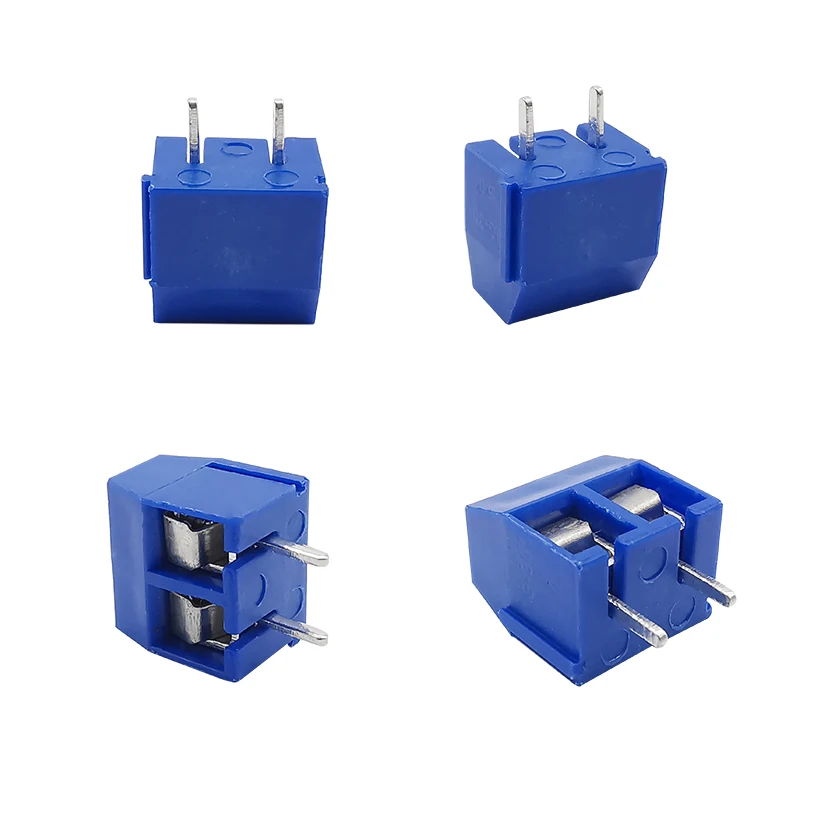

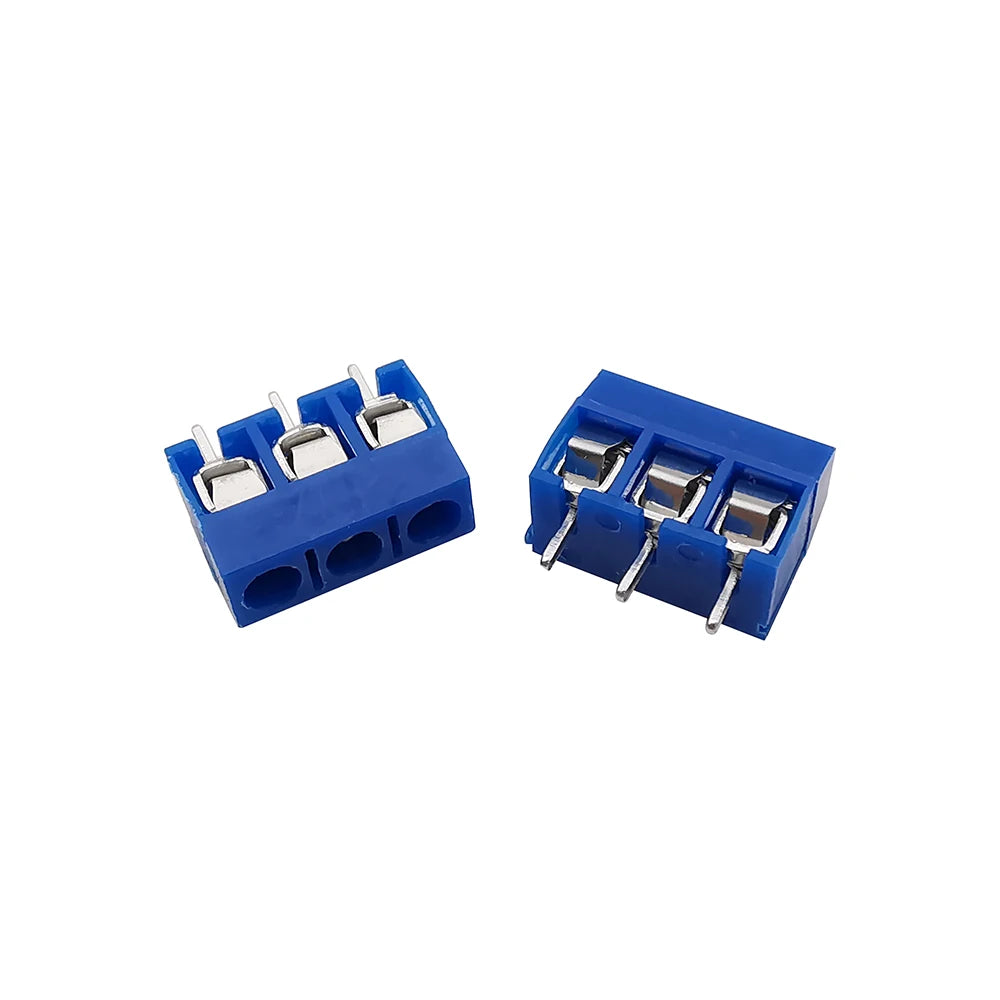

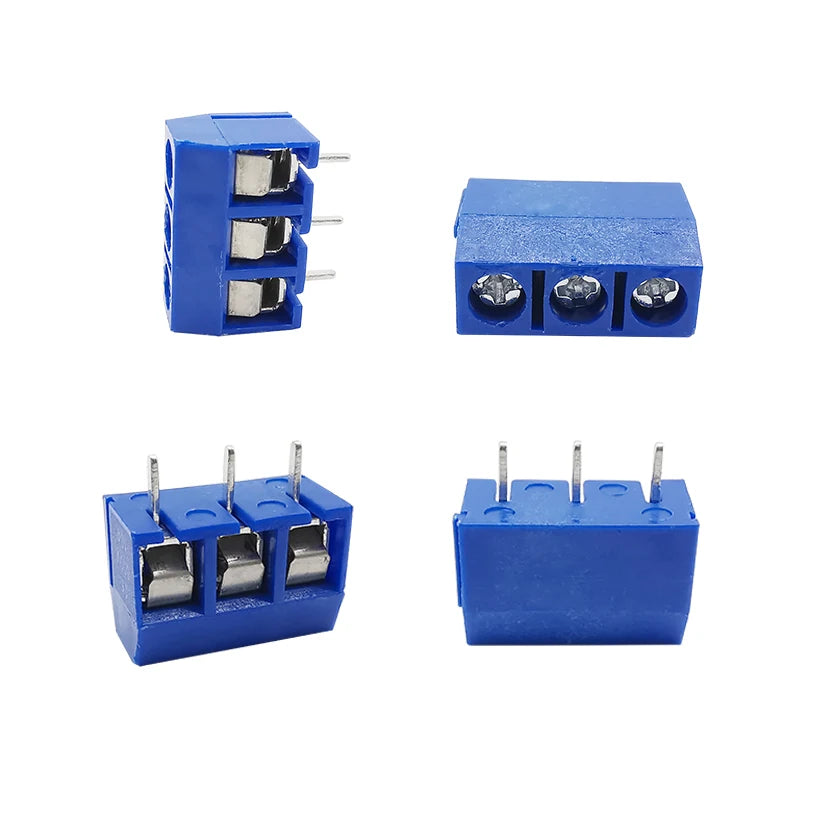

Pin: 2Pin, 3Pin, 4Pin.
Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Iron,Tin plated
Housing: PBT,UL94V-0
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 22-14AWG/2.5mm²
Temp.Range: -30°C~+120°C
MAX Soldering: +250°C for 5 Sec.
Torque: 0.5Nm(3.6lb.in)
Strip length: 4.5-5mm

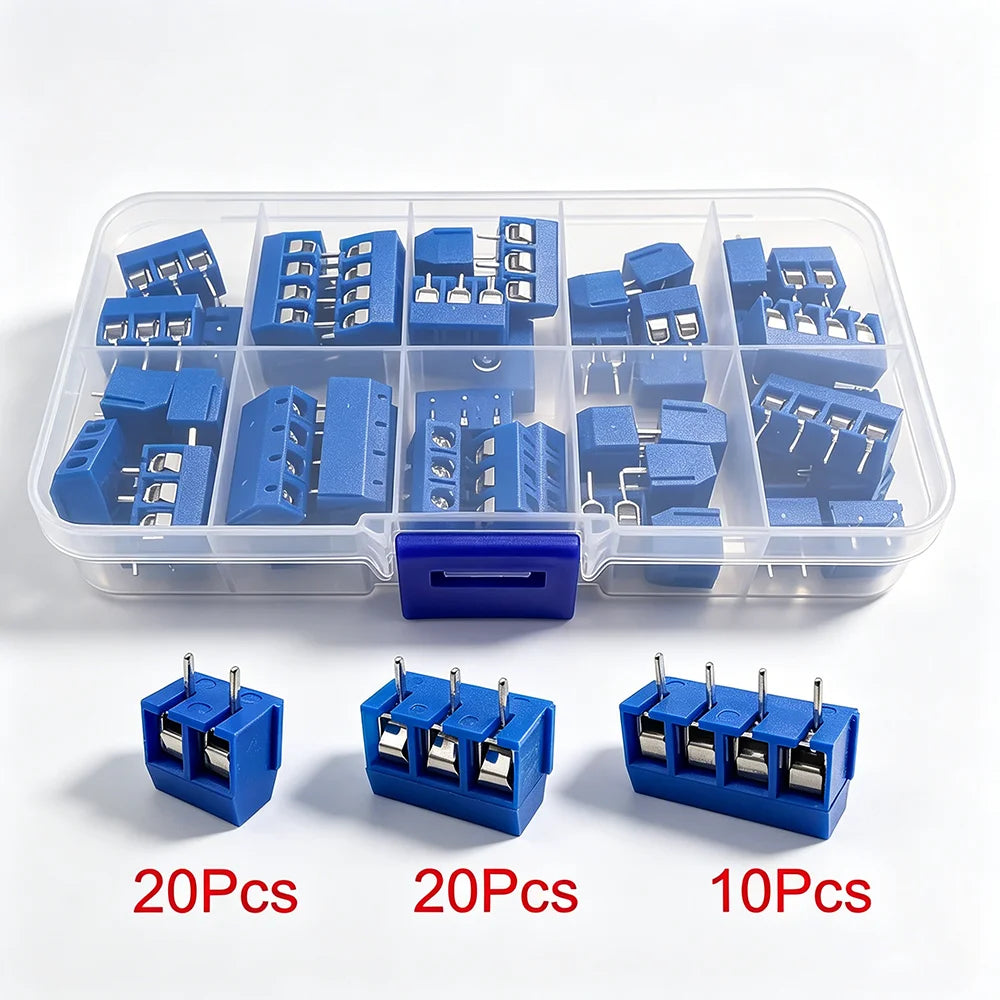

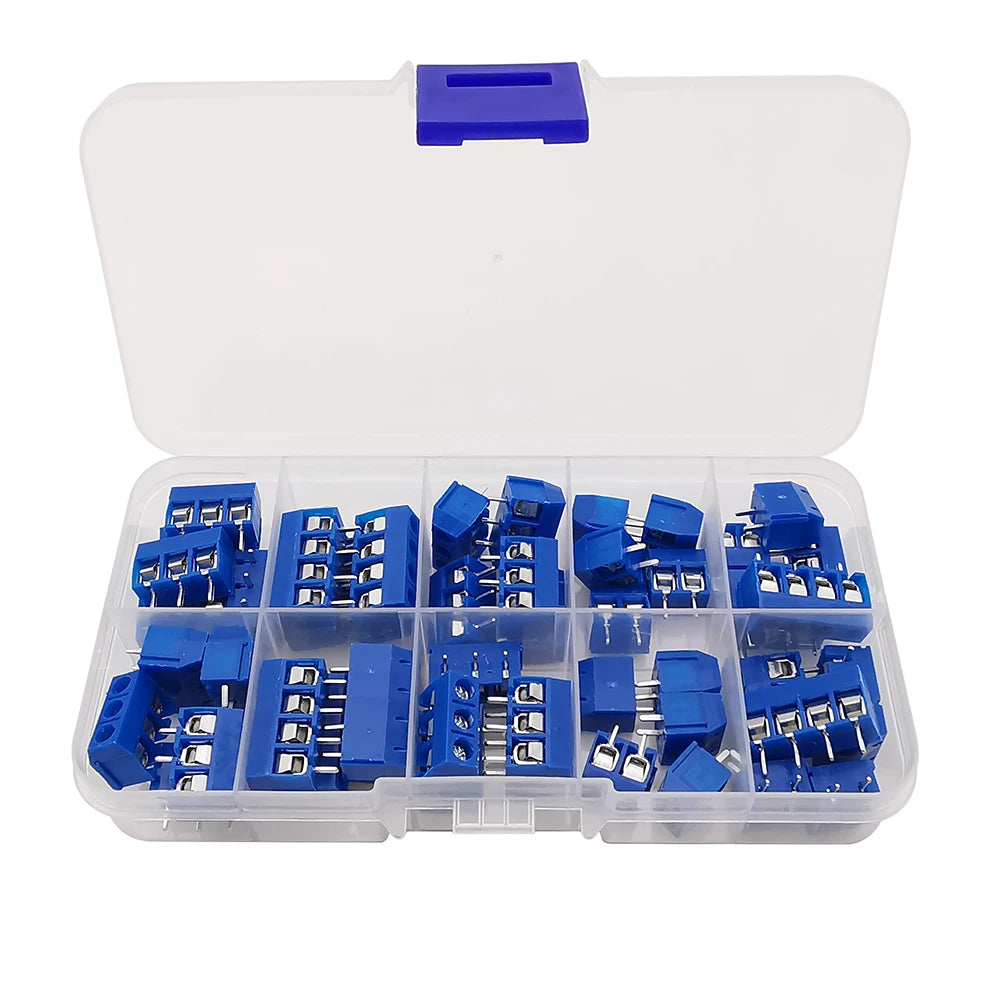

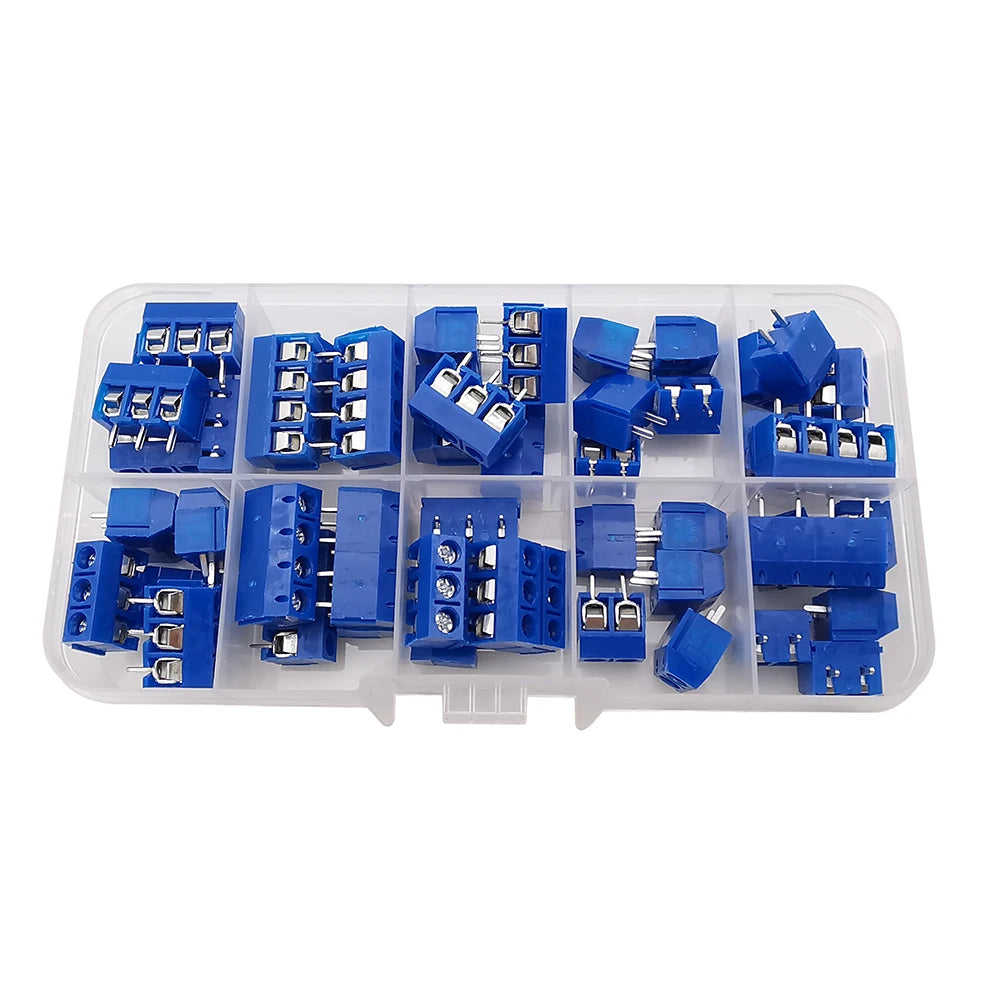

Package: 50Pcs/Box

Note:
1. Please confirm whether it is the product you need before payment.
2. Please allow ±0-2mm difference due to manual measurement.(1 inch=2.54cm)
3.
The flaws of the product in the picture may be caused by lighting, the
picture may not reflect the actual color of the product, subject to the
actual product.
