Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Material: Mixture
Origin: Mainland China
Output: Switching Transducer
Theory: Hall Sensor
Type: Magnetic Sensor
Use: MAGNETIC SENSOR
NO = Normally Open
NC = Normally Closed

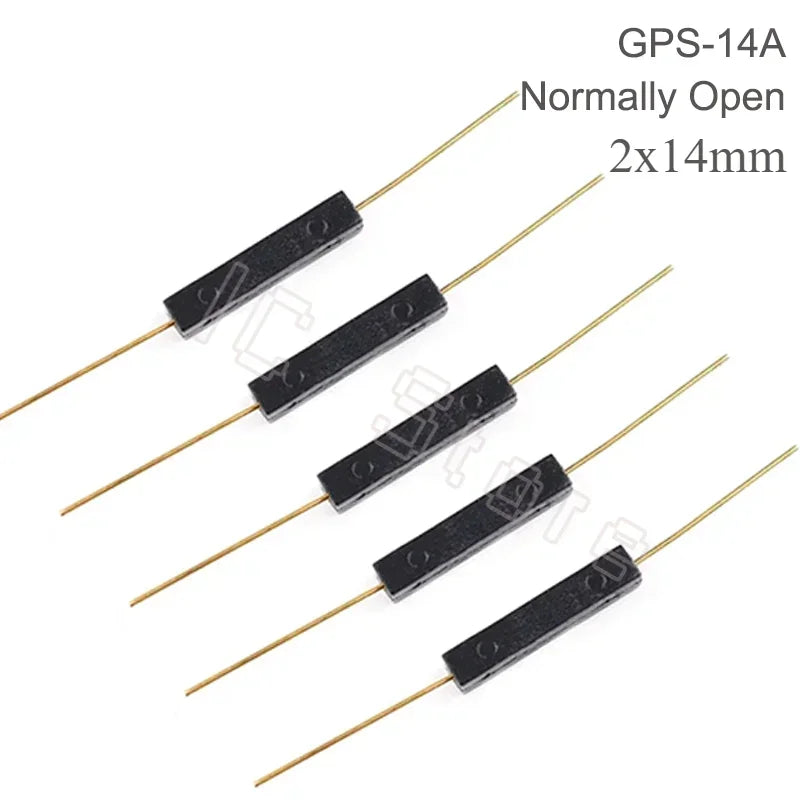

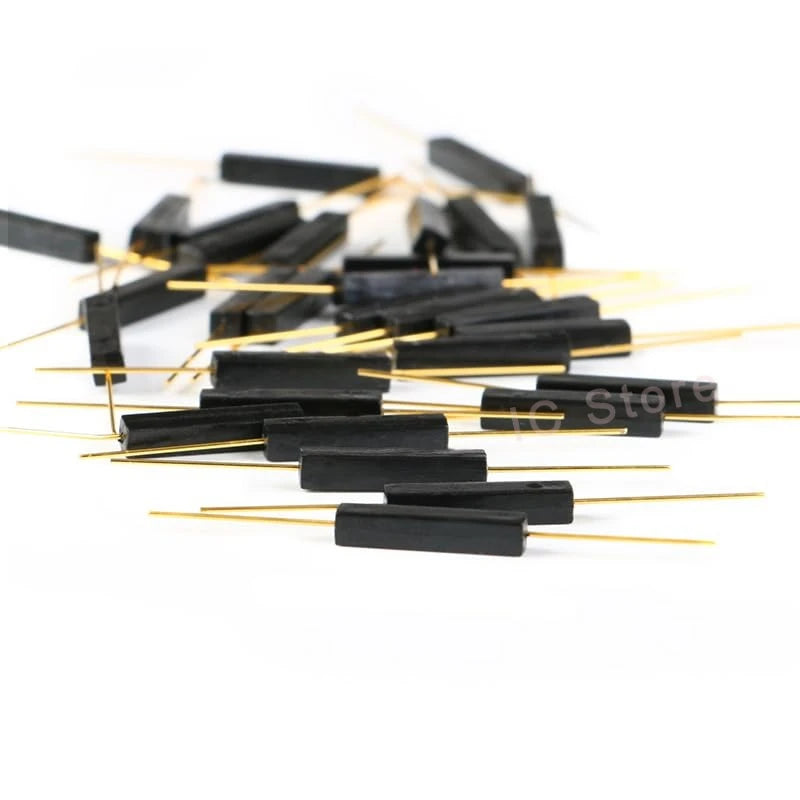

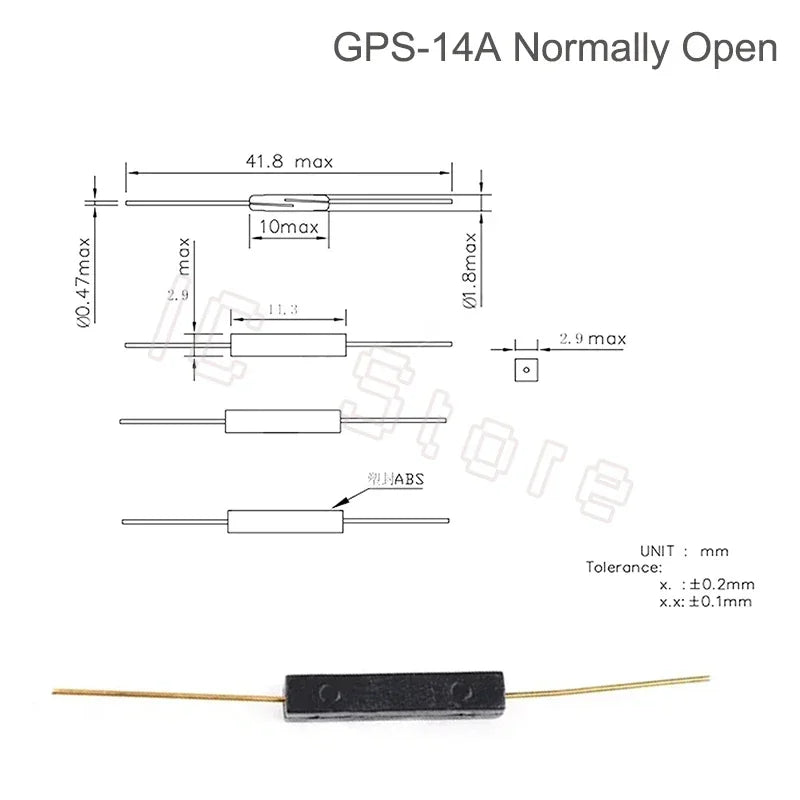

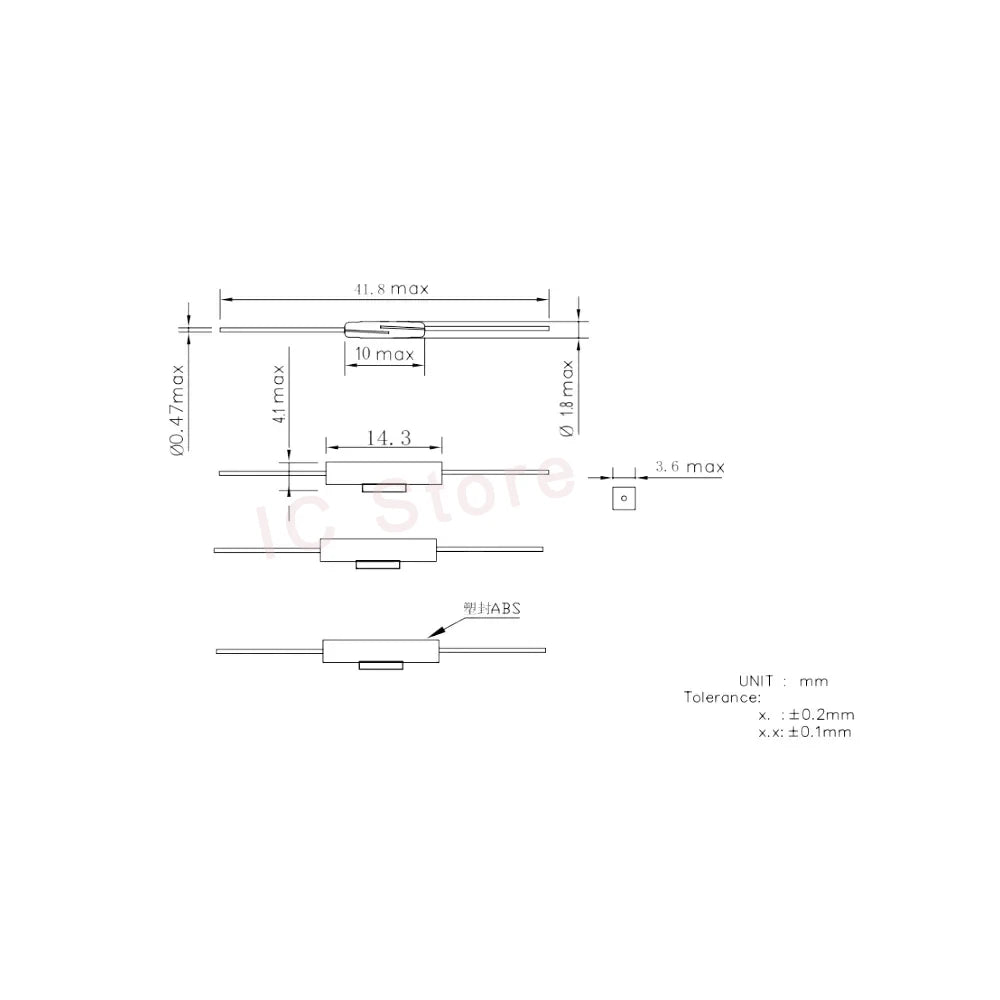

GPS-14A Normally Open（NO）2x14mm
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT<25)/250VDC(AT>25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)
Breakdown voltage min: 150V
Lead wire: Golden Horn/Silver Horn

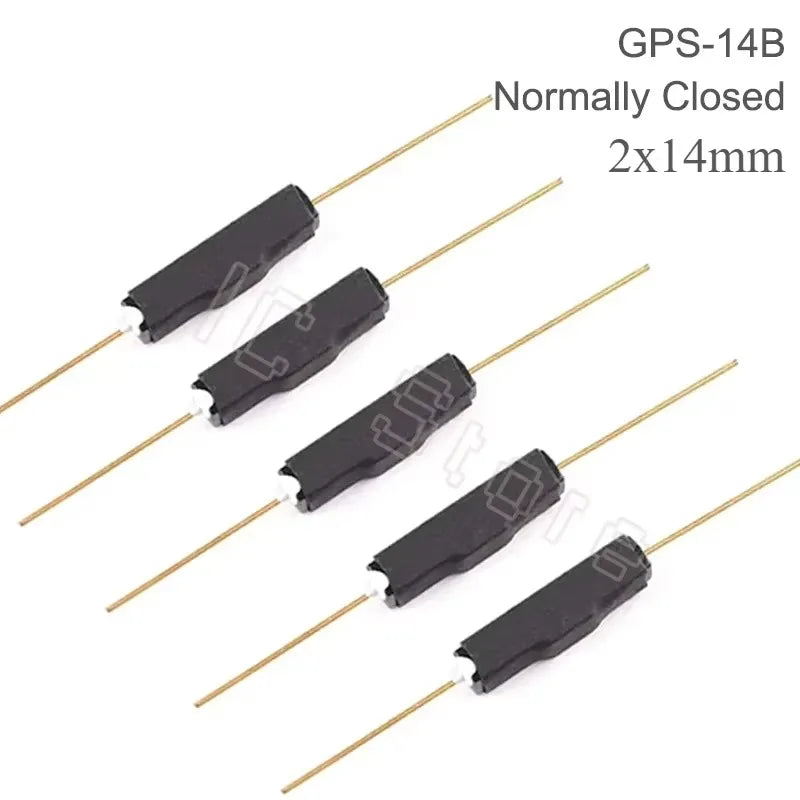

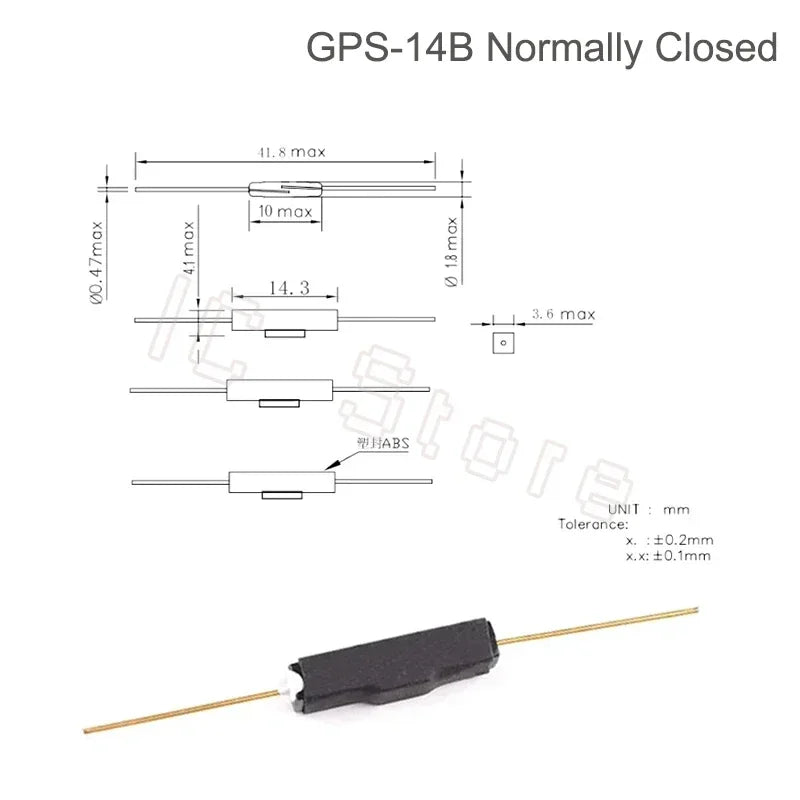

GPS-14B Normally Closed （NC）2x14mm
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT<25)/250VDC(AT>25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)

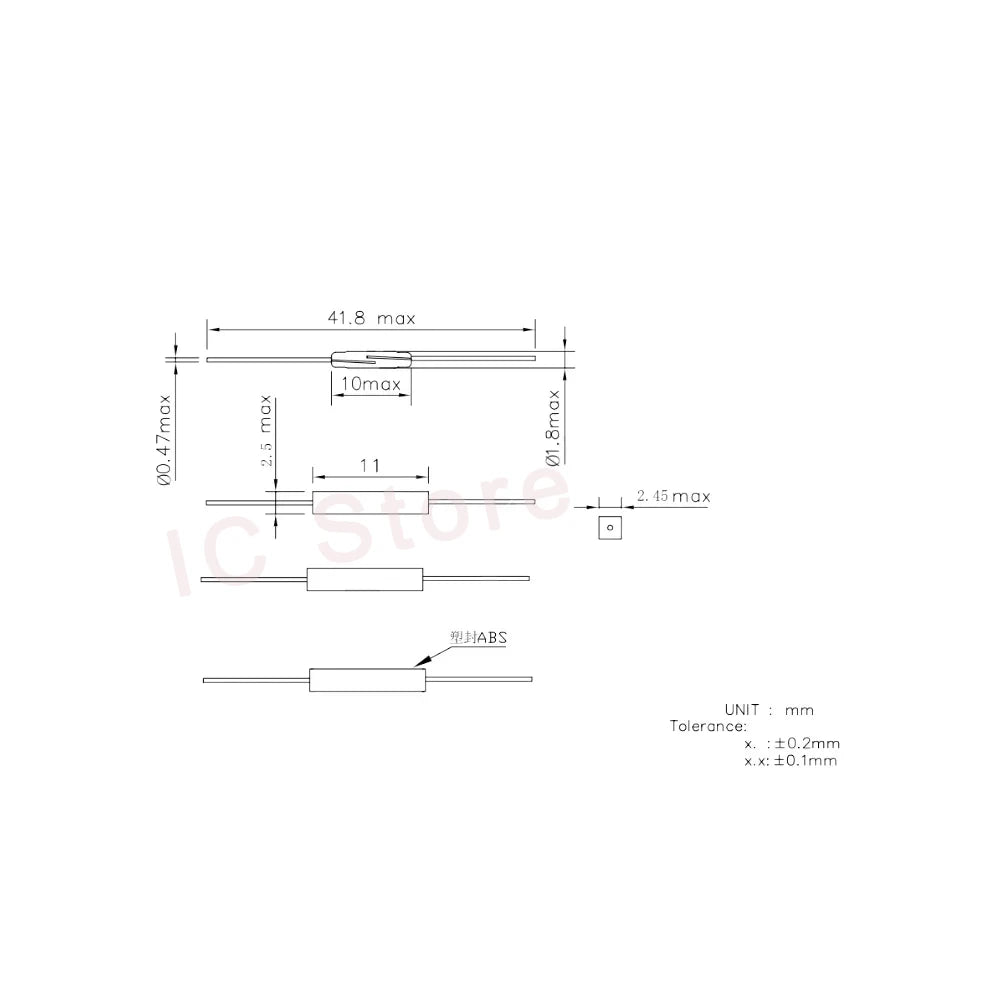

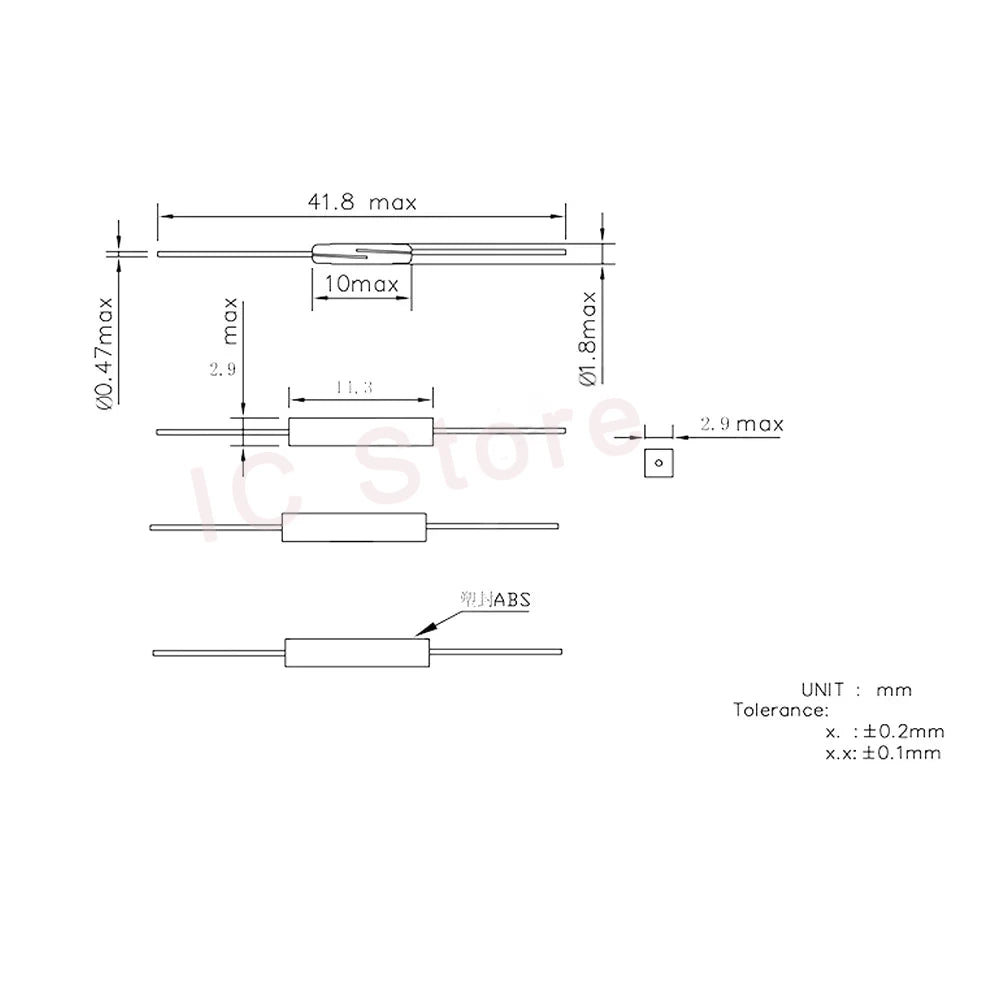

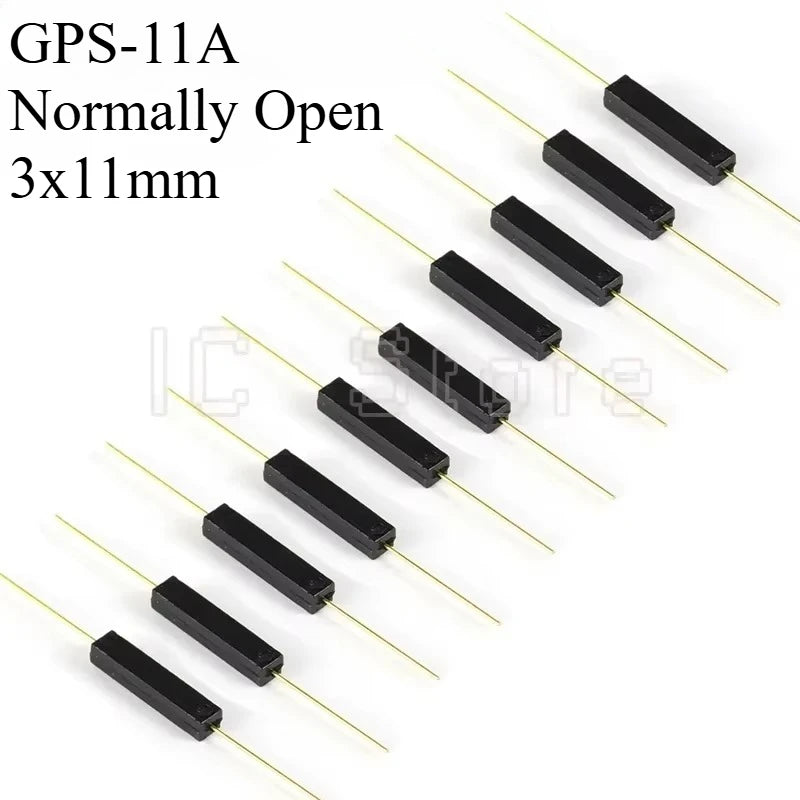

GPS-11A Normally Open （NO）3x11mm
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-35AT
Body: ABS black
Contact capacitance: 0.7PpF
Contact form: 1A (SPST-NO)
Insulation resistance: 10^10Ohms
Contact location: SYM
Resonance frequency: 4KHz
Contact material: Ru
Working temperature: -10~85℃
Contact resistance (initial): 100mOhms
Working frequency max: 100Hz
Insulation resistance min: 150Vdc
Release value: 5
High voltage resistance: 200VDC(AT<25)/250VDC(AT>25)
Action time: 1.0mSec.(Max)
Release time: 0.4mSec.(Max)
Electrical life: 10^8(5v,10mA)/10^5(24V,400mA)
Breakdown voltage min: 150V
Lead wire: Golden Horn/Silver Horn

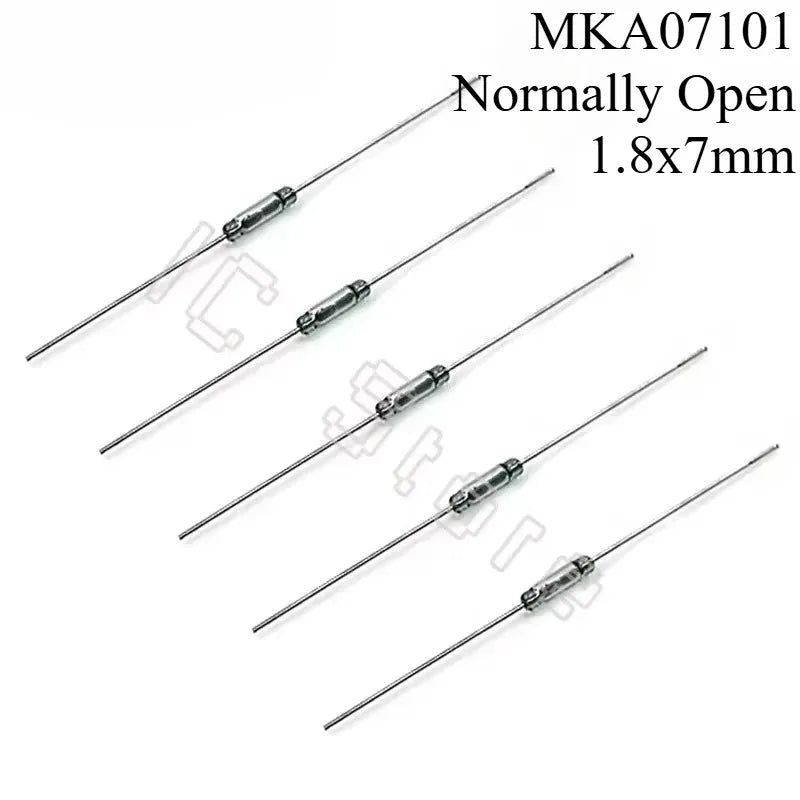

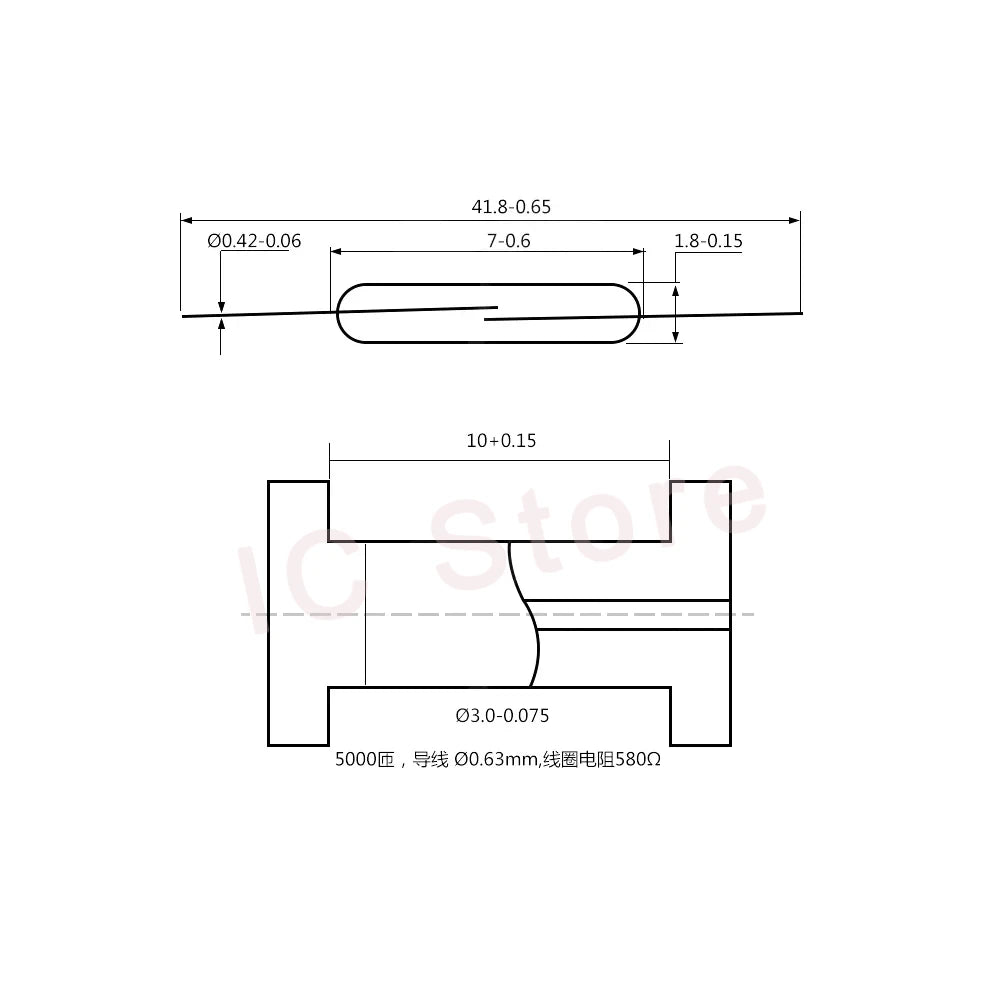

MKA-07101 Normally Open （NO）1.8*7mm
Switching current: 0.1~0.2A
Switching voltage: 100~125V
Contact load: 10W
Start value: 10-35AT
Contact method: A
Working frequency max: 400Hz
Load: 24V-250mA-106
Release time: 0.4ms
Electrical life: 5v-10mA -2*106
Bounce time: 0.2ms
Contact capacitance: 0.3pF
Action time: 0.6ms
Reset sensitivity: 5AT
Insulation resistance min: 0.6ms
Contact resistance max: 200mΩ

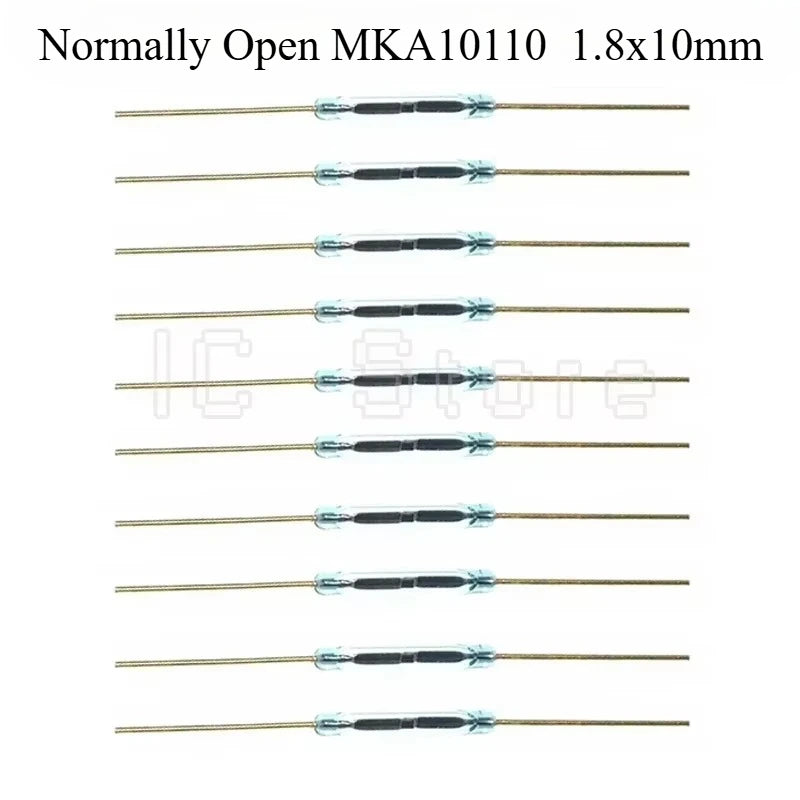

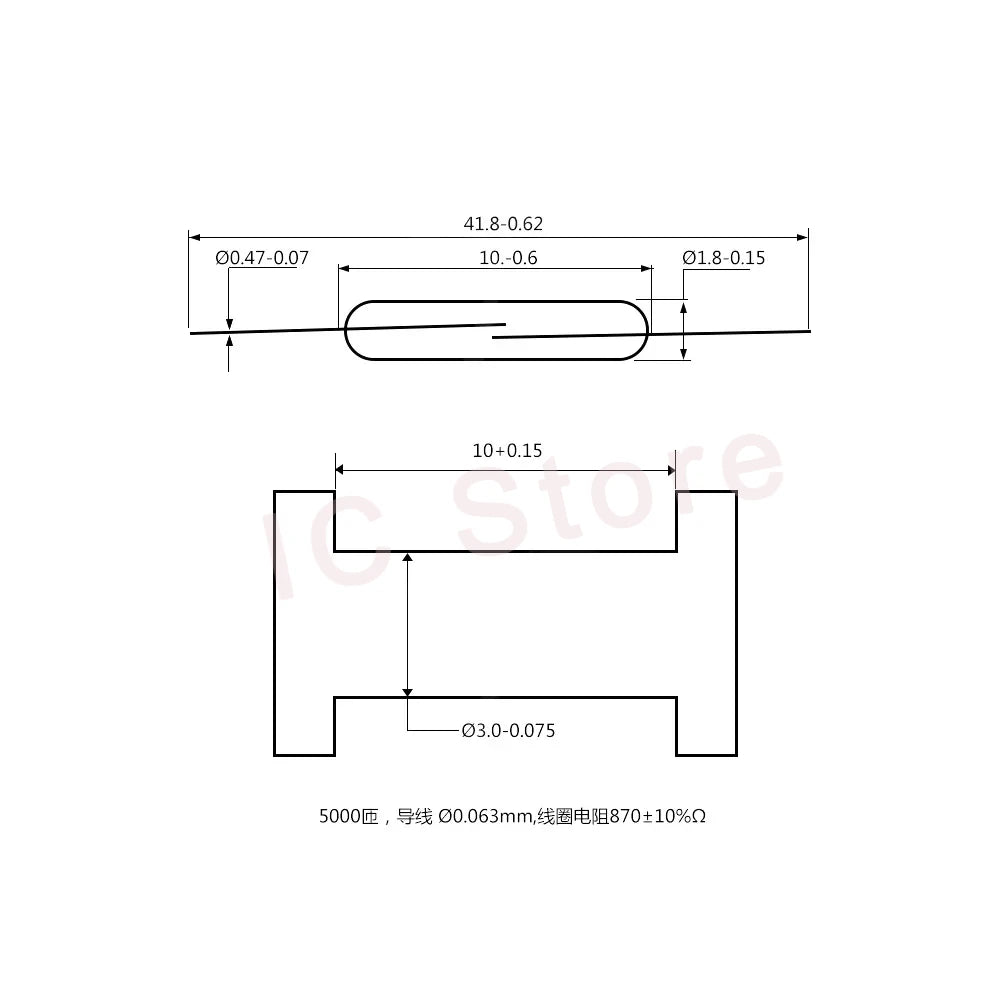

MKA-10110 Normally Open （NO）1.8x10mm
Switching current: 0.5A
Switching voltage: 100V
Contact load: 10W
Start value: 10-15AT
Contact form: IA SPST-NO
Contact resistance max: 100mΩ
Release value: 5
High voltage resistance: 220VDC (AT>5)
Contact capacitance: 0.7pF
Insulation resistance: 10^10Ω
Resonance frequency: 4KHz
Working temperature: -55℃~+120℃
Electrical life (resistive load): 10^8(5VDC,19mA,400mA)/10^5(12VDC,400mA)
MKA-14103 NO
Switching current: 0.5-1A
Switching voltage: 100-220V
Contact load: 10W
Start value: 7-35AT
Contact method: A
Resistance: 450Ω
Working frequency max: 100Hz
Response frequency: 4000HZ
Load: 24V-400mA-5X105
Release time: 0.4ms
Electrical life: 5v-10mA -1x108
Bounce time: 0.2ms
Contact capacitance: 0.3pF
Action time: 1.0ms
Reset sensitivity: 5AT
Insulation resistance min: 1010Ω
Contact resistance max: 100mΩ

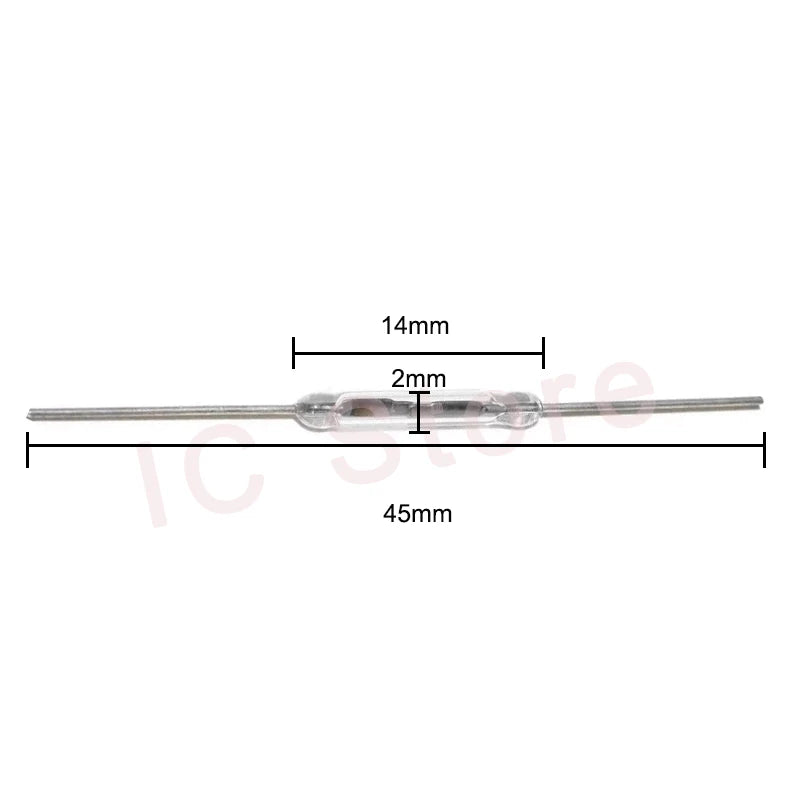

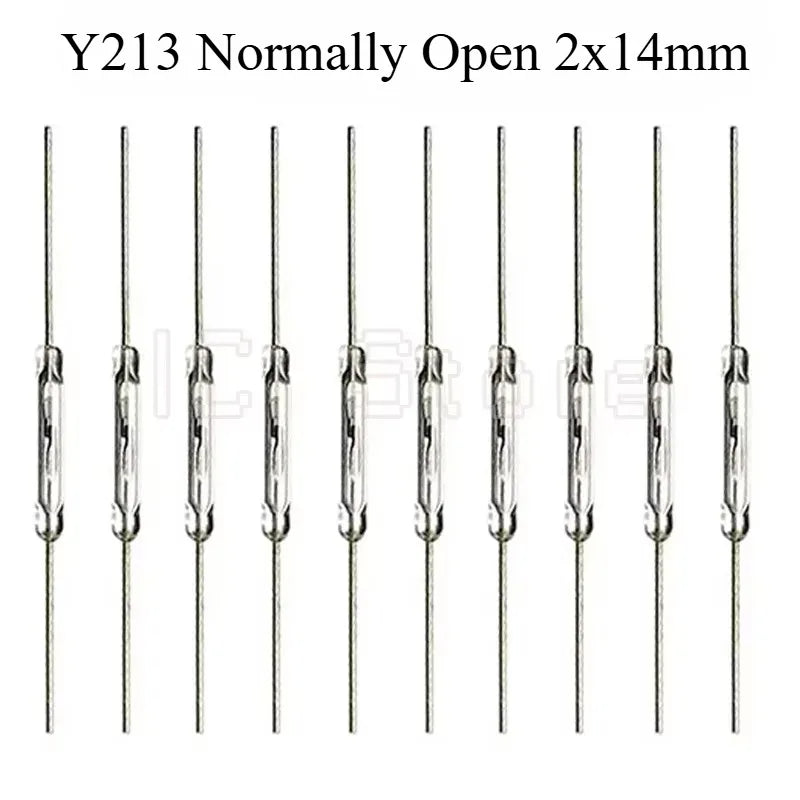

Y213 Normally Open （NO）2x14mm
| Glass Length | 14mm |
| Glass Diameter | 2mm |
| Total Length | 45mm |
| Contact Form | A |
| Max. Switching Voltage | 300 VDC |
| Min. Breakdown Voltage | 150 VDC |
| Max. Contact Rating | 10W |
| Max. Switching Current | 0.55 A |
| Max. Operate time | 0.45 ms |
| Bounce time | 0.25 ms |
| Max. Release time | 0.35 ms |
| Resonant Frequency | 5000 HZ |
| Max. Operating Frequency | 400 HZ |
| Pull in Value | 20-70 AT |
| Min. Drop out Value | 4 AT |
| Max. Contact Capacitance | 0.5 pF |
| Electrical Life | 50mV-10μA-1x106 |

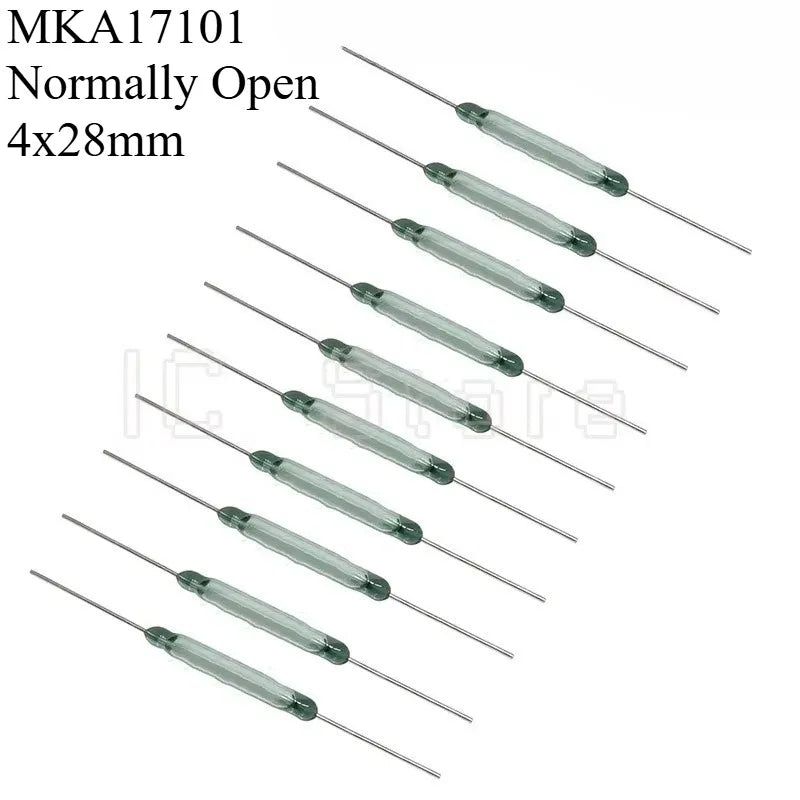

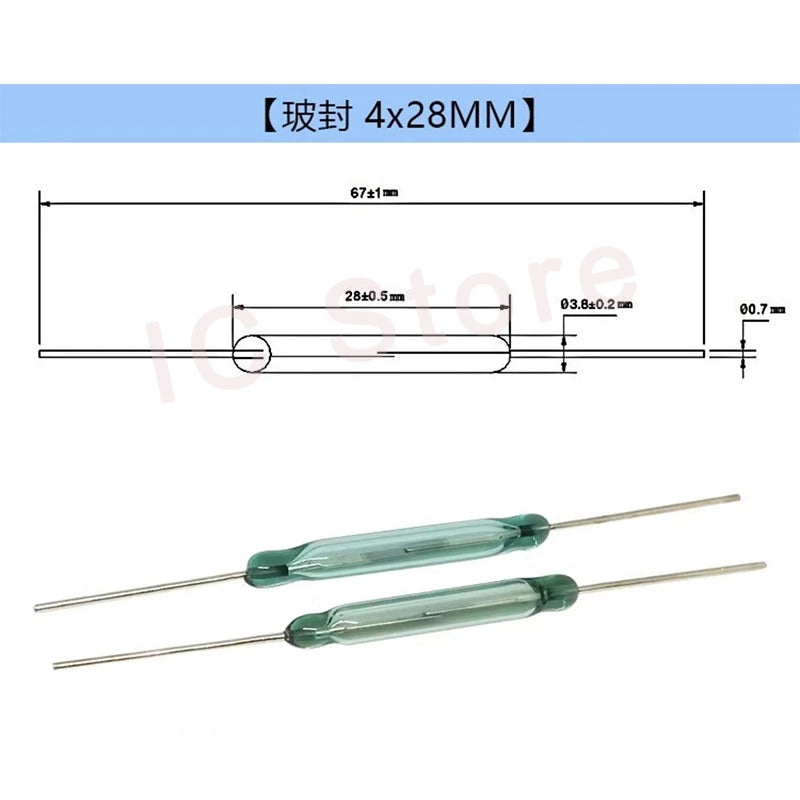

MKA17101 Normally Open （NO）4x28mm
Contact method: A
Load current Max: 2.5A
Contact resistance Max: 200mohm
Insulation resistance Min: 10ohm
Electrical life: 30V-100mA-2*10/60V-200mA-10
Response frequency: 2200Hz
Operating frequency Max: 50Hz
Contact Capacitance Max: 2.0/1.0PF
Test coil turns: 5000T
Resistance: 450 ohm
Switching current: 1.0A
Switch Voltage: 200~350V
Max contact Rating: 30W
Pull in Value: 45~90AT

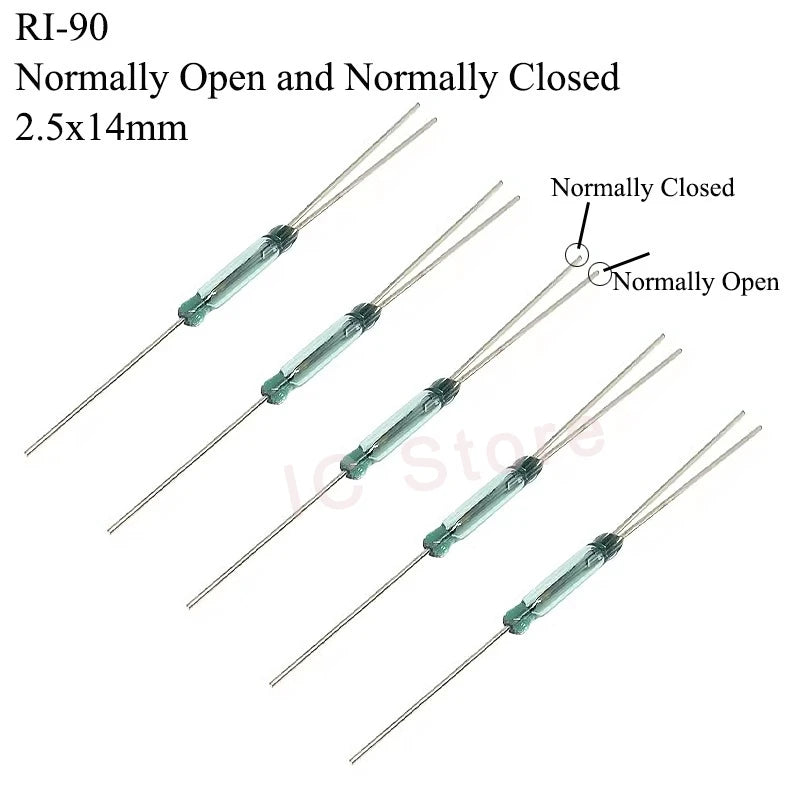

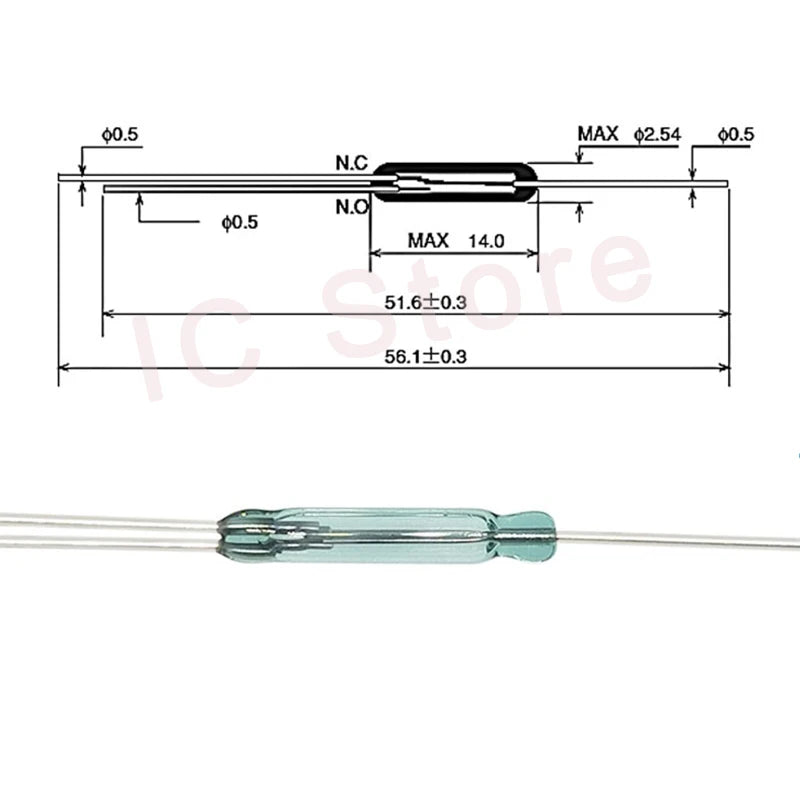

RI-90 Normally Open and Normally Closed （NO NC）2.5x14mm
Contact Method：A
Maximum Power：4W
Maximum Switch Voltage：60VDC/VAC
Withstand High Voltage：60VDC/VAC
Maximum Switch Current：0.25A
Maximum Load Current：0.5A
Maximum Contact Resistance：115M
Minimum Insulation Resistance 2x107 / 2x109
Action Time：0.25ms
Bounce Time：0.05ms
Response Frequency：3000Hz
Sensitivity Value：10~20AT
Minimum Reset Sensitivity Value：5FT
Maximum Contact Capacitance：2.0PF
Electrical Lifespan (Load)：5x106 (50mV, 10mA)
Test Coil Number/Resistance：5000/600 Ohm
