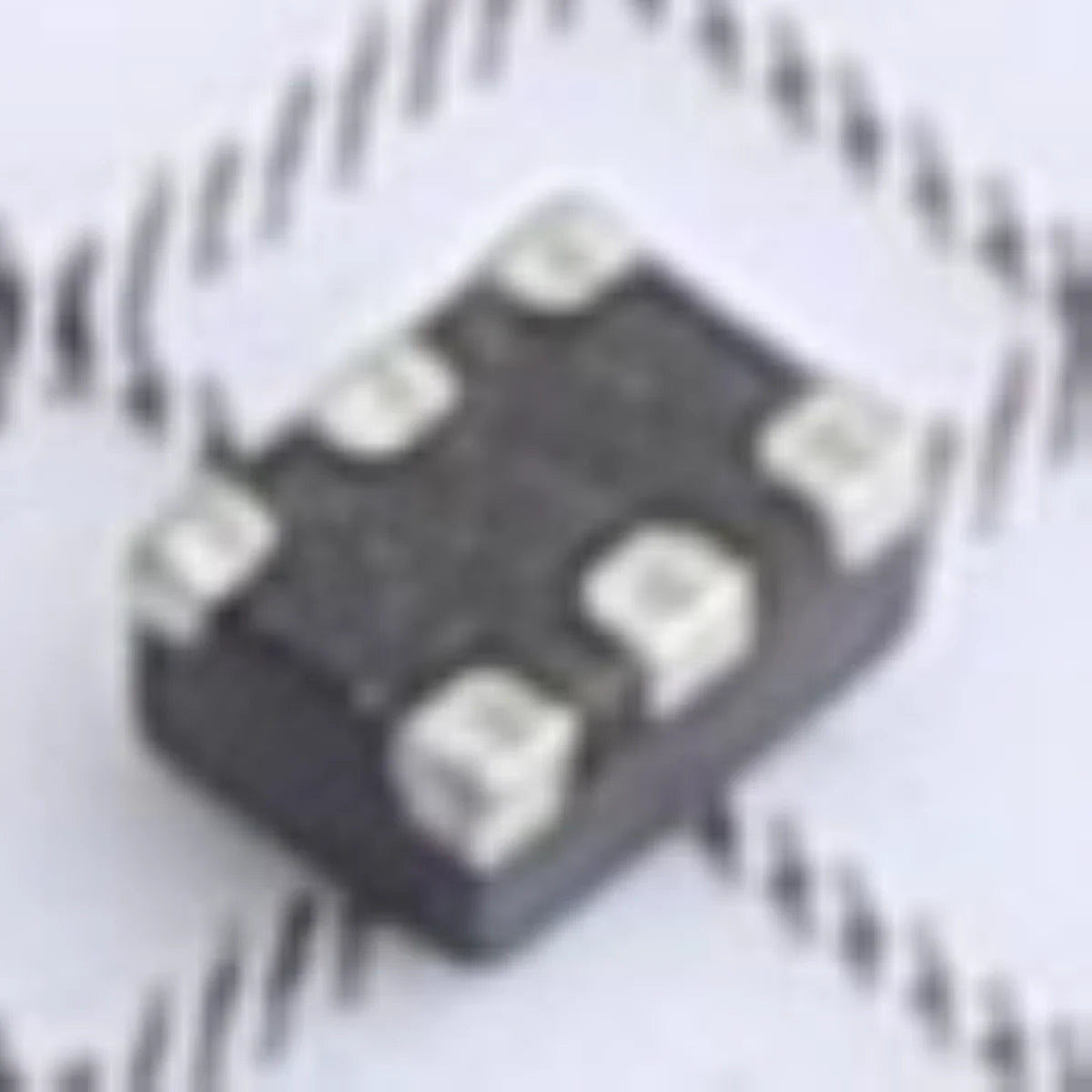

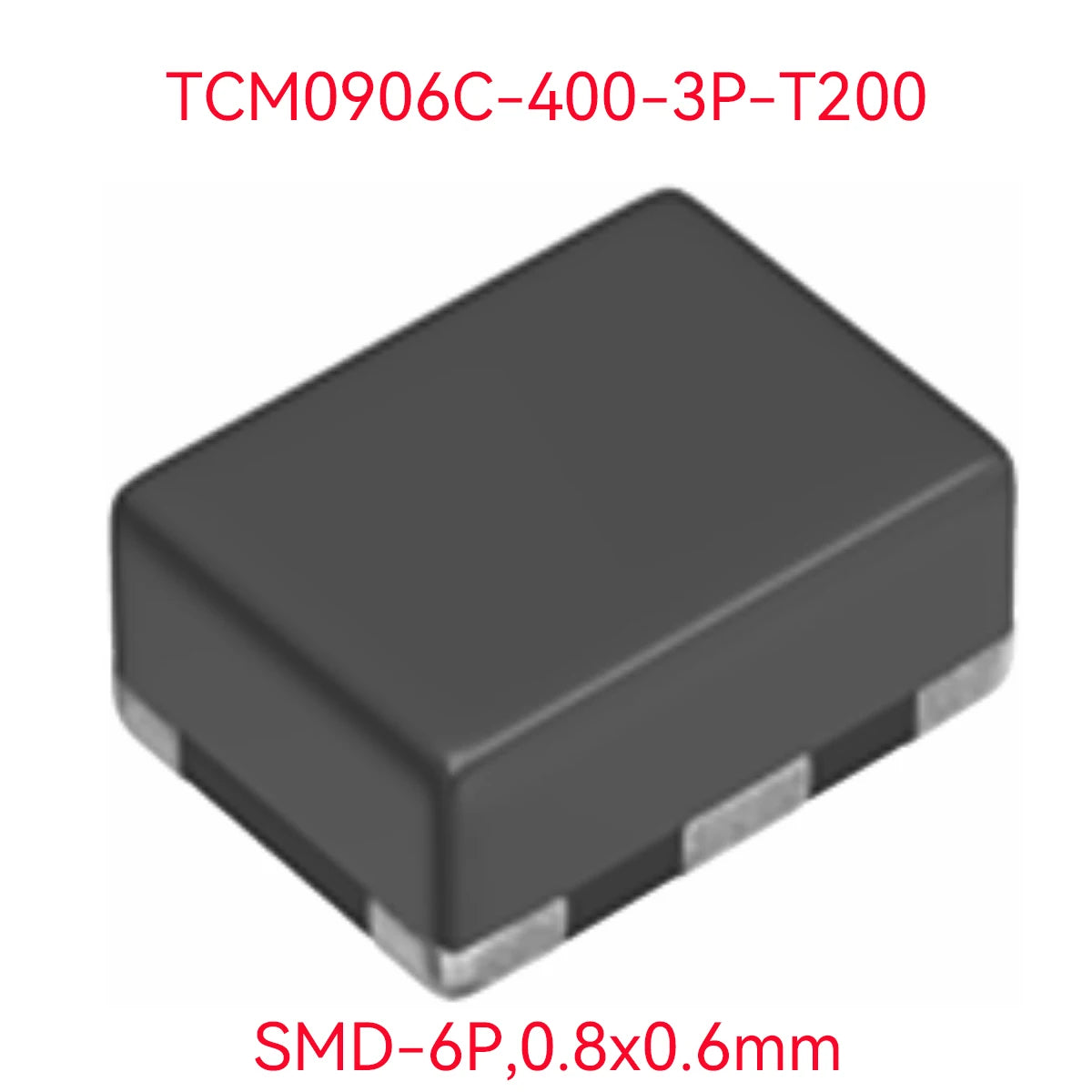

50PCS original TCM0906C common mode filter 40Ω @ 100MHz 5V 100mA SMD-6P, 0.8x0.6mm TCM0906C-400-3PT-200 400 CMC 100MA 3LN 40OHM
$55.58
Sale price
$55.58
Regular price
$0.00
Description

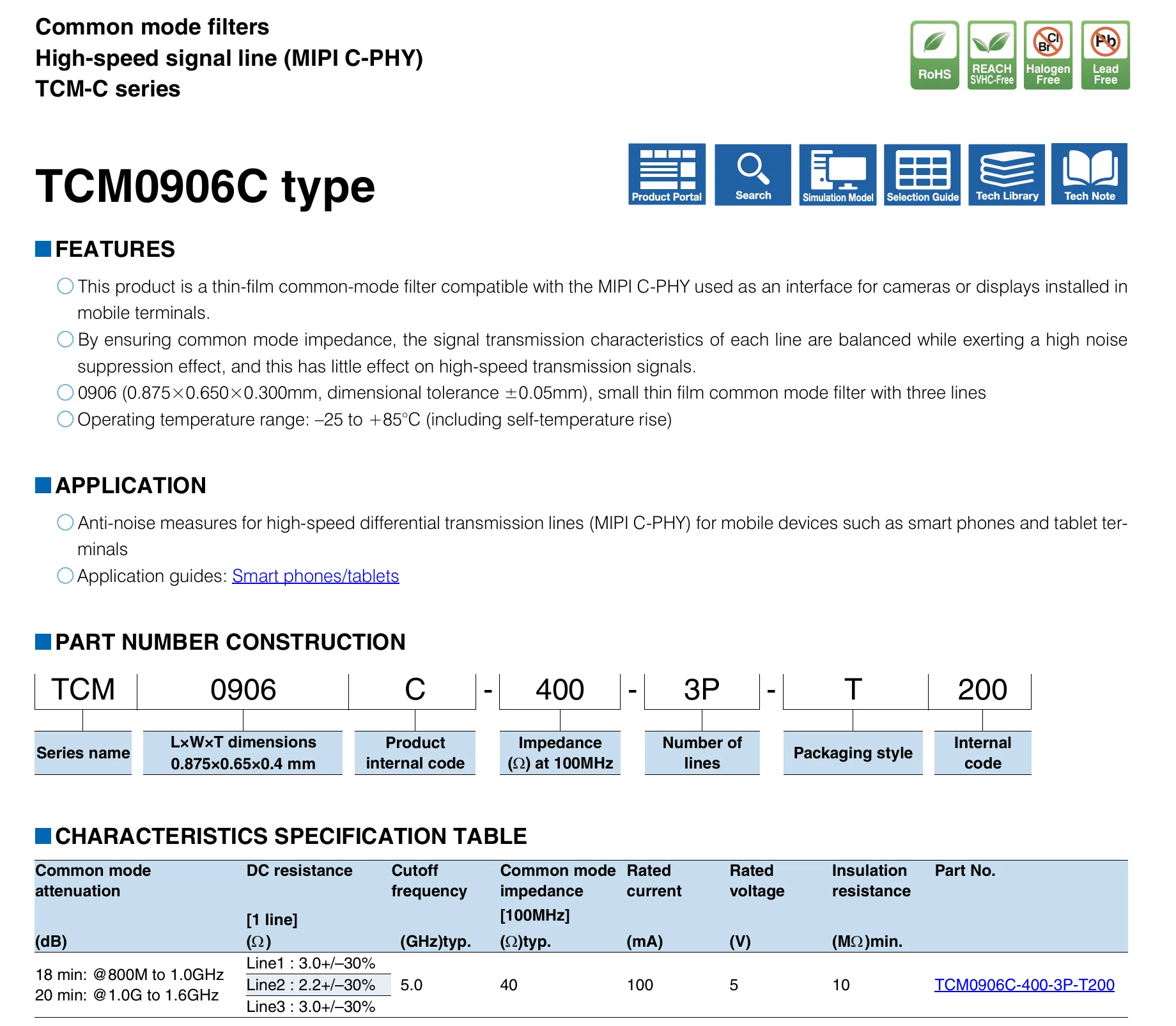

SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Model Number: TCM0906C-400-3P-T200
Origin: Mainland China
Package Type: Surface mount
Type: COMMON MODE FILTER
is_customized: Yes
If you need other products, please contact us
Model marking; attribute parameter
-----------------------------------------------------
Filter type signal line
Number of lines 3

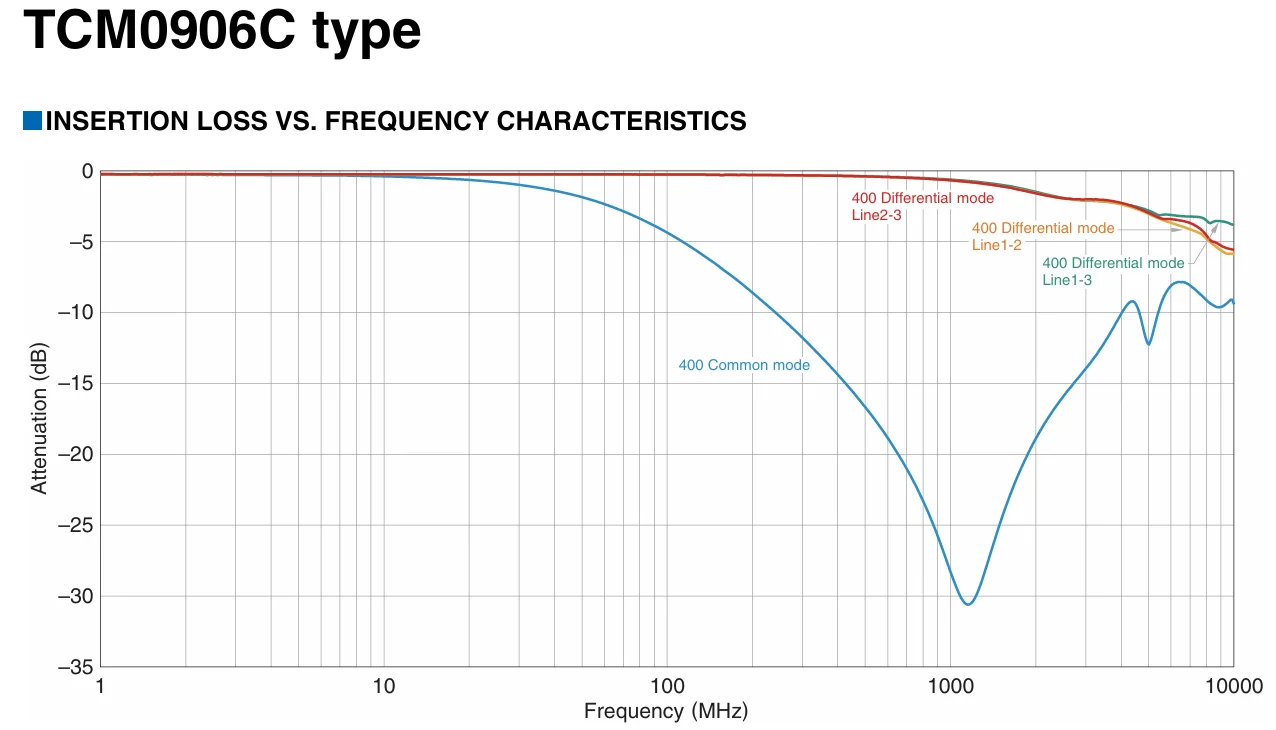

Impedance at different frequencies 40 Ohms @ 100MHz
Rated current (maximum) 100mA
DC resistance (DCR) (maximum) 3 ohms
Rated voltage - DC 5V
Working temperature -25 ° C~85 ° C
Installation type: Surface mount type

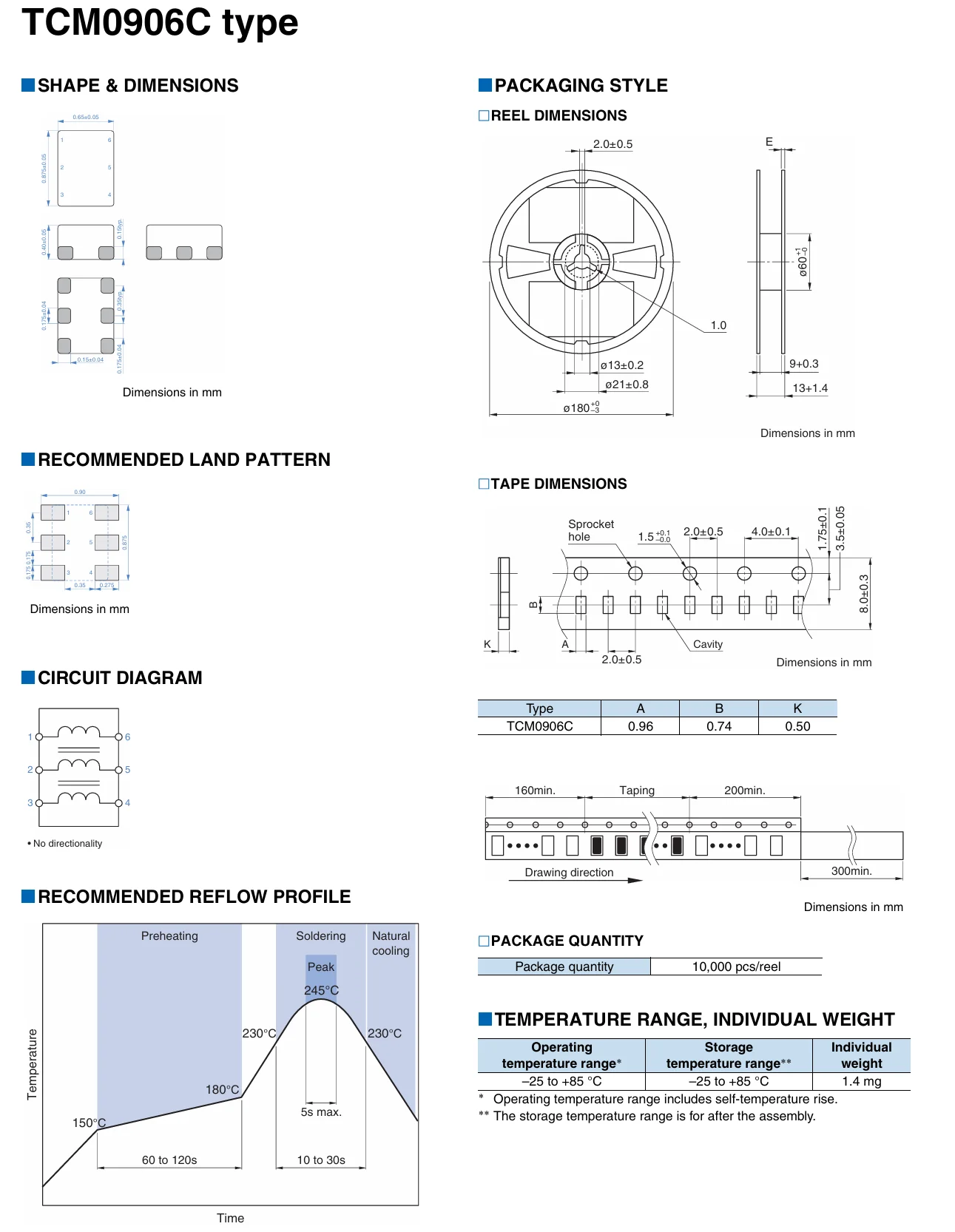

Size/Dimensions 0.034 "long x 0.026" wide (0.86mm x 0.66mm)
Height (maximum) 0.018 "(0.45mm)
Package/shell 0302 (0806 metric), 6-lead
