SPECIFICATIONS

Application Range: DIY Electronics, LED Strip Connection, Home Appliances

Assembly Type: Quick Fit Connector

Brand Name: VAOHM

Connector Design: Male Plug and Female Socket

Connector Feature: High-Quality Soldering Capability

Connector Pitch: 2.54mm PCB Connector

Connector Type: PCB Mounting Connector

Current Capacity: 3A Electrical Load

High-concerned chemical: none

Material: Heat-Resistant Nylon, Brass Contacts

Model Number: XH2.54 terminal

Origin: Mainland China

Pin Variants: 2-Pin, 3-Pin, 4-Pin Options

Temperature Tolerance: Operates from -25°C to +85°C

Usage: Electrical Prototyping Connector

Voltage: 220 V

Voltage Support: 250V Wire Connector

Product Overview

The XH2.54mm 2P/3P/4P Pin Header Connector Set is designed to provide reliable wire-to-board connections for a wide range of electronics applications. This set includes male plug connectors, female socket connectors, and PCB terminal connectors, making it a versatile solution for projects like prototyping, consumer electronics, automotive systems, and LED lighting.

Key Features

• Standard 2.54mm Pitch: Compatible with most wire-to-board connections in electronics projects.

• Multiple Pin Options: Comes with 2P/3P/4P configurations to meet diverse needs.

• High-Quality Build: Constructed with durable plastic shells and metal contacts.

• Easy Installation: Assembles quickly, providing a secure fit on PCBs and wire terminals.

• Versatile Applications: Suitable for prototyping, consumer electronics, automotive systems, and LED lighting projects.

Variants Included

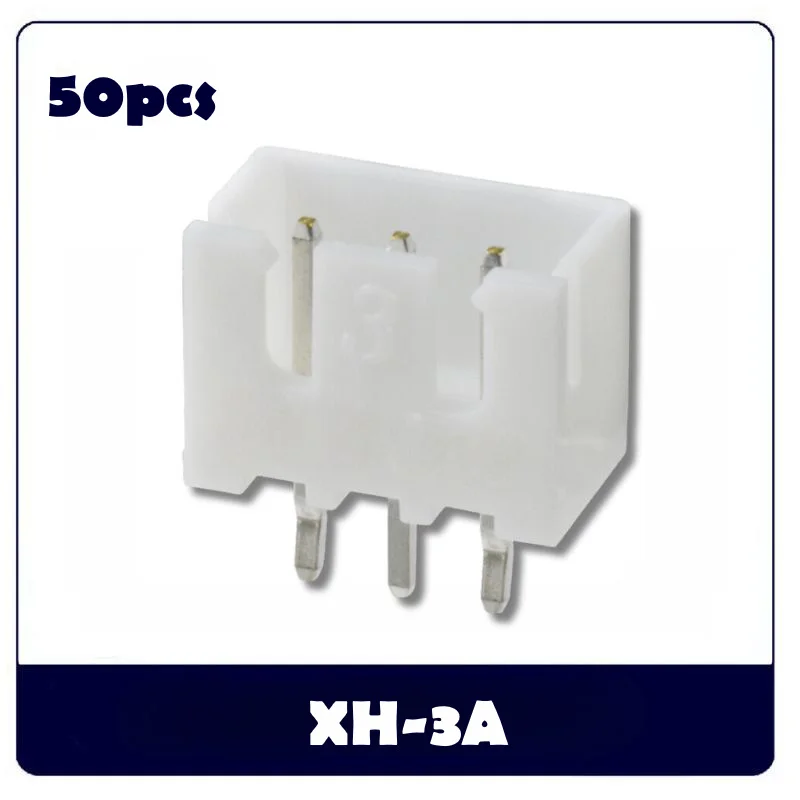

• XH-2A, XH-3A, XH-4A: Standard connectors for general use.

• XH-2Y, XH-3Y, XH-4Y: Special pin configurations for custom setups.

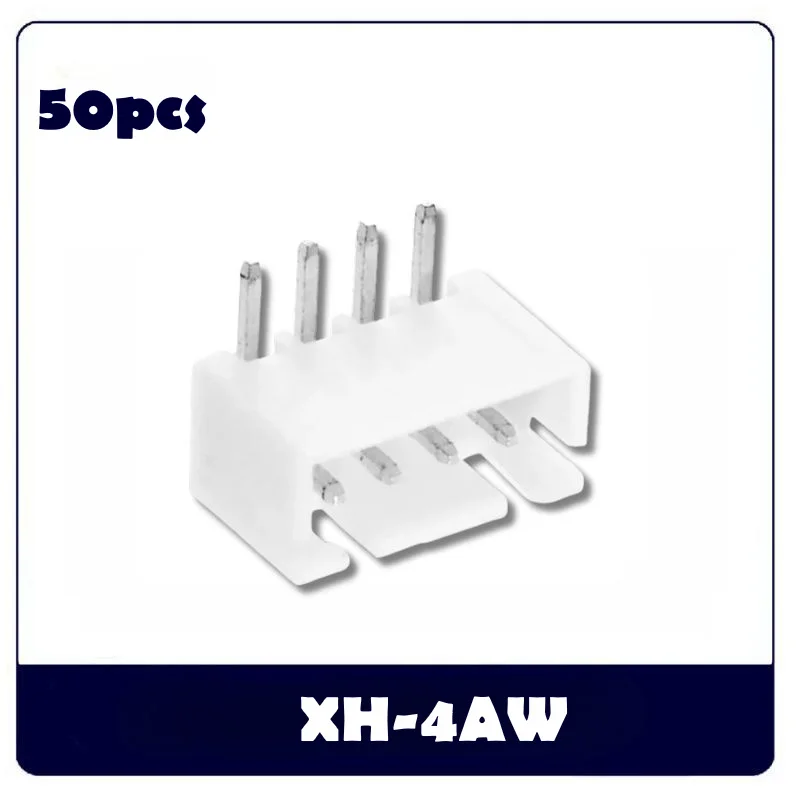

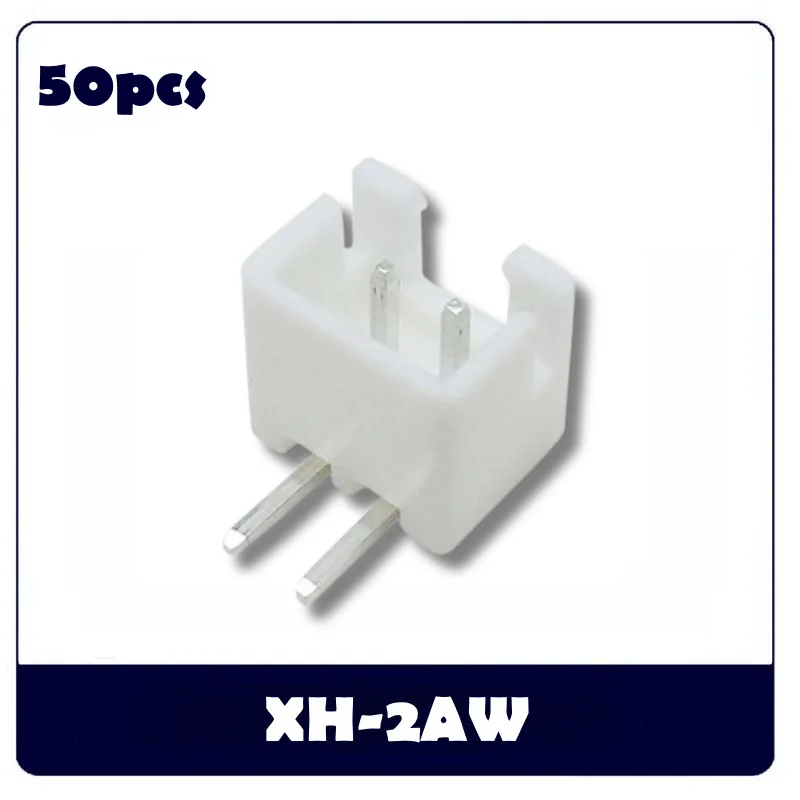

• XH-2AW, XH-3AW, XH-4AW: Enhanced locking mechanisms for secure connections in vibrating environments.

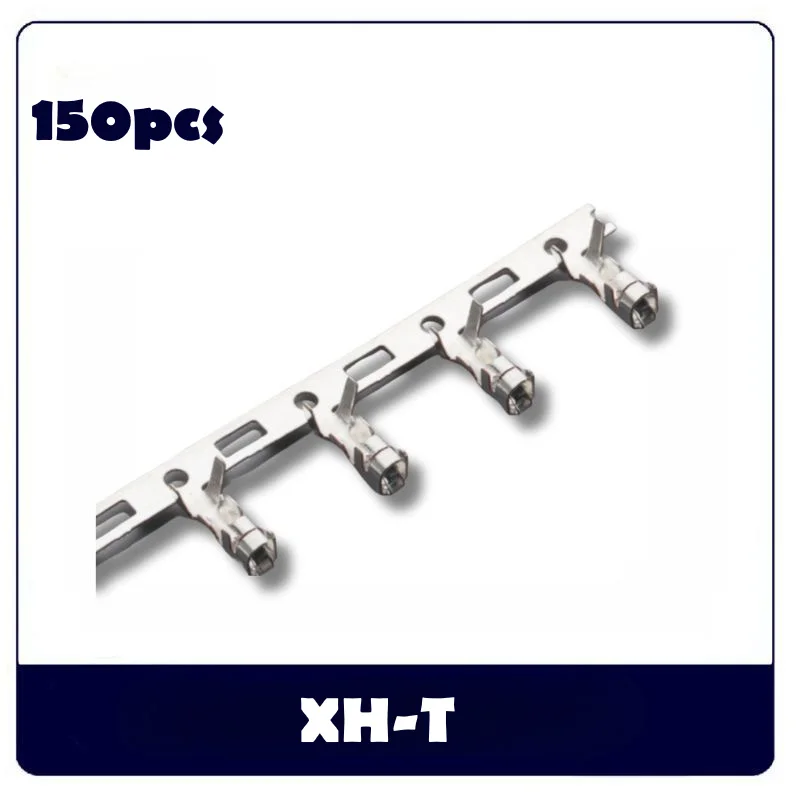

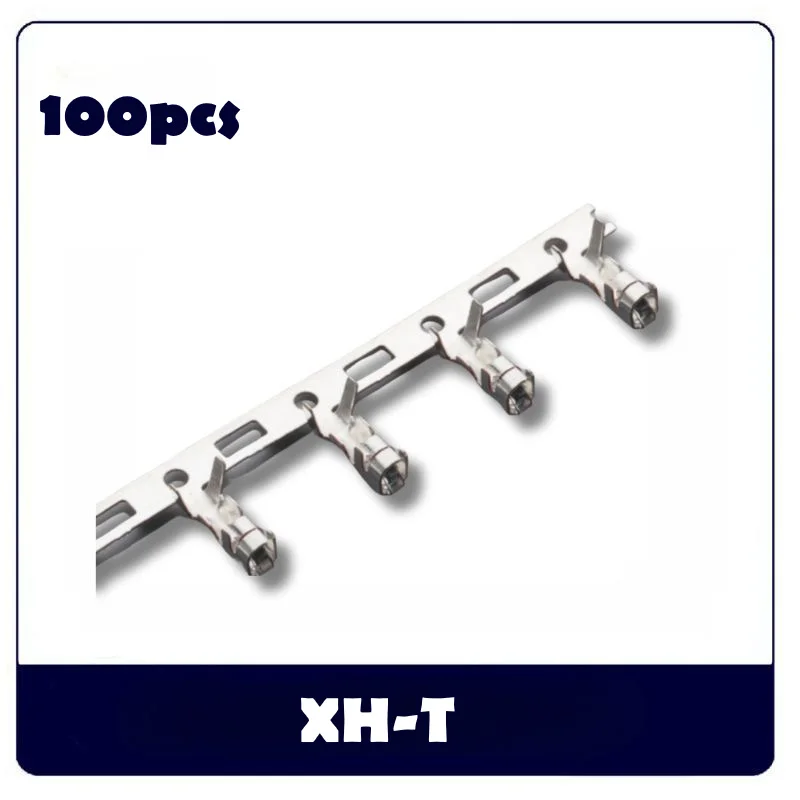

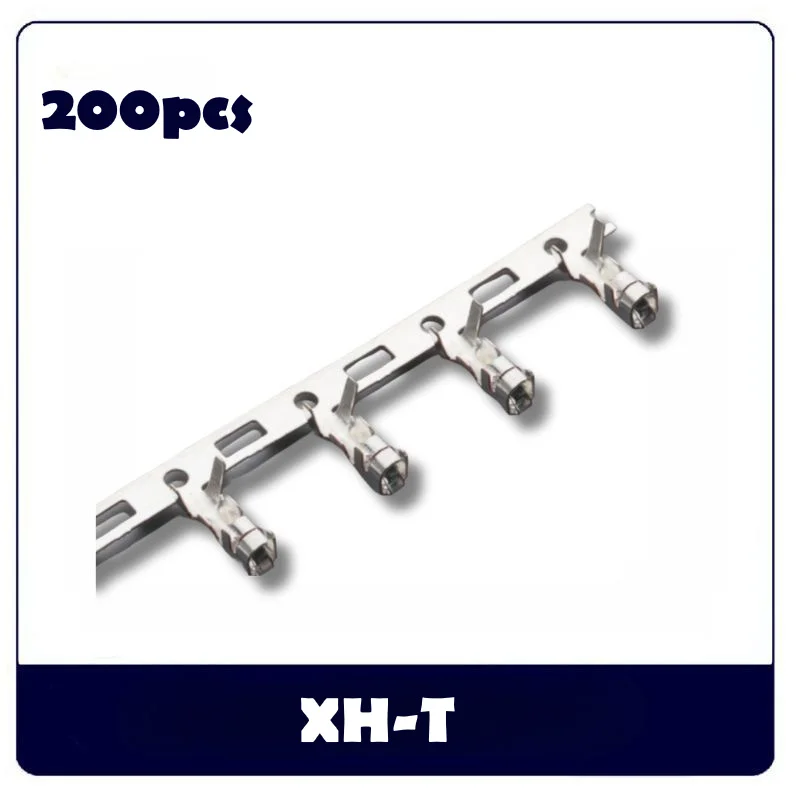

• XH-T: Longer solder tails for improved PCB attachment.

Applications

• Consumer Electronics: Ideal for connecting wires to PCBs in devices like TVs, audio systems, and home appliances.

• Automotive Electronics: Ensures stable connections for sensors, control units, and wiring harnesses.

• LED Lighting: Perfect for connecting LED strips, drivers, and lighting systems.

• DIY Projects: Widely used in hobby electronics, prototyping, and custom builds.
