SPECIFICATIONS

**Product Introduction**

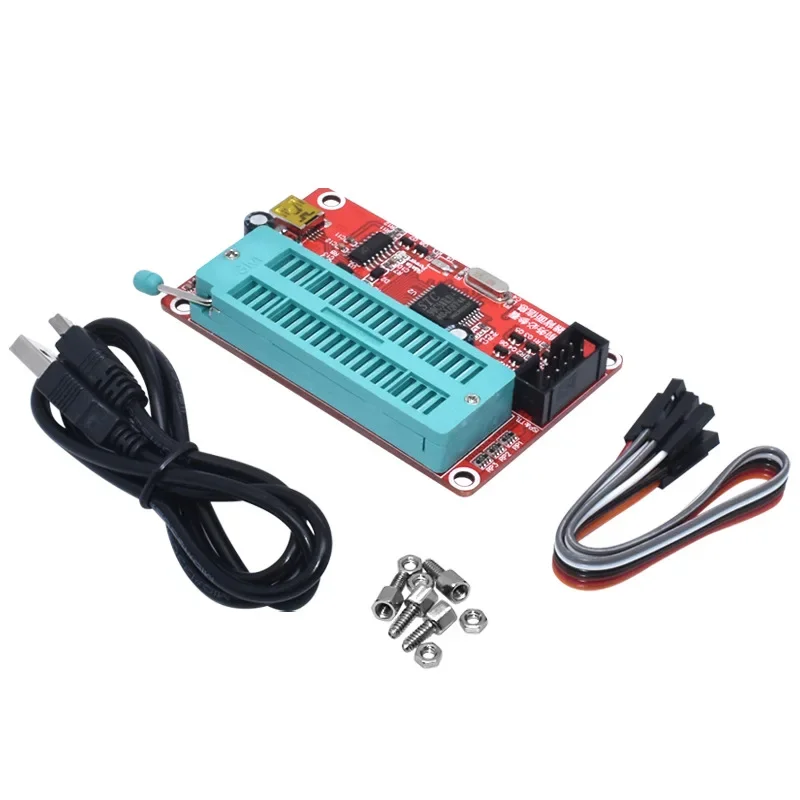

The SP200S programmer is an upgraded version based on the popular SP180S programmer. It features a redesigned USB interface for communication and power supply, with a compact size and mature hardware and software design. It offers comprehensive functionality and is currently the only free programmer equipped with professional programming control software. It supports commonly used MCS51 series microcontrollers, as well as 24-series and 93-series serial memory chips from manufacturers such as ATMEL, MICROCHIP, and ST. The enhanced version also includes a standard ISP download interface, enabling in-system programming (ISP) for ATMEL's MCS51 and AVR series microcontrollers. The SP200S programmer not only meets the needs of microcontroller enthusiasts and developers for learning and working with 51 and AVR microcontrollers but is also ideal for home appliance repair technicians to program 93-series and 24-series EEPROMs.

**Product Features**

1. Supports USB 1.1 or USB 2.0 communication.

2. Fully compatible with Windows 98, ME, 2000, XP, Vista, and 7 operating systems.

3. Supports 336 models of microcontrollers and EEPROMs from manufacturers including Atmel, Microchip, SST, ST, and Winbond.

4. Powered via USB, integrating data and power transmission for convenient use with laptops.

5. The ISP interface adopts Atmel’s standard IDC 10-pin connector.

6. The finished product is packaged in an anti-static sealed bag to ensure the board remains undamaged before use.
7. The premium SP200SE programmer features the SP200SE software interface.

### **Hardware Features**

- Compact and portable design.

- USB interface for both communication and power supply—fast data transfer with no external power required.

- Single 40-pin ZIF socket, compatible with 8-pin, 20-pin, and 40-pin chips.

- Built-in CPU ensures fast programming speed and precise timing, unaffected by PC performance.

- Powerful and easy to operate—no manual hardware configuration needed.

- Supports MCS51 series microcontrollers and 24/93 series serial EEPROMs.

- Supports in-system programming (ISP) for MCS51 and AVR series microcontrollers (enhanced version only).

### **Software Features**

- User-friendly, professional-grade interface with full functionality.

- Advanced buffer editing: supports copy, fill, logical operations, and 8-bit/16-bit data display.

- Simplified Chinese user interface.

- Compatible with Windows 98SE/ME/2000/XP and later.

- Low system requirements with stable performance.

- Comprehensive programming commands: Program, Read, Erase, Blank Check, Verify, Lock Bit Write, Fuse Bit Read/Write, Configuration Bit Read/Write, etc.

- Statistics function: automatically tracks successful and failed programming attempts.

- Auto-increment serial number feature for writing unique product IDs.

- Supports automated programming (batch processing) with customizable operations.

- Recent file list for quick loading of previously used files.

- Recent device list for fast switching between recently used chips.
- Auto-reload on file changes, ideal for rapid firmware updates during development.
