SPECIFICATIONS

[Description]

Super6C stands for Super 6 pcs CM4 Computer module's Cluster.

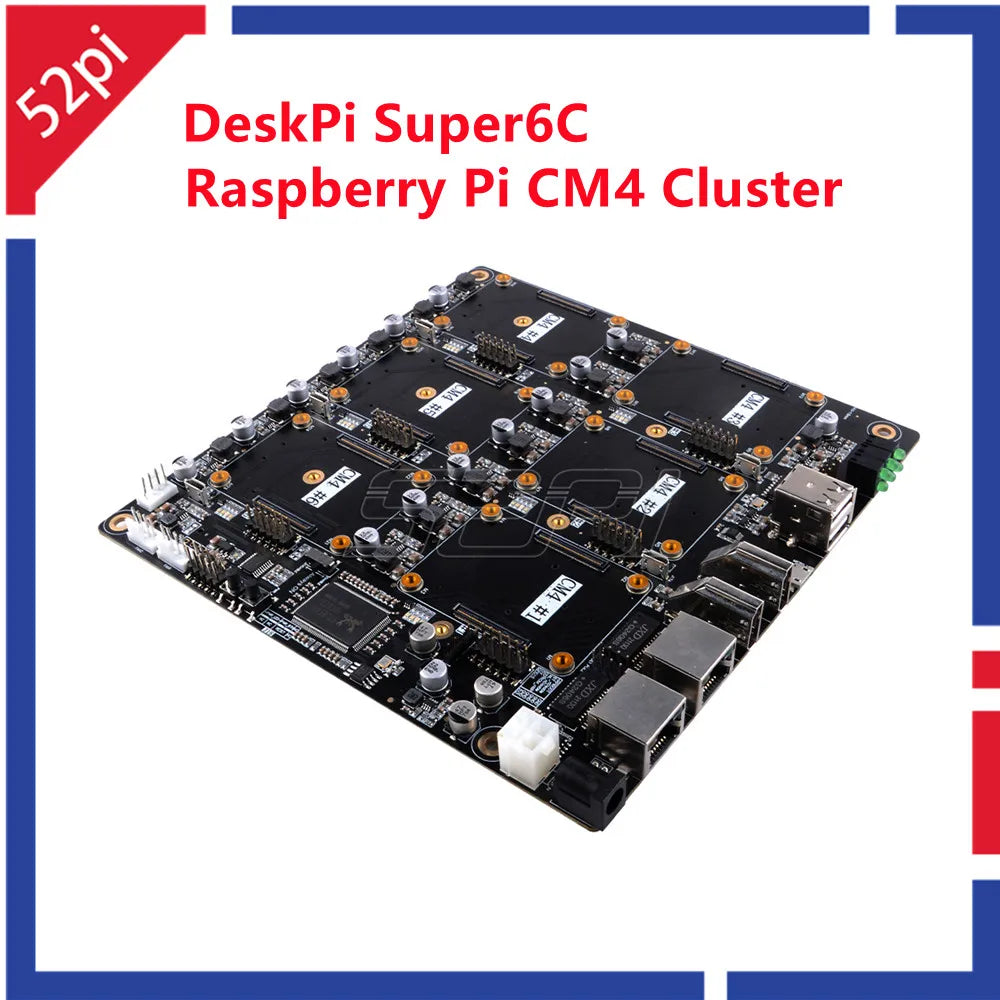

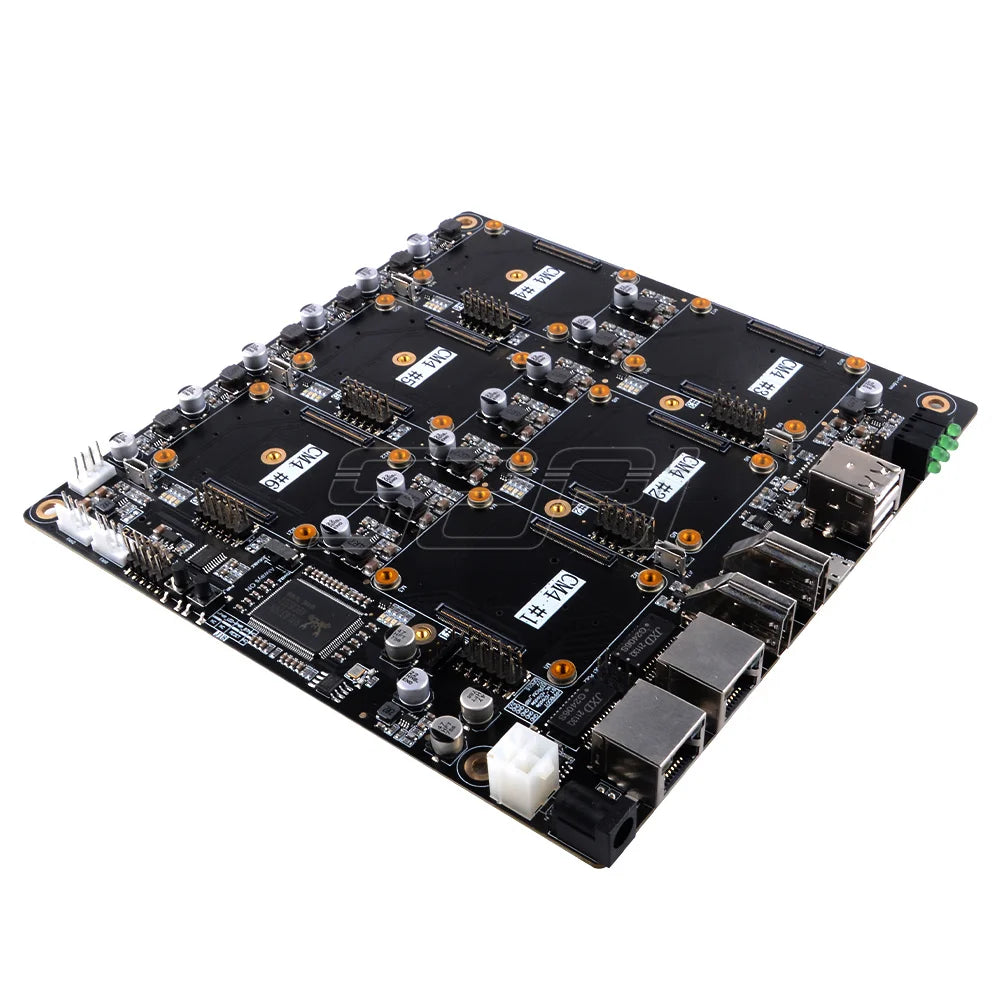

DeskPi Super6C is the Raspberry Pi cluster board a standard size mini-ITX board to be put in a case with up to 6 RPI CM4 Compute Modules.

[Features]

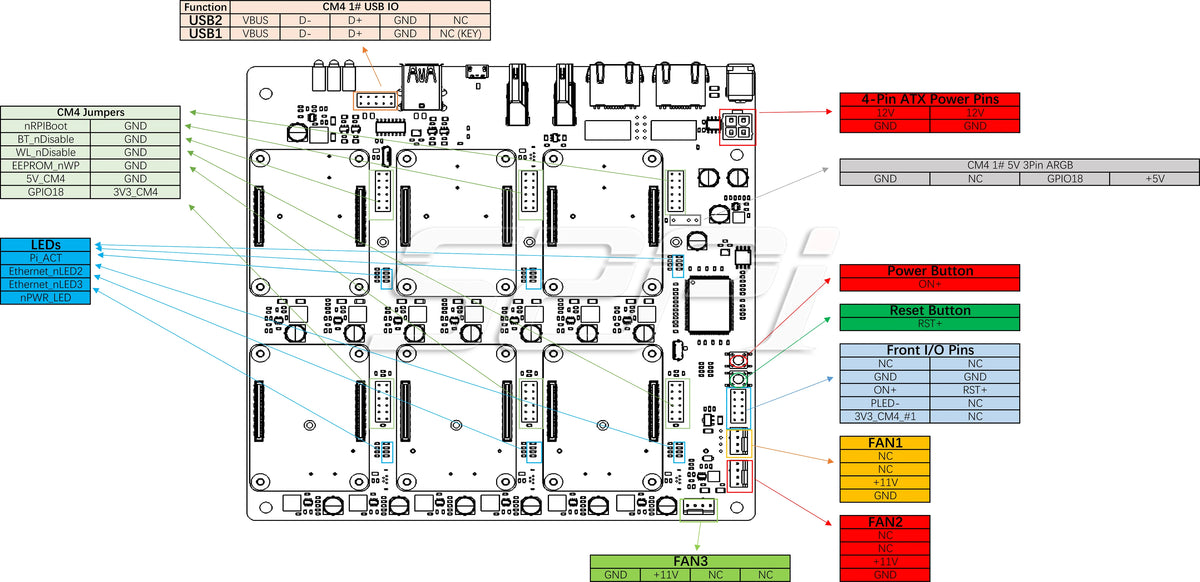

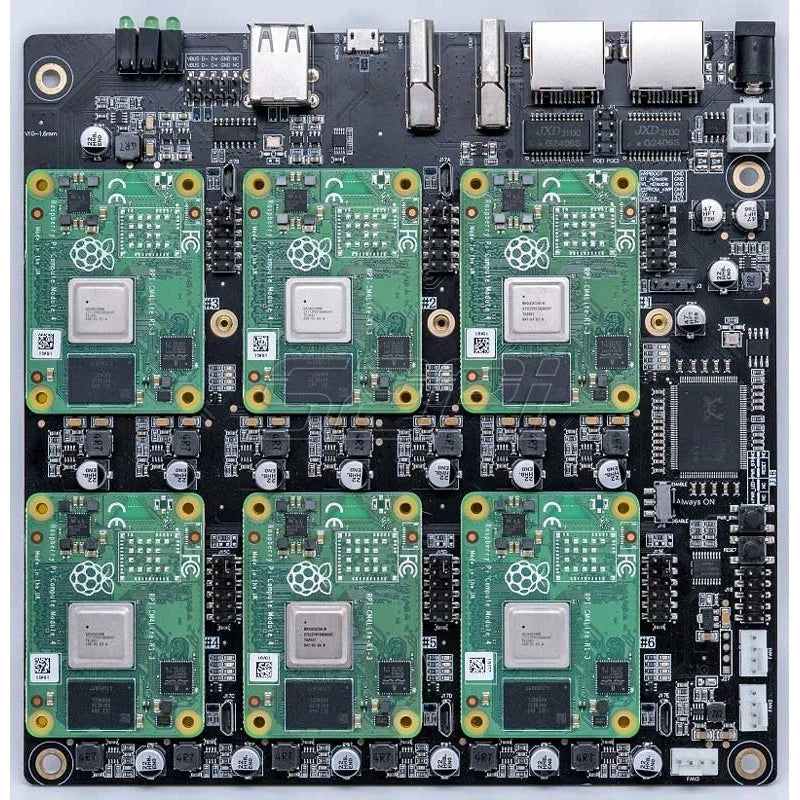

• Support plug-in 6PCS CM4 standard module

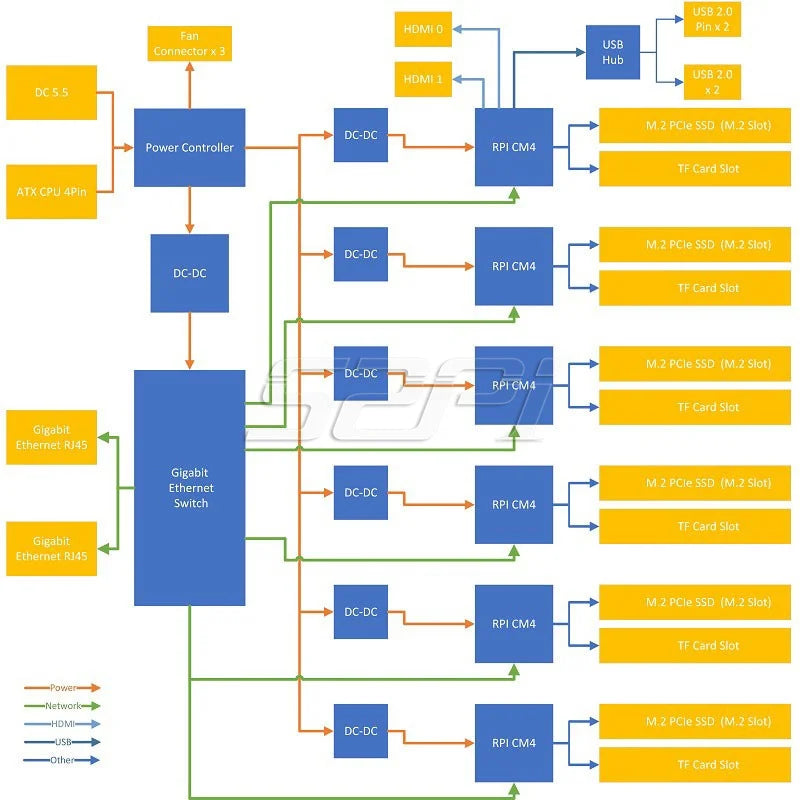

• Stable power supply processing of separate DC-DC power supply inside each module

• The modules on the board are interconnected through the gigabit switch chip RTL8370N

• DC&ATX dual external power input ports DC priority higher than ATX if DC & ATX being plugged at the same time.

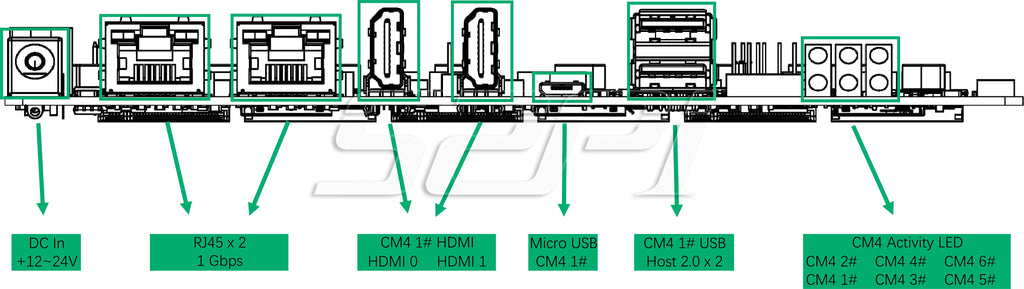

• Full-speed gigabit external network interface*2

• External network interface POE power pin *2

• Standard HDIM video output interface of the main module*2

• Main module MICRO USB2.0 master-slave device interface

• Main module AF USB2.0 master-slave device interface*2

• Main module pin USB2.0 master-slave device interface*2

• Slave module MICRO USB2.0 master-slave device interface*5

• All modules external module start indicator green*6

• Module start indicator on the full module board Green LED*6

• The network connection status indicator in the full module board Yellow LED*6

• The network data communication indicator lamp in the full module board Green LED*6

• Module power indicator on the board of all modules Red LED*6

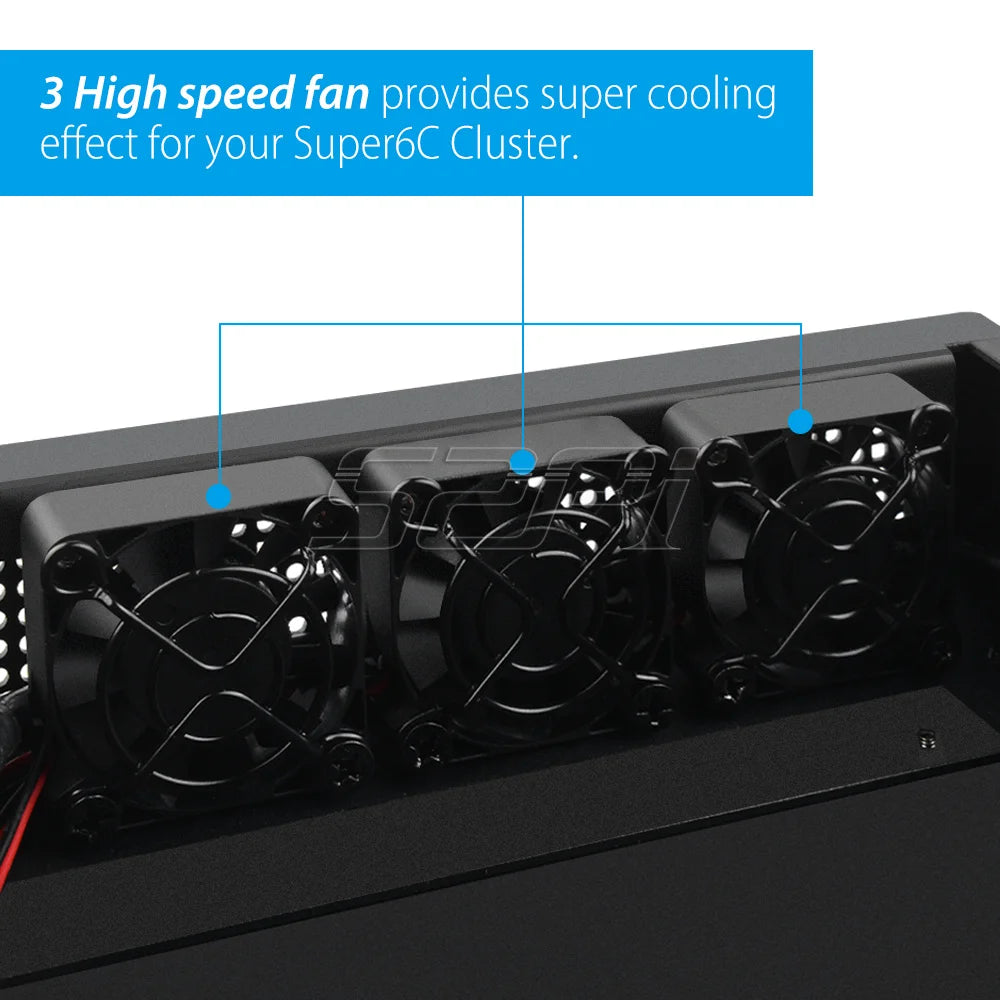

• DC12V fan interface *3

• The total power switch button of the whole board

• Total reset button for all modules

• Mainboard external control indicator pin

• Full module Micro SD card slot, used to support non-eMMC version of CM4 *6

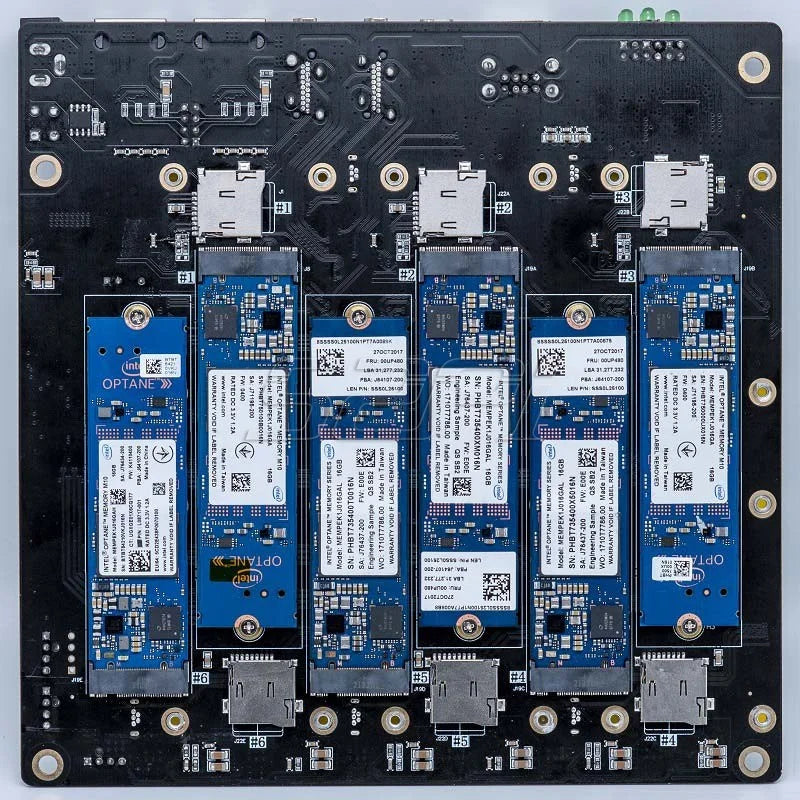

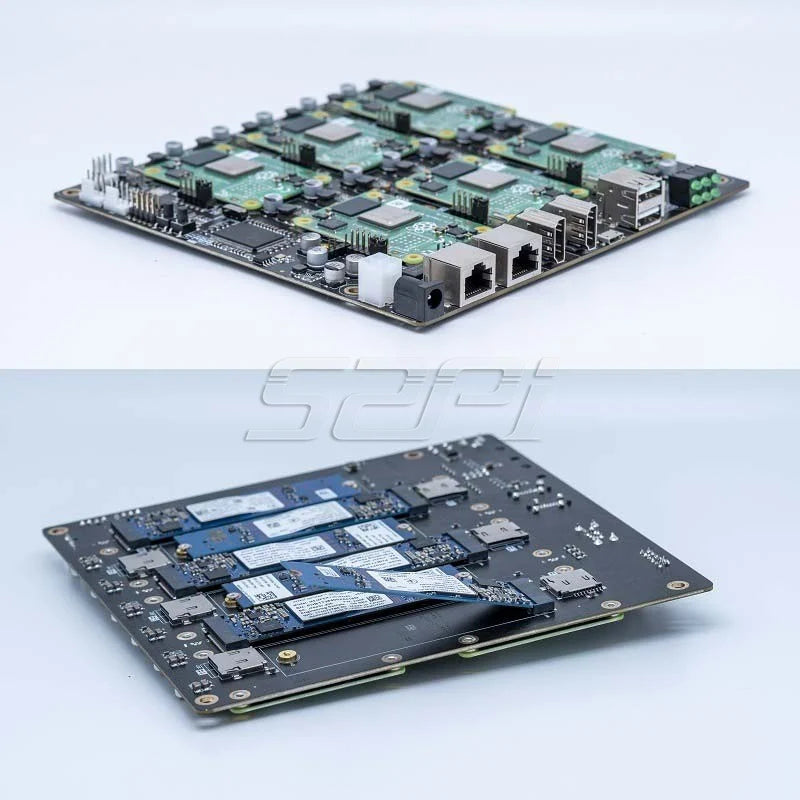

• Full module M.2 2280 M-KEY interface socket *6

• Support PCIe device

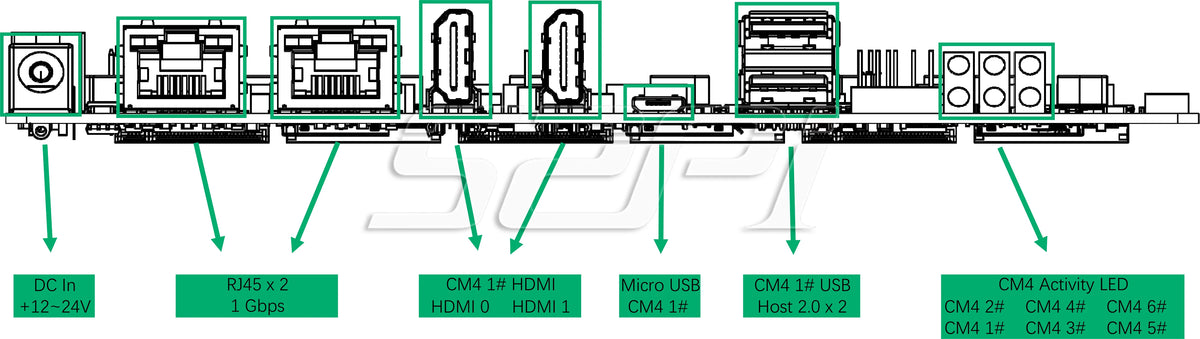

• USB Host A 2.0 x2

• USB Host 2.54 4-pins x2

• HDMI 2.0 x1

• HDMI 1.4a x1

• 170mm x 170mm x 21mm (Mini-ITX)

Only for 1st CM4:

• M.2 2280 slot (PCIe Gen 2 x1)

• TF Card slot

• 5V FAN Header

• Micro USB 2.0

For every CM4:

• 6 RPI CM4 supported 1 Gbps RJ45 x2

• Onboard ON/OFF and Reset button

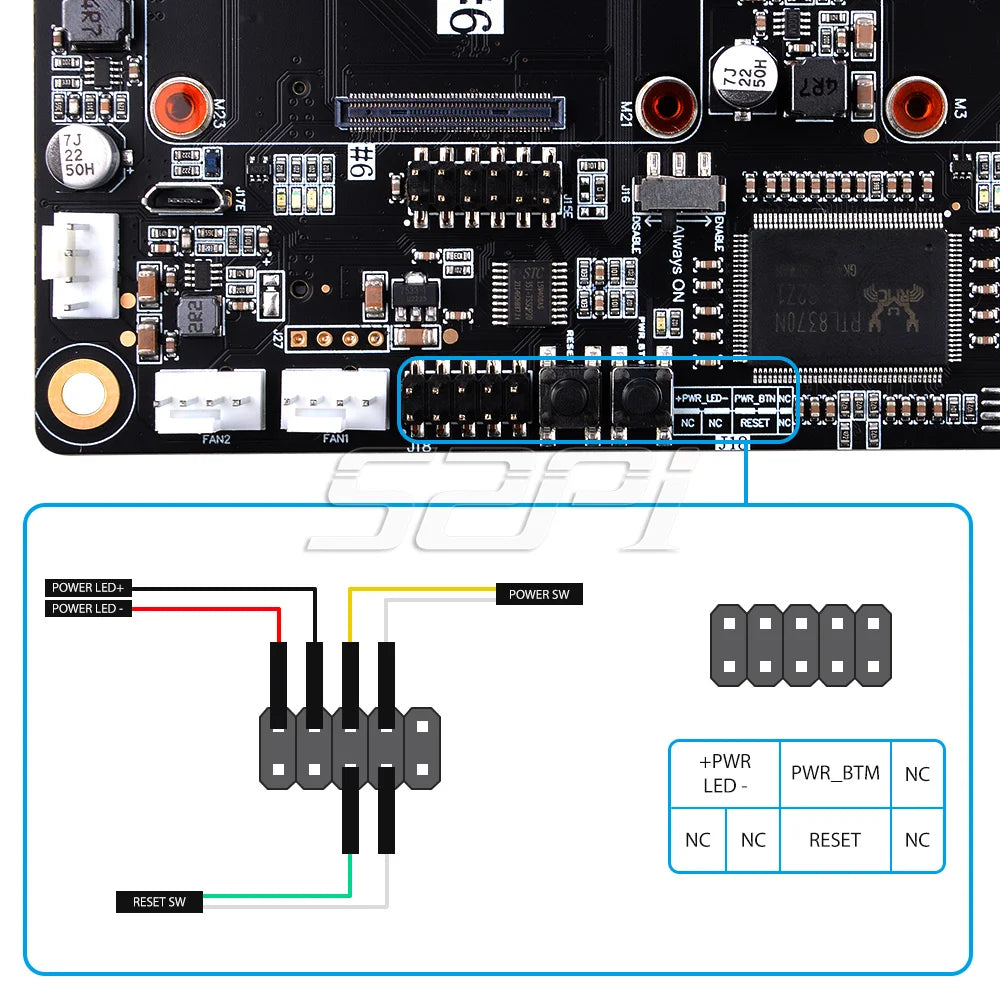

• PC Case front panel header

• 12V FAN Header x3

• DC 19v~24V or ATX 12V

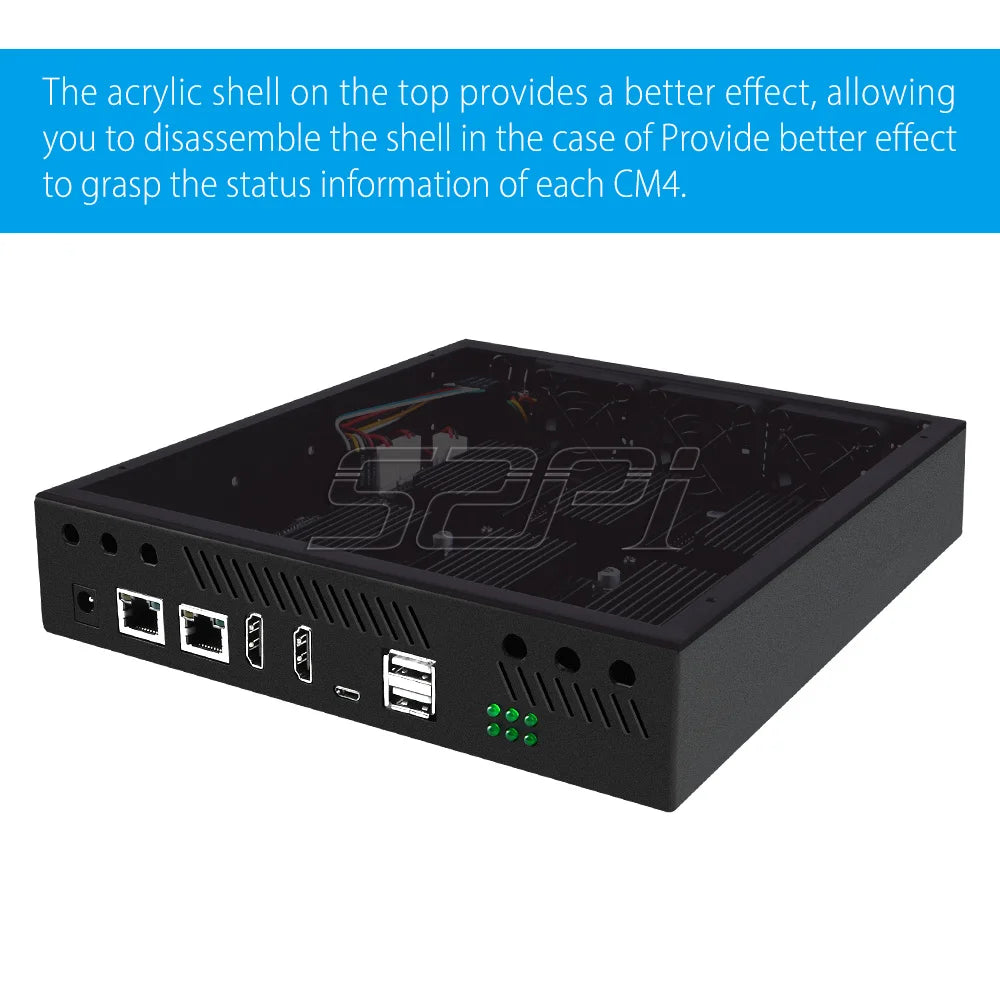

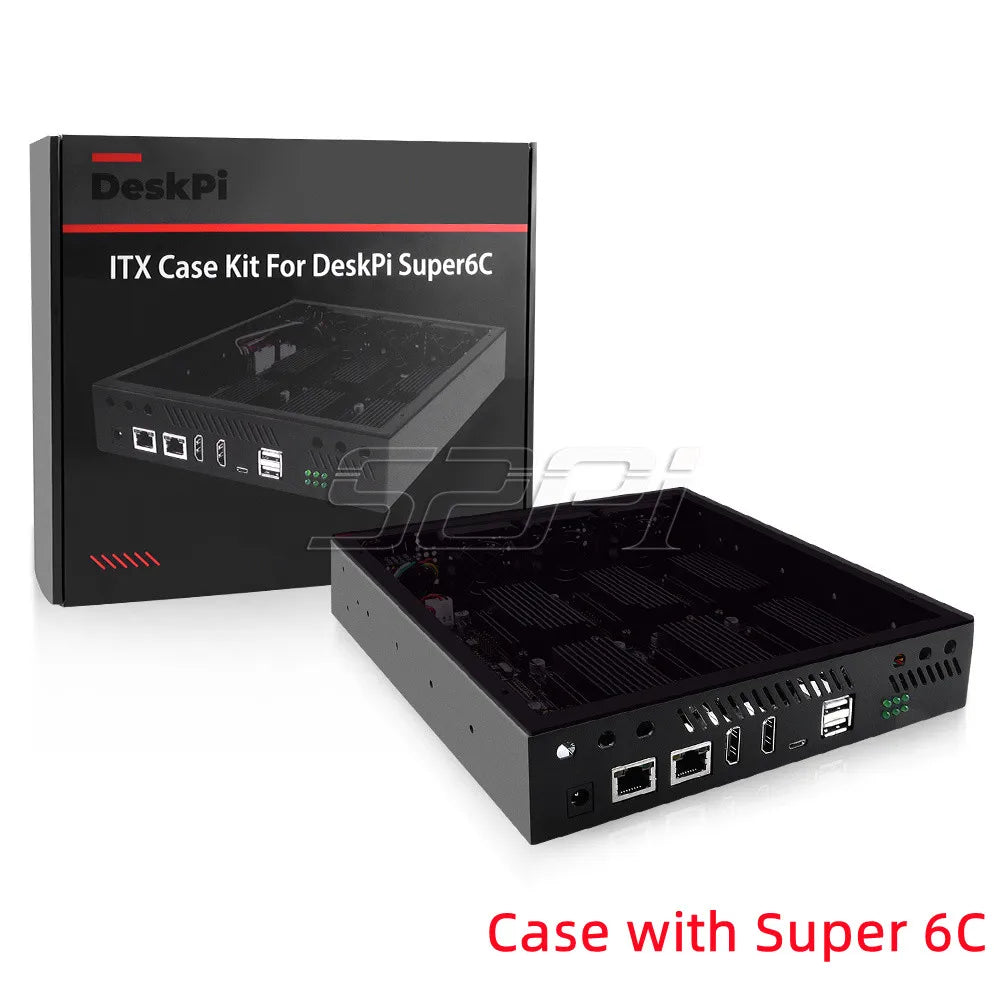

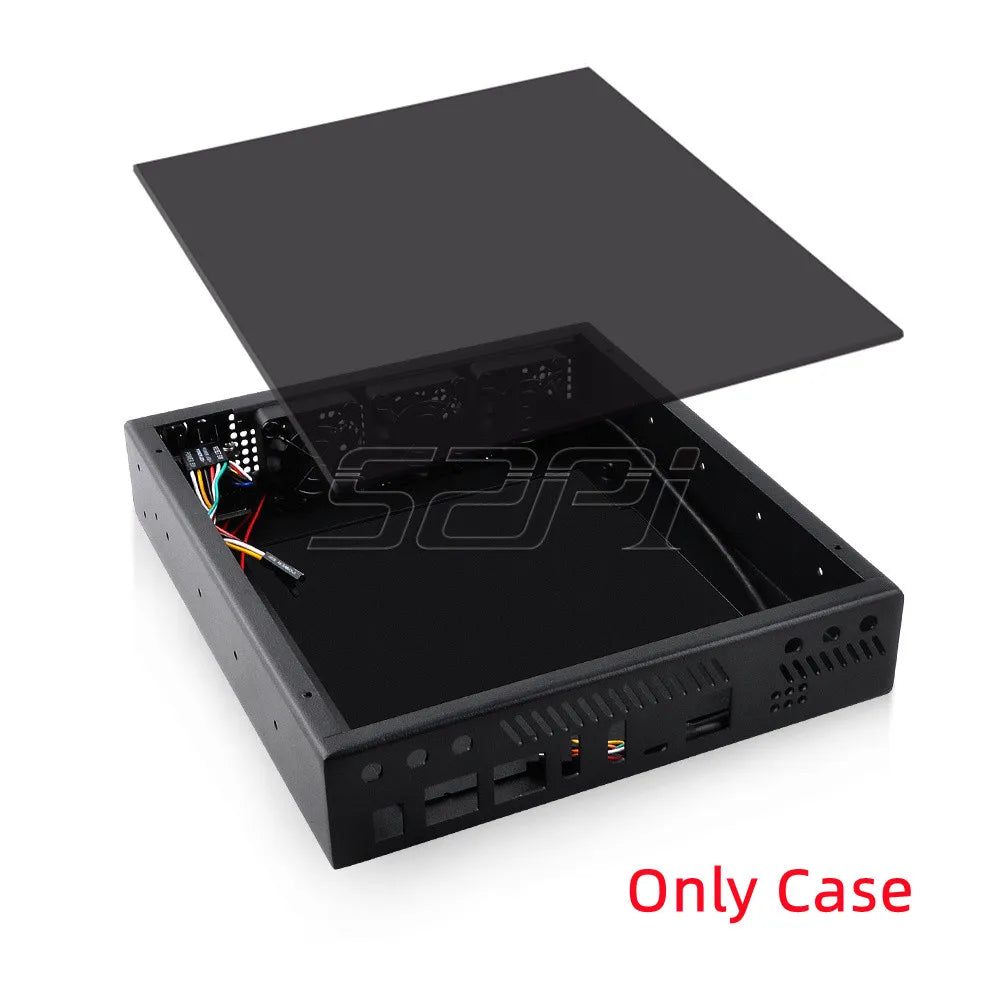

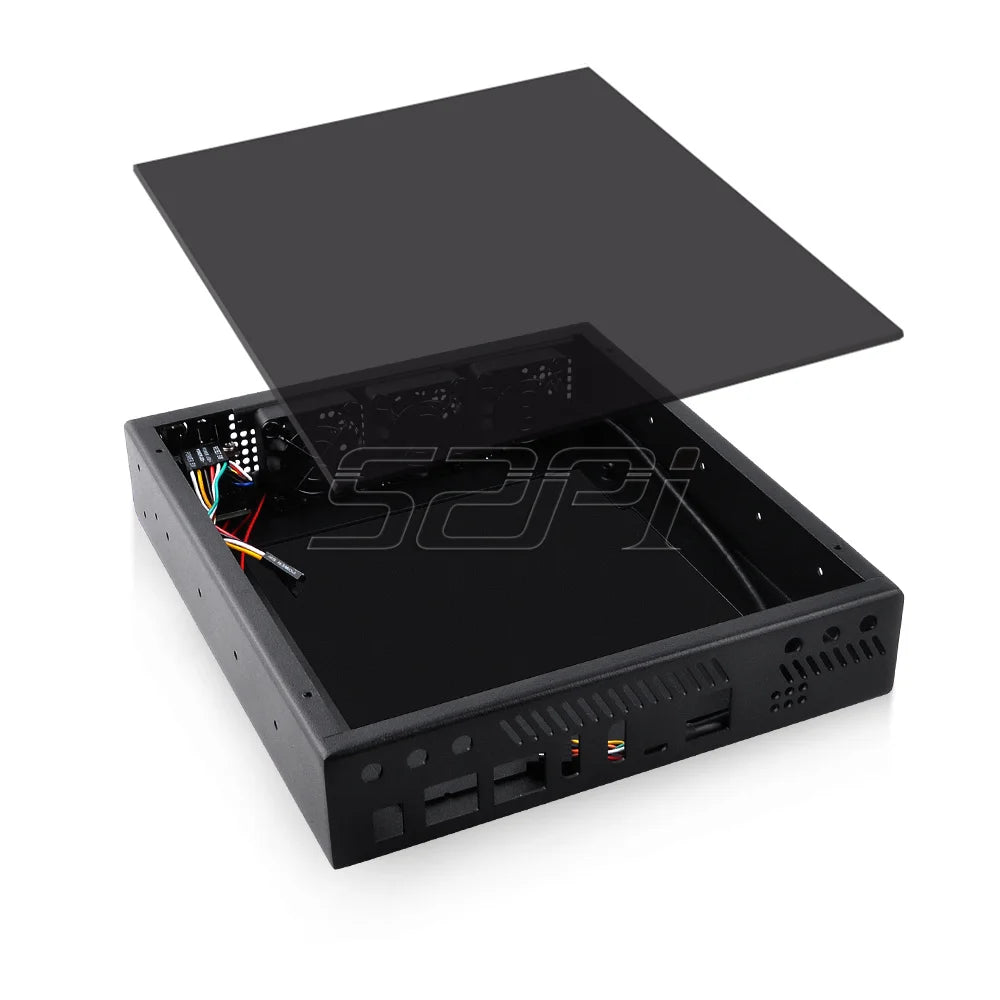

• Mini ITX Case supported

What Can Super6C do?

• Learn, upskill, experiment on Raspberry Pi Cluster, and research DEV-OPS.

• Build your Own home pi cluster

• Build your home assisstant center

• Build your Home NAS sharing service

• Build your Self-Hosted Private Cloud

• Host Your Own High-available Web Server cluster

• Handle Heavy Loads calculation.

• Fast multimedia conversion station

• Build Your Own Supercomputer

• Even build your Customized Super Router at home or company

• Minecraft and other games server

• CI/CD pipeline

• Use a Raspberry Pi cluster for home automation

• Build your own streaming server cluster at home

• Build your own blender rendering server farm

[Package Includes]

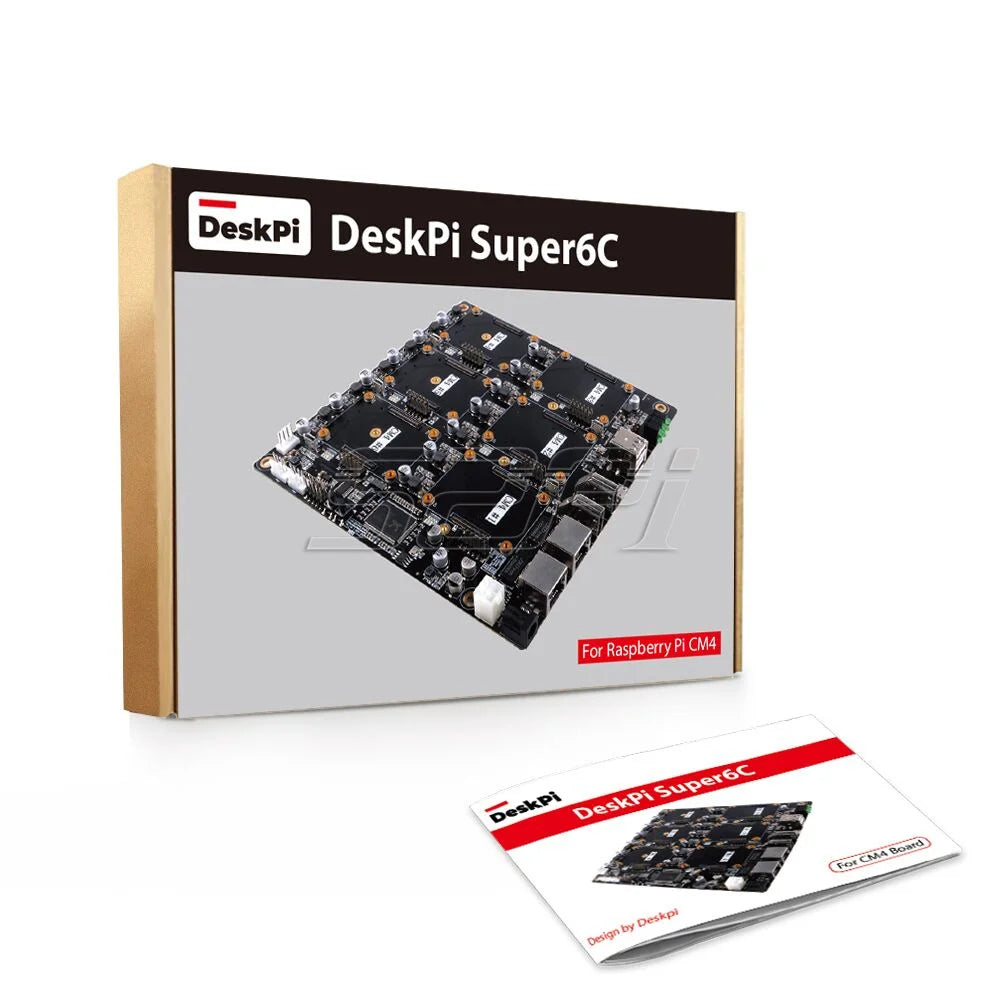

• 1x Raspberry Pi CM4 cluster Mini-ITX board

• 1x100W power supply(Please make a note EU/US/UK/AU Power Supply Type when you placing the order)
