SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: 52Pi

Compatible With: Raspberry Pi

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

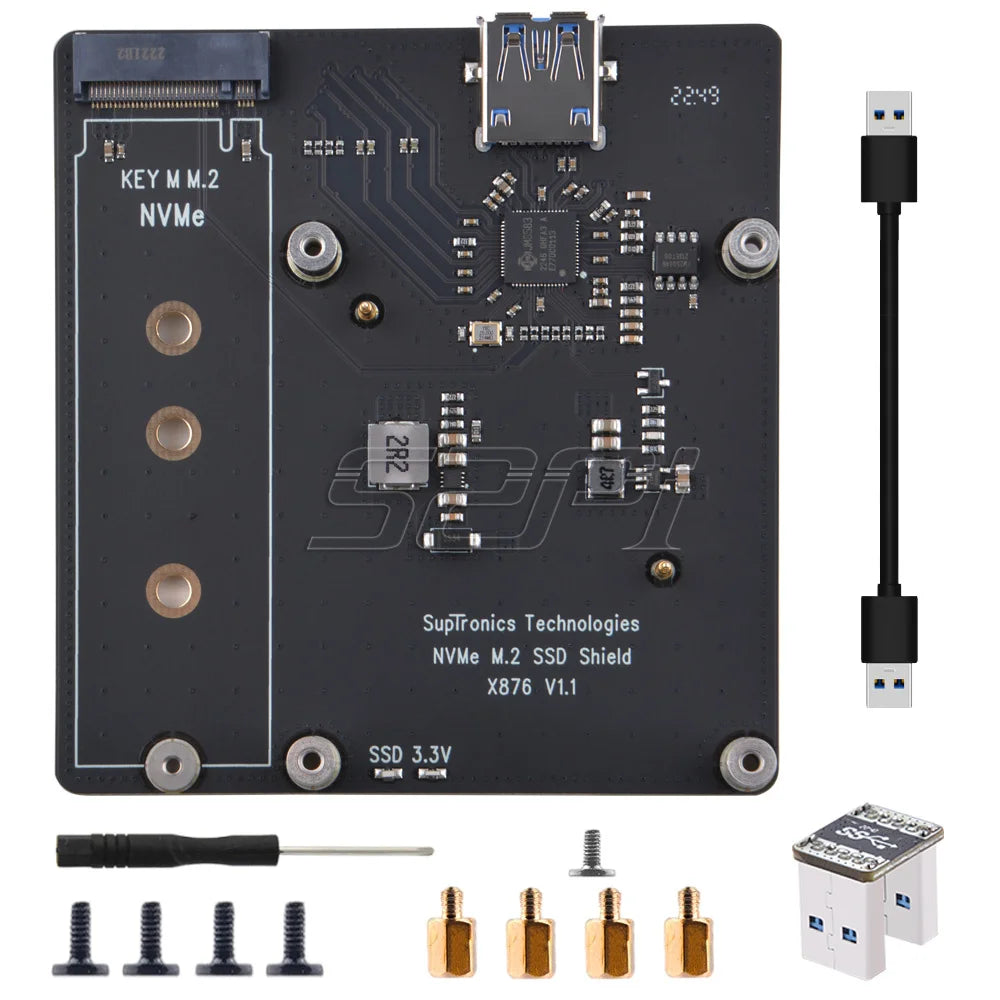

Raspberry Pi X876 NVMe M.2 SATA SSD NAS Expansion Board Support Key-M 2280 SSD for Raspberry Pi 4B

[Description]:

The X876 M.2 NVMe SSD expansion board, offering an easy and fast way to create big storage solution for your Raspberry Pi 4B. Its elegant and ultra-compact design allows M.2 SSD to be conveniently attached to Raspberry Pi. The SuperSpeed USB 3.0 port delivers a blistering data transfer rate of up to 5Gbps, letting you transfer a large amount of data in seconds. The mounting holes and standoffs help protect the solid-state drives, while effectively drawing the heat away from the drive for reliable performance. The built-in LED light indicates the reading or writing status – no more guesswork again.

The X876 can be the perfect storage solution for your home media center and building Network-attached storage (NAS) for storing and streaming your own videos, music, and digital photos around the house and even across the world. the X876 also supports operating system booting from your SSD for faster app opens, web serving and file copying.

Note:

Raspberry Pi is Not included!

[Features]:

Ideal storage solution for Raspberry Pi 4B - M.2 NVMe SSD Shield
Supports multiple M.2 NVMe SSD lengths including: 2280, 2260, 2242, 2230
Supports Transfer Speeds up to 5Gbps (USB 3.0),480Mbps (USB 2.0), 12Mbps (USB 1.1)
Supports booting OS from your SSD for faster app opens, web serving and file copying
USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi
Supports USB Attached SCSI Protocol (UASP)
LED blue indicator indicates drive status
Specially-made USB3.1 jumper to connect with Raspberry Pi - no cable needed
Integrated high efficiency step-Down Converter, 3.3V max 3.5A to power the SSD
USB bus-powered - Only one PSU required
Extra power provided by Raspberry Pi via Pogo Pins - no wirindg & soldering required

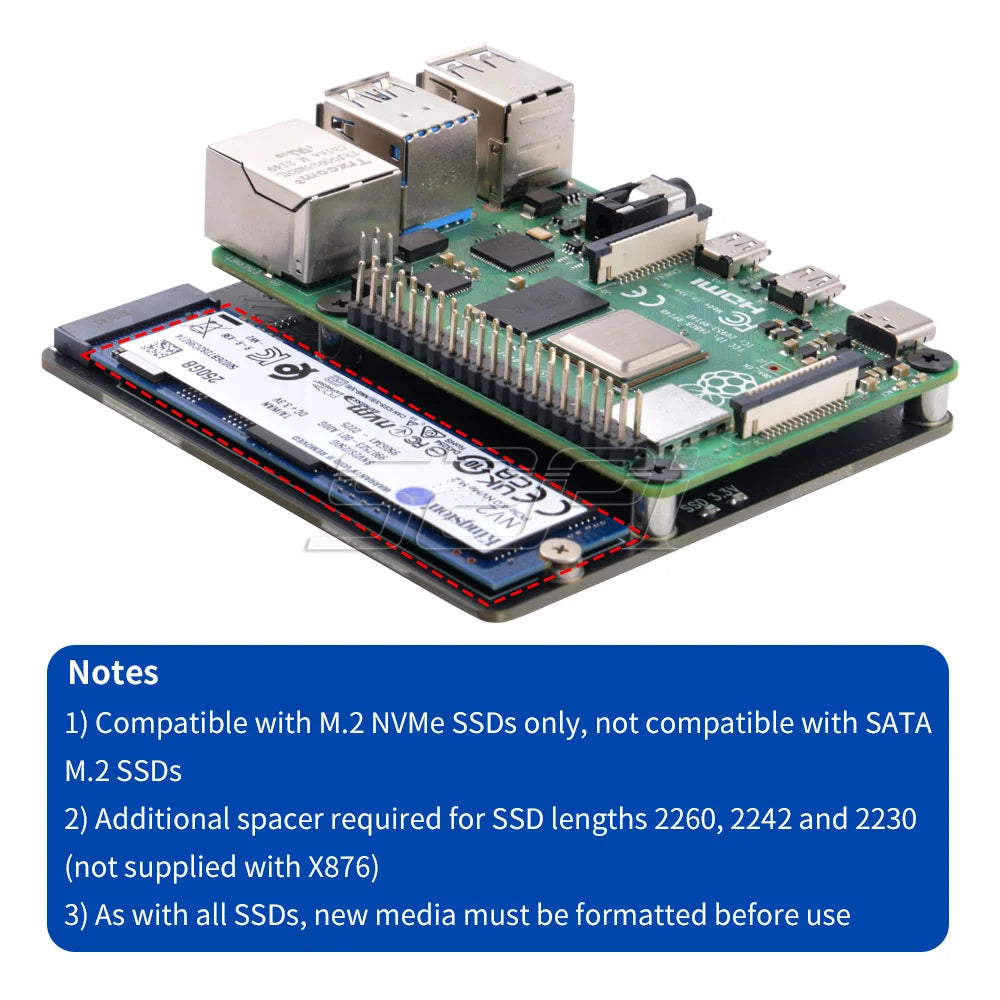

Please Notes:

1) Compatible with M.2 NVMe SSDs only, not compatible with SATA M.2 SSDs
2) Additional spacer required for SSD lengths 2260, 2242 and 2230 (not supplied with X876)
3) As with all SSDs, new media must be formatted before use

[Package Includes]
