5A/10A/20A 110 220V 50HZ/60HZ RS485 Current Collector Ammeter MODBUS PLC Current Analog Acquisition AC Transformer Meter Module
5A with Din Box
$75.44
Sale price
$75.44
Regular price
$0.00
Skip to product information

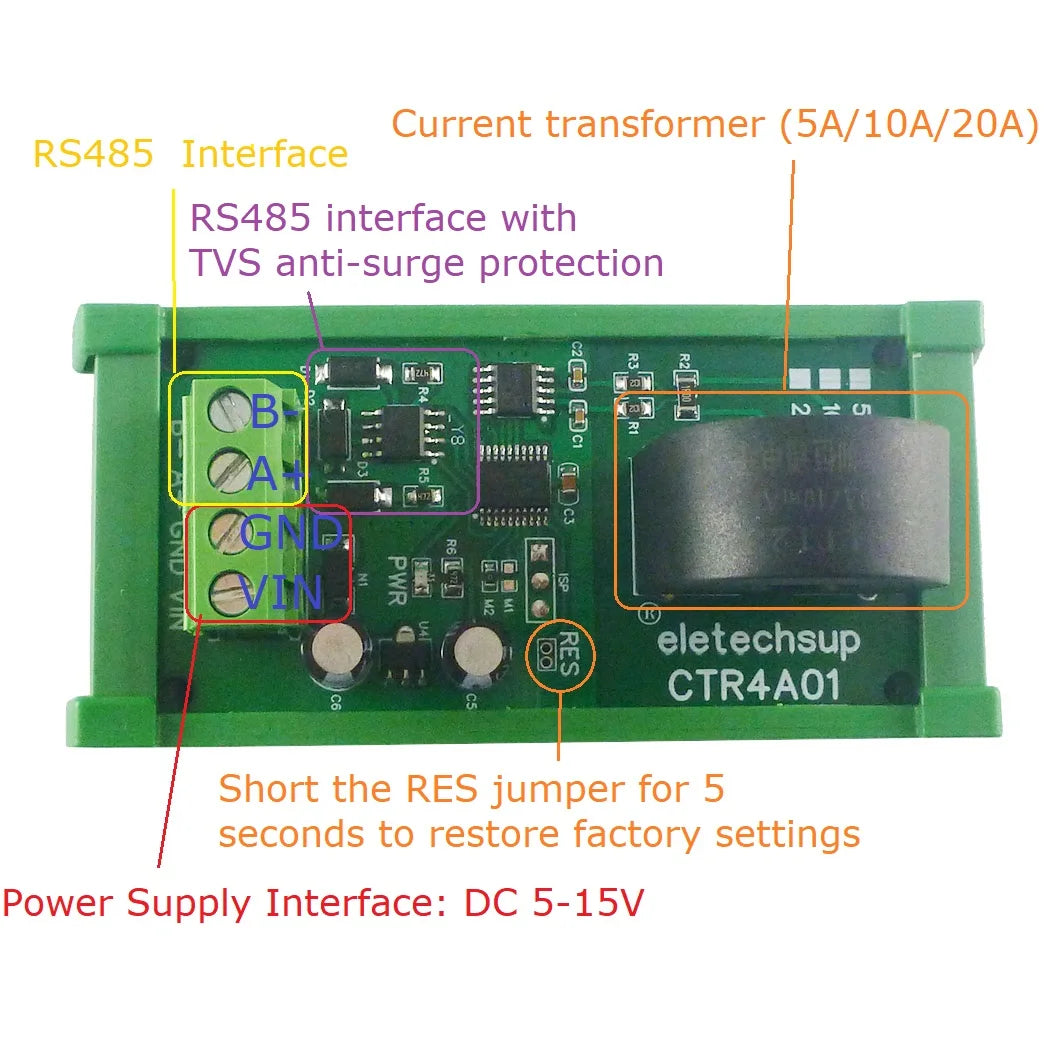

Description:
Function description:
1 Working voltage 5-15V (DC 5V 9V 12V)
2 Working current: 8-12MA
3 MODBUS RTU command supports 03/04/06/16 function code
4 It can measure AC current with a voltage of 85-265V (frequency 50HZ/60HZ)
5 Current measurement ranges are 0.05-5A, 0.1-10A, 0.2-20A three versions
6 The current resolution is 0.001A, the measurement accuracy is 1%, if the error is greater than 1%, it can be calibrated
7 MODBUS RTU commands can be input by PLC in addition to computer serial port super terminal input
8 MODBUS RTU command mode, can support up to 247 devices in parallel
9 Size: 72*37*30 (board only), 89*40*50 (with shell)
10 Weight: 31 grams (board only), 69 grams (with case)
For more information, please open the link and download:
https://1drv.ms/u/s!Av4PLxH_z8f1rCjTPD6AgWqRmPLb?e=eDltbq
Application

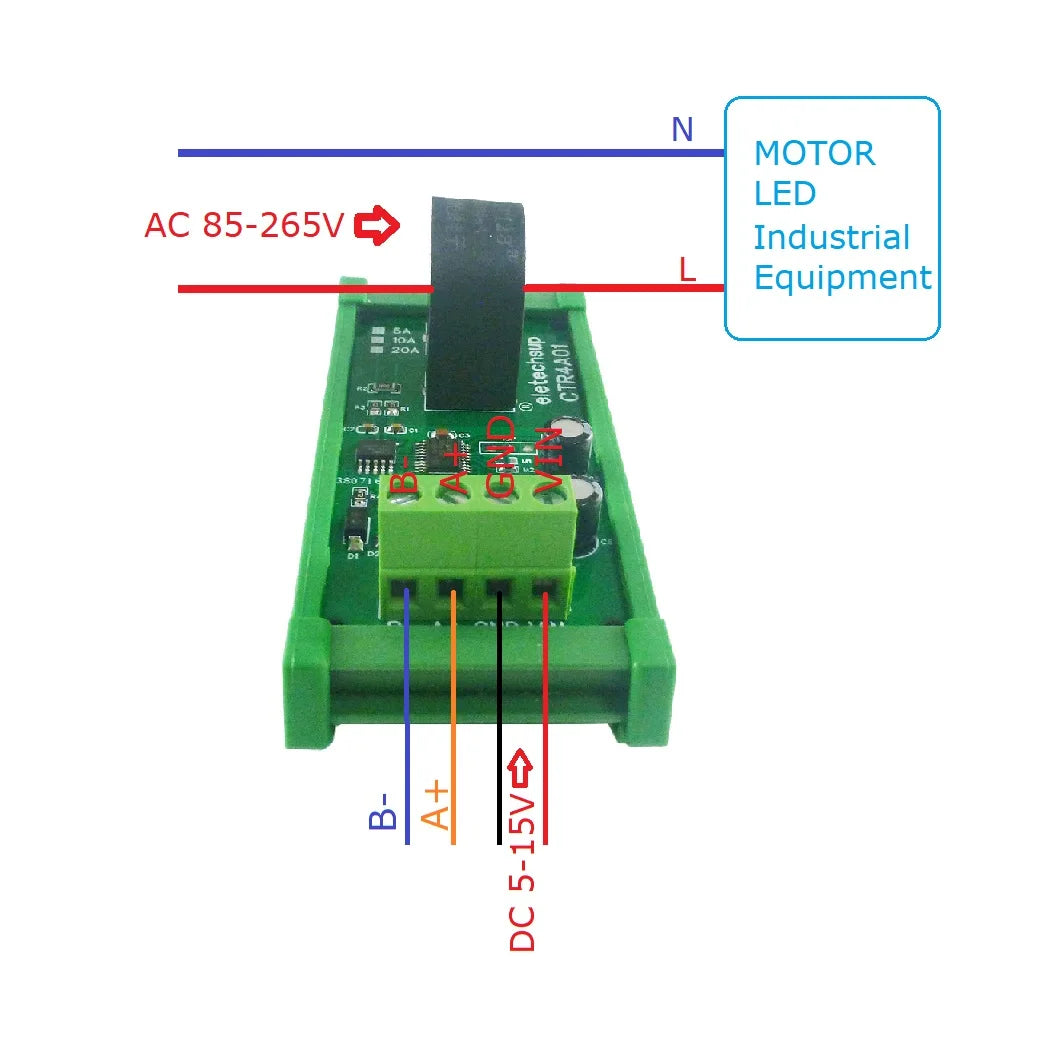

Wiring diagram:
Single-phase and three-phase AC wiring diagram

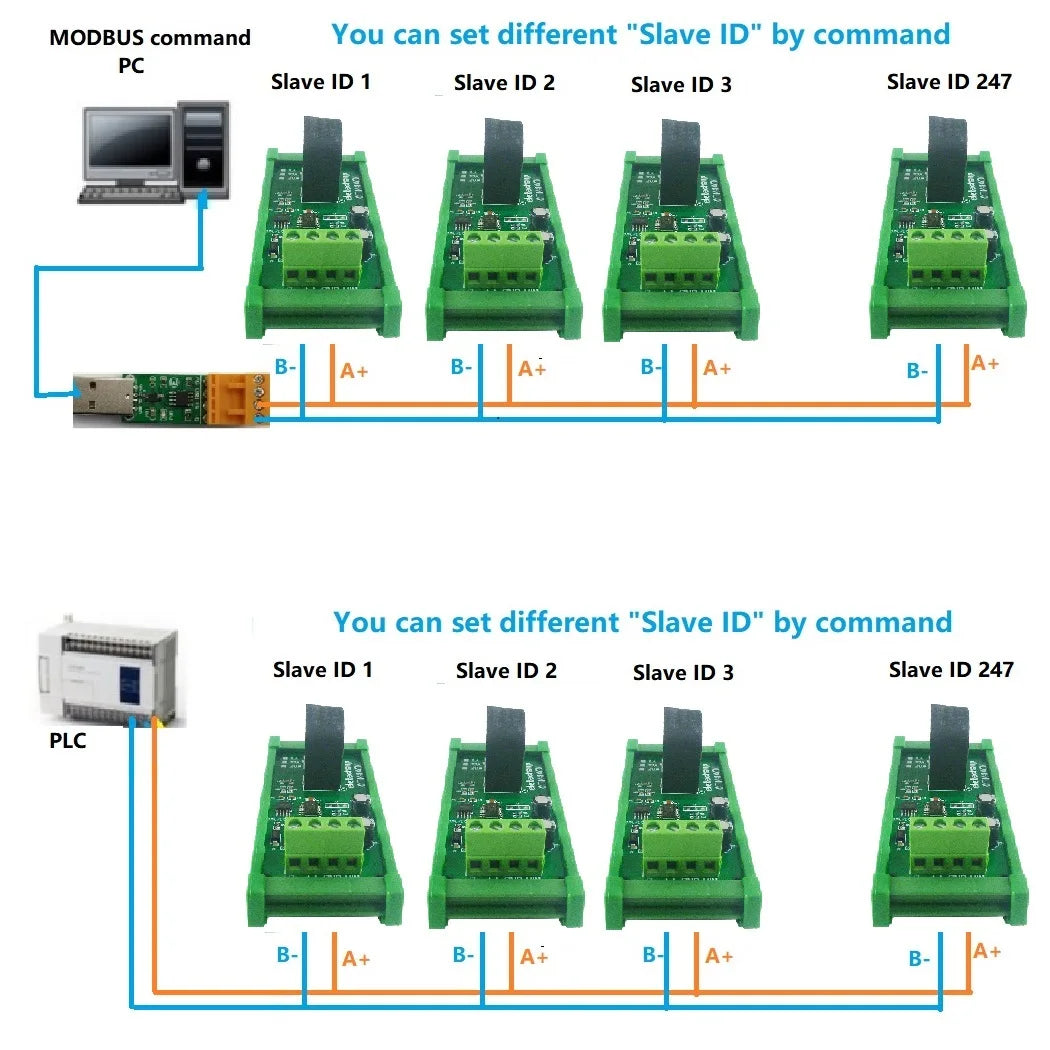

RS485 wiring diagram:
5A/10A/20A 110 220V 50HZ/60HZ RS485 Current Collector Ammeter MODBUS PLC Current Analog Acquisition AC Transformer Meter Module
$75.44
Sale price
$75.44
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: eletechsup
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Relay
is_customized: Yes
semi_Choice: yes
Product Name:
DC 5V 12V 5A/10A/20A AC Analog Current Collector RS485 MODBUS RTU AC Transformer Ammeter Watt-hour Meter Module
Package inlcuded:
1PCSCTR4A01 5A/10A/20A RS485 MODBUS AC Transformer Module
(Specific according to the version and quantity you choose)
DC 5V 12V 5A/10A/20A AC Analog Current Collector RS485 MODBUS RTU AC Transformer Ammeter Watt-hour Meter Module
Package inlcuded:
1PCSCTR4A01 5A/10A/20A RS485 MODBUS AC Transformer Module
(Specific according to the version and quantity you choose)
Description:
Function description:
1 Working voltage 5-15V (DC 5V 9V 12V)
2 Working current: 8-12MA
3 MODBUS RTU command supports 03/04/06/16 function code
4 It can measure AC current with a voltage of 85-265V (frequency 50HZ/60HZ)
5 Current measurement ranges are 0.05-5A, 0.1-10A, 0.2-20A three versions
6 The current resolution is 0.001A, the measurement accuracy is 1%, if the error is greater than 1%, it can be calibrated
7 MODBUS RTU commands can be input by PLC in addition to computer serial port super terminal input
8 MODBUS RTU command mode, can support up to 247 devices in parallel
9 Size: 72*37*30 (board only), 89*40*50 (with shell)
10 Weight: 31 grams (board only), 69 grams (with case)
For more information, please open the link and download:
https://1drv.ms/u/s!Av4PLxH_z8f1rCjTPD6AgWqRmPLb?e=eDltbq
Application
IoT smart home
industrial control, industrial automation
Energy meter
Single-phase/three-phase AC detection
PLC Motor Fan
industrial control, industrial automation
Energy meter
Single-phase/three-phase AC detection
PLC Motor Fan

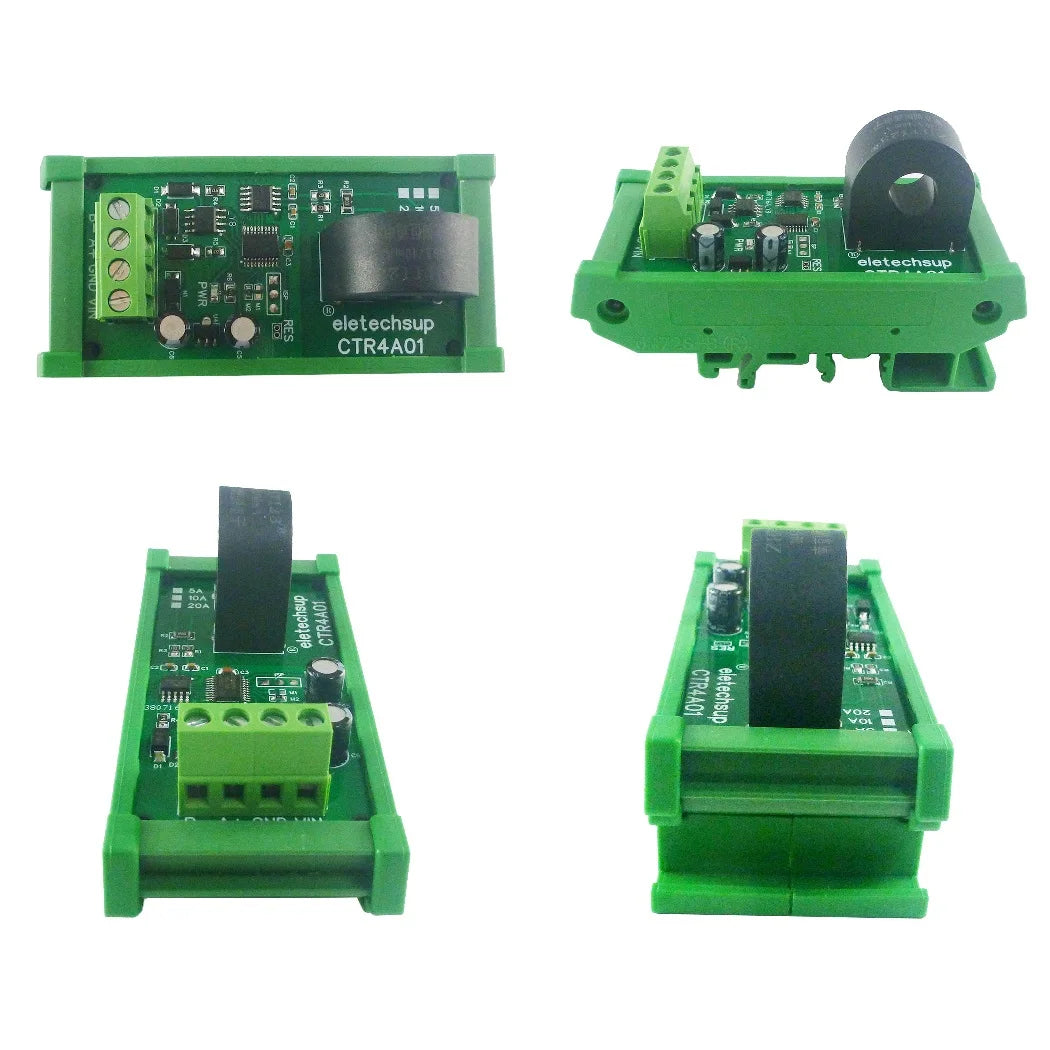

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 37 mm PCB boards
Net weight: 34g
Installation: DIN35 and C45 rail
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 37 mm PCB boards
Net weight: 34g
Installation: DIN35 and C45 rail
Wiring diagram:
Single-phase and three-phase AC wiring diagram
RS485 wiring diagram:
