SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: N/A

High-concerned chemical: none

Model Number: Mini560

Operating Temperature: N/A

Origin: Mainland China

Package: SMD

Supply Voltage: N/A

Type: Module

is_customized: Yes

Product Description:

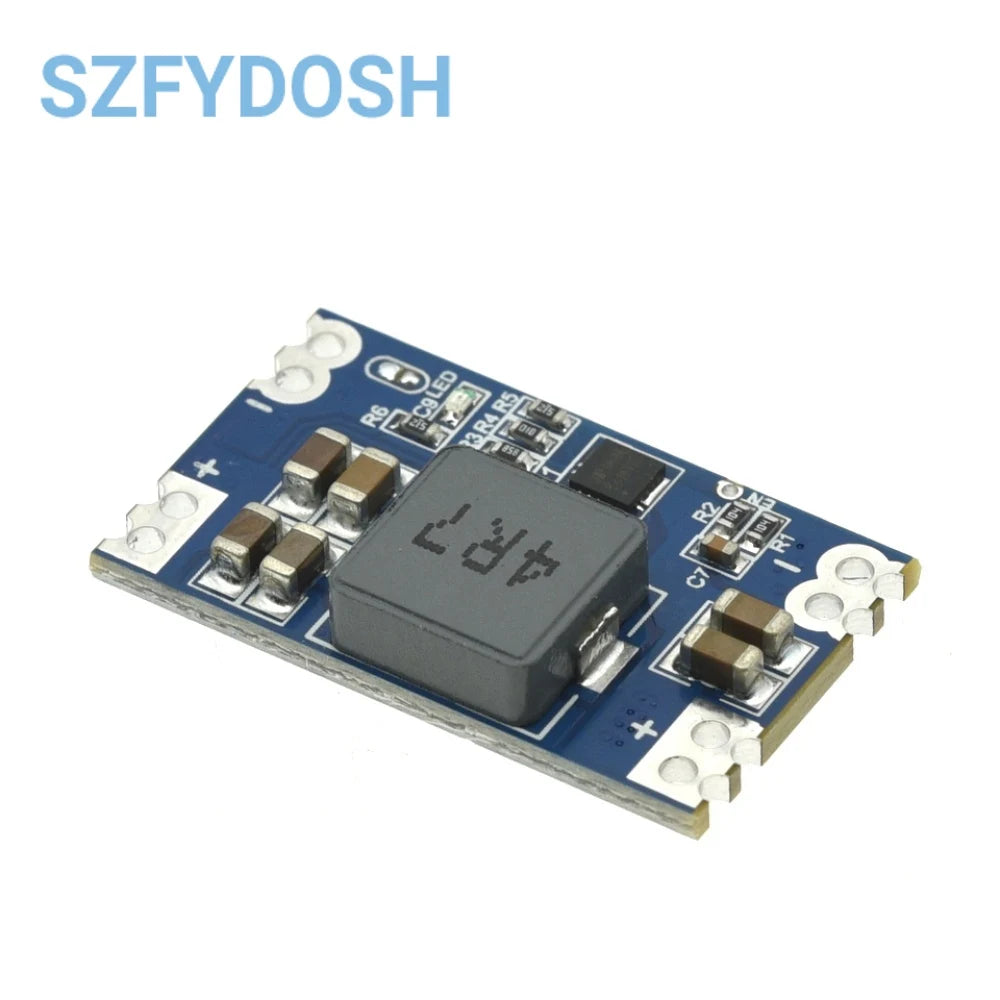

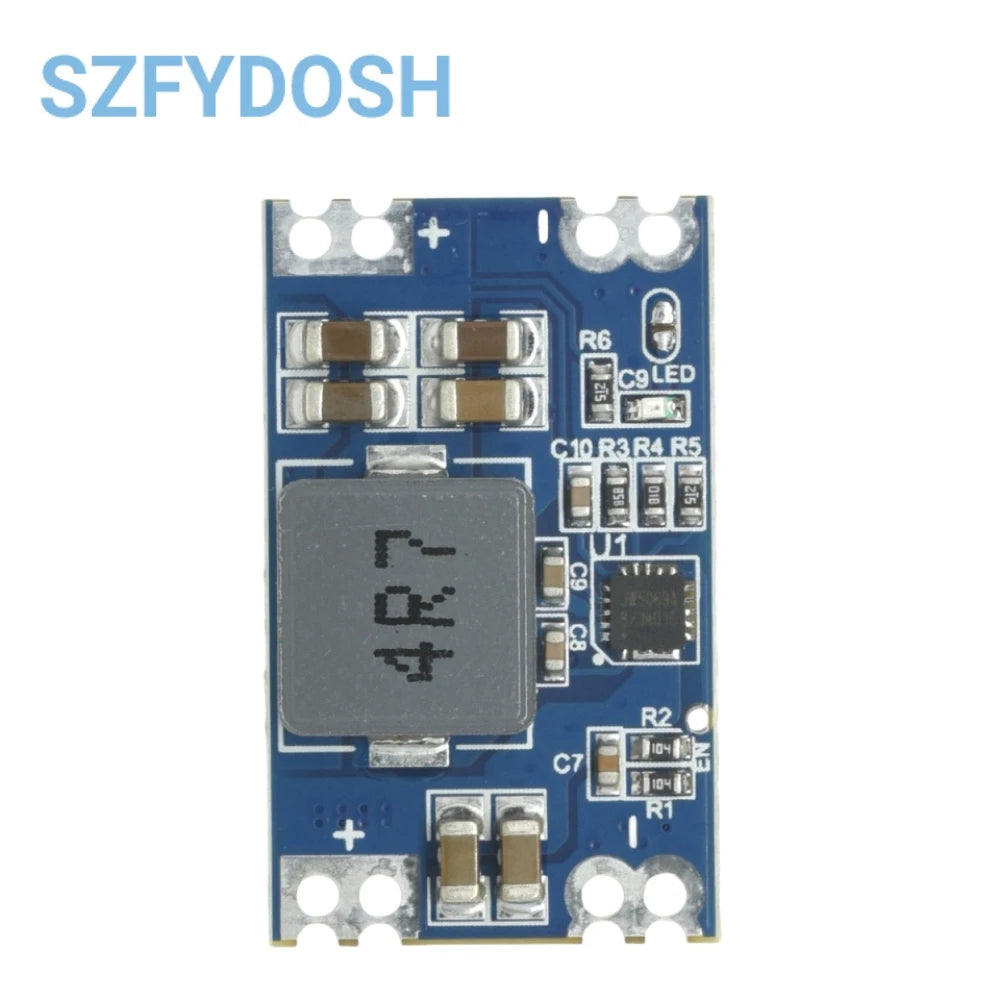

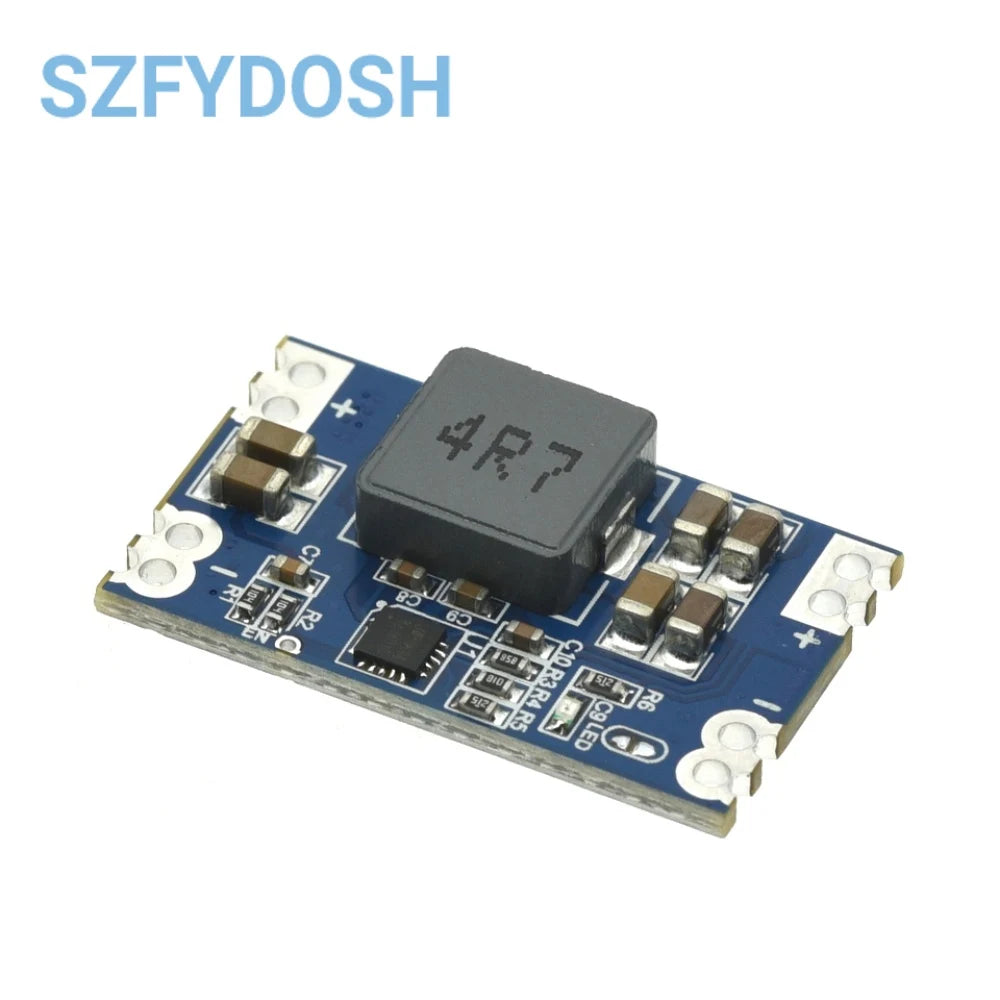

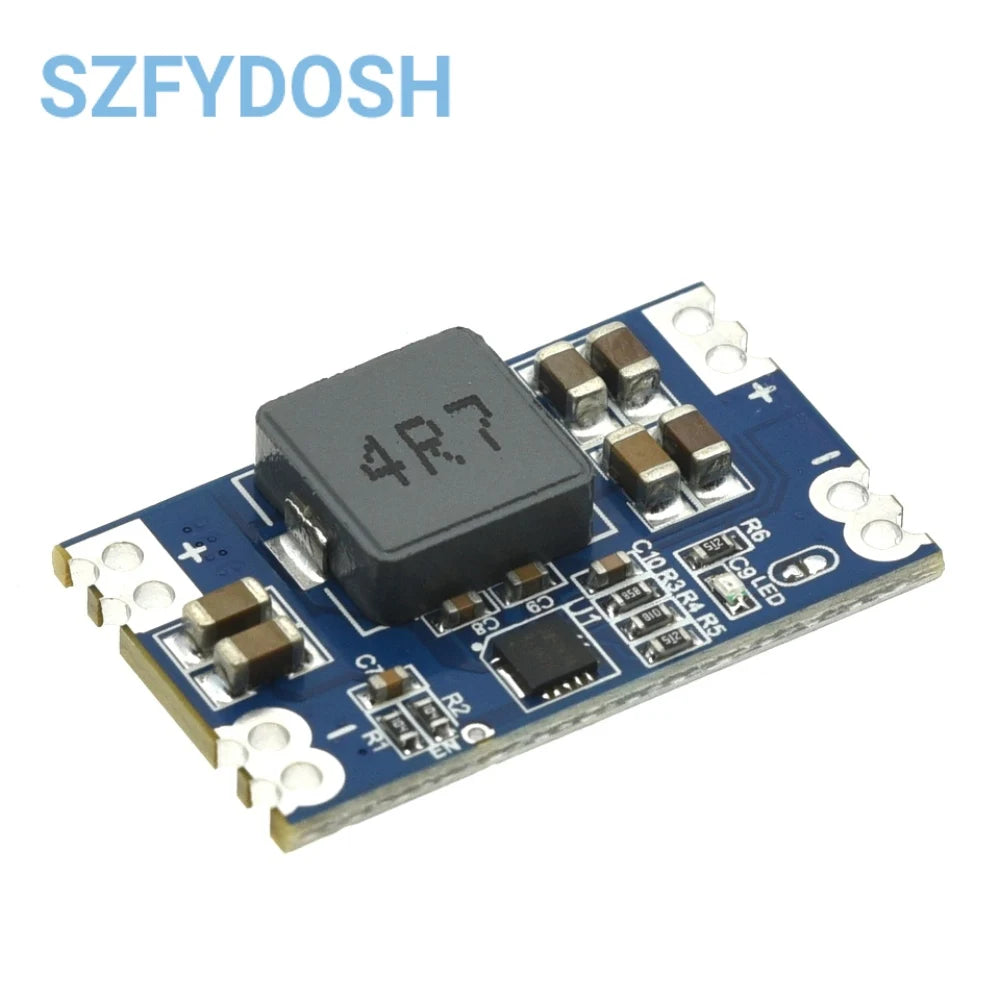

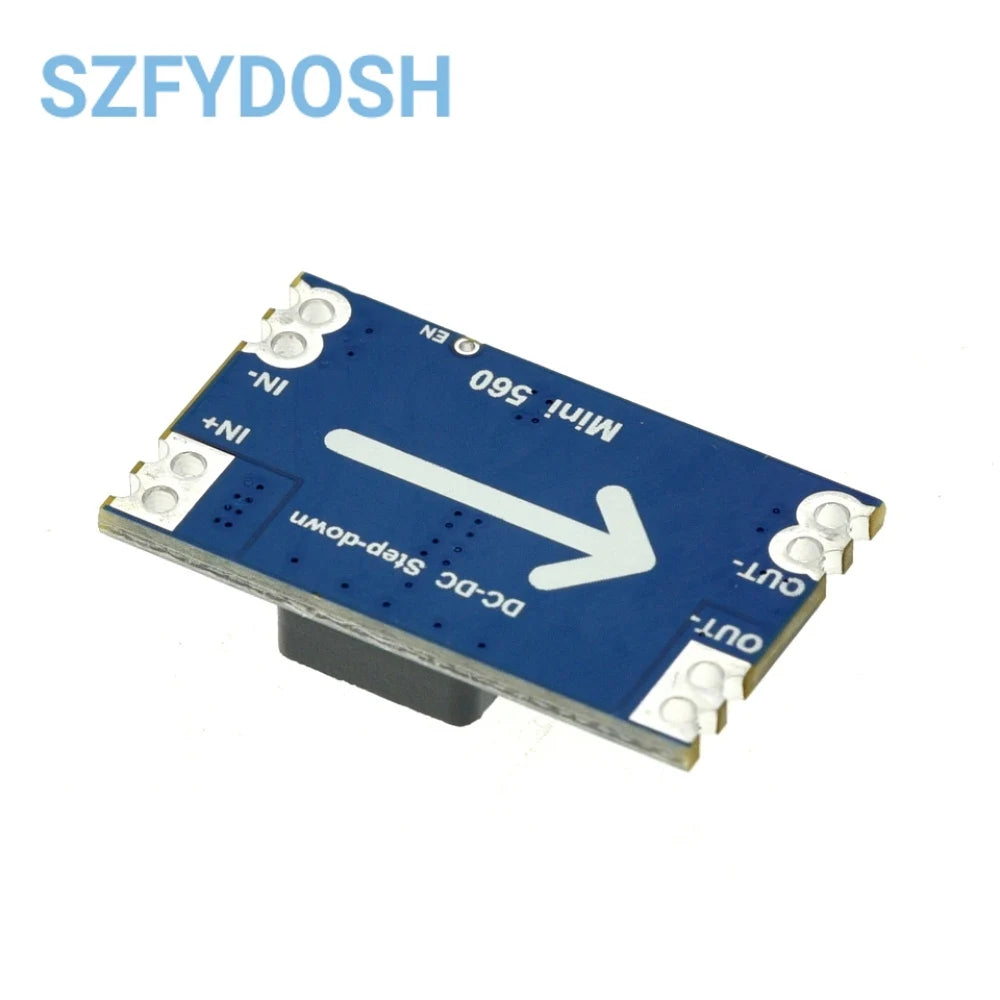

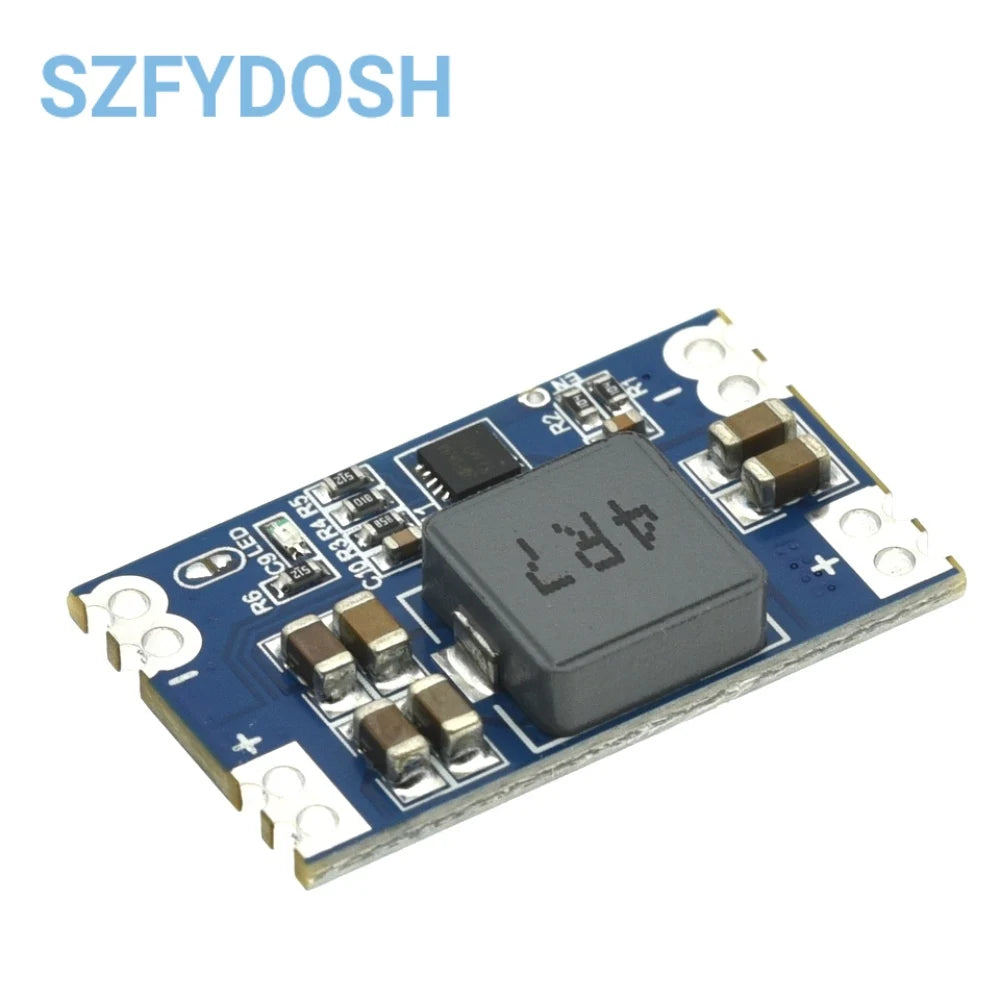

Model Name: Mini560
Output voltage: 3.3V/5V/9V/12V
Input voltage: 5.5V-20V (minimum voltage difference of 2V)
Output current:<5A/4A, long-distance running over 4A/3A requires heat dissipation
Switching frequency: 500KHz
Conversion efficiency: 99% (highest)
Working temperature: 40 ° C to+85 ° C
Peripheral dimensions: 29 * 18 * 5.4 (length * width * height) (mm)
Module nature: Non isolated voltage reduction
Rectification method: synchronous rectification

Product parameters:
1. Output 3.3V
Output voltage: 3.3V
Input voltage: 5V-20V
Output current:<5A (heat dissipation is required for long-distance running exceeding 4A)
Pressure difference:>1.7V

2. Output 5V
Output voltage: 5V
Input voltage: 7V-20V
Output current:<5A (heat dissipation is required for long-distance running exceeding 4A)
Pressure difference:>2V

3. Output 9V
Output voltage: 9V
Input voltage: 11V-20V
Output current:<4A (for long-distance running exceeding 3A, heat dissipation is required)
Pressure difference:>2V

4. Output 12V
Output voltage: 12V
Input voltage: 14V-20V
Output current:<4A (for long-distance running exceeding 3A, heat dissipation is required)
Pressure difference:>2V
