SPECIFICATIONS

Product parameters and introduction:

1. LED Quantity: 120LEDs/m,

2. SMD type: SMD2835

3. Color Rendering Index (CRI): >80

4. LED Strip Size:

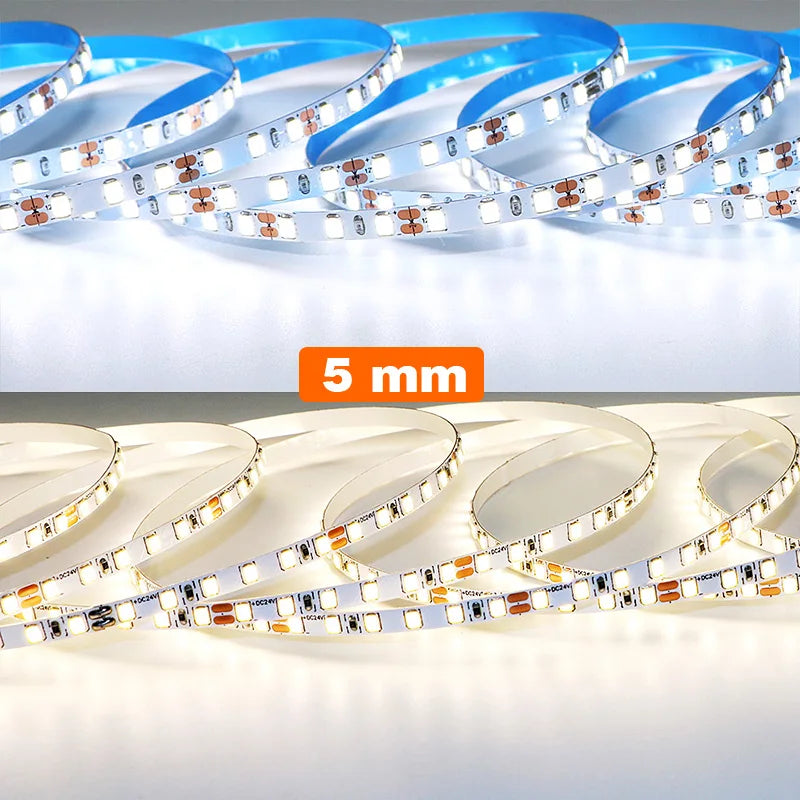

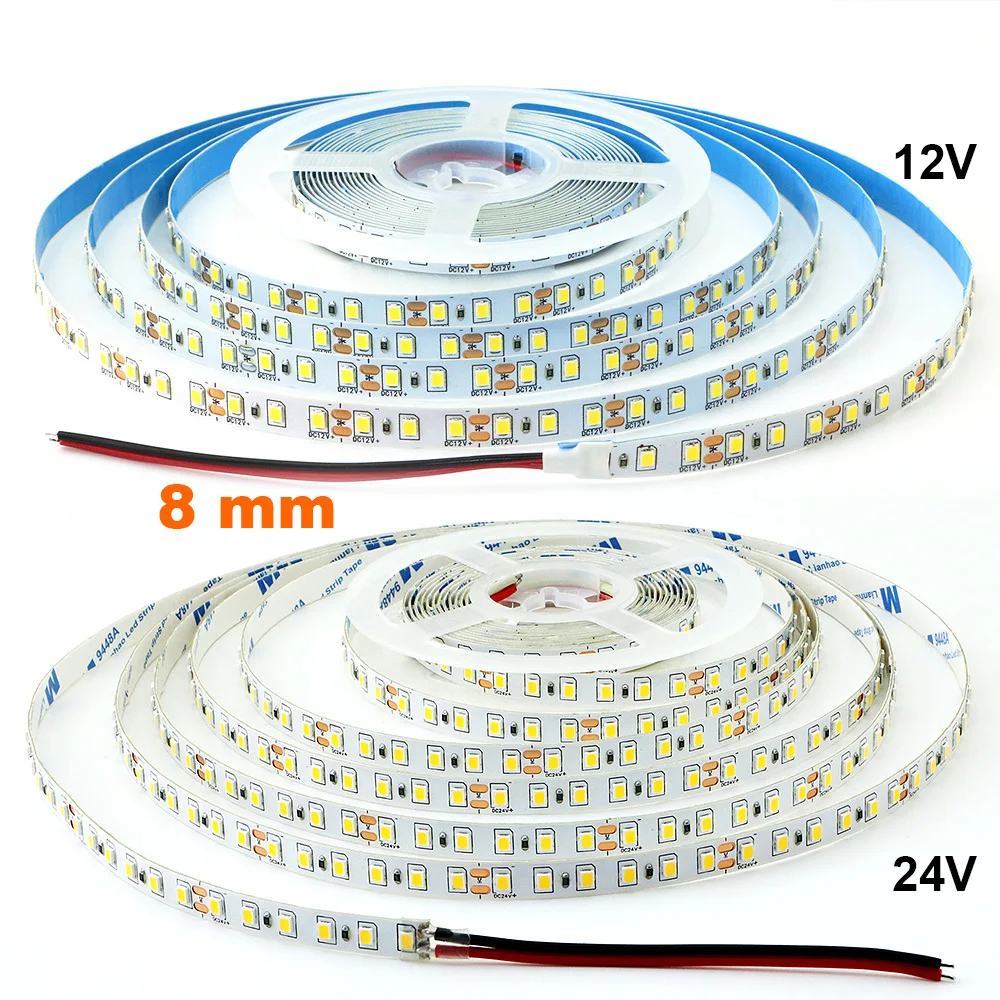

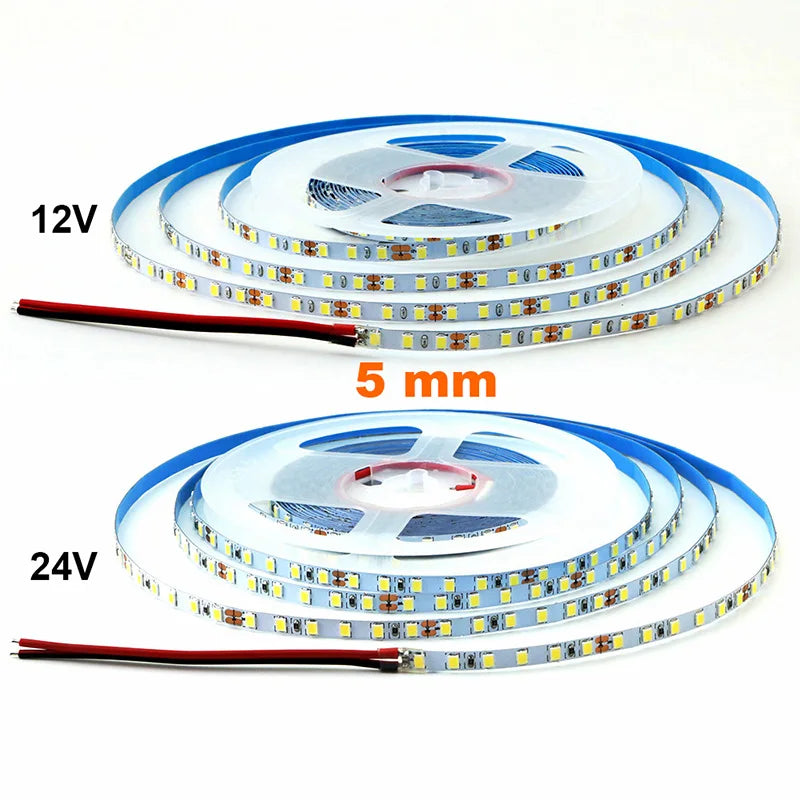

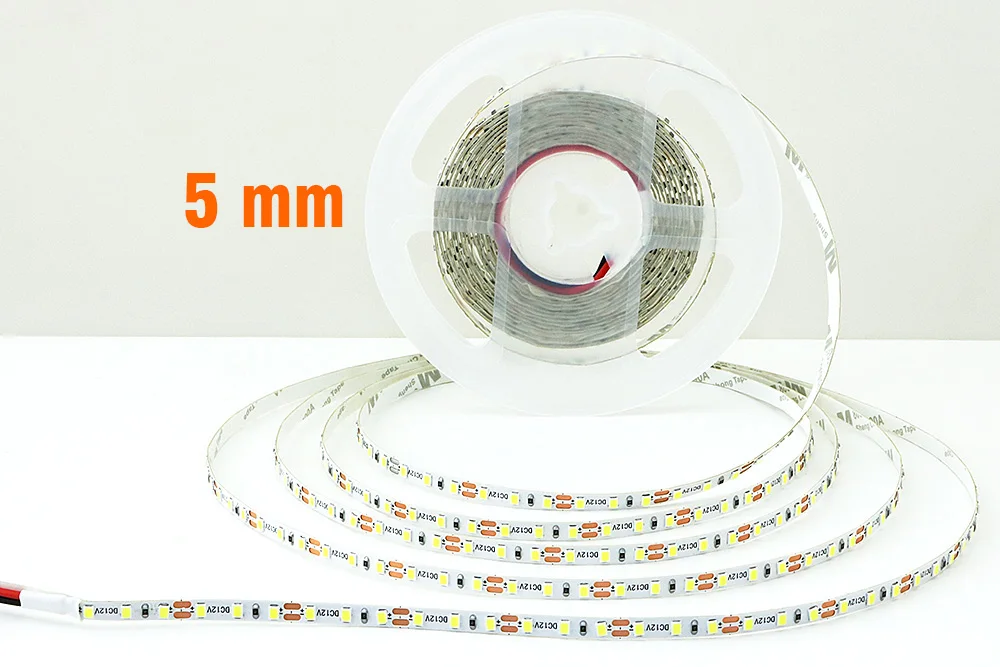

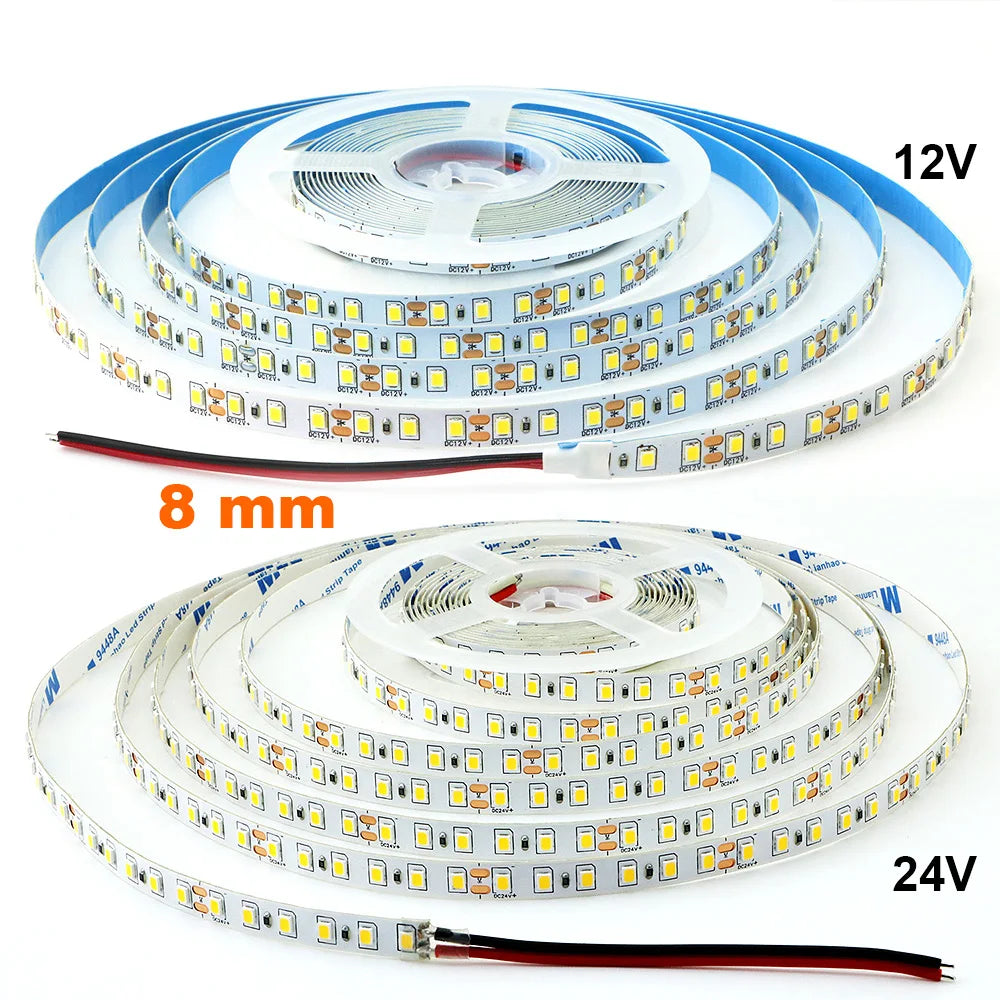

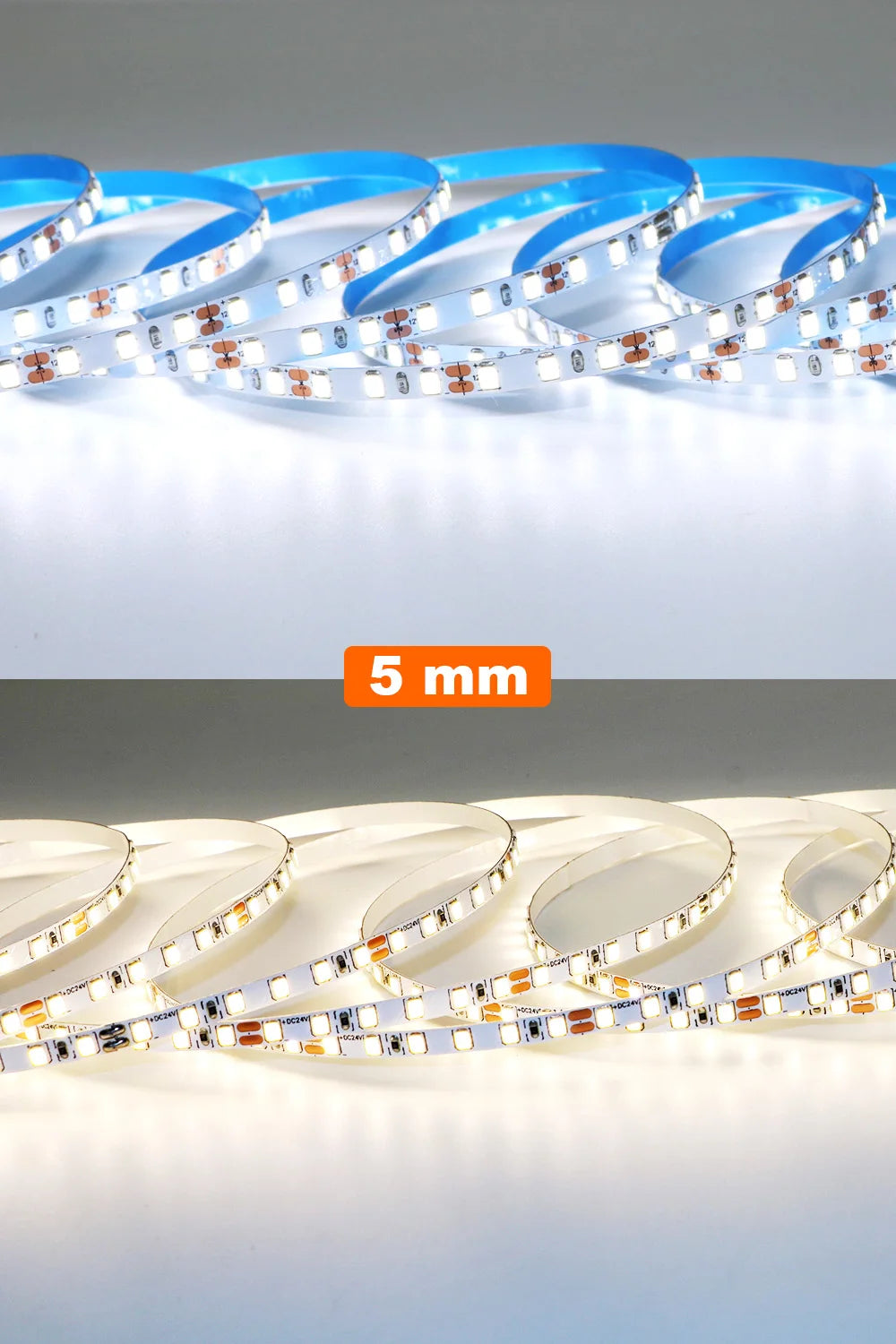

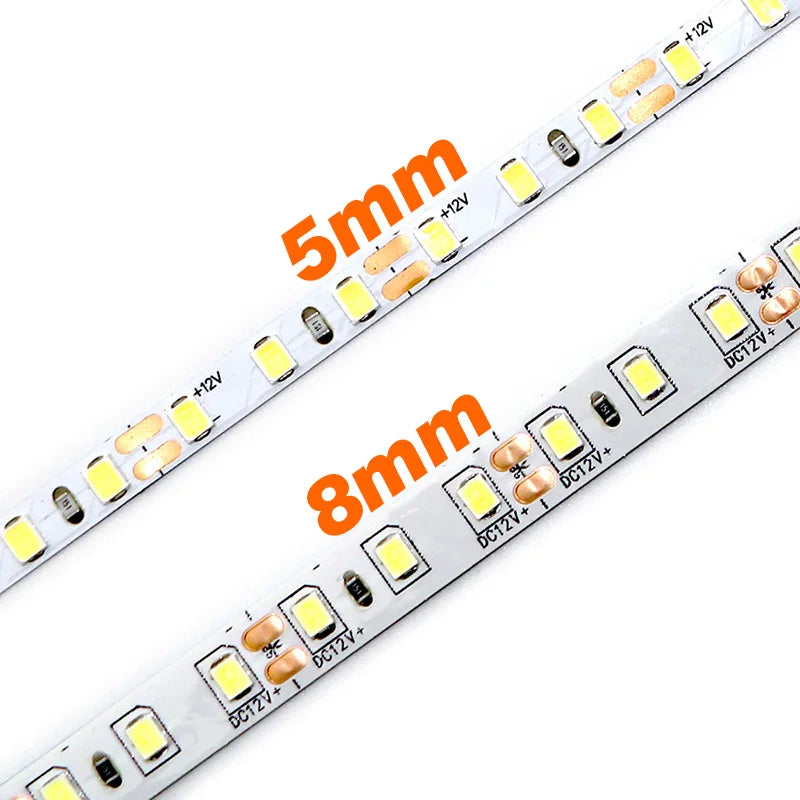

Width of LED light strip: 5mm / 8mm （It can only be one of the width，Please choose according to the witdh of the light strip you need）

Length of LED light strip: 5 meters / 10 meters (There are 2 lengths to choose from，Please choose according to the length of the light strip you need)

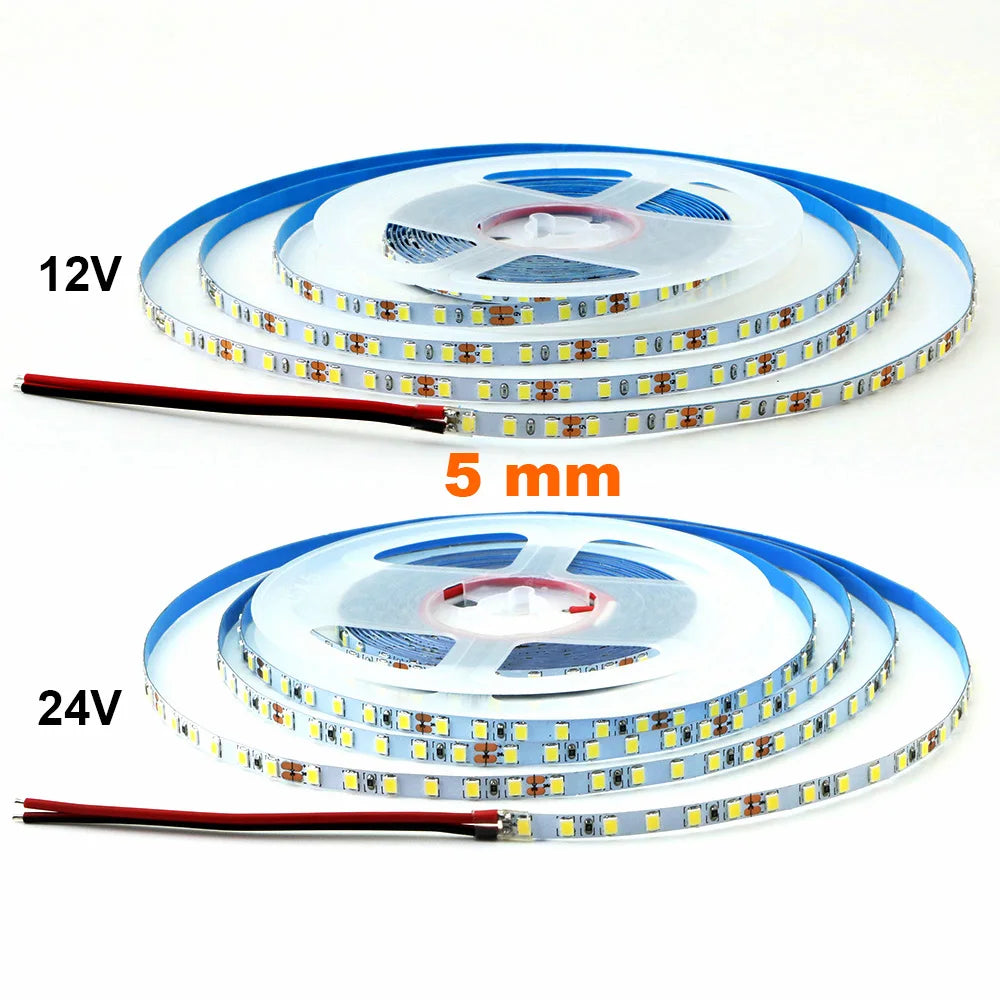

5. Input voltage: DC 24V / DC12V（It can only be one of the voltages）.

6. Light Color:

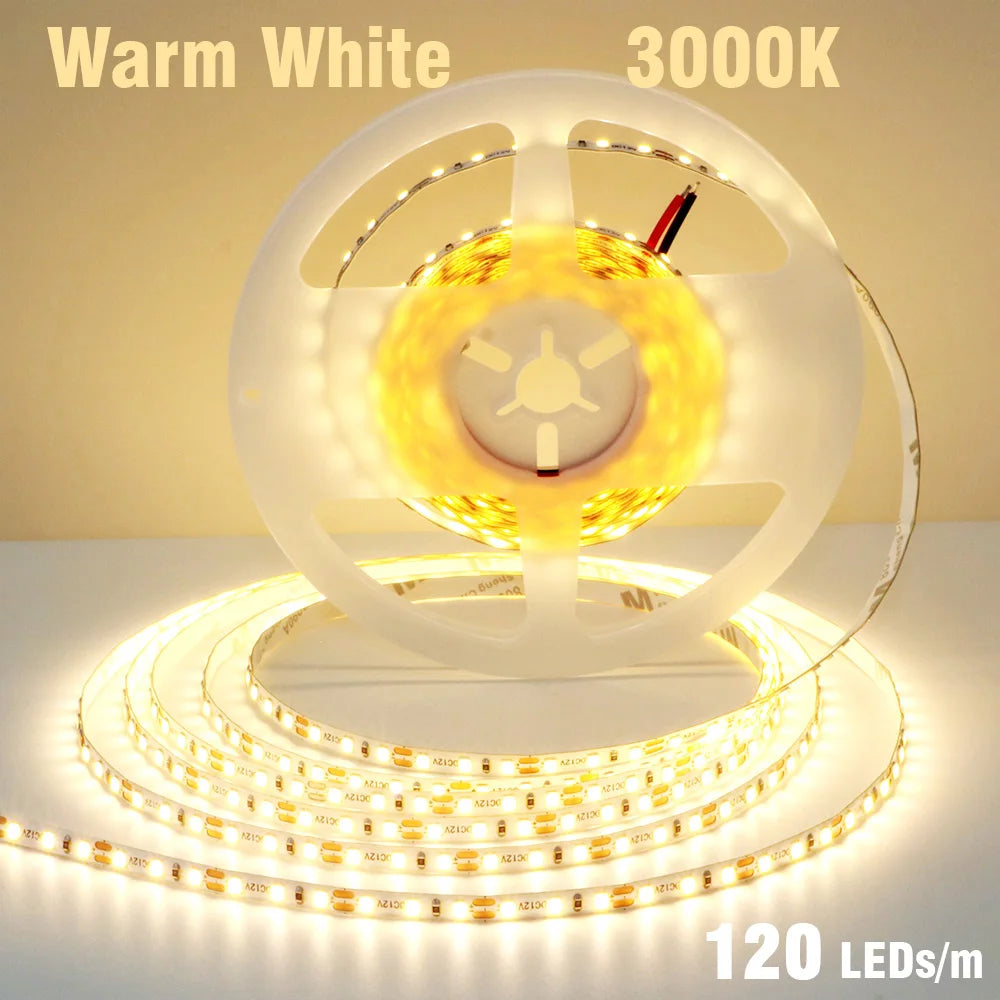

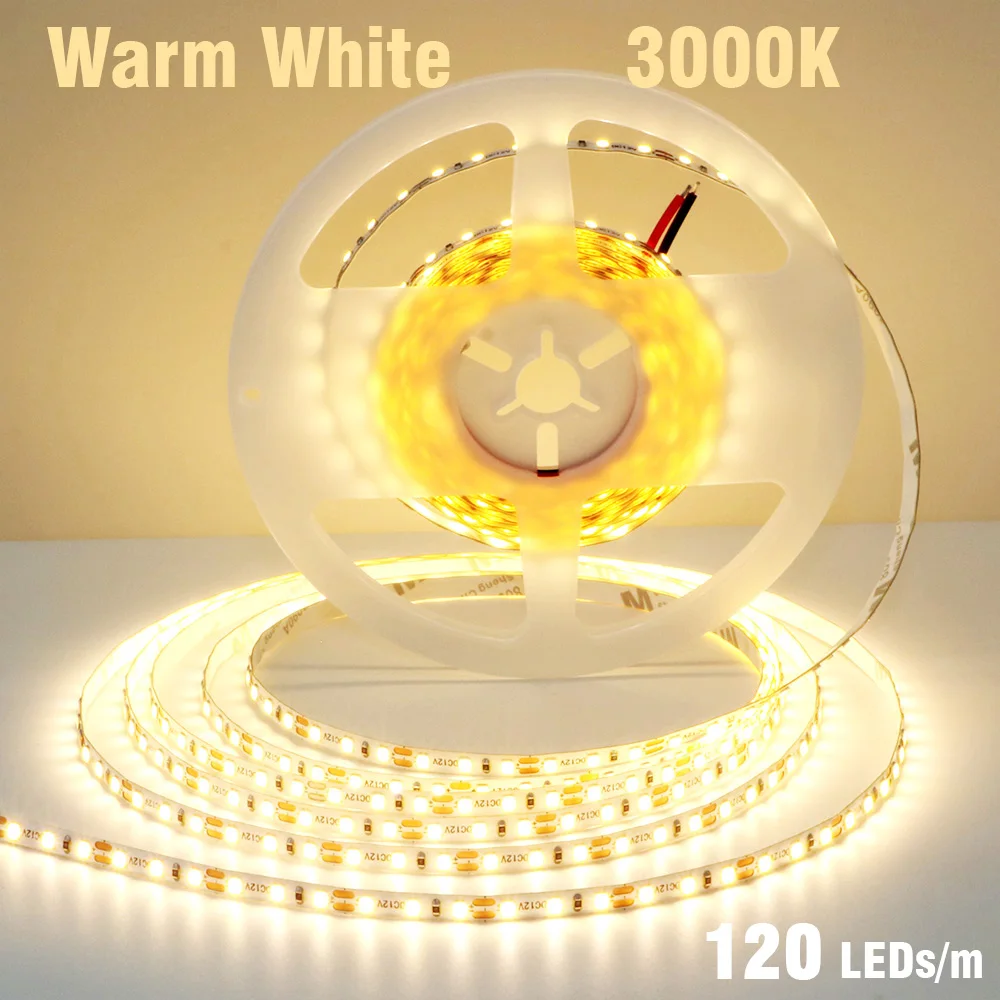

3000K - Warm White,

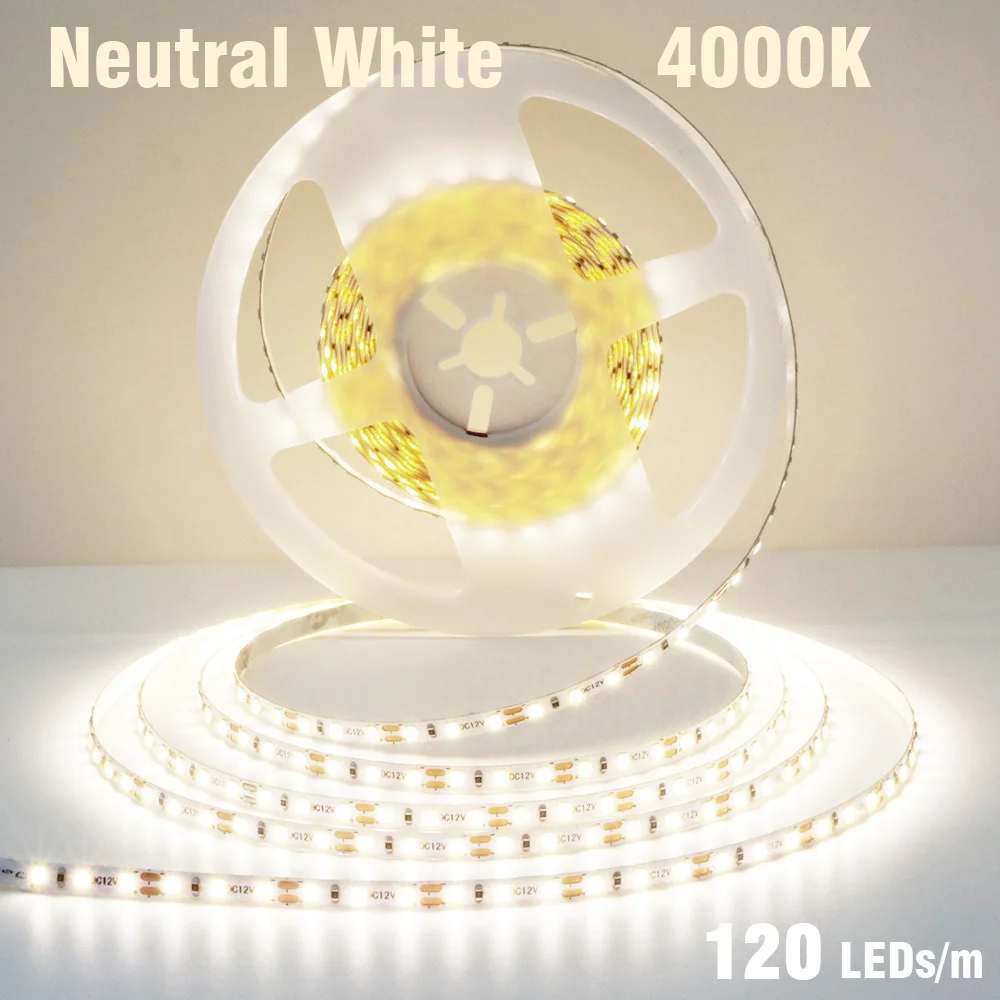

4000K - Neutral White,

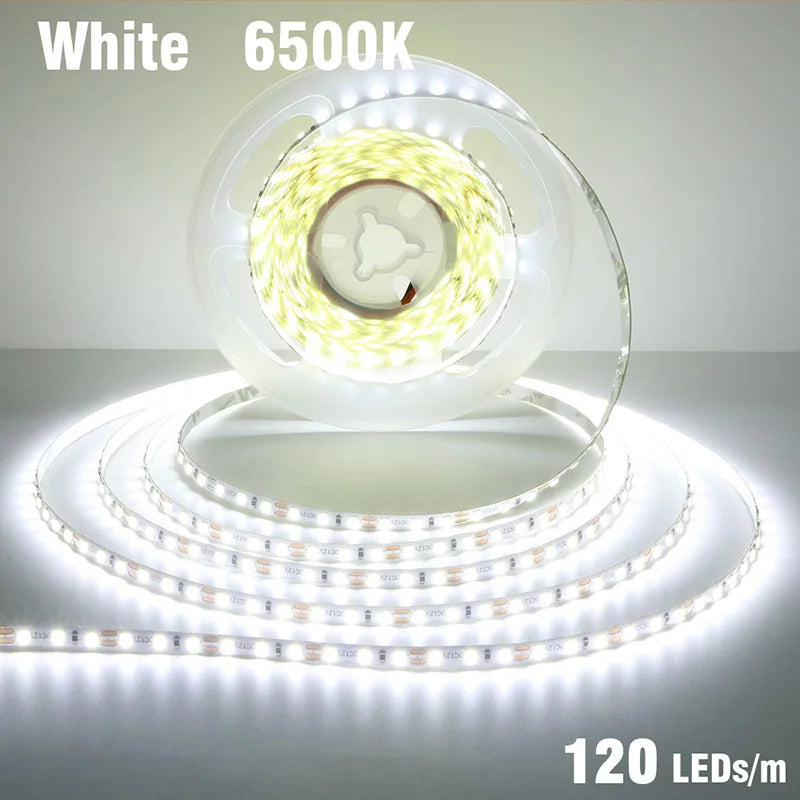

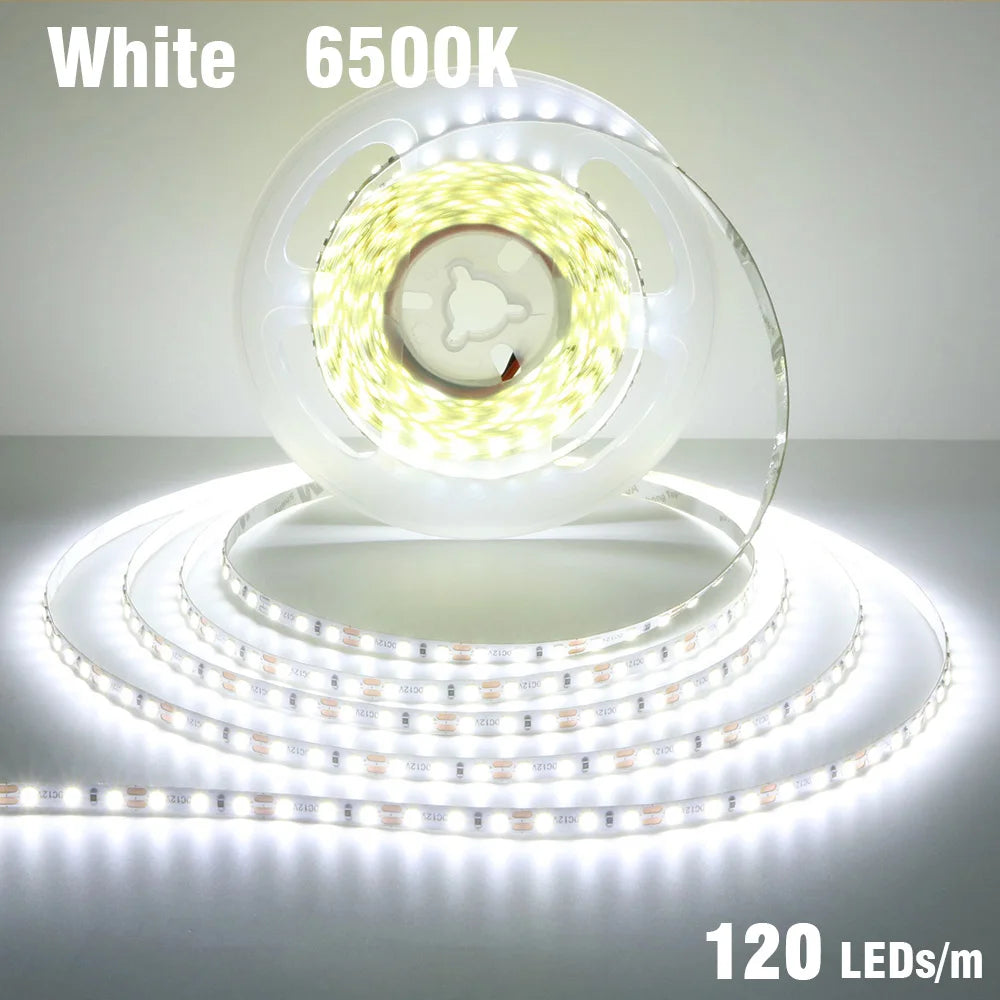

6500K - White (Or Cold White).

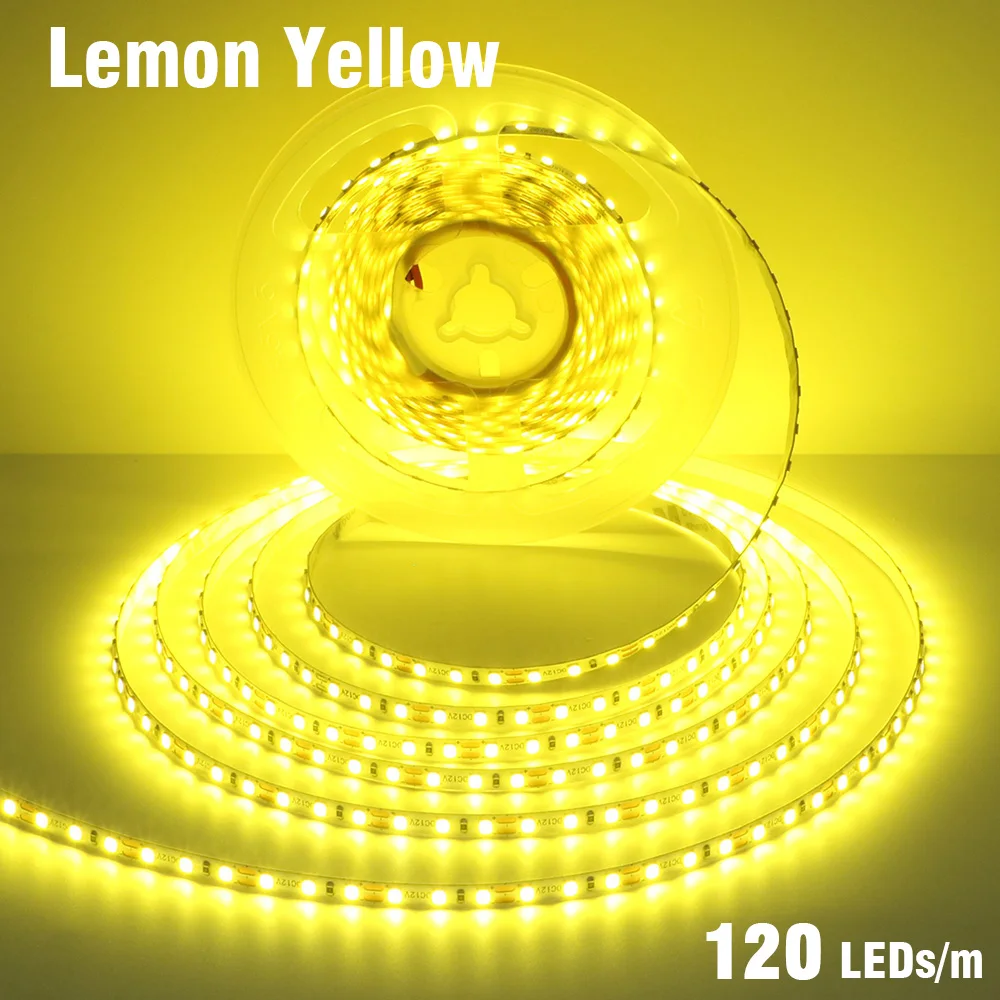

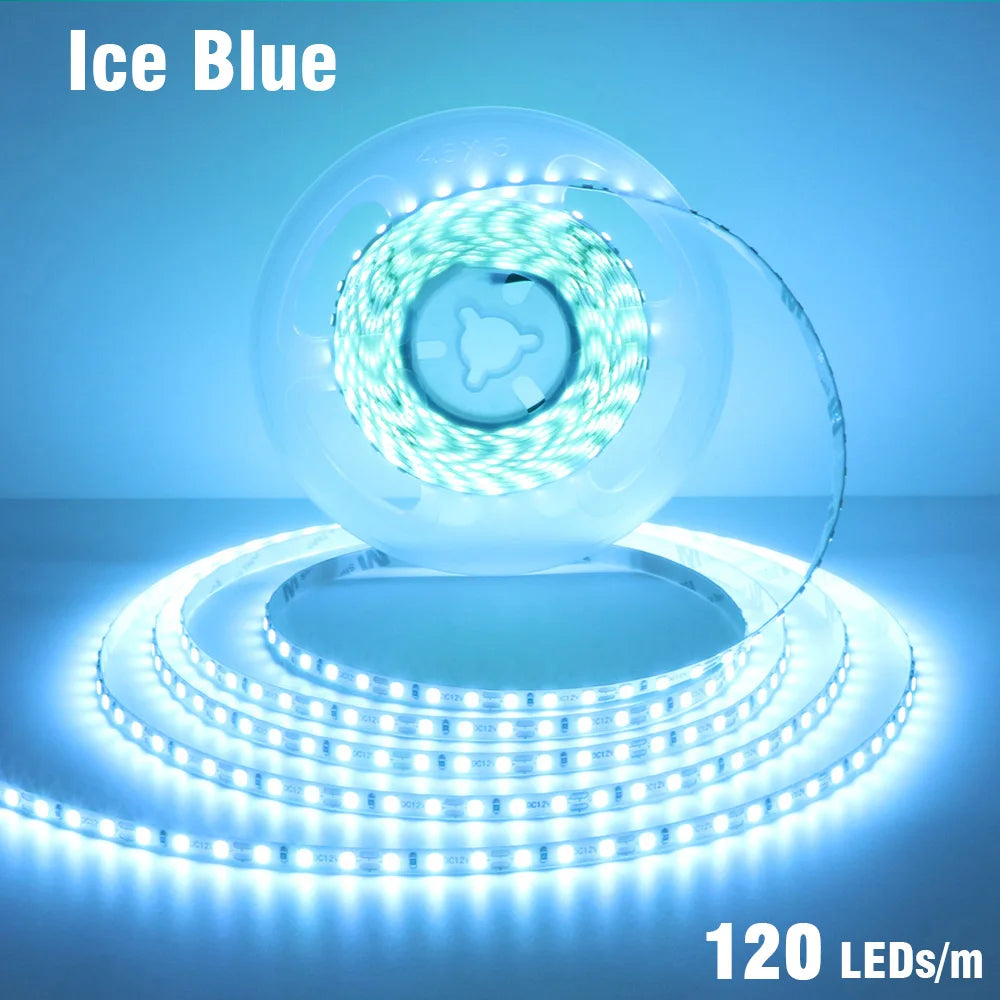

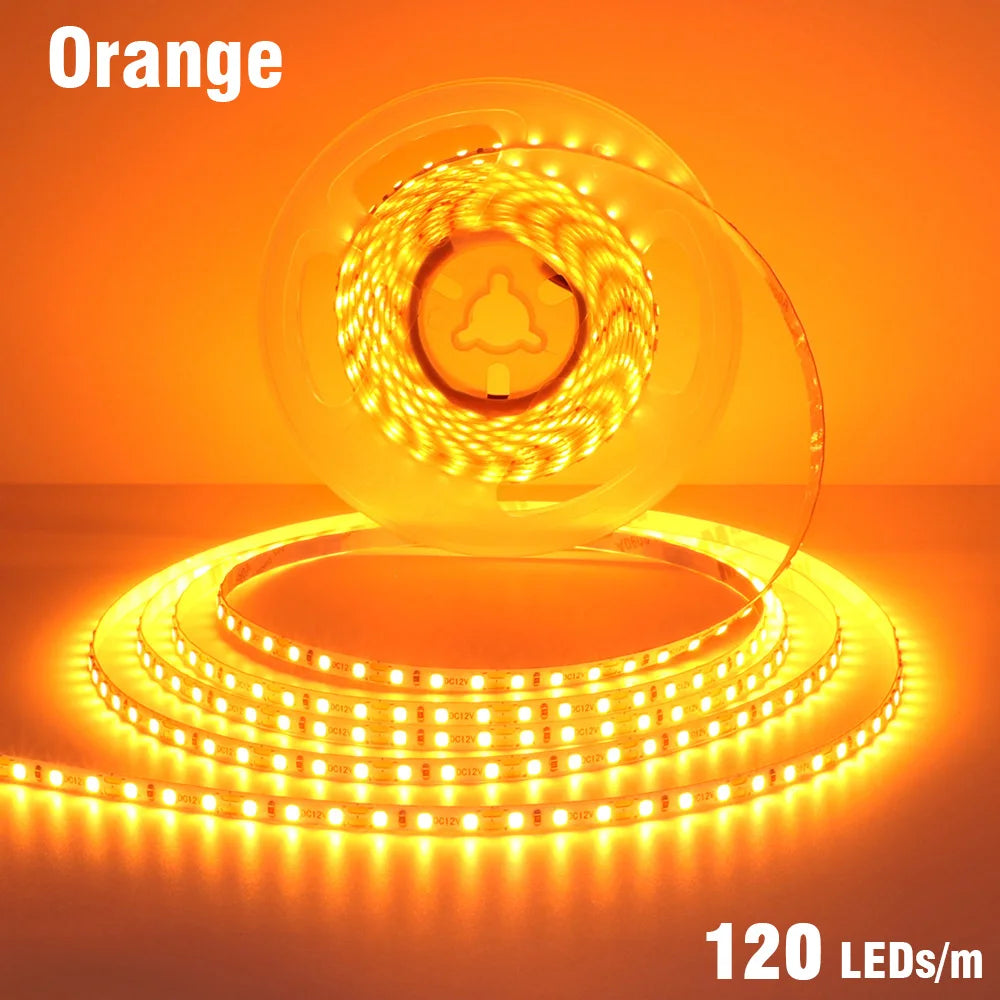

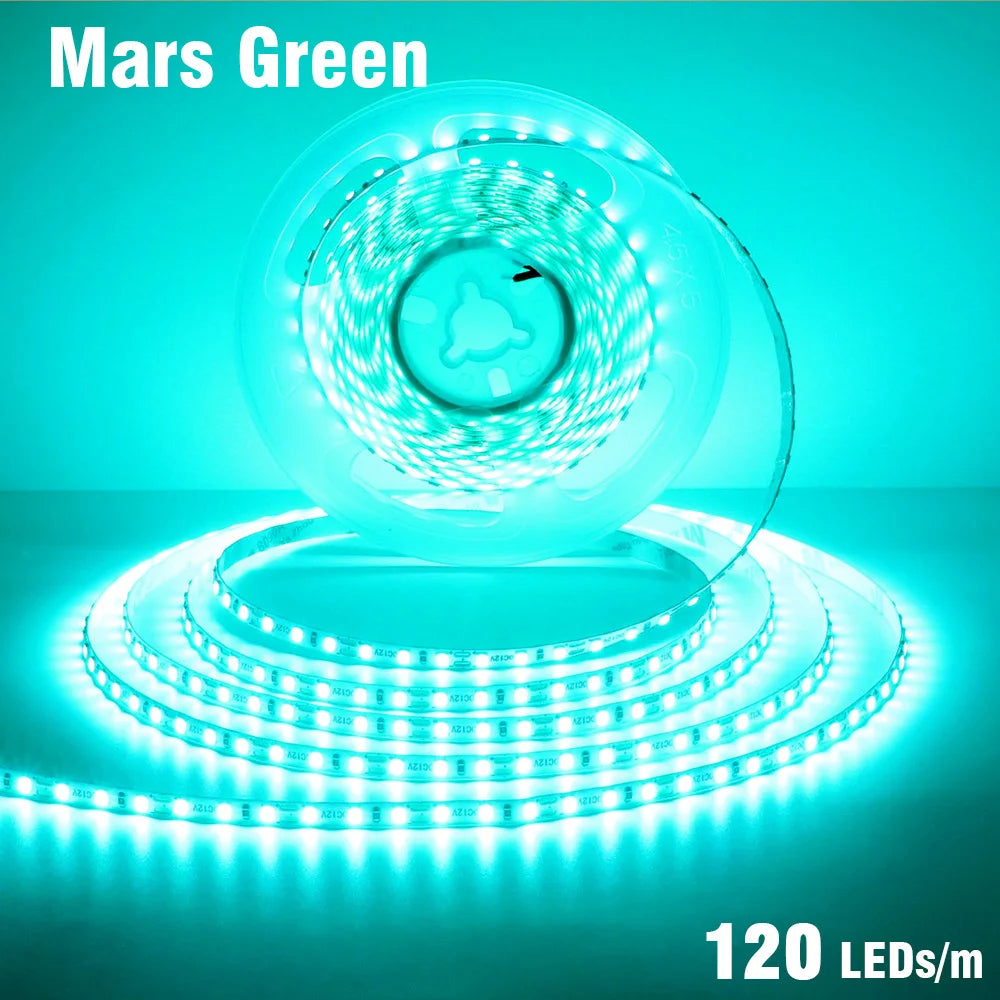

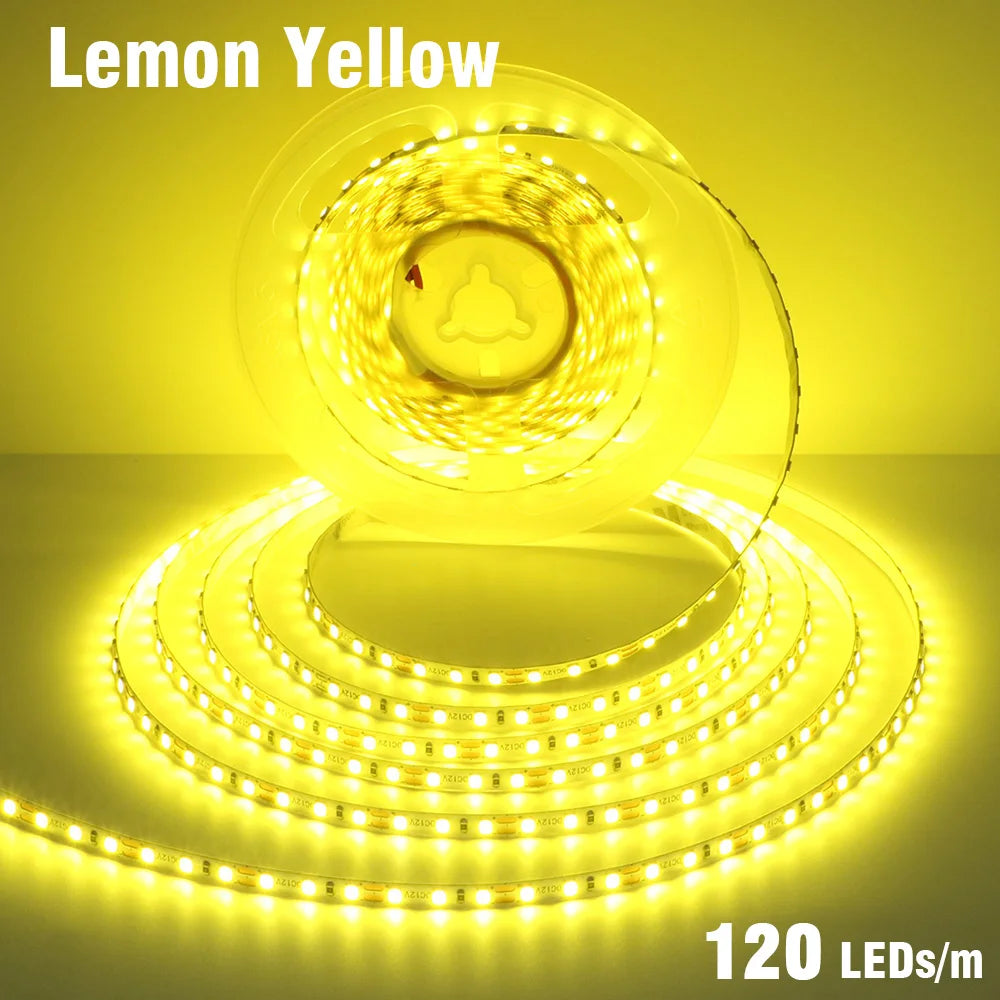

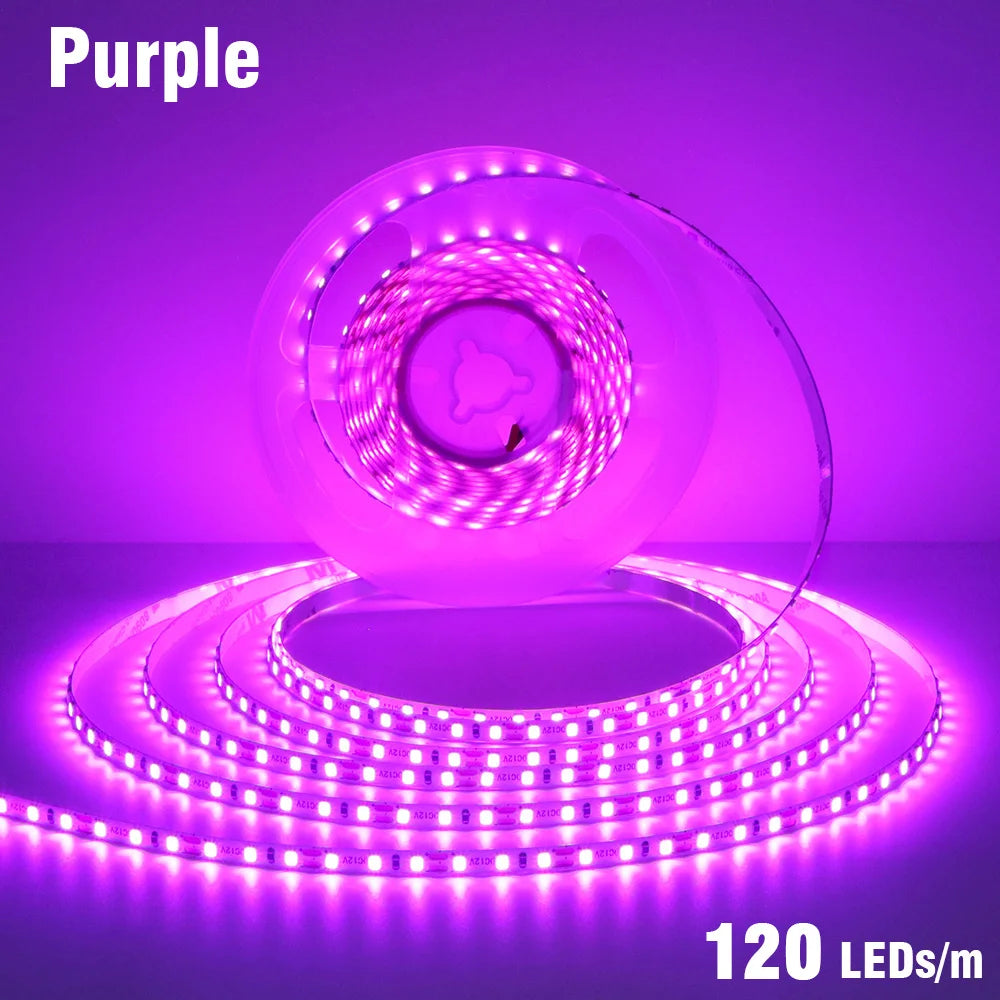

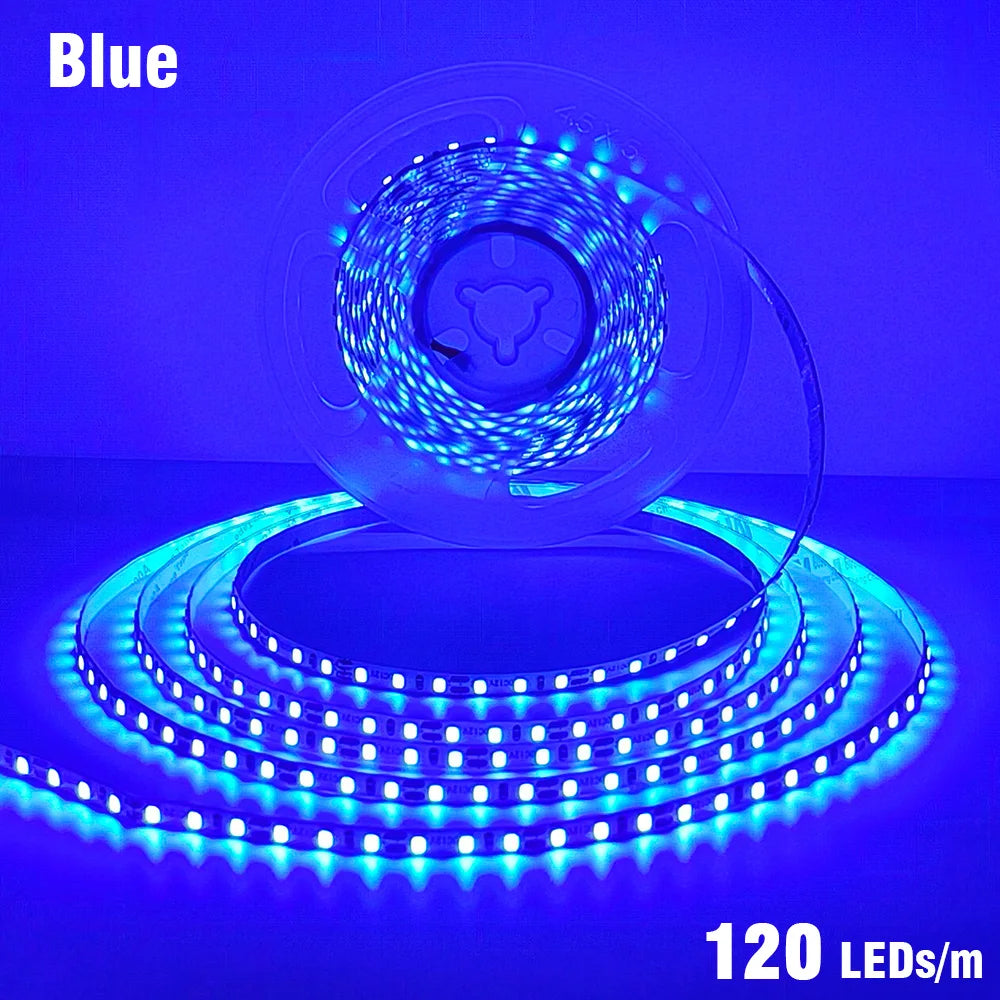

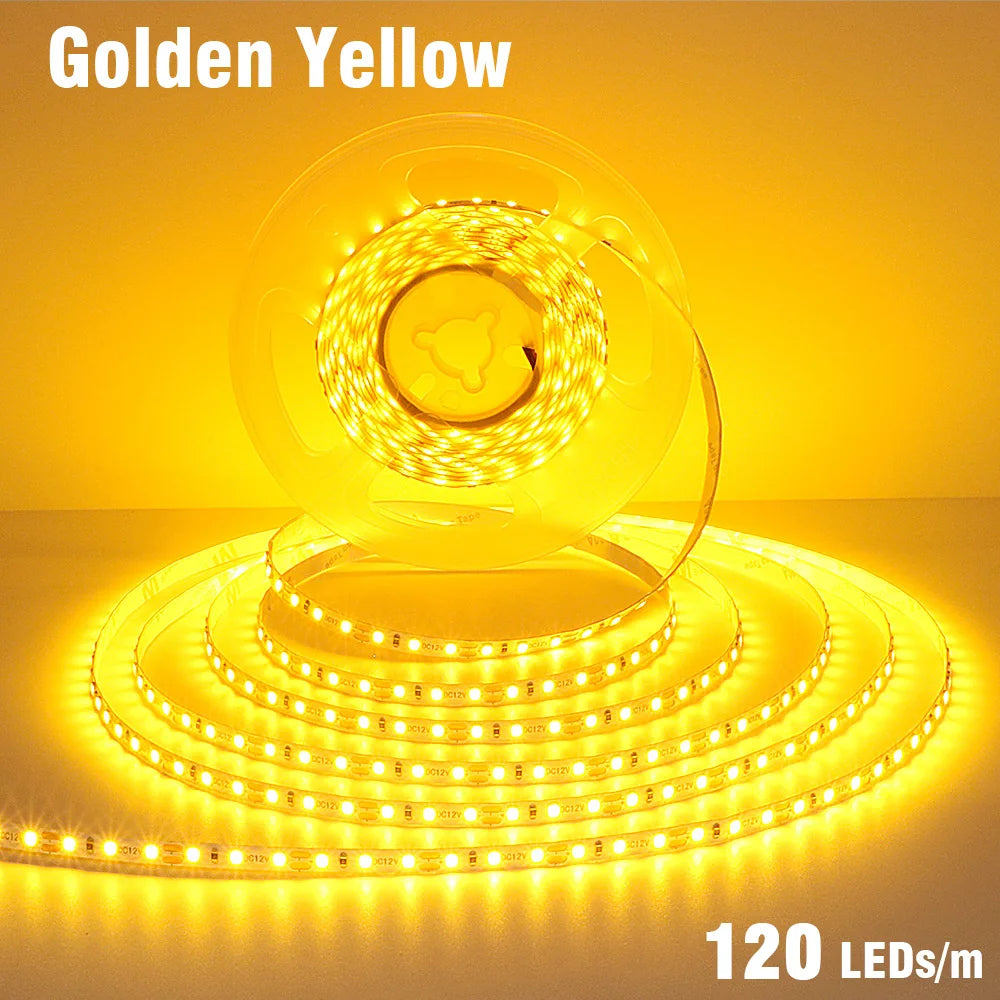

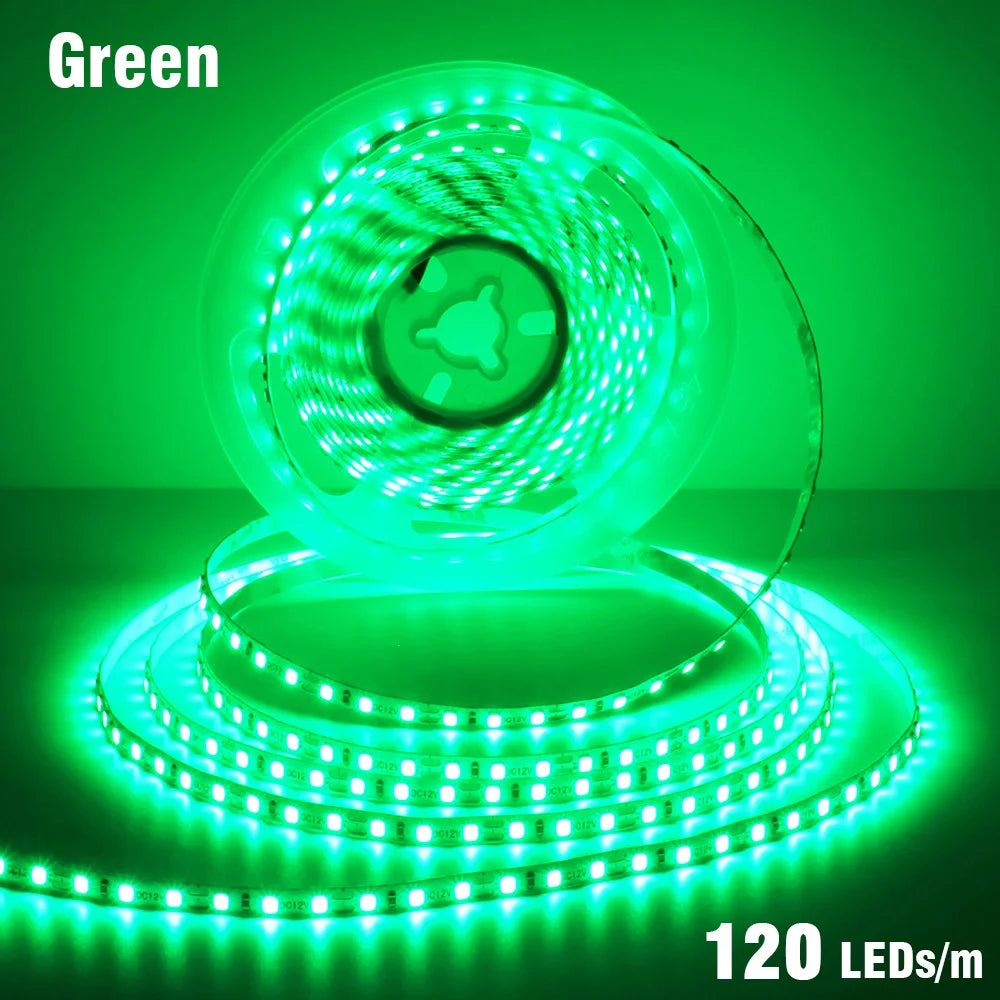

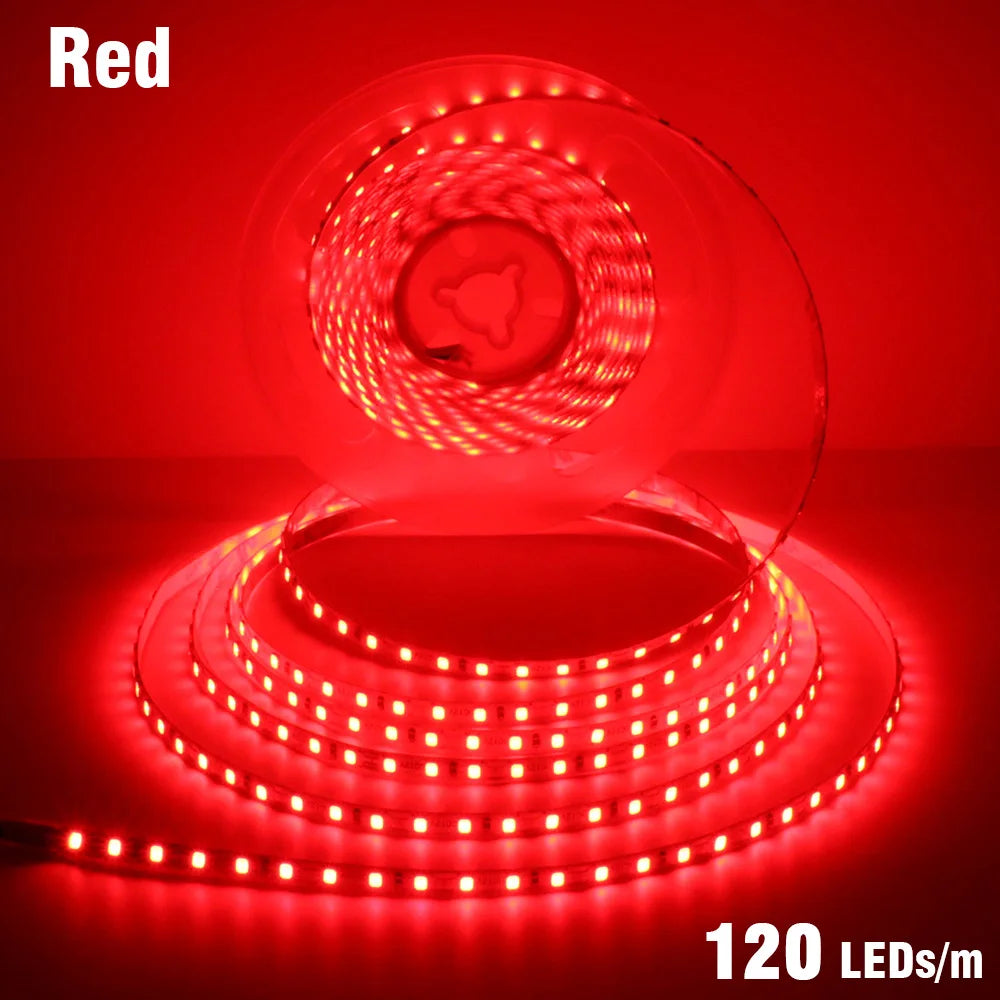

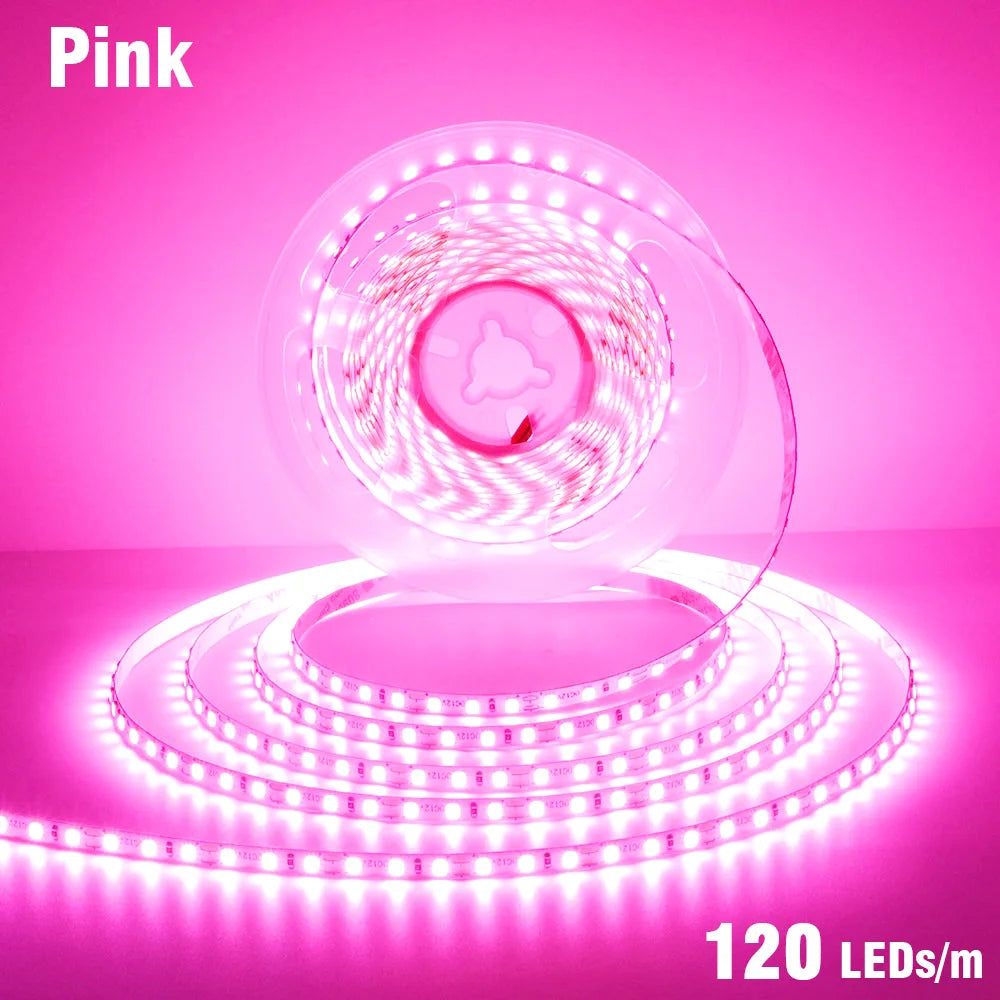

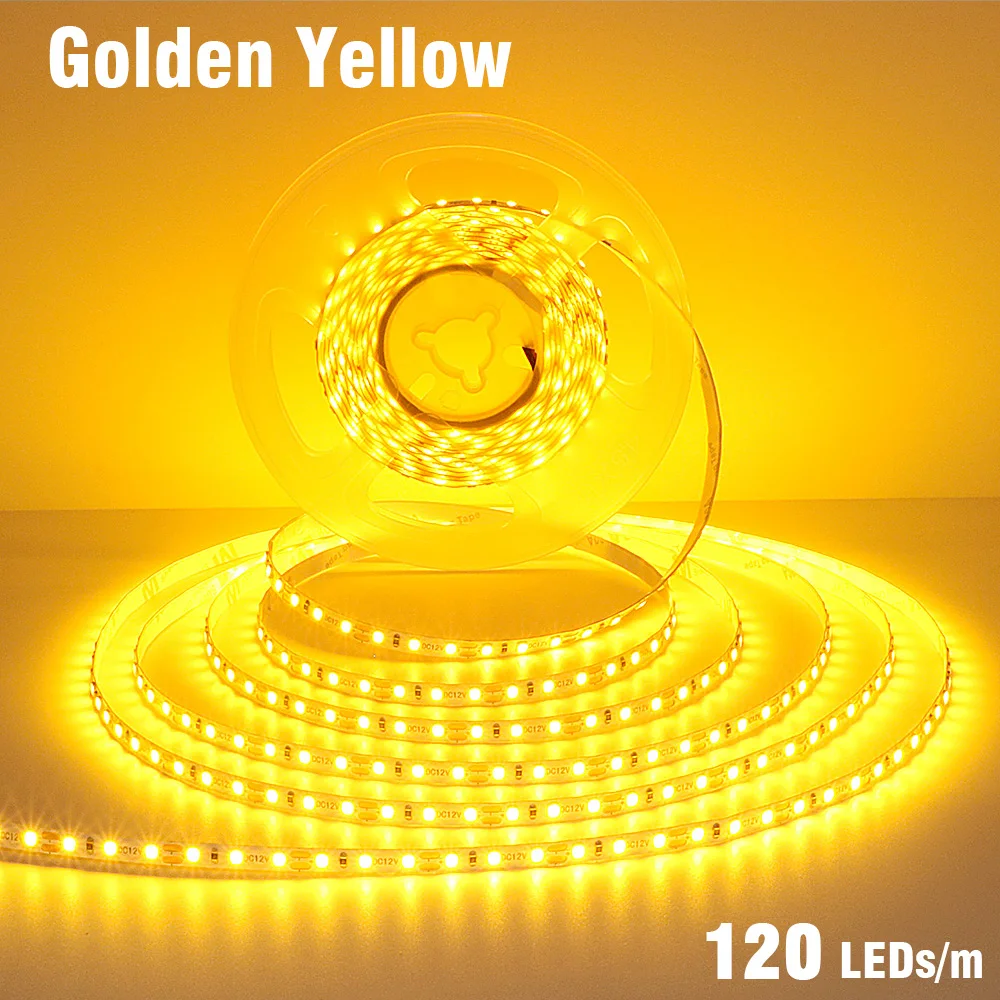

Red / Green / Blue / Ice Blue / Golden Yellow / Pink / Lemon Yellow / Orange / Mars Green / Purple

(There are 13 colors to choose from，Please choose according to the color of the light strip you need)

7. Protection Rate: Non-waterproof (IP20).

8. Power per meter: About 6 W (Approximately 6 watts per meter, the power of the light strip will vary depending on the length),

Special Reminder: we strongly recommend that you connect the wires at both ends of the LED strip to the driver power supply at the same time. This can improve the power and brightness of the LED strip, and the light will be more perfect. If only the wire at one end of the LED strip is connected to the driving power supply, the power of the entire strip will decrease.

9. Beam angle: 150°.

10. Working Temperature: -20° to 50°

11. This product is just a light strip, it does not include any driver power supply, dimmer, or controller, and it does not include any accessories

12. There is double-sided tape on the back of the LED light strip.

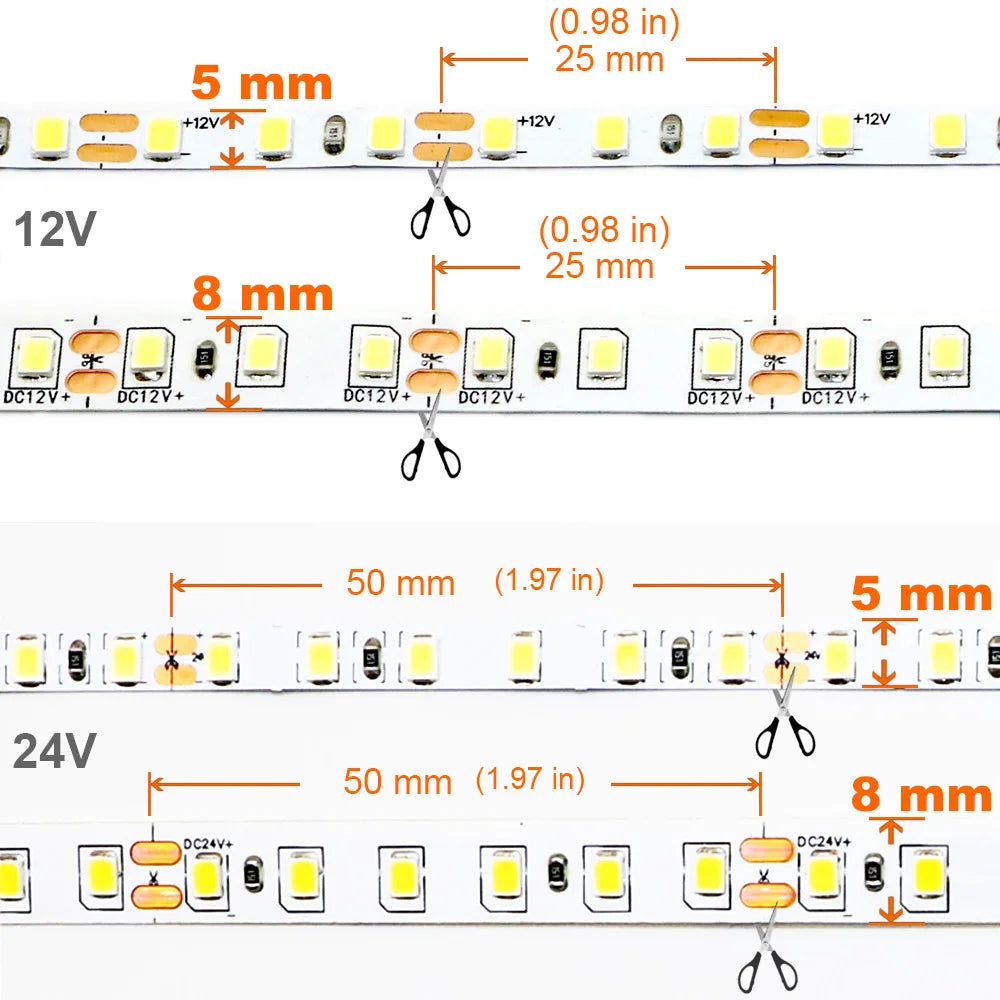

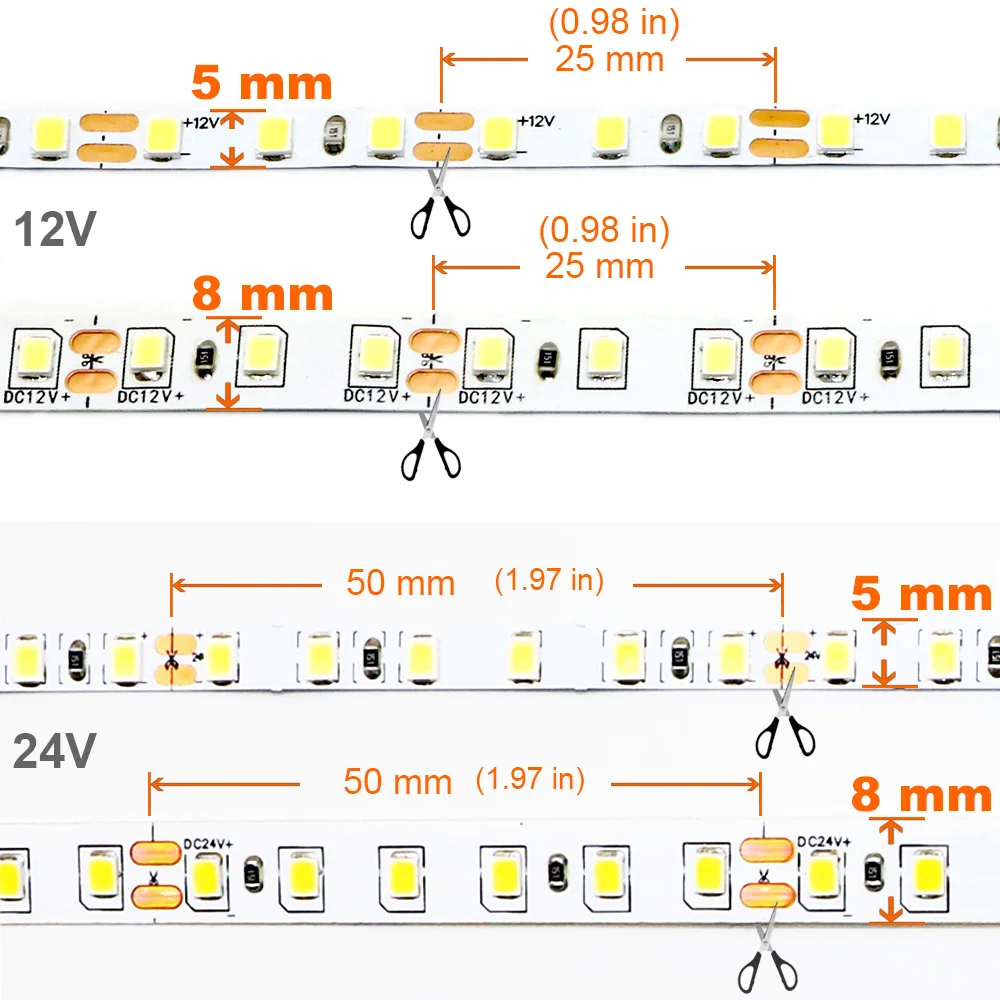

13. The cutting distance of 12V LED strip is 25mm, and that of 24V LED strip is 50mm.

14.The LED strip must be connected to the voltage DC12V or DC24V corresponding to the LED strip. or the LED strip will be burnt out.

15. This LED strip can only be used after being connected to the city voltage by purchasing additional transformers. If you do not know how to select the power of the transformer, please contact us, and we can tell you how to select the power of the power supply.

16. When the LED strip flickers intermittently, it indicates that the power of the drive power used for the LED strip is insufficient, This is not an issue with the LED light strip,and the drive power with higher power needs to be replaced.

.

.

.

.
