Description

SPECIFICATIONS

Application: PCB Cable Connector

Brand Name: E-SIMPO

Certification: RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Gender: Male,Female

High-concerned chemical: None

Model Number: 15EDG KF2EDG PCB Plug Screw Terminals Block

Origin: Mainland China

Pitch: 3.5MM,3.81MM,3.96MM,5.08MM

Style: Right Angle,Straight Pin

Voltage: 5 V 12 V 20 V 30 V

Wire range: 12-28AWG

is_customized: Yes

semi_Choice: yes

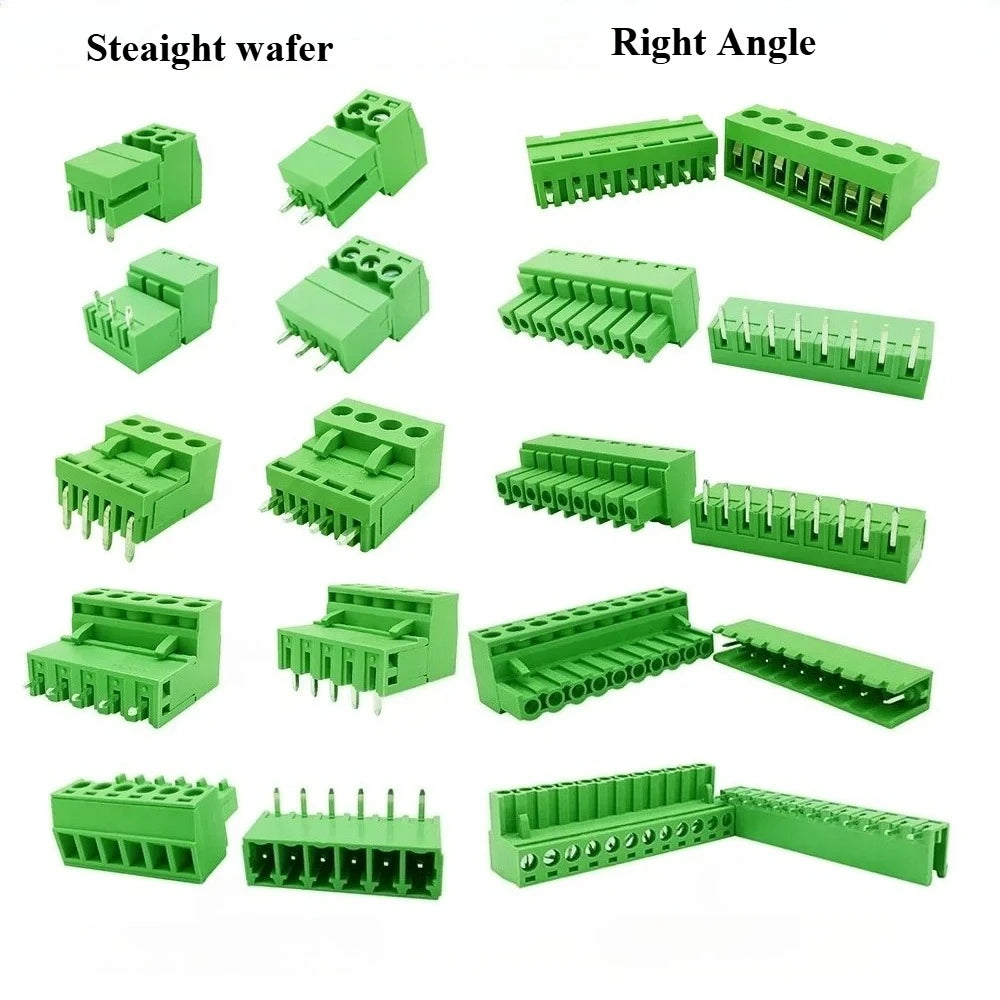

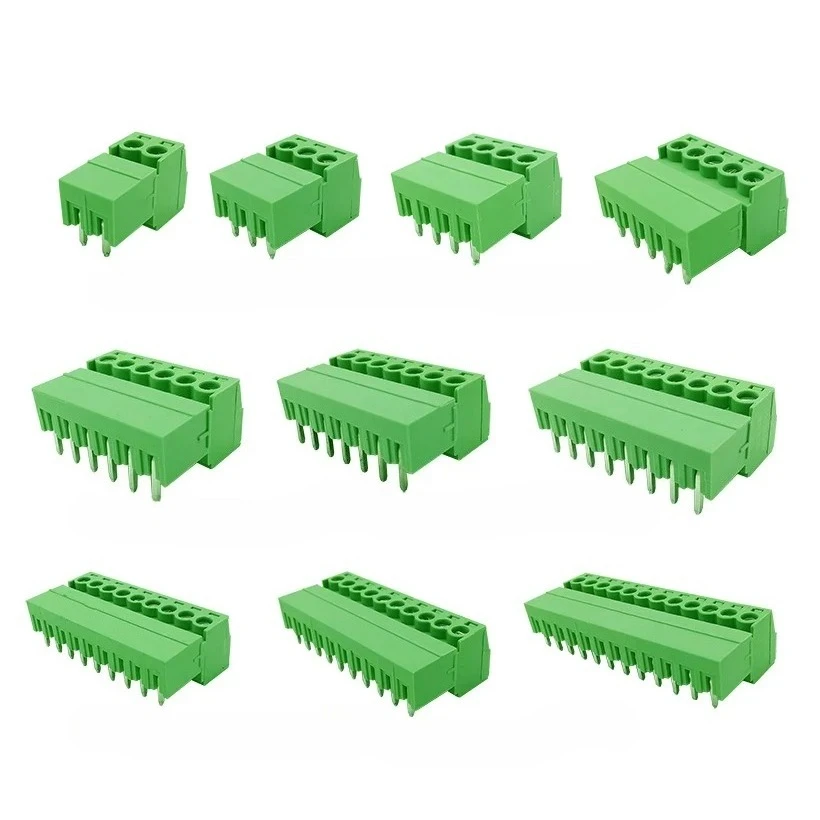

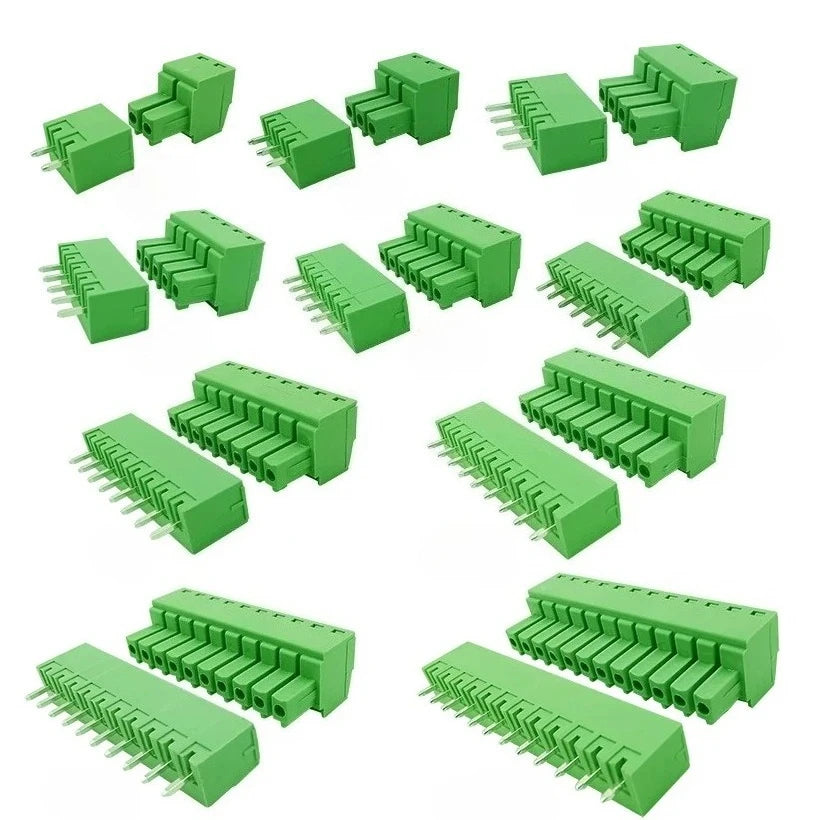

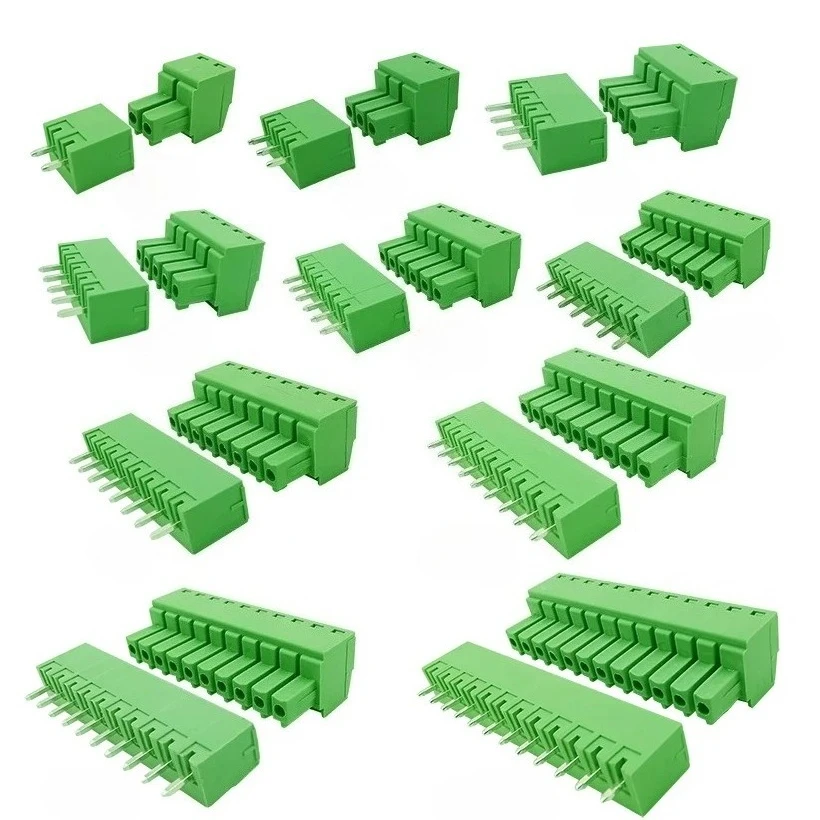

5Pair 15EDG KF2EDG 3.5mm 3.81mm 3.96mm 5.08mm PCB Screw Terminal Block 2-12Pin Male Plug Female Socket Pin Header Wire Connector

Feature:
Type: 15EDG 3.5mm/3.81mm/3.96mm/5.08mm KF2EDG PCB Screw Terminal Block Conenctor

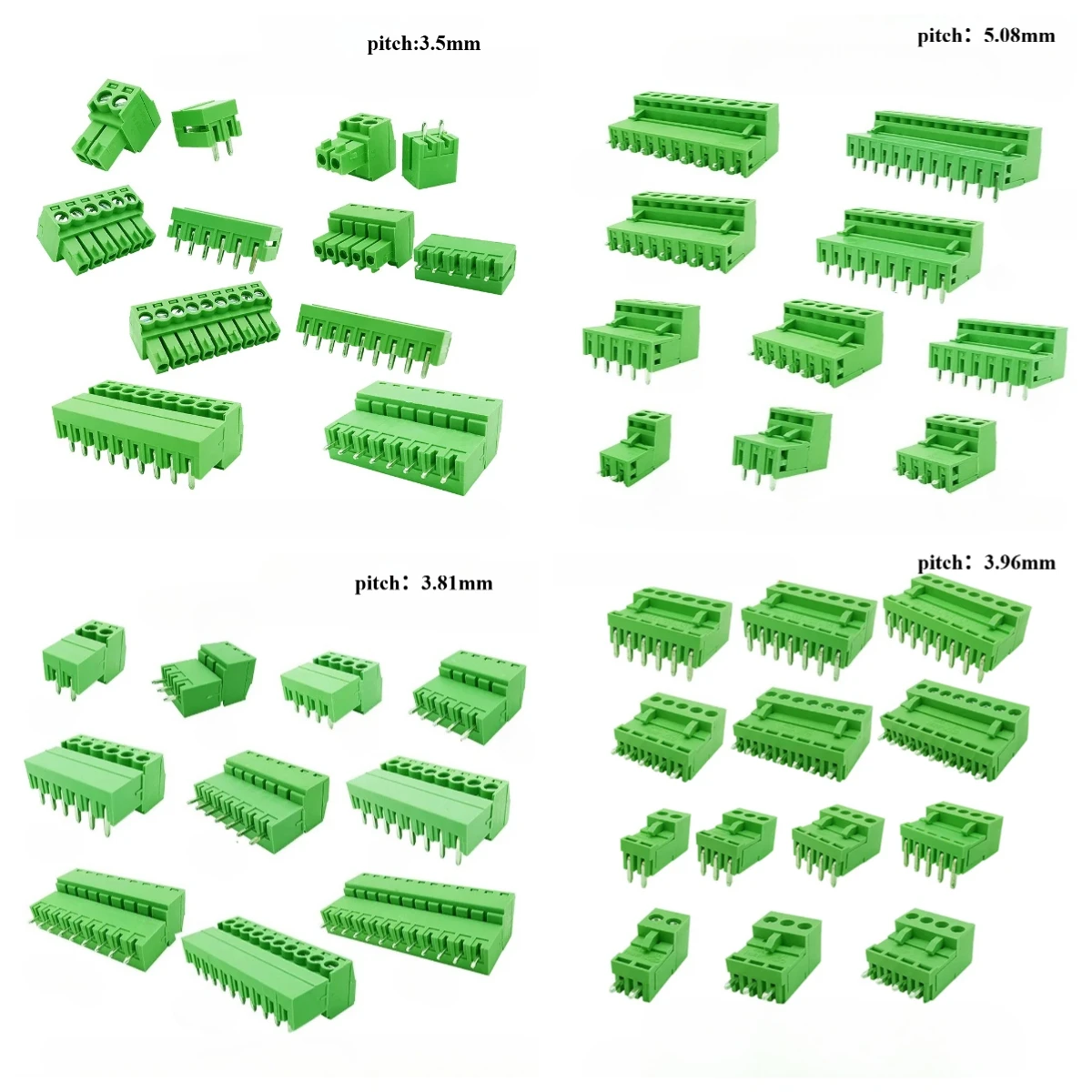

Pitch: 3.5mm/3.81mm/3.96mm/5.08mm
Pin: 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8Pin 9Pin 10Pin 12Pin
Rated voltage: 300V
Rated current: 10A
Wire range: 28-12 AWG
Style: Right Angle / Straight Pin
Package Include :
5Pairs x 3.5mm 5Pcs straight wafer /Right angle+ 5Pcs Female Socket PCB Connector

5Pairs x 3.81mm 5Pcs straight wafer /Right angle + 5Pcs Female Socket PCB Connector

5Pairs x 3.96mm 5Pcs straight wafer /Right angle + 5Pcs Female Socket PCB Connector

5Pairs x5.08mm 5Pcs straight wafer /Right angle + 5Pcs Female Socket PCB Connector
