SPECIFICATIONS

Brand Name: ALLiSHOP

Certification: NONE

Choice: yes

Color: Green

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features1: pcb screw terminal

Features2: screw terminal connector

Features3: pcb connector 3.5mm 3.81mm 3.96mm 5.08mm

Features4: 15EDG 3.81MM 3.5MM 3.96mm 5.08mm KF2EDG PCB Screw Terminal Block Connector

Gender: Male, Female

High-concerned chemical: none

Model Number: PCB Screw Terminal Block

Origin: Mainland China

Pins: 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8Pin 9Pin 10Pin 12Pin

Quantity: 5Pair

Rated voltage/current: 300V 8A

Style: Straight Pin / Right Angle

Type: PCB Terminal Block Connector

Voltage: none

Wire range: 28~16 AWG

semi_Choice: yes

5Pairs 15EDG KF2EDG 3.5mm 3.81mm 5.08mm PCB Screw Terminal Block 2P-12 Pin Male Plug Female Socket Pin Header Wire Connector

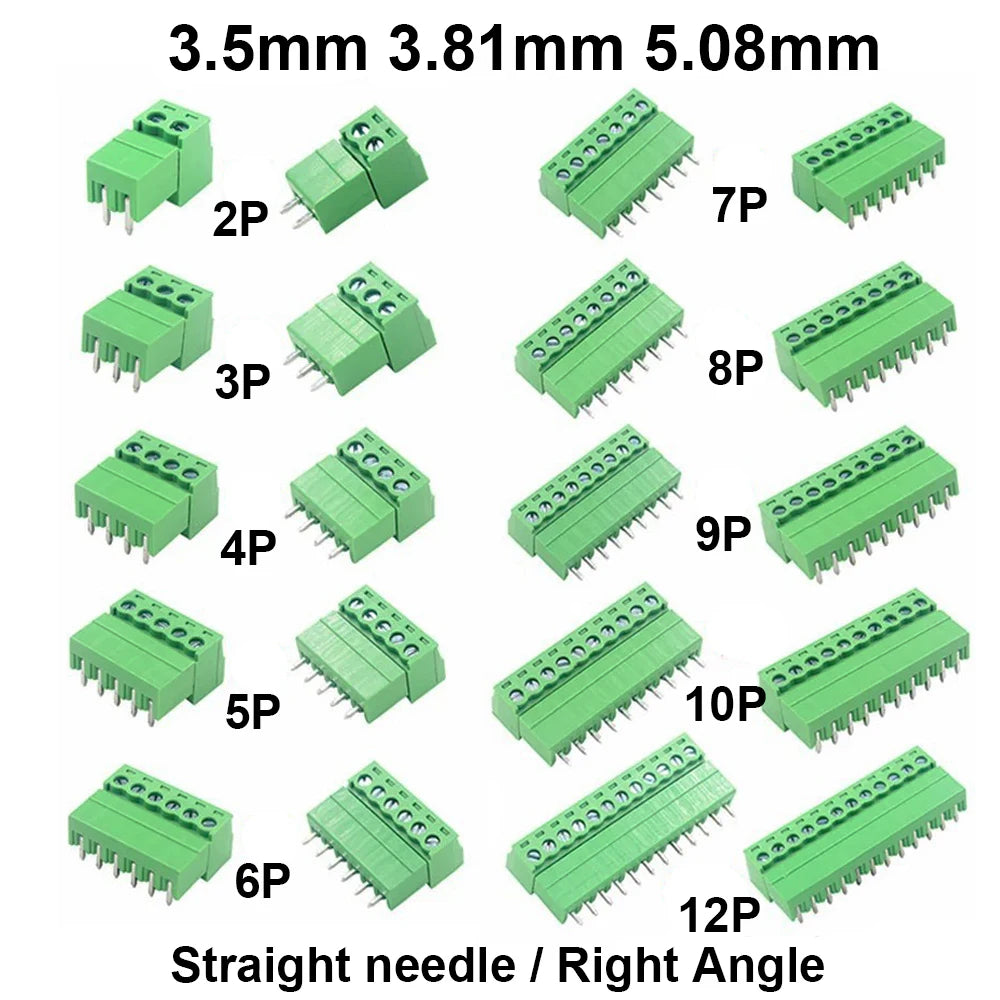

Name: 3.5mm 3.81mm 5.08mm PCB Screw Terminal Block Connector

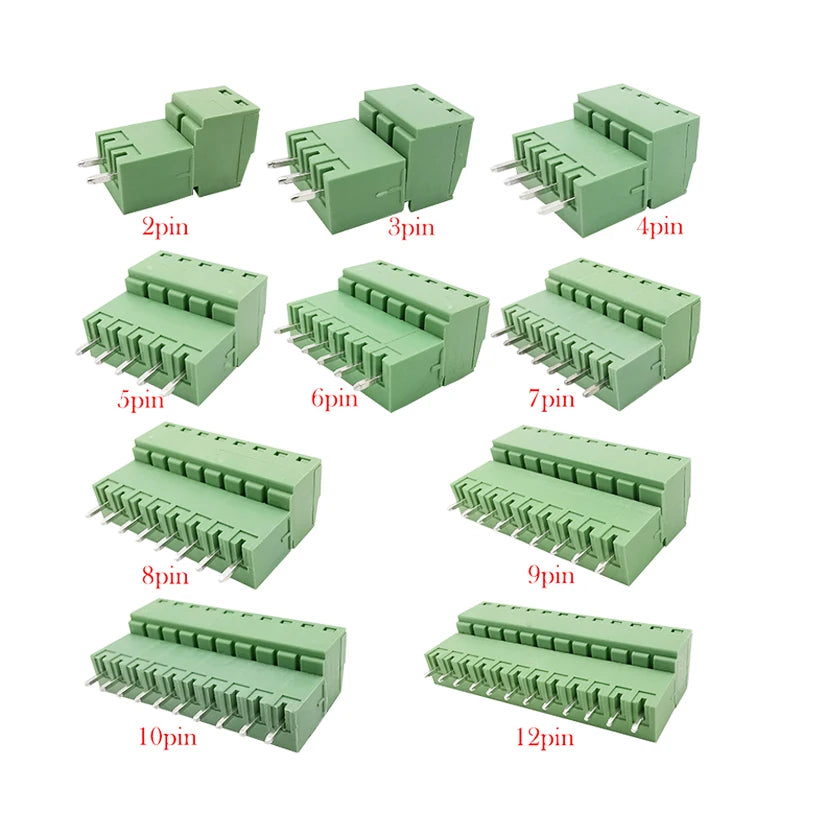

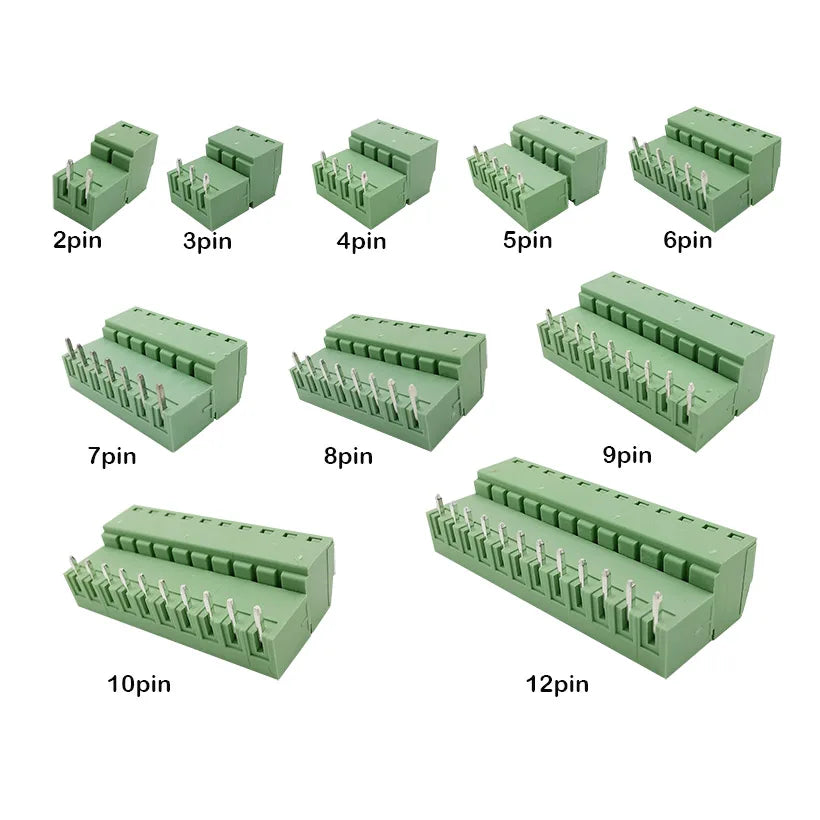

Pins: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 12Pin

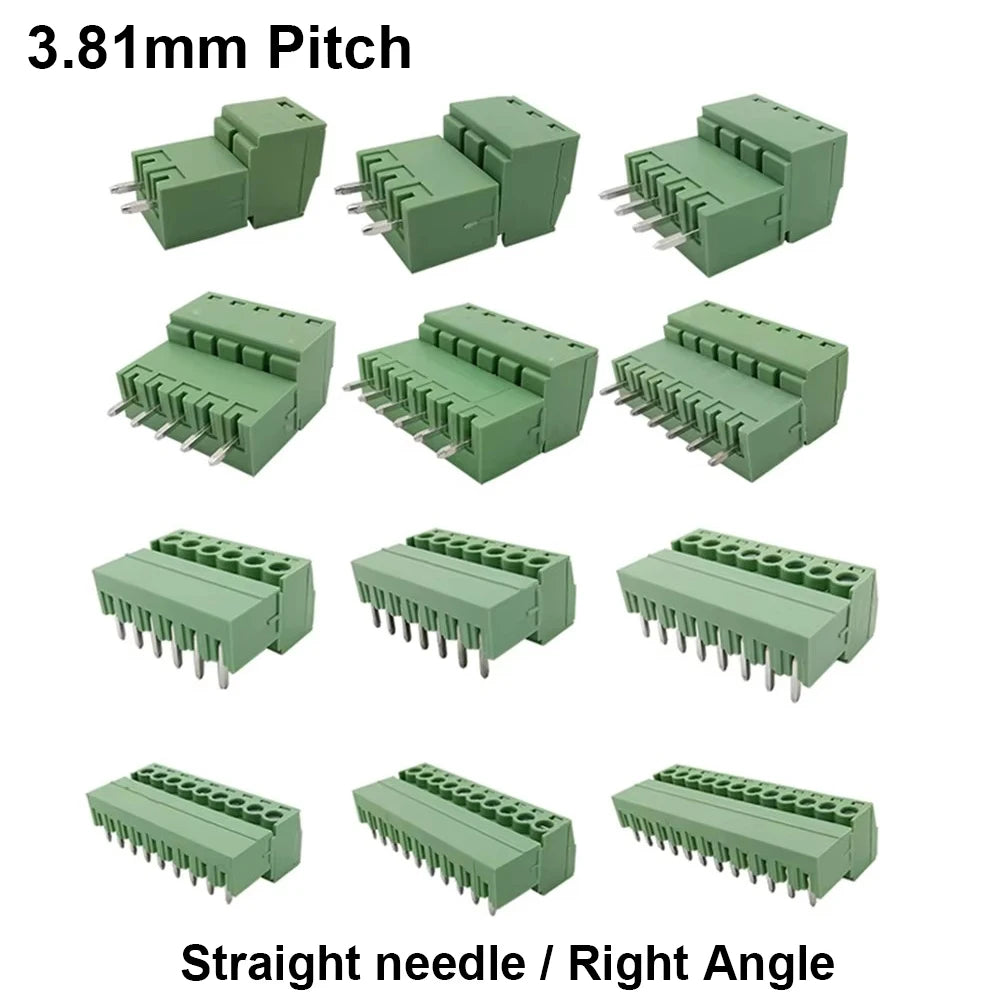

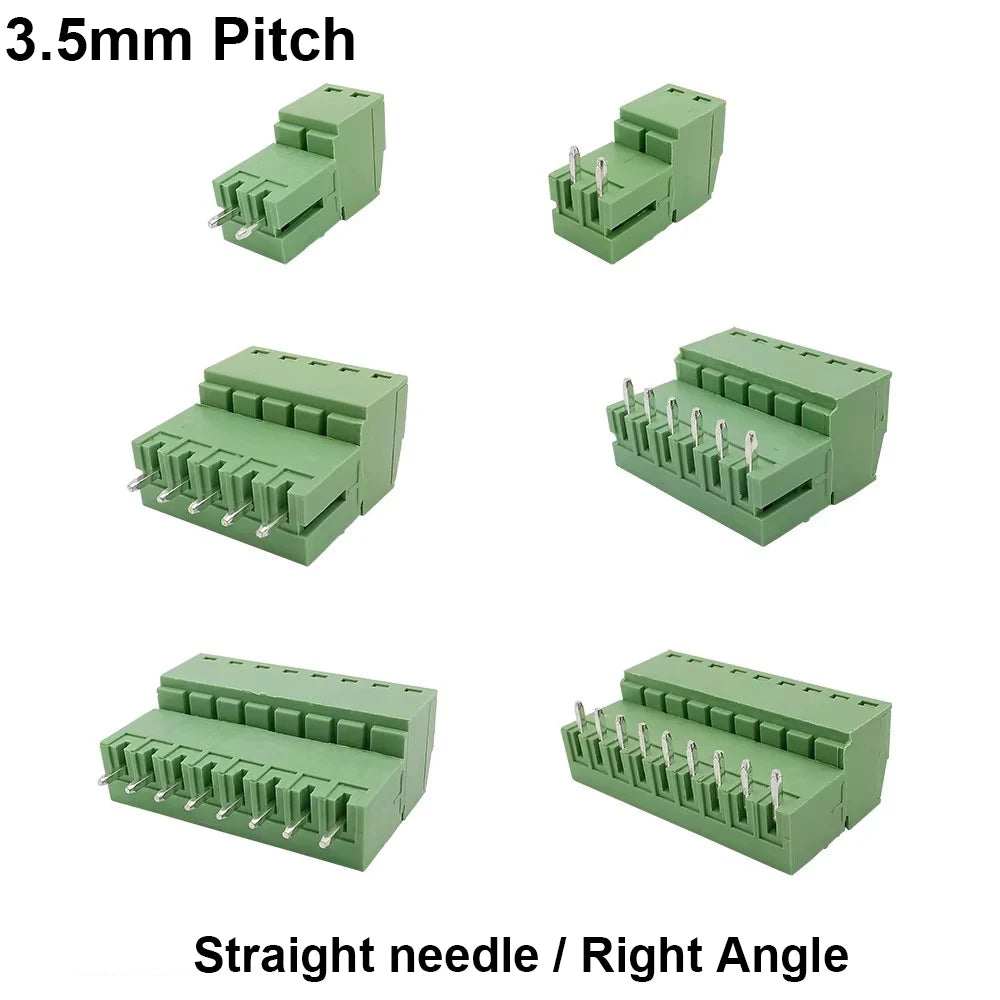

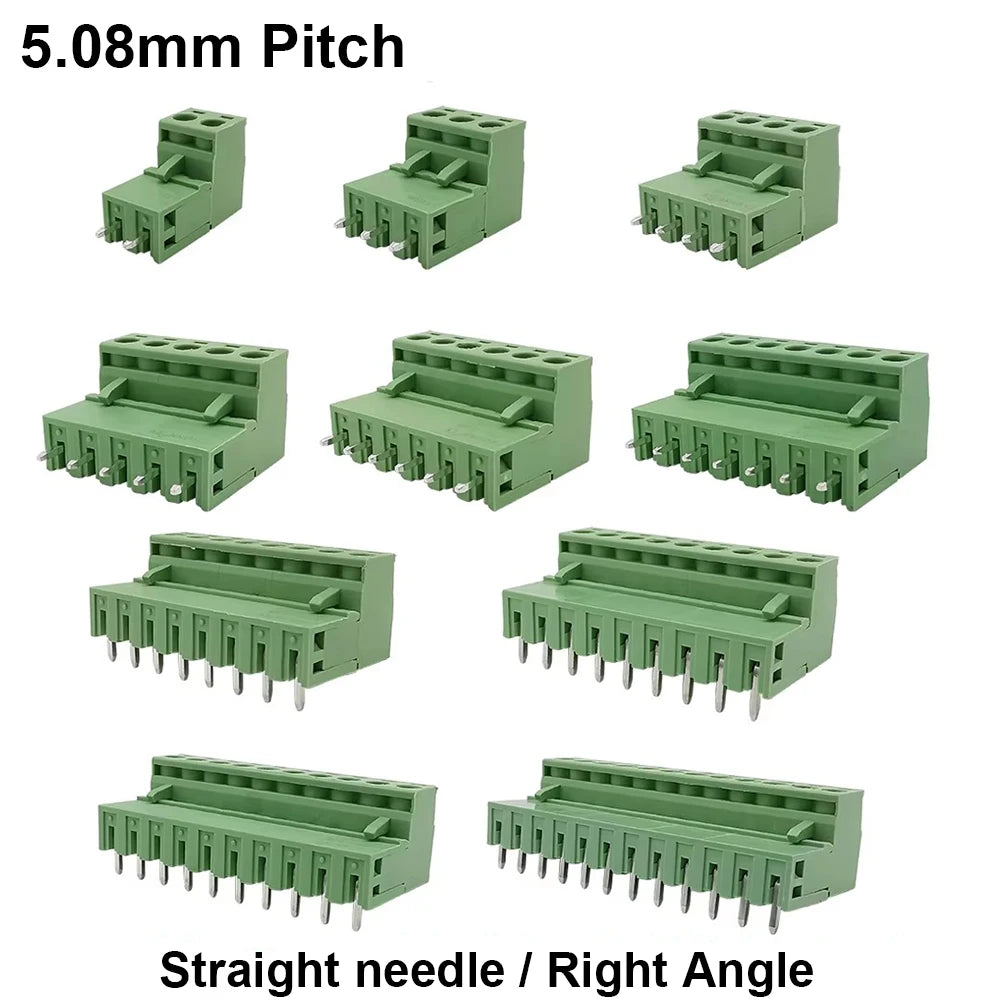

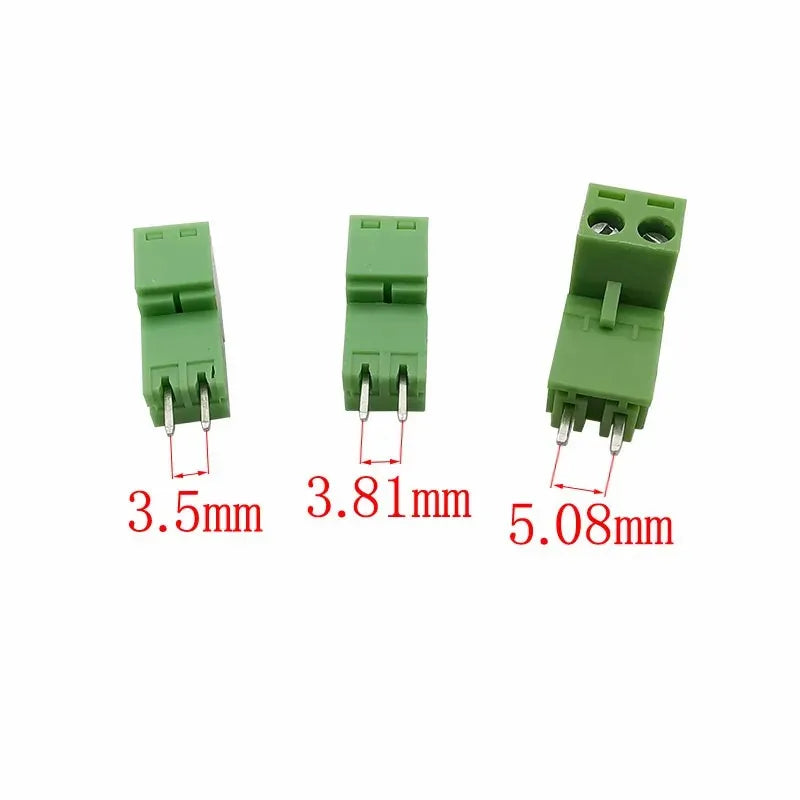

Pitch(Pin to Pin Center Distance): 3.5mm / 3.81mm / 3.96mm / 5.08mm
Style: Straight Pin / Right Angle
Contact: Phosphor bronze Ni plated
Wire cage: Brass, Ni plated
Housing: PA66 UL94V-0
Wire range: 28-16AWG
Package: (Choose) 5Pair= 5Pcs Male Plug + 5Pcs Female Socket PCB PCB Screw Terminal Block Connectors

Note:
1. Please confirm whether it is the product you need before payment.
2. Please allow ±0-2mm difference due to manual measurement.(1 inch=2.54cm)
3.
The flaws of the product in the picture may be caused by lighting, the
picture may not reflect the actual color of the product, subject to the
actual product.
Please make sure you do not mind before you bid. Thank you!
