Description

SPECIFICATIONS

Brand Name: CHYAM

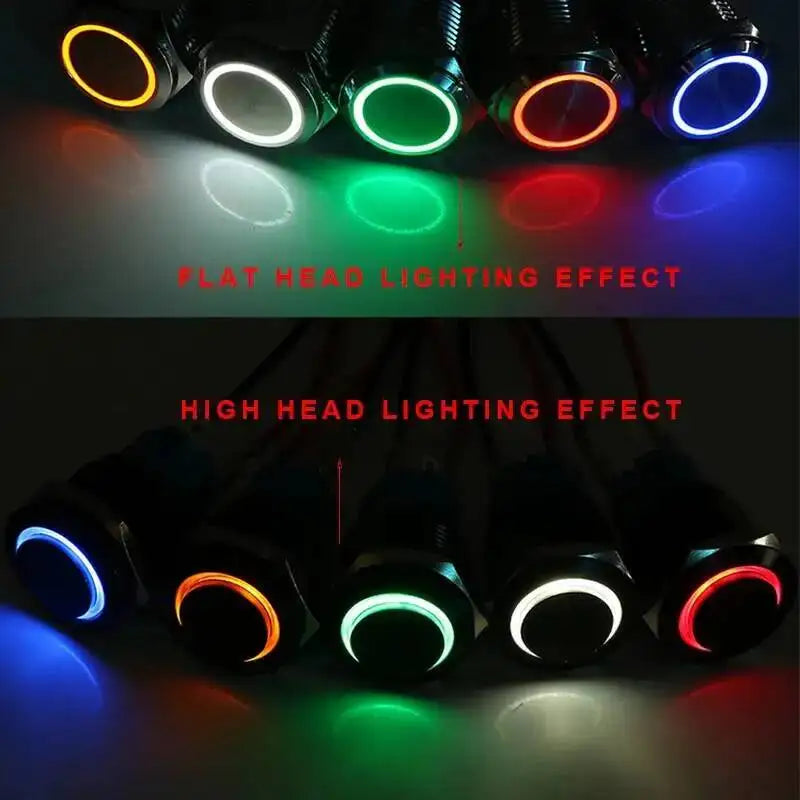

Light color: Red/Yellow/Blue/Green/White

Model Number: Metal push button switch

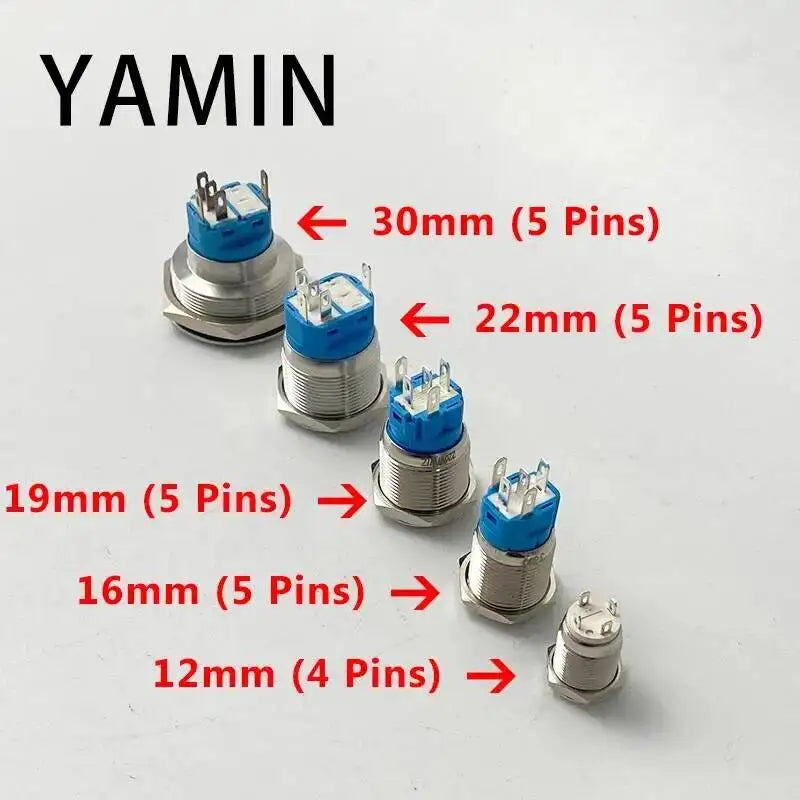

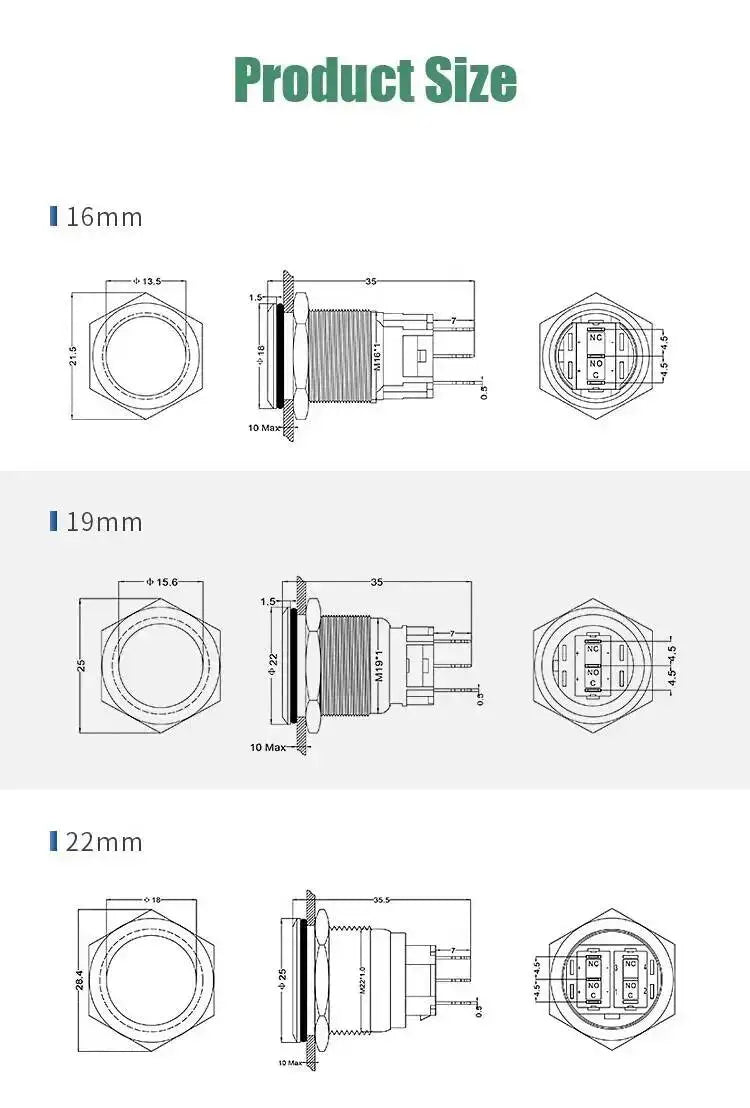

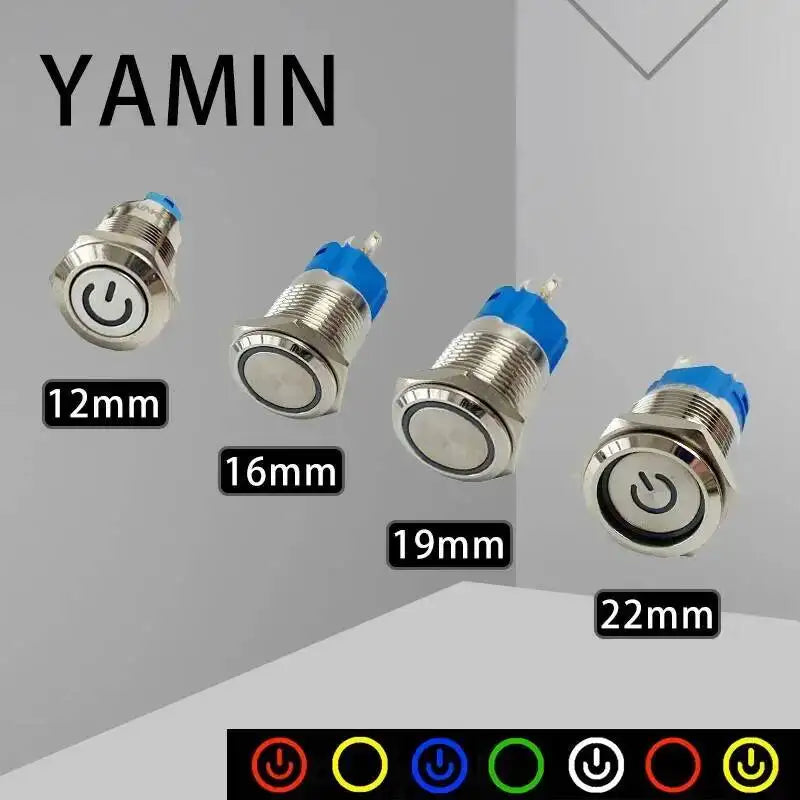

Mounting size: 12mm/16mm/19mm/22mm

Origin: Mainland China

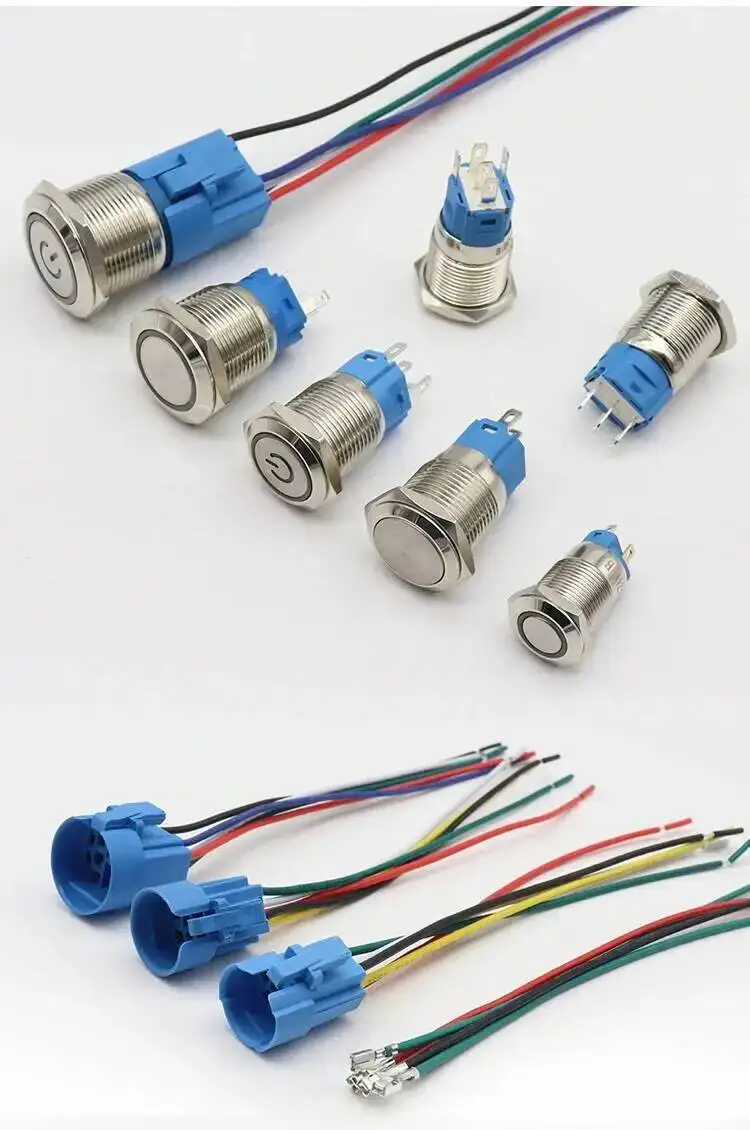

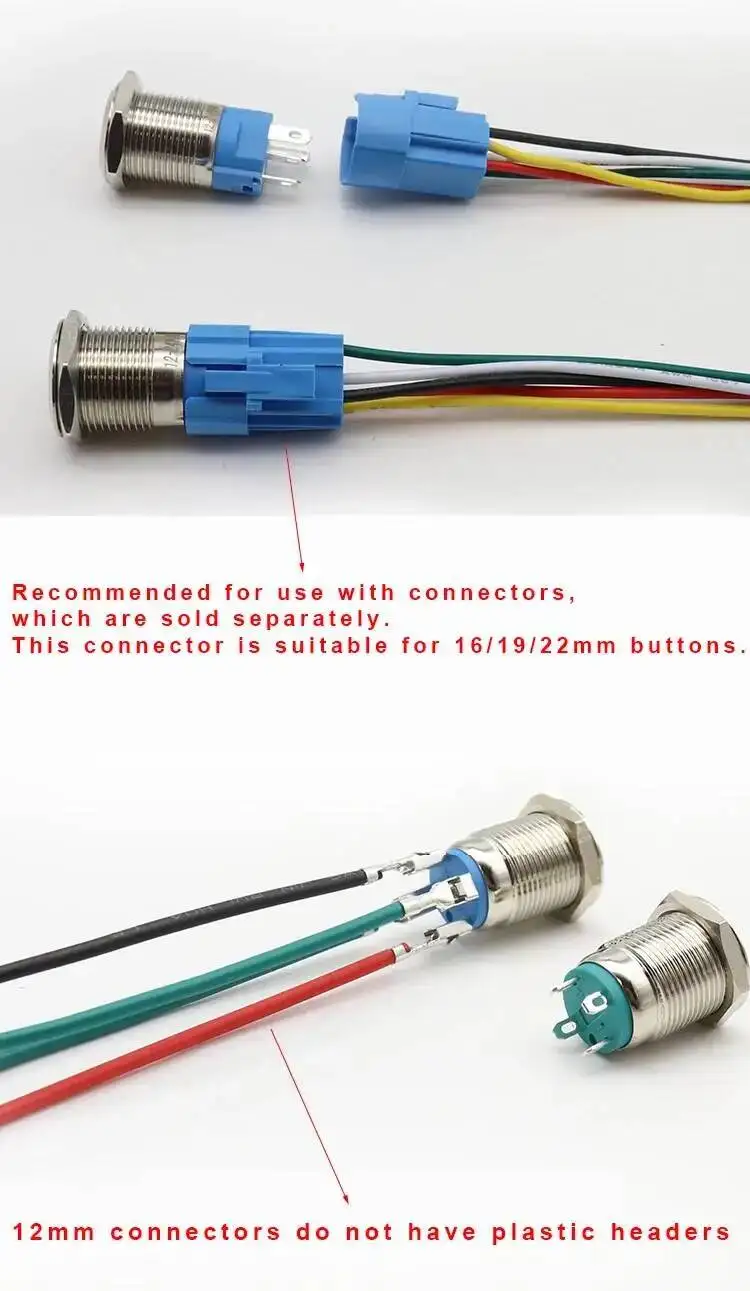

Note: the connector needs to be purchased separately

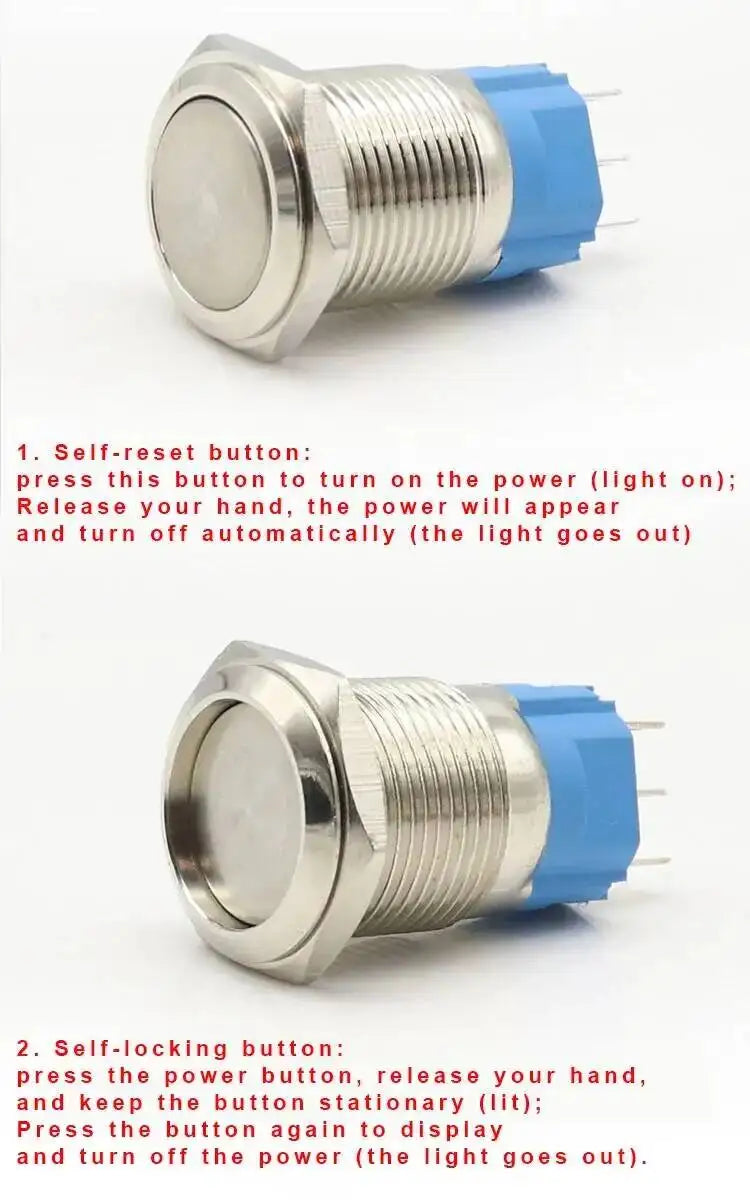

Difference between auto-recovery button and auto-lock button:
1. Self-recovery button: press this button to turn on the power (light on);
Release your hand, the power will appear and turn off automatically (the light goes out)
2. Self-locking button: press the power button, release your hand, and keep the button stationary (lit);
Press the button again to display and turn off the power (the light goes out).
Product parameters
Head type: round head
Housing material: metal

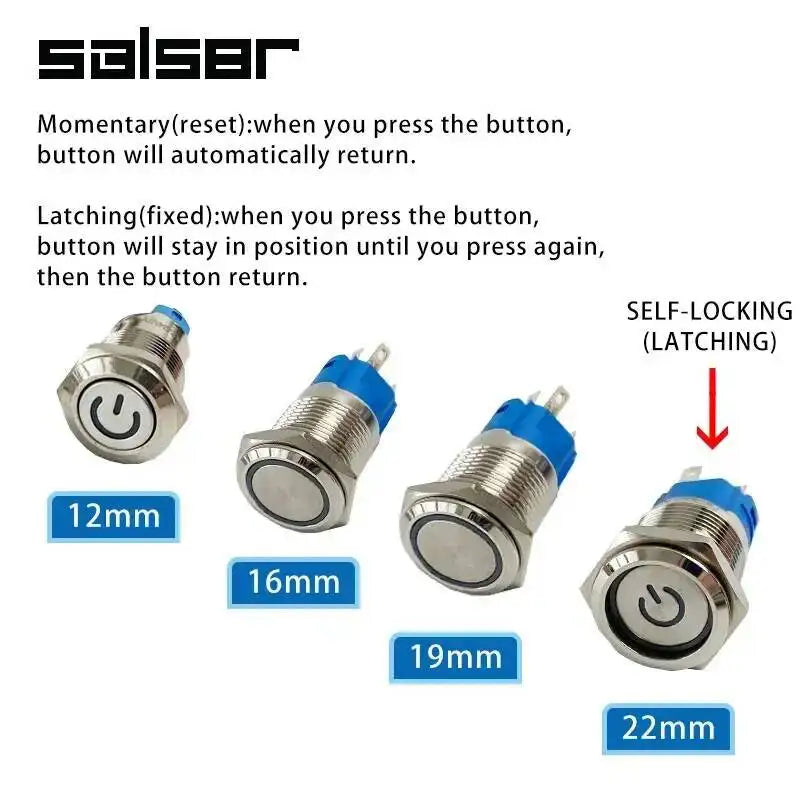

Operation type: Momentary self-reset/fixed self-locking

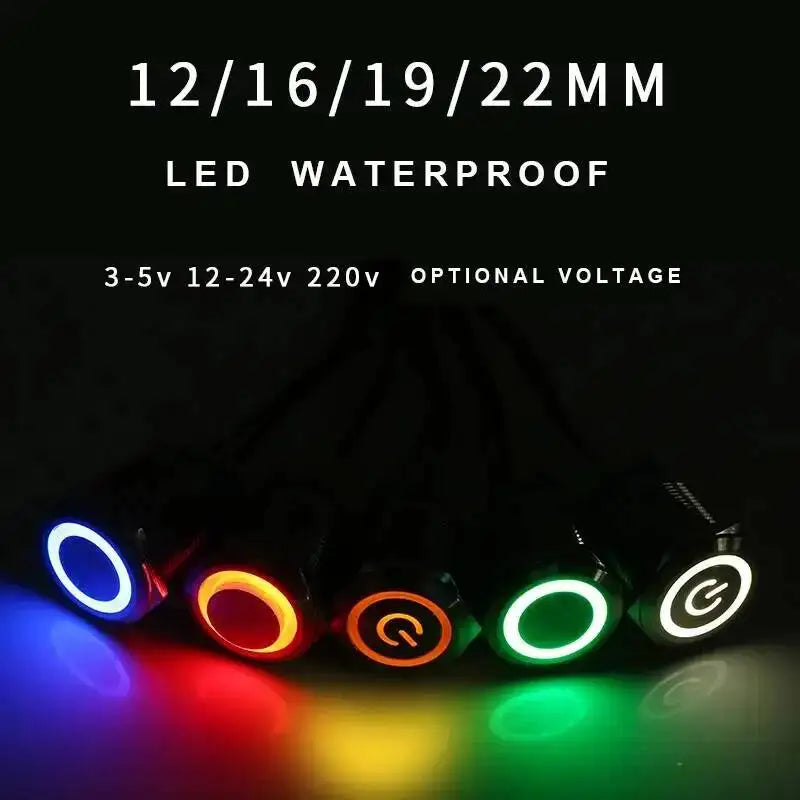

Emitting color: red / yellow / blue / green / white
Opening size: 12mm/16mm/19mm/22mm

Very important: Because of the virus,the Economic shipping is slow,If you need buttons hurry,please choose Alistandard shipping

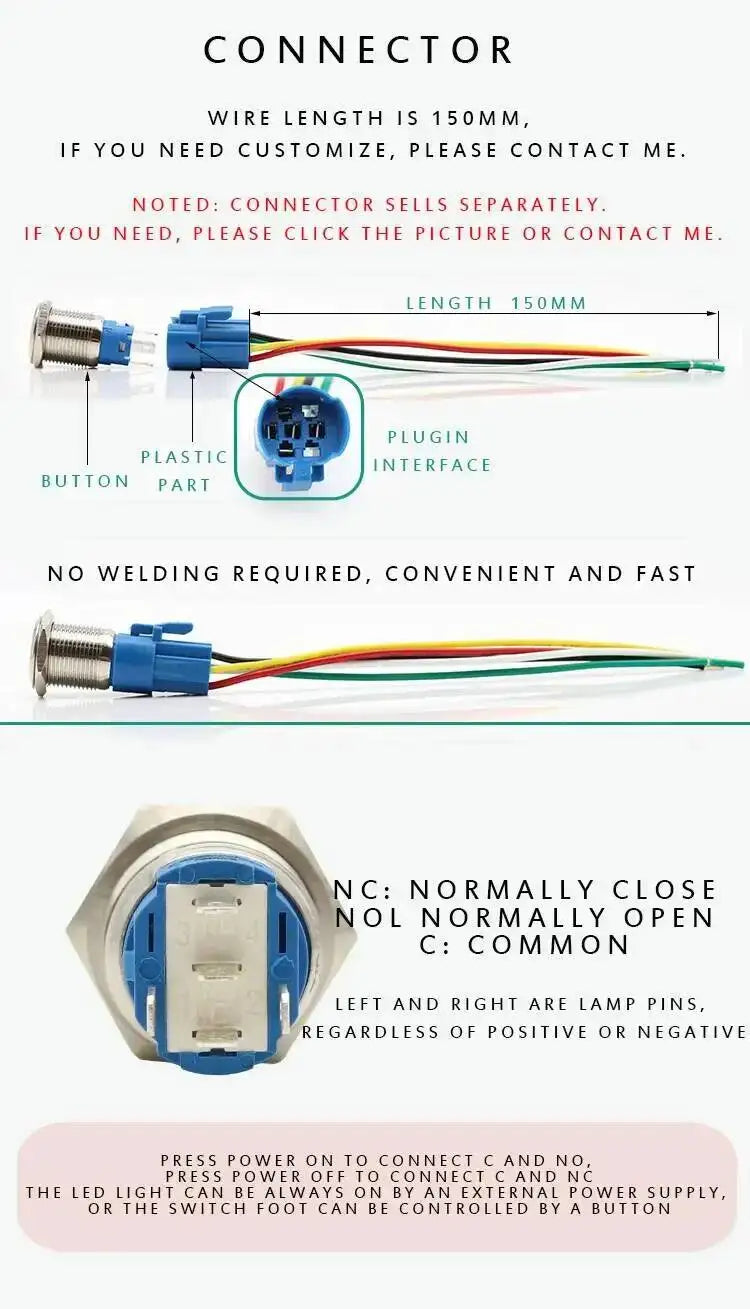

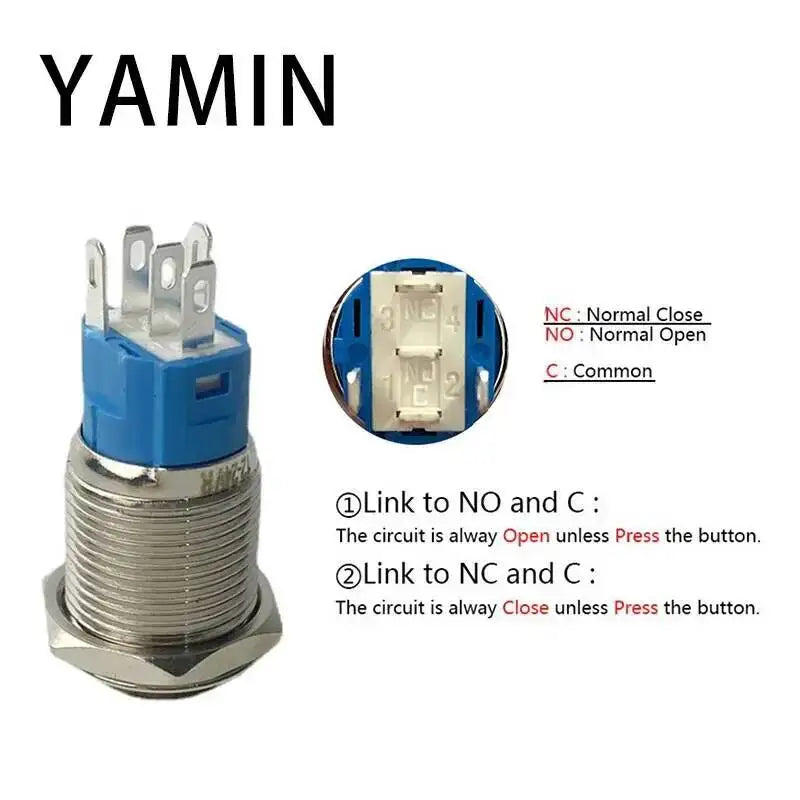

1.What does the signal "NC" and "NO" means?

"A" "+": positive pole of the led

"LED" " - ": negative pole of the led
" NC ": Normal Close
" NO ": Normal Open
" C " : Common

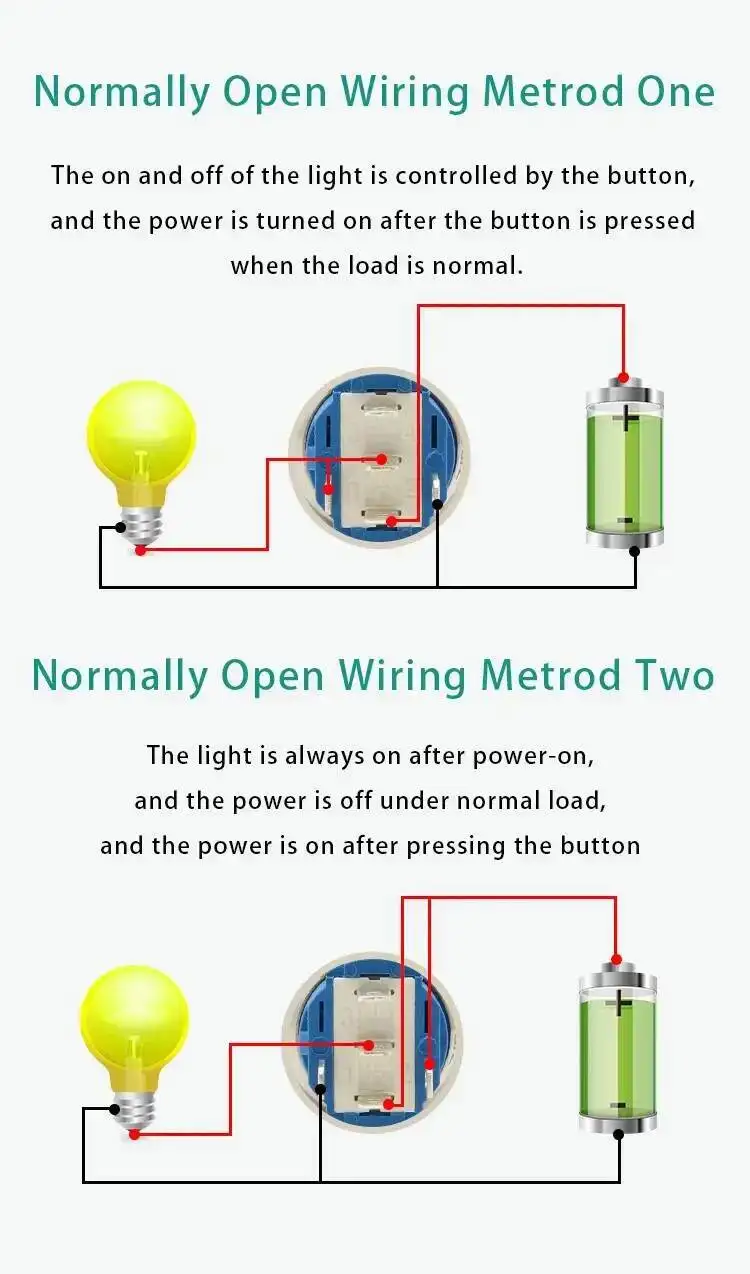

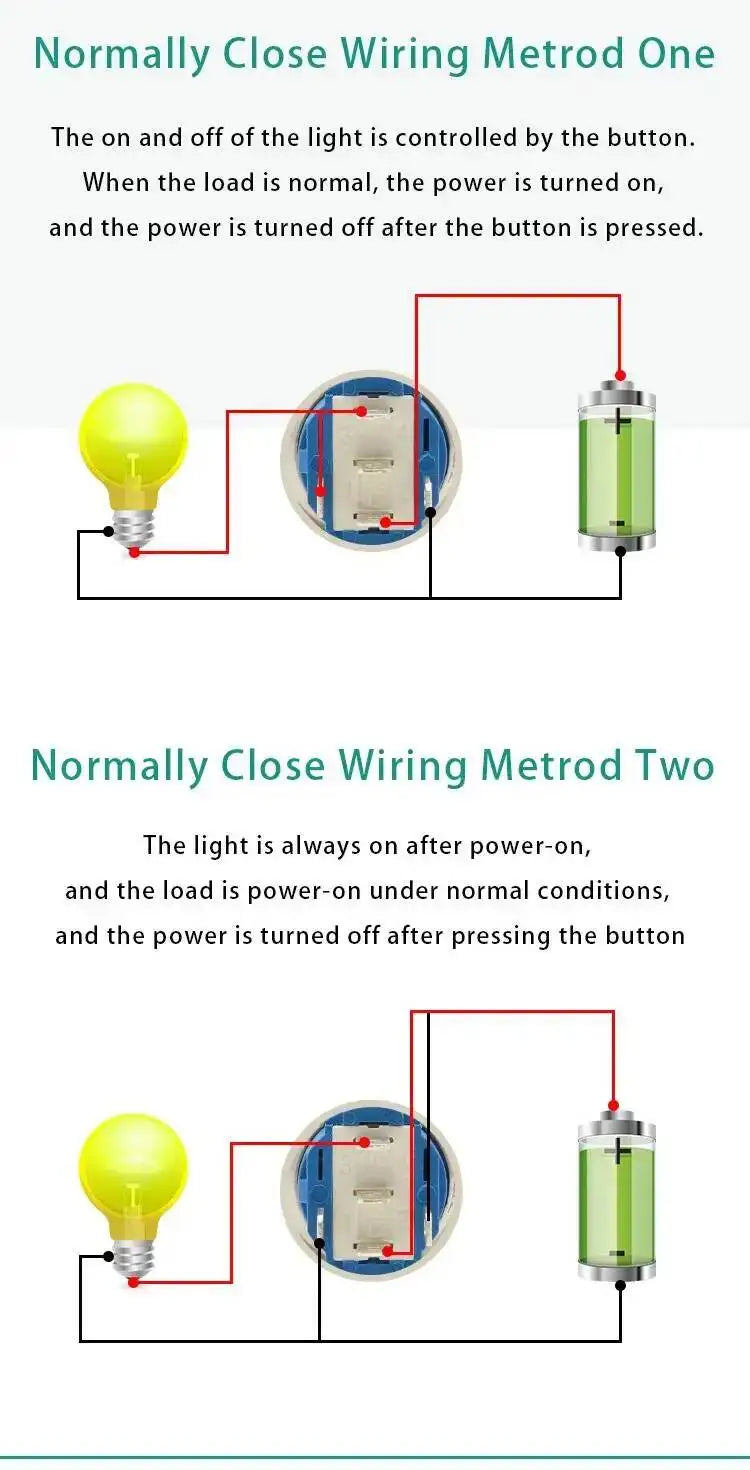

2.How to connect?

1.Connect " NO " and " C " : The circuit is alway open unless press the button.
2.Connect " NC " and " C " : The circuit is alway close unless press the button.

Please contact us if you have any questions

Support customize symbol.
