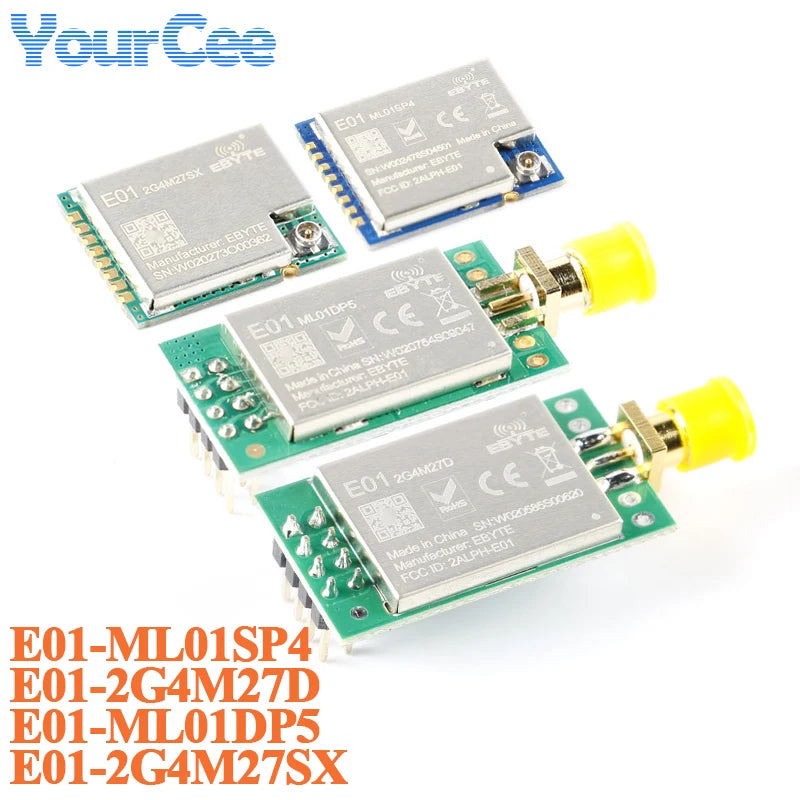

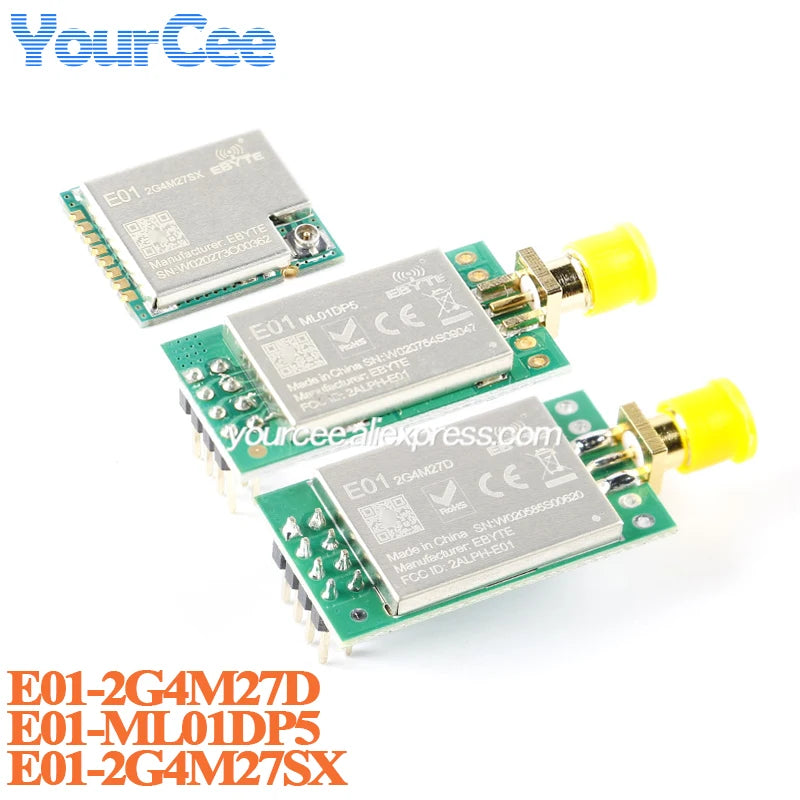

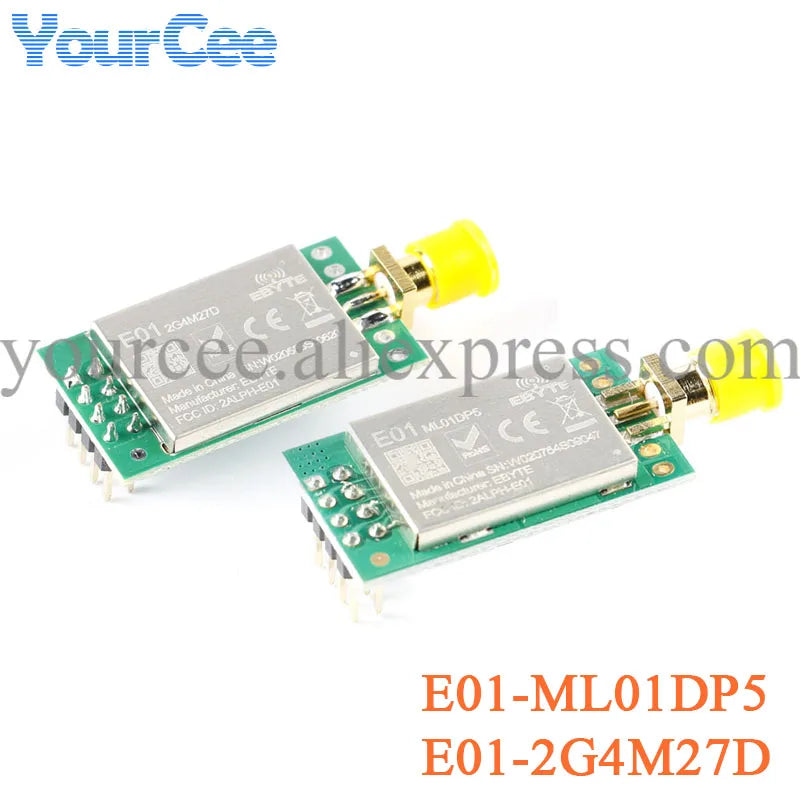

5pcs/1pc E01-2G4M27D E01-ML01DP5 E01-2G4M27SX NRF24L01P NRF24L01 PA LNA Long Range 2.4GHz SPI DIP IoT Wifi Wireless Module

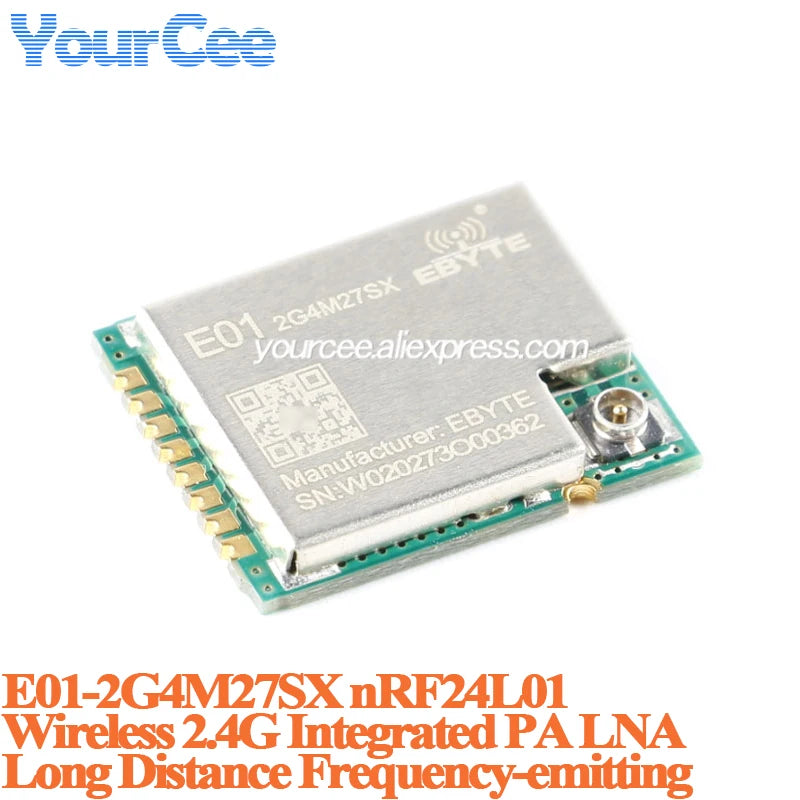

E01-2G4M27SX / 1pc
$21.47
Sale price
$21.47
Regular price
$0.00
Skip to product information
5pcs/1pc E01-2G4M27D E01-ML01DP5 E01-2G4M27SX NRF24L01P NRF24L01 PA LNA Long Range 2.4GHz SPI DIP IoT Wifi Wireless Module
$21.47
Sale price
$21.47
Regular price
$0.00

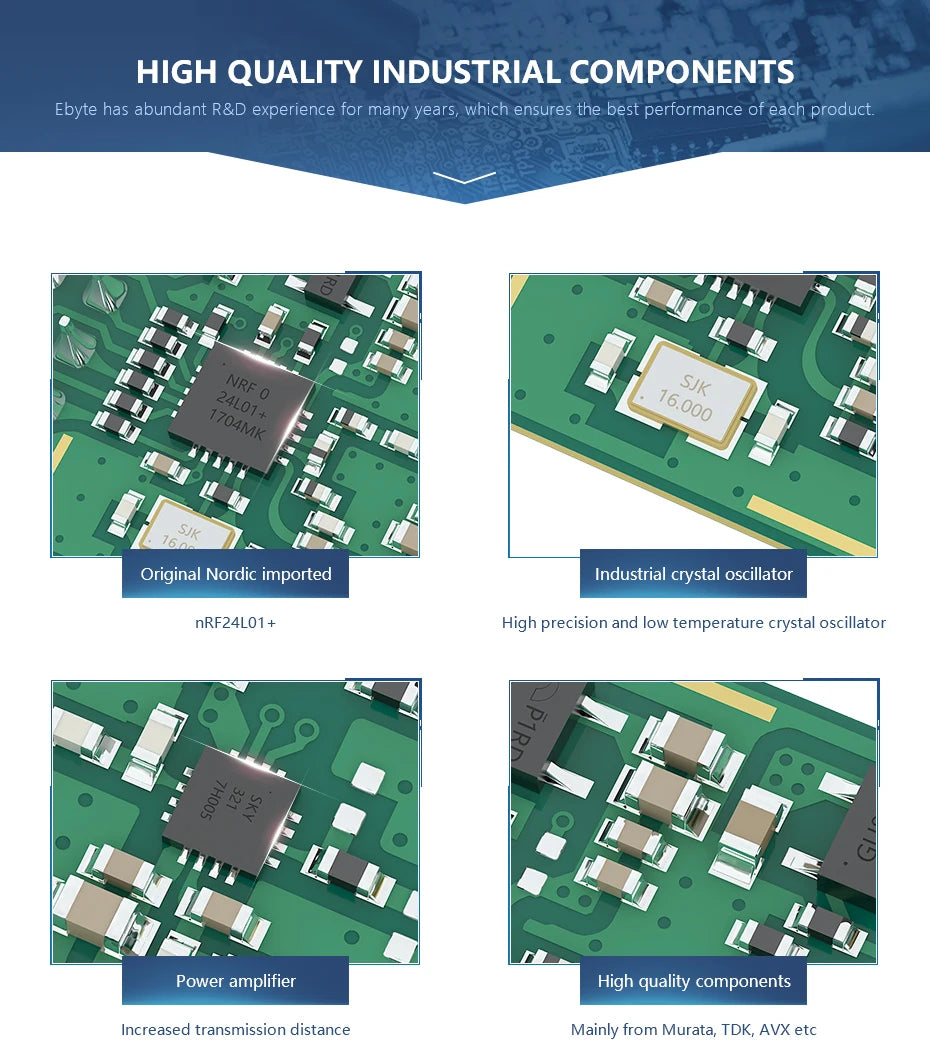

Description
SPECIFICATIONS
Application: Computer
Brand Name: Your Cee
Condition: New
Dissipation Power: low
High-concerned chemical: none
Operating Temperature: normal
Origin: Mainland China
Package: TQFP
Quantity: 1
Supply Voltage: standard
Type: Module
is_customized: Yes

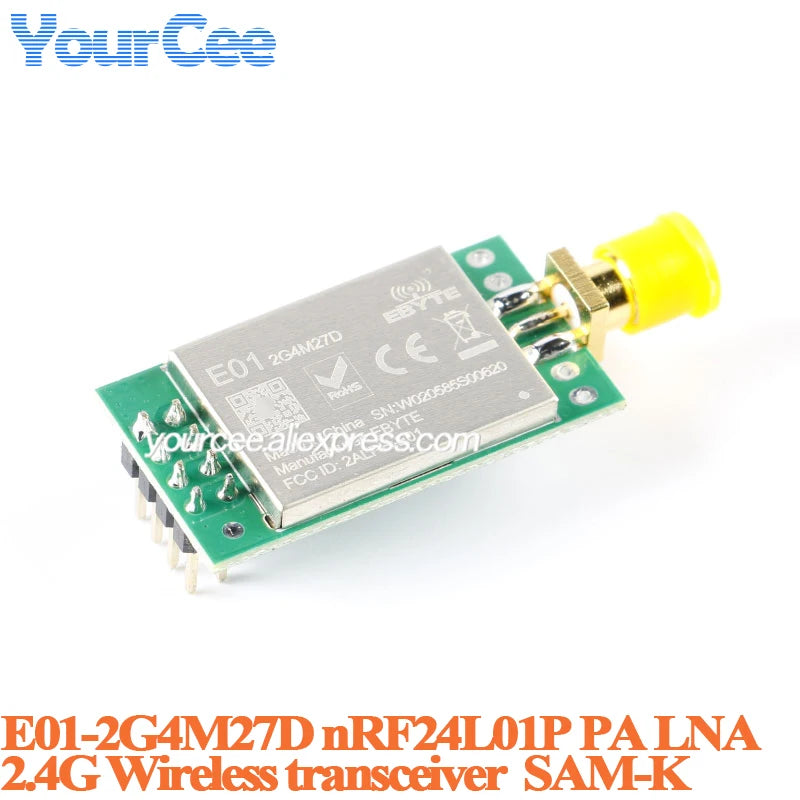

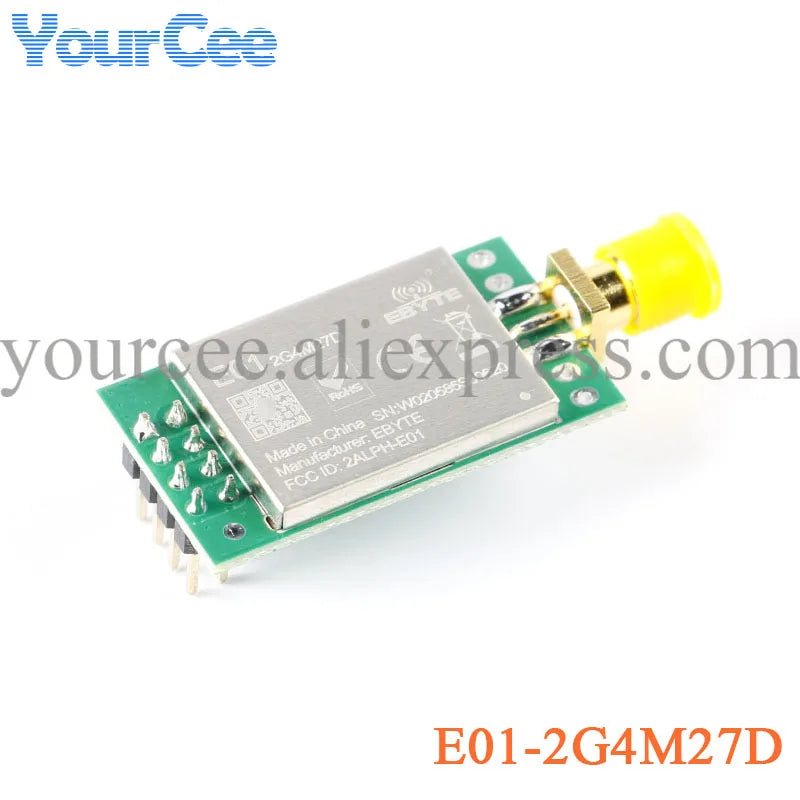

E01-2G4M27D
|
RF Parameter |
Value |
Remark |
|
Working frequency |
2400~2525 MHz |
Default: 2.4GHz (16MHz oscillator) |
|
Transmitting power |
27 dBm |
Max. Power (500mW) |
|
Receiving sensitivity |
-99 dBm |
Air data rate: 250kbps |
|
Air data rate |
250k~2Mbps |
Default: 250kbps |
|
Test distance |
5000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
|
Hardware Parameter |
Value |
Remark |
|

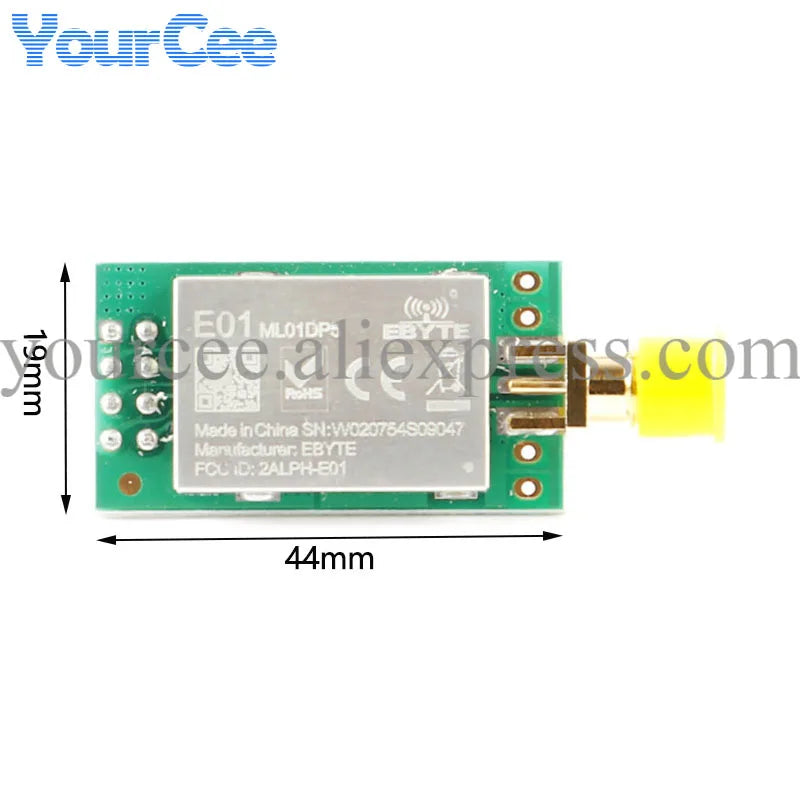

Size |
18 * 33.4 mm |
Without SMA |
|
Antenna type |
SMA-K |
|
|
Communication interface |
SPI |
|
|
Package |
DIP |
|
|
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
|
Power supply |
2.5 |
3.3 |
5.5 |
V |
|
|
Communication level |
2.0 |
3.3 |
3.6 |
V |
|
|
Transmitting current |
480 |
490 |
500 |
mA |
3.3V |
|
Transmitting current |
380 |
390 |
400 |
mA |
5.0V |
|
Receiving current |
22 |
23 |
24 |
mA |
3.3V |
|
Receiving current |
21 |
22 |
23 |
mA |
5.0V |
|
Sleep current |
450 |
455 |
460 |
μA |
|
|
Operating temperature |
-40 |
20 |
+85 |
℃ |
|
|
Operating humidity |
10 |
60 |
90 |
% |
|
|
Storage temperature |
-40 |
20 |
+125 |
℃ |
|
|

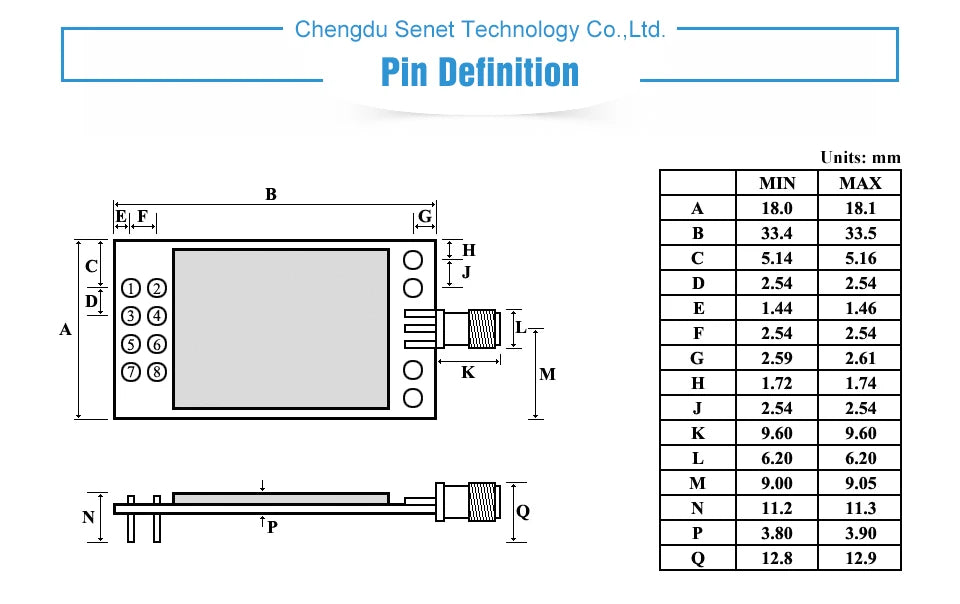

Pin No |
Pin item |
Pin direction |
Pin application |
|
1 |
GND |
- |
Ground |
|
2 |
VCC |
- |
Powersupply 2.5V~5.5V DC, it’s recommended to use 3.3V. |
|
3 |
CE |
Input |
Chip enable |
|
4 |
CSN |
Input |
SPI chip select |
|
5 |
SCK |
Input |
SPI clock |
|
6 |
MOSI |
Input |
SPI master output slave input |
|
7 |
MISO |
Output |
SPI master input slave output |
|
8 |
IRQ |
Output |
Interrupt request, valid in low communication level |

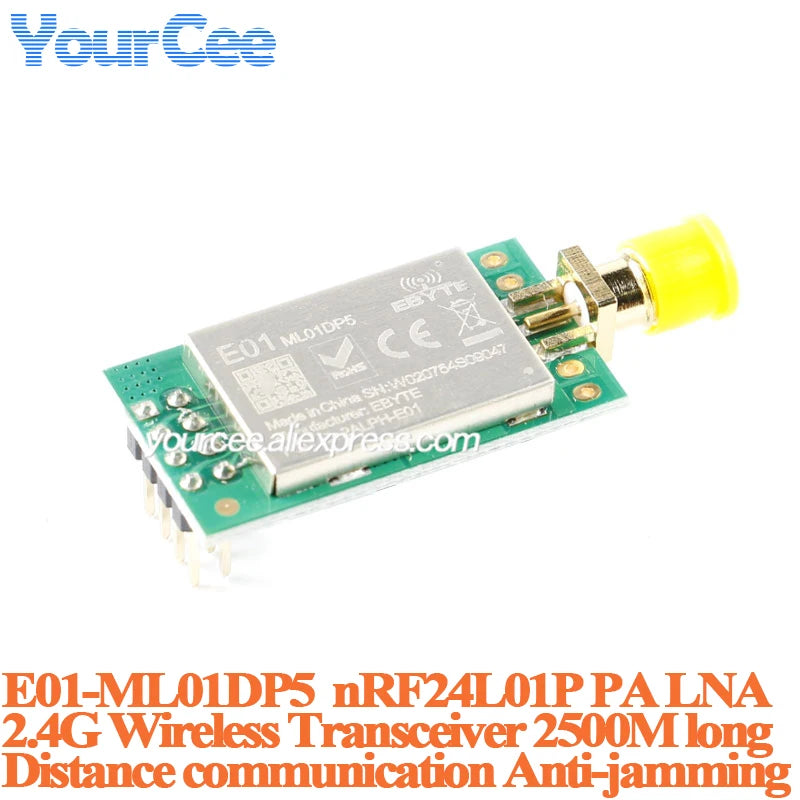

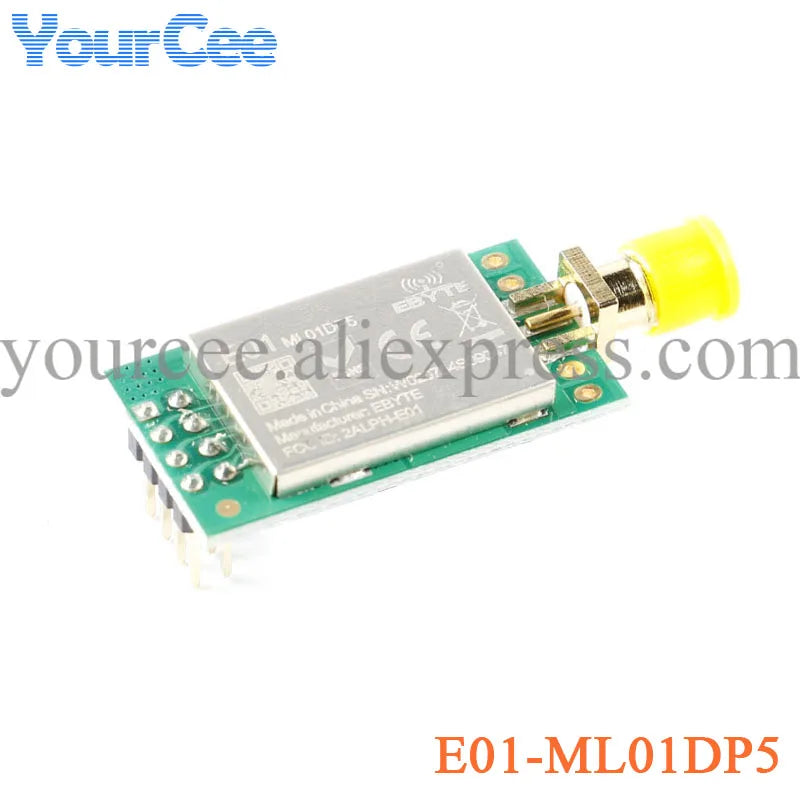

E01-ML01DP5
|
RF Parameter |
Value |
Remark |
|
Working frequency |
2400~2525 MHz |
Default: 2.4GHz (16MHz oscillator) |
|
Transmitting power |
20 dBm |
Max. Power (100mW) |
|
Receiving sensitivity |
-96 dBm |
Air data rate: 250kbps |
|
Air data rate |
250k~2Mbps |
Default: 250kbps |
|
Test distance |
2500m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
|
Hardware Parameter |
Value |
Remark |
|
Size |
18 * 33.4 mm |
Without SMA |
|
Antenna type |
SMA-K |
|
|
Communication interface |
SPI |
|
|
Package |
DIP |
|
|
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
|
Power supply |
2.0 |
3.3 |
3.6 |
V |
|
|
Communication level |
2.0 |
3.3 |
3.6 |
V |
|
|
Transmitting current |
120 |
130 |
140 |
mA |
20dBm（100mW） |
|
Receiving current |
18 |
20 |
22 |
mA |
|
|
Sleep current |
0.5 |
1.0 |
2.0 |
μA |
|
|
Operating temperature |
-40 |
20 |
+85 |
℃ |
|
|
Operating humidity |
10 |
60 |
90 |
% |
|
|
Storage temperature |
-40 |
20 |
+125 |
℃ |
|
