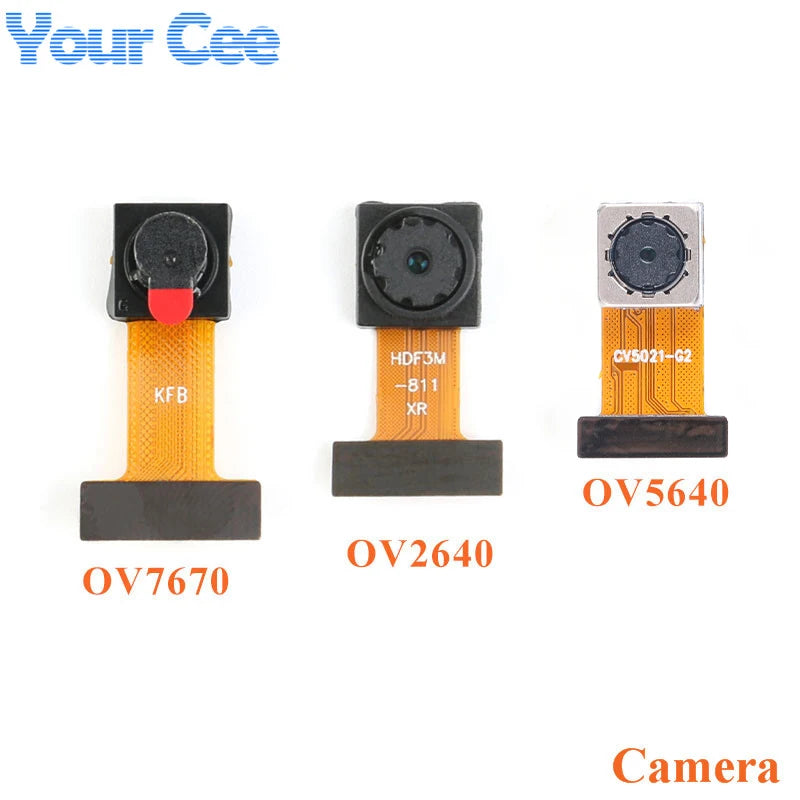

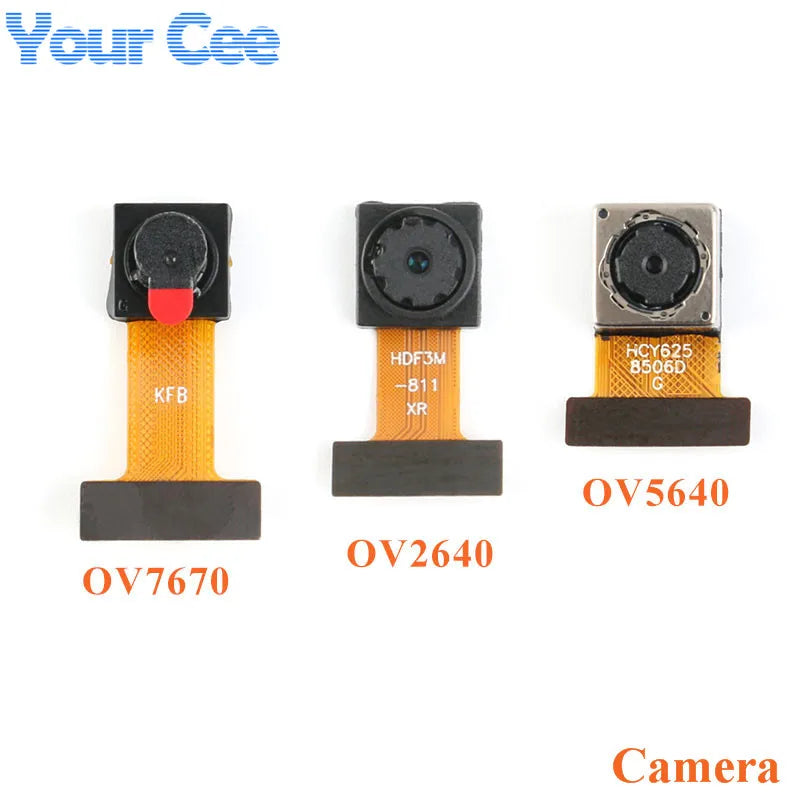

5pcs/1pc OV2640 OV7670 OV5640-AF Mini Camera Module CMOS Image Sensor 2 Million Pixel Wide Angle Camera Monitor Identification

5pcs/1pc OV2640 OV7670 OV5640-AF Mini Camera Module CMOS Image Sensor 2 Million Pixel Wide Angle Camera Monitor Identification

$27.40

$27.40 $0.00

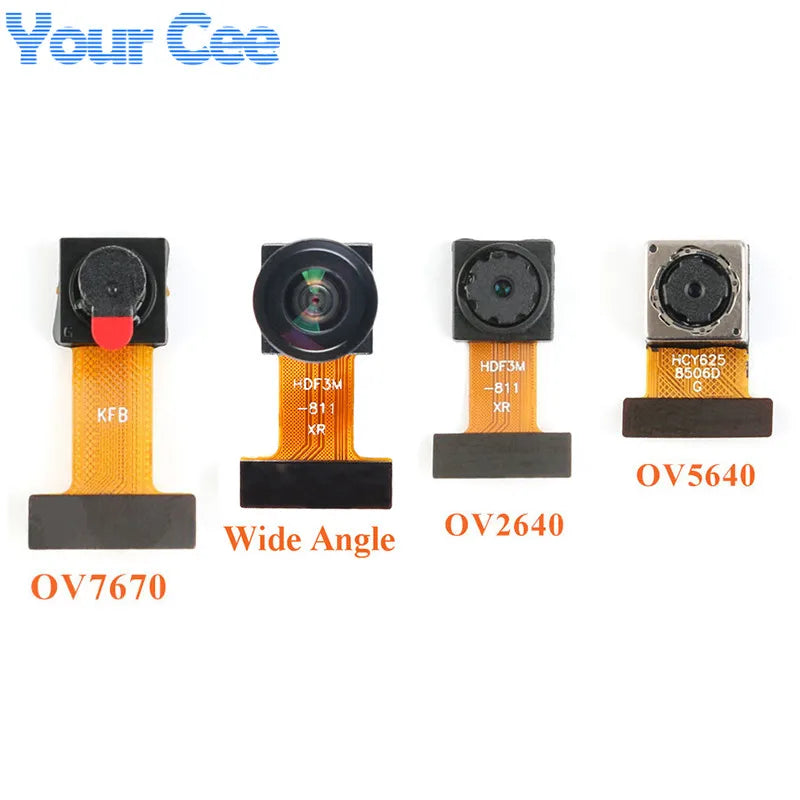

Color OV2640 Wide Angle OV5640-AF Camera OV2640 mini OV7670 Camera

Model Number 1pc 2pcs 5pcs

Description

SPECIFICATIONS

Application: Camera Module

Brand Name: Your Cee

Condition: New

Dissipation Power: OV2640 OV5640-AF

High-concerned chemical: none

Operating Temperature: OV7670

Origin: Mainland China

Package: TQFP

Supply Voltage: 1.7V

Type: Module

is_customized: Yes

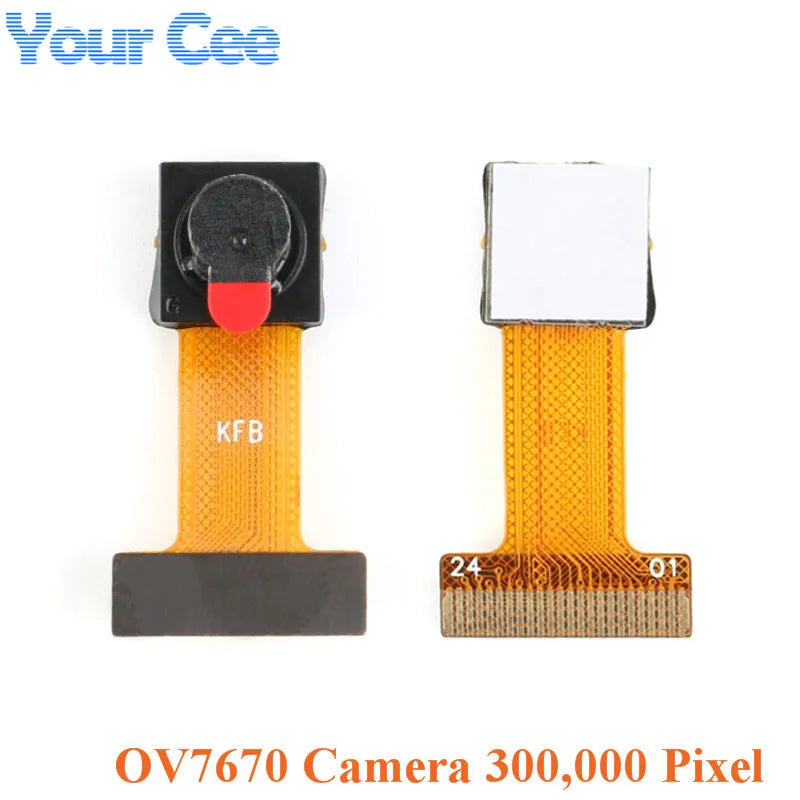

OV7670 Camera

Product Features

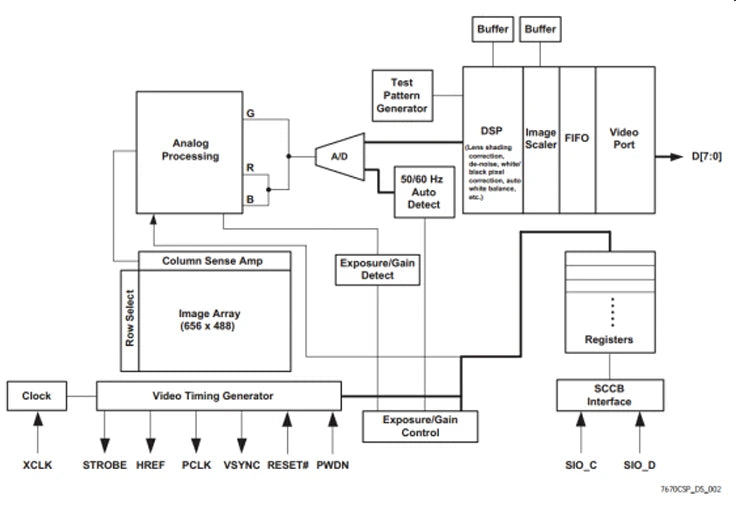

The OV7670/OV7171 CAMERACHIPTM image sensor, small in size and low in operation, provides all the features of a single VGA camera and image processor. Through the SCCB bus control, it can output various resolution 8-bit image data in the whole frame, sub-sampling, and window.

The product has a VGA image of up to 30 frames per second. Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed via the SCCB interface.

Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, and floating.

Product Parameters

Photosensitive array: 640*480

Nuclear voltage: 1.8VDV ± 10%

Analog voltage: 2.45VDV~3.0Va

IO voltage: 1.7V-3.0V

Power consumption work: 60mW/5fpsVGAYUV

Sleep: <20 uA

Operating temperature: -30 ° C ~ 70 ° C

Stable working temperature: 0 ° C ~ 50 ° C

Output format (8 bits): YUV/YCbCr4: 2:2

RGB565/555/444

RGB4:2:2

Raw RGB Data

Optical size: 1/6"

Field of view: 25°

Maximum frame rate: 30fpsVGA

Sensitivity: 1.3V/(Lux-sec)

Signal to noise ratio: 46dB

Dynamic range: 52 dB

Browse mode: progressive

Electronic exposure: 1 line - 510 lines

Pixel area: 3.6um*3.6um

Dark current: 12mV/s at 60°C

Well Capacity: 17ke

Influence area: 2.36mm*1.76mm

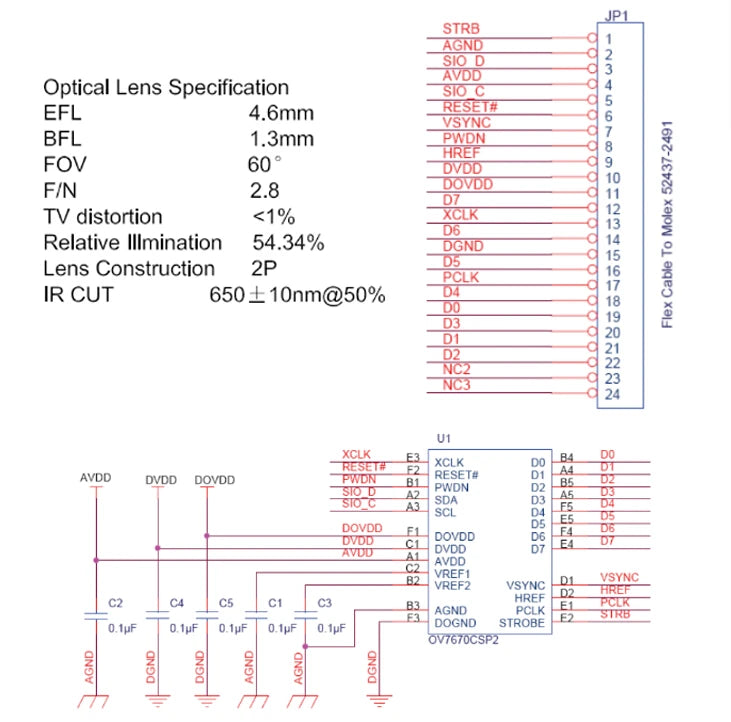

Instructions for Use

Note: This camera module only leads to some pins of the BGA package sensor chip and an optical lens. Without integrated peripheral components, it needs to be designed by itself.

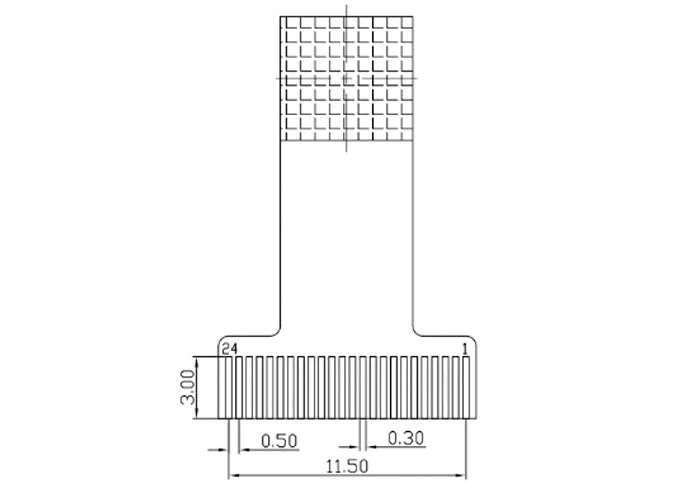

Product Size

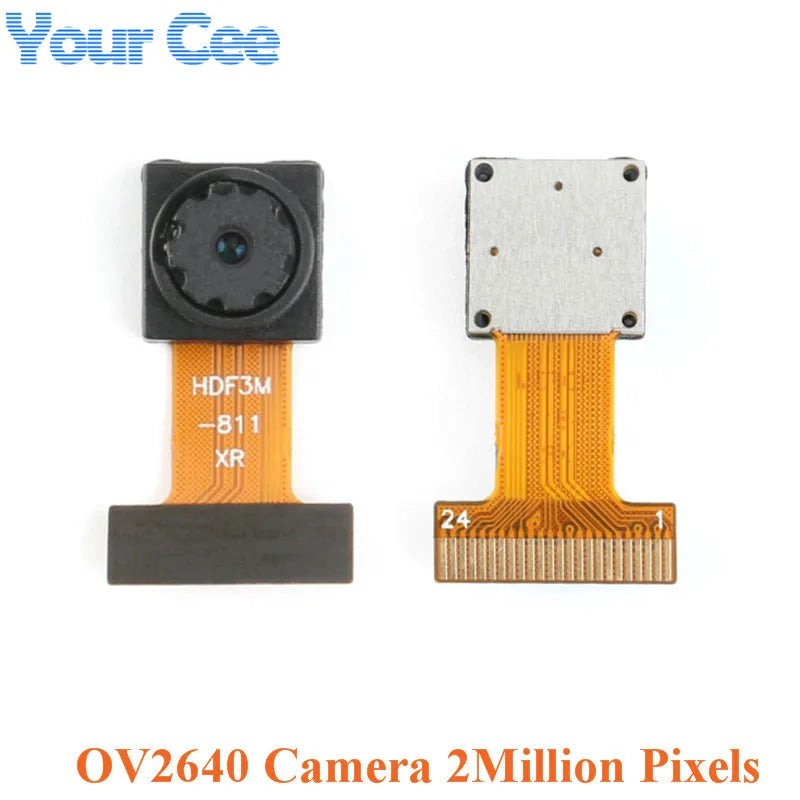

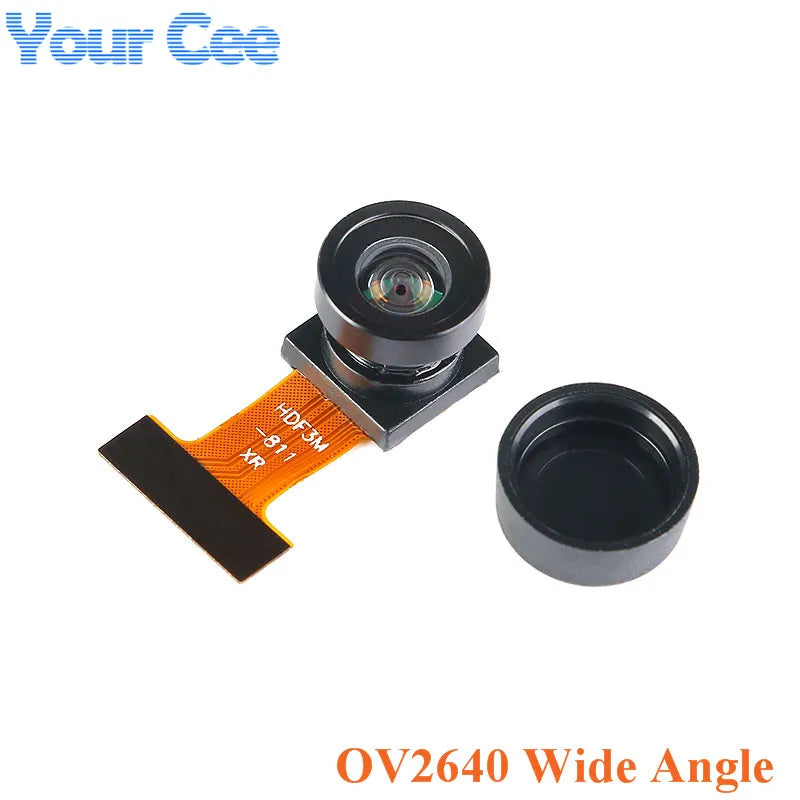

OV2640 Camera

Product Features

The OV2640 is a 1/4-inch CMOS UXGA (1632*1232) image sensor. The sensor's small size and low operating voltage provide all the features of a single UXGA camera and image processor.

Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The UXGA image of this product can reach up to 15 frames per second (up to 30 frames for SVGA and 60 frames for CIF). Users have complete control over image quality, data format and transmission.

All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating.

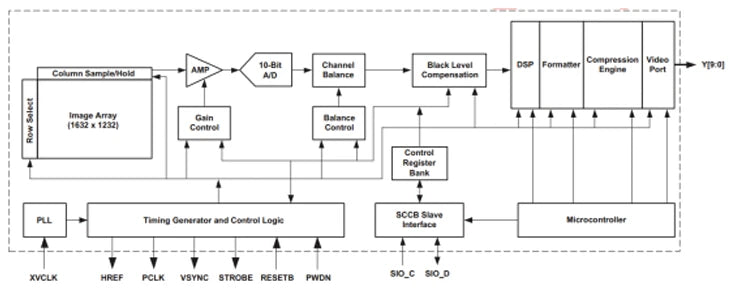

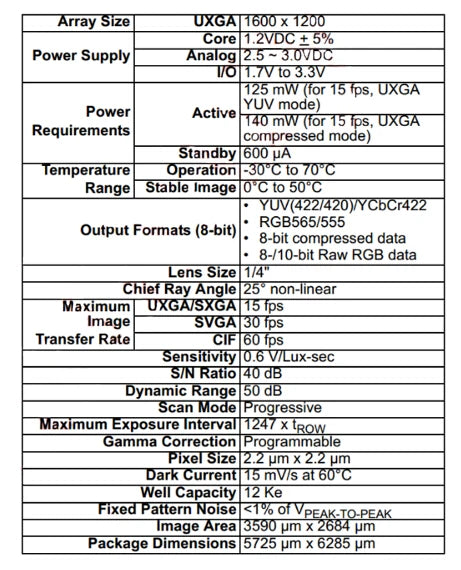

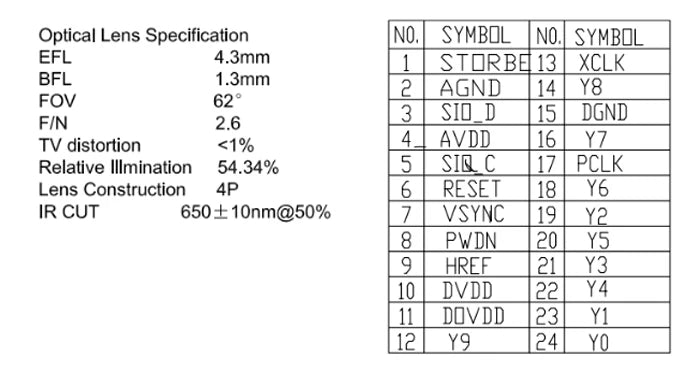

Product Parameters

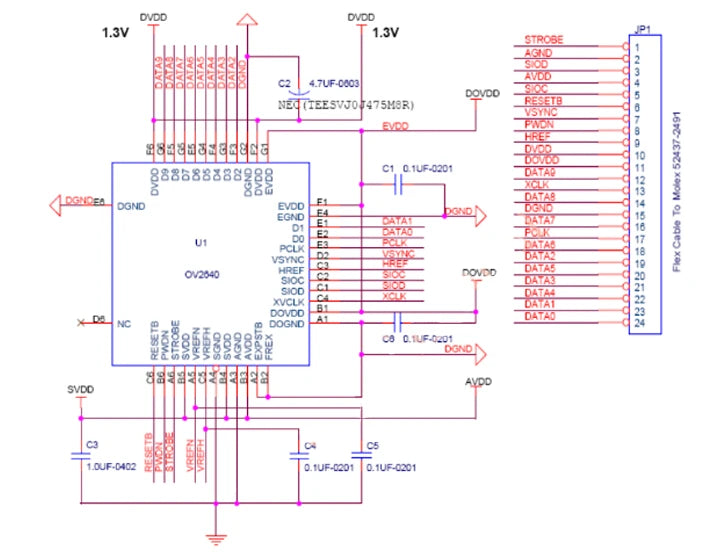

Instructions for use

Note: This camera module only leads to some pins of the CSP package sensor chip and an optical lens. There is no integrated peripheral components, so you need to design it yourself.

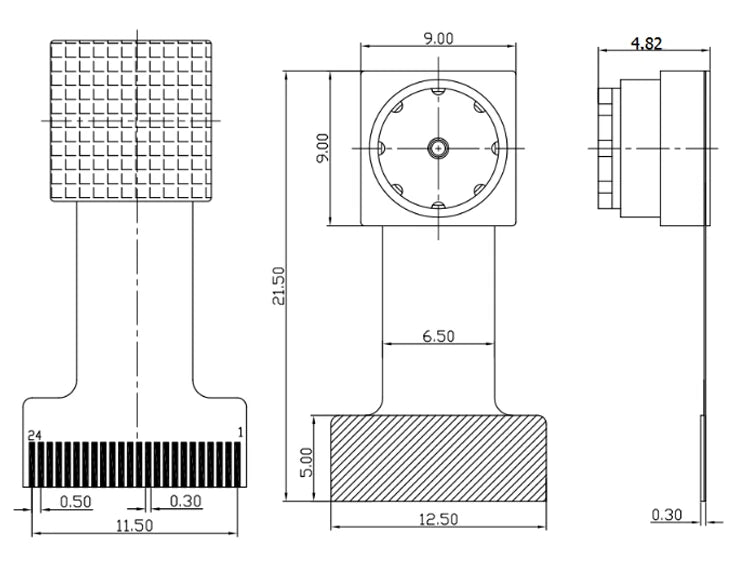

Product Size

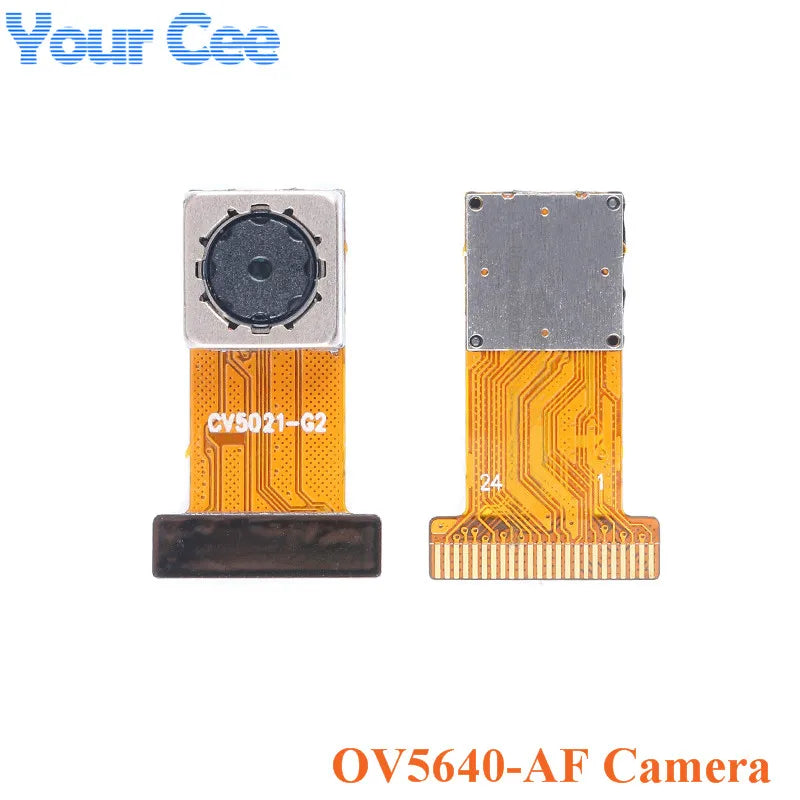

OV5640-AF Camera

Product Features

The OV5640 is a 1/4-inch CMOS QSXGA (2592*1944) image sensor that provides a complete 500W pixel camera solution with integrated autofocus (AF) capability. The price/performance ratio.
The sensor's small size and low operating voltage provide all the features of a single QSXGA camera and image processor. Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The QSXGA image of this product can reach up to 15 frames per second (up to 30 frames for 1080P images, 60 frames for 720P images, and 120 frames for QVGA resolution).
Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface.
Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating.

Product Parameters

Uses 1.4μm*1.4μm pixel size and uses technology for higher performance (high sensitivity,
Low crosstalk and low noise)
Automatic image control functions: automatic exposure (AEC), automatic white balance (AWB), automatic elimination of light streaks,
Automatic black level calibration (ABLC) and automatic band pass filter (ABF).
Support image quality control: color saturation adjustment, tone adjustment, gamma calibration, sharpness and lens calibration
Standard SCCB interface, compatible with IIC interface
Support RawRGB, RGB (RGB565/RGB555/RGB444), CCIR656, YUV (422/420),
YCbCr (422) and compressed image (JPEG) output formats
Support QSXGA (500W) image size output, and scale down to any other size
Flash support
Support for image scaling, panning, and window settings
Support image compression to output JPEG image data
Support for digital video interface (DVP) and MIPI interfaces
Support auto focus
Built-in embedded microprocessor

Note: This camera module only leads to some pins of the CSP package sensor chip and an optical lens. There is no integrated peripheral components, so you need to design it yourself.
