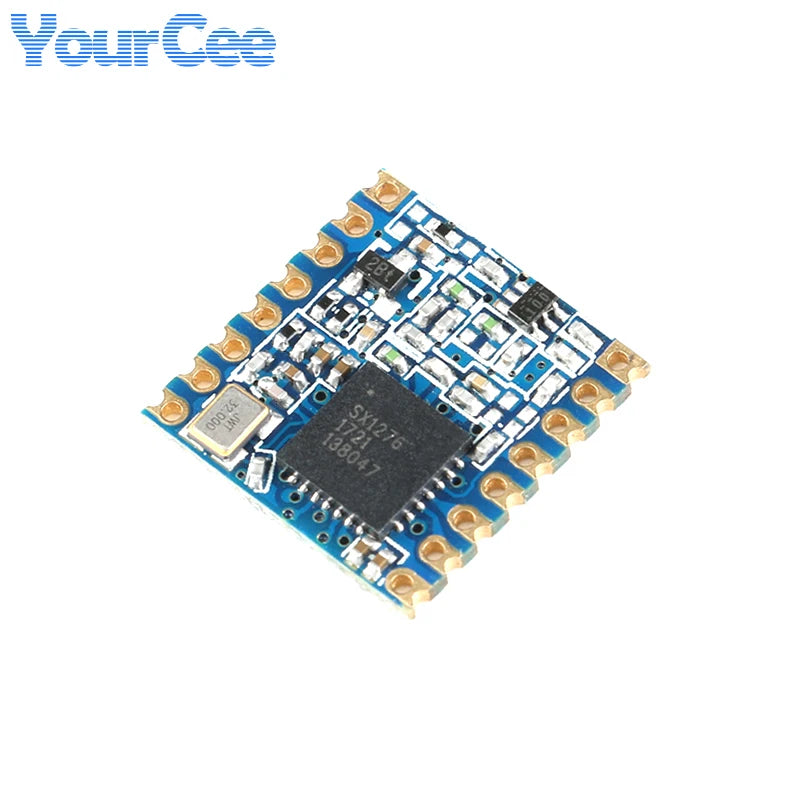

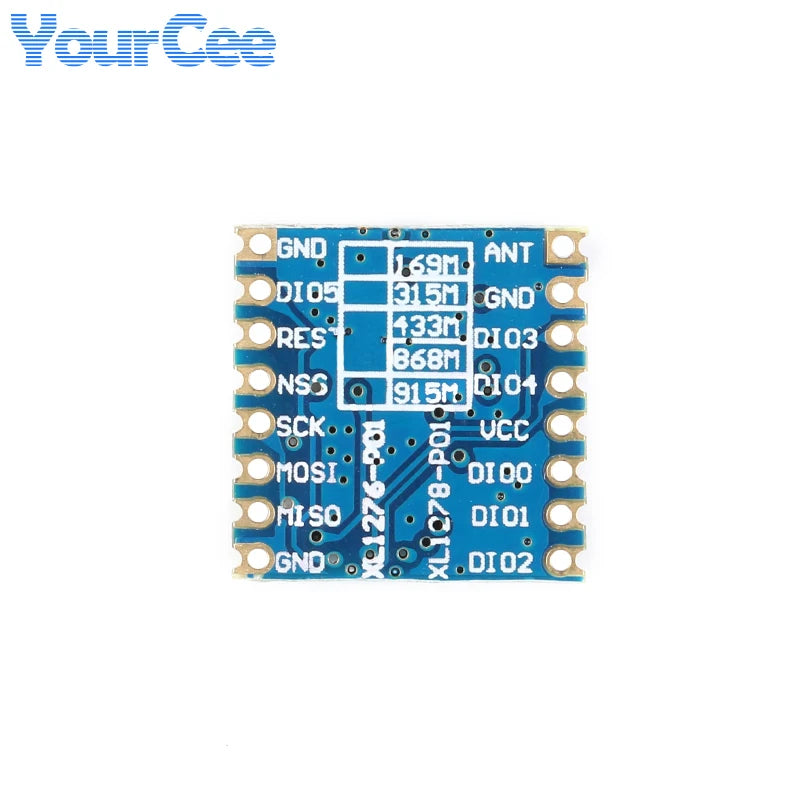

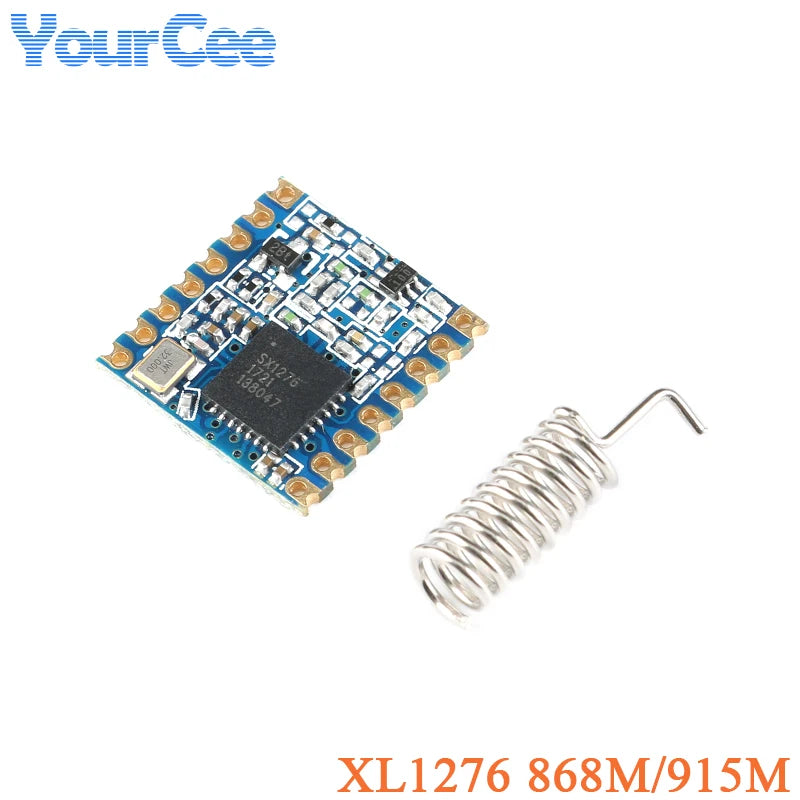

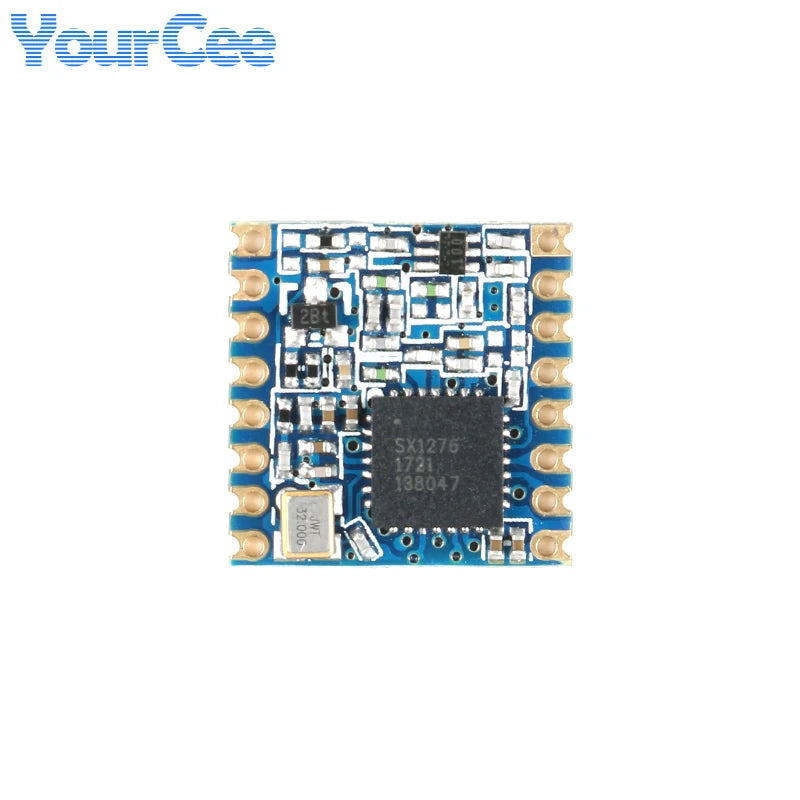

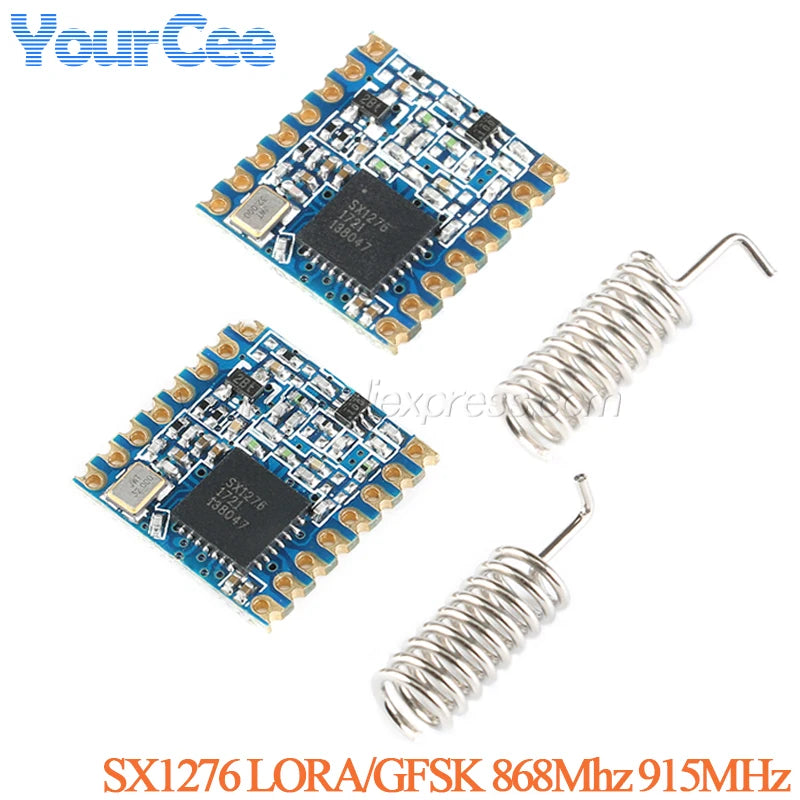

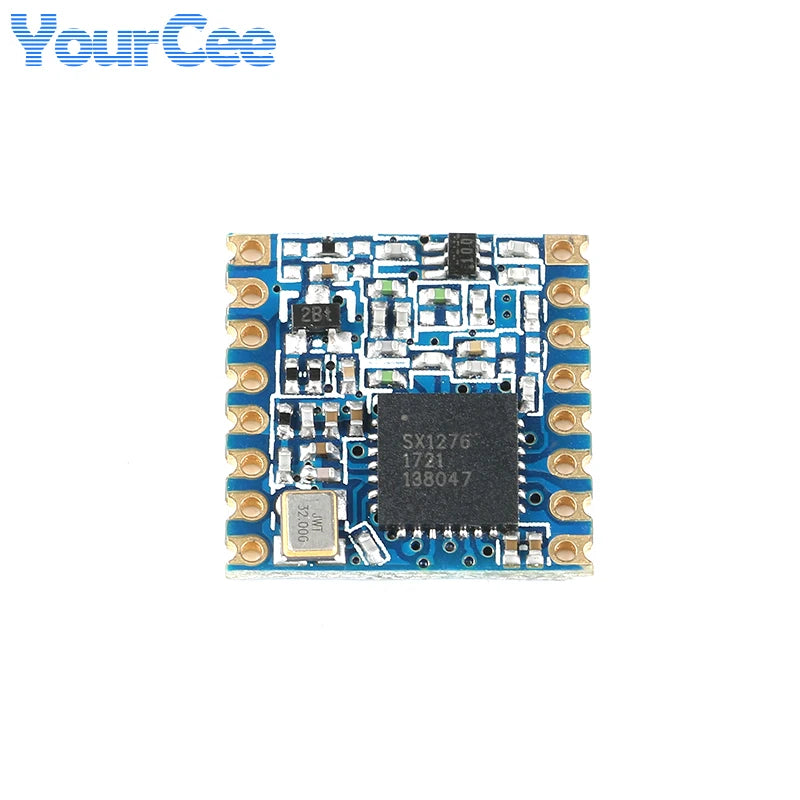

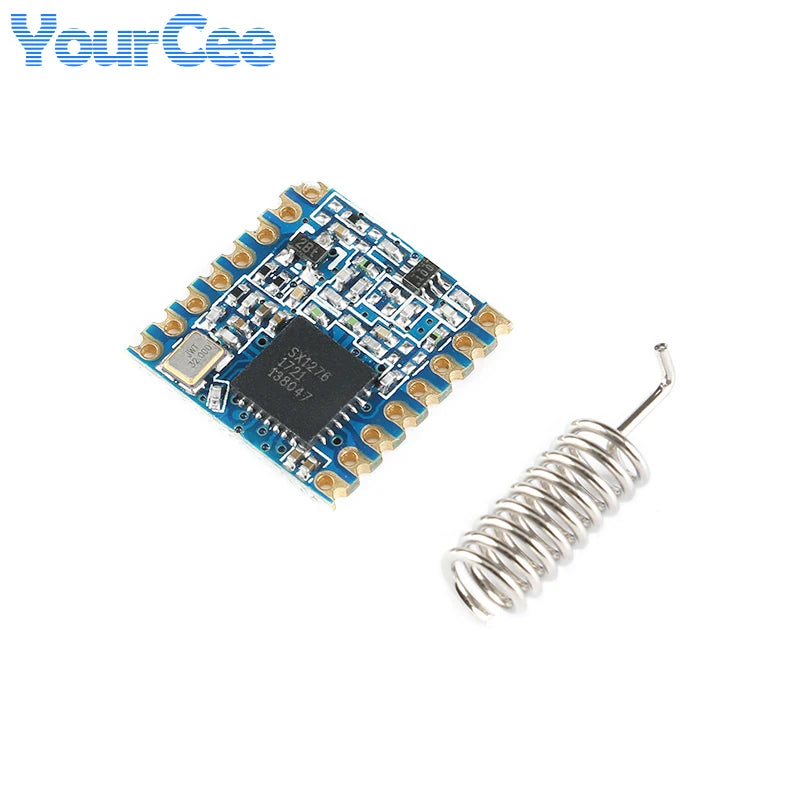

5pcs/1pc SX1276 LORA/GFSK 868MHZ 915MHZ Wifi Transceiver Module Spread Spectrum Long-Range Wireless Communication Antenna
868MHZ / 1pc
$31.46
Sale price
$31.46
Regular price
$0.00
Skip to product information
5pcs/1pc SX1276 LORA/GFSK 868MHZ 915MHZ Wifi Transceiver Module Spread Spectrum Long-Range Wireless Communication Antenna
$31.46
Sale price
$31.46
Regular price
$0.00
Description
SPECIFICATIONS
Application: Lora 868mhz
Board Size: 16.5*17mm
Brand Name: Your Cee
Condition: New
Dissipation Power: low
High-concerned chemical: none
Operating Temperature: -20 - 70 degree
Origin: Mainland China
Package: TQFP
Quantity: 1
Supply Voltage: 1.8v-3.6v
Transmit power: 19-20.5dBm
Type: Module
is_customized: Yes
Module function
FSK / GFKS technology, LoRa (remote) spread spectrum technology
Half-duplex communication
Super anti-interference (channel rejection ratio: 56db)
High receiver sensitivity -139dbm.
ISM multi-band, do not need to apply the frequency of free use.
Multi-frequency optional, a variety of transmission rates. Can be used in FDMA and FM technology.
Intelligent reset, low-voltage monitoring, wake-up time, low-power mode, sleep mode
Low power receive current: 10-12mA
256-bit FIFO TX / RX
RSSI channel detection function
Transmission Mode: FIFO / Direct Mode (Recommended FIFO Packet Mode)
Configuration: AFC / Wake on Air / Low Power / Carrier Sense / FEC Error Correction / AEC Encryption
Ultra-long-distance transmission as far as 3KM open
Product Pictures
Electrical Characteristics
Connecting SCM Schematic
