SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40°C TO +85°C

Origin: Mainland China

Package: DIP8

Supply Voltage: 4.5V TO 5.5V

Type: CAN Transceiver Chip

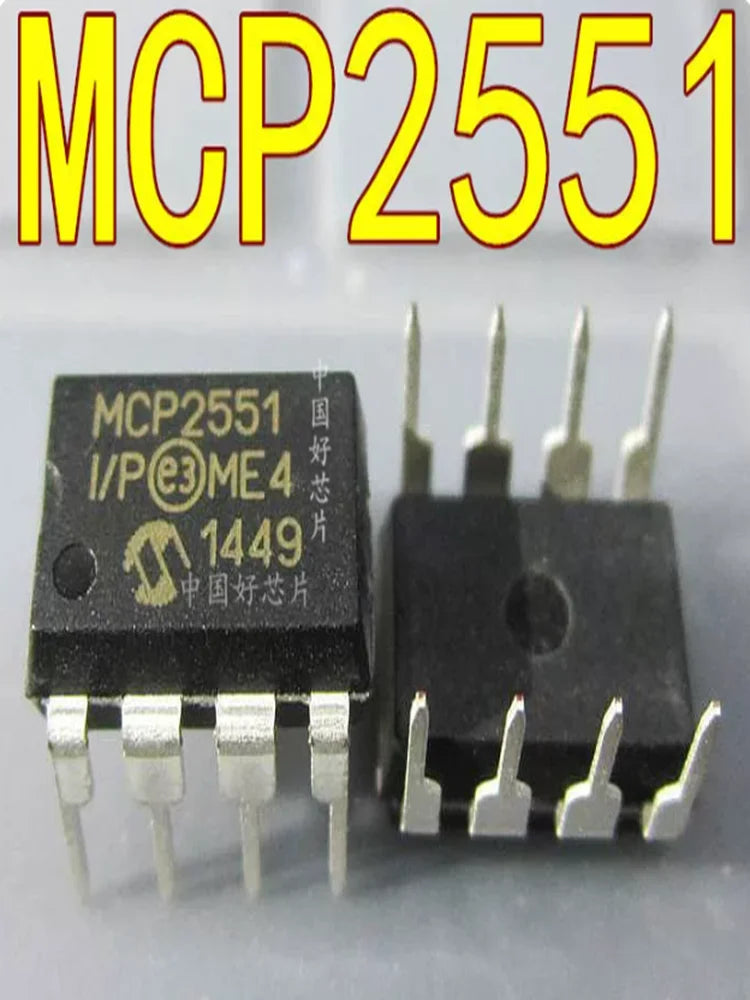

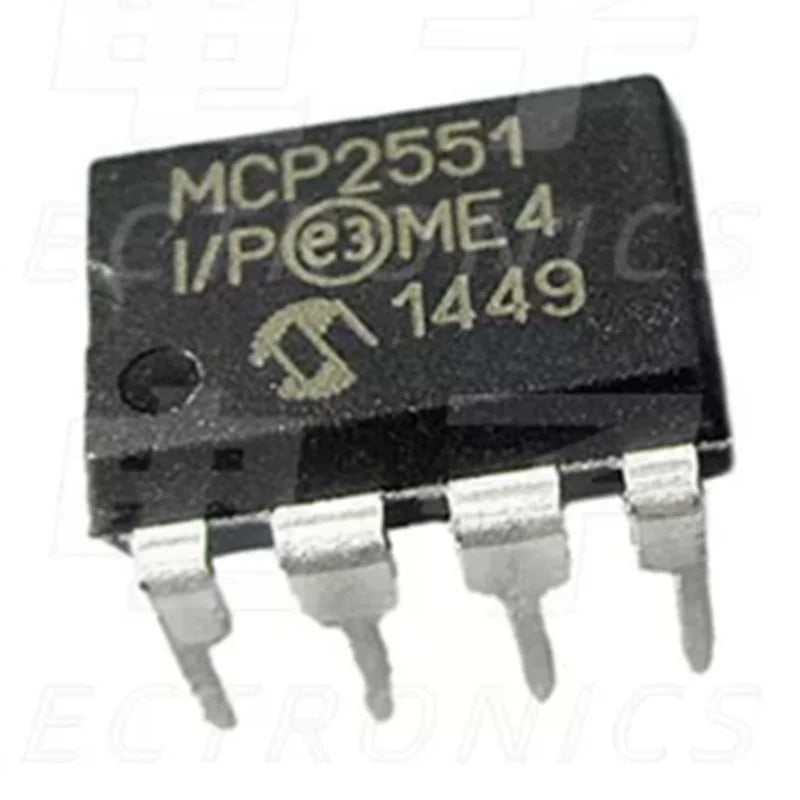

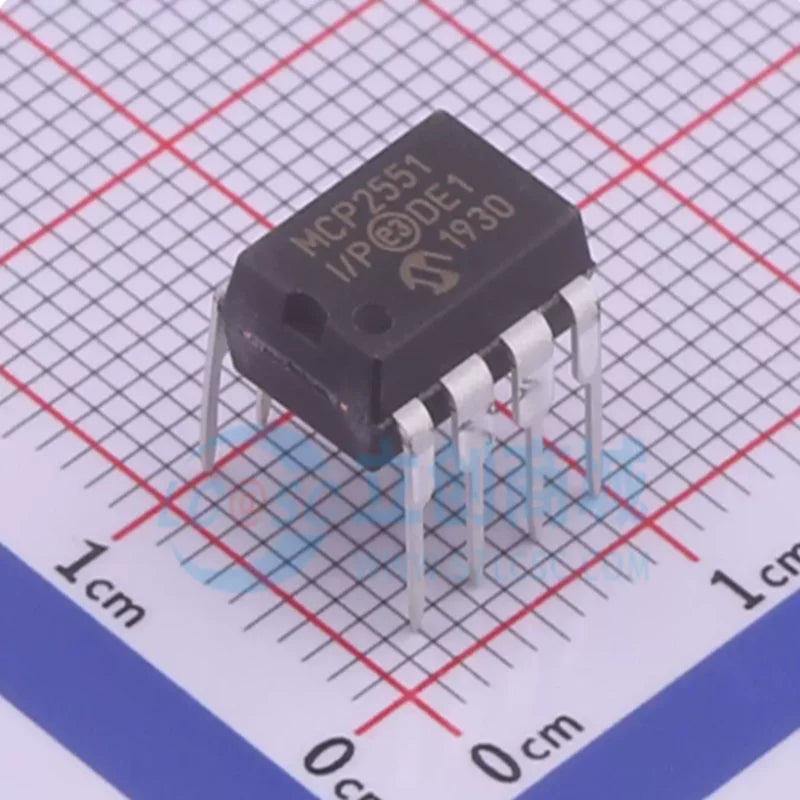

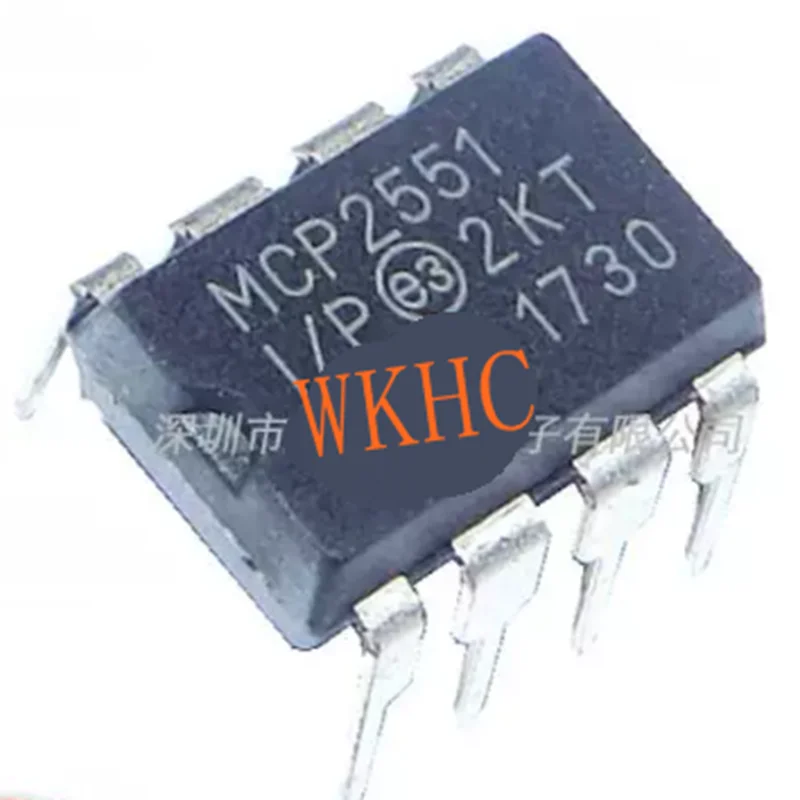

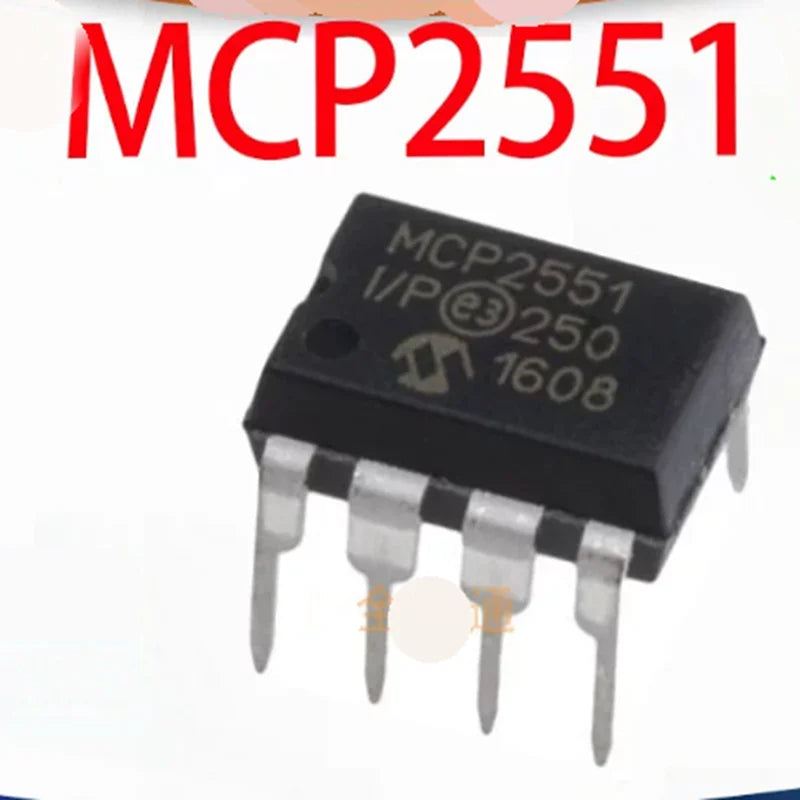

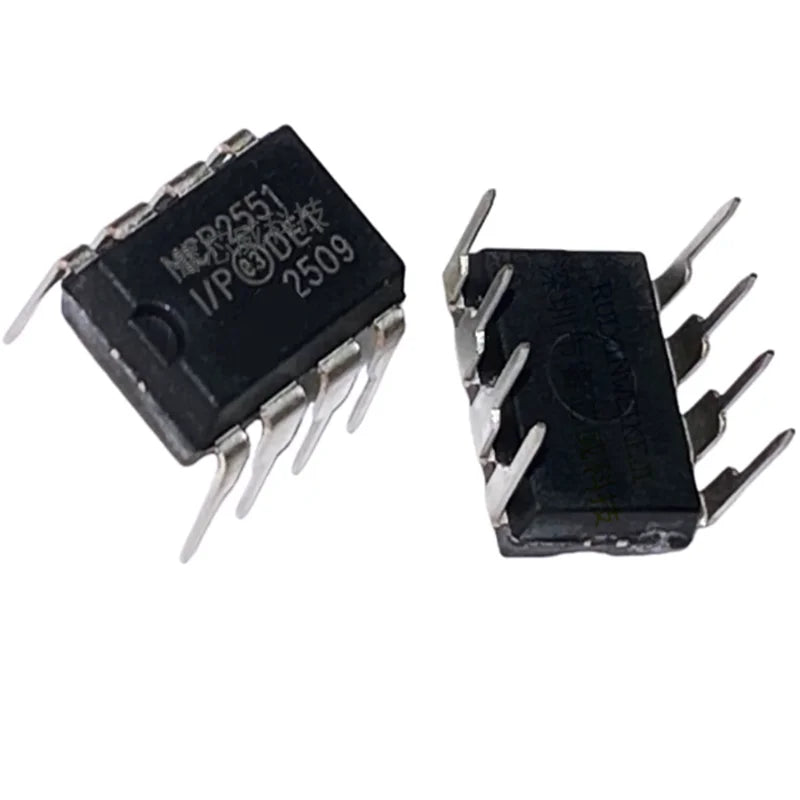

The MCP2551-I/P is a high-speed CAN bus transceiver (PDIP-8 through-hole package). Below are the core product parameters compiled from authoritative sources:

1. Core Electrical Parameters

Parameter Category | Specification | Remarks

Data Rate | Up to 1 Mbps | Meets high-speed real-time communication requirements, suitable for automotive electronics, industrial automation, and other scenarios

Operating Voltage | 4.5V~5.5V | Wide voltage range compatible with 3.3V/5V logic level systems, compatible with various MCU/PLC control terminals

Maximum Operating Current | 75 mA | Low power design, suitable for battery-powered or power-sensitive scenarios (e.g., vehicle ECU, portable devices)

Operating Temperature | -40℃~85℃ | Industrial-grade wide temperature design, suitable for automotive, industrial, outdoor, and other harsh environments

Isolation Voltage | 24V (ISO-11898 compatible) | Suitable for high-voltage environments in automotive and industrial applications, completely isolates ground loops to ensure system safety

Transition Rate | 8.5 V/μs | Rapid signal response, suitable for high-frequency CAN communication scenarios

Peak Reflow Temperature | Not applicable (through-hole package) | No need to withstand reflow soldering high temperatures, suitable for manual soldering/prototype development

2. Package and Physical Parameters (PDIP-8)

Parameter | Specification | Remarks

Package Type | PDIP-8 (8-pin through-hole) | Dimensions 6.2×6.0×2.0 mm, suitable for manual soldering, prototype development, or small-volume production, pin spacing 2.54 mm

Number of Pins | 8 | Standard CAN transceiver pin configuration, compatible with various CAN bus interfaces

Package Material | Plastic/Epoxy Resin | Industrial-grade package, aging-resistant, corrosion-resistant, suitable for harsh environments

Terminal Type | Through-hole | High fault tolerance for manual soldering, no SMT line required, reduces development costs

3. Core Functional Features

High-speed Differential Transmission: Supports 1 Mbps data rate. Differential receiver suppresses common-mode noise, improves signal integrity, suitable for complex electromagnetic environments (e.g., near inverters and high-power motors)

Fault-tolerant Protection: Built-in CANH/CANL overvoltage/short-circuit protection, thermal shutdown circuit prevents overcurrent damage, suitable for high-voltage/interference scenarios in automotive and industrial applications

Multi-mode Operation: Supports high-speed mode, slope-control mode, standby mode with low-power standby current of only 1 mA, suitable for battery-powered devices

Permanent Dominant Detection: Detects TXD stuck low and disables CANH/CANL output drivers to prevent bus data corruption

Power-on Reset Protection: Upon powering on, CANH/CANL remains in high-impedance state to prevent bus communication interference at power-up.

Typical Application Scenarios

Suitable for scenarios requiring reliable, high-speed CAN bus communication, covering needs across multiple industries:

Automotive Electronics: Engine Control Unit (ECU), Body Control Module (BCM), On-Board Diagnostics (OBD), Electric Power Steering System (EPS)

Industrial Automation: Communication between PLCs and sensors/actuators (such as temperature and pressure data collection, motor drive command issuance), Industrial robot joint control

Smart Grid: Distributed energy management systems, smart meter communication, interaction and control between charging stations and the power grid

Power Tools: Battery status monitoring and motor speed control for electric wrenches and drills

Medical Devices: Internal module communication within medical instruments (such as parameter transmission in monitors and ventilators, compliant with medical-grade safety standards)
