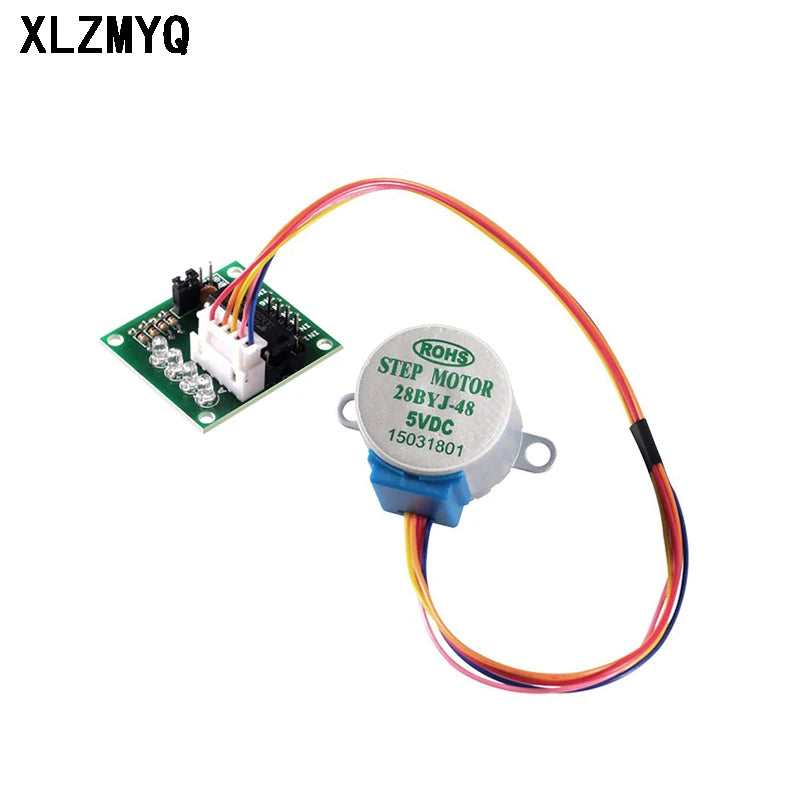

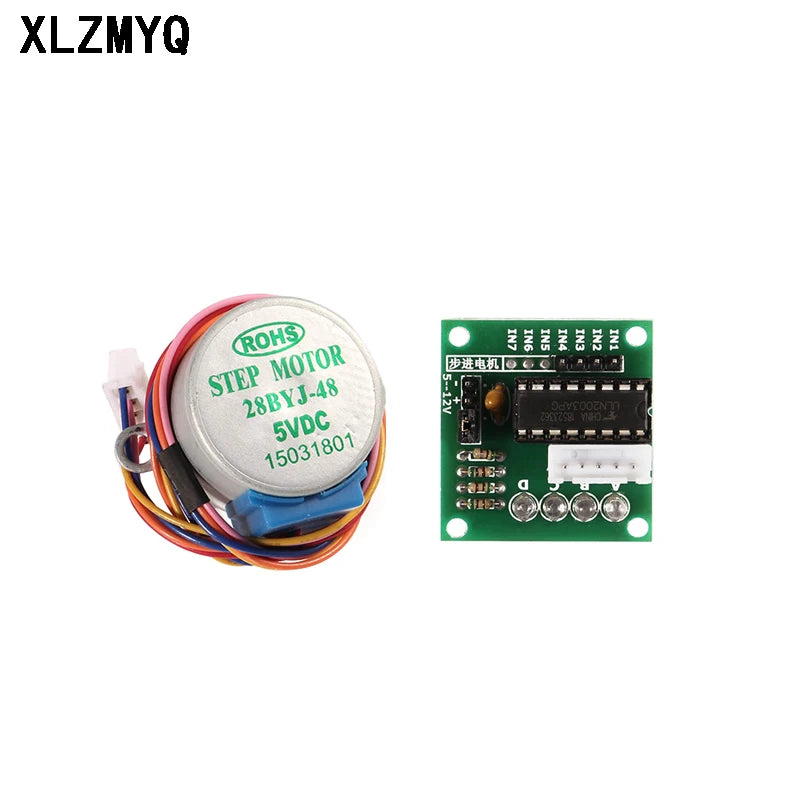

5pcs 28BYJ-48 ULN2003 5V 12V Stepper Motor + ULN2003 Gear Driver Board Stepper Motor Module For Arduino 28BYJ DIY Kit

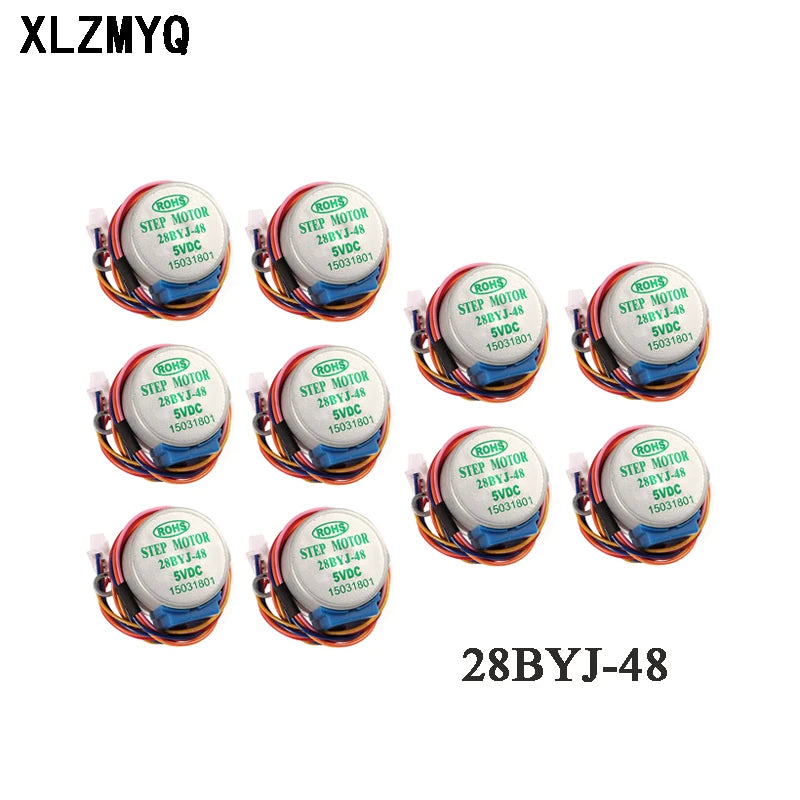

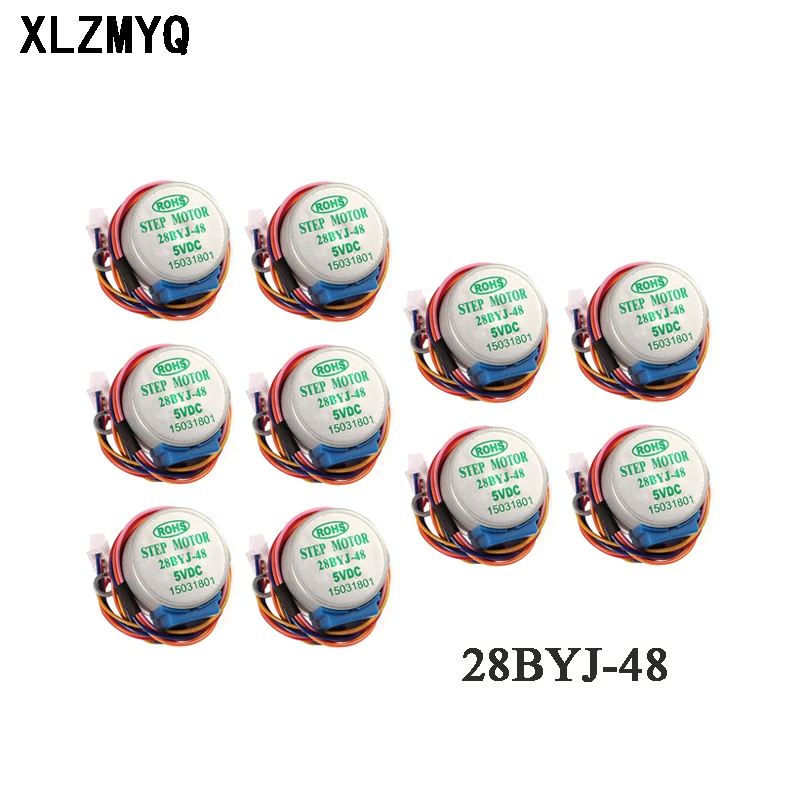

28BYJ-48 Stepper Motor

Description:
Gear Stepper Motor DC 5V 4 Phase Step Motor Reduction Step Motor
Brand new and high quality.
Diameter: 27mm.
Voltage: 5V/12V (for options)
Step angle: 5.625 x 1/64.
Reduction ratio: 1/64.
Color: Silver
5 lines cable 4 phase stepper motor can be driven by ULN2003 chip.
It also can be connected as 2 phase to use.

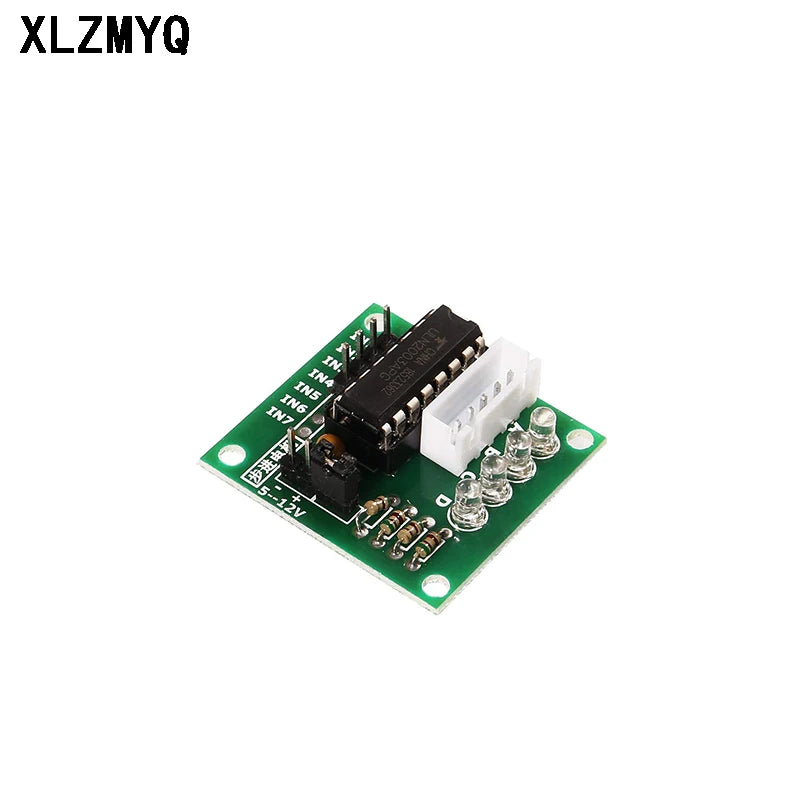

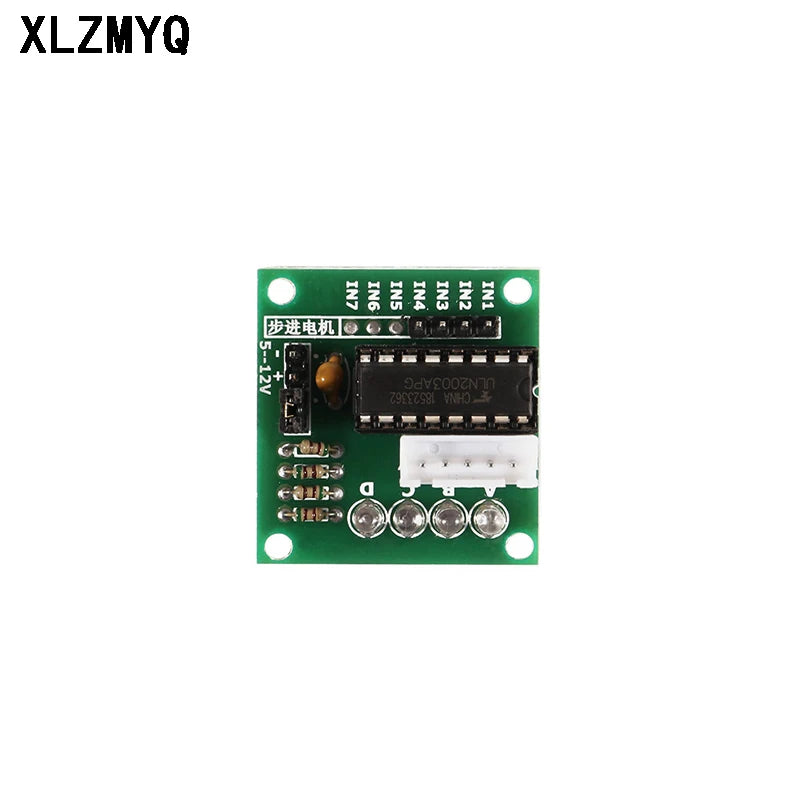

ULN2003 Module:
The ULN2003 high power chip drives the stepper motor
A, B, C, D LEDs indicate the state of the four-phase stepper motor when it is operating
Equipped with stepper motor standard interface, can be directly inserted when used.


Wiring method:
 The left of the IN1 ~ IN7 corresponding to the single-chip 7 IO line;
The right side of the white socket pin definition from top to bottom are VCC, A, B, C, D (then stepper motor common line, A phase, B phase, C phase, D phase);

The bottom of the 2-pin pin GND ground, V + then +5 V
Directly into the microcontroller development board or system board can be used, need to draw from the development board 4 IO port, 5V and ground.
The development board / system board and the motor drive board are connected by 6 DuPont lines
Drive Module Board Size:2.8cm x 2.8cm x 2cm
