5pcs 3.7V To 12V Mini DC Boost Converter Board Output 5V/8V/9V/12V DC Step Up Module Lith-Battery Boost Voltage Boost Module

5pcs 3.7V To 12V Mini DC Boost Converter Board Output 5V/8V/9V/12V DC Step Up Module Lith-Battery Boost Voltage Boost Module

5pcs 3.7V To 12V Mini DC Boost Converter Board Output 5V/8V/9V/12V DC Step Up Module Lith-Battery Boost Voltage Boost Module

$5.20

$5.20 $0.00

Description

SPECIFICATIONS

Brand Name: ANGSHENGDA

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Description

Download

Report this item or seller

Multi-function mini boost module

Basic parameters
The output voltage can be set to 5V/8V/9V/12V, the default is 12V
Input voltage range: 2.5V~VOUT-0.5V
Output performance: Take 3.7V lithium battery input as an example, it can output 5V1.2A, 8V0.7A, 9V0.6A, 12V0.5A. Make sure that the input current and output current do not exceed 1.5A.

Voltage setting description

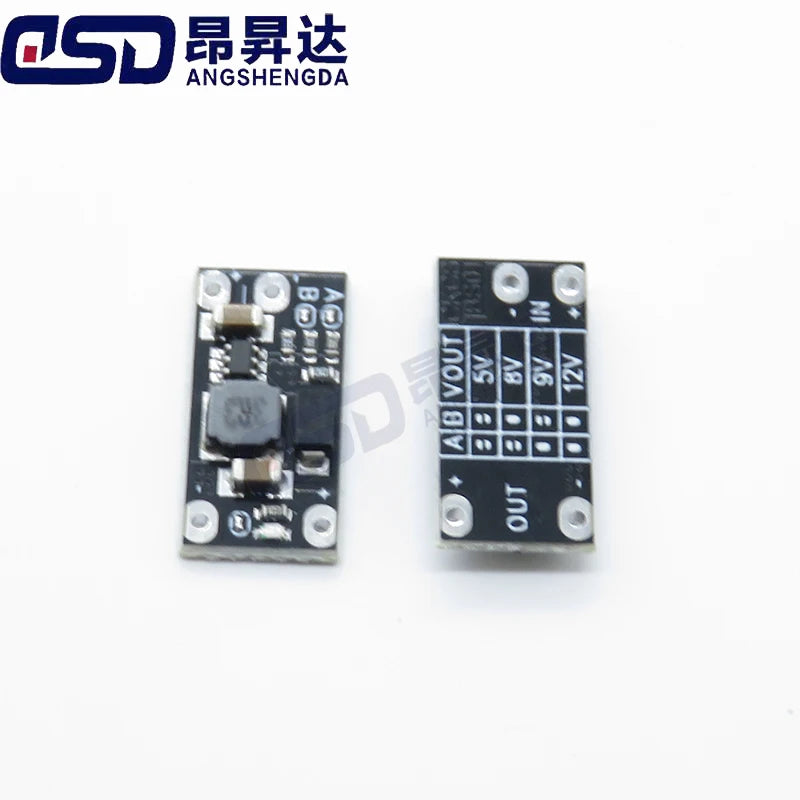

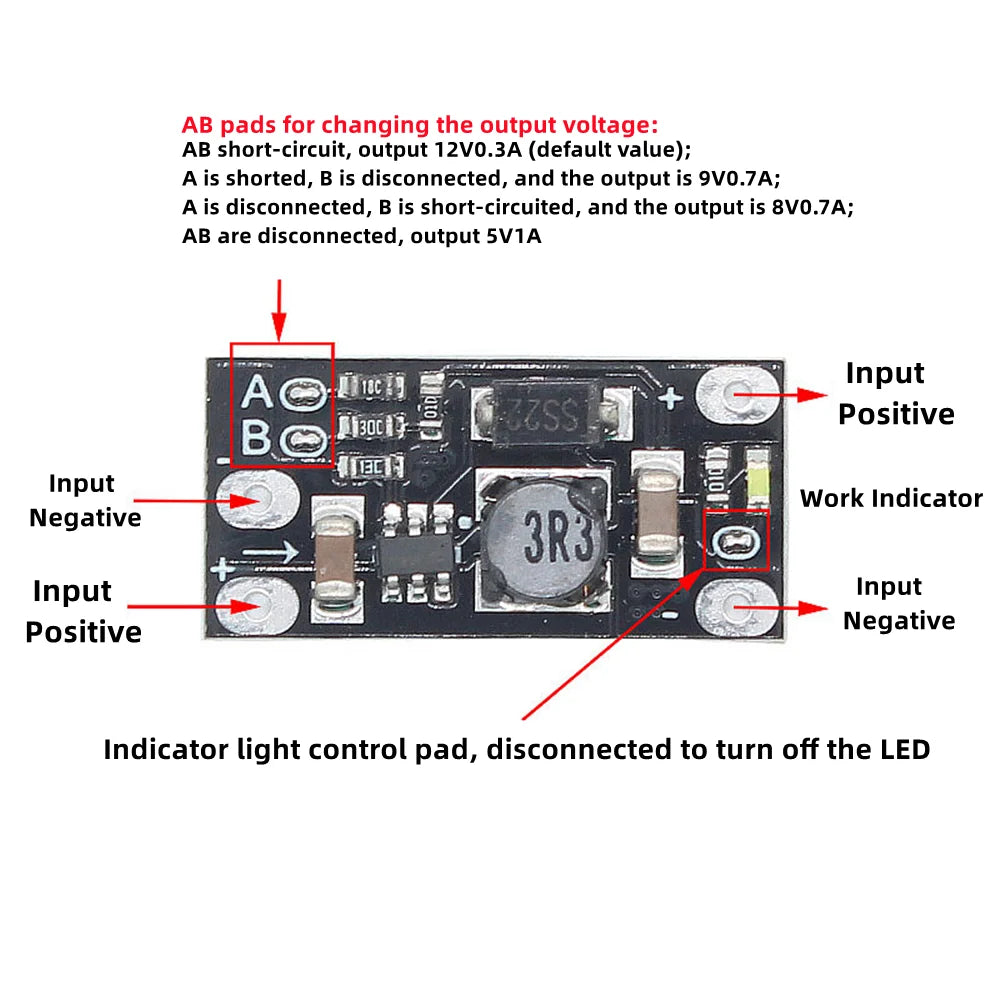

The front side of the PCB can be seen with the words A and B. The output voltage can be changed by using the soldering iron to change the pad on and off. In the following table, 0 means the pad is disconnected and 1 means the pad is connected.

A B VOUT
0 0 5V
0 1 8V
1 0 9V
1 1 12V

The pad next to the LED indicator can also be turned off to turn off the indicator.

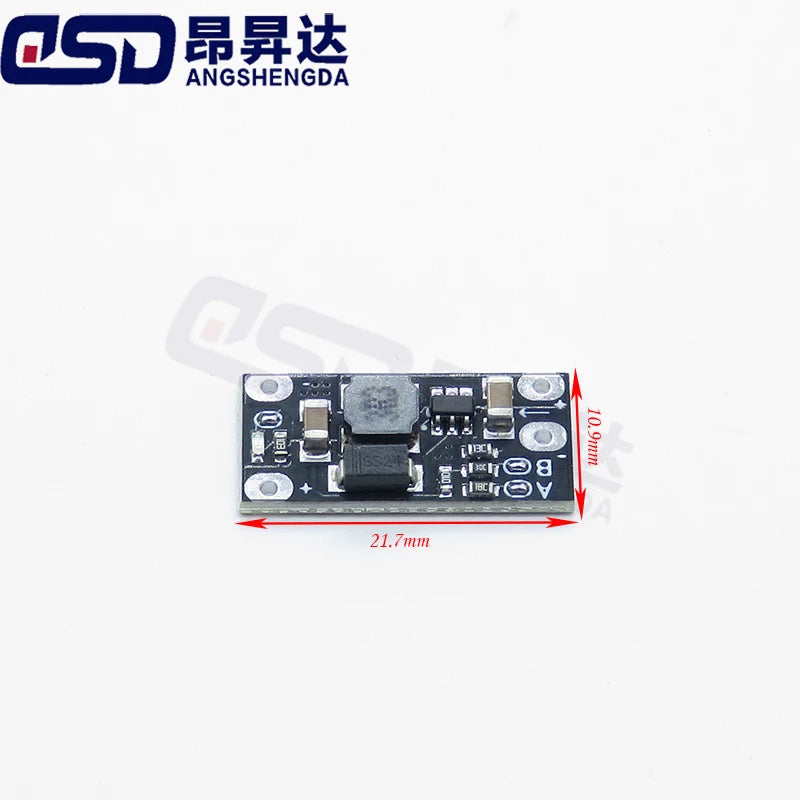

Product size: 22 × 11 × 3.6mm
