SPECIFICATIONS

Brand Name: JCD

Choice: yes

Color: Black

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Installation type: 180 degree welding type

Model Number: 4Pin USB Female Socket

Origin: Mainland China

Quantity: 5pcs

Voltage: 自定义编辑

semi_Choice: yes

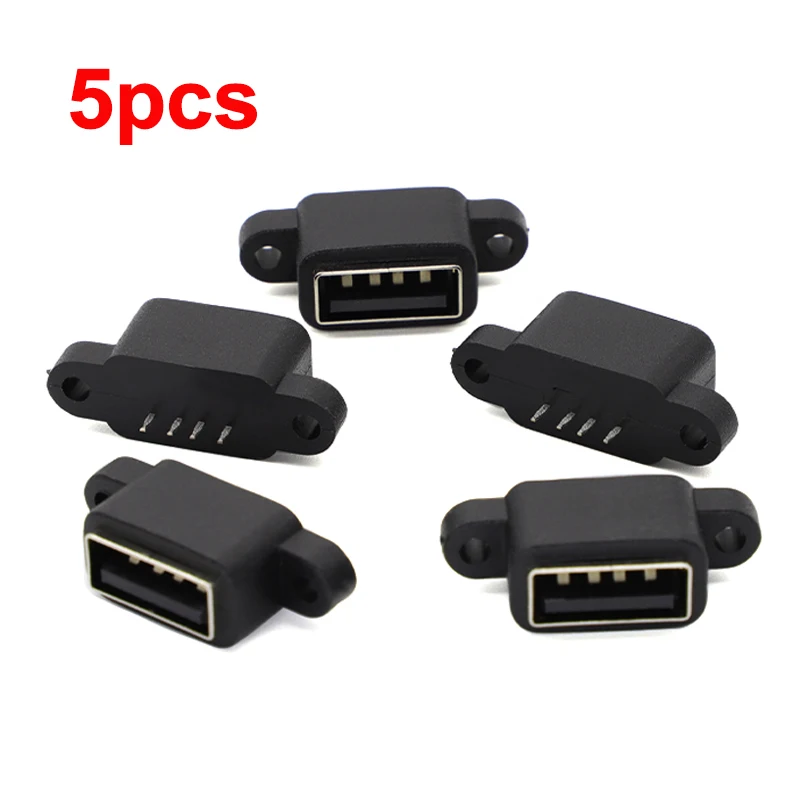

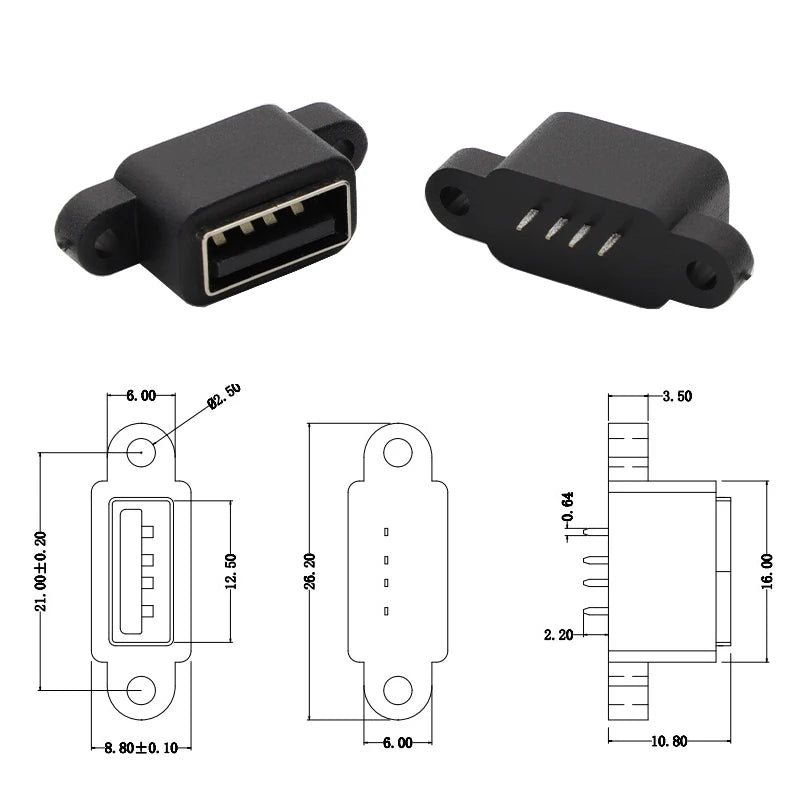

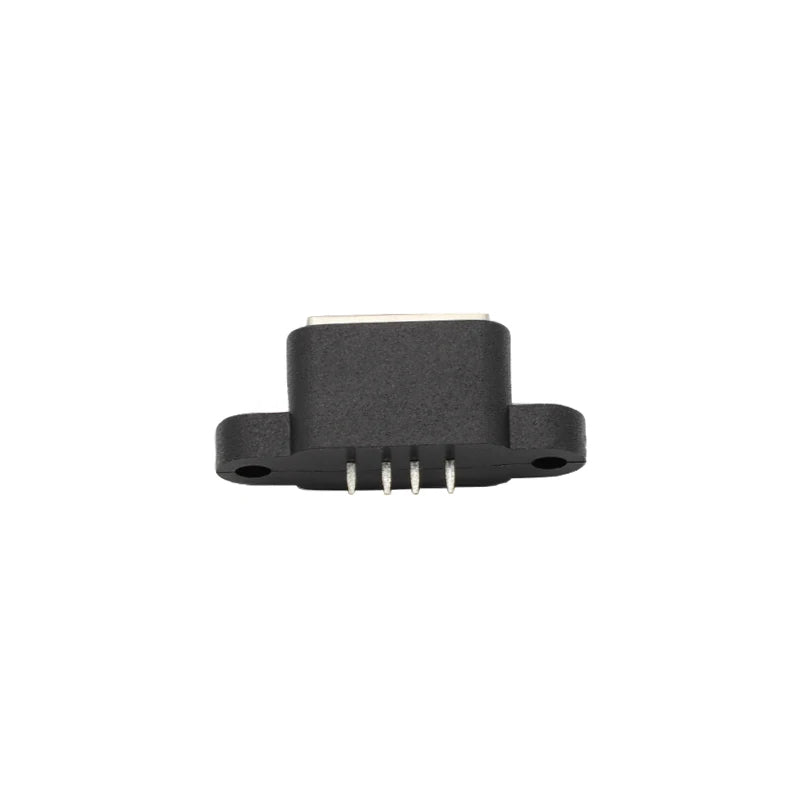

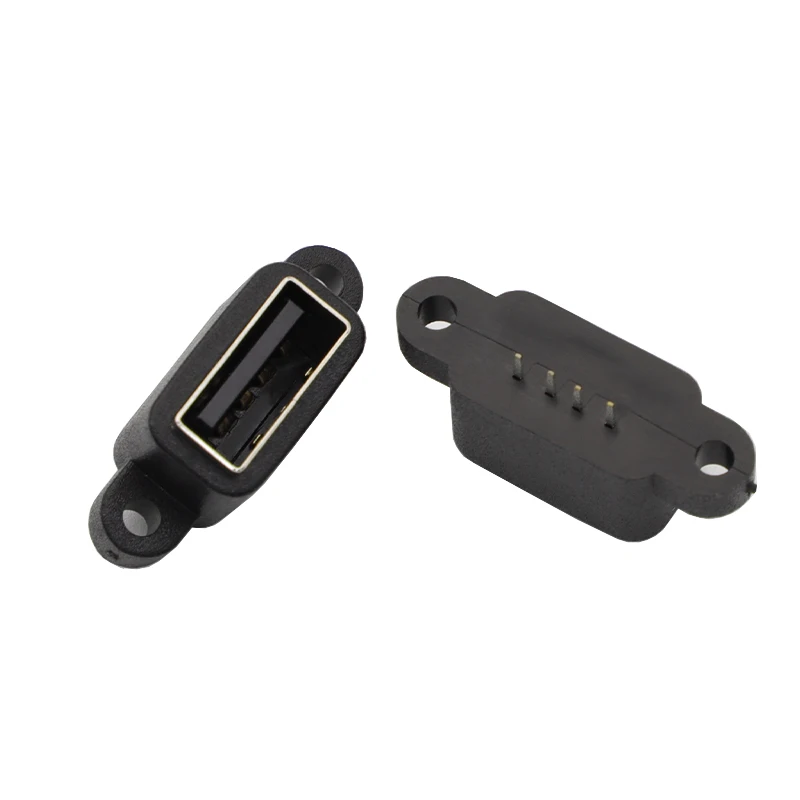

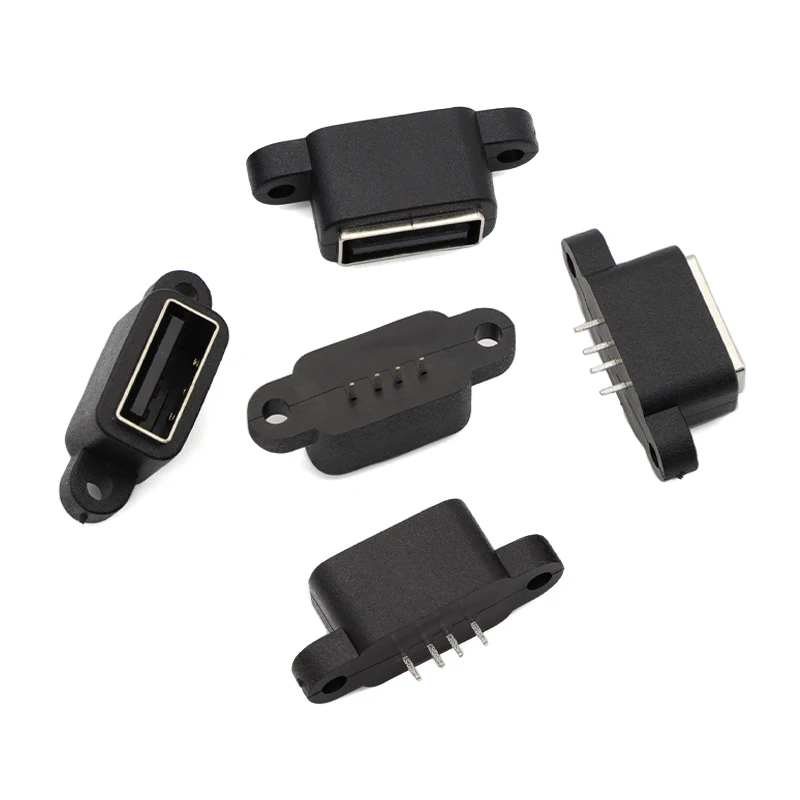

5pcs Black USB 2.0 Female Socket 4Pin connector with screw hole USB A Interface Port 180 degree Waterproof female socket

● Brand new and of High quality

● Installation type: 180 degree welding type

●  IP rating: IP67

●  Color: Black

●  Electrical characteristics:

1. Rated current: Current Rating 1.5A / contact terminal

2. Rated voltage: Voltage Rating 30V DC

3. Contact Resistance: 30 milliohms MAX

4. Voltage endurance: Dielectnic Withstanding Voice: 500 V AC AT Sea Levol

5. Insulation impedance: Lnsulation Resistance: 1000MEGA ohms MIN

● Quantity: 5pcs

Note:

Due to manual measurement, please allow for an error of 1-5mm.

Due to differences in display and lighting effects, the actual color of the item may be slightly different from the color shown in the picture.
