Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: tinned copper terminals

Origin: Mainland China

Type: Splice

is_customized: Yes

semi_Choice: yes

Product features
1. Fully annealed electrolytic tin plated copper construction provides excellent conductivity.100% tin plated copper resists corrosion from salt and moisture.
2. Heavy Duty Construction for Enhanced High Temperature Durability.
3. Seamless barrel design allows for maximum strength when crimped.
4. Closed end design seals out moisture so cables stay dry and corrosion free.
5. Wire gauge identification marked on lug barrels. Widely used in household appliances, automobiles, electrical industry, mechanical equipment, power distribution cabinets, etc.

Product description
Heavy duty Electrical Lugs are great for inverters, Battery and automotive applications. These lugs can be connected to a cable such as a battery cable by simply stripping insulation from the end of your cable, placing the lug over the exposed cable and crimping the barrel tightly and securely to the end of the cable. They can also be soldered on if you prefer. These lugs are made of tin plated copper which offers excellent conductivity for any application you my have.Copper lugs feature a burr-free appearance for an aesthetically pleasing finish and seamless performance.

Quantity: 5 Pack
Material: Tinned Copper

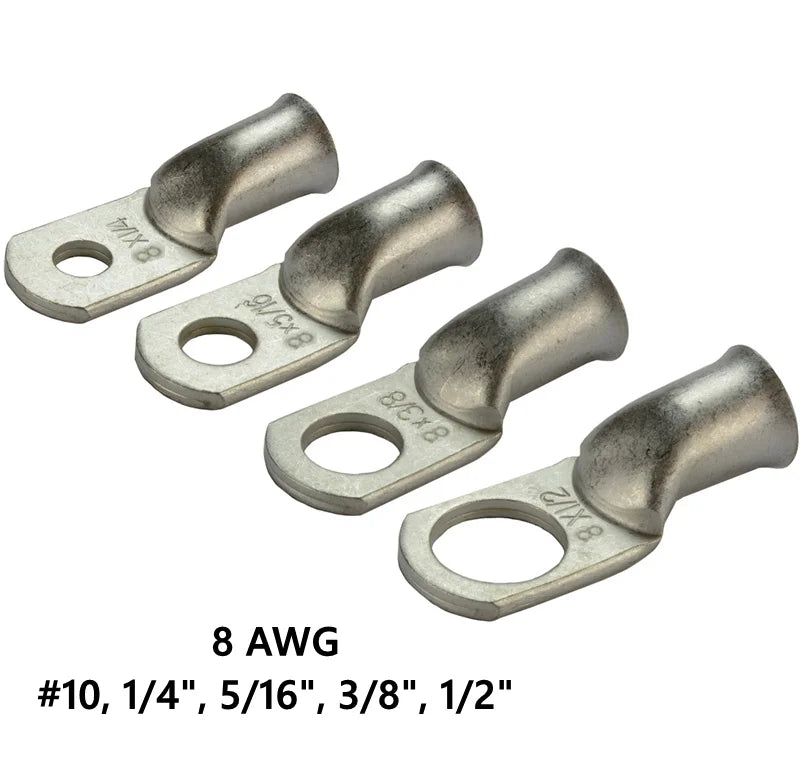

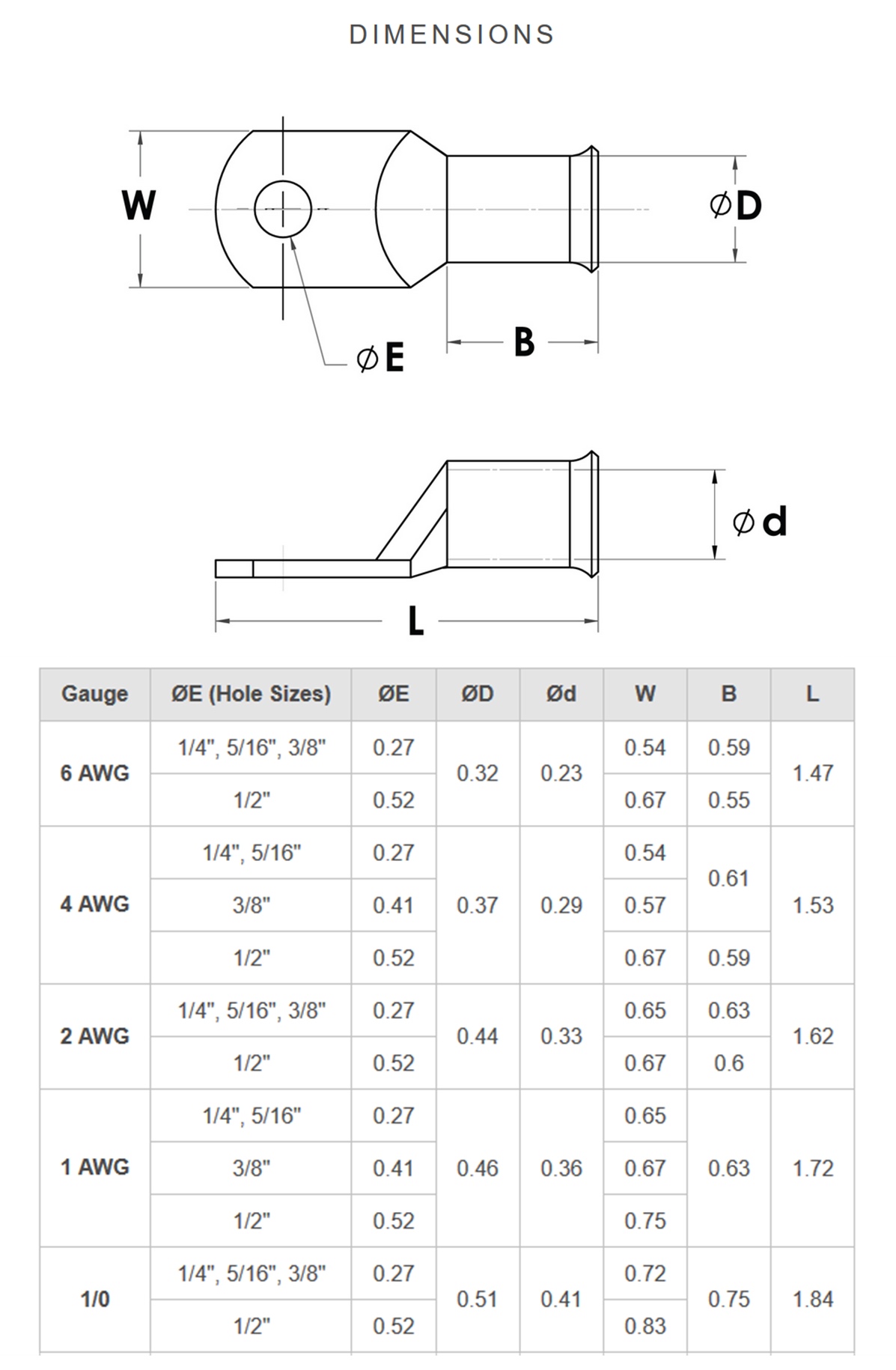

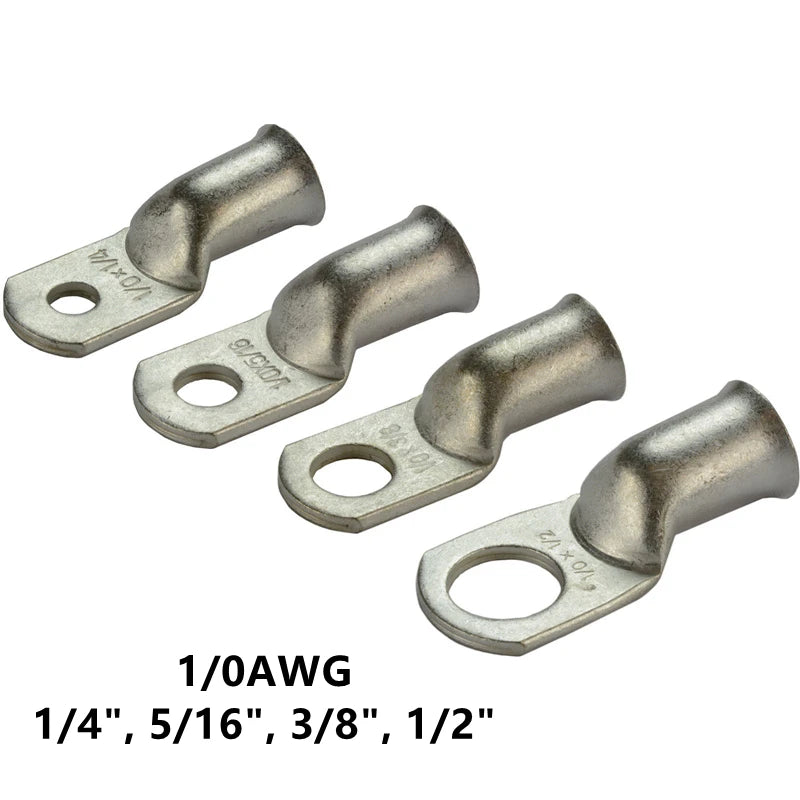

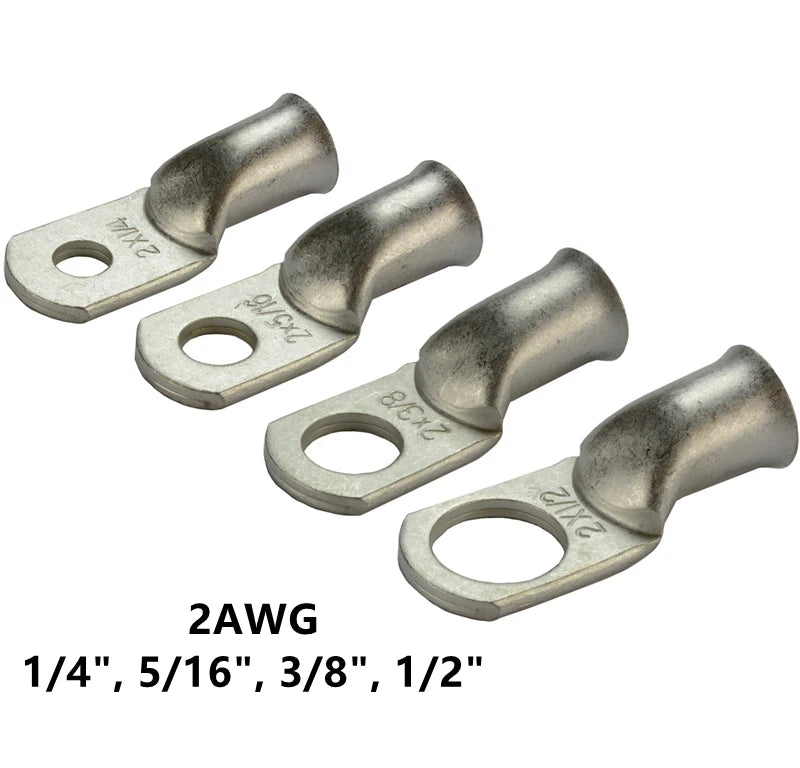

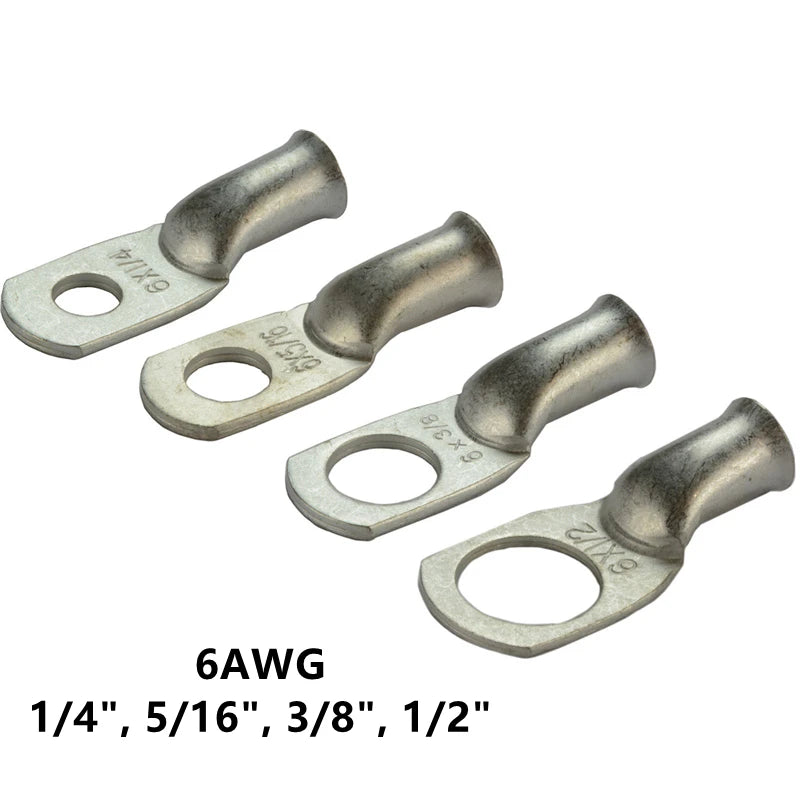

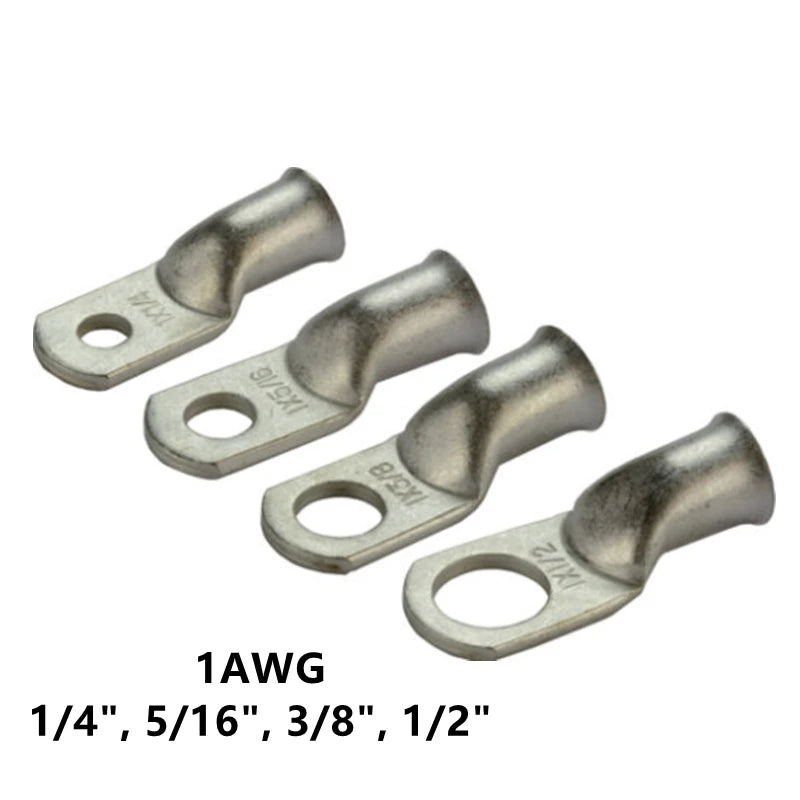

Wire Gauge: 8 AWG, 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG Hole
Size: #10, 1/4", 5/16", 3/8", or 1/2"

Warranty: Lifetime Warranty

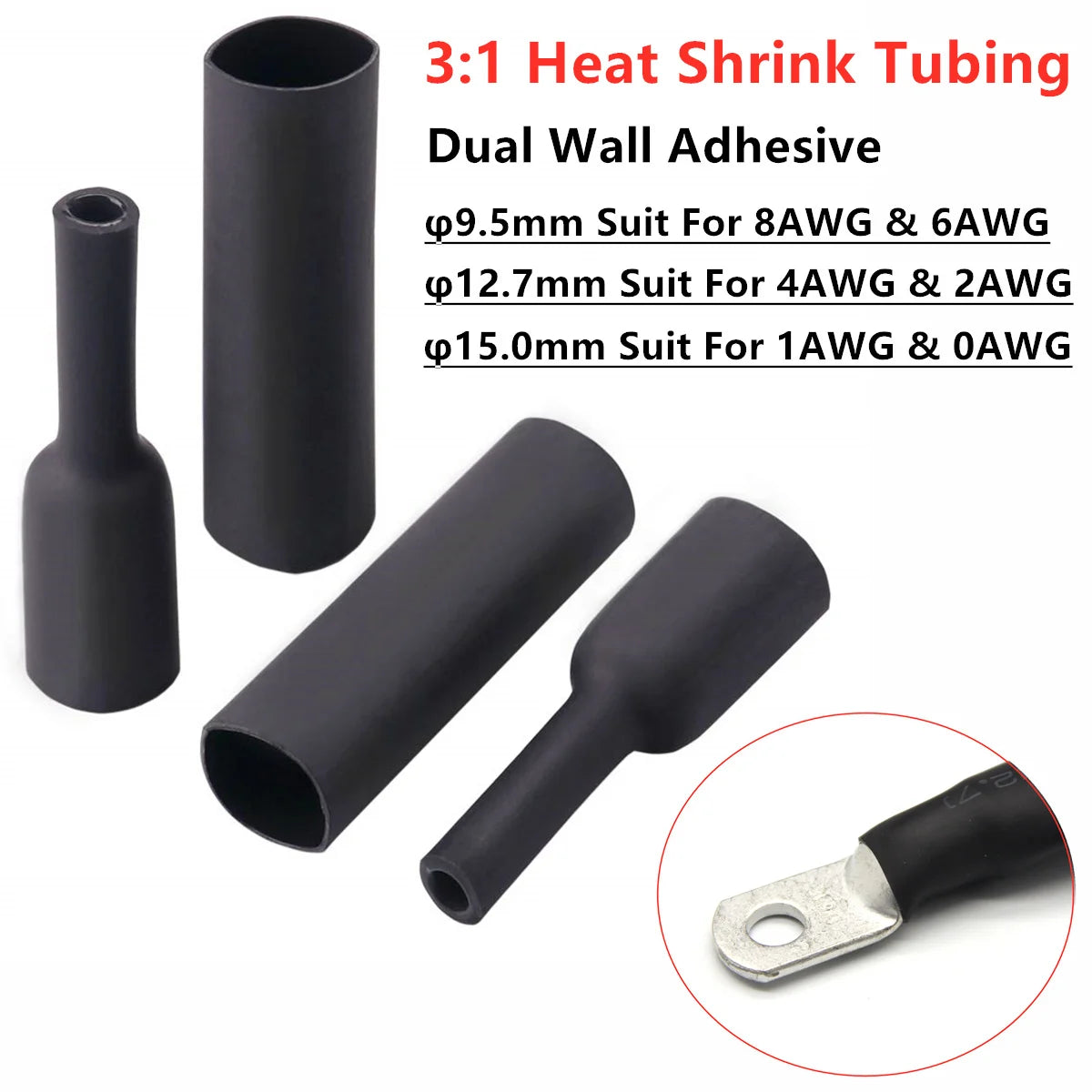

3:1 Dual Wall Adhesive Heat Shrink Tubing:
Color: Black
Material: Polyolefin
Heat shrink ratio: 3:1
Operating Temperature:-131°C to + 257°C
Shrinkage Temp: 212(Fahrenheit)°C
Full Shrinkage Temp: 230maximum°C
Tensile strength: 10.4Mpa
Dielectric strength: 15 kV / mm
Flammability: Flame Retardant

Size:
9.5mm x 45mm(L) Suit For: 8 AWG( 10mm² )& 6 AWG( 16mm² ) Terminals
12.7mm x 45mm(L) Suit For: 4AWG( 25mm² ) & 2AWG( 35mm² ) Terminals
15.0mm x 45mm(L) Suit For: 1AWG( 44mm² ) & 0AWG( 50mm² ) Terminals

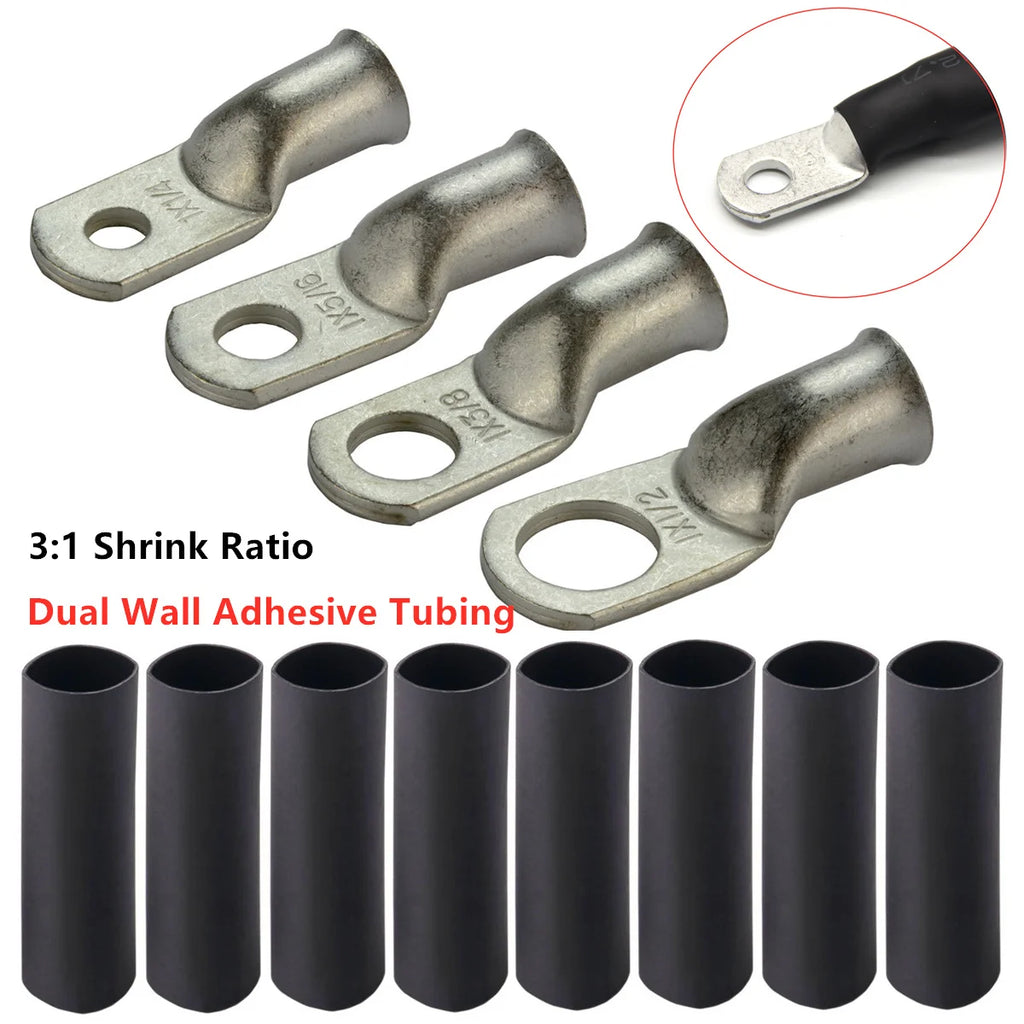

Package Include: Copper Ring Terminals +10PCSDual Wall Adhesive Heat Shrink Tubing Cover
