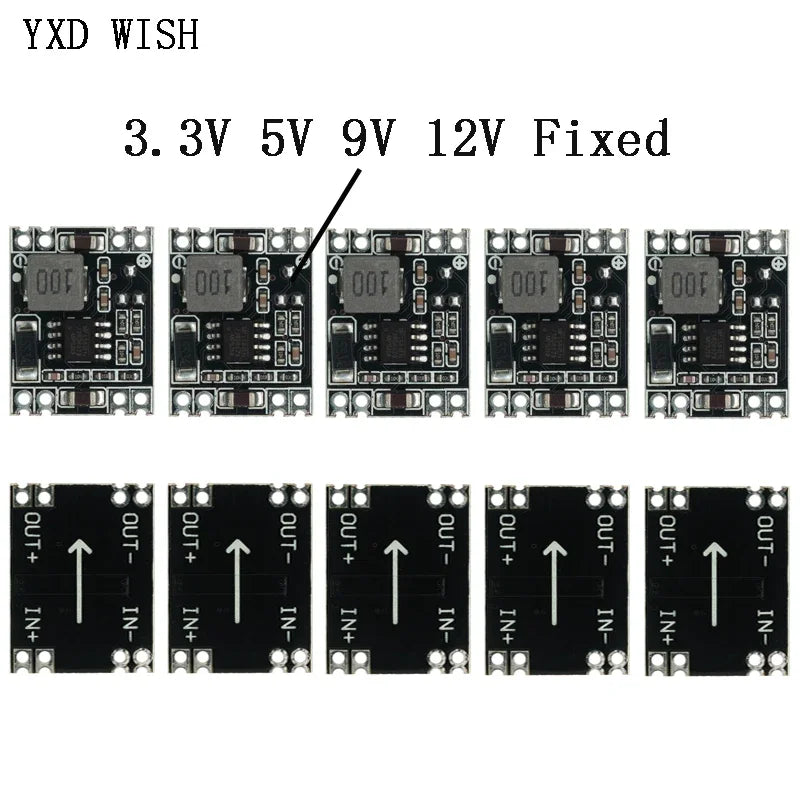

5pcs DC-DC Step-down Power Supply Module DC 5V-12V 24V to 5V 3.3V 9V 12V Fixed Output High-Current Buck Converter Board
12V
$12.08
Sale price
$12.08
Regular price
$0.00
Skip to product information
5pcs DC-DC Step-down Power Supply Module DC 5V-12V 24V to 5V 3.3V 9V 12V Fixed Output High-Current Buck Converter Board
$12.08
Sale price
$12.08
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: RoHS
Model Number: 3A output
Origin: Mainland China
Output Current: standard
Output Frequency: standard
Output Power: 1 - 50W
Output Type: SINGLE
Size: standard
Type: DC/DC Converters
Weight: standard
is_customized: Yes
5pcs DC-DC Step-down Power Supply Module DC 5V-12V 24V to 5V 3.3V 9V 12V Fixed Output High-Current Buck Converter Board
Item Description:

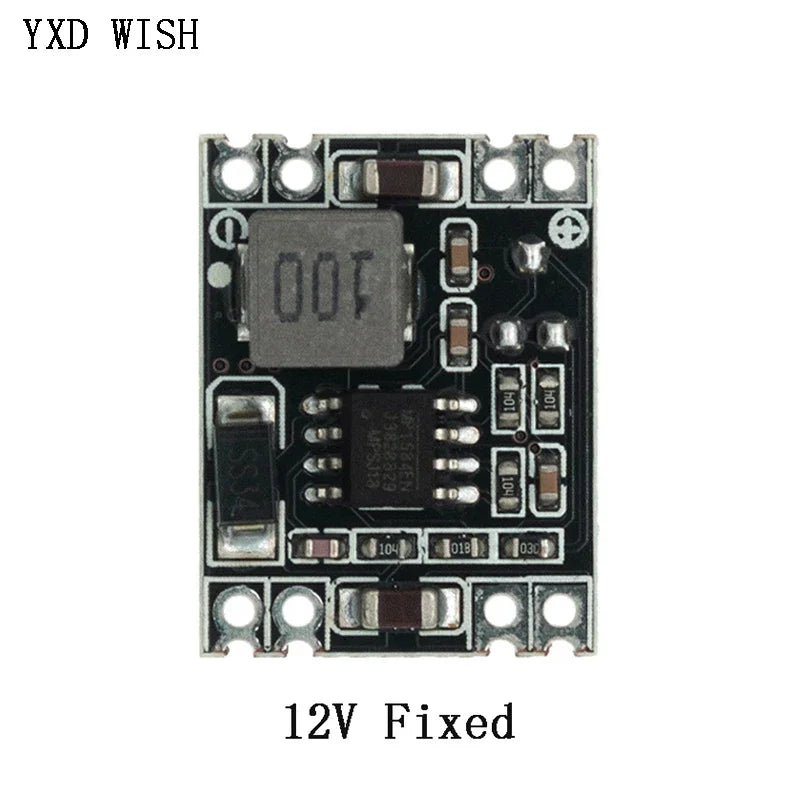

Product Name: DC-DC 3A Buck power module (12V fixed output)
Input voltage: 14-26V
Output voltage: 12V
Output Current: 3A (maximum), long working hours control in less than 0.8A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM

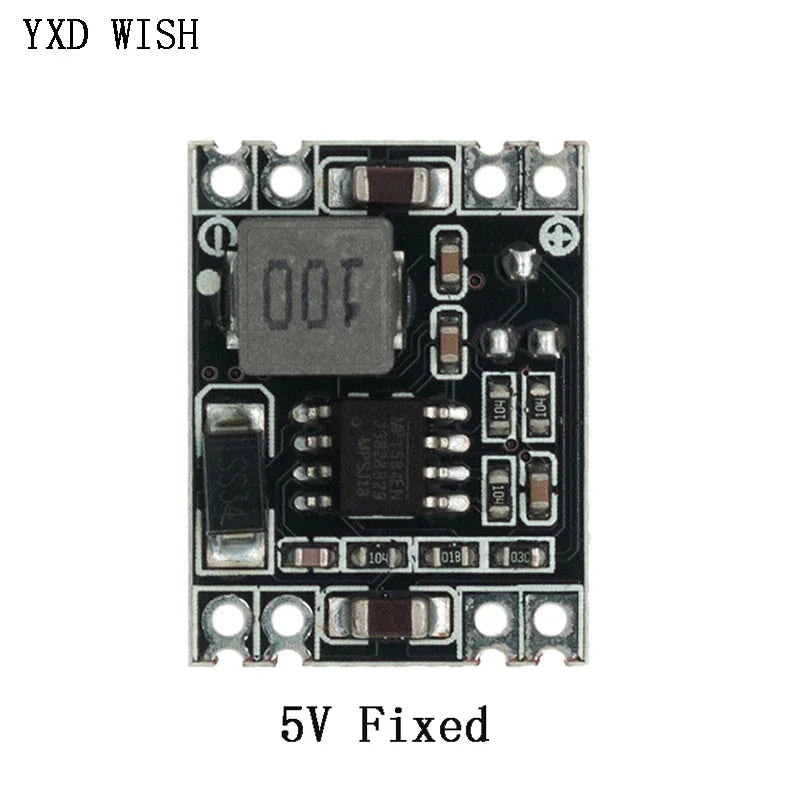

Product Name: DC-DC 3A Buck power module (5V fixed output)
Input voltage: 7-26V
Output voltage: 5V
Output Current: 3A (maximum), long working hours control in less than 1.6A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
Product Name: DC-DC 3A Buck power module (9V fixed output)
Input voltage: 11-26V
Output voltage: 9V
Output Current: 3A (maximum), long working hours control in less than 1.1A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
Product Name: DC-DC 3A Buck power module (3.3V fixed output)
Input voltage: 5.3V-26V
Output voltage: 3.3V
Output Current: 3A (maximum), long working hours control in less than 1.8A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
Product Name: DC-DC 3A Buck power module (12V fixed output)
Input voltage: 14-26V
Output voltage: 12V
Output Current: 3A (maximum), long working hours control in less than 0.8A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
Product Name: DC-DC 3A Buck power module (5V fixed output)
Input voltage: 7-26V
Output voltage: 5V
Output Current: 3A (maximum), long working hours control in less than 1.6A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
Product Name: DC-DC 3A Buck power module (9V fixed output)
Input voltage: 11-26V
Output voltage: 9V
Output Current: 3A (maximum), long working hours control in less than 1.1A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
Product Name: DC-DC 3A Buck power module (3.3V fixed output)
Input voltage: 5.3V-26V
Output voltage: 3.3V
Output Current: 3A (maximum), long working hours control in less than 1.8A
Conversion efficiency: 96% (maximum) voltage difference (Vin-Vout> = 2V), the higher the efficiency
Output ripple: <30mV
Working temperature: -40-85 ° C
Size: 22.3MM * 17MM * 4.2MM
