SPECIFICATIONS

Product Features:

100% high quality and brand new
1. High-temperature resistance, high quality, resistant to oxidation and deformation, widely used, and easy to use
2. Easy to solder, made of genuine material.

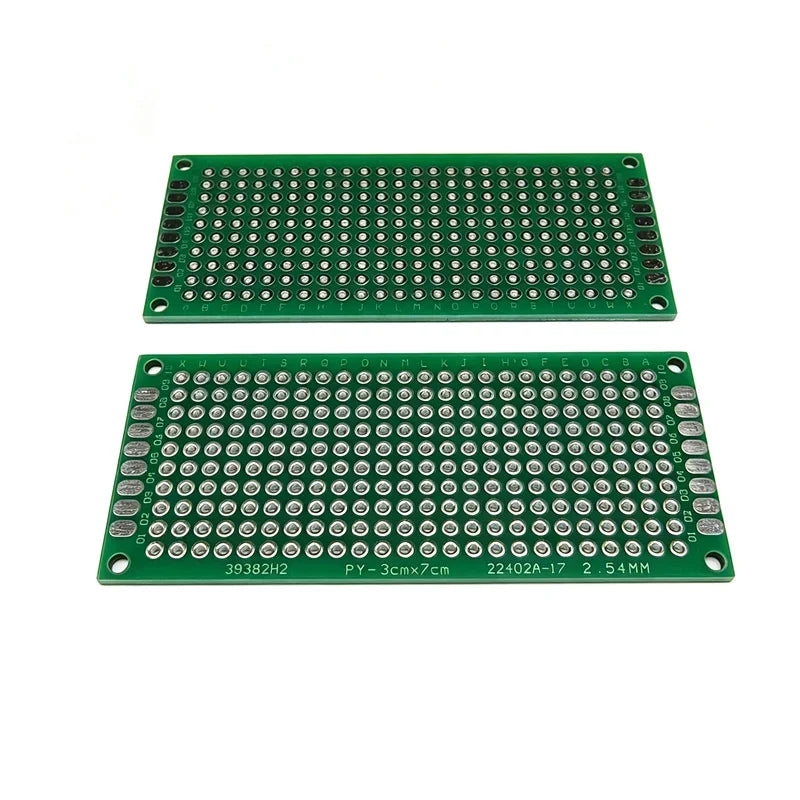

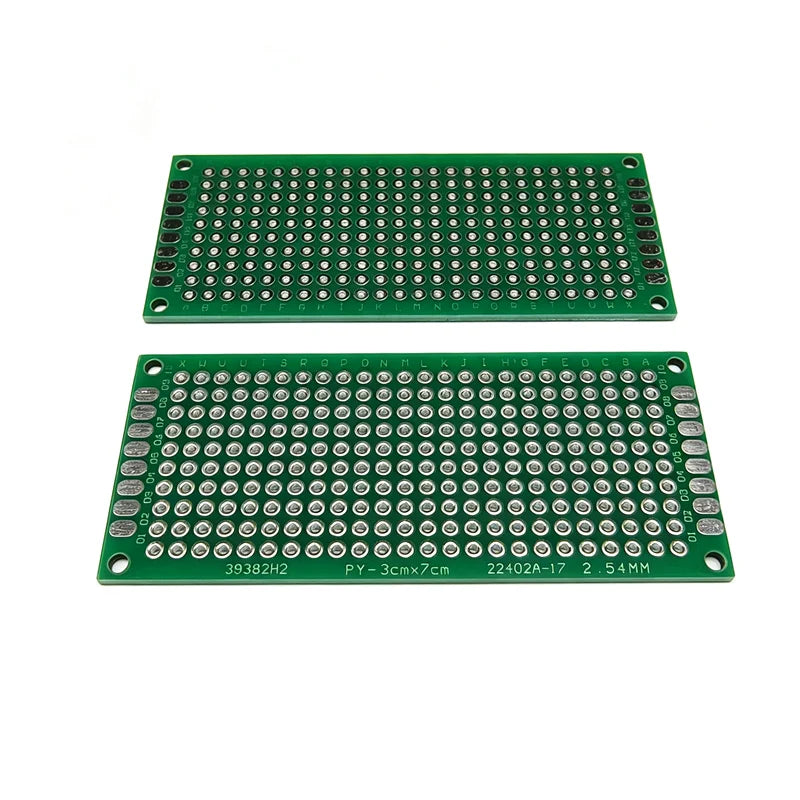

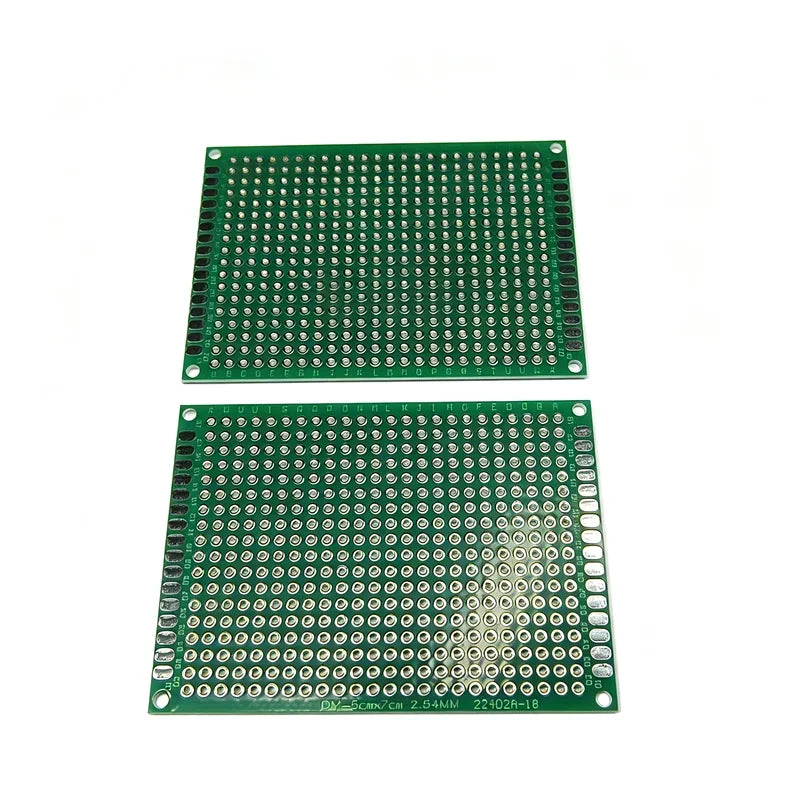

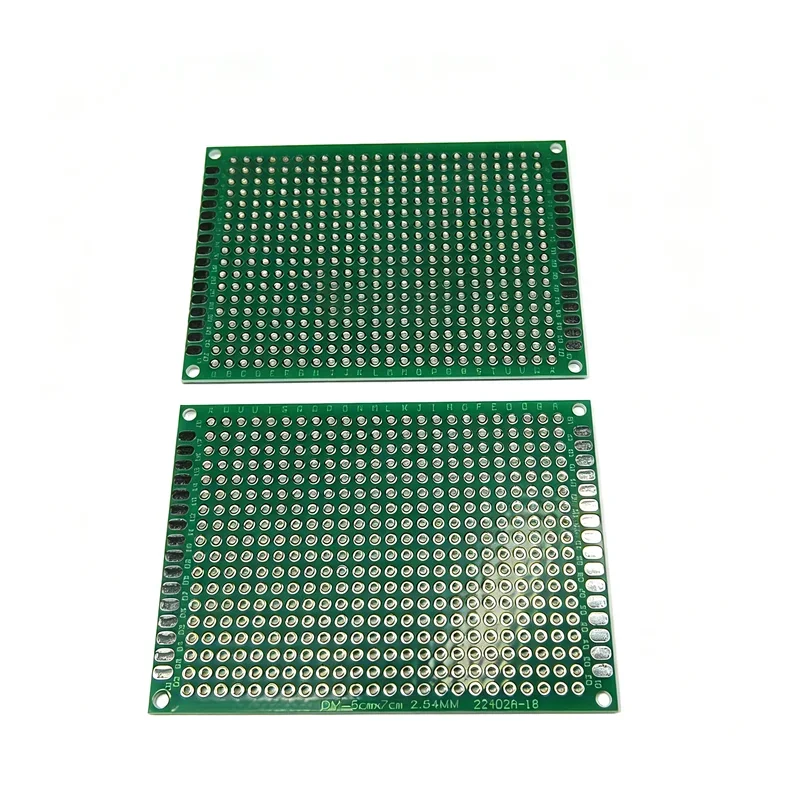

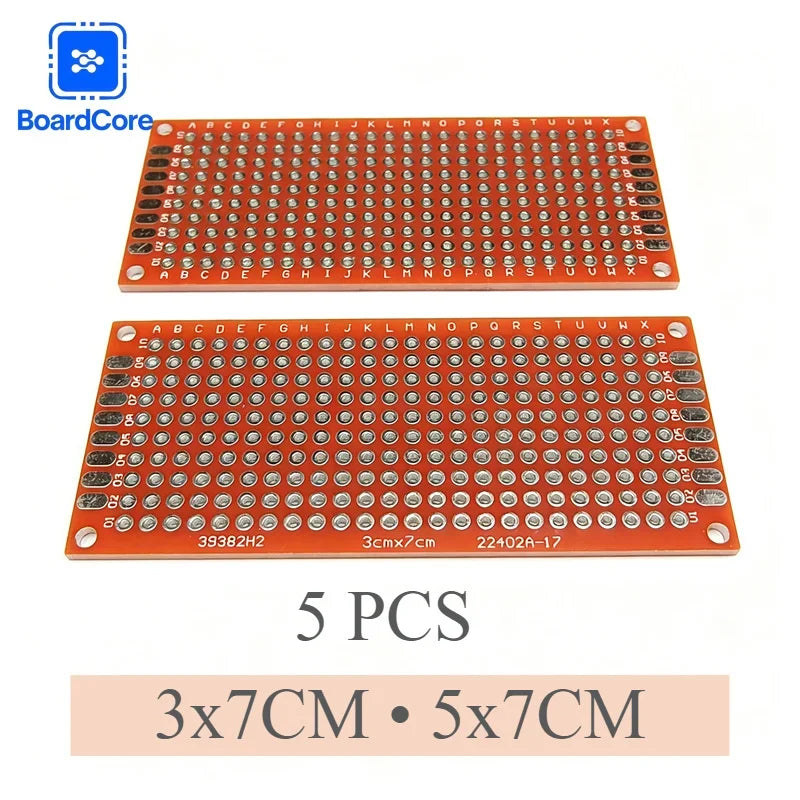

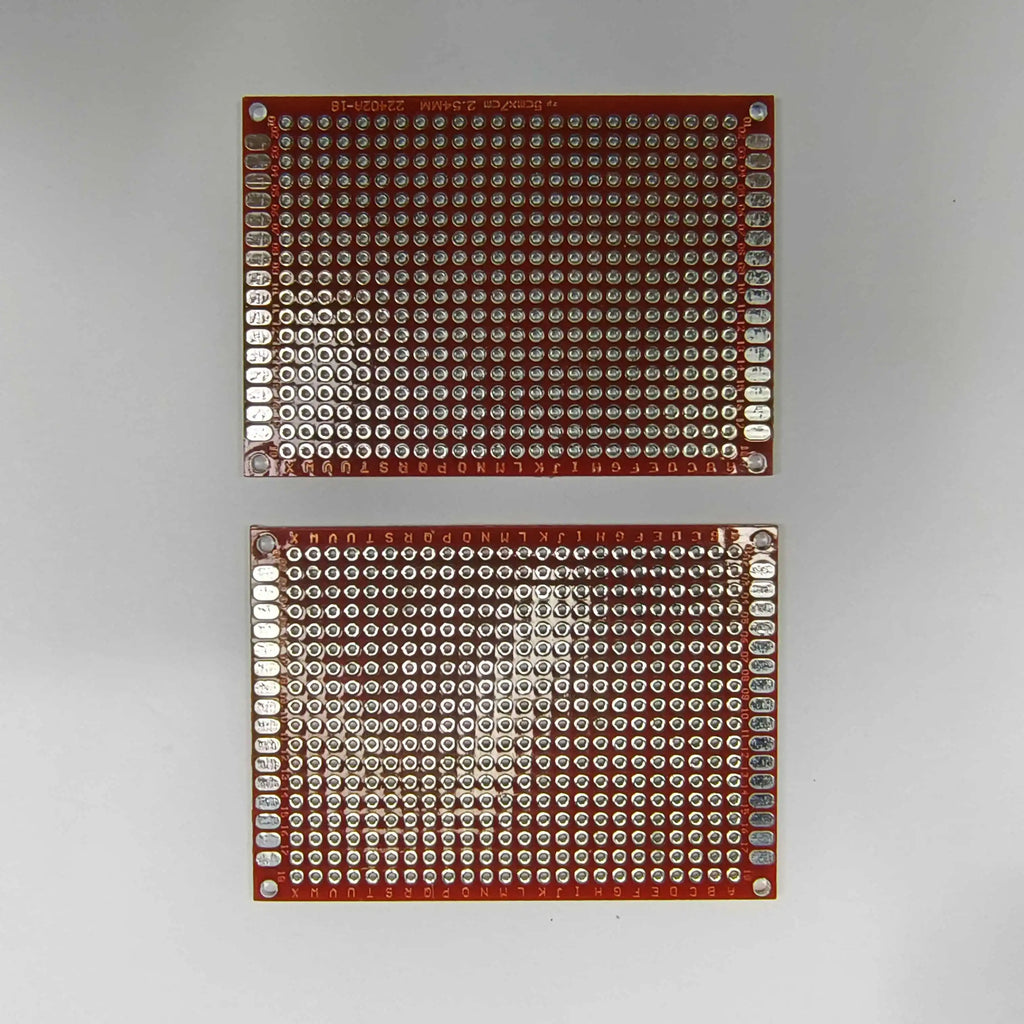

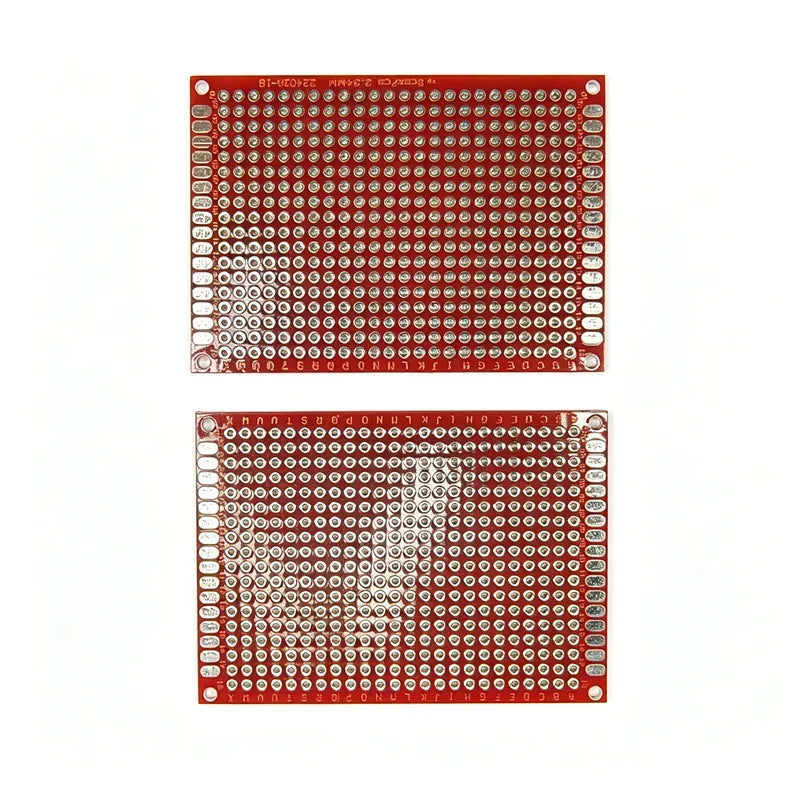

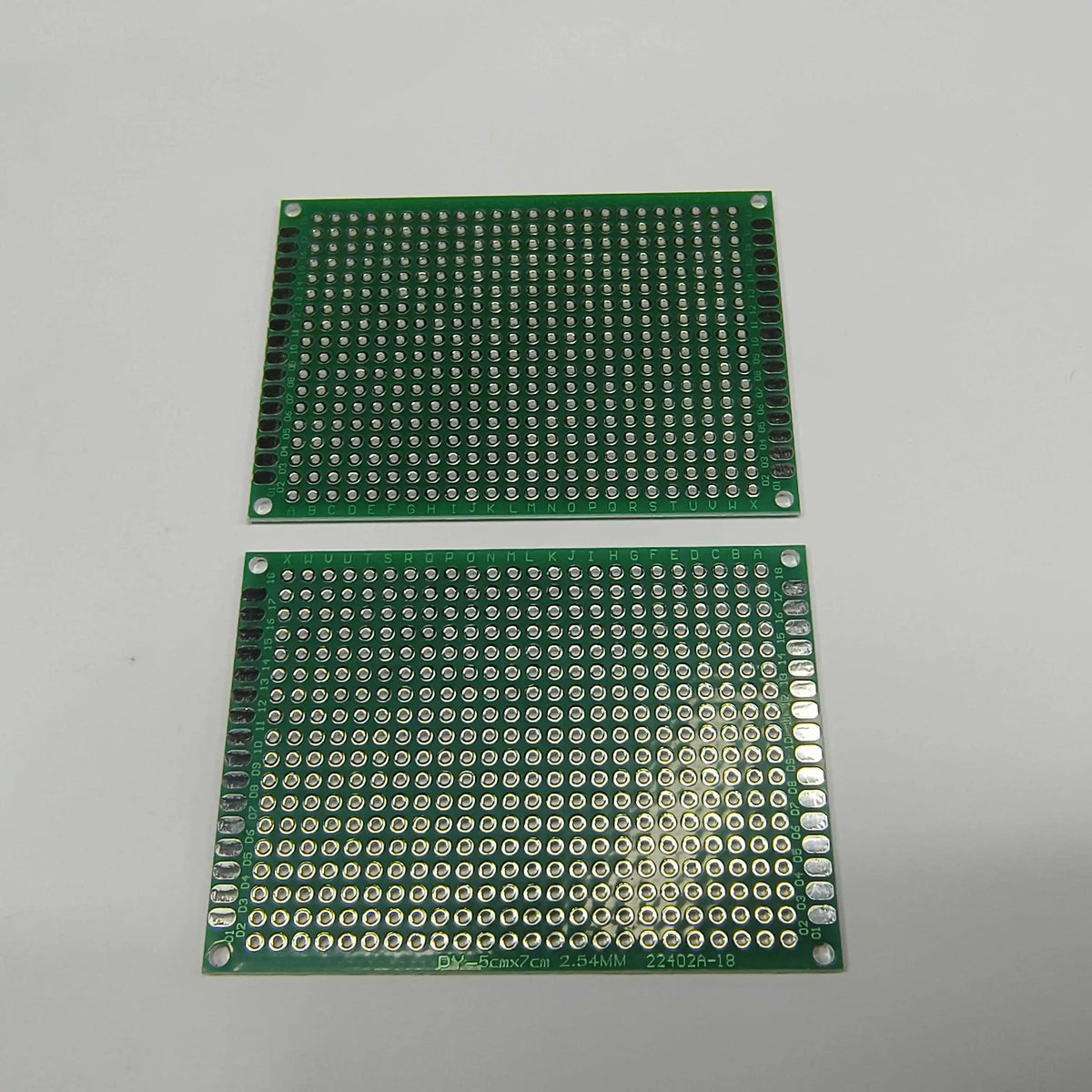

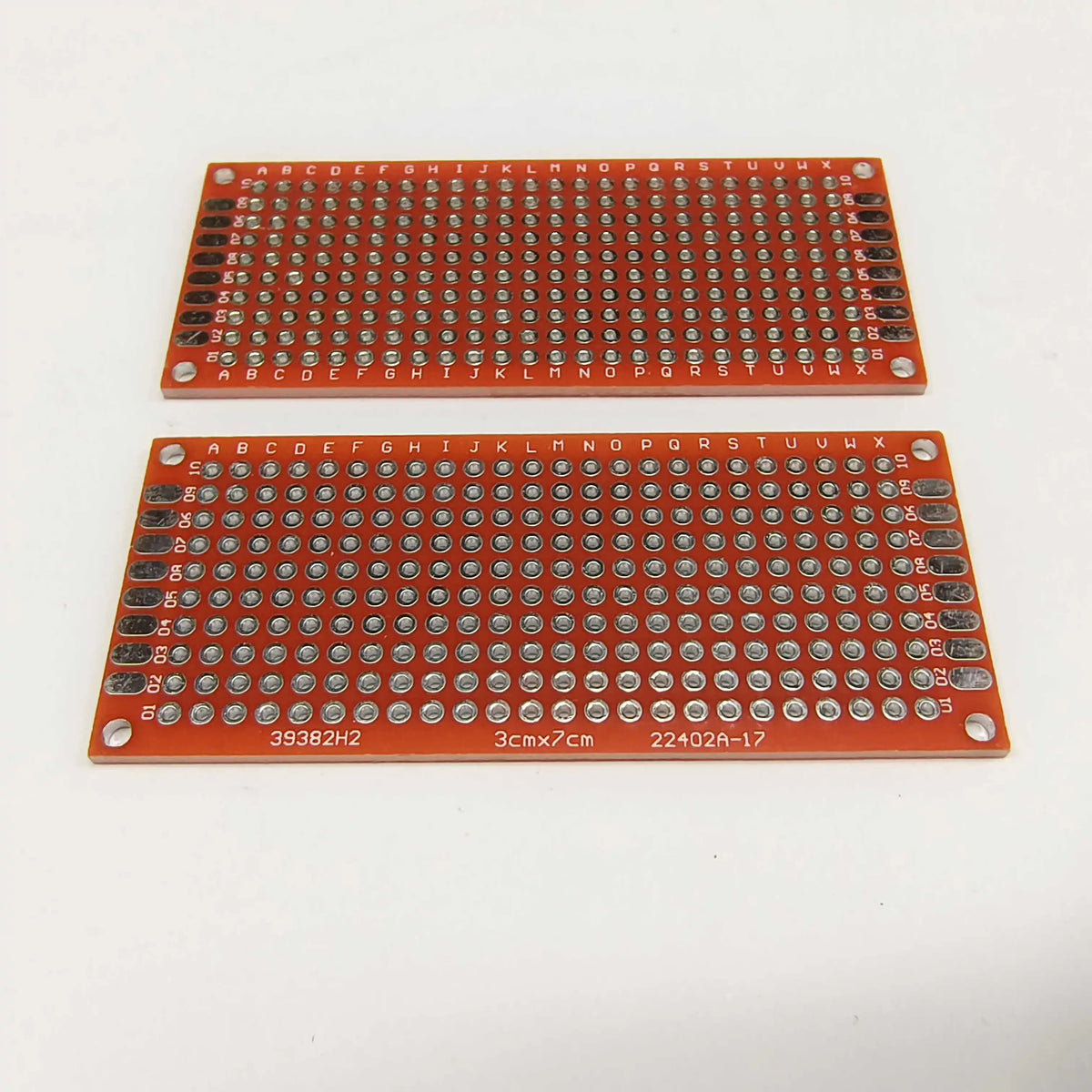

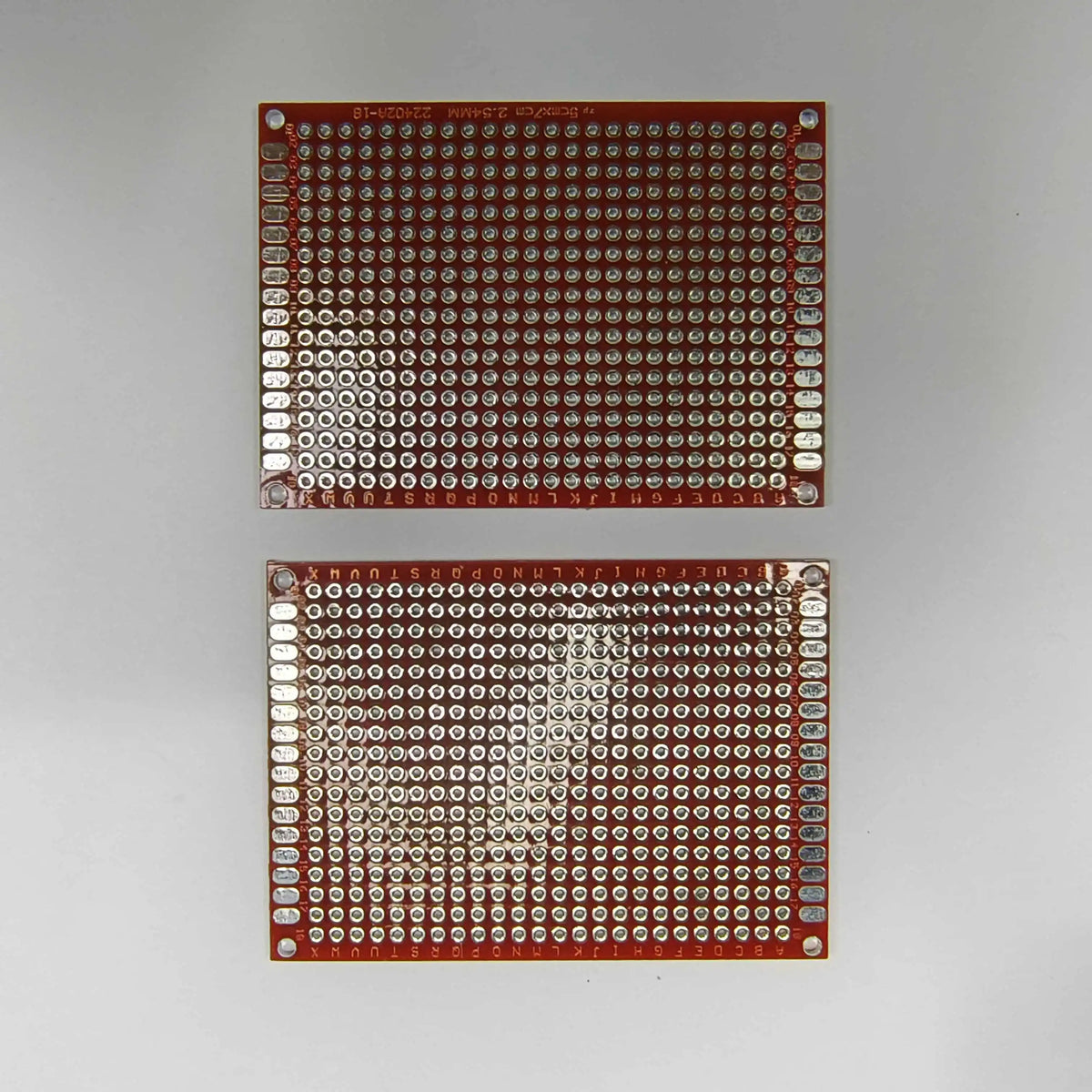

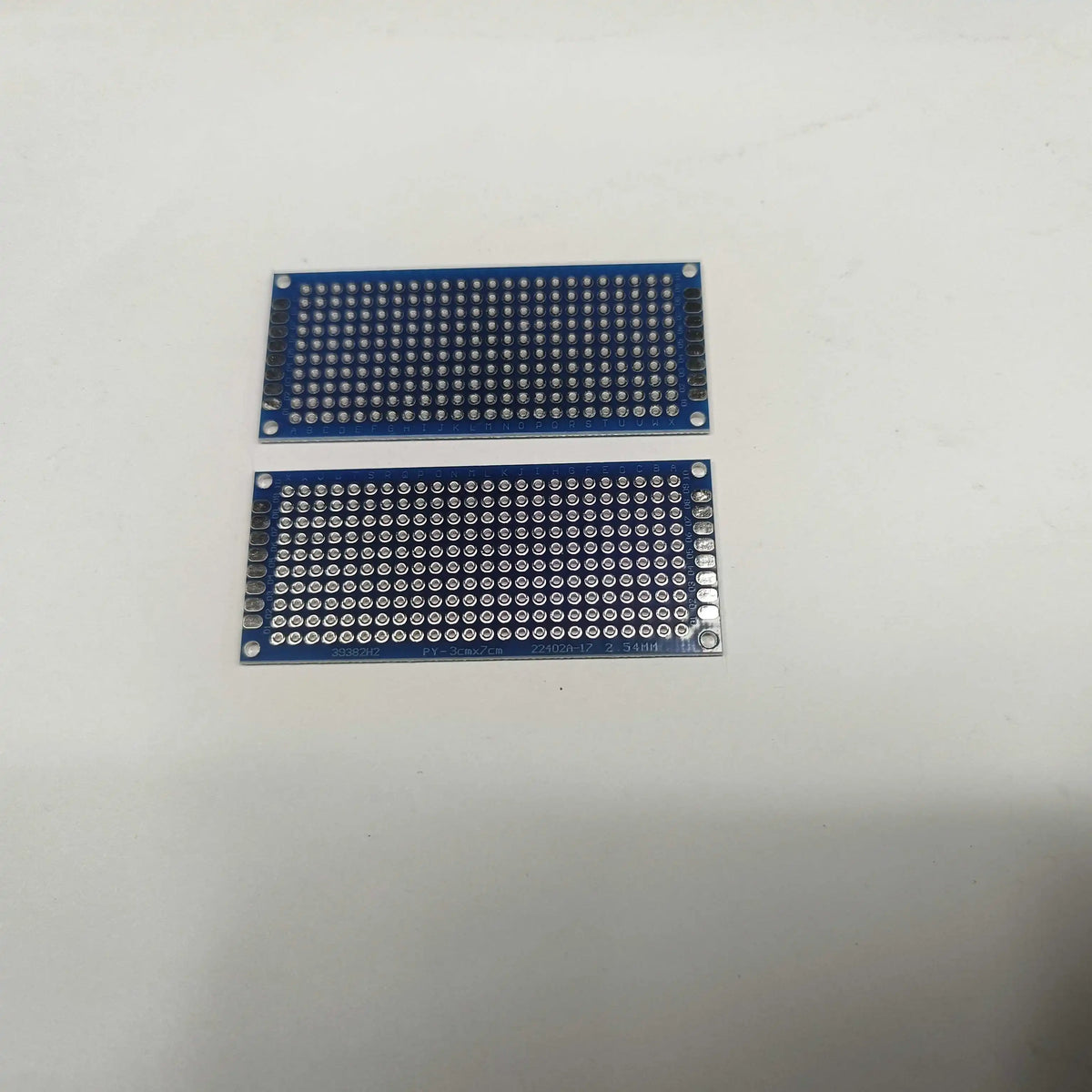

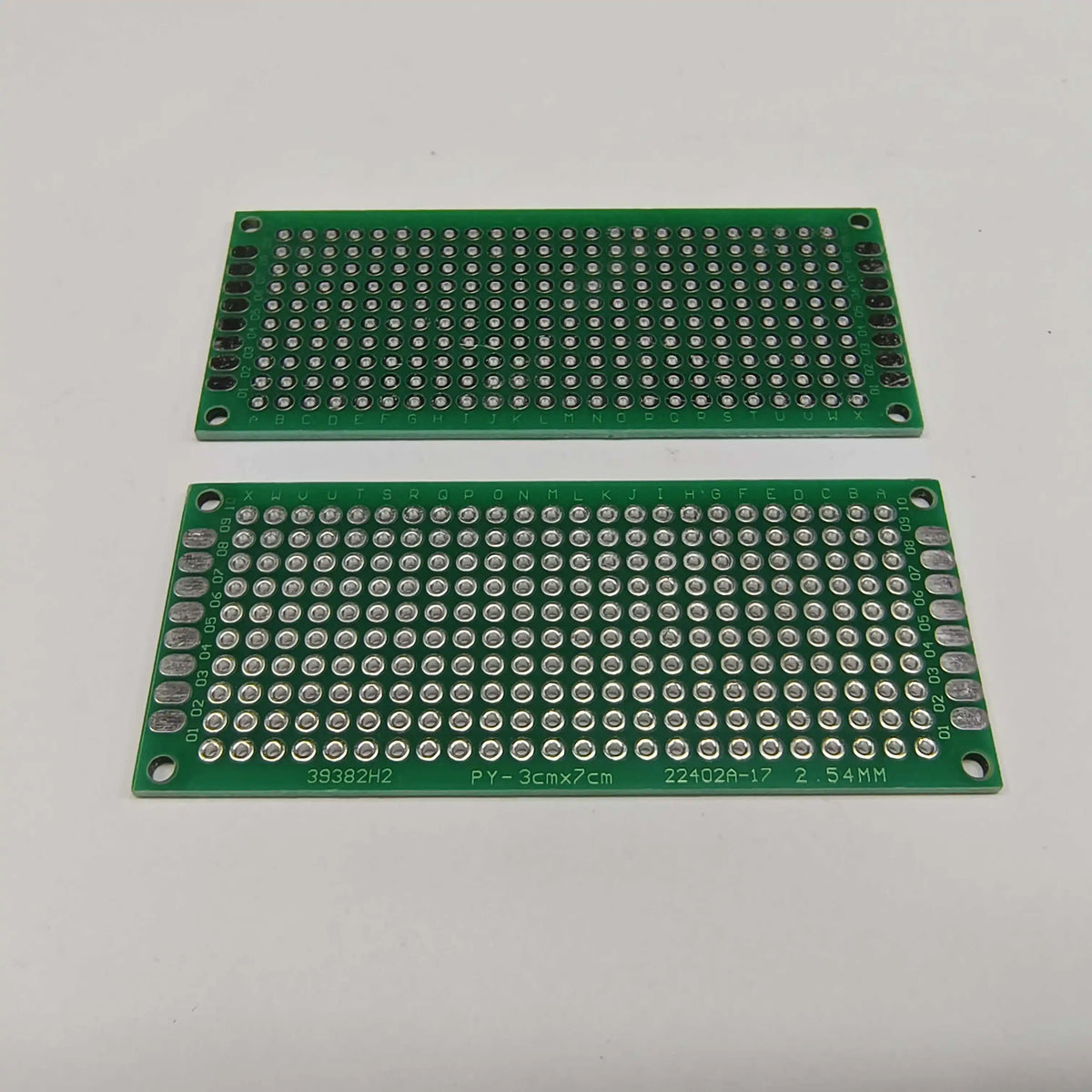

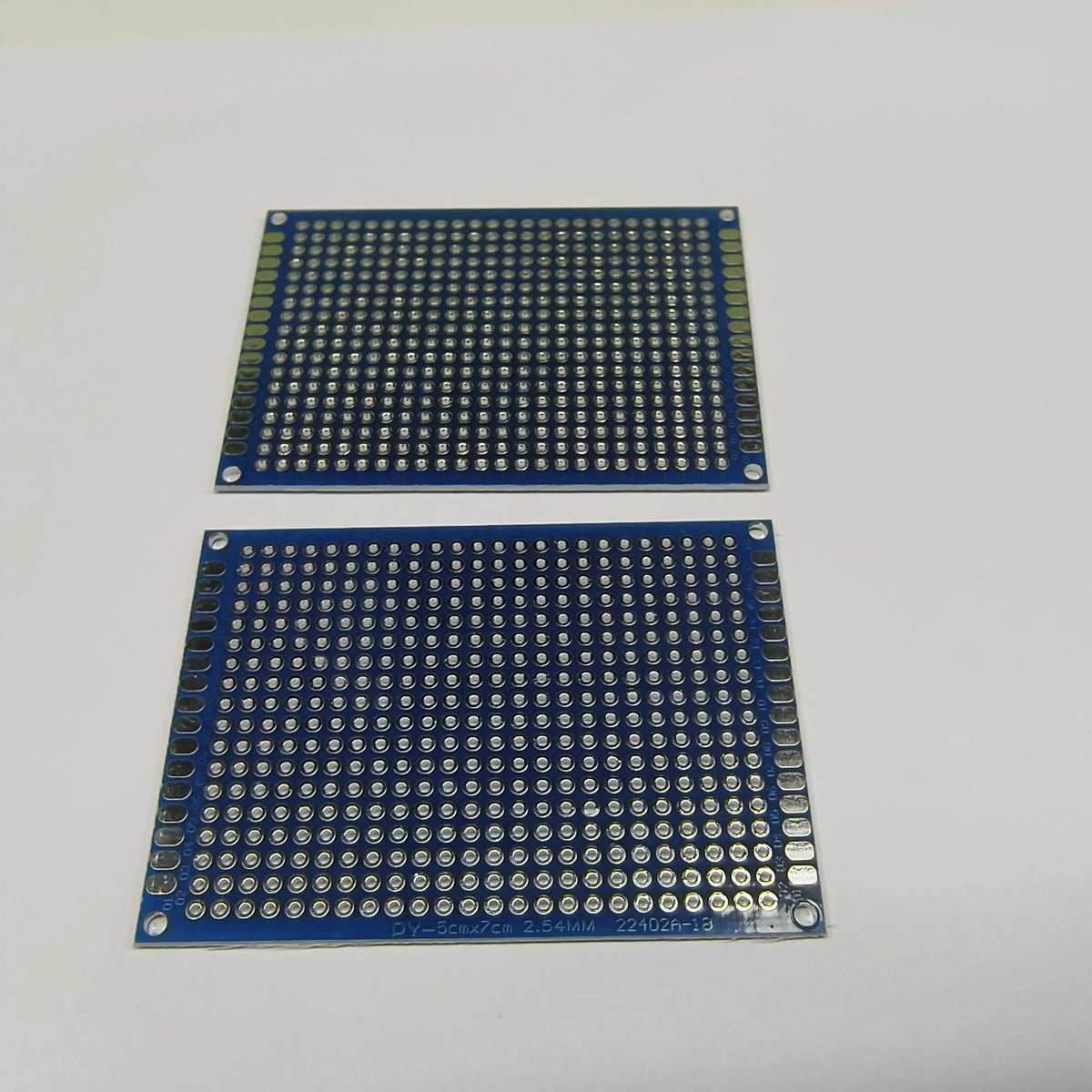

Name: Double-Sided PCB Board
Size:3 × 7 cm，5 × 7 cm
Color: Green/Blue/Red
Pitch: 2.54 mm
Hole Diameter: 1.0 mm
Thickness: 1.6 mm
Material: FR-4 fiberglass board

Product Introduction:

This is a universal circuit board design, commonly referred to as a “perforated board.” It features standard IC spacing
(2.54 mm) with round individual pads, giving the appearance that the entire board is covered with holes,
hence the name “perforated board.” Compared to professional PCBs (printed circuit boards), the perforated board
offers the advantages of low cost, ease of use, and flexible expansion.
Nicknames: Multipurpose board, experimental board, learning board, hole board, lattice board.

Product Function:

1. The development board is used for learning. It allows learners to design common circuits without having to make their own circuit boards, purchase components, or perform soldering.
2. Development boards are primarily related to microprocessors and are designed for a variety of typical applications, including sample programs that learners can use for testing and learning.
3. Development boards can effectively improve learning efficiency and accelerate the R&D process.
