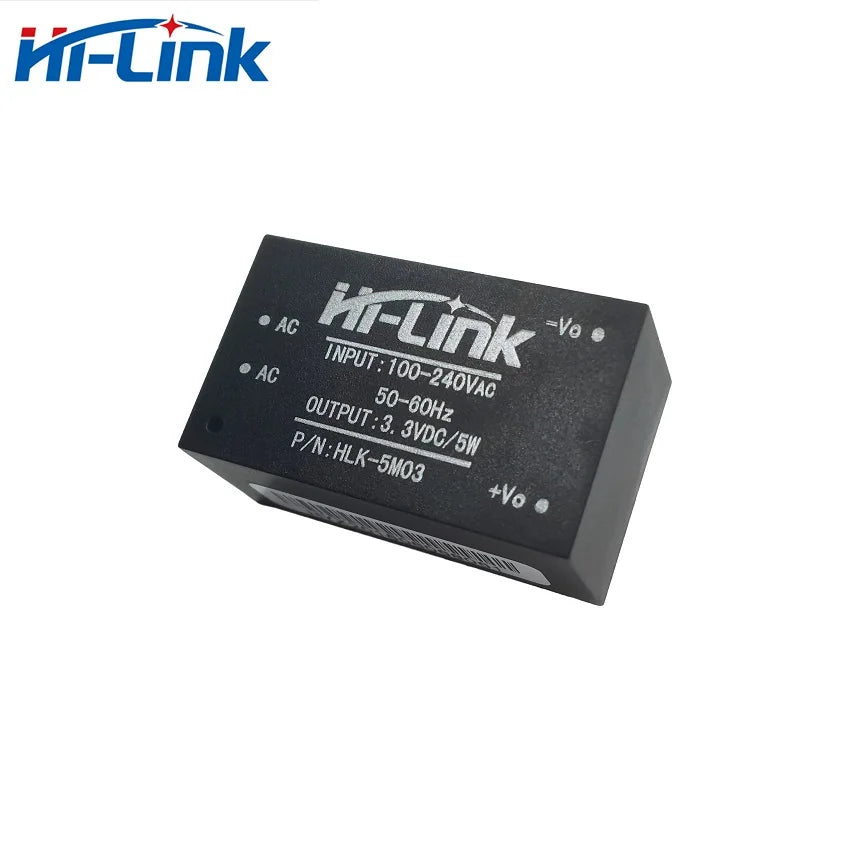

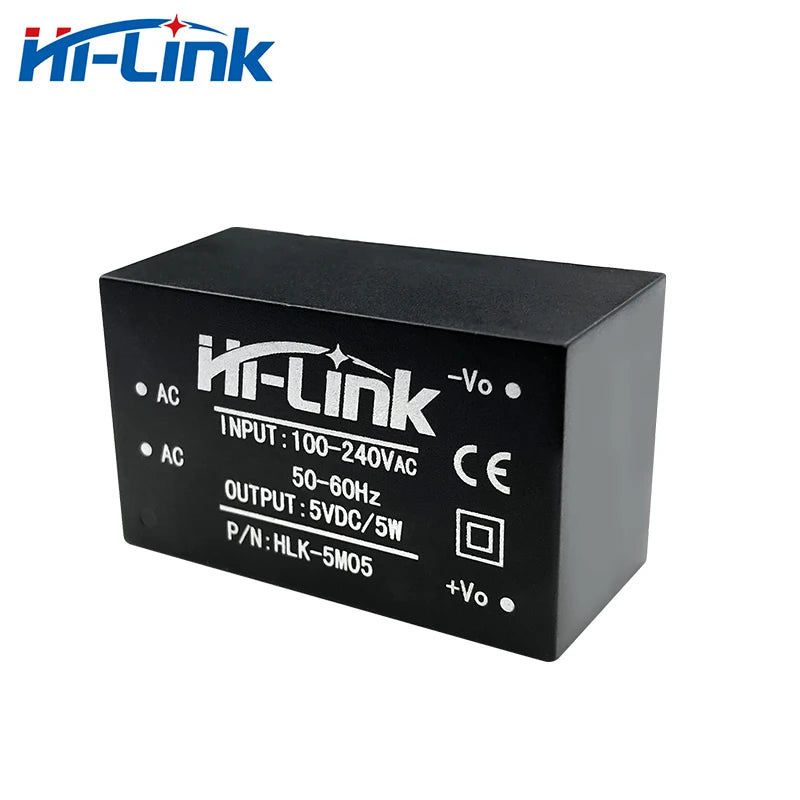

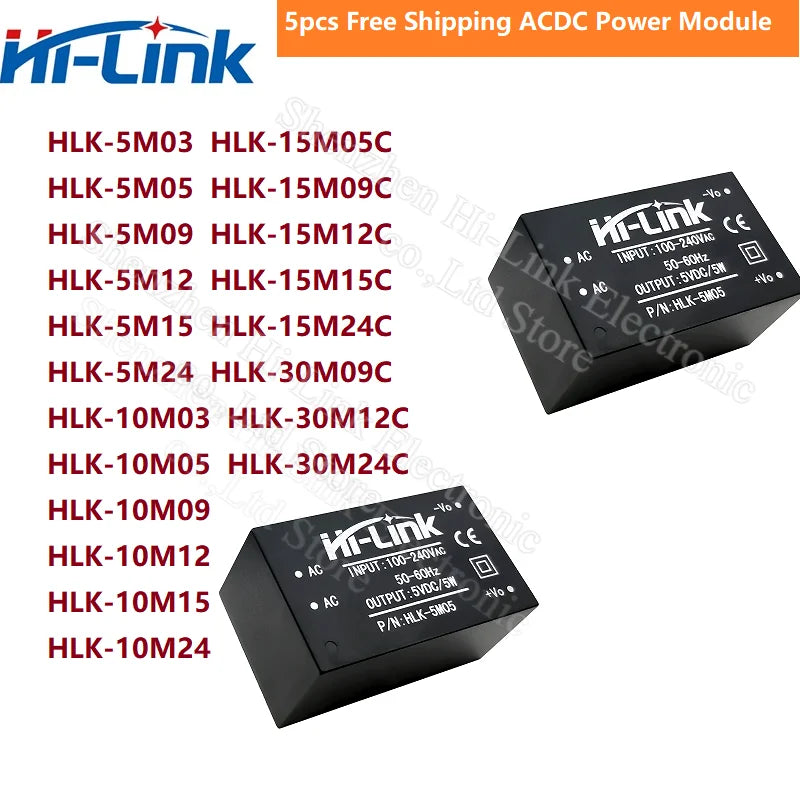

5pcs Free Shipping 5M03 5M05 5M09 5M12 5M15 5M24 In Stock AC-DC Isolated Power Module

HLK-30M24C

$156.96

Sale price $156.96 Regular price $0.00

Skip to product information

5pcs Free Shipping 5M03 5M05 5M09 5M12 5M15 5M24 In Stock AC-DC Isolated Power Module

5pcs Free Shipping 5M03 5M05 5M09 5M12 5M15 5M24 In Stock AC-DC Isolated Power Module

$156.96

Sale price $156.96 Regular price $0.00

Color HLK-30M24C HLK-5M24 HLK-10M03 HLK-10M05 HLK-10M09 HLK-5M03 HLK-5M09 HLK-5M12 HLK-5M15 HLK-5M05 HLK-20M24 HLK-30M09C HLK-30M12C HLK-30M15C HLK-20M05 HLK-20M09 HLK-20M12 HLK-20M15 HLK-15M09C HLK-15M12C HLK-15M15C HLK-15M24C HLK-10M12 HLK-10M15 HLK-10M24 HLK-15M05C

Description

SPECIFICATIONS

Brand Name: bibikoo

Camera Equipped: No

Certification: CE,RoHS,UL

Communication method: Other

Compatibility: All Compatible

High-concerned chemical: none

Origin: Mainland China

Welcome to Hi-Link Official Store!

We are Shenzhen Hi-Link Electronic co.,ltd, manufacturer of Sensor module,Router Module,WIFI module, BT module , AC DC and DC DC power module for ten years in China.

If you need samples, please place order here, we will ship to you soon.If you need more quantity, welcome to contact us directly, we will provide you best price and best shipping method to you.

Choose us with high quality and favourable prices.

3W Click here

5W Click here

10W Click Here

15W Click here

20W Click here

30W Click here

40W Click here

1. Ultra-small Series Power Module

The 15W ultra-small series module power supply is a small-volume, high-efficiency AC DC power module supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

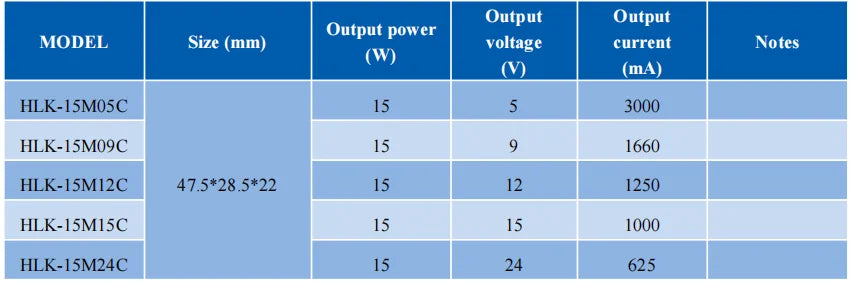

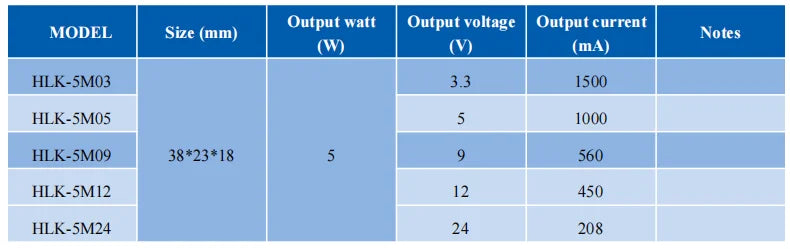

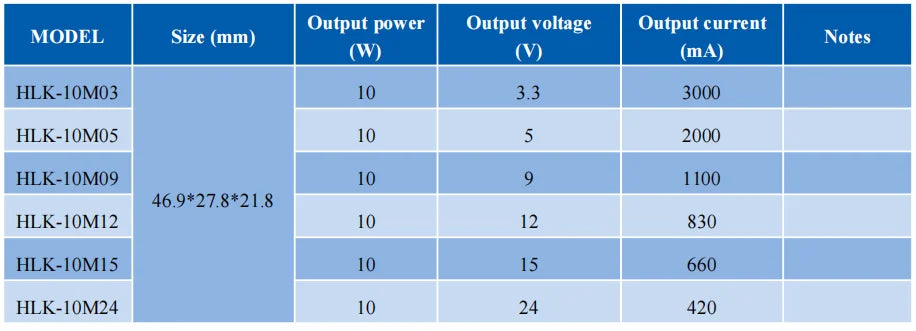

2. Product Model

3. Product Features

Ultra-thin, ultra-small, smallest volume;
Global universal input voltage (85~265Vac)
Low power consumption, green environmental protection, no-load loss<0.1W
Low ripple, low noise
High output short circuit and over-current protection and self recovery
High efficiency, high power density
Input and output isolation voltage 3000Vac
100% full load aging and testing
High reliability, long life design, continuous working time is greater than 100,000 hours;
Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
Economic solutions, cost-effective
Work without external circuit
1 year quality guarantee period

4. Environmental conditions

Items	Technical Parameters	Units	Notes

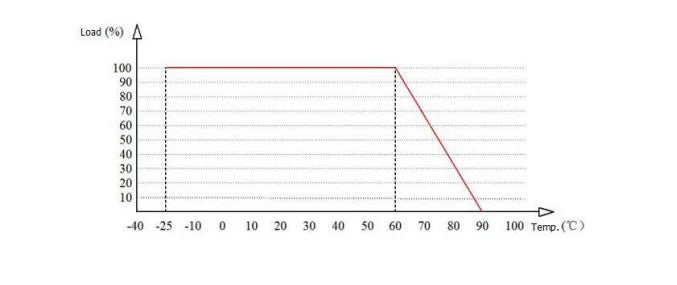

Working temperature	-25—+60	℃
Storage temperature	-40—+80	℃
Relative humidity	5—95	%
Thermal methods	Natural cooling
Atmospheric pressure	80—106	Kpa
Altitude	≤2000	m
Vibration	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meets requirements for secondary road transportation

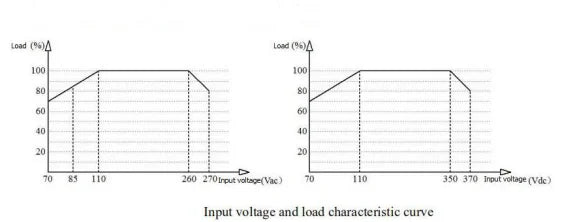

5. Input Features

Items	Technical Parameters	Units	Notes
Rated input voltage	100-240	Vac
Input voltage range	85-265	Vac	Or 120-350Vdc
The maximum input current	≤0.4	A
Input inrush current	≤34	A
Input low start	≤50	mS
Long-term reliability	MTBF≥100, 000	h
External fuse recommended	1A/250Vac		Slow blow

Note: Tested at room temperature

6. Output features (5V/3000mA)

Items	TechnicalParameters	Units	Notes
No-load rated output voltage	5.0±0.1	Vdc
Full-load rated output voltage	5.0±0.2	Vdc
Short time maximum output current	≥3300	mA
Rated output current	3000	mA
Voltage regulation	±0.2	%
Load regulation	±0.5	%
Input low voltage efficiency	Vin=115Vac, Output full load≥83	%
Input high voltage efficiency	Vin=230Vac, Output full load≥83	%
Output ripple and noise (mVp-p)	≤100 Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test.	mV
Switching on/off overshoot amplitude	(Rated input voltage, output plus 10% load)≤5	%VO
Output over-current protection	Output maximum load130-150%	A
Output short circuit protection	Direct short circuit in normal output and automatic return to normal operation after removal of short circuit		No-damage to the whole device
