5PCS GY-33 TCS34725 color recognition sensor sensing module alternative TCS230 TCS3200
$173.79
Sale price
$173.79
Regular price
$0.00
Description
SPECIFICATIONS
Application: Electric Toy
Brand Name: NONE
Condition: New
Dissipation Power: standard
High-concerned chemical: none
Operating Temperature: standard
Origin: Mainland China
Package: Module
Supply Voltage: standard
Type: Module
is_customized: Yes
Second, the product features technical parameters
(1), cost-effective
(2), calculating the color embedded MCU
(3), IIC, serial communication format
(4), the LED brightness can be adjusted
(5), with the appropriate PC software
Third, the product application
(1), intelligent robots
(2), teaching laboratory equipment
(3), production line product testing
(4), colorimeter
(5), led color detection
It does not provide schematics and source code inside the microcontroller.
Provide arduino, 51, stm32 SCM communication procedures,
As a simple sensor module, MCU is not involved in data processing.
Further modules may be separately provided a sensor device operating mode,
Can adapt to different working environment, connected to the microcontroller and computer.
Simple identification of seven colors, RGB values need not be calculated.
Continuous, query output in two ways, can be powered down to save the settings.
Serial baud rates and 9600bps 115200bps, configurable,
Serial UART (TTL level) or IIC (2 lines).
This module, there are two ways to read data, i.e.,
The ratio of the RGB value recognized color.
After the object, the return light detection filter after the RGB value ratio
Its working principle is, the illumination light emitting LED, is irradiated to the measured
3-5V operating voltage, small power consumption, small size, easy installation.

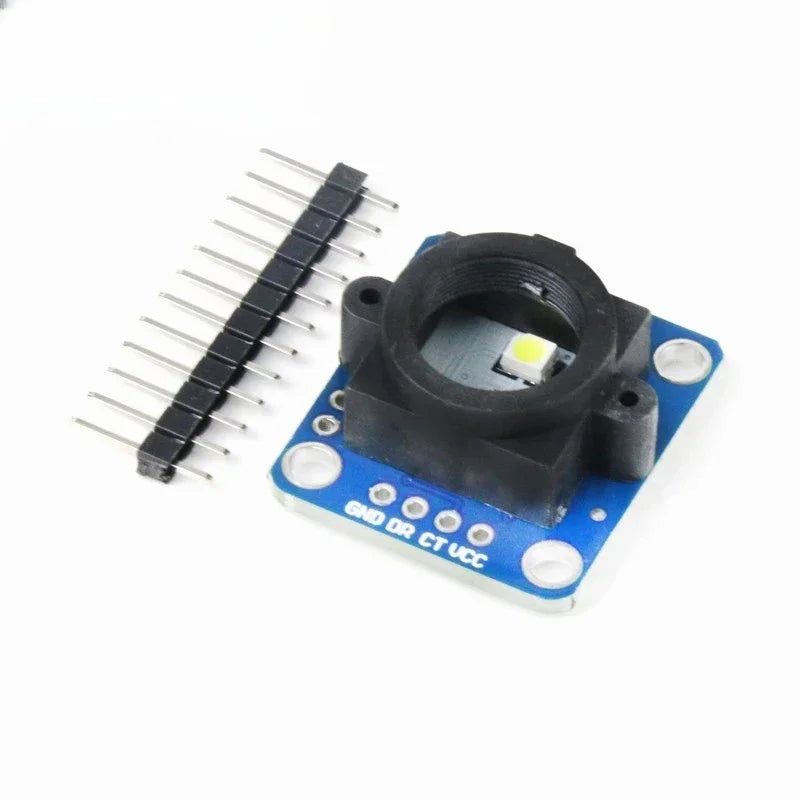

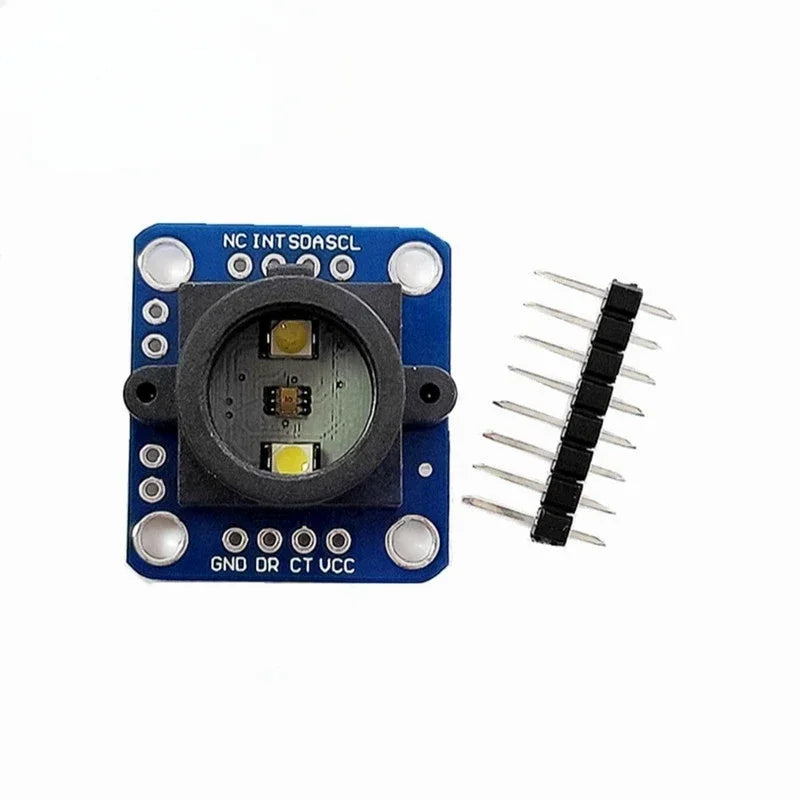

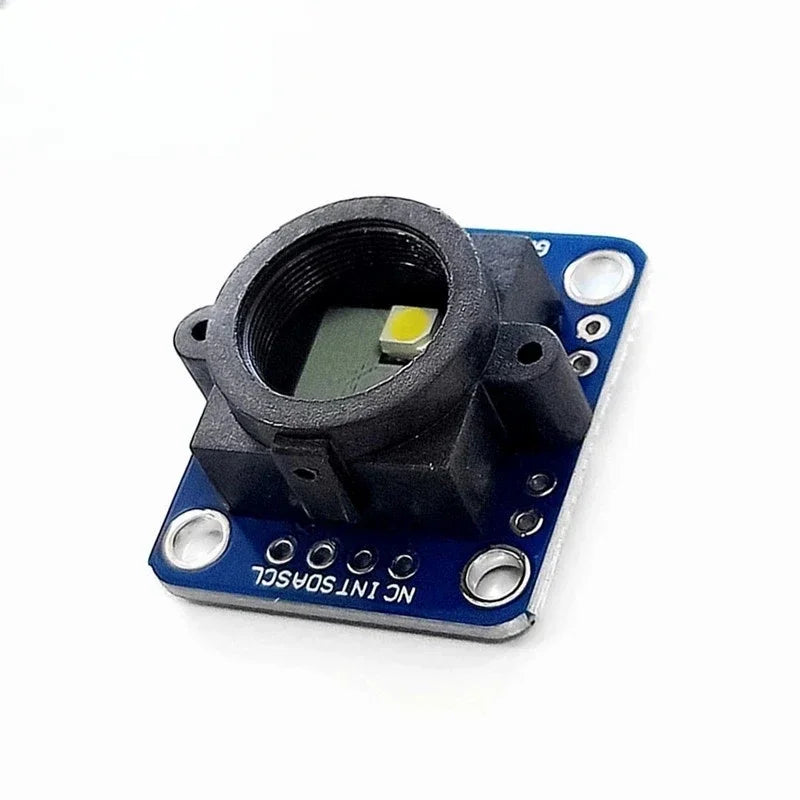

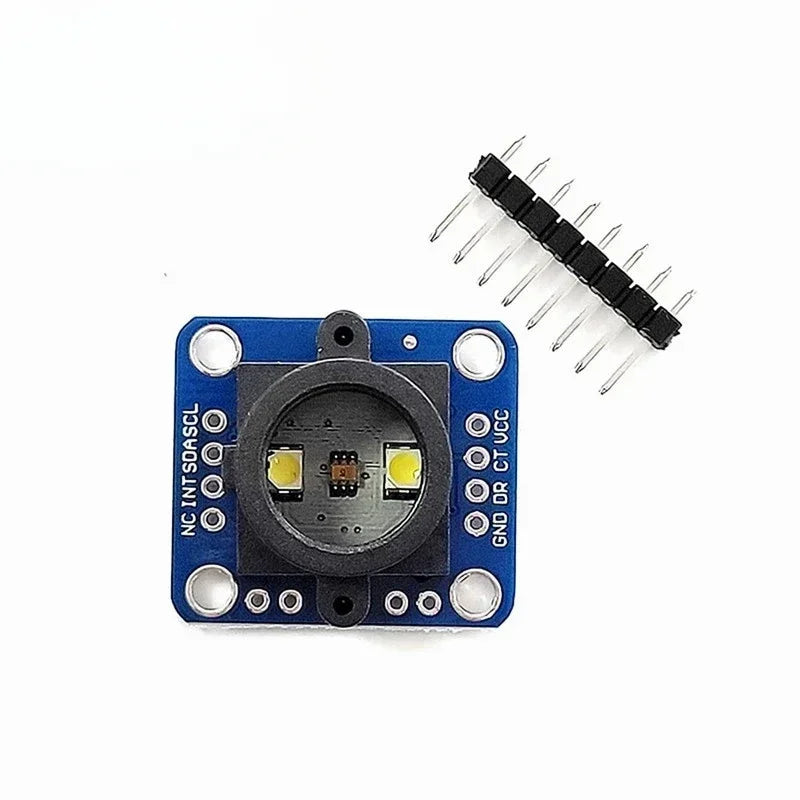

GY-33 is a low-cost color recognition sensor module.
I. Overview
Download (please copy to your browser):
Provided: microcontroller 51, the microcontroller Arduino, stm32 microcontroller, (IIC / serial) communications program to read the data.
2, internal MCU TCS34725 can read data, the MCU directly output RGB calculation, internal white balance process, support serial / IIC read.
1, can be used as a simple simple TCS34725 module.

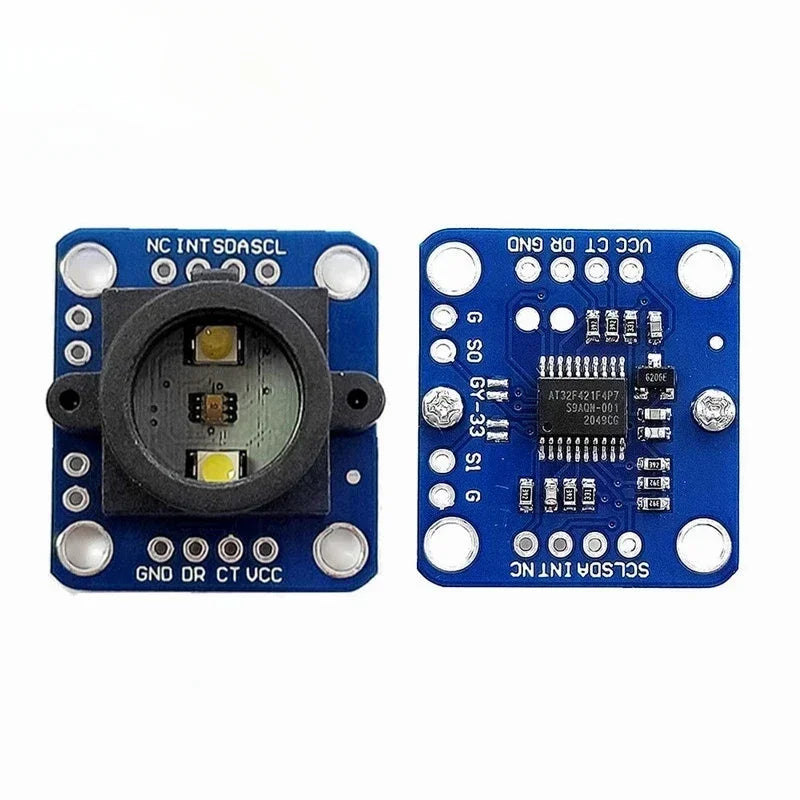

TCS34725 + mcu color recognition sensor chip module, IIC serial communication or directly outputs the RGB values
GY-33 TCS34725 color recognition sensor sensing module alternative TCS230 TCS3200
