SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

NA219 Old Version & New Version

The functions of the old version and new version are identical; only the package of the main chip is different.

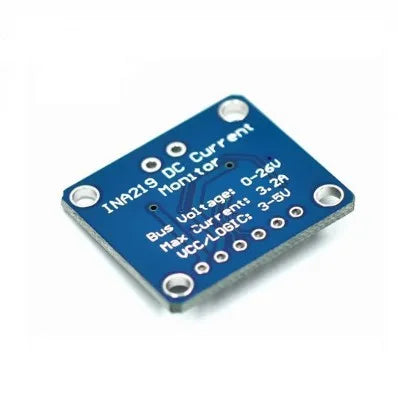

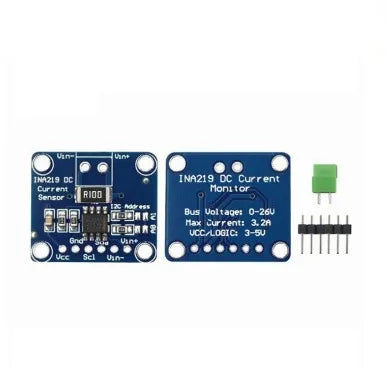

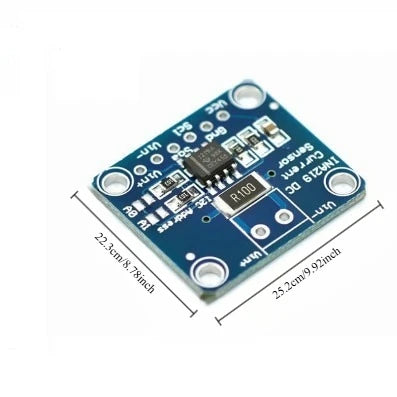

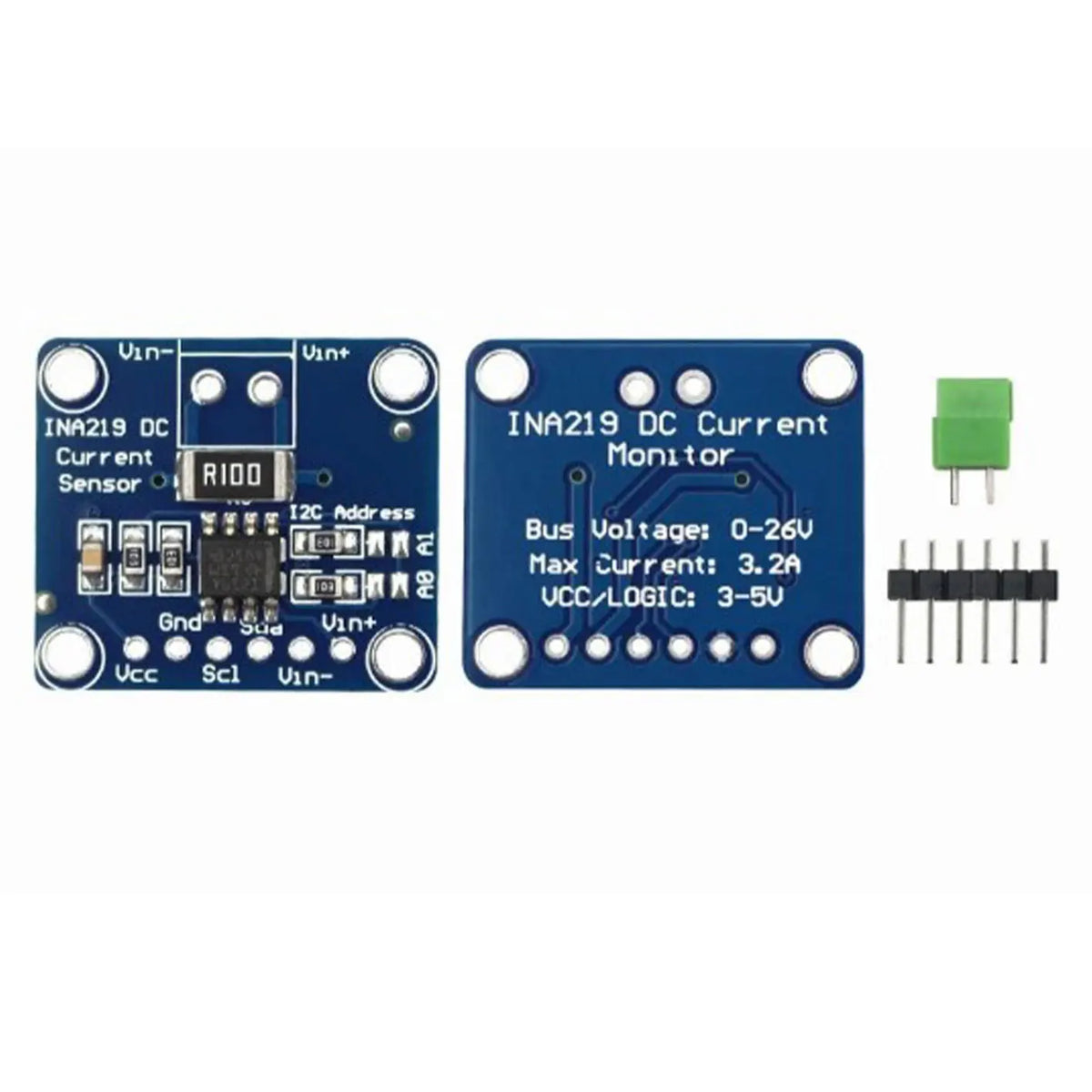

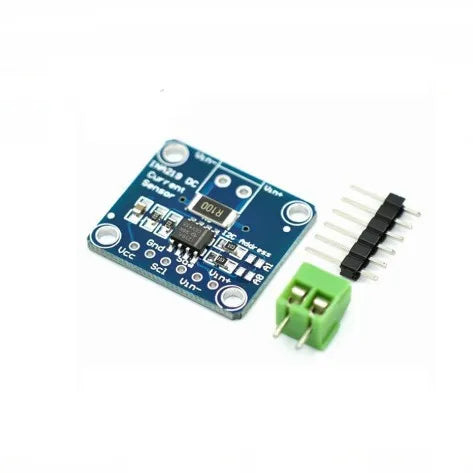

MCU-219 INA219 I2C Interface Zero-Drift Bidirectional Current/Power Monitoring Sensor Module

The MCU-219 module is a zero-drift, bidirectional current/power monitoring IC with an I2C interface, expanding TI’s portfolio of energy-efficient electronic products.

The INA219 features industry-leading accuracy and compact size. It monitors the voltage drop across a shunt resistor, senses the shunt supply voltage, and calculates power simultaneously.

Housed in a SOT23 package, it provides a compact, low-cost solution for digital current sensing in servers, laptops, power supplies, battery management, automotive, and telecommunications equipment.

The INA219 achieves 1% accuracy over a temperature range of -40°C to +85°C, with an offset of 100μV.

Combined with 12-bit resolution, its high precision allows designers to minimize the voltage drop across the shunt resistor, reducing power loss, lowering power consumption, and saving board space.

The device can sense a bus voltage range from 0V to +26V.

Other Key Features of INA219:

Programmable calibration register for direct current reading in amps and power reading in watts.
Averaging of up to 128 samples for filtering in noisy environments.
I2C interface with timeout to prevent bus lockup, plus high-speed mode supporting communication rates up to 3.4MHz.
Fully software-programmable configuration.
Single-supply operation from 3.0V to 5.5V.
