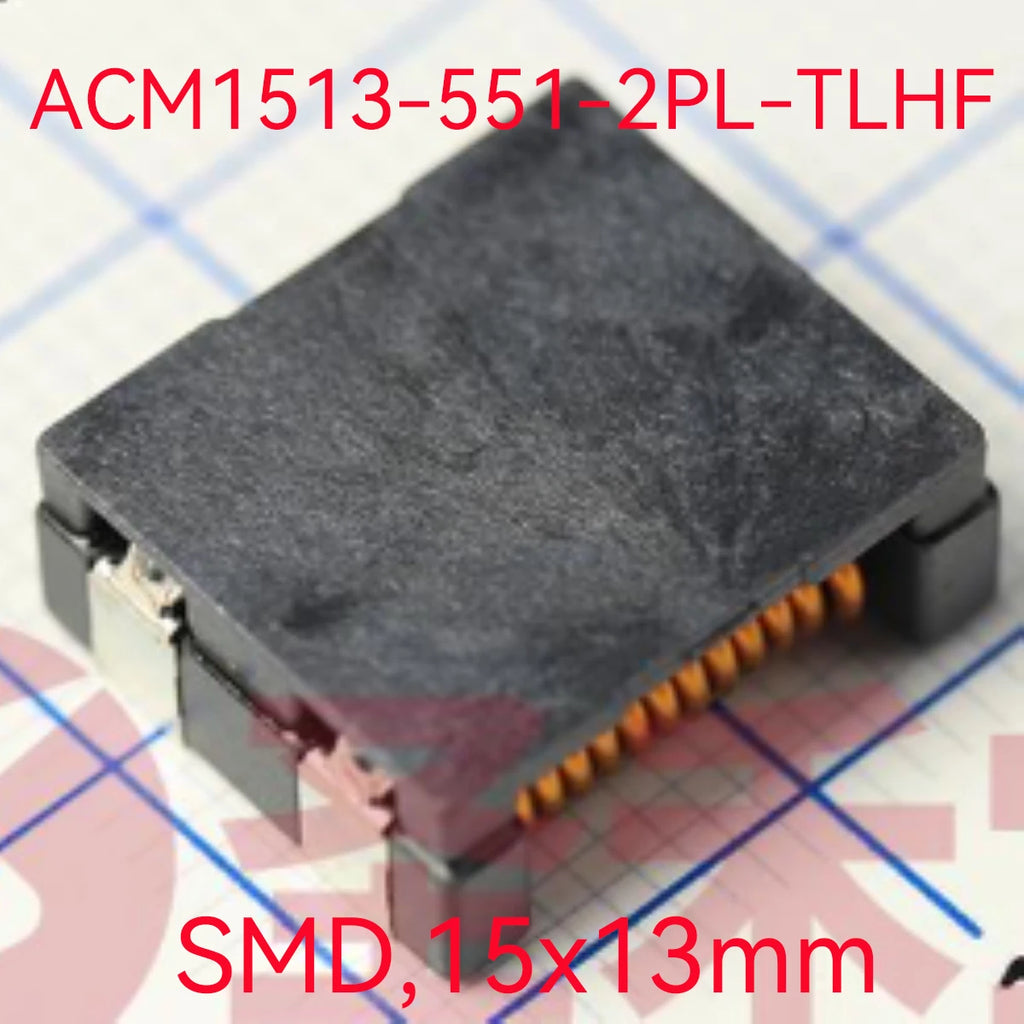

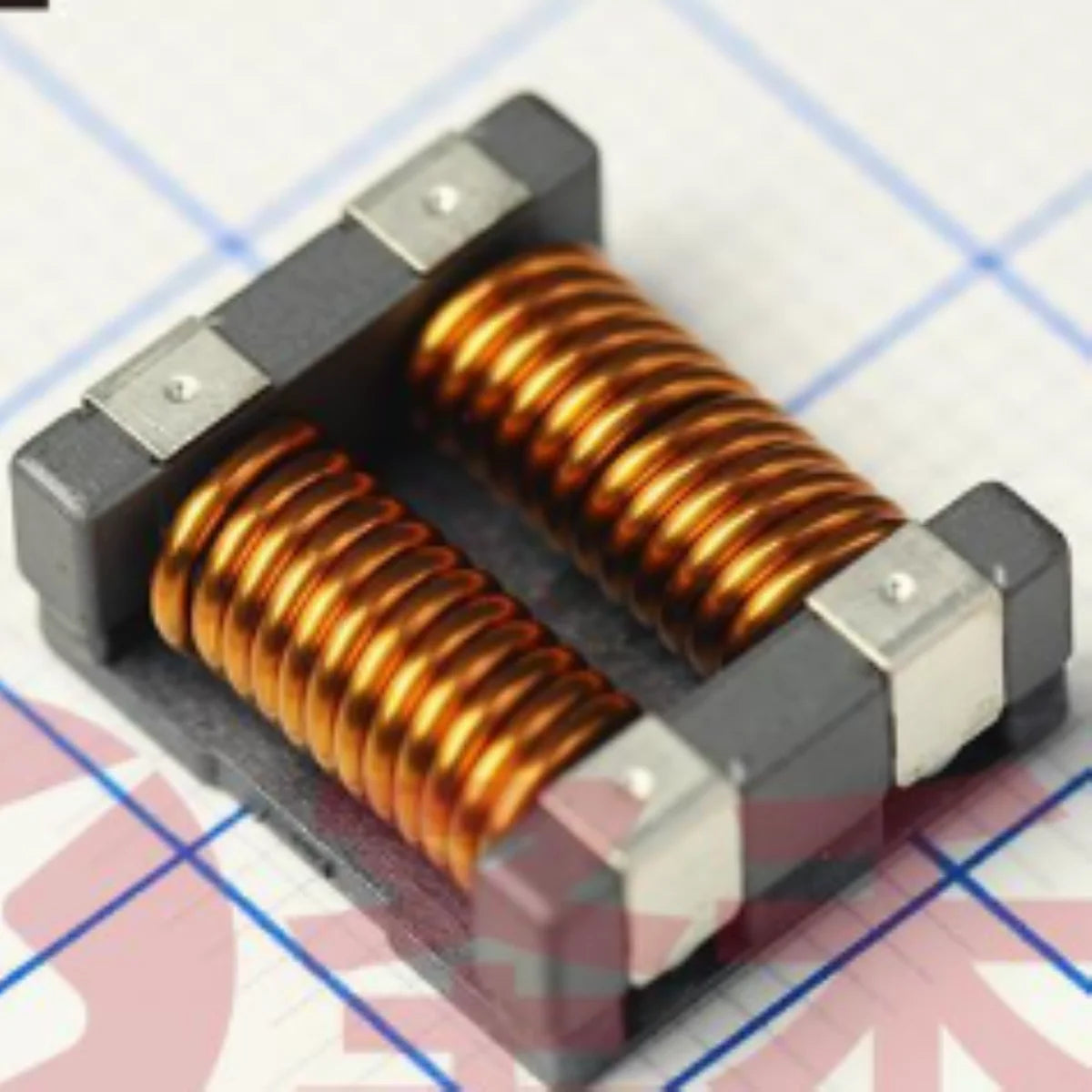

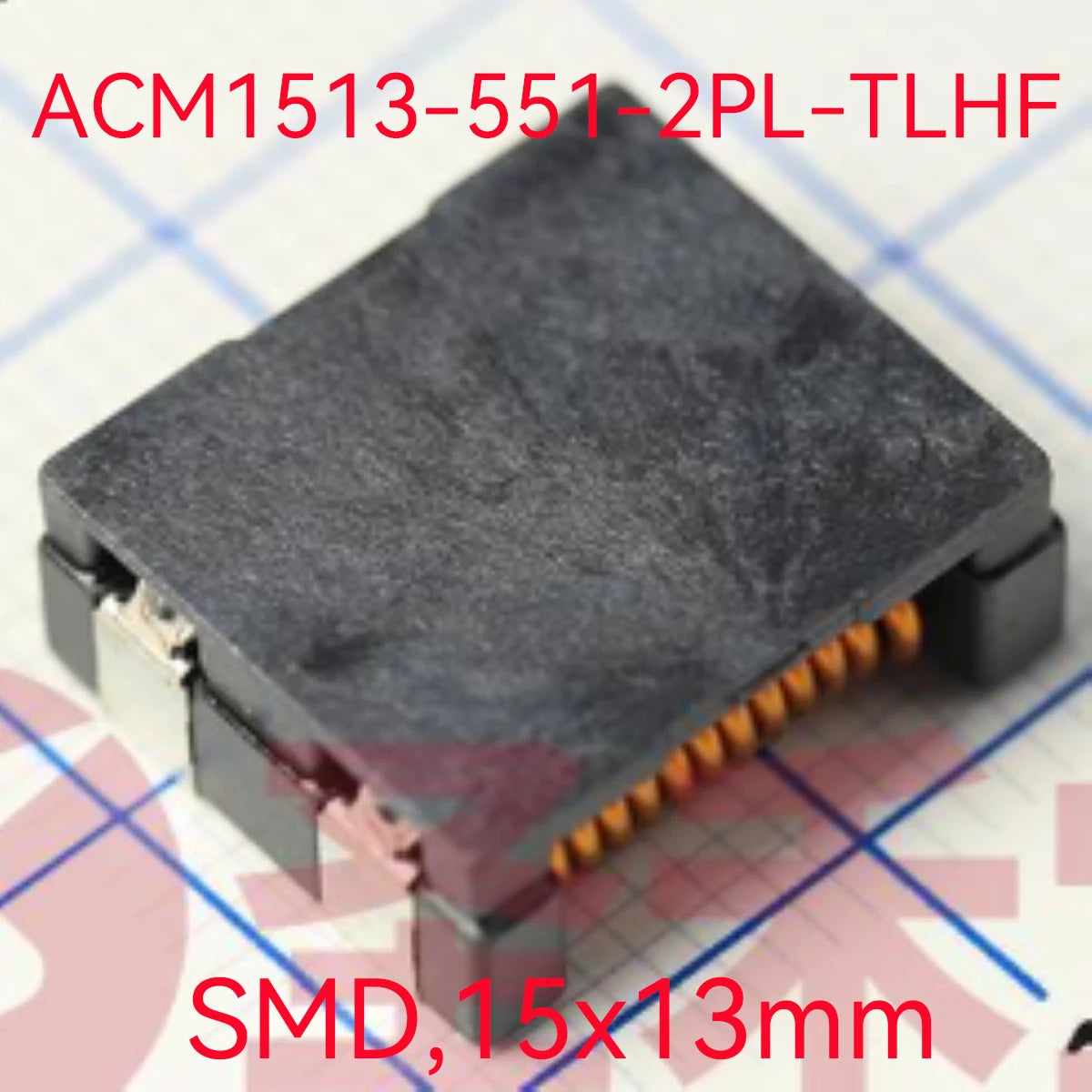

5PCS original ACM1513 551 common mode filter 550Ω @ 100MHz 50V 10A SMD, 15x13mm ACM1513-551-2PL-TLHF CMC 2LN 550 OHM
Default Title
$55.58
Sale price
$55.58
Regular price
$0.00
Skip to product information
5PCS original ACM1513 551 common mode filter 550Ω @ 100MHz 50V 10A SMD, 15x13mm ACM1513-551-2PL-TLHF CMC 2LN 550 OHM
$55.58
Sale price
$55.58
Regular price
$0.00
Description
SPECIFICATIONS

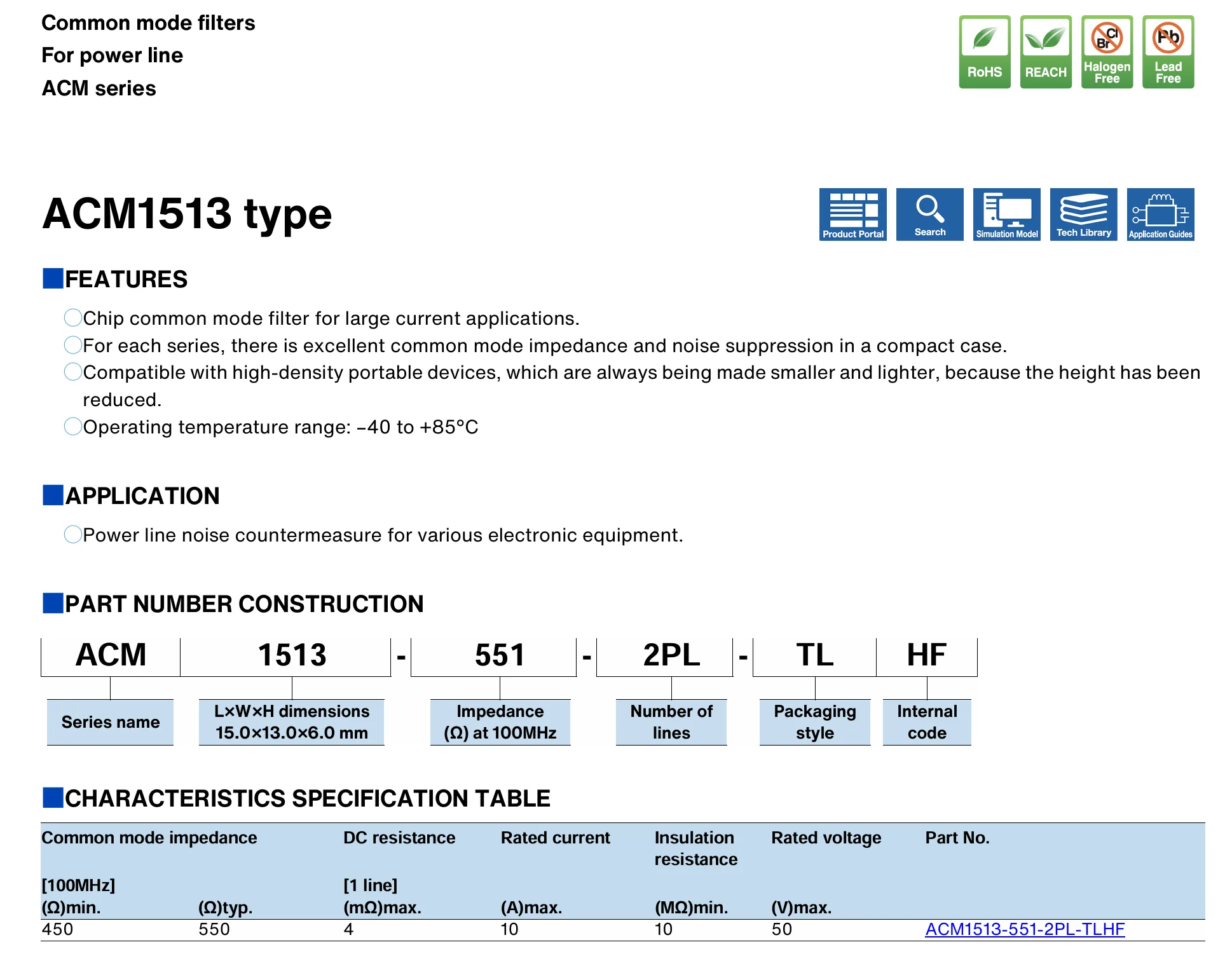

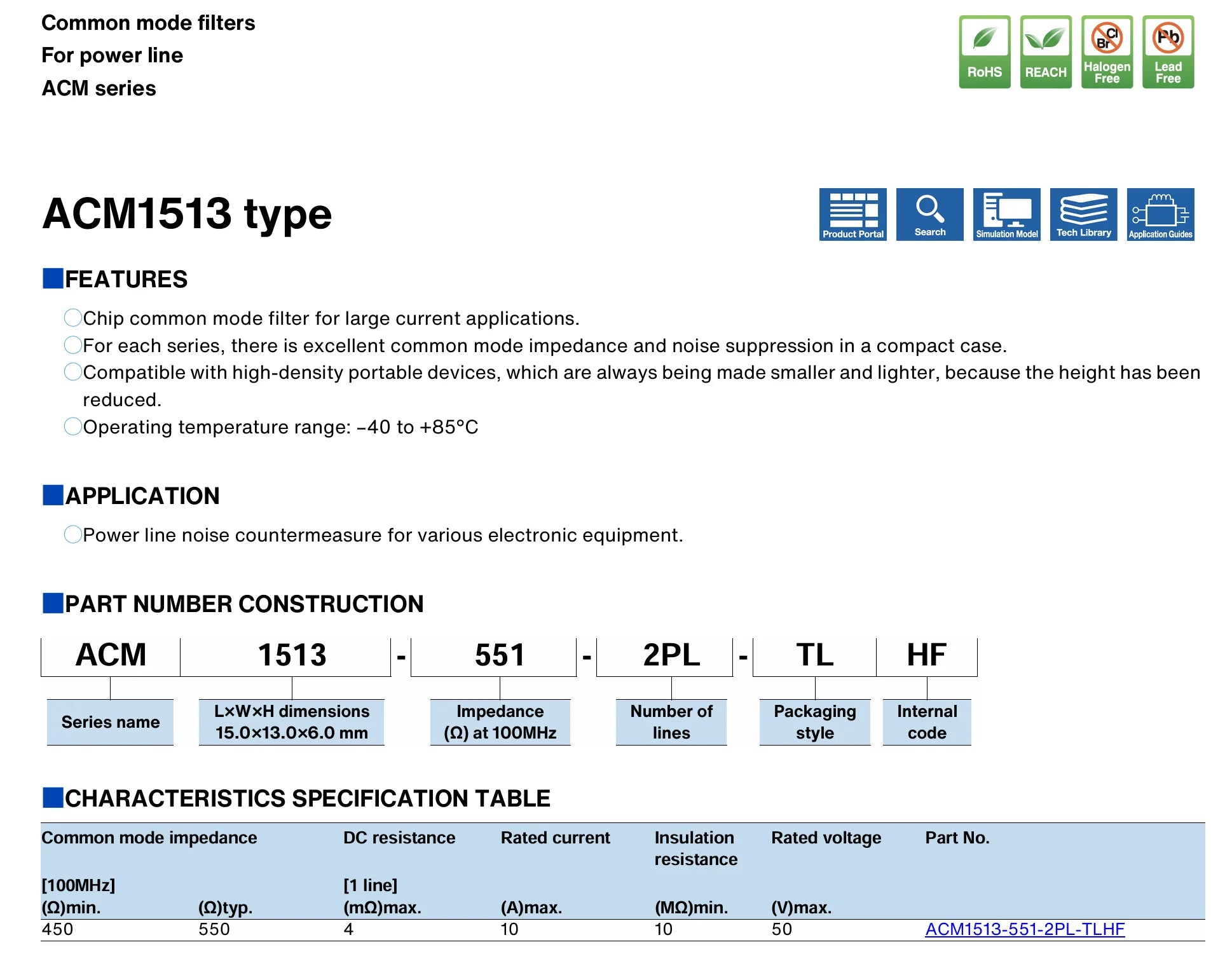

ACM1513-551-2PL-TLHF: Common Mode Chokes Dual 1.1uH 550Ohm 100MHz 10A 0.004Ohm DCR SMD T/R
Brand Name: NONE
High-concerned chemical: none
Model Number: ACM1513-551-2PL-TLHF
Origin: Mainland China
Package Type: Surface mount
Type: COMMON MODE FILTER
is_customized: Yes
If you need other products, please contact us
Model marking; attribute parameter
-----------------------------------------------------
Number of lines 2
Rated current (maximum) 10A

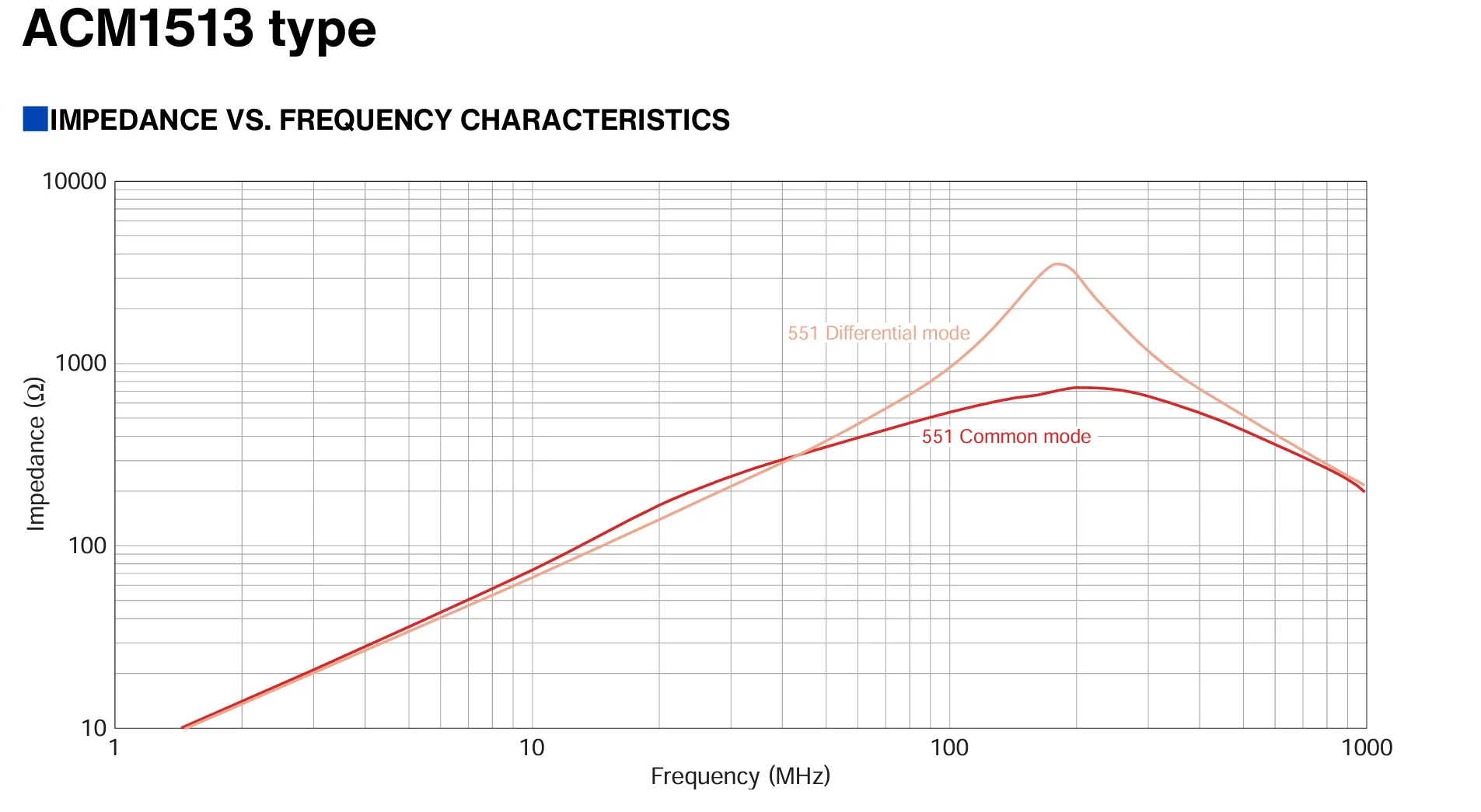

Impedance @ Frequency 550 Ω @ 100MHz
Rated DC voltage (VDC) 50V
DC resistance (DCR) (maximum) 4m Ω
Filter type power cord
Working temperature -40 ℃~+85 ℃
Impedance at different frequencies 550 Ohms @ 100MHz
DC resistance (DCR) (maximum) 4 milliohms
Rated voltage - DC 50V
Installation type: Surface mount type

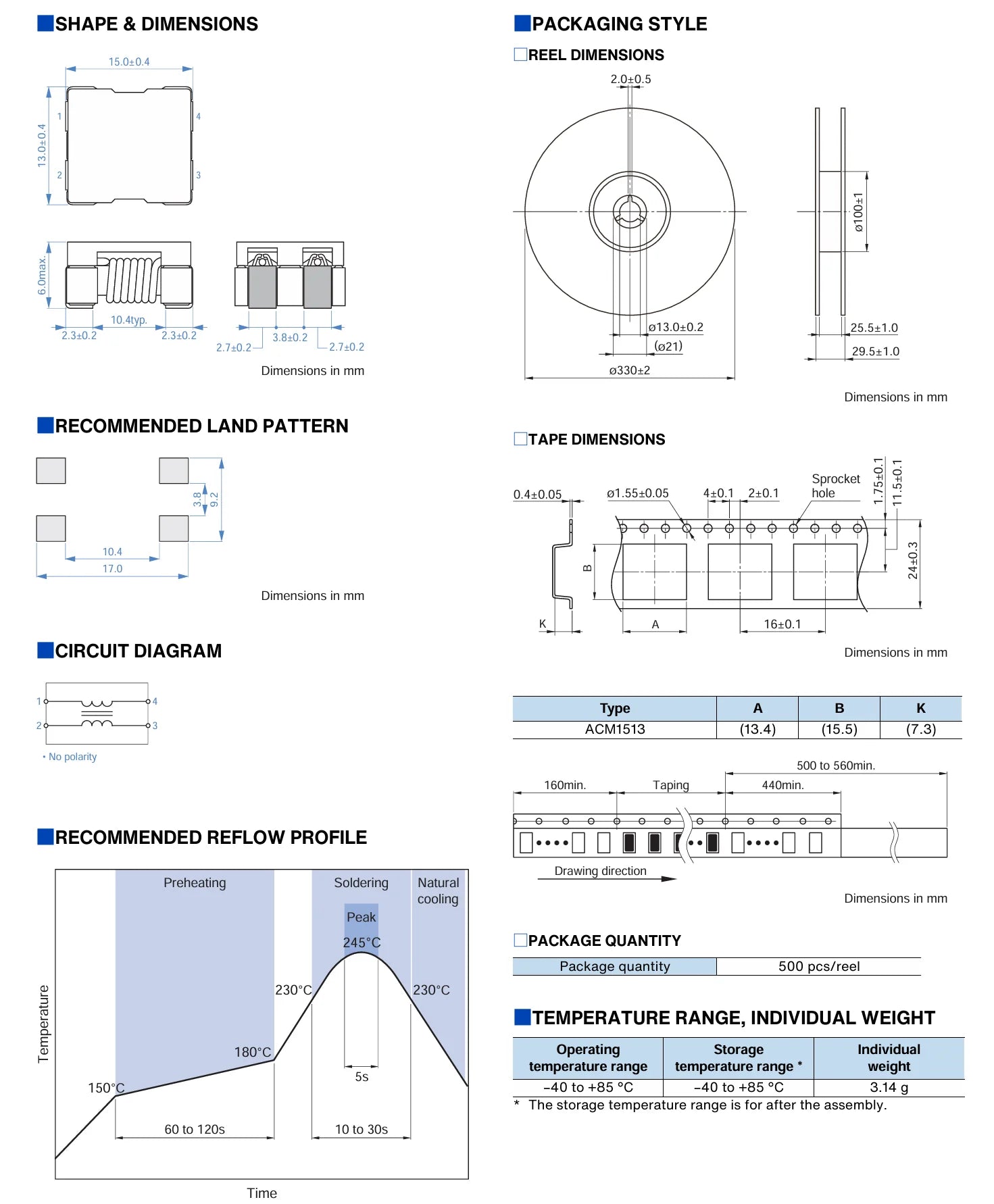

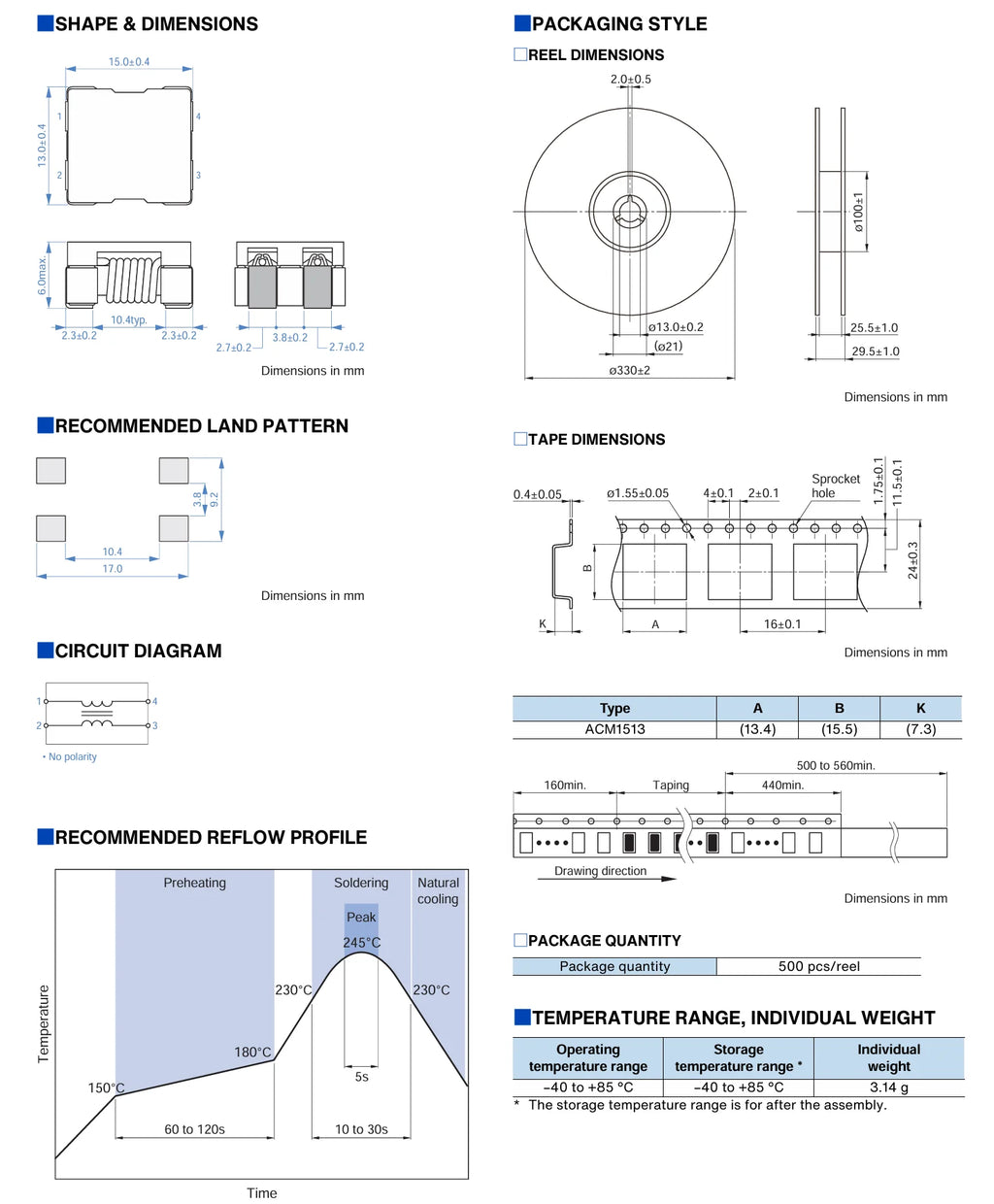

Size/Dimensions 0.591 "long x 0.512" wide (15.00mm x 13.00mm)
Height (maximum) 0.236 "(6.00mm)
Horizontal packaging/shell, 4 PC boards
