5PCS original B82731 common mode filters 27mH@10kHz 250VAC 700mA plugin CMC 2LN TH 2x27mH 0.7A B82731M2701A030 B82731-N2701-A30
Default Title
$63.99
Sale price
$63.99
Regular price
$0.00
Skip to product information
5PCS original B82731 common mode filters 27mH@10kHz 250VAC 700mA plugin CMC 2LN TH 2x27mH 0.7A B82731M2701A030 B82731-N2701-A30
$63.99
Sale price
$63.99
Regular price
$0.00
Description

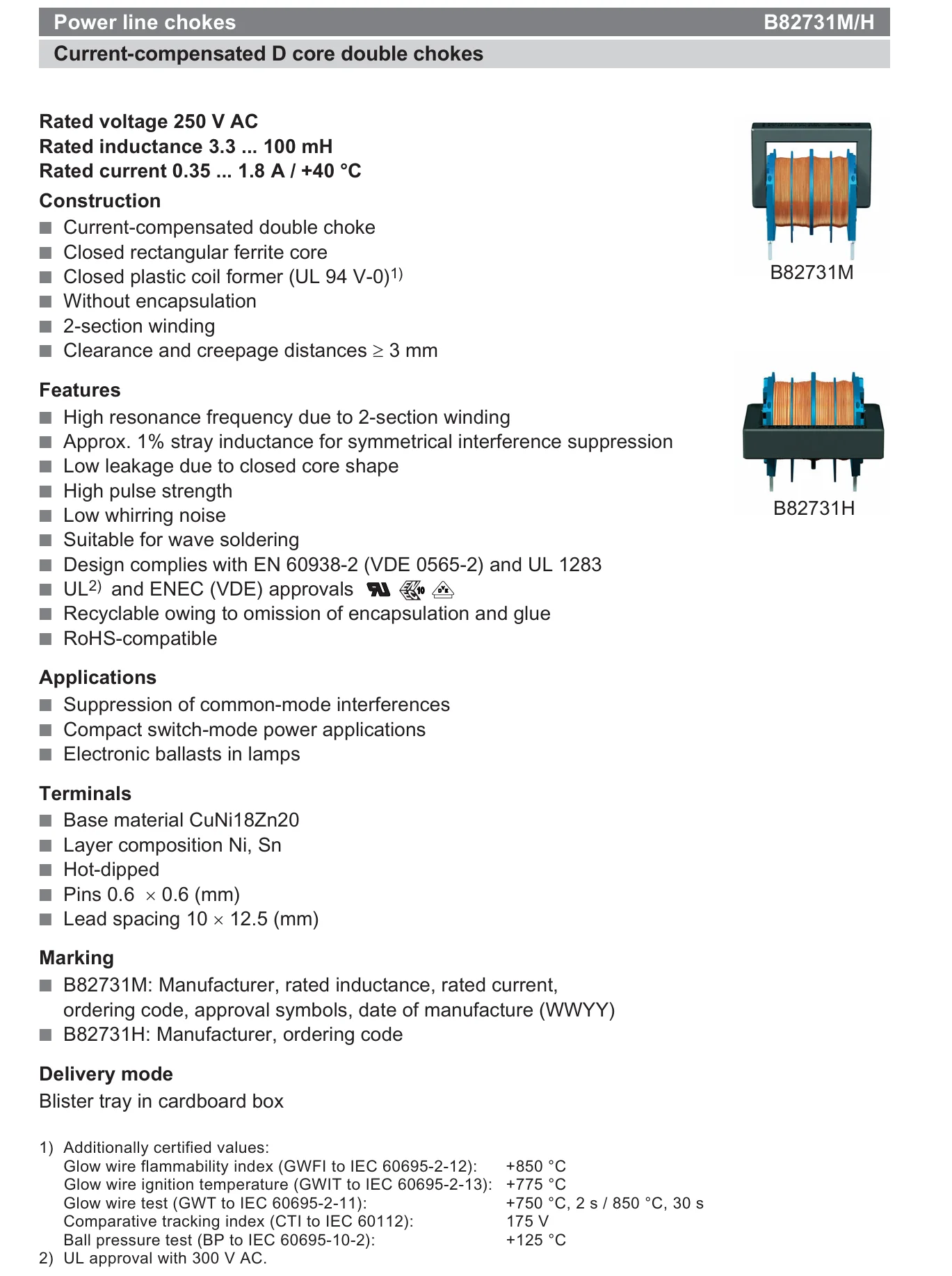

SPECIFICATIONS

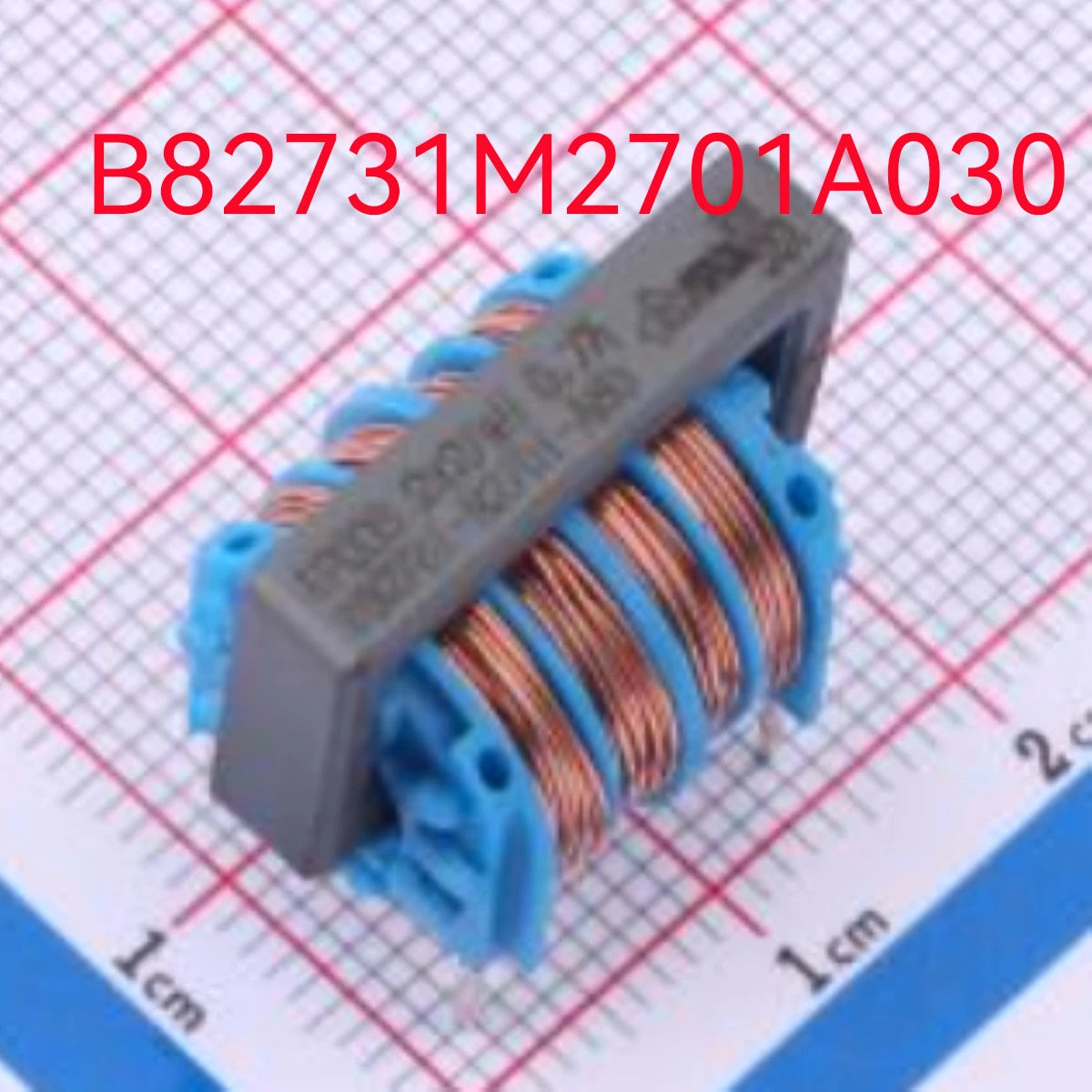

B82731M2701A030: CMC 27MH 700MA 2LN TH
Brand Name: NONE
High-concerned chemical: none
Model Number: B82731M2701A030
Origin: Mainland China
Type: COMMON MODE FILTER
is_customized: Yes
If you need other products, please contact us
Model marking; attribute parameter
-----------------------------------------------------
Installation type through hole
Filter type power cord
Inductance 27mH @ 10kHz at different frequencies
Number of lines 2
Vertical packaging/shell, 4 PC pins
Working temperature -40 ° C~125 ° C
Rated current (maximum) 700mA
Rated voltage - AC 250V

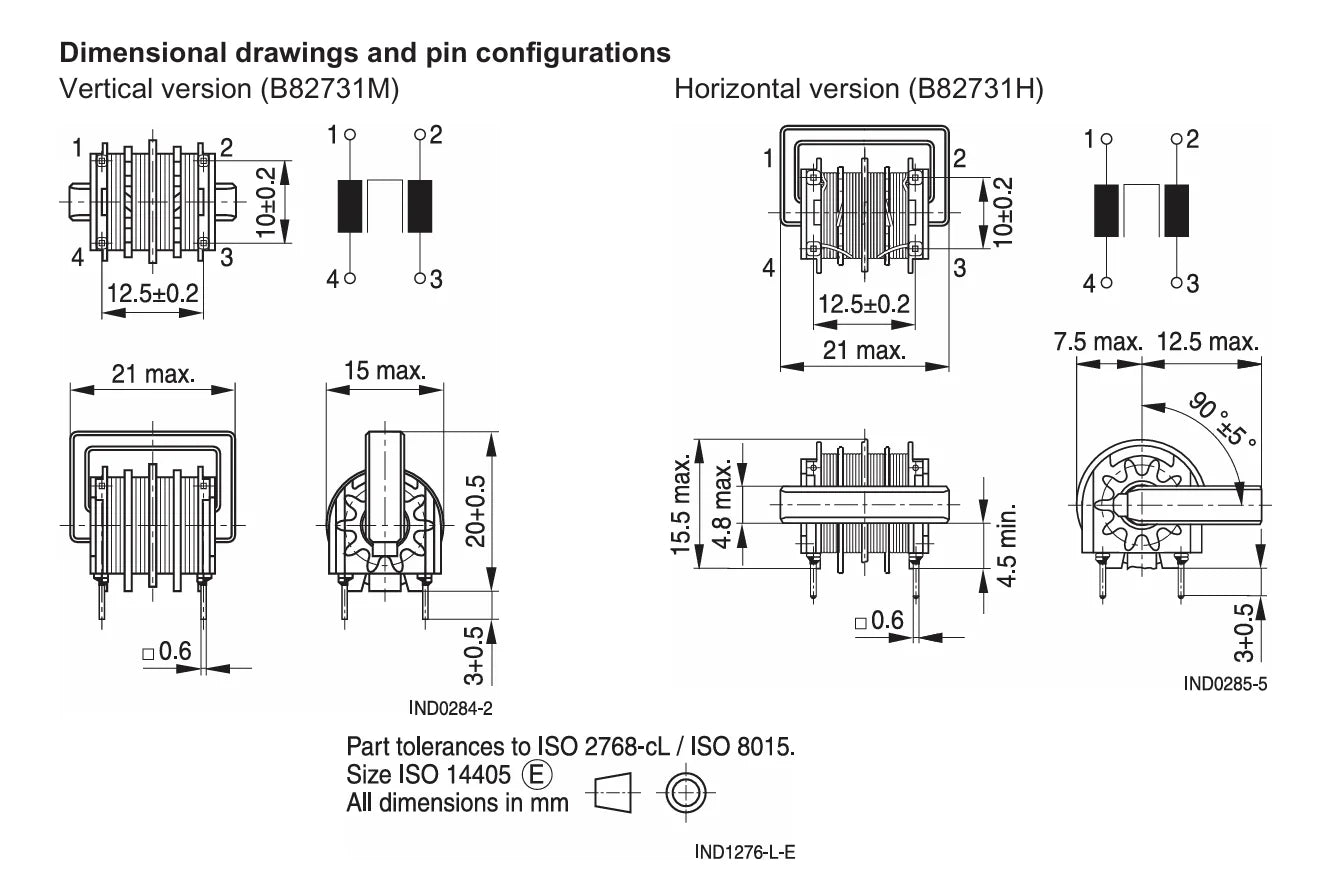

Size/Dimensions 0.827 "L x 0.591" W (21.00mm x 15.00mm)
The certification body ENEC, UR，VDE
Height (maximum) 0.807 "(20.50mm)
DC resistor? (DCR) (maximum) 1 ohm (standard)
