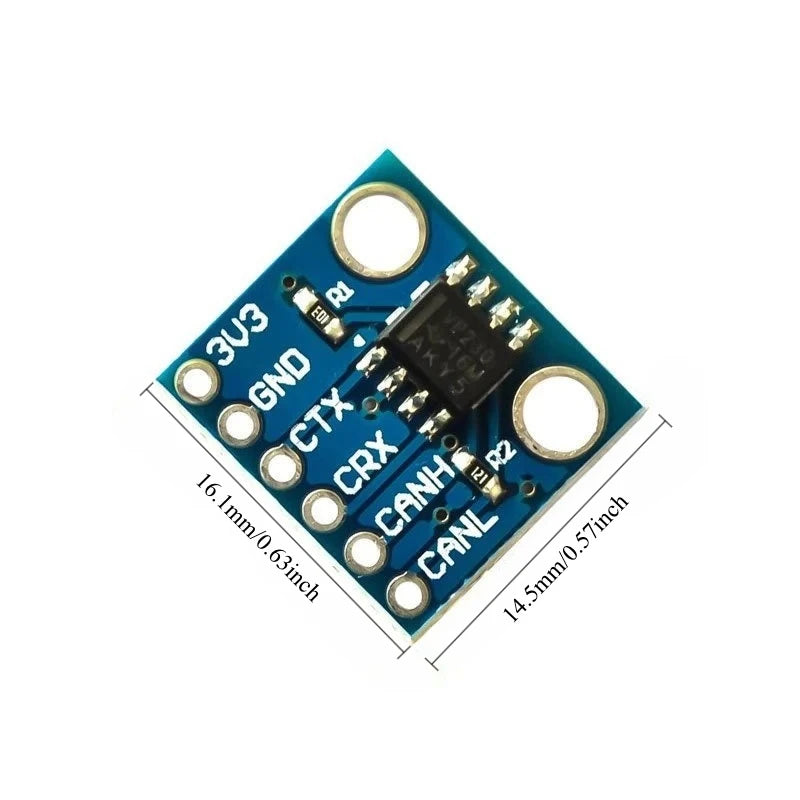

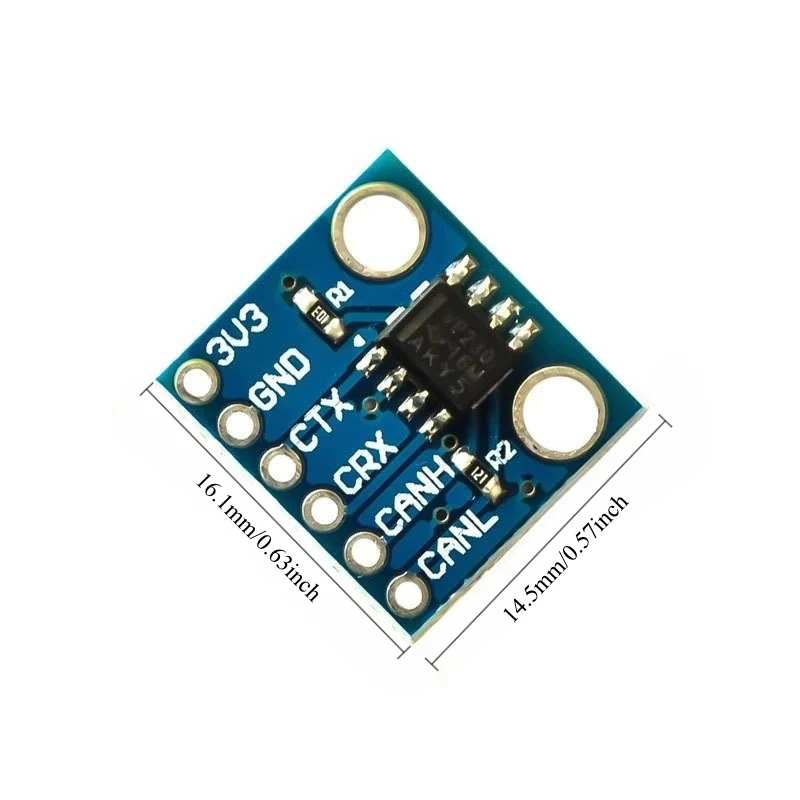

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

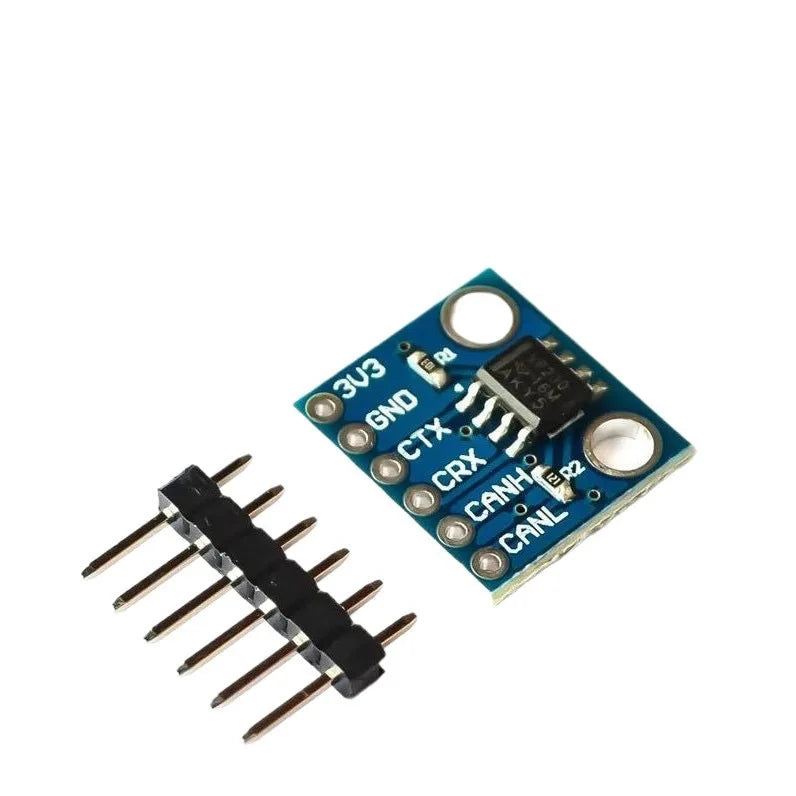

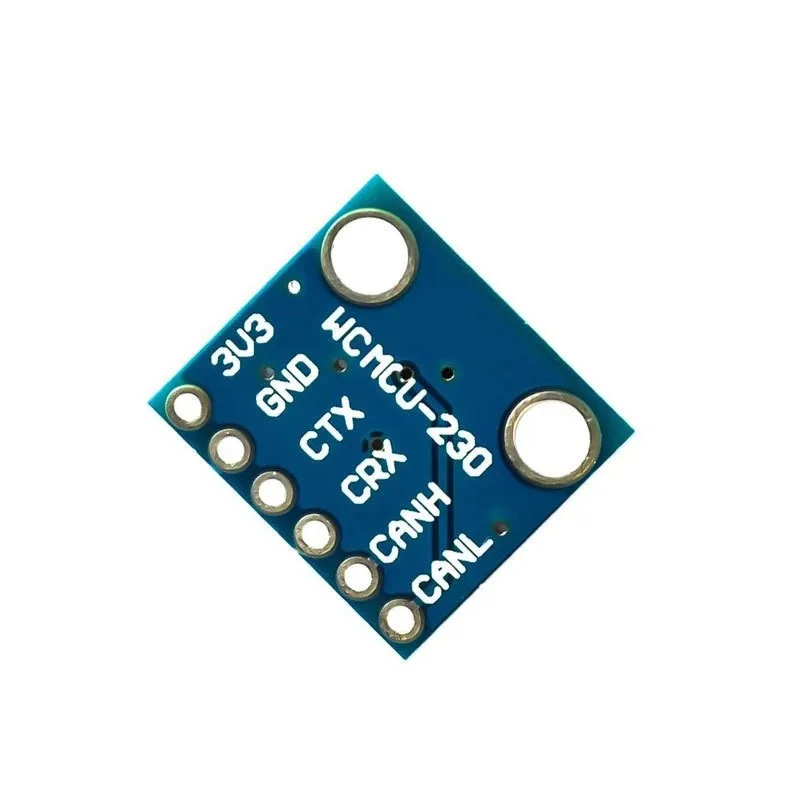

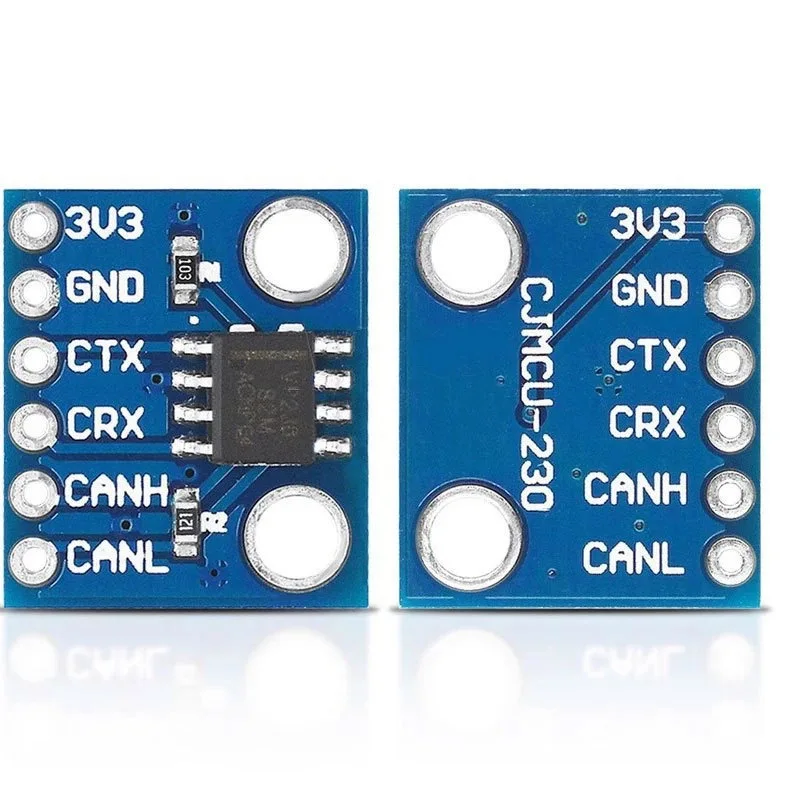

Main Features & Pin Functions

The SN65HVD230 is applicable to high-interference environments and delivers excellent transmitting and receiving performance at various baud rates. Its main features are as follows:

Fully compliant with ISO11898 standards
High input impedance, supporting up to 120 network nodes
Low-current standby mode with typical current of 370μA
Maximum signal transmission rate up to 1Mb/s
Built-in thermal protection and open-circuit fault protection
Anti-transient interference capability to protect the bus line
Slew rate control to reduce radio frequency interference (RFI)
Differential receiver features strong immunity to wide-range common-mode interference and electromagnetic interference (EMI)

Operating Modes & Control Logic

The SN65HVD230 supports three working modes: high-speed mode, slew-rate mode and standby mode, which are configured via the Rs control pin.

Figure 2 shows its typical application circuit in CAN bus systems. The transmit pin Tx of CAN controller connects to data input pin D of SN65HVD230 to send node data to CAN network. The receive pin Rx of CAN controller links to data output pin R of the module for data reception.

The mode selection pin Rs is connected to a grounded slew-rate resistor via jumper wire. Three working modes can be selected by hardware setting, and the adjustable resistance ranges from 0Ω to 100kΩ.
