5pcs SPST DPDT 250V 15A Toggle Switch 2 3 Position Latching On-Off On-On On-Off-On E-TEN1322 1021 1122 1221 1321 Cap Waterproof
1122S ON OFF ON / 5PCS Latching
$42.03
Sale price
$42.03
Regular price
$0.00
Skip to product information
5pcs SPST DPDT 250V 15A Toggle Switch 2 3 Position Latching On-Off On-On On-Off-On E-TEN1322 1021 1122 1221 1321 Cap Waterproof
$42.03
Sale price
$42.03
Regular price
$0.00
Description
SPECIFICATIONS
Body Material: Plastic
Brand Name: YIDIELE
Choice: yes
Circuit Way: ON-OFF/ ON-ON / ON-OFF-ON
Model Number: YD-T

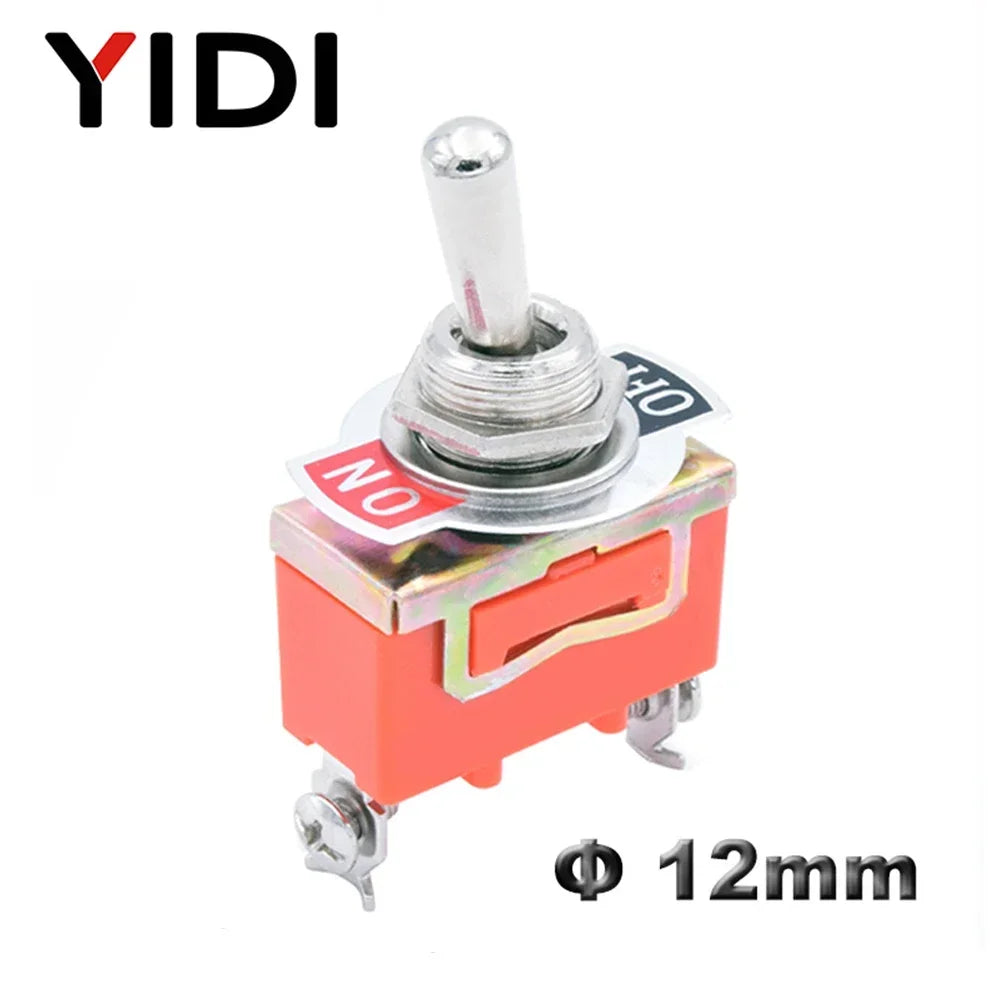

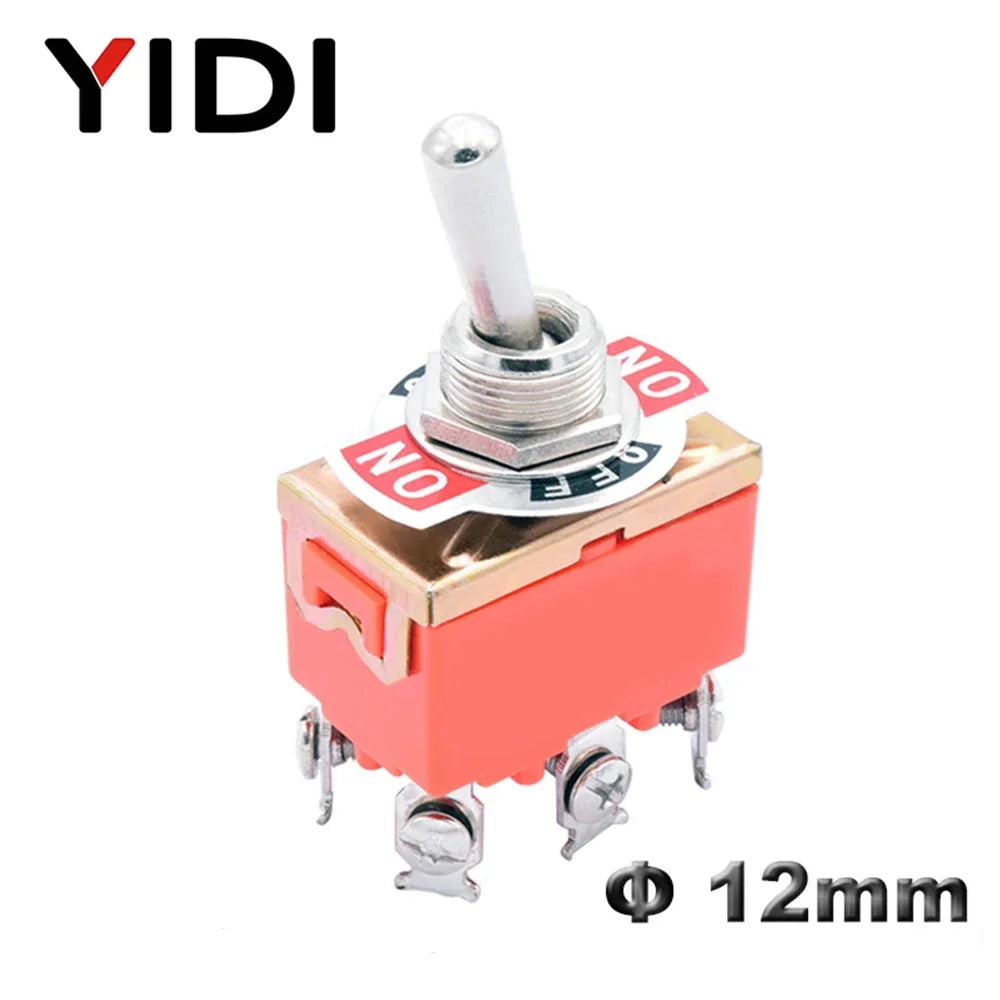

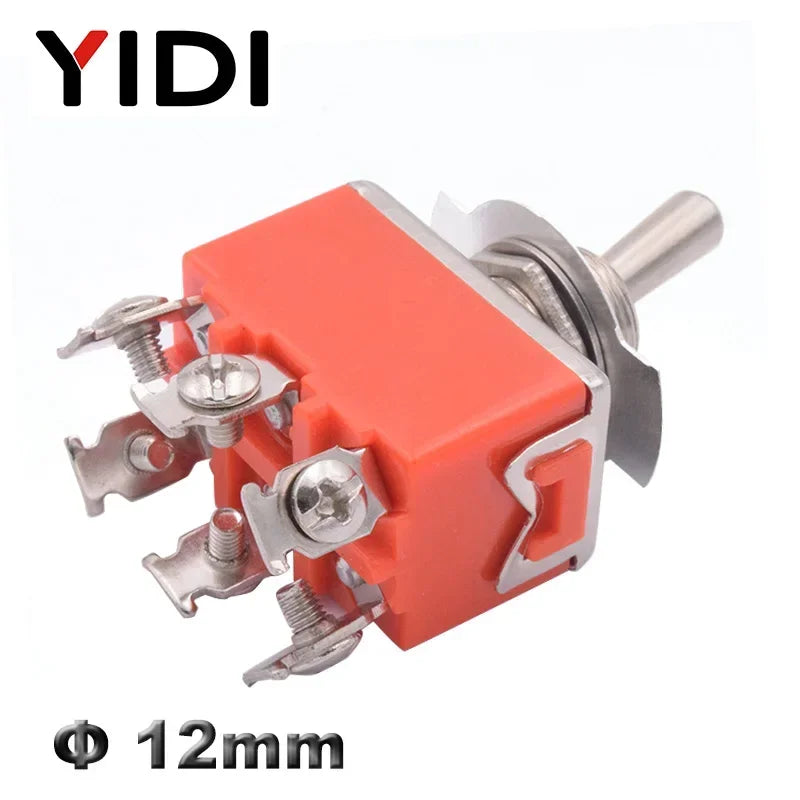

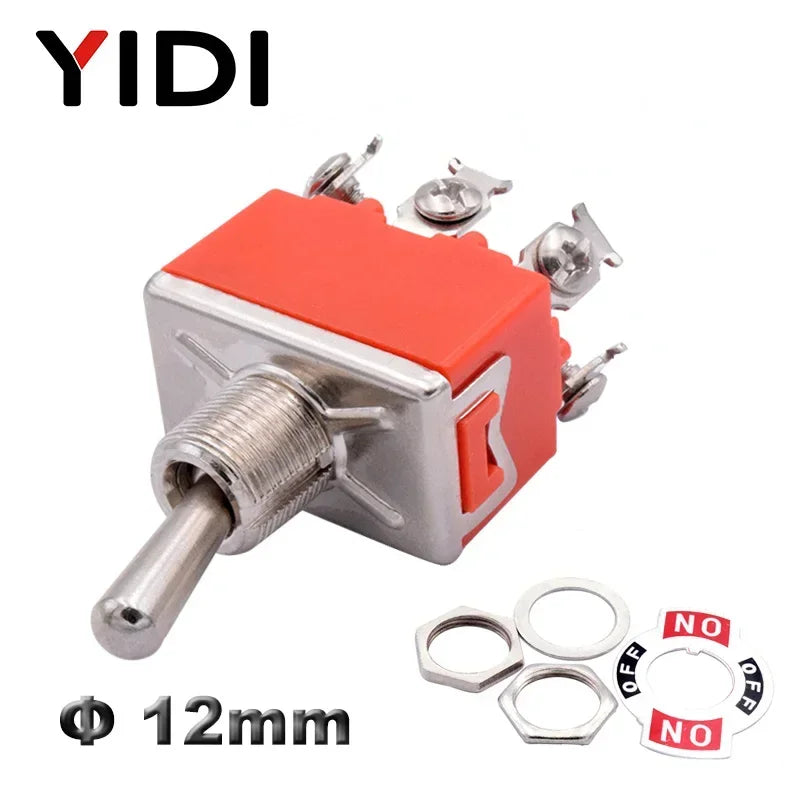

Mounting hole diameter: 12mm
Origin: Mainland China
Quantity: 5pcs
Rating: 6A 250VAC /15A 250VAC
Switch Combination: Single pole/ Double pole
Switch Function: Latching
is_customized: Yes
semi_Choice: yes
YIDI 5pcs/lot SPST DPDT 250V 15A Toggle Switch 2 3 Position Latching on-off on-on on-off-on E-TEN1322 1021 1122 1221 1321 Cap Waterproof
Specification:
Mounting Hole Diameter: 12mm
Body Material: Plastic
Rating: 6A/250VAC
Circuit Way:ON-OFF/ ON-ON/ ON-OFF-ON
Switch Function: Latching
Switch Combination: Single Pole / Double Poles

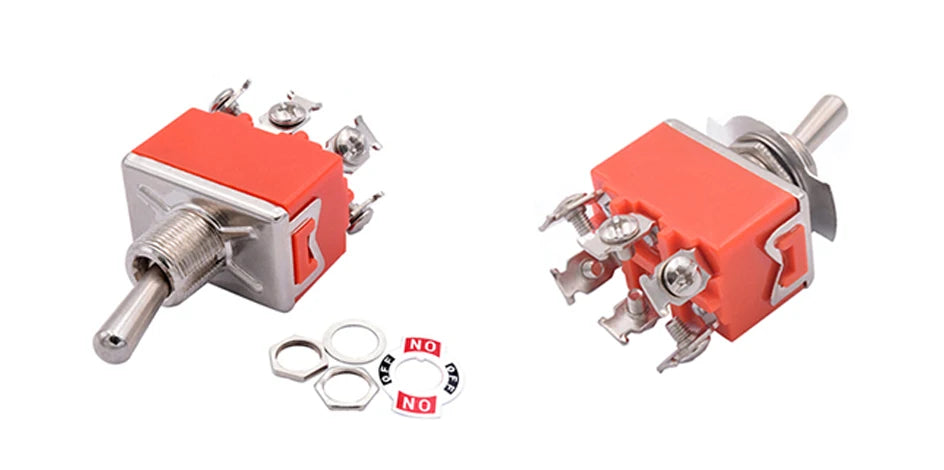

Packing: 5 Toggle Switch + 10 Nuts + 5 Wahser + 5 Gasket
Note:

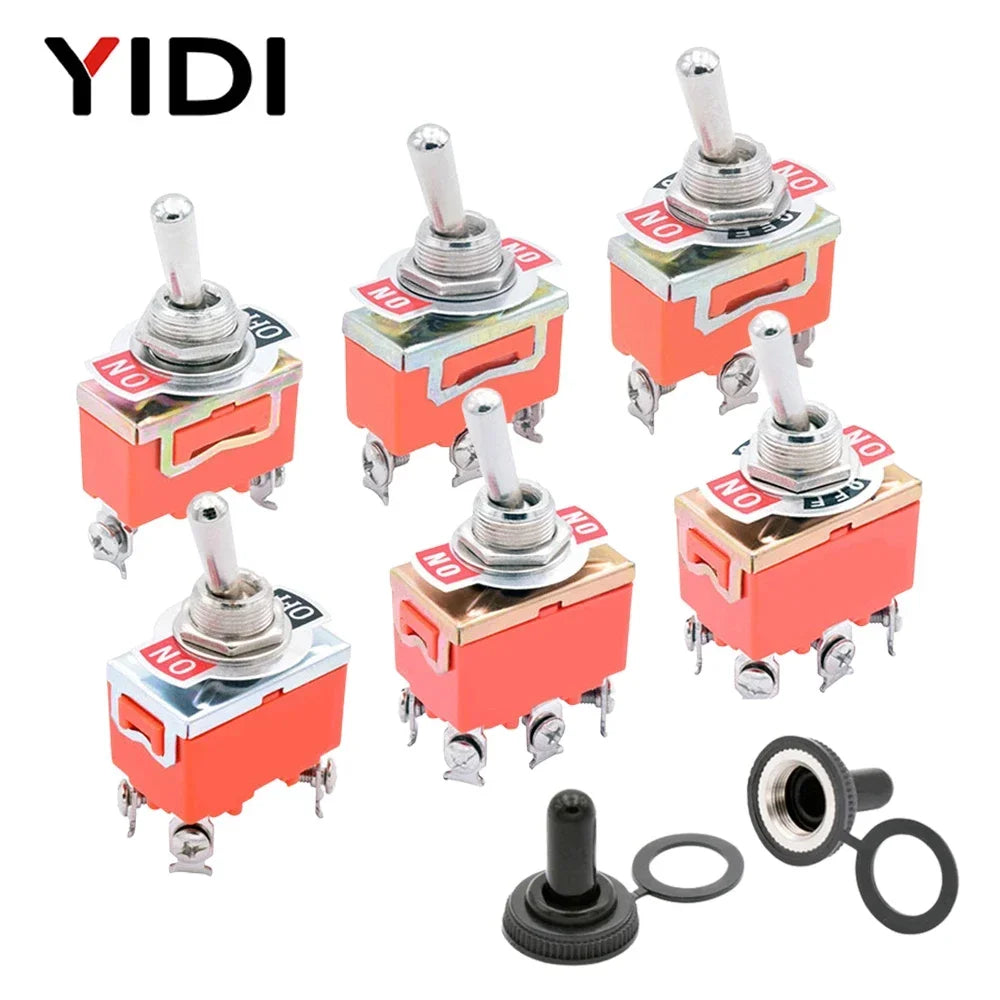

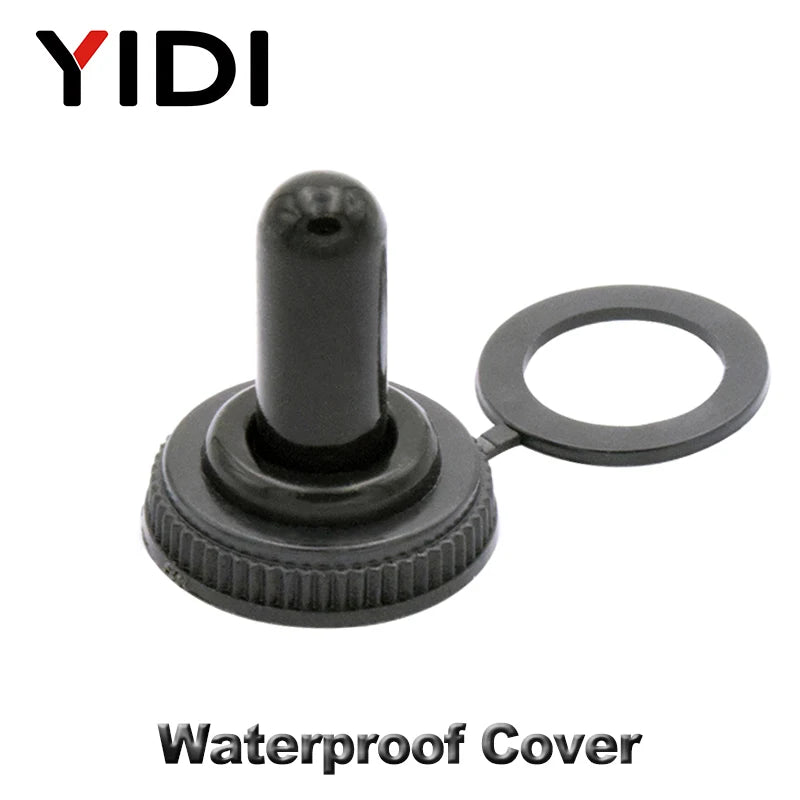

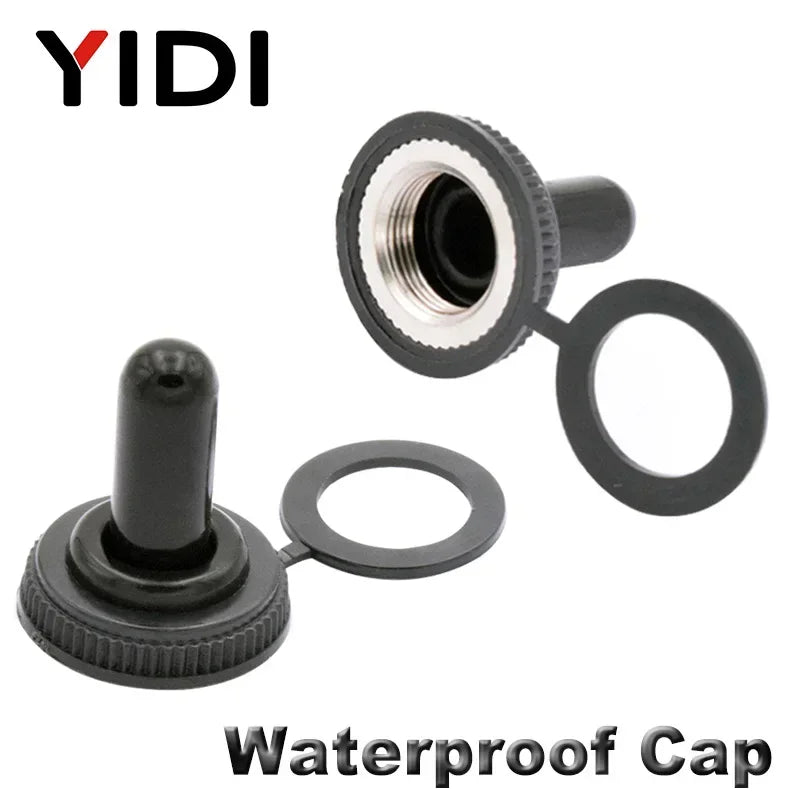

If need waterproof cap together, choose the waterproof cap together when place order.
If need other current, such as 20A, 25A or 30A, feel free to contact us!
Specification:
Mounting Hole Diameter: 12mm
Body Material: Plastic
Rating: 6A/250VAC
Circuit Way:ON-OFF/ ON-ON/ ON-OFF-ON
Switch Function: Latching
Switch Combination: Single Pole / Double Poles
Packing: 5 Toggle Switch + 10 Nuts + 5 Wahser + 5 Gasket
Note:
If need waterproof cap together, choose the waterproof cap together when place order.
If need other current, such as 20A, 25A or 30A, feel free to contact us!

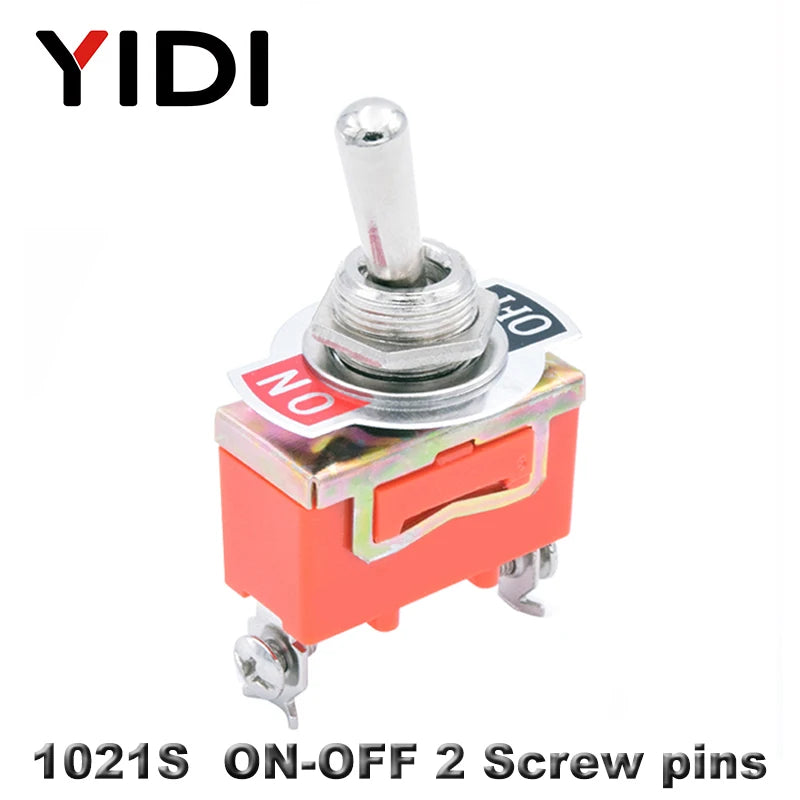

E-TEN 1021S |
|

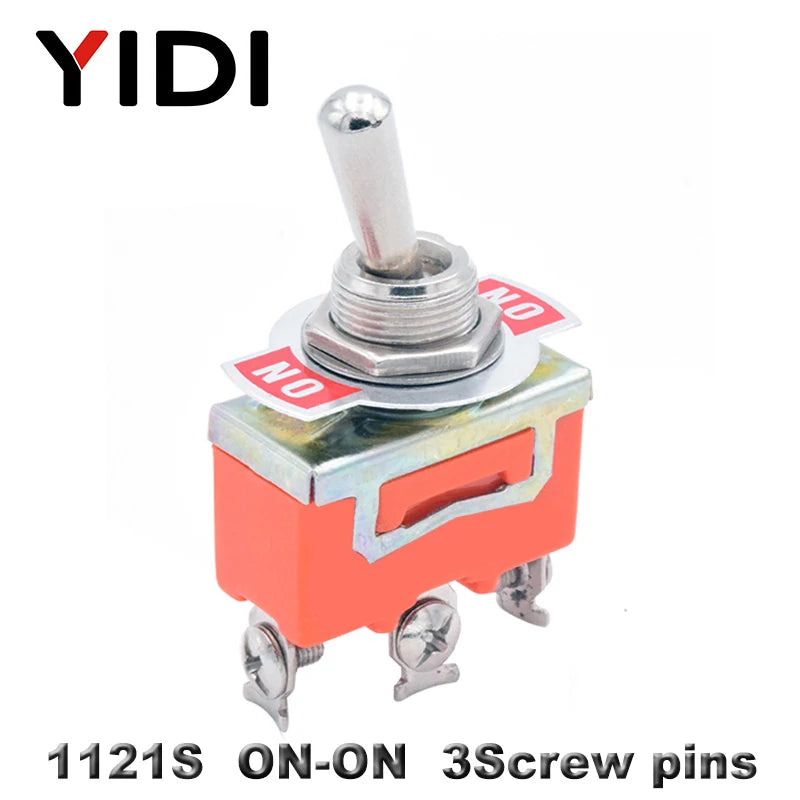

E-TEN 1121S |
|
E-TEN 1122S |
|

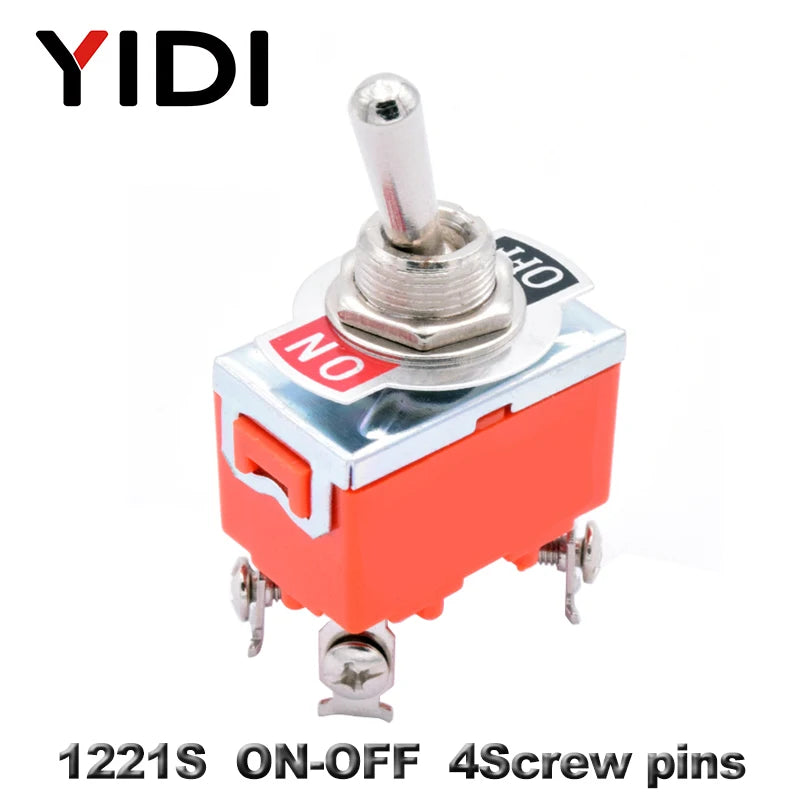

E-TEN 1221S |
|
E-TEN 1321S |
|

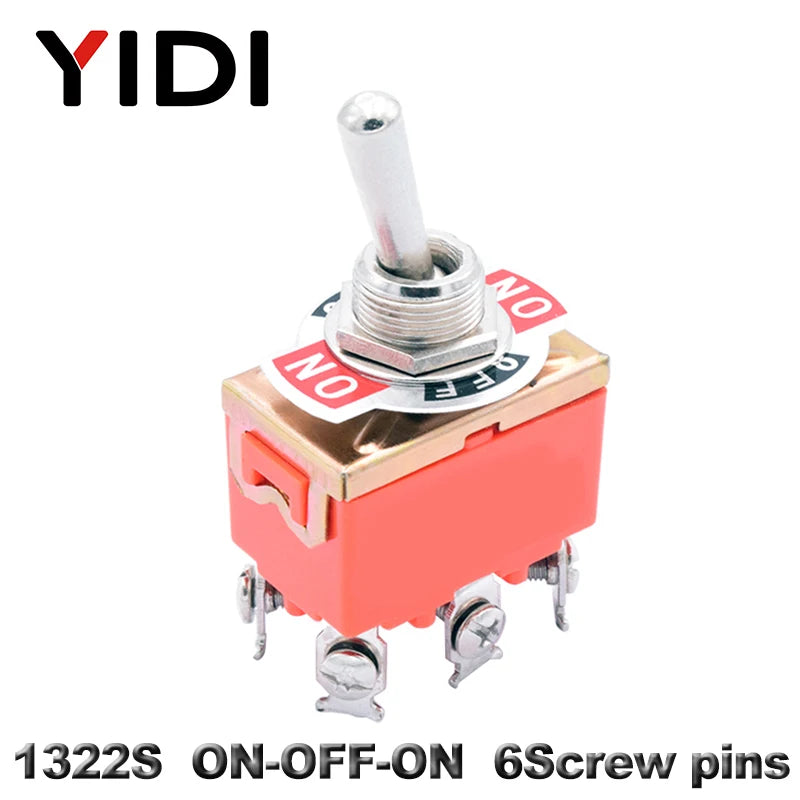

E-TEN 1322S |
|

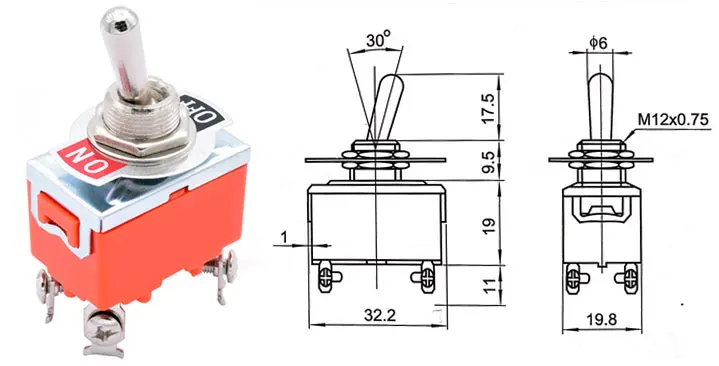

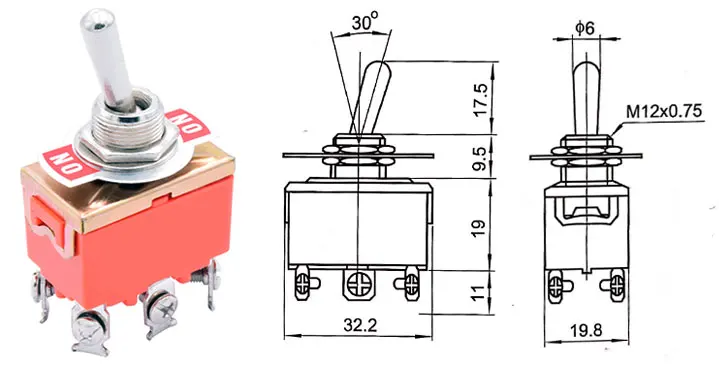

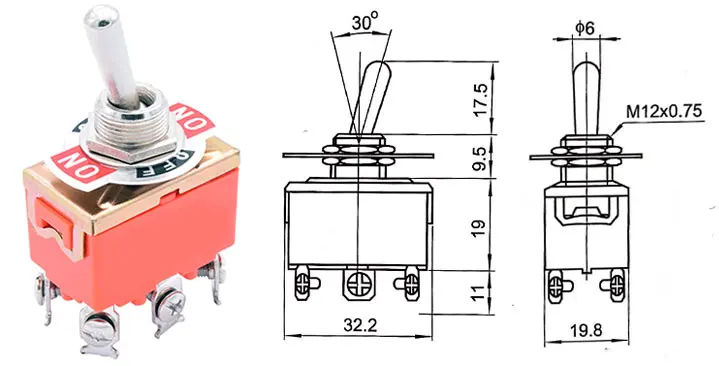

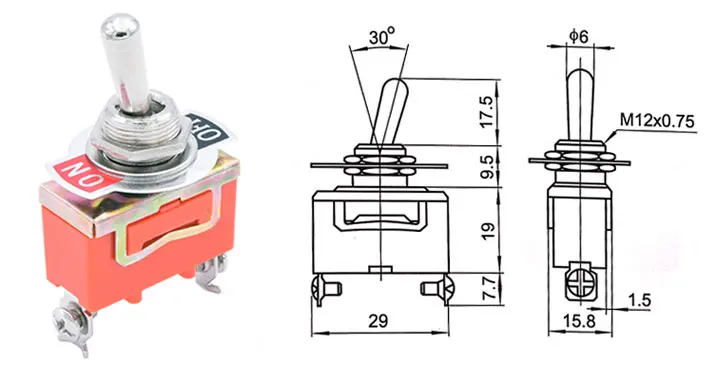

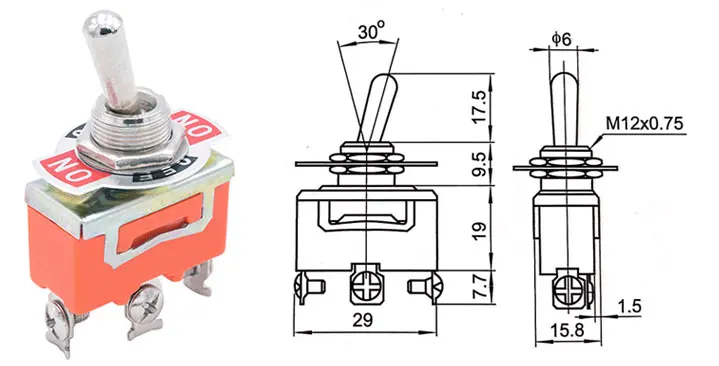

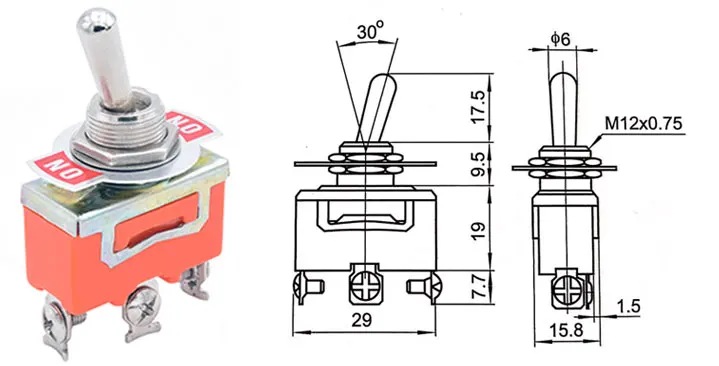

M12*0.75mm |
|
Switch Function Illustration
Item No. |
|
|
|
Terminal Number |
Switch Ways |
1021 |
ON |
- |
OFF |
2 |
1 |
1121 |
ON |
- |
ON |
3 |
1 |

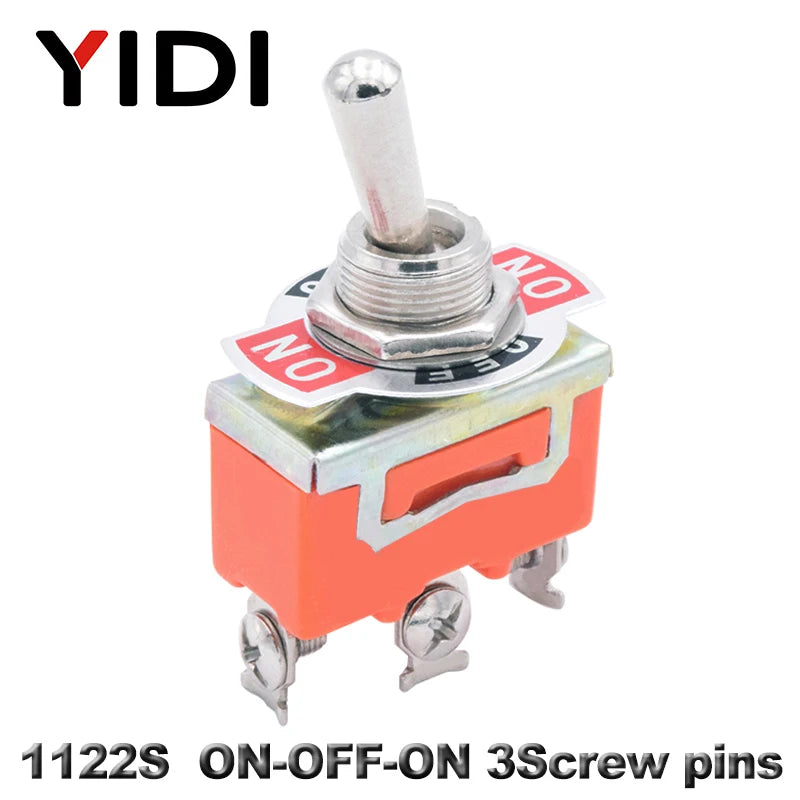

1122 |
ON |
OFF |
ON |
3 |
1 |
1221 |
ON |
- |
OFF |
4 |
2 |

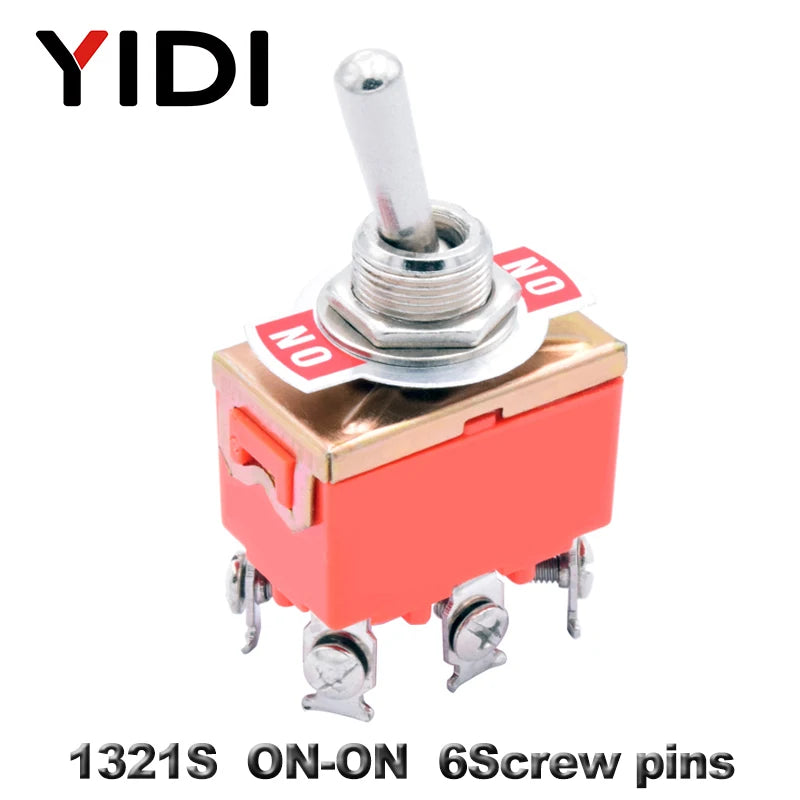

1321 |
ON |
- |
ON |
6 |
2 |
1322 |
ON |
OFF |
ON |
6 |
2 |
301 |
ON |
- |
OFF |
6 |
3 |
302 |
ON |
- |
ON |
9 |
3 |
303 |
ON |
OFF |
ON |
9 |
3 |
