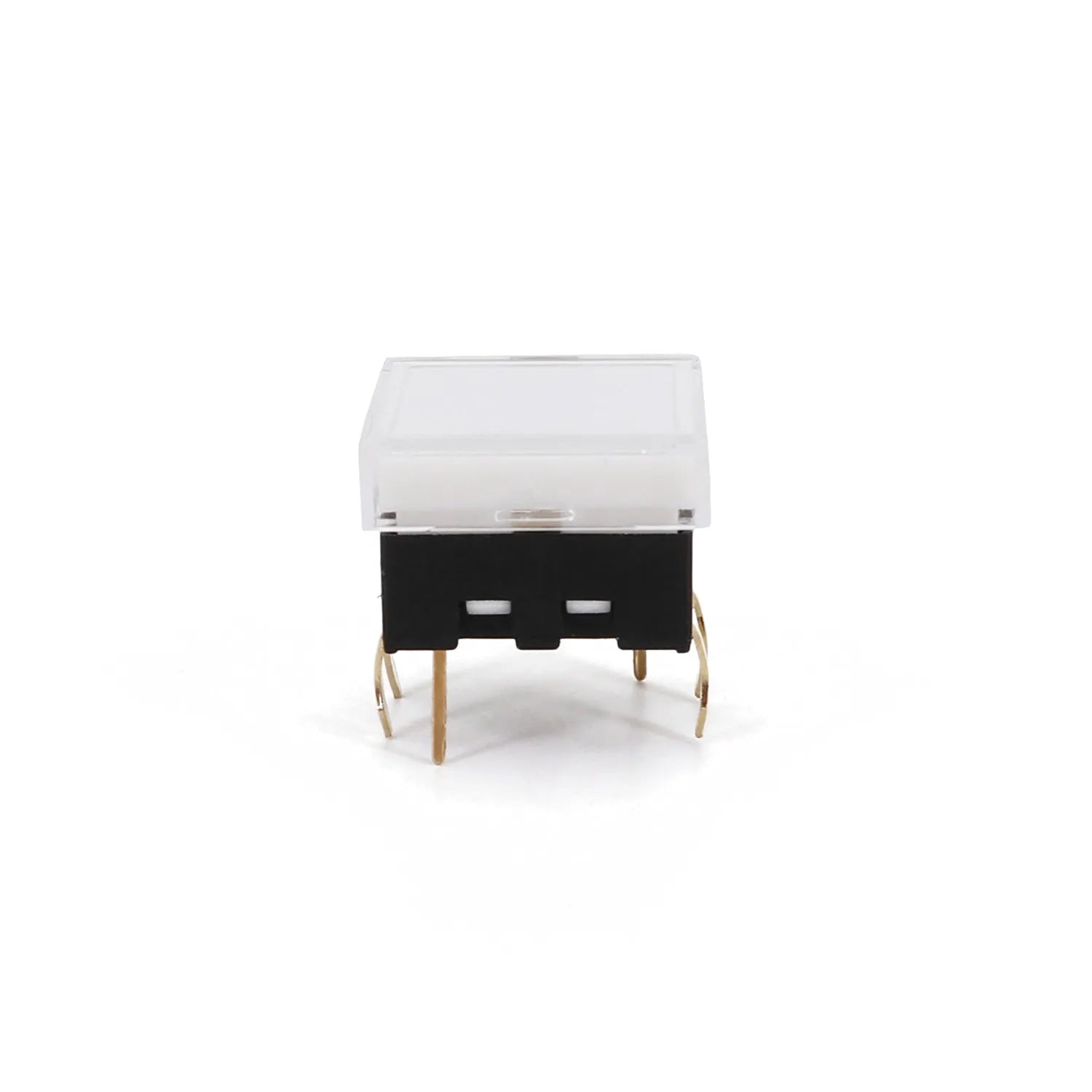

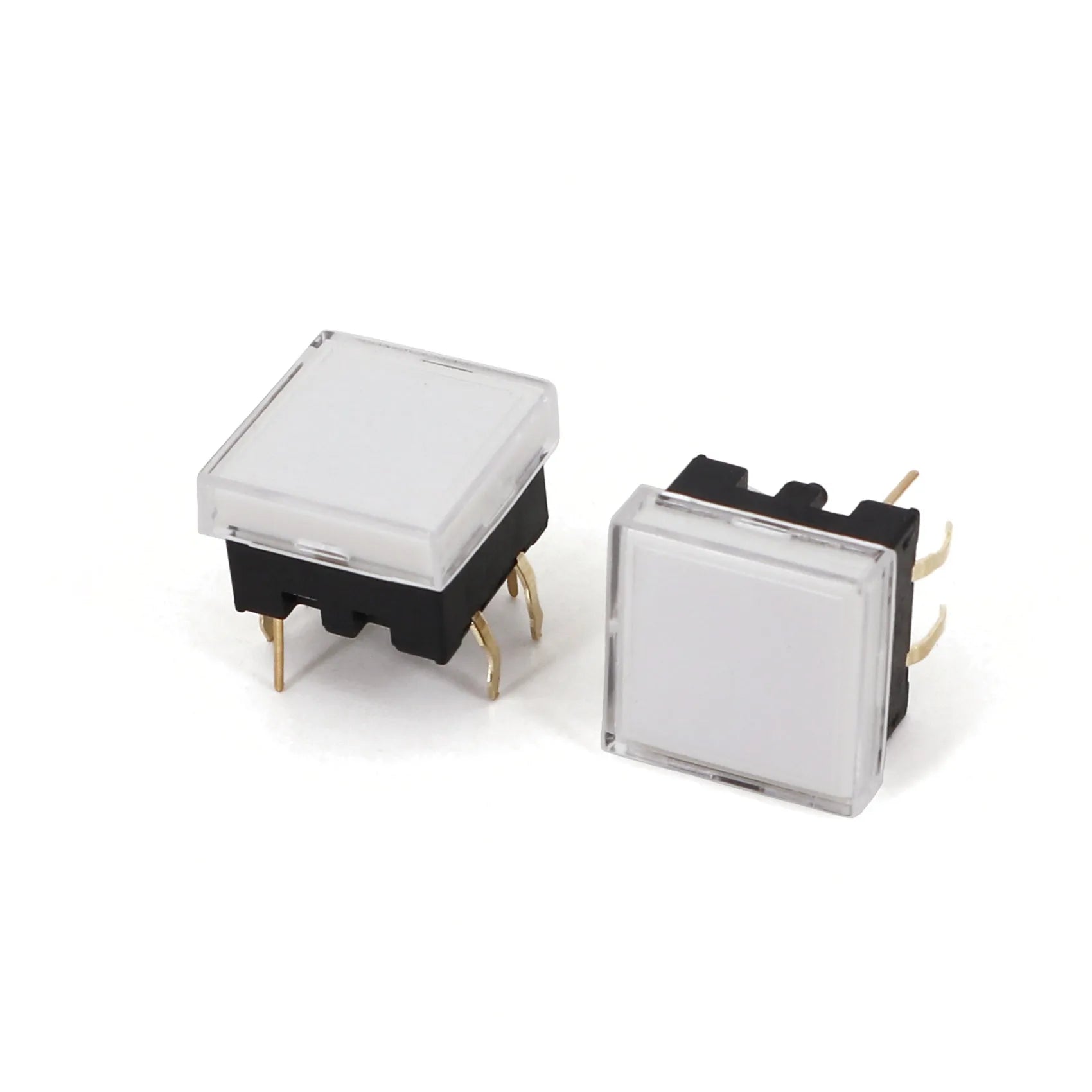

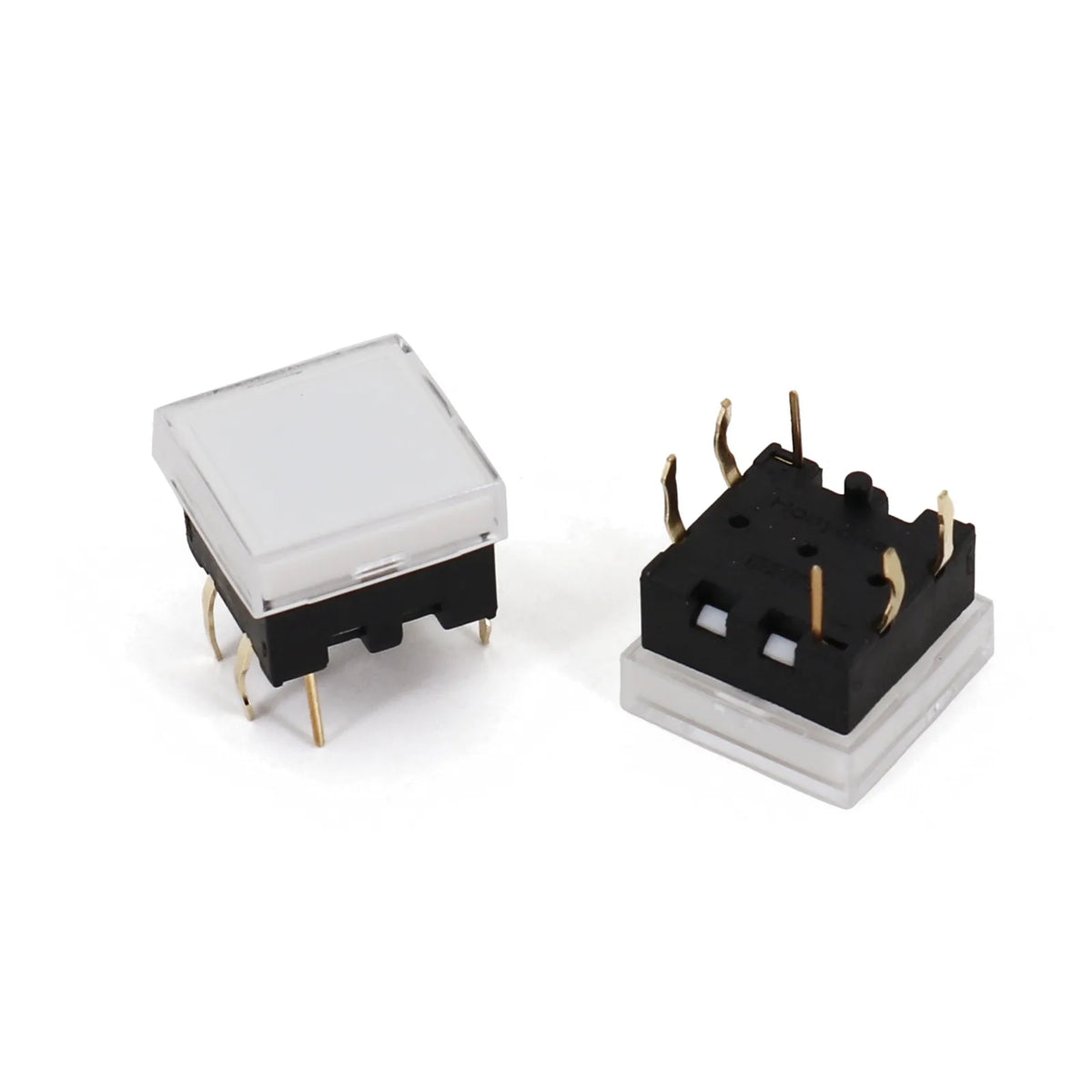

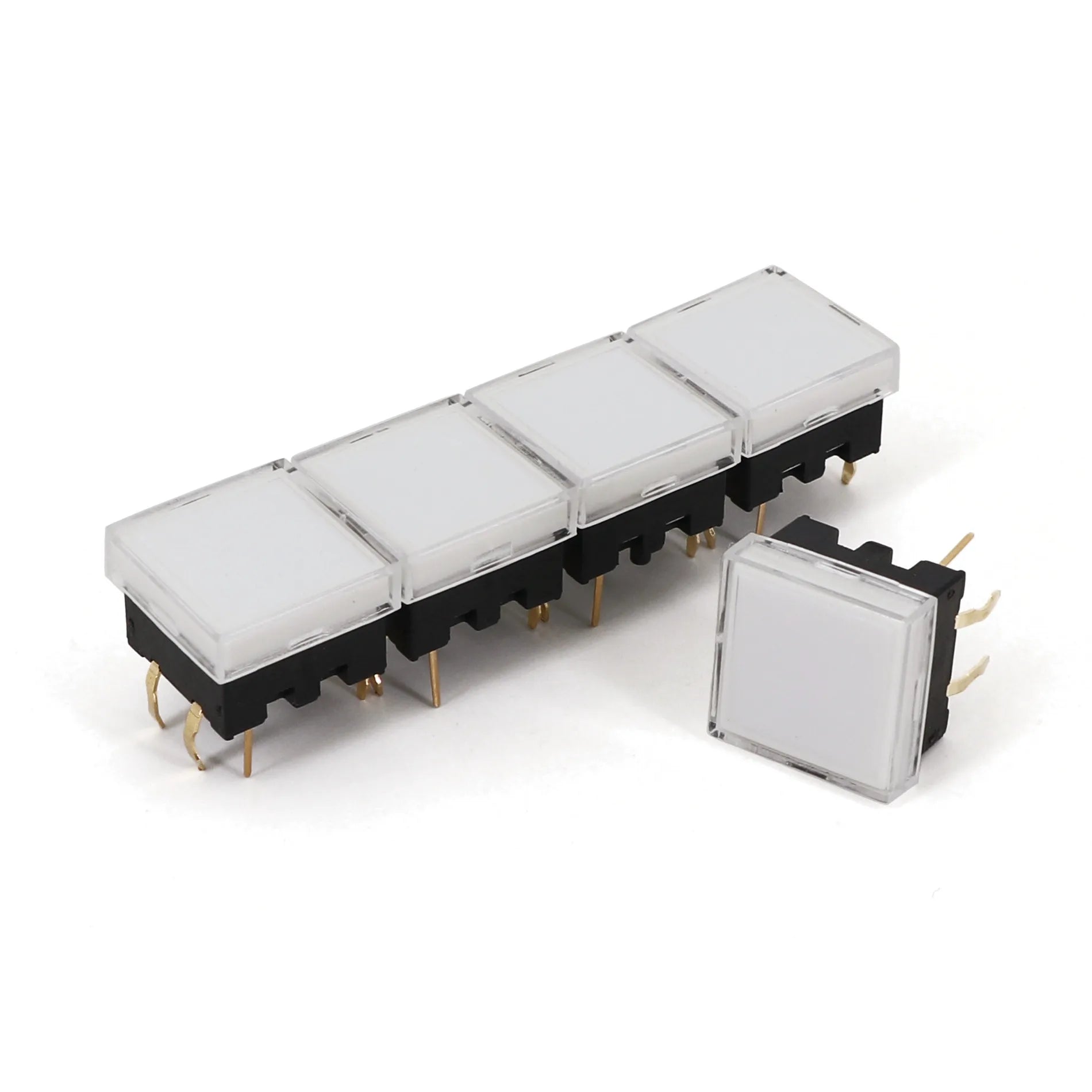

5Pcs TS12 Square 13.4 x 13.4mm 6Pin with LED Momentary SPST PCB Push Button Click Tact Switch
5Pcs White LED
$31.10
Sale price
$31.10
Regular price
$0.00
Skip to product information
5Pcs TS12 Square 13.4 x 13.4mm 6Pin with LED Momentary SPST PCB Push Button Click Tact Switch
$31.10
Sale price
$31.10
Regular price
$0.00
Description

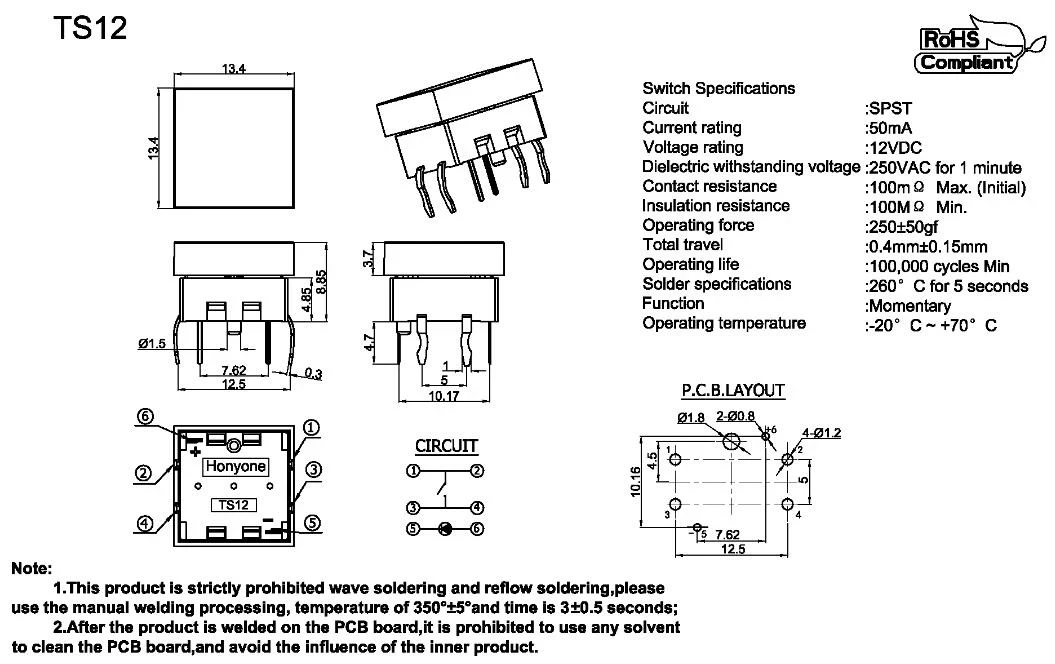

SPECIFICATIONS
Brand Name: NONE
Certification: RoHS
Choice: yes
Current: 50mA
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: Momentary (Click )
High-concerned chemical: none
Item Type: SWITCHES
Material: Plastic
Model Number: TS12
Origin: Mainland China
Switch Type: Push Button Switch
semi_Choice: yes
Model:TS12
Switch Action: Momentary
Switch Function: OFF-MOM
Circuit: SPST
Switch Rating: 50mA 12VDC

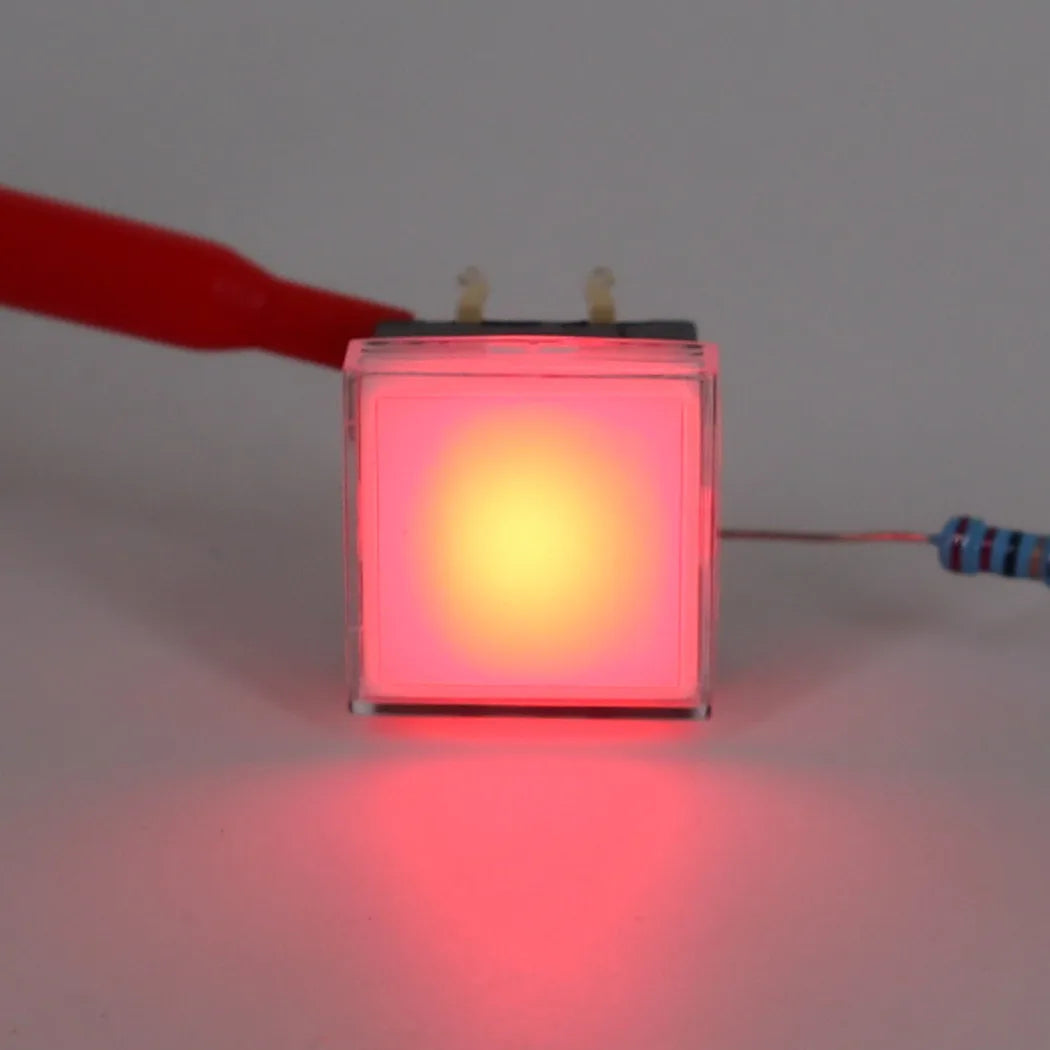

LED Working Voltage (40mA Max)

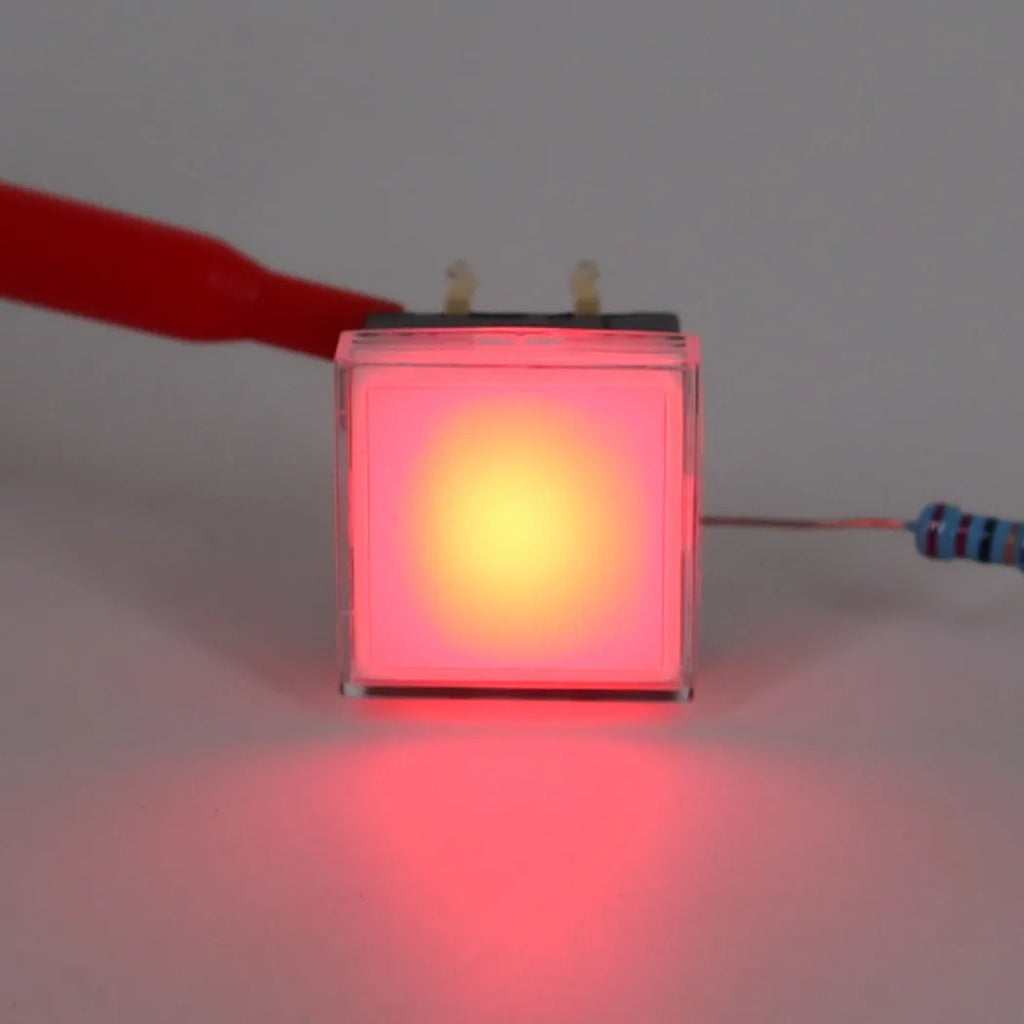

Red:1.8-2.5V

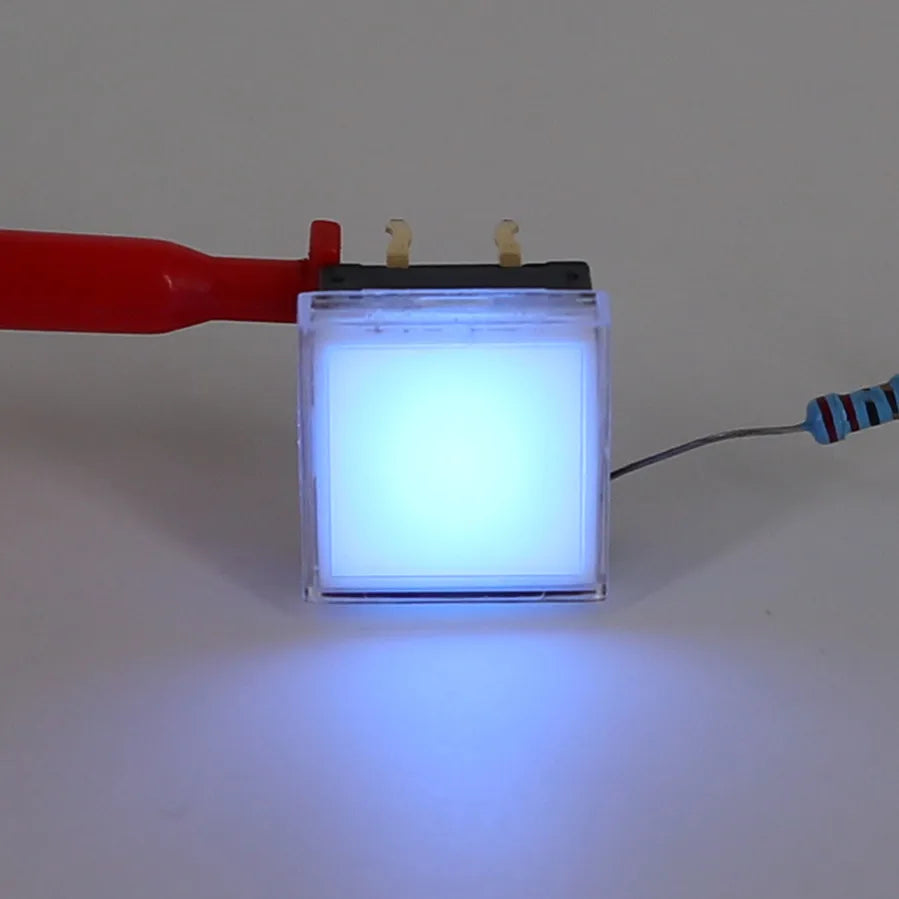

Blue:2.8-3.7V

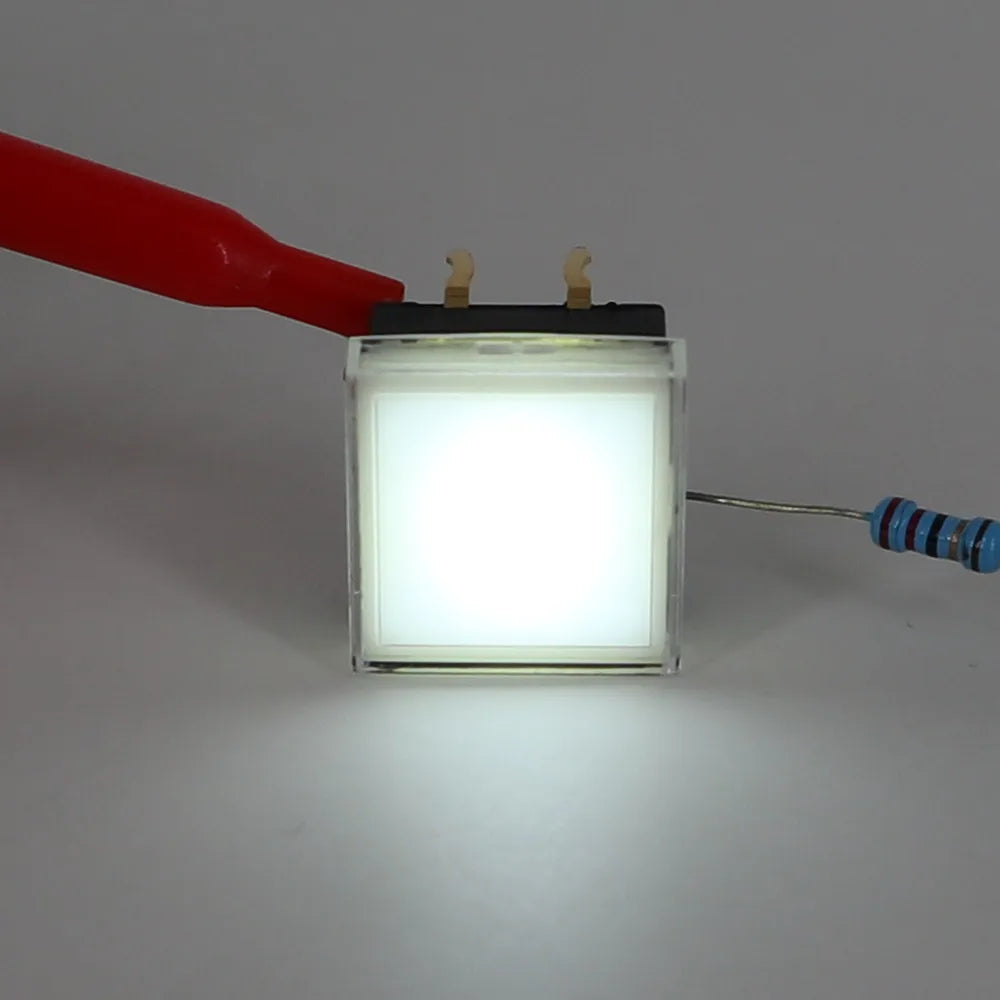

White:2.8-3.6V

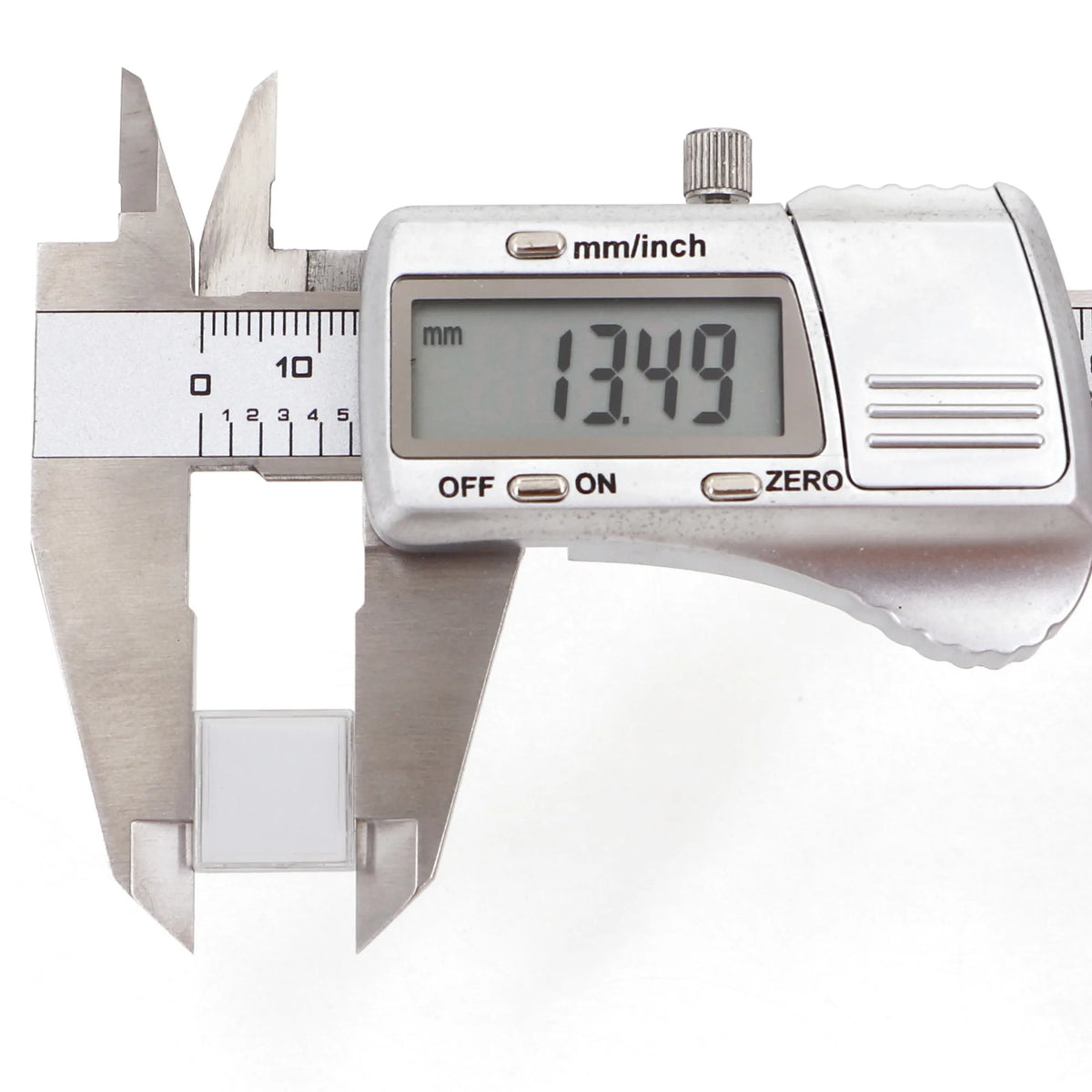

Button Size(L*W):13.4 x 13.4mm
Button Color: White + Transparent
Button Travel:0.4mm±0.15 mm (Click)
Operating Force:250±50gf
Solder Specifications:350℃ for 3 Seconds
Weight:1.4g

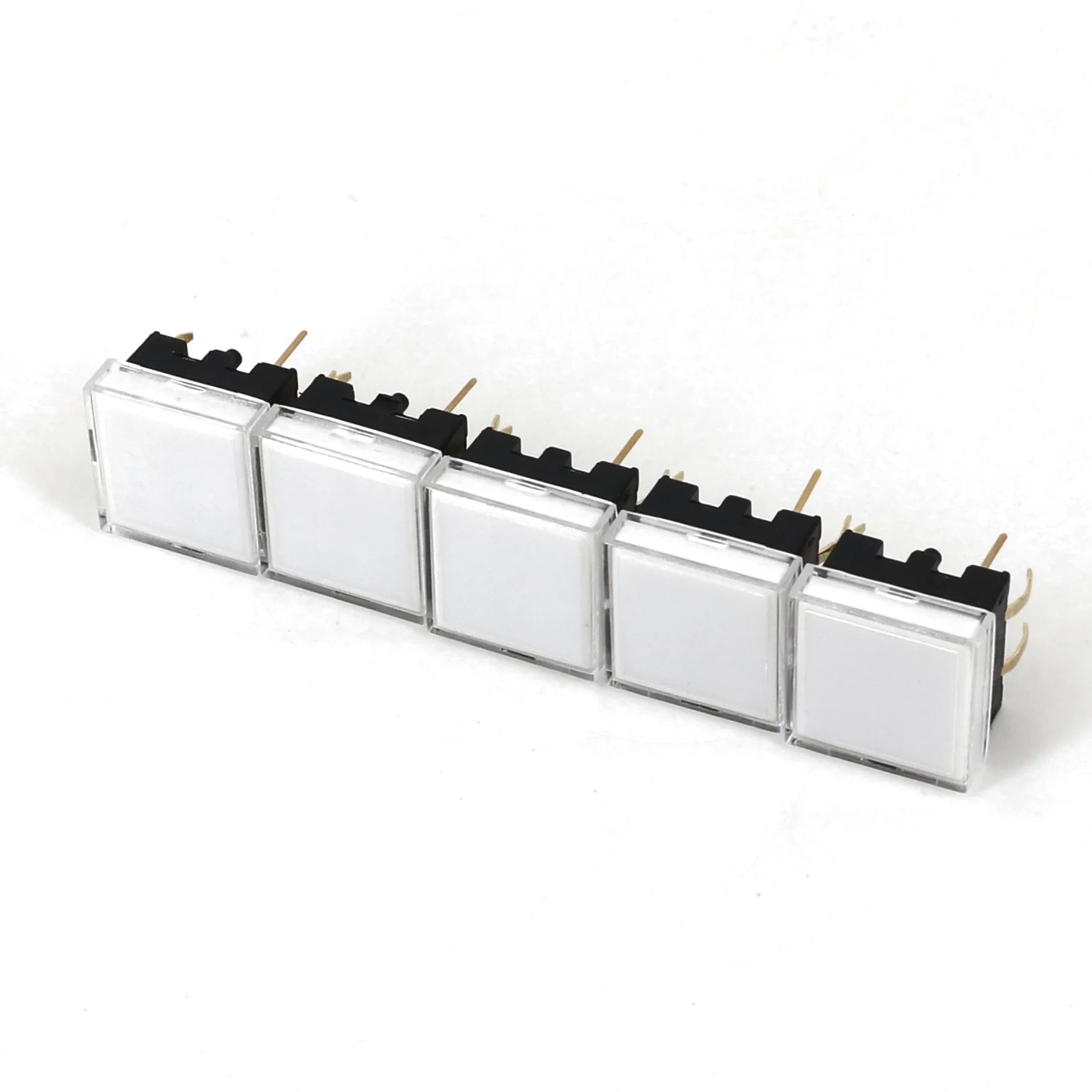

1 Lot = 5Pcs
(Please do not use the battery as the power supply directly to avoid damaging the LED)
