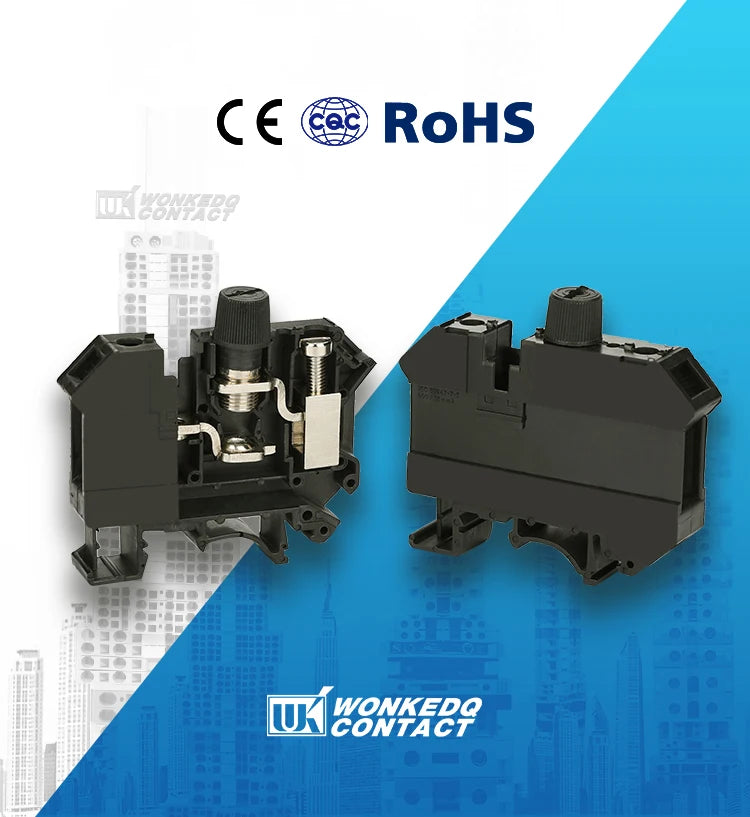

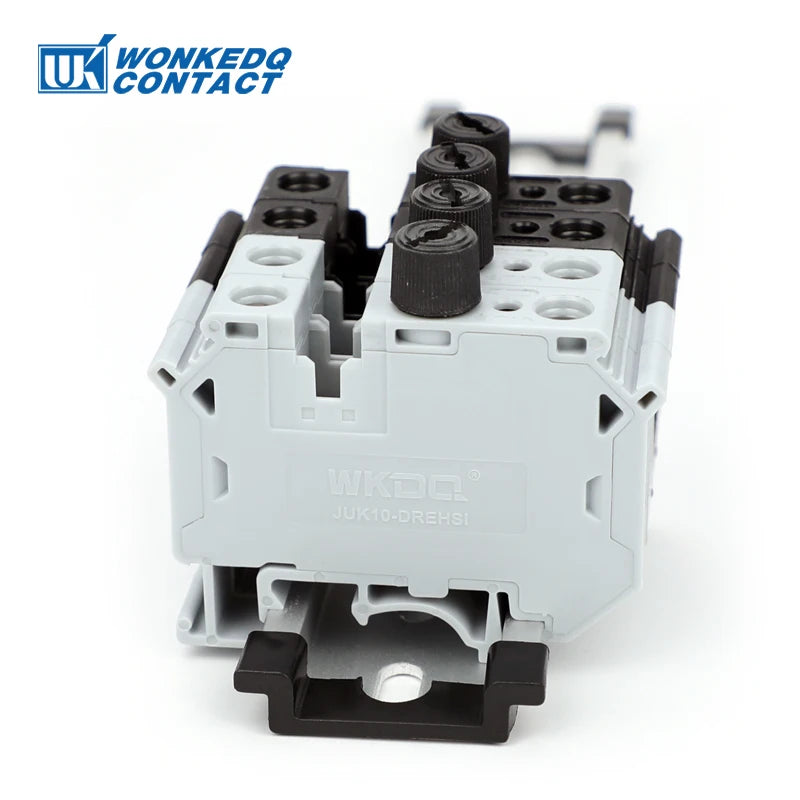

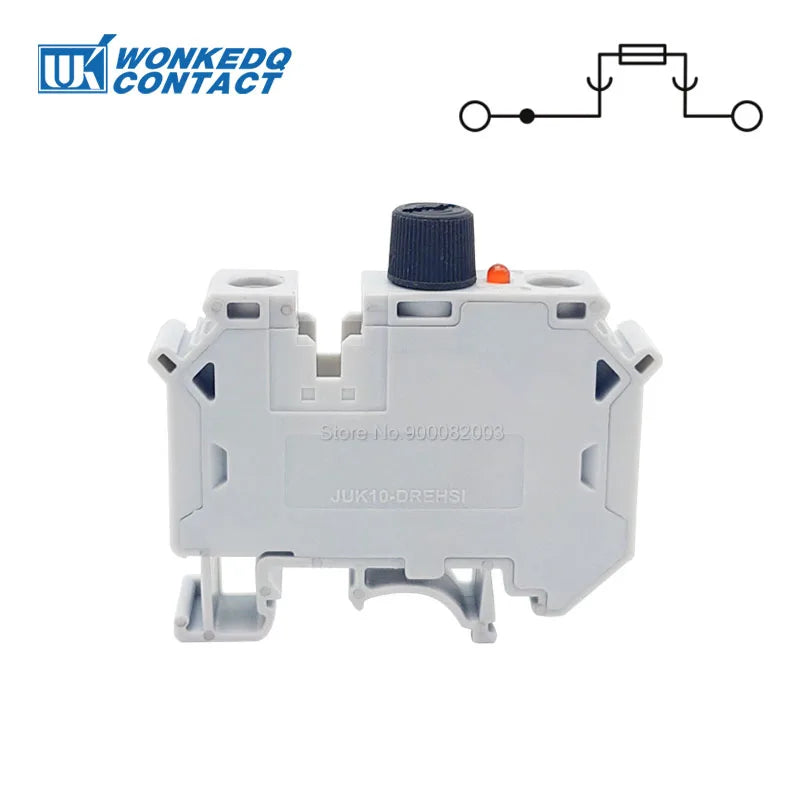

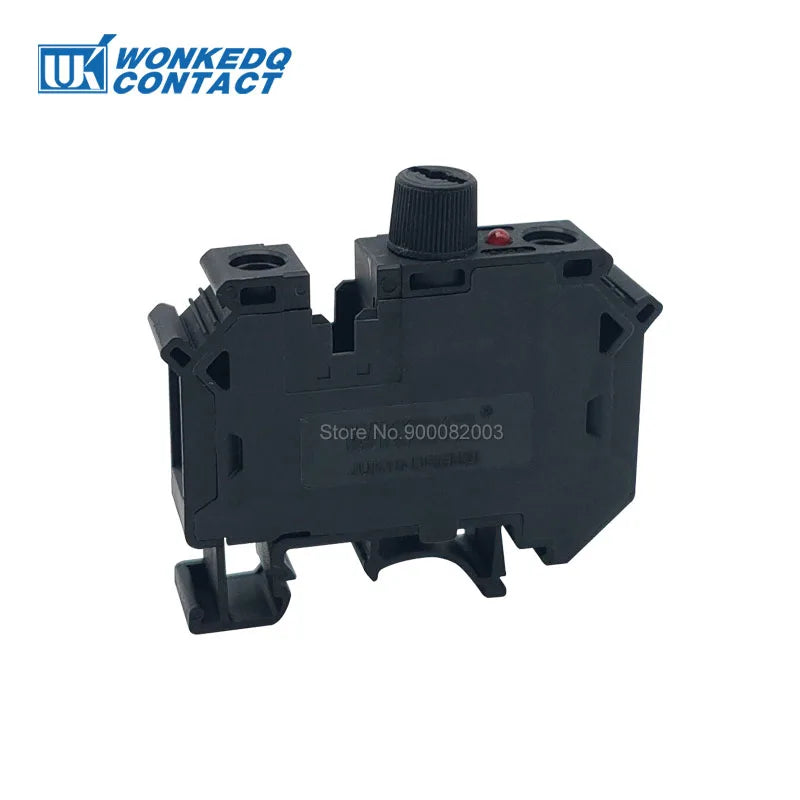

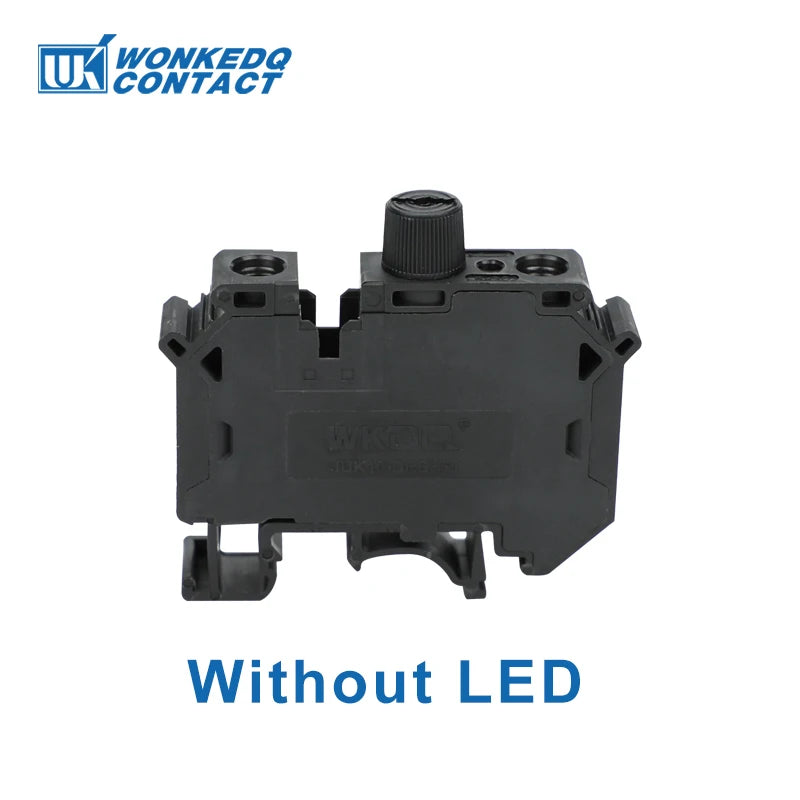

5Pcs UK10-DREHSI Electrical Connector 24V/220V LED 1A/2A/4A/6A/10A Fuse UK10 Screw Cap Din Rail Terminal Block UK 10-DREHSILED
Black-With 24V LED / With Fuse 1A
$44.36
Sale price
$44.36
Regular price
$0.00
Skip to product information
5Pcs UK10-DREHSI Electrical Connector 24V/220V LED 1A/2A/4A/6A/10A Fuse UK10 Screw Cap Din Rail Terminal Block UK 10-DREHSILED
$44.36
Sale price
$44.36
Regular price
$0.00
Description
SPECIFICATIONS
Application: Distribution Cabinet/panel
Brand Name: WONKEDQ
Certification: CE,RoHS
Connection Method: Screw
Cross section soft cable: 0.5-16 mm2
Cross section solid cable: 0.5-16 mm2
Current: 10A
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: UK10-DREHSI/UK10-DREHSILED

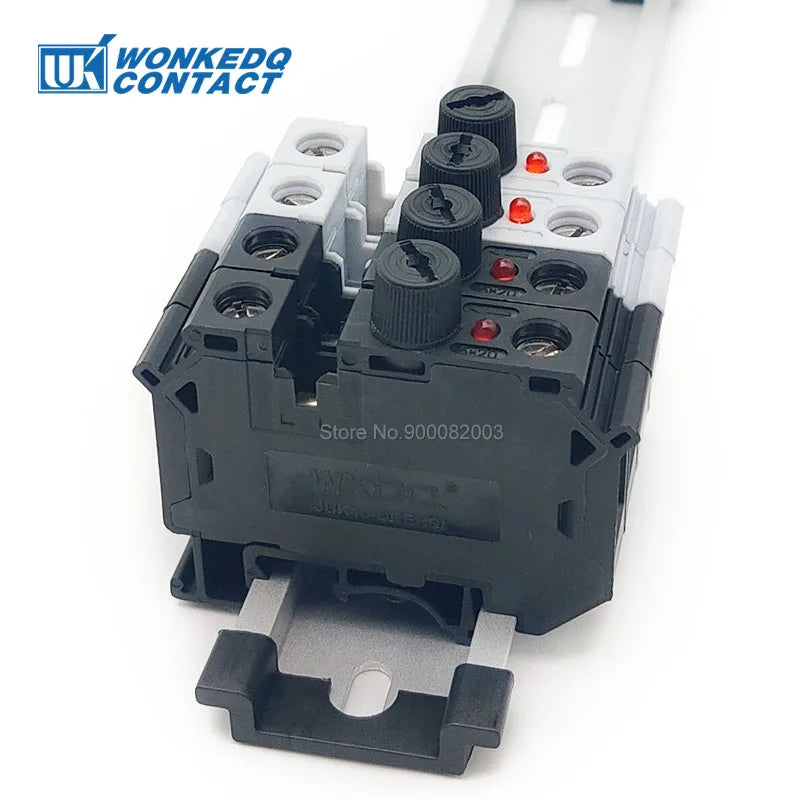

Mount Type: Din Rail
Origin: Mainland China

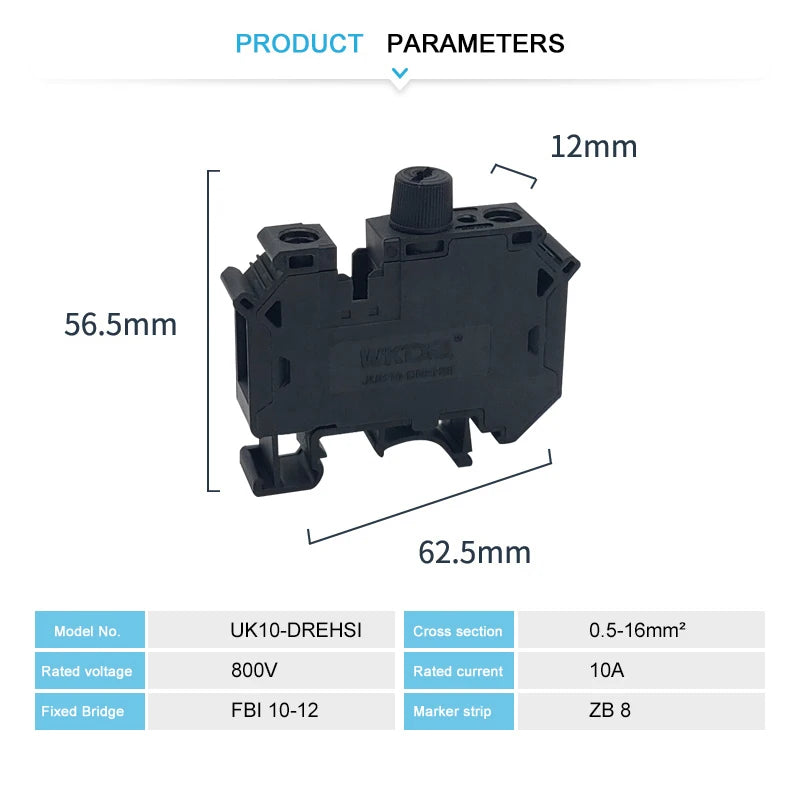

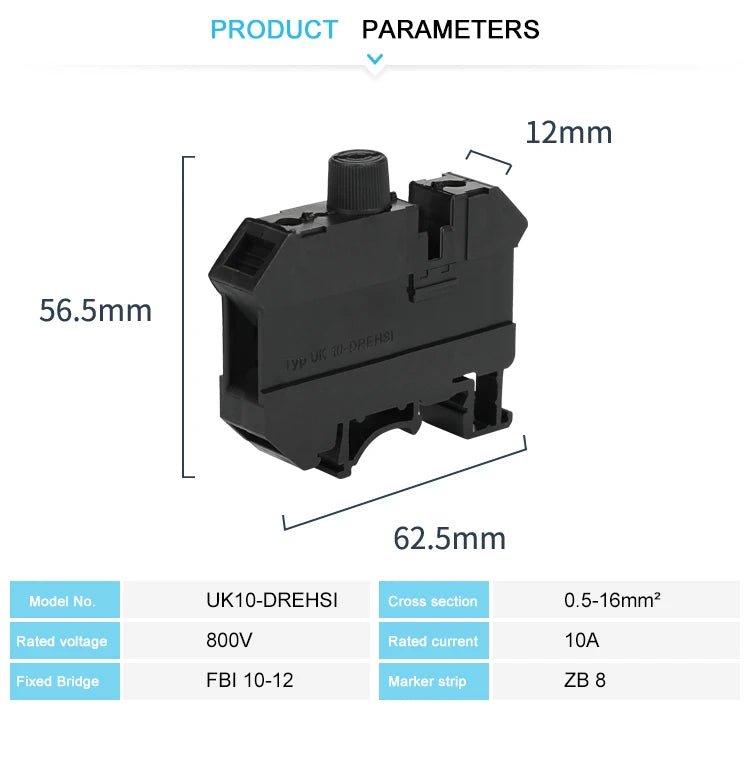

Size L/H/W: 62.5/56.5/12mm
Type: Screw Terminal
Usage: Electrical Wiring
Voltage: 800V
is_customized: Yes
DESCRIPTION
Accessories (· Click the pictures)
|
|
|

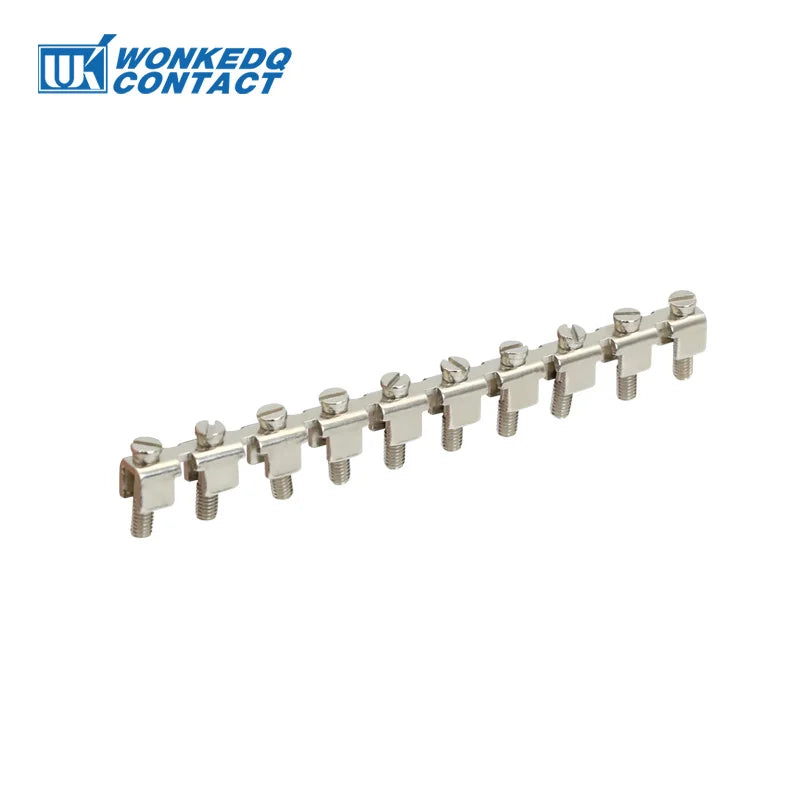

Fixed Bridge FBI 10-12 |
Marker Strip ZB 8 |
TECHNICAL PARAMETERS
Type No. |
Details |
Accessories |
UK 10-DREHSI |
800V/10A
0.5-16mm²/0.5-16mm²
L62.5/H56.5/W12mm
|
Fixed bridge: FBI 10-12 |
Marker strip: | ||
Fuse: 1A 2A 4A 6A 10A, etc |
Model Number |
UK 5-HESI, Fuse terminal block |
Length/Height/Wide (mm) |
L62.5/H56.5/W12 |
Connection method |
Screw connection |
Material |
Nylon PA66 |
Rated Voltage/Current |
800V/10A |
Cross section, solid/soft Cable |
0.5-16mm²/0.5-16mm² |
Conductor Size |
24-6 AWG |
Mounting Type |
NS 35/7.5 |
Standard |
IEC 60947-7-1 |
LOGO |
Customized logo are supported |
Certification |
CE/RoHS/CQC/ISO 9001 |
