SPECIFICATIONS

Application: Electrical Panel, DIN Rail Wiring

Brand Name: ZSDZFYLLK

Certification: CE

Choice: yes

Connection Type: Screw Clamp

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Model Number: UKK5

Mounting Type: NS35 / TS35 DIN Rail Compatible

Number of Tiers / Levels: 2 Levels / Double Deck

Origin: Mainland China

Type: Screw Terminal,Double-Level Terminal Block

Wire Gauge Range: 0.2 - 4 mm² (AWG: 24 - 12)

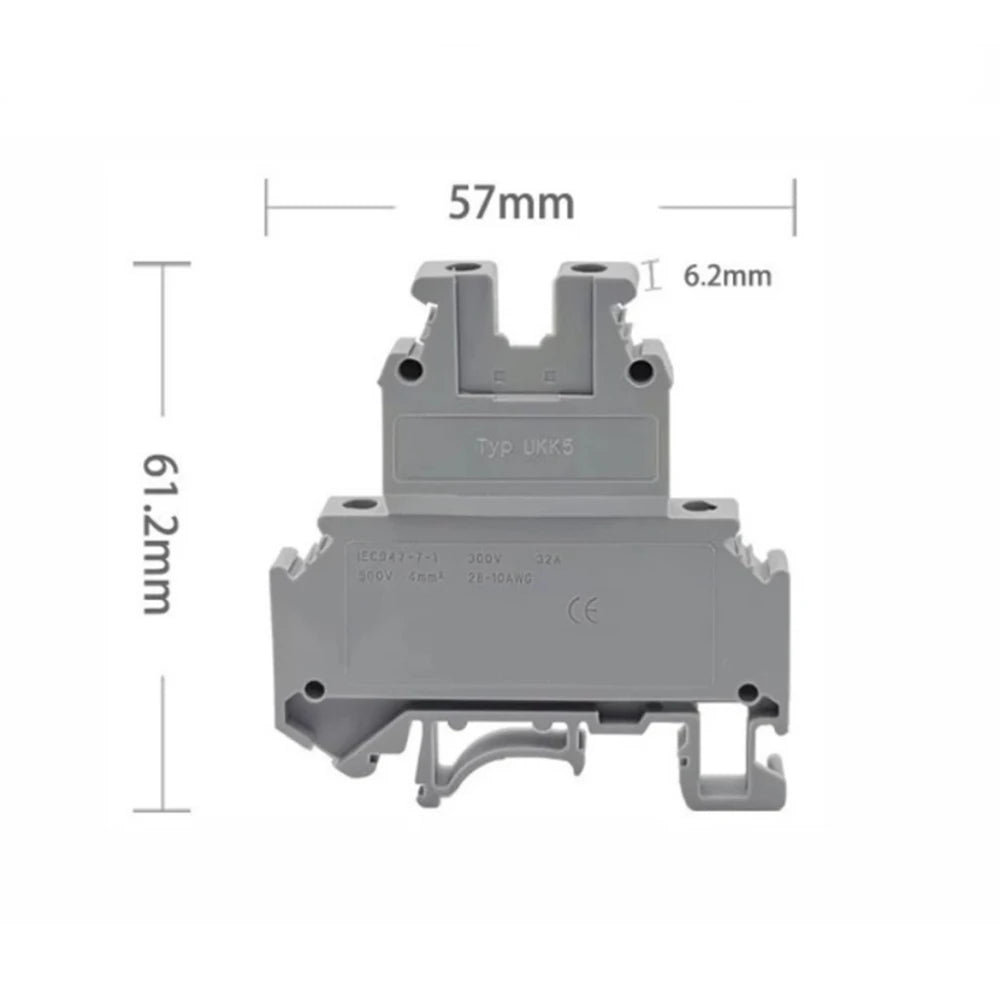

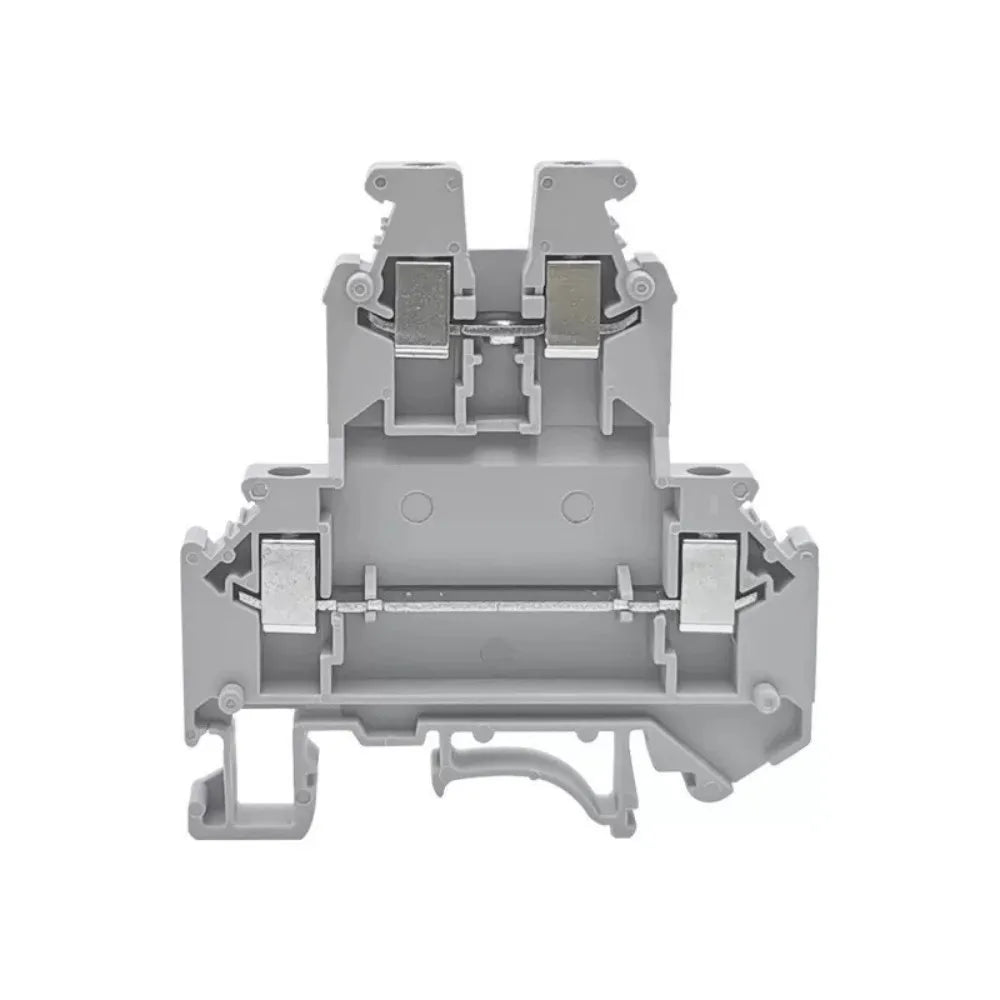

• Model: UKK5 Double-Level Terminal Block

• Rated Voltage: 690V / Rated Current: 41A

• Wire Gauge Range: 0.2 - 4 mm² (AWG 24-12)

• Mounting Type: Standard NS 35 / TS 35 DIN Rail Compatible

• Material: Flame-retardant PA66 housing with tin-plated copper alloy conductors

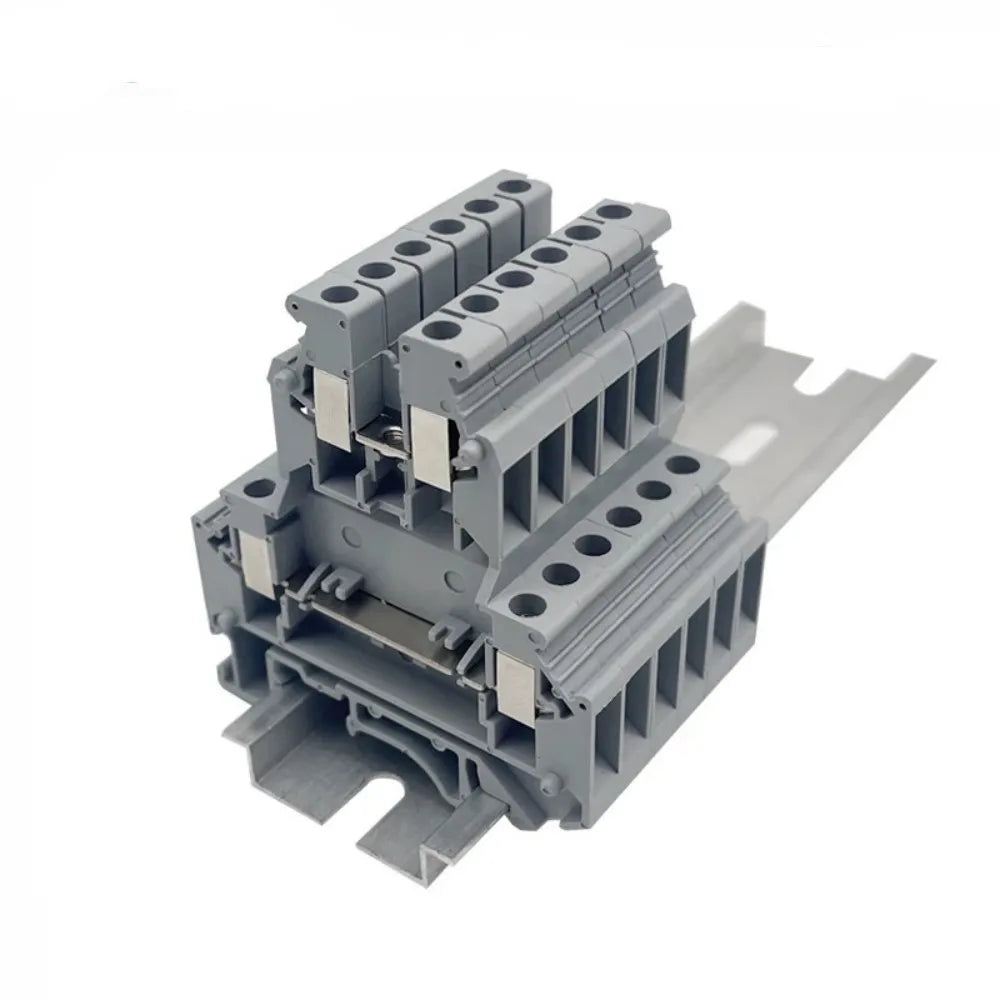

1. Snap onto Rail: Firmly press the bottom of the terminal block onto a standard 35mm DIN rail until it clicks securely into place.

2. Strip Wire: Strip approximately 7-8mm of insulation from the end of your electrical wire.

3. Connect & Tighten:Insert the stripped wire fully into the clamping hole and tighten the
   screw using an appropriate screwdriver to ensure a secure,
   low-resistance connection.

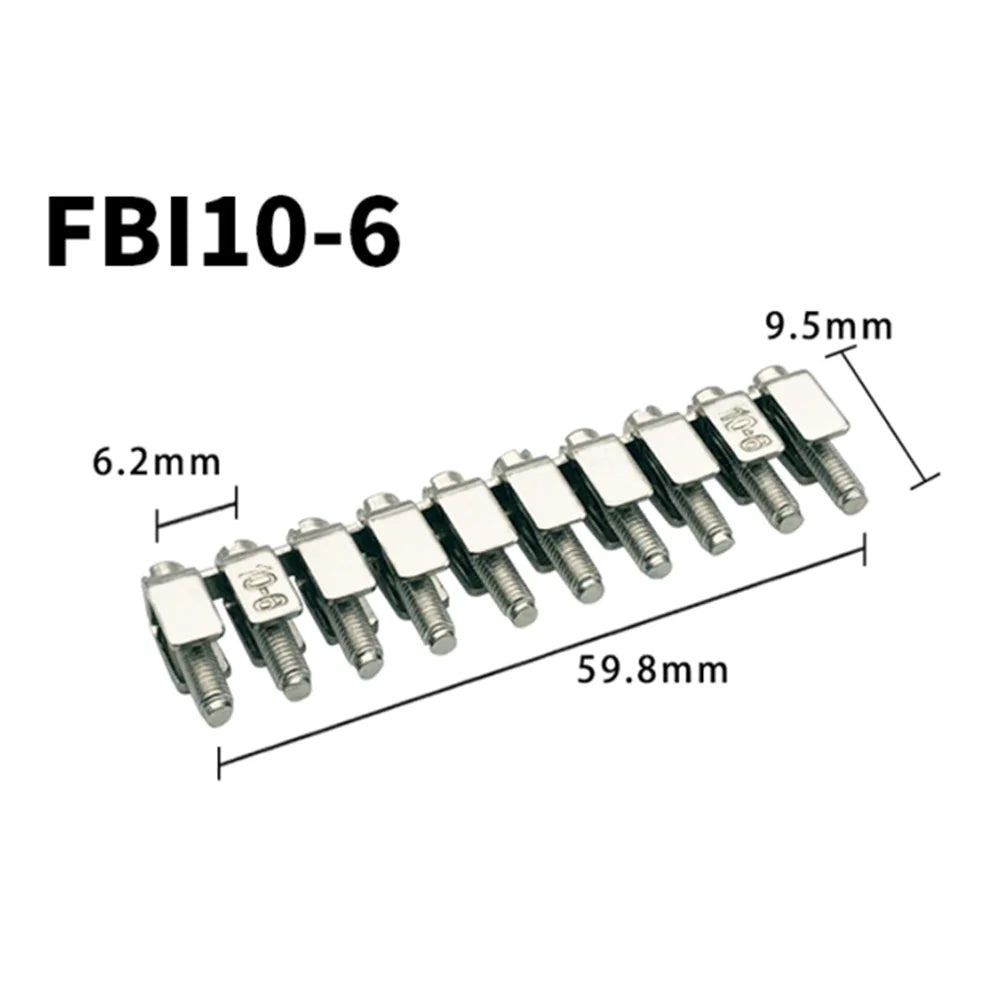

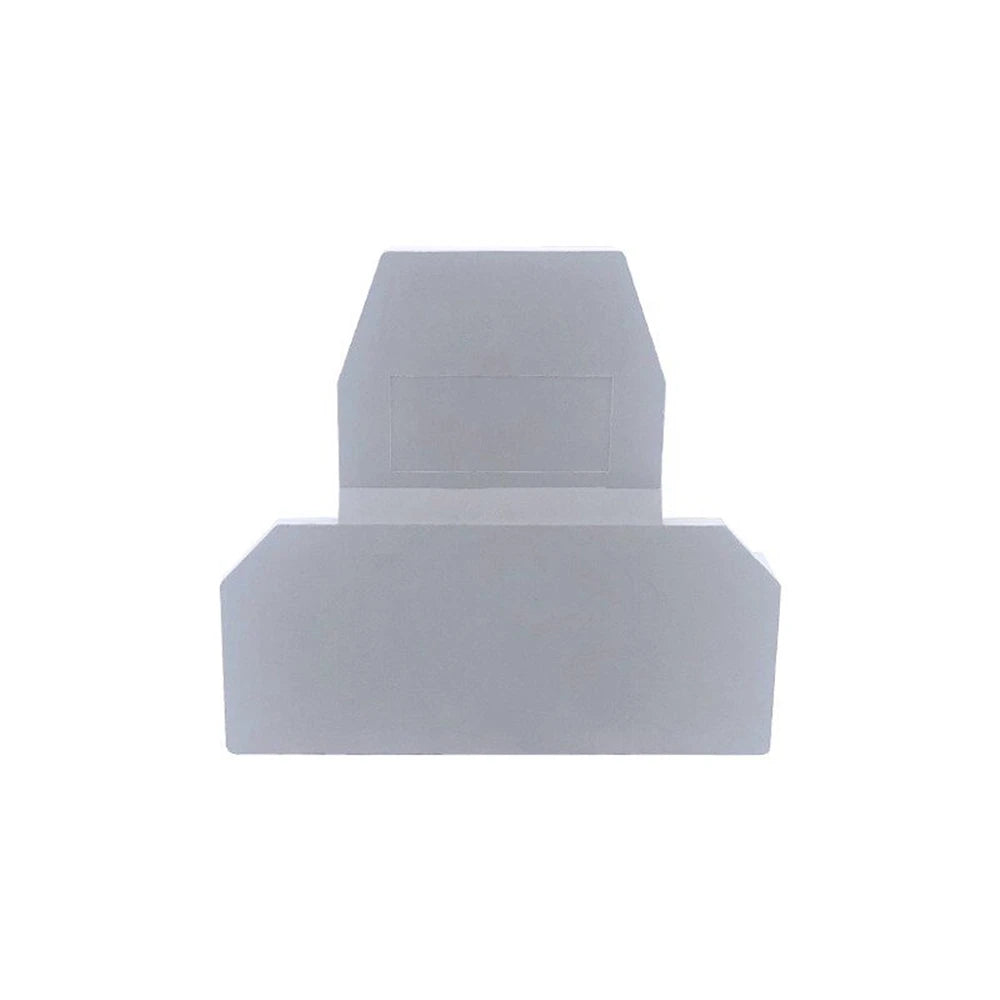

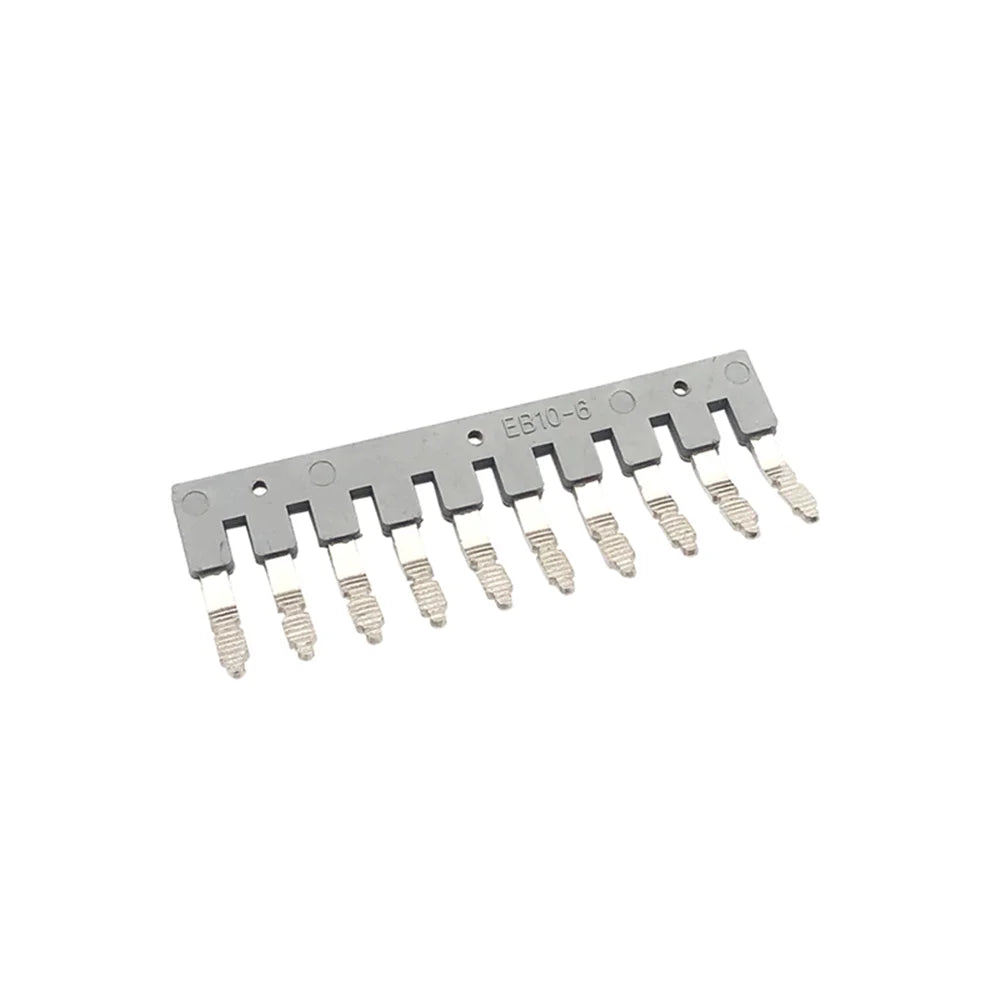

4. Bridge & End Cap (Optional):Use compatible bridging strips for cross-linking multiple terminals,
   and install end covers on both sides of the block for added safety and
   insulation.
