5Pcs USB TYPE-C Conversion Board 2.54MM CC1 CC2 5.1K Pull-down Resistor Connection USB Adapter Pin DIP Female Base Adapter Board
$4.00
Sale price
$4.00
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
Dissipation Power: -
High-concerned chemical: none
Operating Temperature: -
Origin: Mainland China
Quantity: 5
Supply Voltage: -
Type: Relay
is_customized: Yes

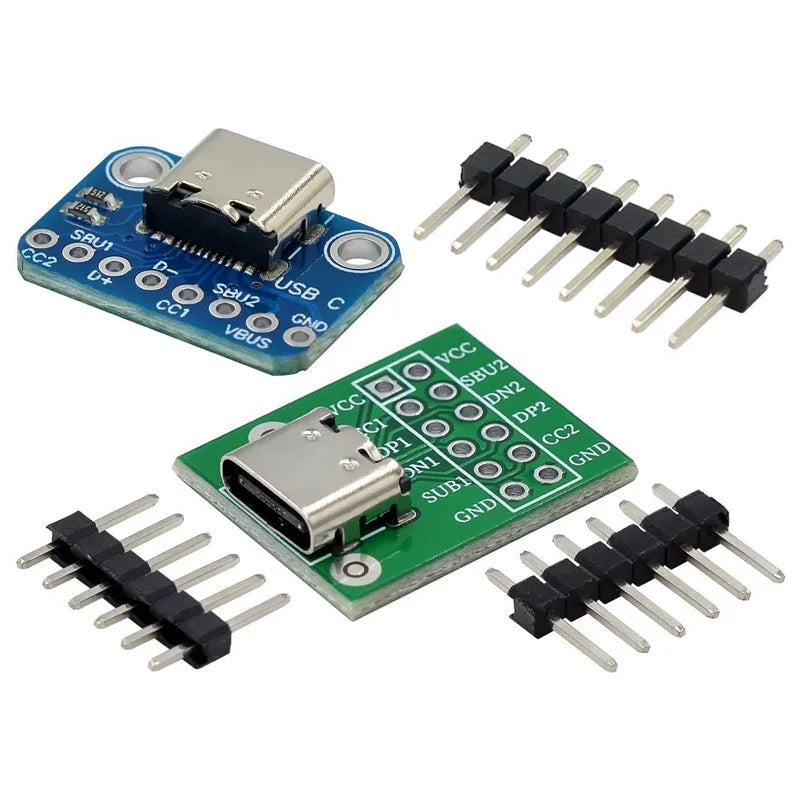

USB TYPE-C Conversion Board 2.54MM CC1 CC2 5.1K Pull-down Resistor Connection USB Adapter Pin DIP Female Base Adapter Board
Features:
1. TYPE-C USB port with pins.
2. High quality FR-4 fiberglass board, red oil tin injection process.
3. With symmetrical reversible connectors, more data pins and high current output capability.
Specifications:

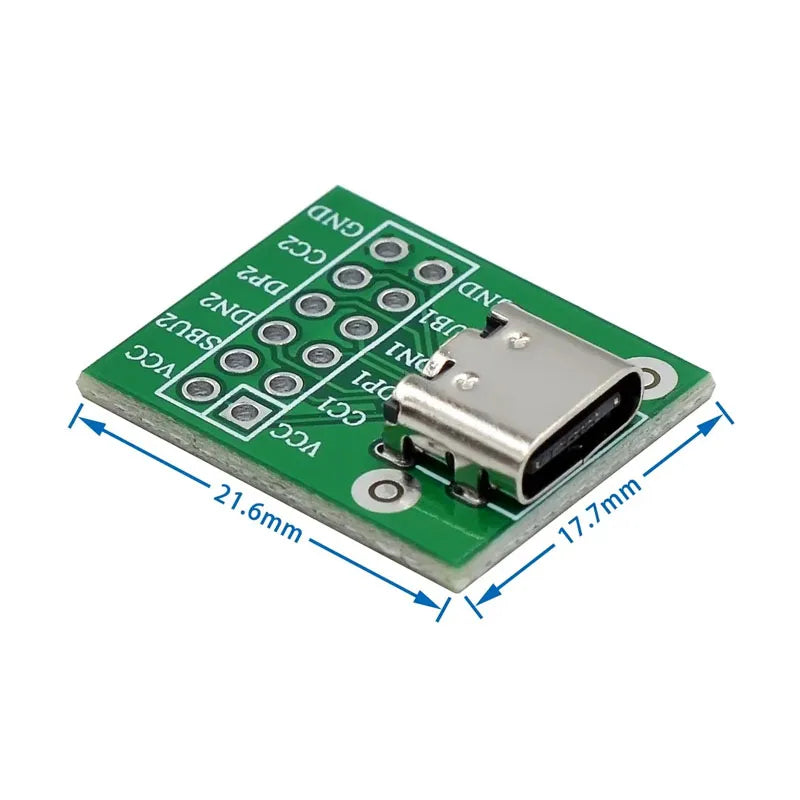

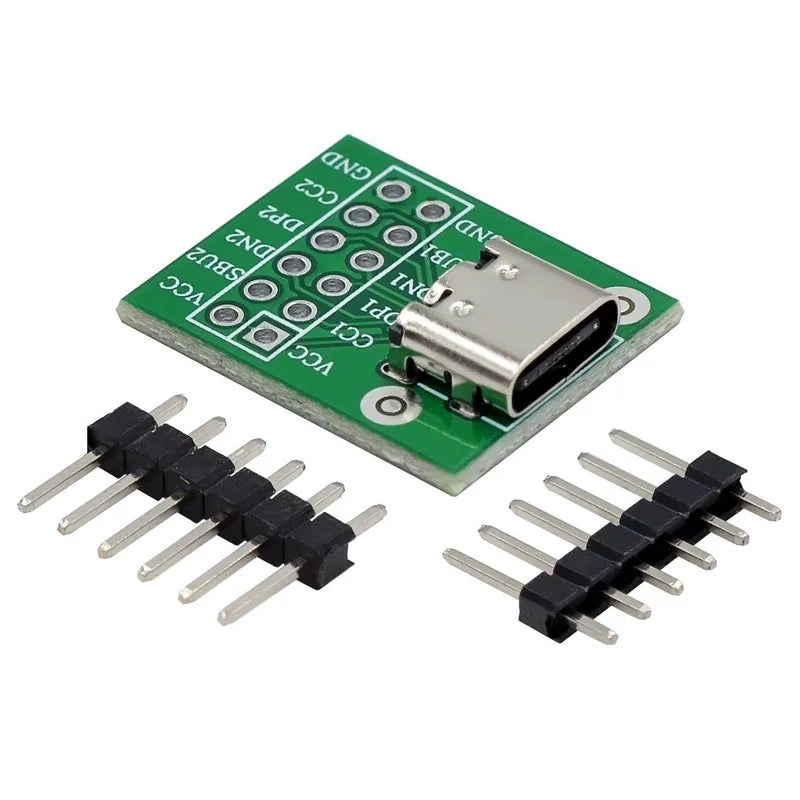

Type: TYPE-C USB Pin (green board)
Size: 22*19*1.6MM

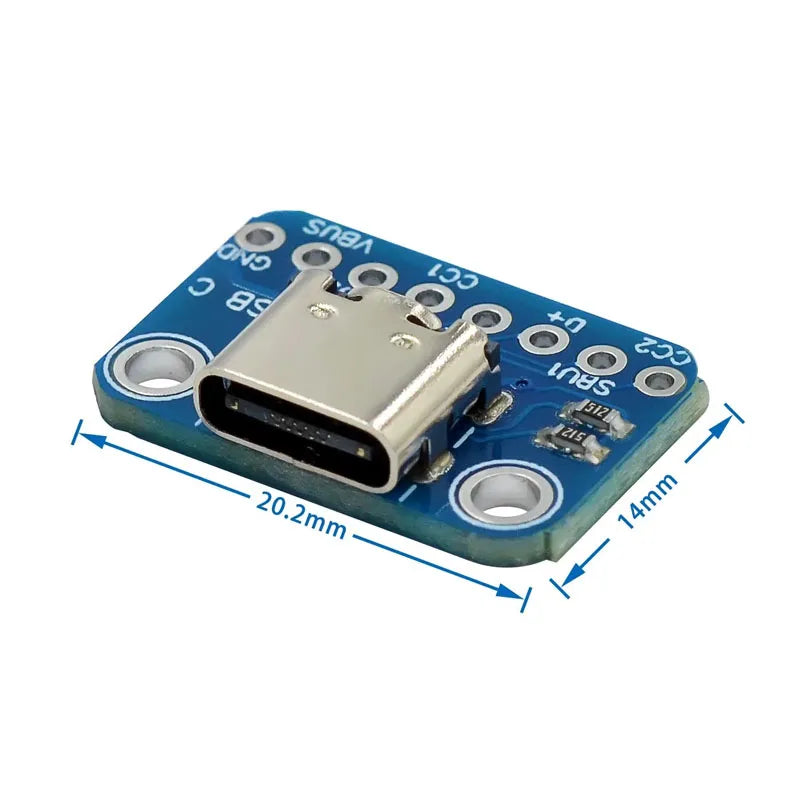

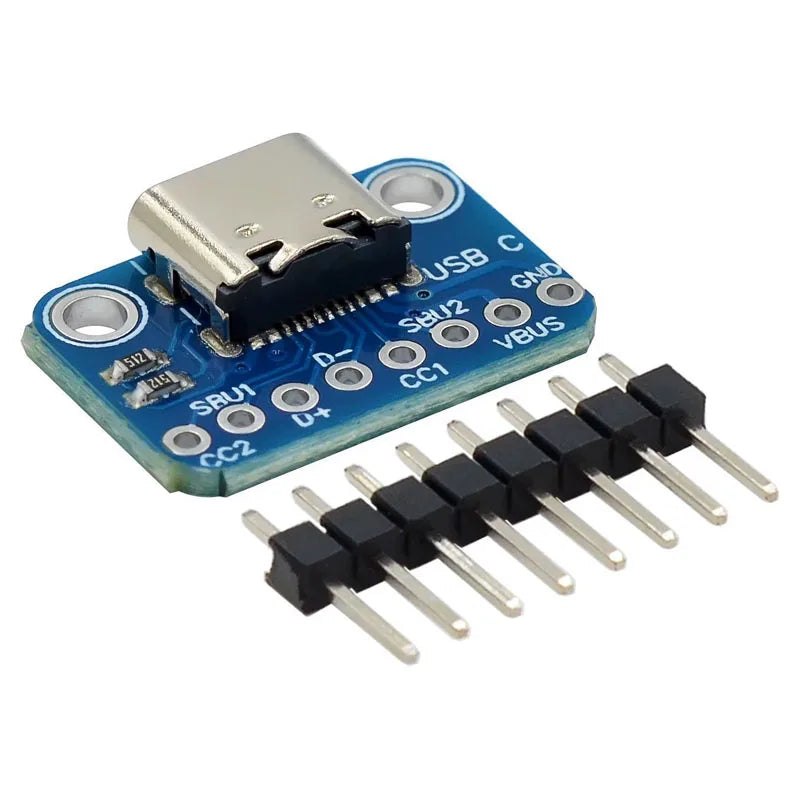

Type: TYPE-C transfer board (Blue board)
Size: 21*15*1.6MM
Hole spacing: 2.54MM*1.6MM
Aperture: 1.0MM
Use: DIP mother-B adapter board
Pin:
VCC: positive terminal of the power supply
SBU1: side band use
SBU2: side band use
DP1: USB 2.0 differential signal, position1/ positive
DP2: USB 2.0 differential signal, position2/ positive
CC1: Configuration channel for identification and control
CC2: Configuration channel for identification and control
DN1: USB 2.0 differential signal, position1/ negative
DN2: USB 2.0 differential signal, position2/ negative
GND: negative power terminal
