Features

• Automatic Buck & Boost Function: When the input voltage is higher than 15V, the module will automatically step down the voltage to below 7V at high engine speed. Perfect for 12V vehicle electrical systems, effectively solving over-voltage problems.

• Wide Input Voltage Range: DC 5V - 32V

• Wide Adjustable Output Voltage: DC 1.25V - 35V

• With automatic buck & boost function, the output can be stabilized at 12V even if the input voltage is 5V, 12V, 24V or 32V.

• Built-in high-performance 4A MOSFET switch, conversion efficiency up to 94% (higher than LM2577 whose max current is 3A).

• High switching frequency 400KHz, providing lower ripple (LM2577 only 50KHz).

• Stable performance, small size, easy to install and use.

Applications

• Car power regulator

• Solar power system

• Wind power generation

• Other equipment with unstable input voltage

Specifications

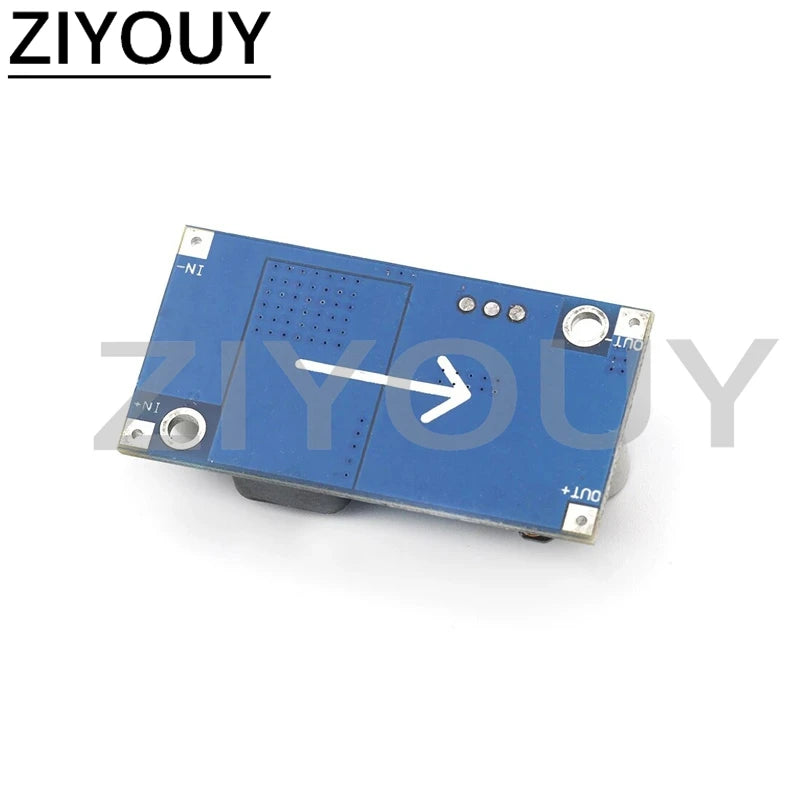

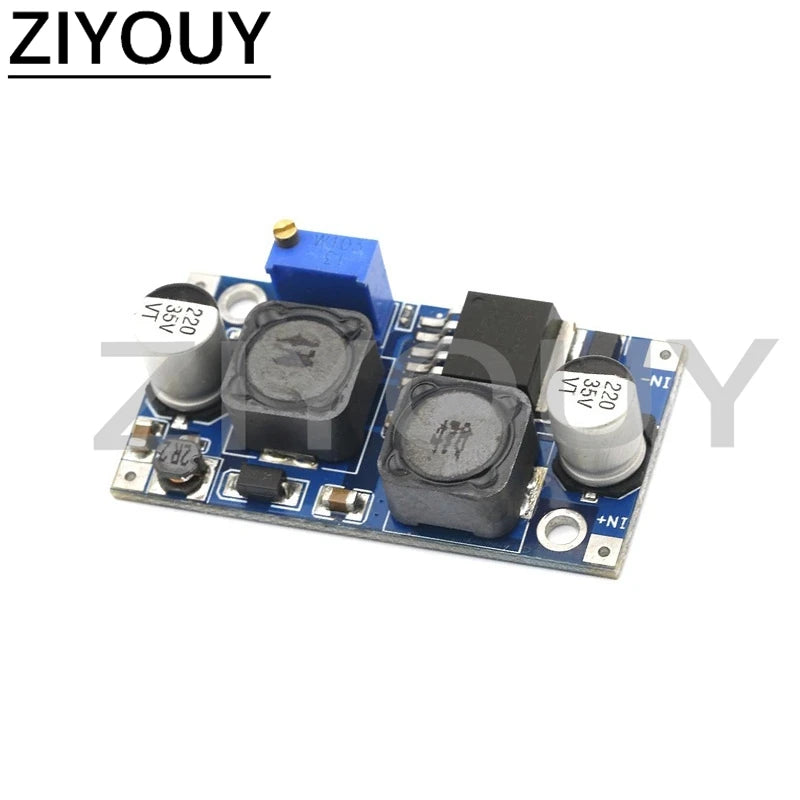

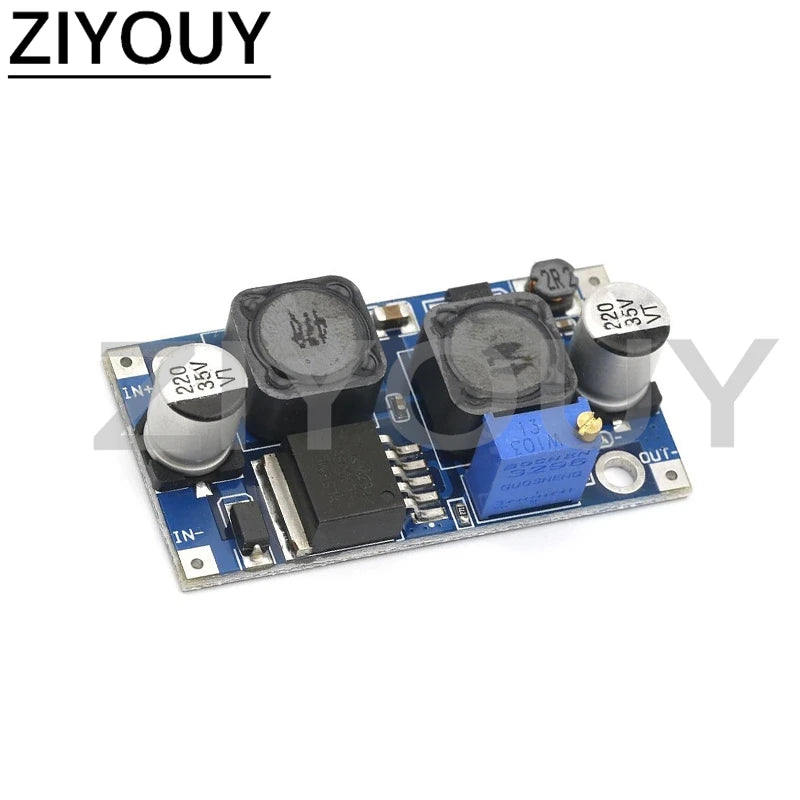

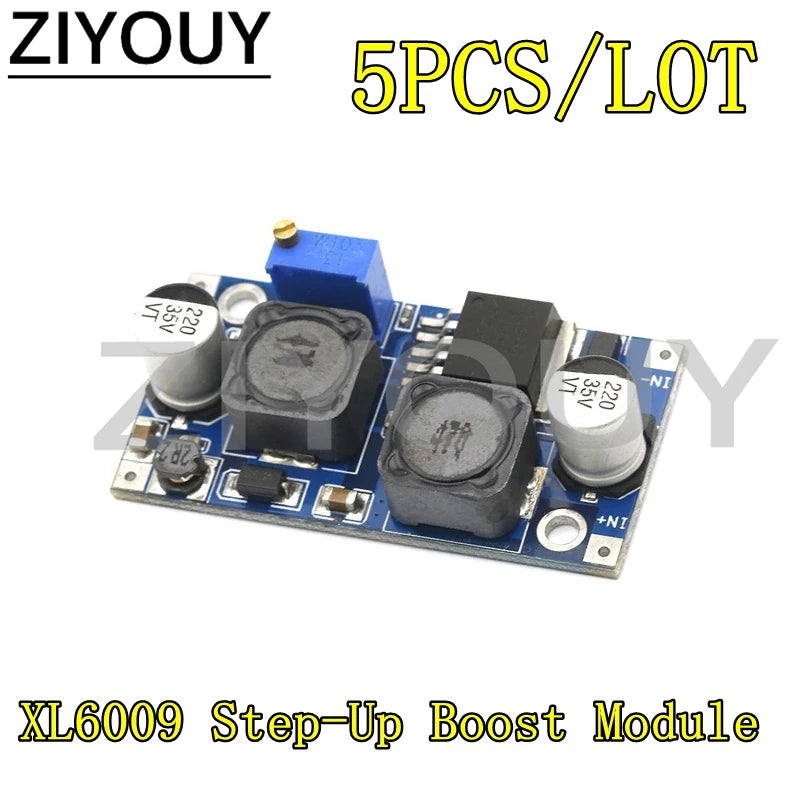

• Model: DSN6000AUD Automatic Buck Boost Module

• Module Type: Non-isolated Boost (BOOST)

• Rectification: Non-synchronous Rectification

• Input Voltage: 3.8V - 32V

• Output Voltage: 1.25V - 35V (adjustable)

• Input Current: 3A (max)

• No-load Current: 18mA (5V input, 8V output)

• Conversion Efficiency: up to 94%

• Switching Frequency: 400KHz

• Output Ripple: 50mV

• Load Regulation: ±0.5%

• Voltage Regulation: ±0.5%

• Working Temperature: -40℃ to +85℃

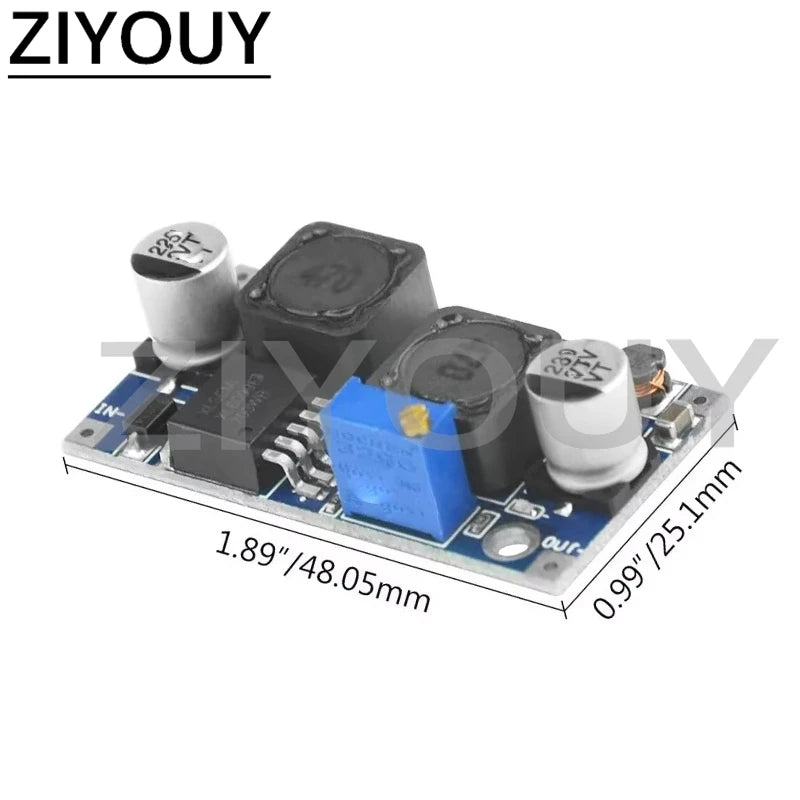

• Size: 48mm * 25mm * 14mm (LWH)
