SPECIFICATIONS

Brand Name: NONE

Certification: NONE,RoHS

Current / Phase: 28BYJ-48 Stepper Motor

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature 1: DC 5V 12V 28BYJ-48 Stepper Motor

Feature 2: stepper motor

Feature 3: stepper motor

Feature 4: forarduino

Feature 5: Step by step engine

Feature 6: 28byj-48

Feature 7: arduino

Feature 8: 28byj 48 12v set

High-concerned chemical: none

Holding Torque: 300

Model Number: ULN2003 Driver Board Module+28BYJ-48 5V/12V Stepper Motor

Origin: Mainland China

Phase: 4

Step Angle(degrees): 5.625

Type: HYBRID

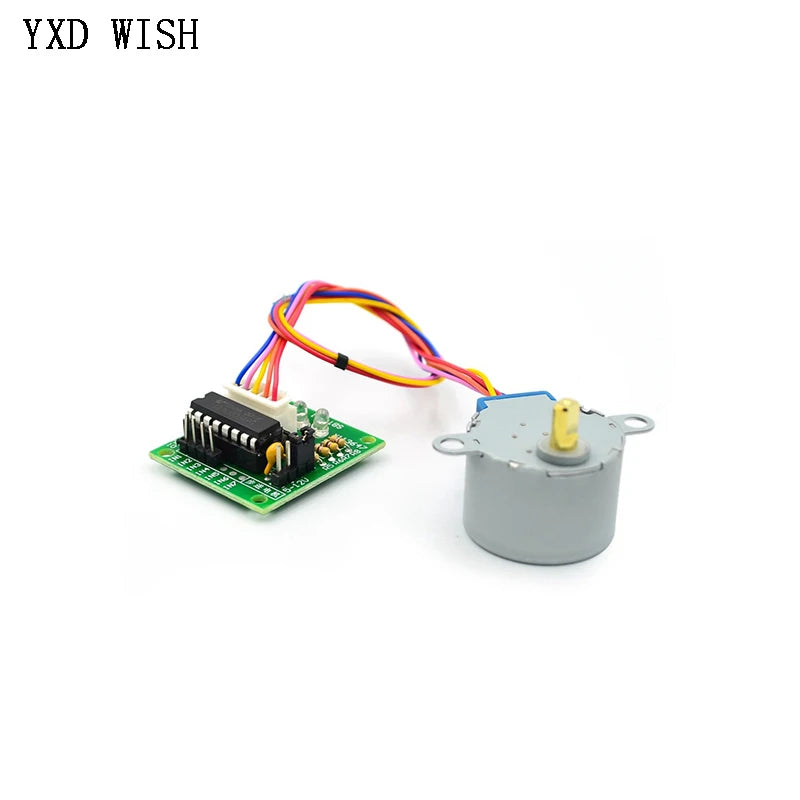

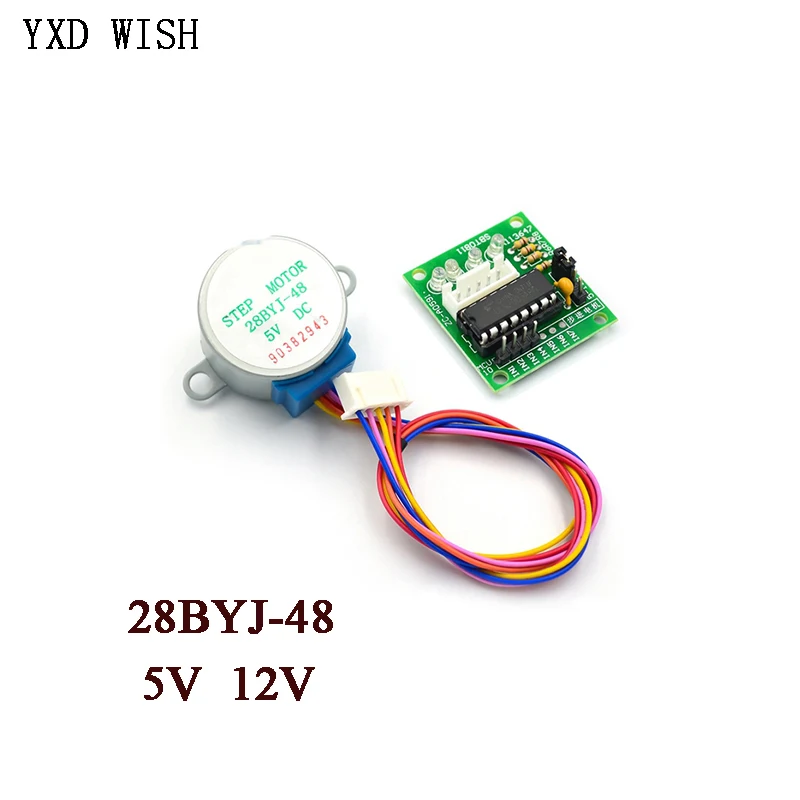

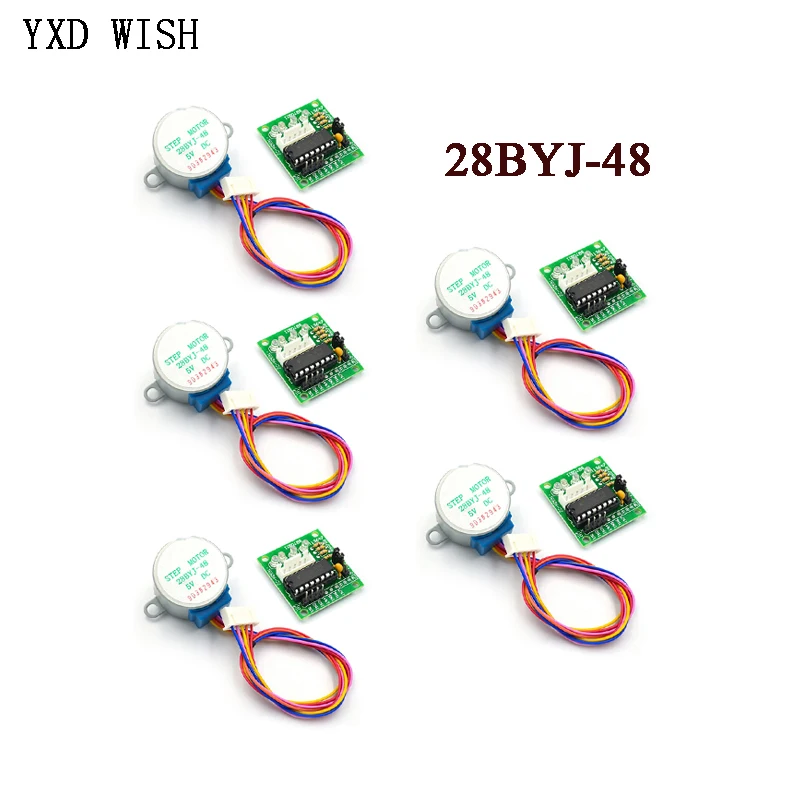

5Set 28BYJ-48 5V 12V 4 Phase DC Gear Stepper Motor + ULN2003 Driver Board For arduino  28BYJ Reduction Stepper Motor DIY Kit

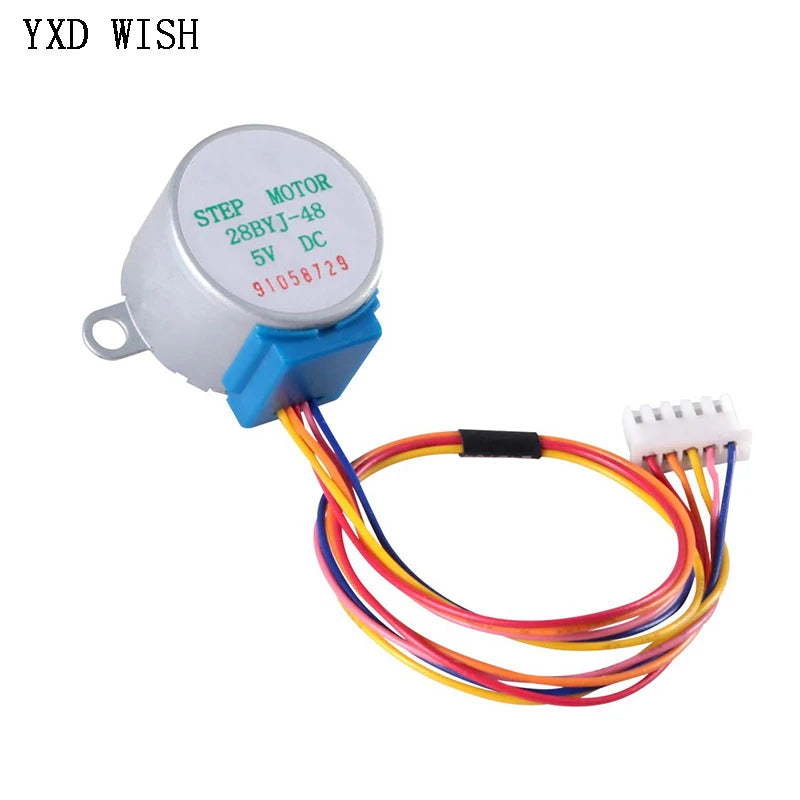

28BYJ-48 Stepper Motor

Description:
Gear Stepper Motor DC 5V 4 Phase Step Motor Reduction Step Motor
Brand new and high quality.
Diameter: 27mm.
Voltage: 5V/12V (for options)
Step angle: 5.625 x 1/64.
Reduction ratio: 1/64.
Color: Silver
5 lines cable 4 phase stepper motor can be driven by ULN2003 chip.
It also can be connected as 2 phase to use.

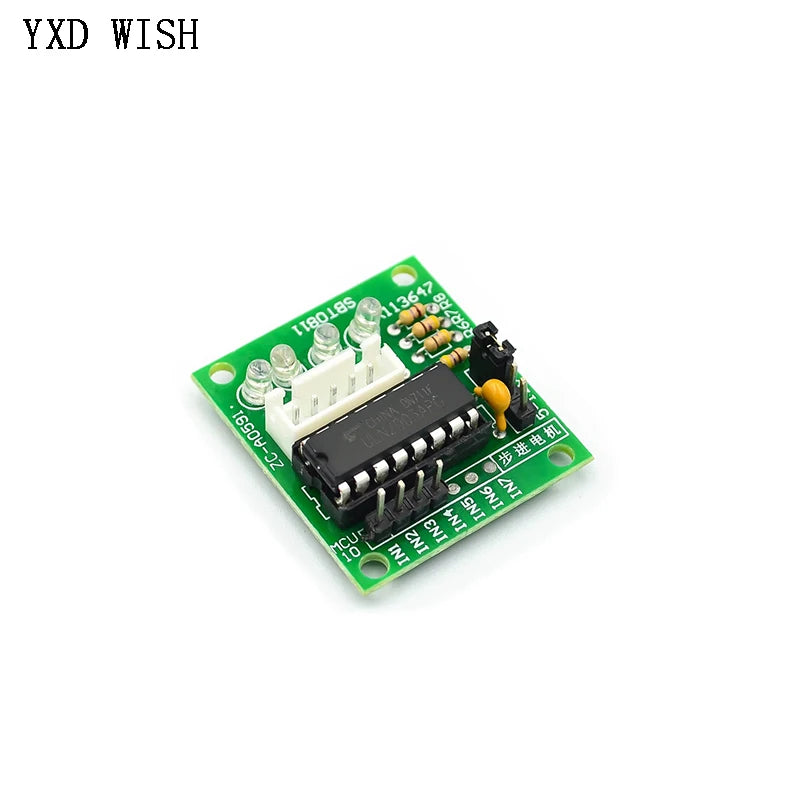

ULN2003 Module:
The ULN2003 high power chip drives the stepper motor
A, B, C, D LEDs indicate the state of the four-phase stepper motor when it is operating
Equipped with stepper motor standard interface, can be directly inserted when used.


Wiring method:
The left of the IN1 ~ IN7 corresponding to the single-chip 7 IO line;
The right side of the white socket pin definition from top to bottom are VCC, A, B, C, D (then stepper motor common line, A phase, B phase, C phase, D phase);

The bottom of the 2-pin pin GND ground, V + then +5 V
Directly into the microcontroller development board or system board can be used, need to draw from the development board 4 IO port, 5V and ground.
The development board / system board and the motor drive board are connected by 6 DuPont lines
Drive Module Board Size:2.8cm x 2.8cm x 2cm

Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
