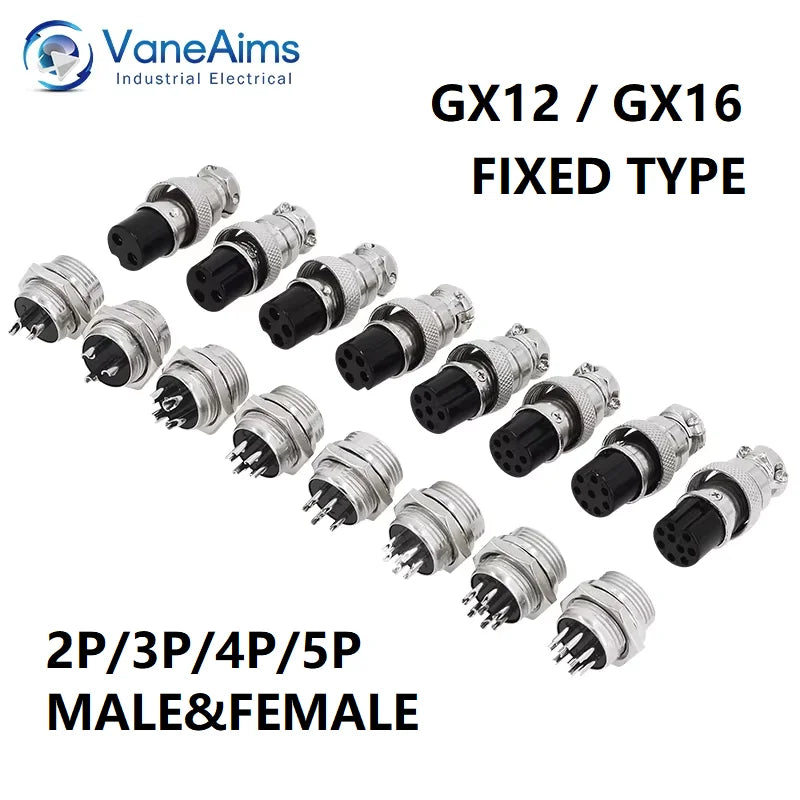

5Set GX12 GX16 Connectors 2pin 3pin 4pin 5pin Aviation Plug Socket Female Male Fixed Fixing Type Electrical Cable Wire Connector
GX16 / 2P / 5 Sets (Male Female)|Fixed Fixing Type
$18.76
Sale price
$18.76
Regular price
$0.00
Skip to product information
Female Plug Bakelite Diameter: 12.5mm
Shell material: Zinc based alloy
GX12 CONNECTOR Parameter
Female Plug Bakelite Diameter: 9mm
Shell material: Zinc based alloy
5Set GX12 GX16 Connectors 2pin 3pin 4pin 5pin Aviation Plug Socket Female Male Fixed Fixing Type Electrical Cable Wire Connector
$18.76
Sale price
$18.76
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: VaneAims
Certification: NONE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: gx12 / gx16
Origin: Mainland China
Shell material: Zinc based alloy
Voltage: 220 V
gx12-Male Socket Thread Diameter: 12mm
gx12-Suitable Cable Diameter: ≤5mm
gx16-Male Socket Thread Diameter: 16mm
gx16-Suitable Cable Diameter: ≤6.5mm
semi_Choice: yes
Selection guide: The installation size of GX16 and GX12 is different, please select the correct model according to the size you need.

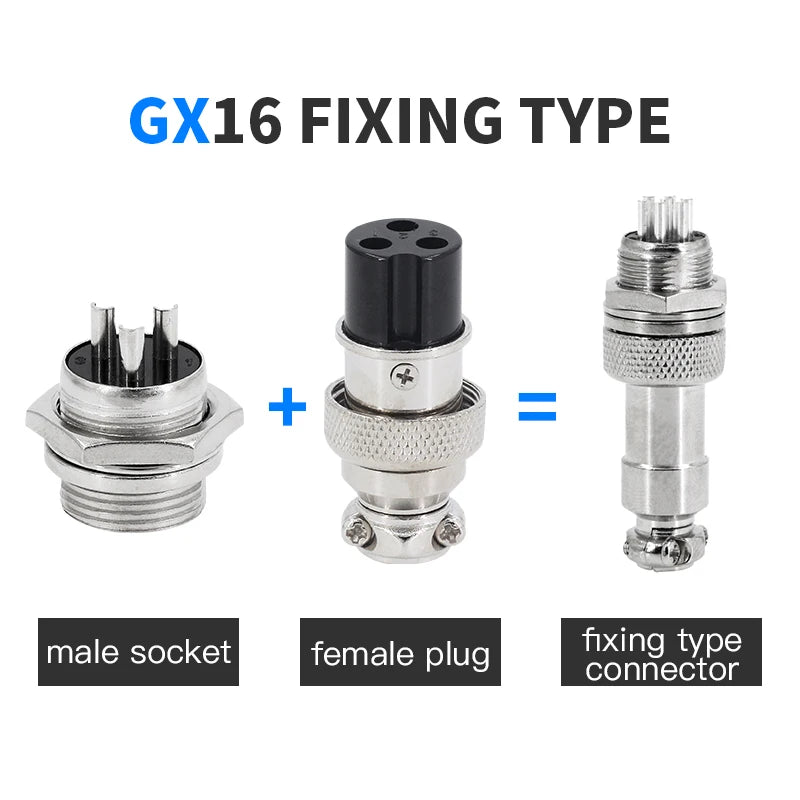

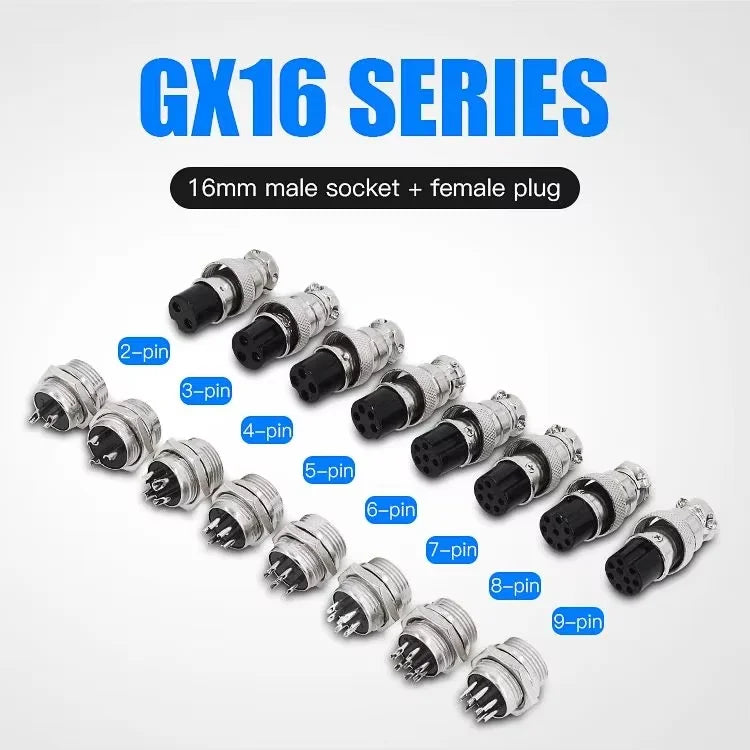

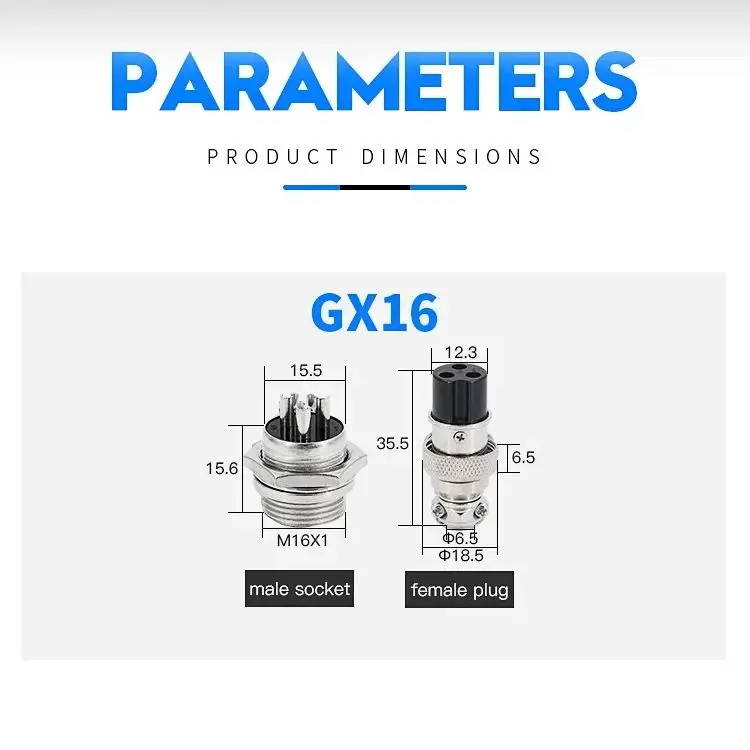

GX16 Connector Parameter
Model Type: GX16
Male Socket Thread Diameter: 16mm
Female Plug Bakelite Diameter: 12.5mm
Pins Number: 2/3/4/5/6/7/8/9/10 pins
Rated voltage: gx16-2p/3p/4p/5p is 400V, gx16-6p/7p/8p/9p/10p is 250V
Rated current: gx16-2p/3p/4p is 7A, gx16-5p/6p/7p/8p/9p is 5A, gx16-10p is 3A.
Shell material: Zinc based alloy
Suitable Cable Diameter: ≤6.5mm

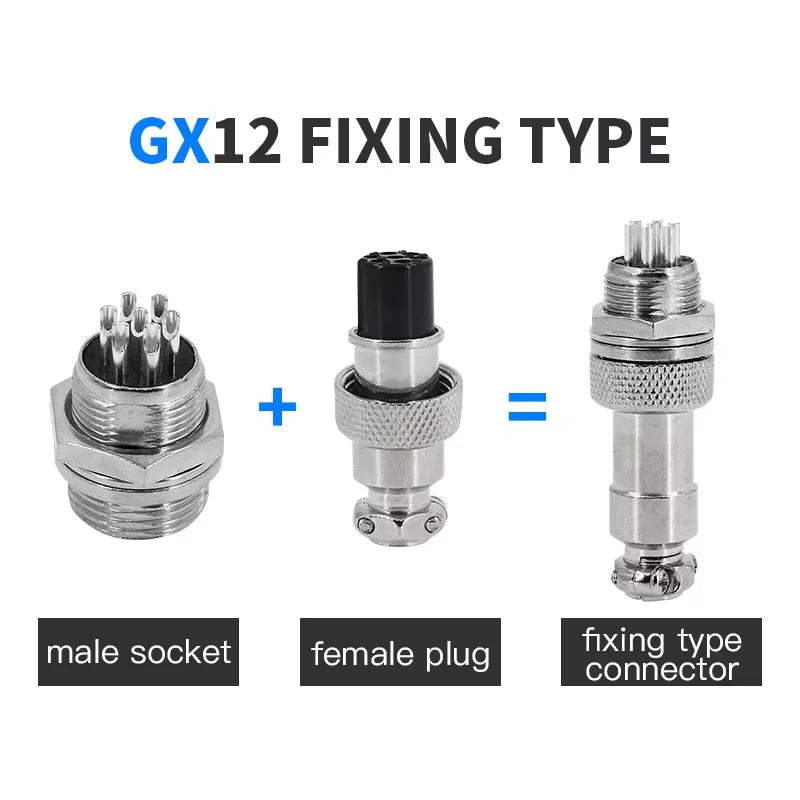

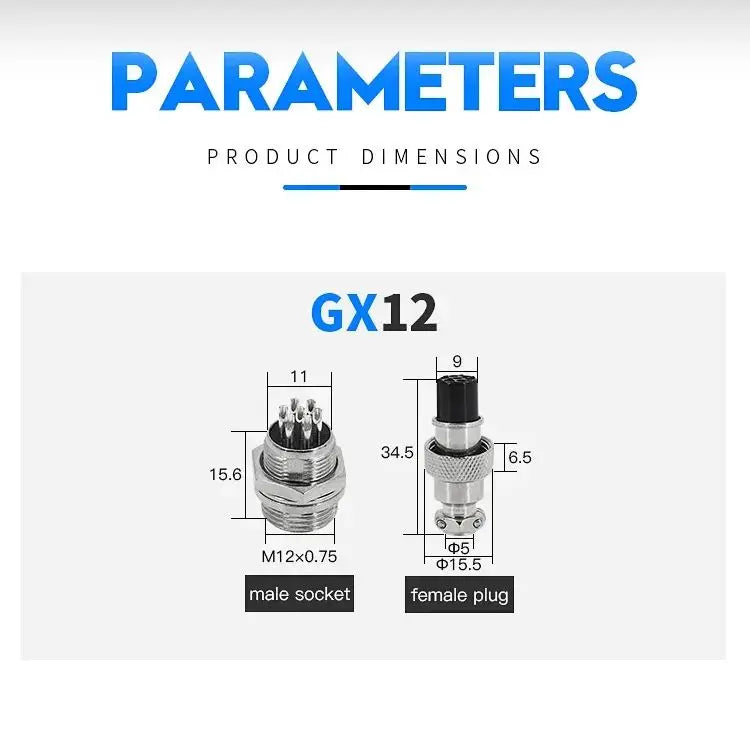

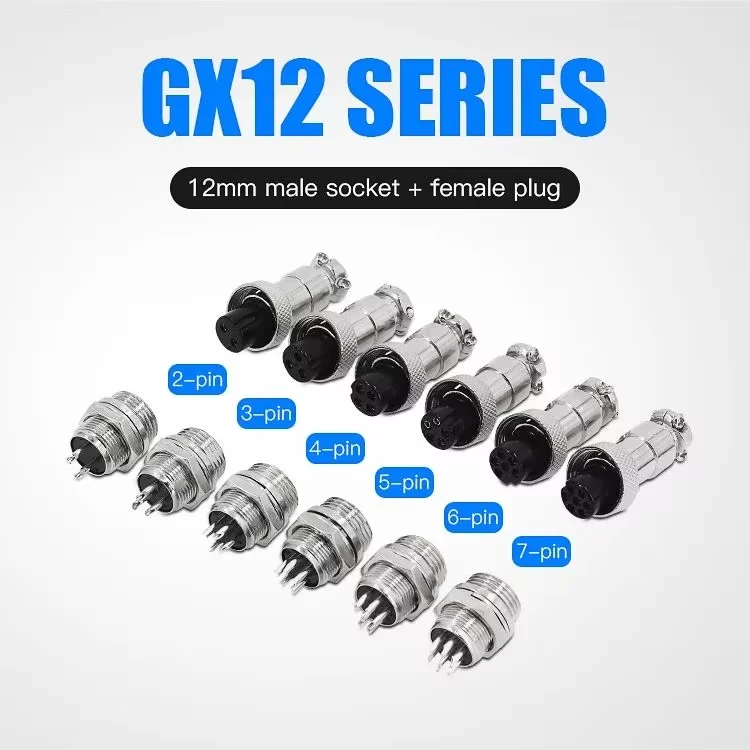

GX12 CONNECTOR Parameter
Model Type: GX12
Male Socket Thread Diameter: 12mm
Female Plug Bakelite Diameter: 9mm
Pins Number: 2/3/4/5/6/7 pins
Rated voltage: 300V
Rated current: 5A
Shell material: Zinc based alloy
Suitable Cable Diameter: ≤5mm
