SPECIFICATIONS

Brand Name: ZSDZFYLLK

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Model Number: 2EDGRKC-3.81mm

Origin: Mainland China

Voltage: 380 V

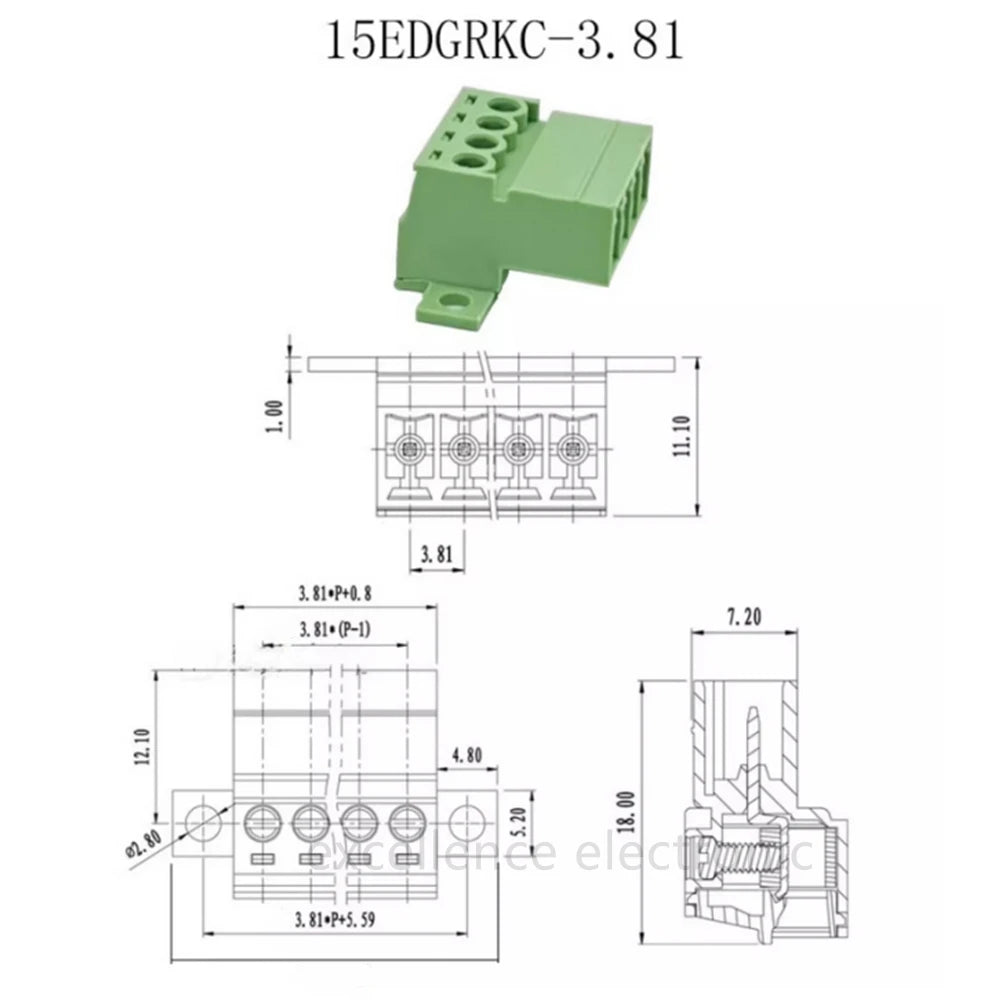

5Sets Solderless Docking Type 15EDG 3.81MM Screw Terminal Block Connector PCB plug-in type 15EDGRKC 3.81 Green Terminal Block

         Pitch: 3.81mm;

1. Rated Value: 8A 300V ;

2. Wire Range: 16-28AWG

3. Withstanding Voltage: AC1500V/1Min;

4. Torque: 0.5 Nm (4.5lb-In)

5. Stripping length: 7-8mm;

6. Temperature range: - 40 ° C ~ + 105 ° C

7. erminal blocks are made from high quality plastic PA66 with high temperature resistant and V0 flame retardant. PCB din rail adapter. Easy to install and detach. Just loosen the screws, insert the stripped cable and tighten the screws.

8. crew terminals can be used for Arduino wire connection. Widely applied in most electronics, communication equipment, instruments, computers, automatic control system, household appliance and warning devices, IC Socket, DIY PCB Universal Board, Power Modules and LCD Modules.
