SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Drive IC

semi_Choice: yes

Product Description

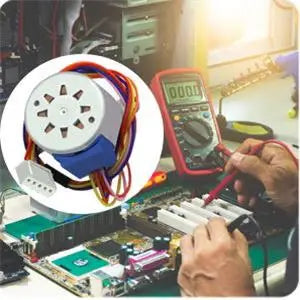

★【Excellent Quality】Stepper motor can converts pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems
★【Powerful Function】A/B/C/D light diodes indicate the working state of the four-phase stepper motor. Equipped with a standard interface of the stepper motor,can directly plugged in and out

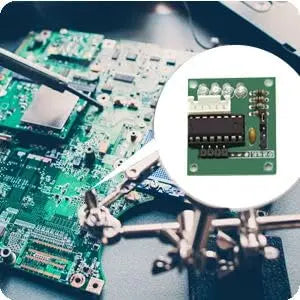

★【Easy to Use】The ULN2003 module is often used to drive a small five-wire four-phase motor, and the LED is the working status indicator of the stepping motor.
★【Widely Used】It is suitable for various platforms such as 51,avr,arm Compatible with Arduino and the needs of robot design and development.

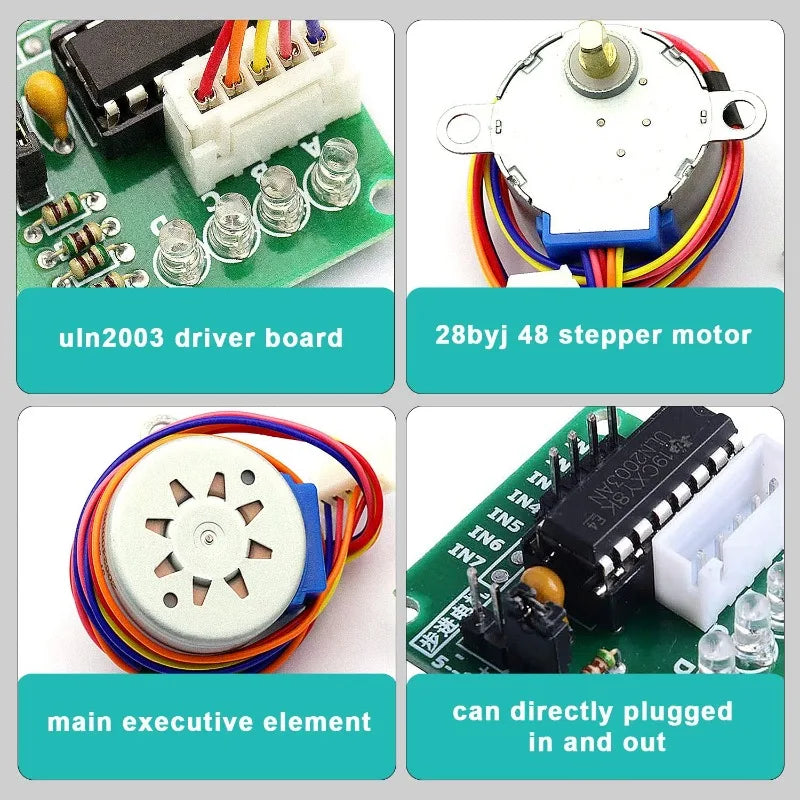

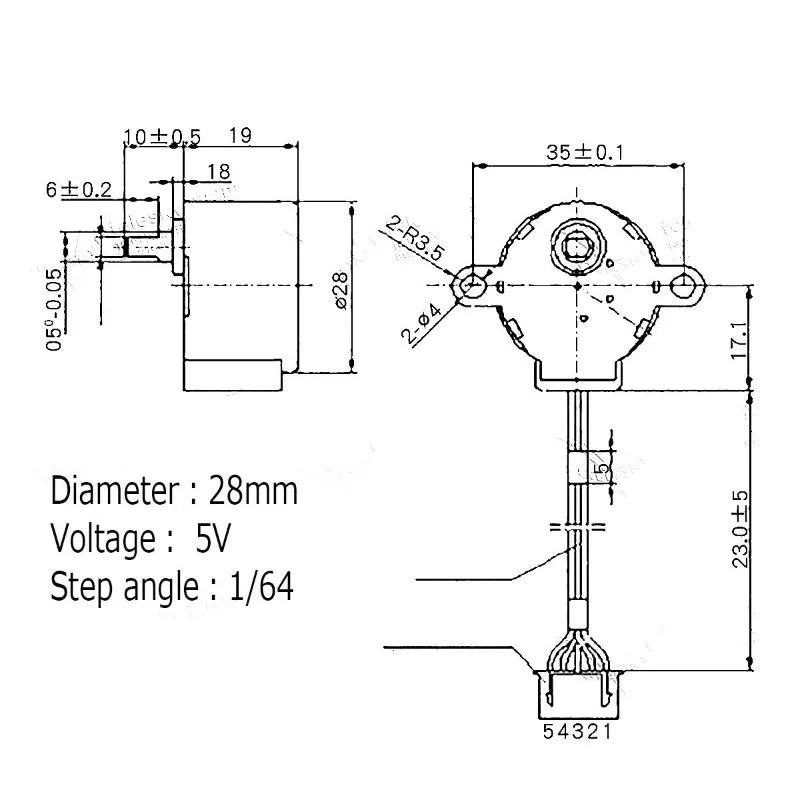

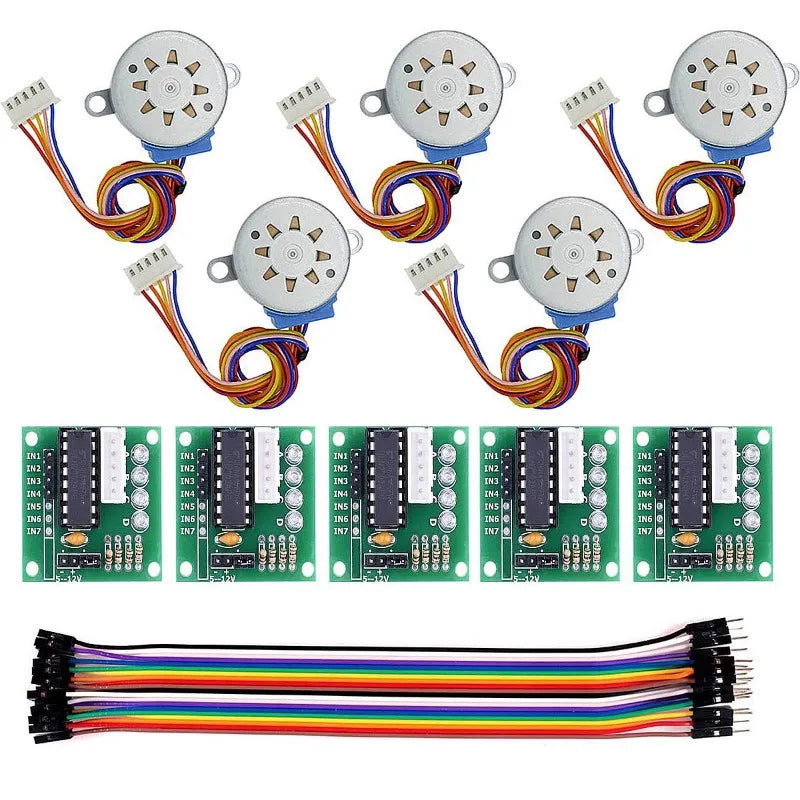

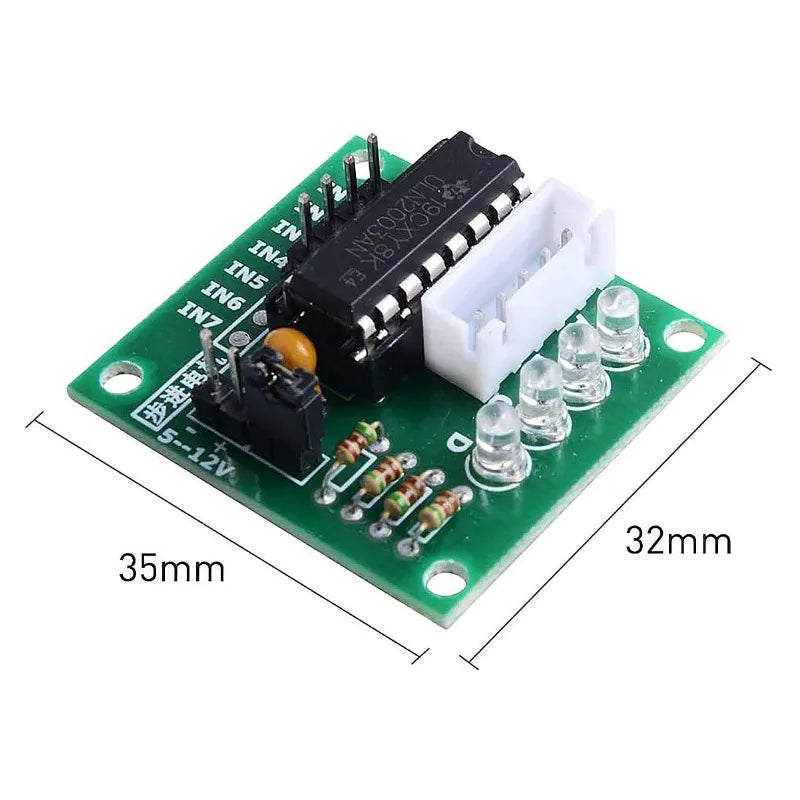

★【Package Include】5Pack Uln2003 Stepper Motor+5Pack Driver Board +20pcs dupont wires.uln2003 driver board Size:1.37*1.18*0.6inch,28byj 48 Stepper Motor diameter: 1.06inch

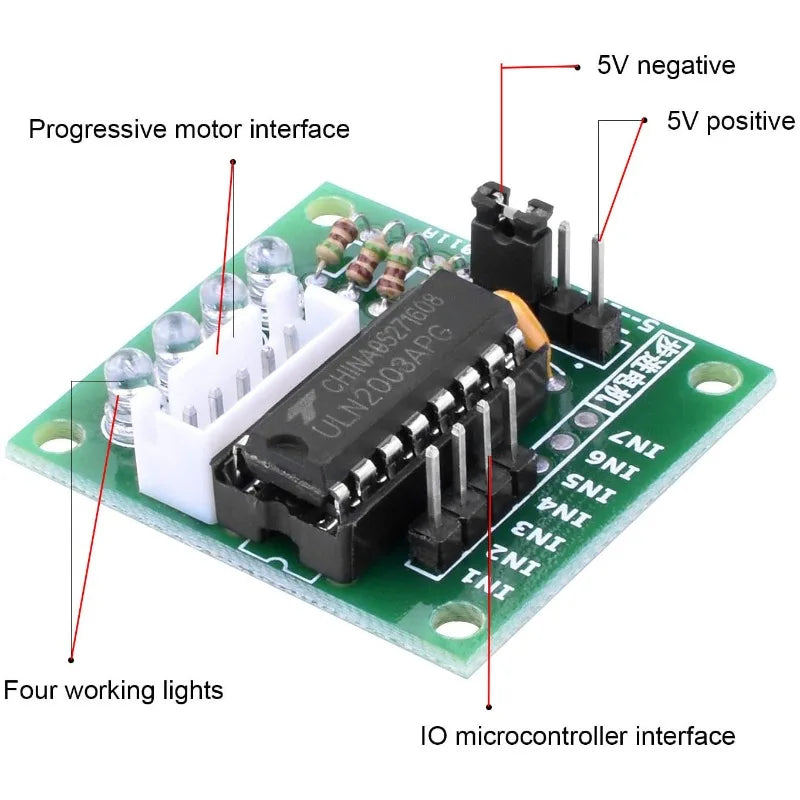

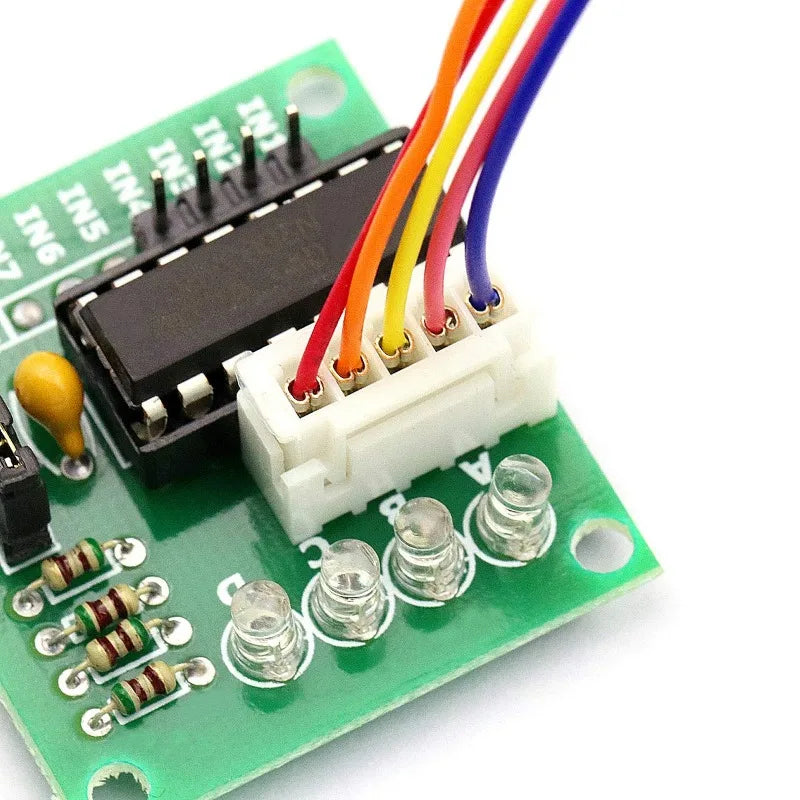

A, B, C, D four-phase LED indicates the status of the stepper motor work.
Stepper motor with a standard interface, when used directly pluggable.
5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board, with convenient use, direct docking.
Reduction ratio: 1/64; Insulation Grade: A;No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz;Pull in Torque: >34.3mN.m(120Hz) ; Detent Torque: >34.3mN.m
Temperature Rise: < 40K(120Hz);Rated Voltage: DC5V 4-phase;Insulation Resistance: >10MΩ (500V)
Dielectric Strength: 600V AC / 1mA / 1s;Step angle: 5.625 x 1/64; DC Resistance: 200Ω±7% (25C)
