5v 1 2 4 6 8 way relay module for arduino 1 2 4 6 8 channel relay module with optocoupler Relay Output In stock
2 channel / China Mainland
$8.96
Sale price
$8.96
Regular price
$0.00
Skip to product information
5v 1 2 4 6 8 way relay module for arduino 1 2 4 6 8 channel relay module with optocoupler Relay Output In stock
$8.96
Sale price
$8.96
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: ICGOICIC
Choice: yes
Condition: New
Dissipation Power: n/a
High-concerned chemical: none
Operating Temperature: n/a
Origin: Mainland China
Package: DIP
Supply Voltage: n/a
Type: Voltage Regulator
is_customized: Yes
semi_Choice: yes
Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 5V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface

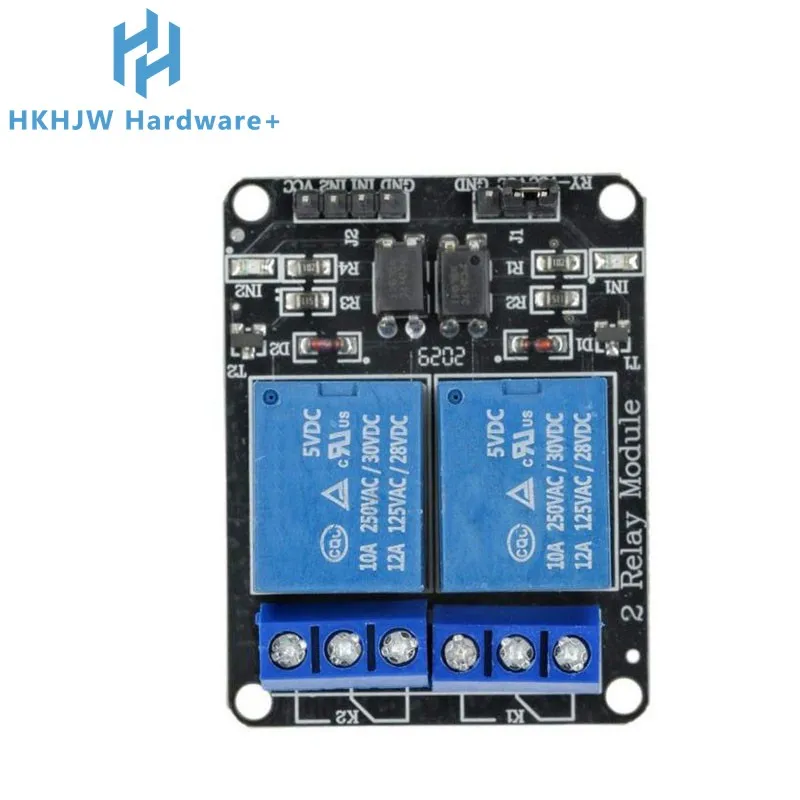

2 channel relay module
1 Dimensions: 50.5mm (length) * 38.5mm (W) * 18.5 (H)
2 Weight:. 31g
3.PCB Color: Black
4 board four weeks with four screws holes, hole diameter 3.1mm, easy to install and fixed
5 relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal
6 optocoupler isolation, good anti-jamming
7 low pull, high release. Energisation status indicator light, release status LED is off
8.VCC of system power, JD_VCC relay power. You can plug in jumpers
Electrical parameters:
Supply voltage: 5VDC, 12VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC
Wiring:
VCC: positive power supply system
GND: System power negative
IN1 - IN2: relay control ports

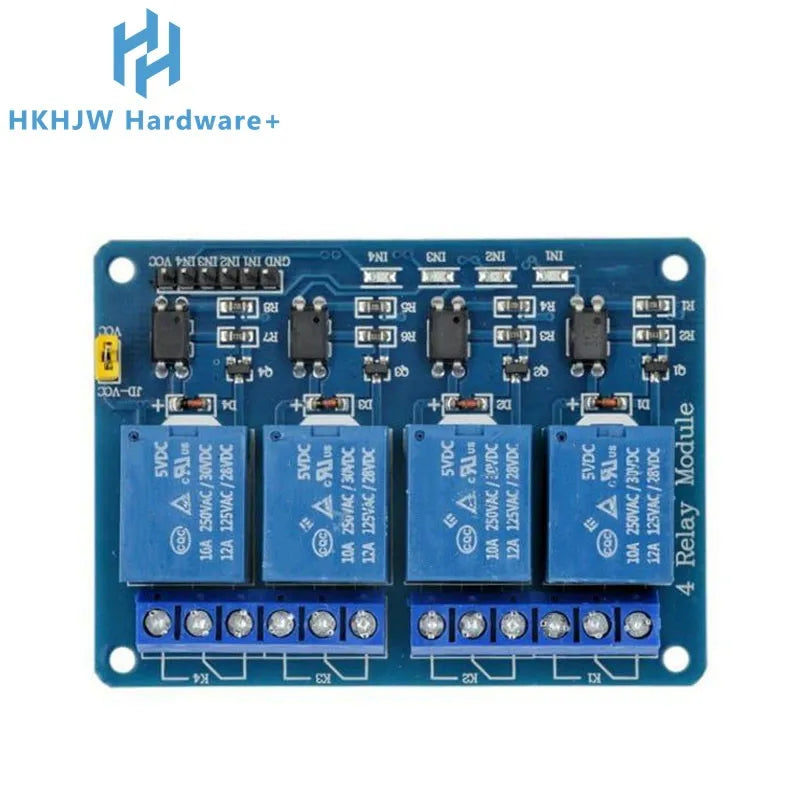

4-channel relay output modules,
relay output contacts 250A 10A.
Input IN1, IN2, IN3, IN4,
the signal line LOW effective. VCC, GND power input, can relay a separate power supply relay power input of JD-VCC.
Uses:
1, support all MCU control.
2, the industrial sector;
3, PLC control;
4, smart home control

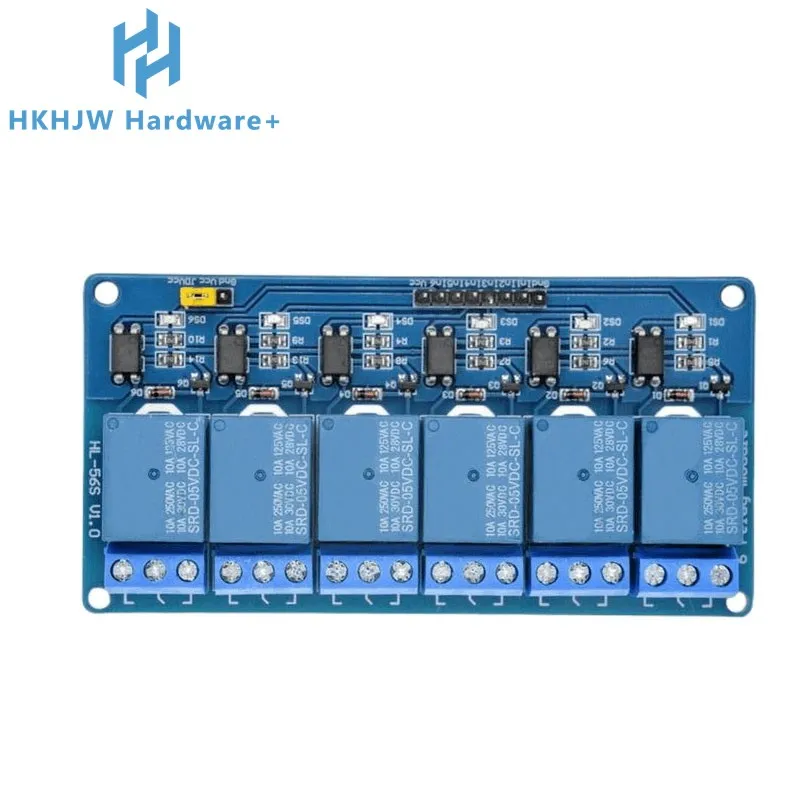

6 channel relay module
5V 6 channel relay module Arduino PIC ARM DSP AVR Raspberry Pi
Contact capacity of 250V 10Arelay.Relay output normally open, normally closed;
Activity.5 V input voltage range signal relay: 0-5 V;
VCC system power supply.Power supply relay jd-vcc.Standard 5 V relay.
Size: 10.4 * 5.2cm / 4.09 "* 2.05"

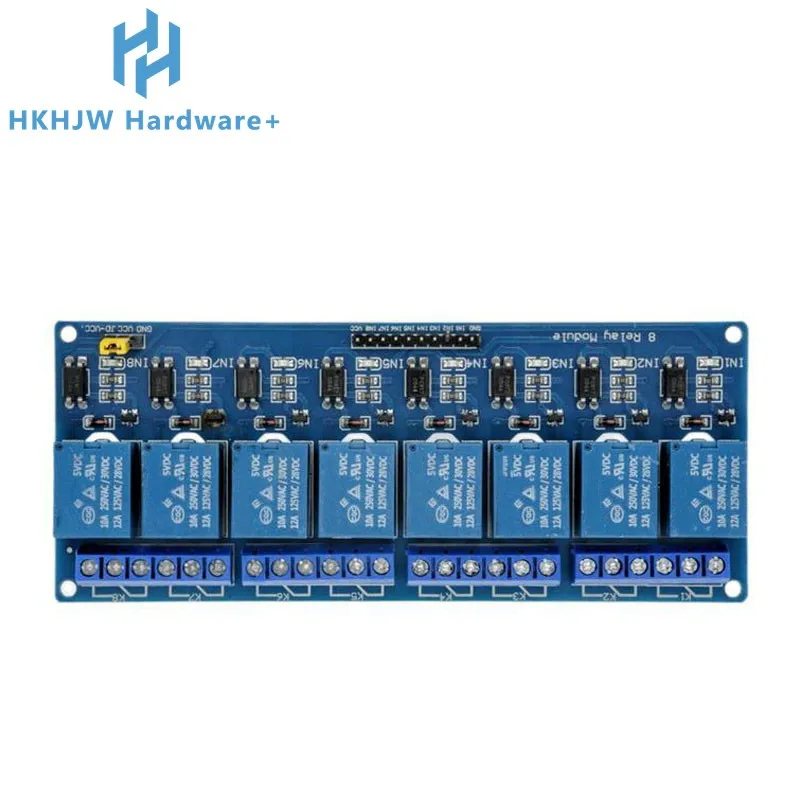

8 channel relay module
Features
Using high-current relay , AC250V 10A DC30V 10A
Contact some independent wiring , safe and reliable
Standard interface , can be extended in a variety of development board
With fixed screw holes for easy installation
Suitable for a variety of platforms such as 51/AVR/AVR/ARM
Module Description :
1 , the module complies with international safety standards , the load control area and regional isolation tank ;
2, using double-sided FR-4 circuit board design, high-end chip production process ;
3, using loose music authentic relay control ;
4, with the relay instructions , pull off, disconnect does not shine ;
5, the signal input has a low signal , often beginning with a common terminal will be turned on ;
6 , the relay can control the various devices and the load ;
7 , 8 and 8 normally open normally closed contact ;
8 , blue KF301 terminals to the control line is more convenient.
9 , Module size : 138m * 56mm * 18.5mm ( L * W * H ) , Weight : 120g
10 with 4 fixing bolt holes , hole 3.1mm, pitch 131mm * 49.5mm
11 , finished by 100% functional testing and stability testing
Two module interface :
1, VCC: 5V power supply connected to the positive
2, GND: 5V power supply connected to the negative
3, IN1-IN8: trigger signal , active low
Relay outputs : a 12- line interface, the interface can be directly connected to all leads , user-friendly
1, NO1 - NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM
2, COM1 - COM8 Relay Common Interface
3, NC1 - NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant.
