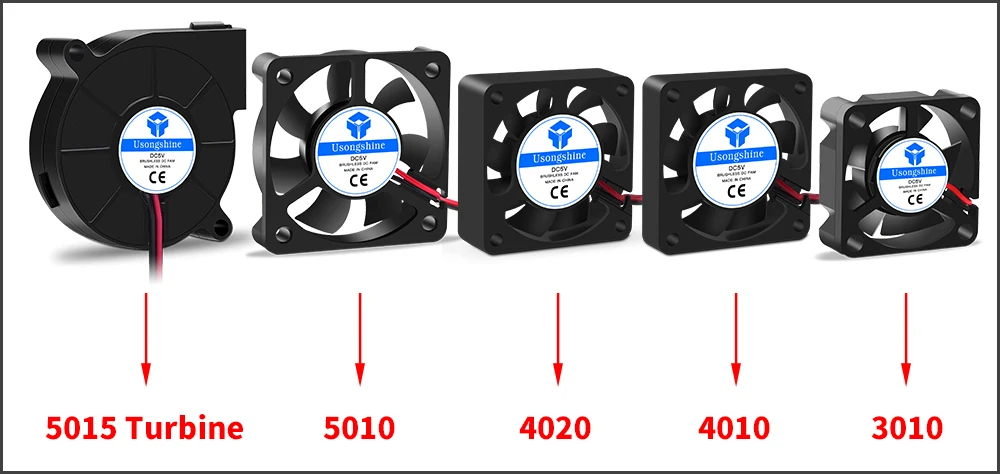

5V/12V/24V Cooling Turbo Fan Brushless 3D Printer Fan 2Pin For Extruder DC Cooler Blower Plastic Fan 3010/4010/4020/5010/5015
40x40x10 5V / 2PCS
$14.36
Sale price
$14.36
Regular price
$0.00
Skip to product information
Brand:T-Trees
5V/12V/24V Cooling Turbo Fan Brushless 3D Printer Fan 2Pin For Extruder DC Cooler Blower Plastic Fan 3010/4010/4020/5010/5015
$14.36
Sale price
$14.36
Regular price
$0.00
Description
SPECIFICATIONS
Assembly Required: no
Brand Name: TWO TREES
Choice: yes
Control Method: Sensor
Feature: 40x40x10mm
Feature 1: 30x30x10mm
Feature 2: 40x40x20mm
Feature 3: 50x50x10mm
Feature 4: 50x50x15mm
For: stepper motor
High-concerned chemical: none
Item Shape: Others
Item Type: Fan
Model Number: 3D Printer fan
Name: Mini Fan
Origin: Mainland China

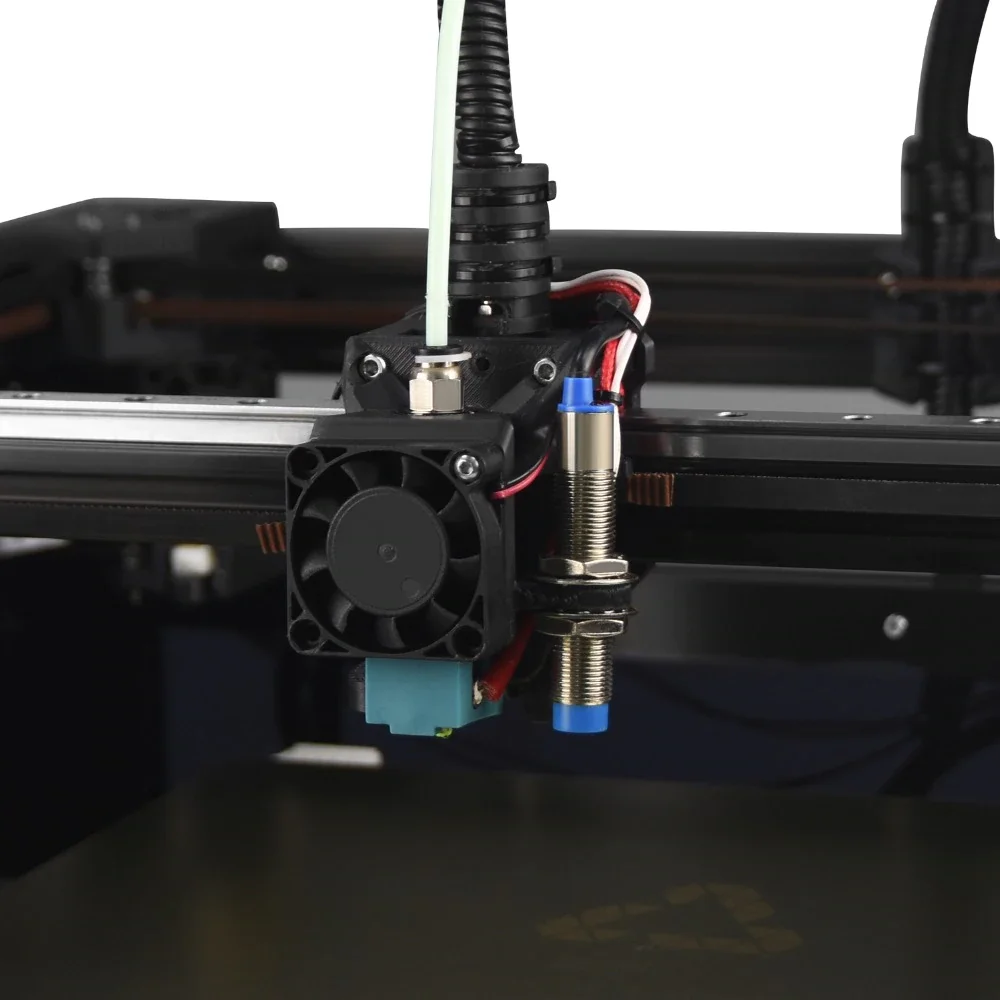

Usage for: 3D Printer
semi_Choice: yes
1 piece FAN
Please note:
The pictures are just a representation of each model.
The product list is 1PC（5v or 12v or 24v）.
(For example, if you choose 12V, 3010, quantity: 1.
We will send 1pc 3010 12v fan.)
If you have any questions, please feel free to contact customer service.
We will send it according to the model you choose.
Please confirm the model and quantity you need before purchasing.
We have three models:5V/12V/24V
Dear buyer:
If you choose the "Cainiao Super Economy" mode of transportation, some countries will delay receiving packages for a while. If you cannot accept the delay, then please choose another way to shipping, faster transportation and protection.
If you need more other electronic products, You can contact me.
Buying Tip: When you receive the product, the product appears subtle scratches, broken, bent pins, in the case of no effect on the use, I will not accept your controversy, if you do not agree, please do not purchase
in my store.
Specification:

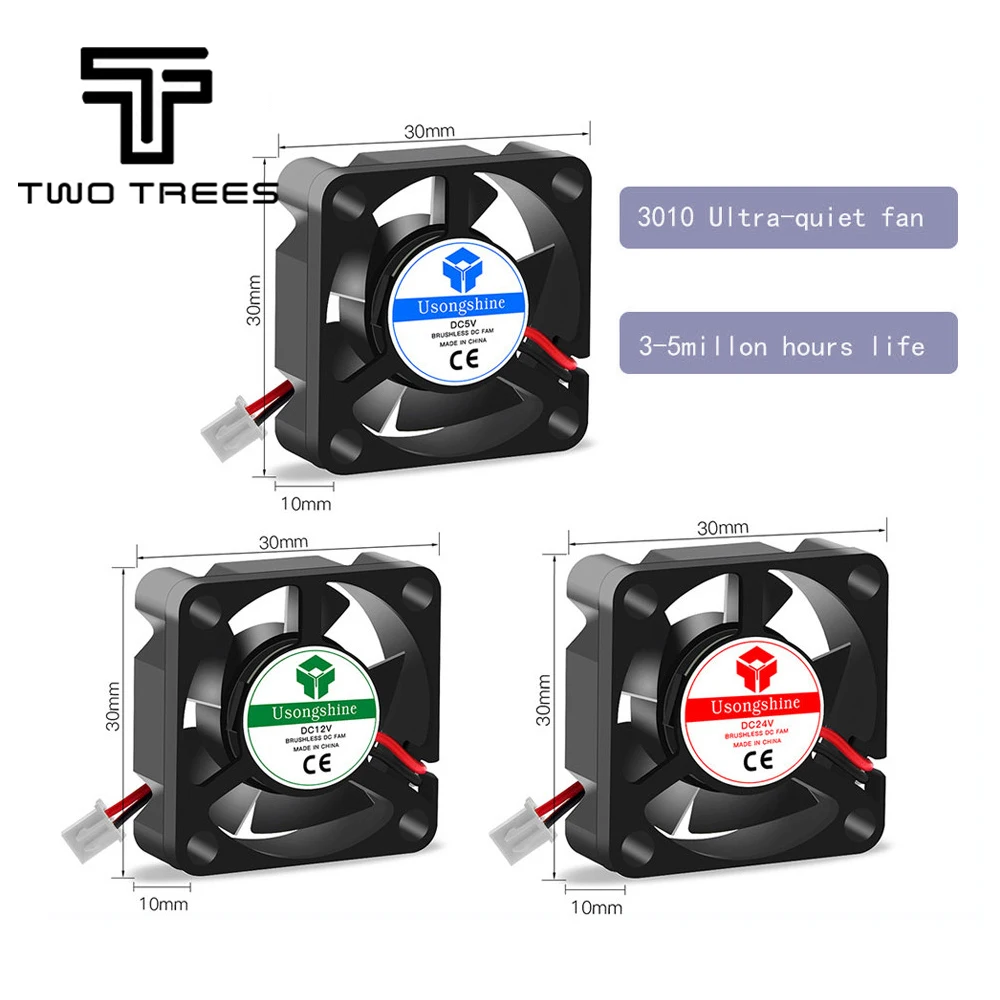

Type : 3010 fan
Size : 30x30x10mm
Brand: T-Trees
Rated voltage: DC 5V
Rated current: 0.2A
Power consumption: 1W
Number of revolutions: 7300±10% RPM
Noise: 20 DBA
Wind speed: 1.5M/s
Air volume: 1.55CFM
Bearing: oil bearing
Life expectancy: 30,000 hours 24°C
Wiring: red cathode, black cathode
Interface: 2.54 interface
Type : 3010 fan
Size : 30x30x10mm
Brand: T-Trees
Rated voltage: DC 12V
Rated current: 0.1A
Power consumption: 1.2W
Number of revolutions: 9000±10% RPM
Noise: 24 DBA
Wind speed: 2.5M/s
Air volume: 2.8CFM
Bearing: oil bearing
Life expectancy: 30,000 hours 24°C
Wiring: red cathode, black cathode
Interface: 2.54 interface
Type : 3010 fan
Size : 30x30x10mm
Brand: T-Trees
Rated voltage: DC 24V
Rated current: 0.07A
Power consumption: 2.4W
Number of revolutions: 9000±10% RPM
Noise: 25 DBA
Wind speed: 3.3M/s
Air volume: 3.2CFM
Bearing: oil bearing
Life expectancy: 30,000 hours 24°C
Wiring: red cathode, black cathode
Interface: 2.54 interface
Brand:T-Trees

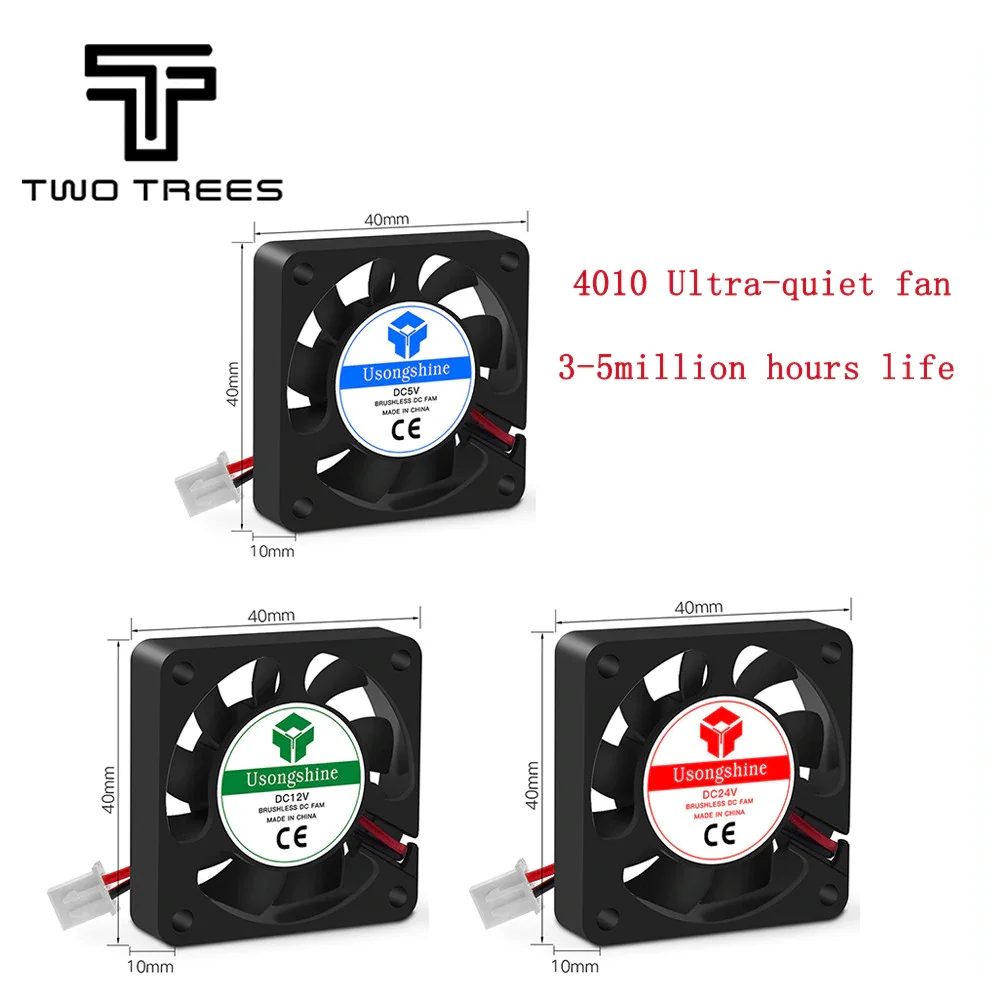

Type : 4010 fan
Size : 40x40x10mm
Voltage :DC 5V
Current rating : 0.25A
Power consumption : 1.25W
Revolution : 5000+ 10% for RPM
Noise : 22dBA (quiet)
Air volume : 5CFM
Bearing : Oil bearing
Service life : 30000 hours

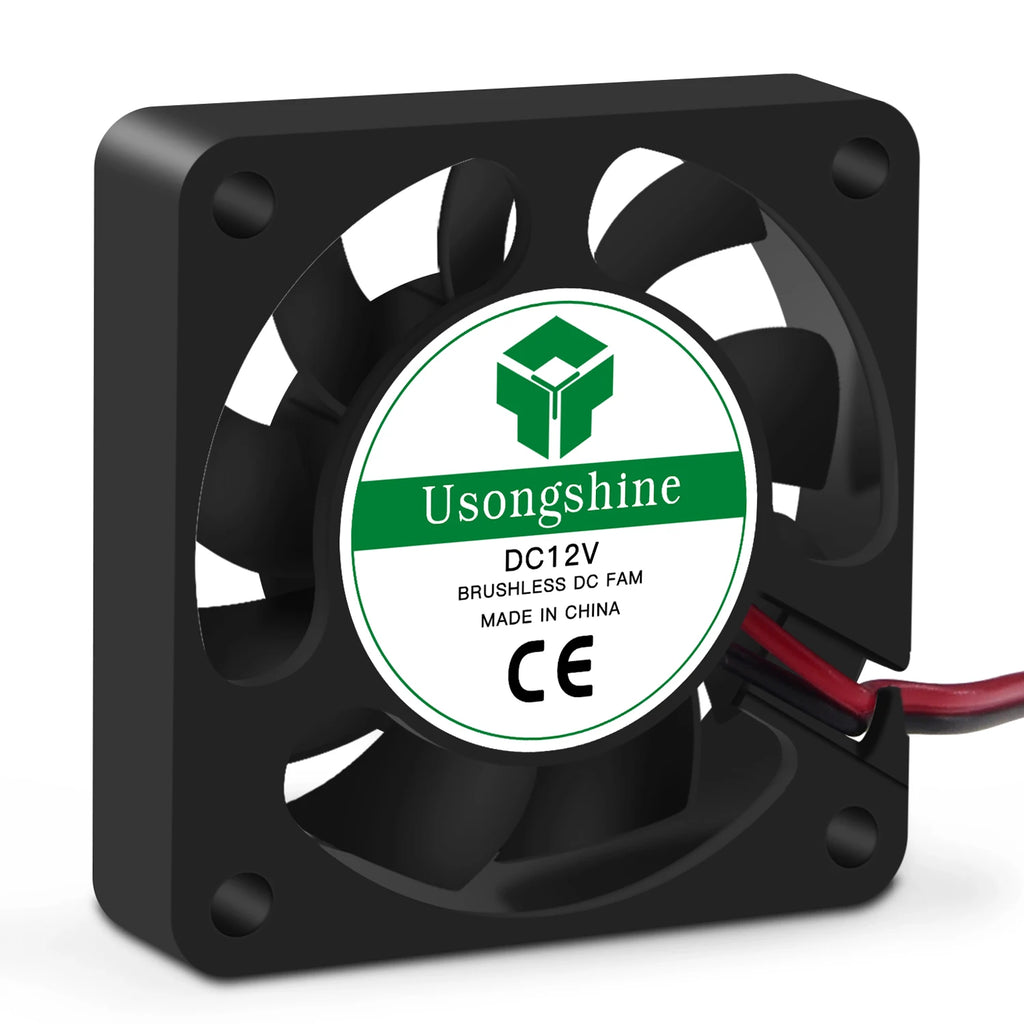

Brand:T-Trees
Type : 4010 fan
Size : 40x40x10mm
Voltage :DC 12V
Current rating : 0.07A
Power consumption : 1.2W
Revolution : 5600+ 10% for RPM
Noise : 18dBA (quiet)
Air volume : 6CFM
Bearing : Oil bearing
Service life : 30000 hours
Brand:T-Trees
Type : 4010 fan
Size : 40x40x10mm
Voltage :DC 24V
Current rating : 0.1A
Power consumption : 2.4W
Revolution : 7000+ 10% for RPM
Noise : 27dBA (quiet)
Air volume : 6CFM

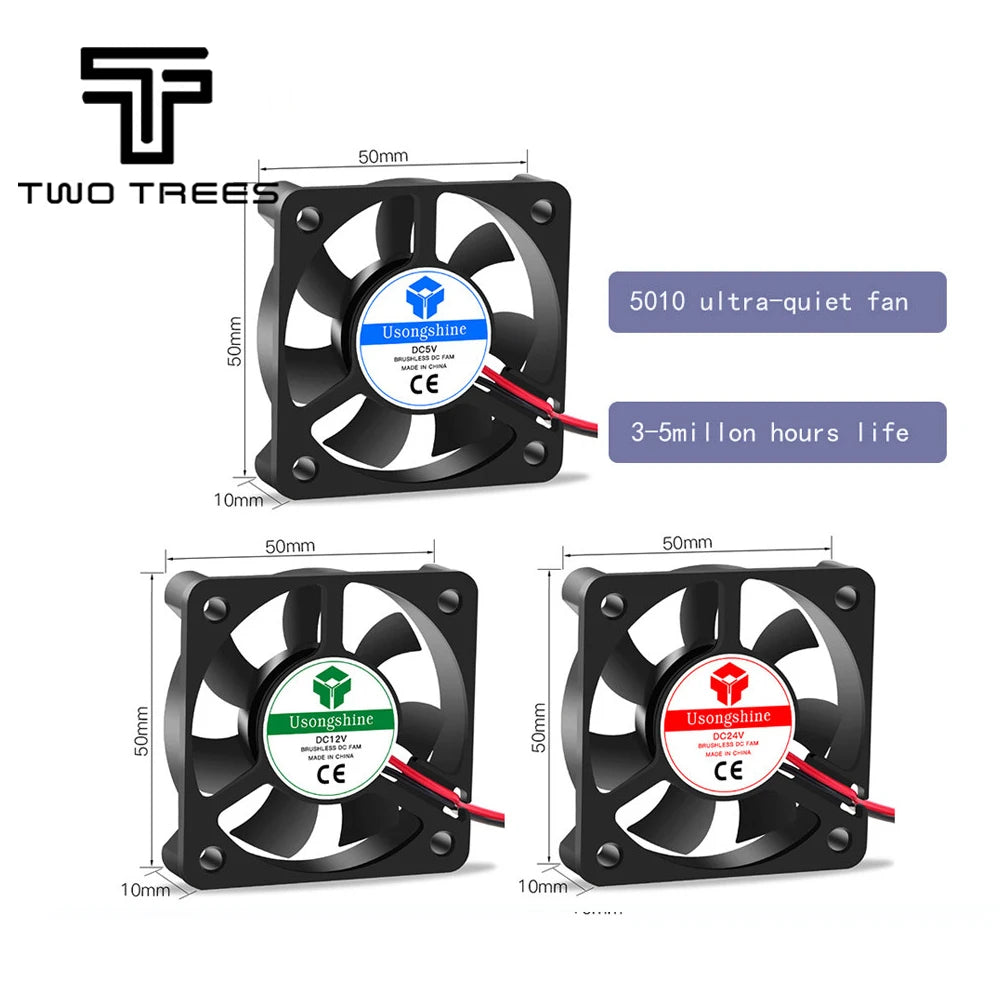

Brand:T-Trees
Type : 5010 fan
Size : 50x50x10mm
Voltage : DC 5V
Current : 0.1A
Power consumption : 0.5W
Revolution : 3500± 10% RPM
Wind speed : 2.8M/s
Noise : 15DBA (quiet)
Air volume : 7.0CFM
Bearing : Oil bearing
Service life : 30000 hours
Connector : 2pin
Brand:T-Trees
Type : 5010 fan
Size : 50x50x10mm
Voltage : DC 12V
Current : 0.1A
Power consumption : 1.2W
Revolution : 5200± 10% RPM
Wind speed : 2.5M/s
Noise : 15DBA (quiet)
Air volume : 6.25CFM
Bearing : Oil bearing
Connector : 2pin
Brand:T-Trees
Type : 5010 fan
Size : 50x50x10mm
Voltage : DC 24V
Current : 0.1A
Power consumption : 0.5W
Revolution : 6000± 10% RPM
Wind speed : 2.8M/s
Noise : 15DBA (quiet)
Air volume : 7.0CFM
Wiring : Red line anode.black line cathode
