SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 1 Channel Relay Module

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Supply voltage: 5V/12V/24V

Theory: Time Relay

Trigger mode: Low trigger; high trigger

Use: General Purpose

Voltage: 12V

is_customized: Yes

semi_Choice: yes

Features:

1.The entire module layout is reasonable and beautiful. High-power relays to control the load up to 30A.

2.Each channel has optocoupler isolation, strong anti-interference ability.

3.Using SMD optocoupler isolation, driving ability, stable performance;the interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.

4.In accordance with international safety standards, the control area and the load area have isolation slots.

5.Applied to PLC automation equipment control, industrial system control, Internet of things control, furniture intelligent control.



Specifications:

Color:green

Supply voltage: 5V/12V/24V

Trigger mode: low trigger; high trigger

Load voltage: DC 30V or AC 250V

Load current: 30A

Relay life: more than 100,000 times



Package included:

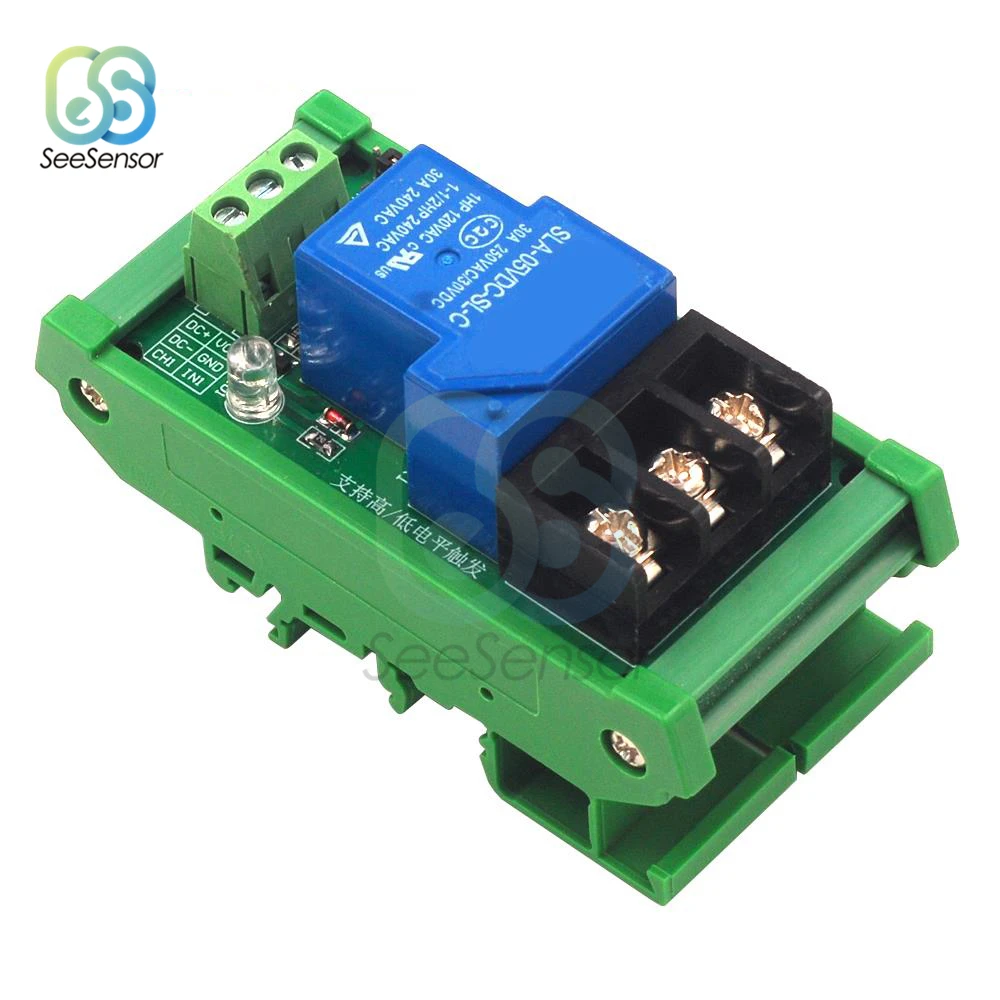

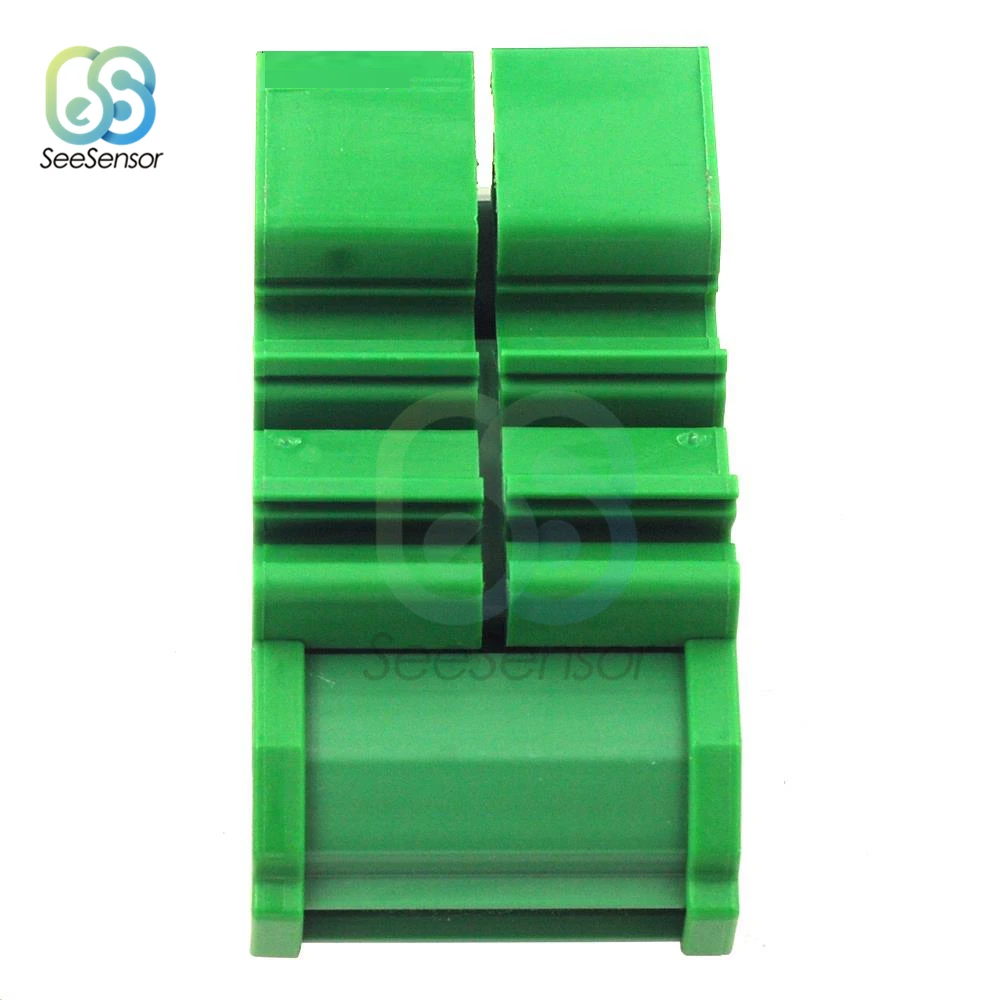

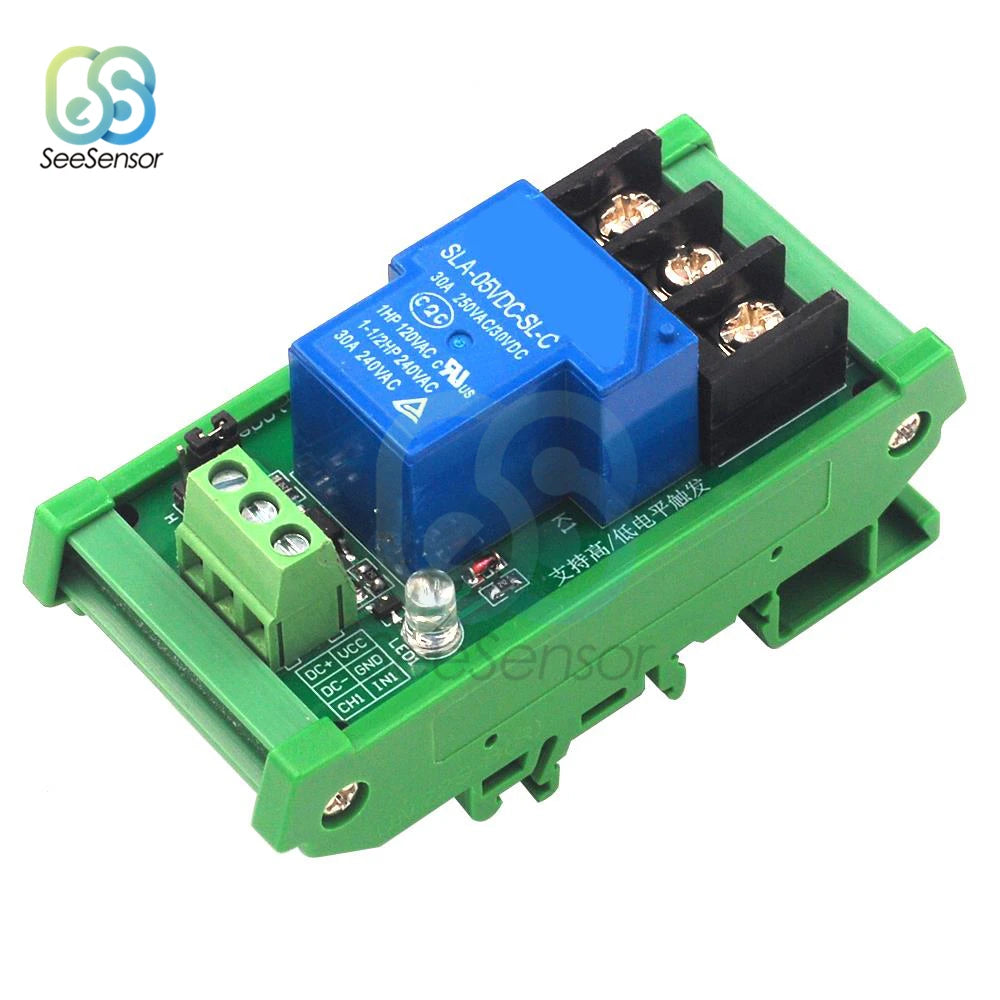

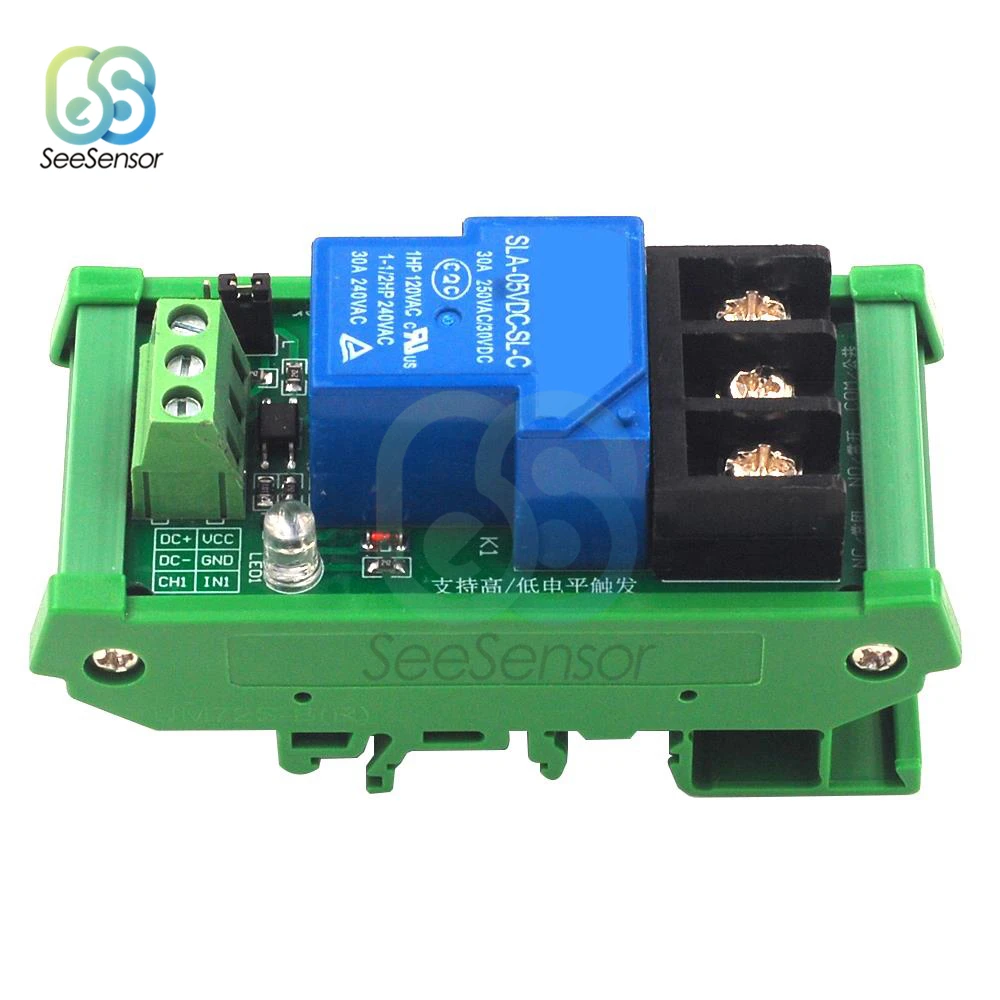

1 x 5V 12V 24V One 1 Channel Relay Module 30A with Optocoupler Isolation Supports High/Low Level Trigger with Guide Rail
