SPECIFICATIONS

Brand Name: Liludin

Choice: yes

Condition: New

High-concerned chemical: none

Operating Temperature: <80°

Origin: Mainland China

Supply Voltage: 5V 12V 24V

Type: Relay

semi_Choice: yes

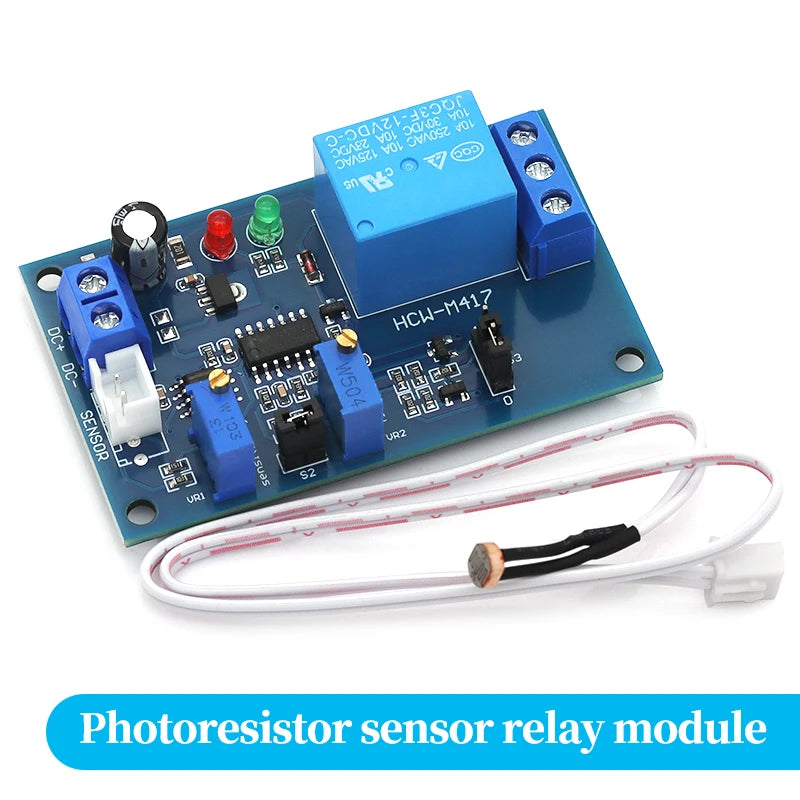

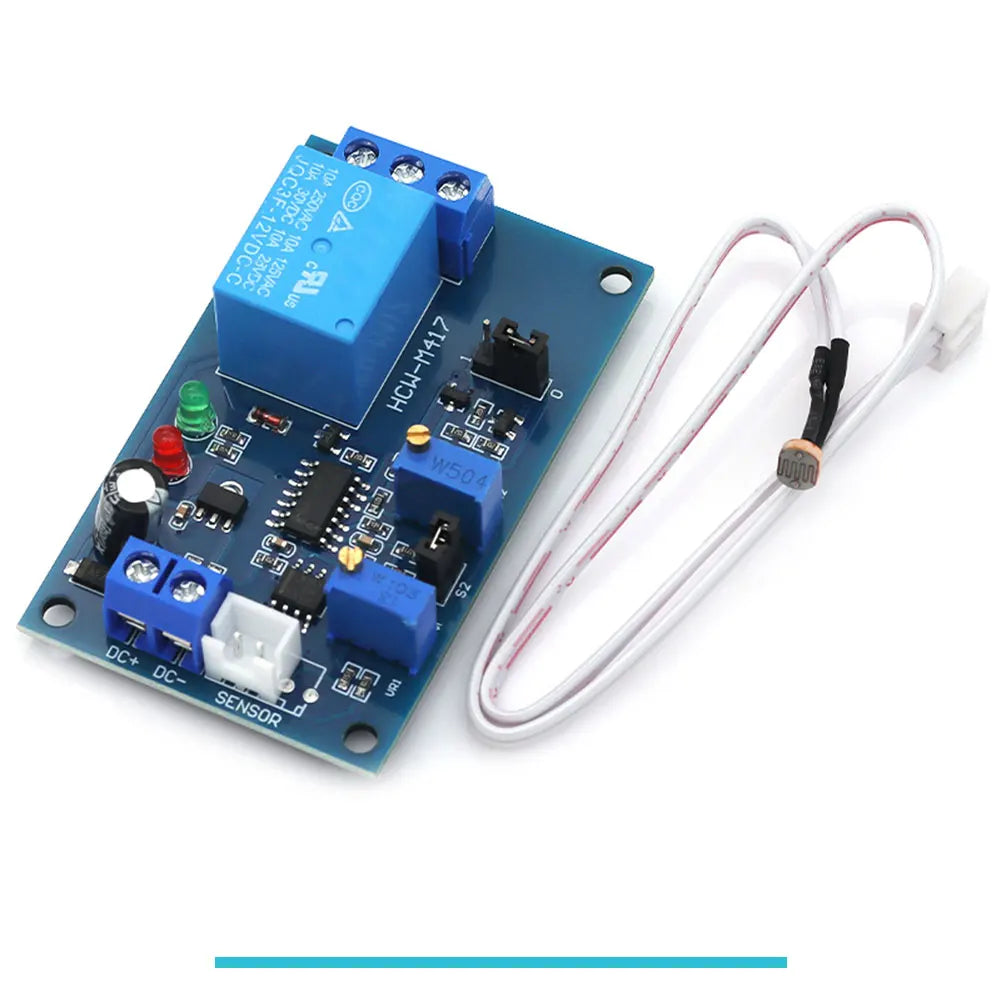

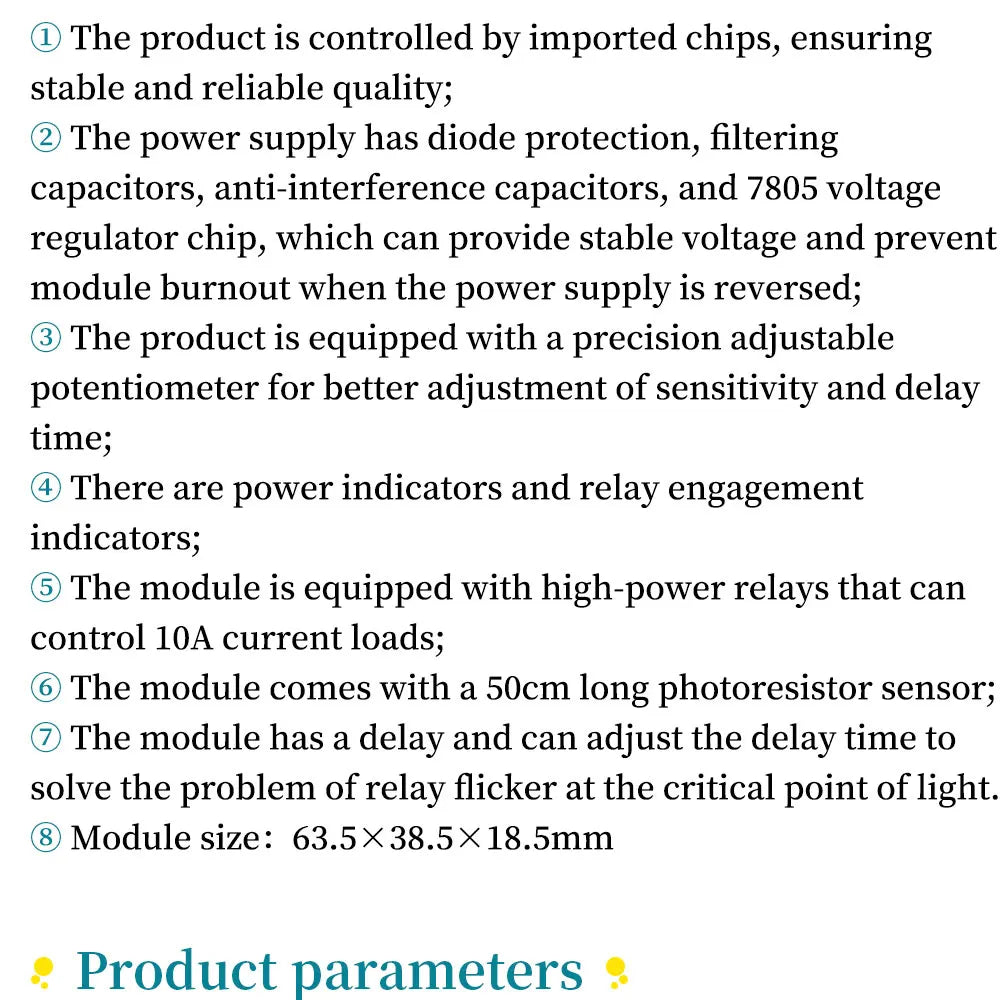

1. Products imported chip control, stable and reliable quality.

2. The power section is provided with diode protection, filter capacitor and anti-interference capacitor and 7805 voltage stabilizing chip.

3. Providing stable voltage, When the power supply is reversed, the burned out module is avoided.

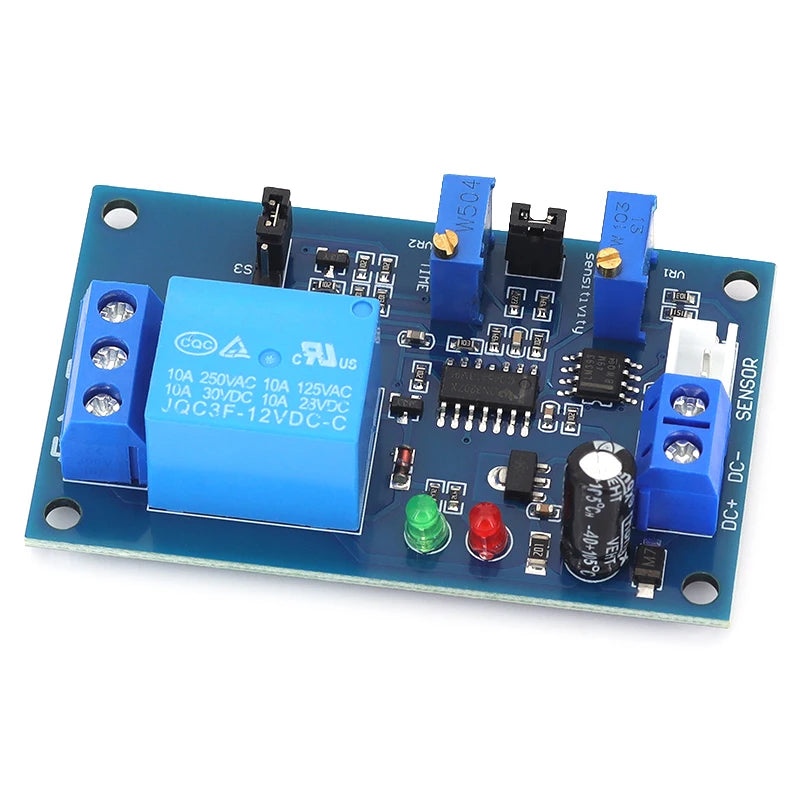

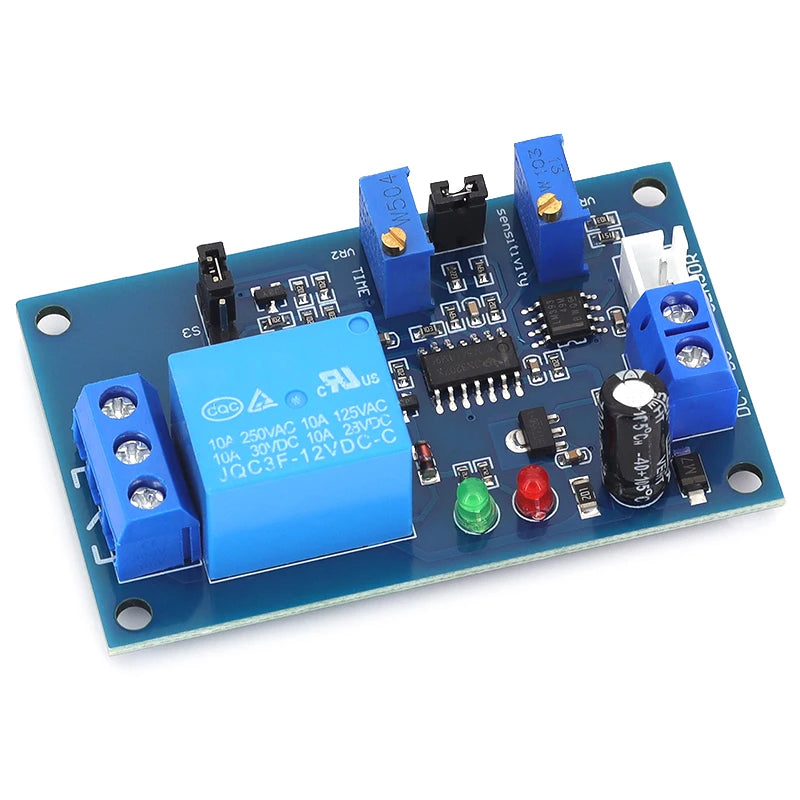

4. The product is equipped with precise adjustable potentiometer, which can adjust sensitivity and delay time better.

5. There is power indication and relay pull in indication.

6. The module is equipped with high-power relay, which can control the 10A current load.

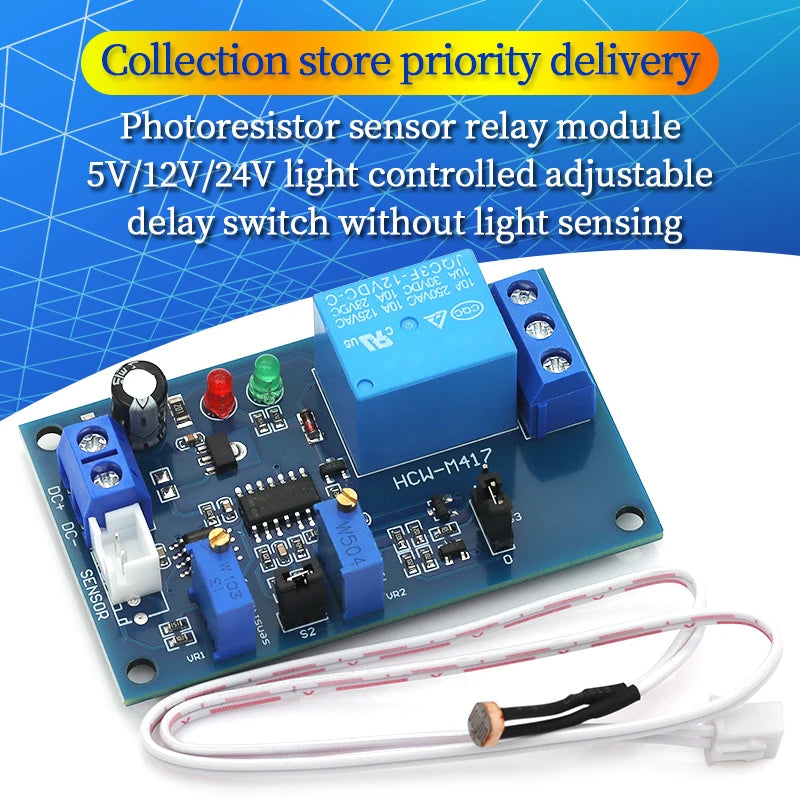

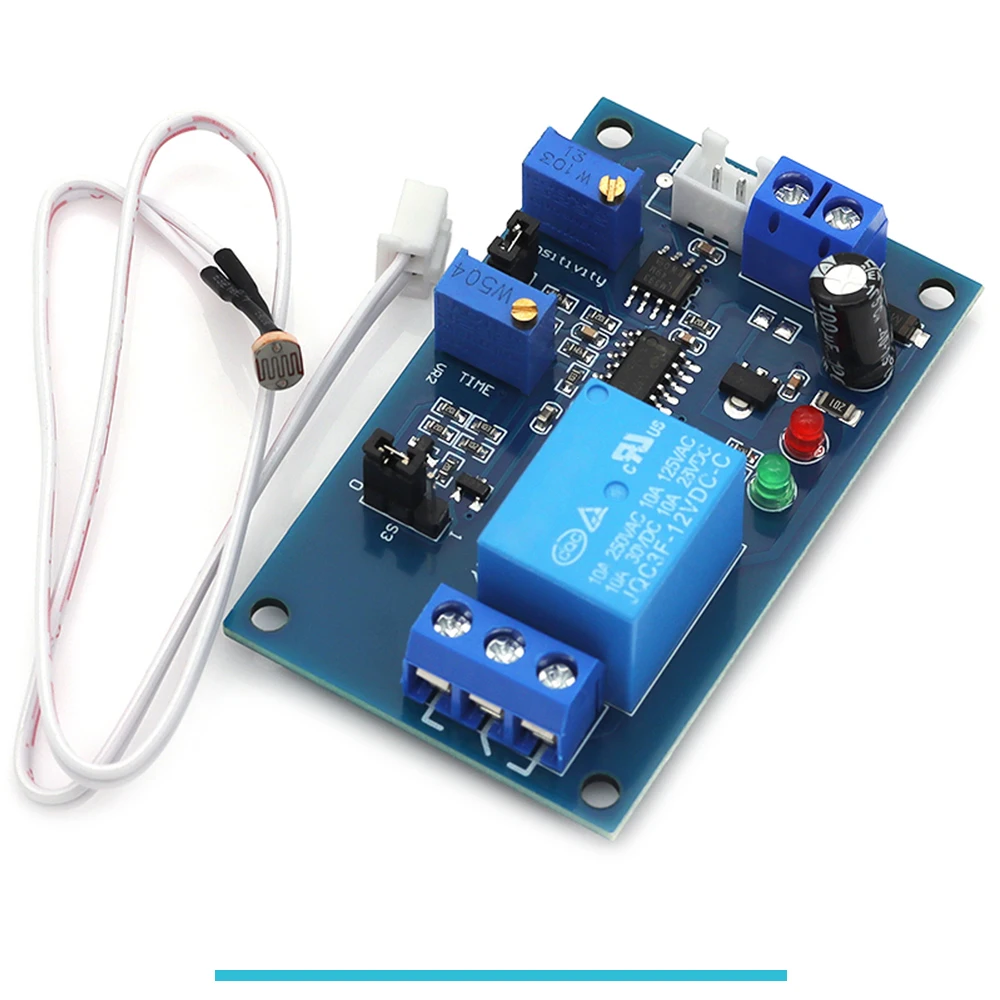

7. Module comes with 50cm long photosensitive resistor sensor.

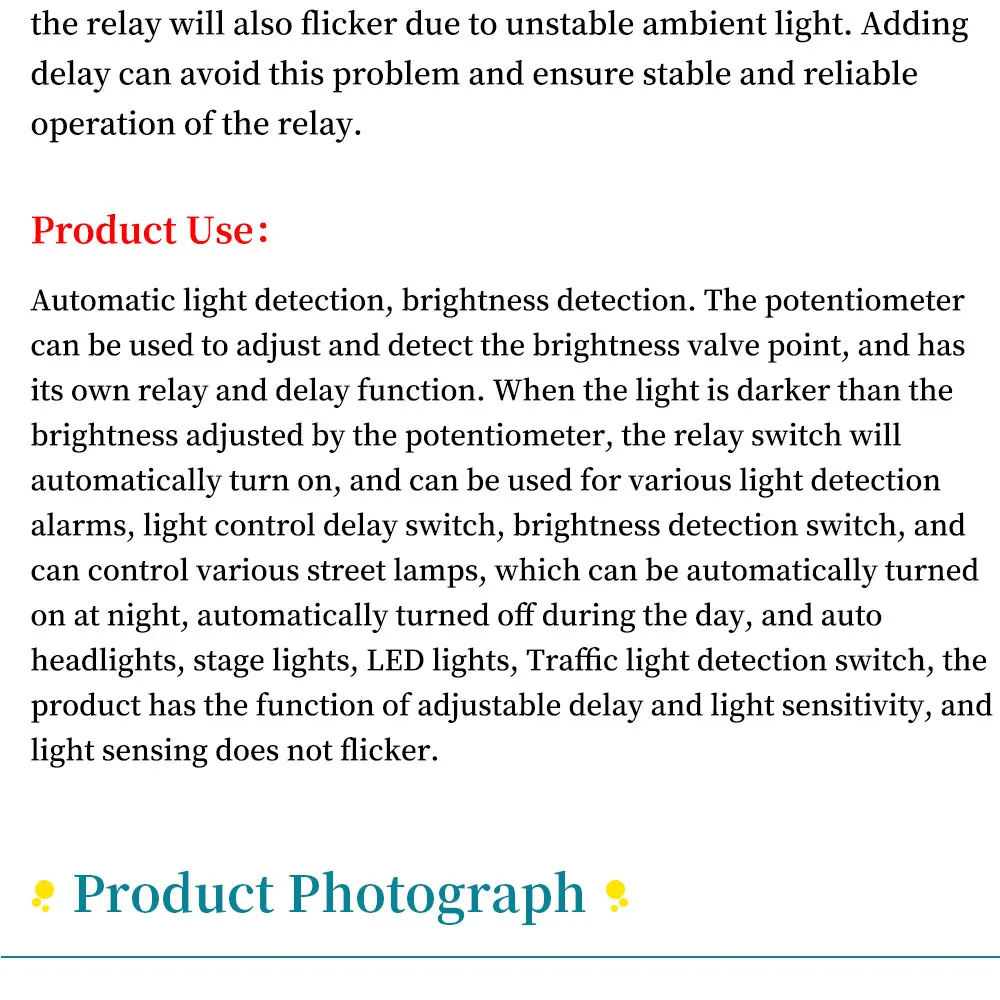

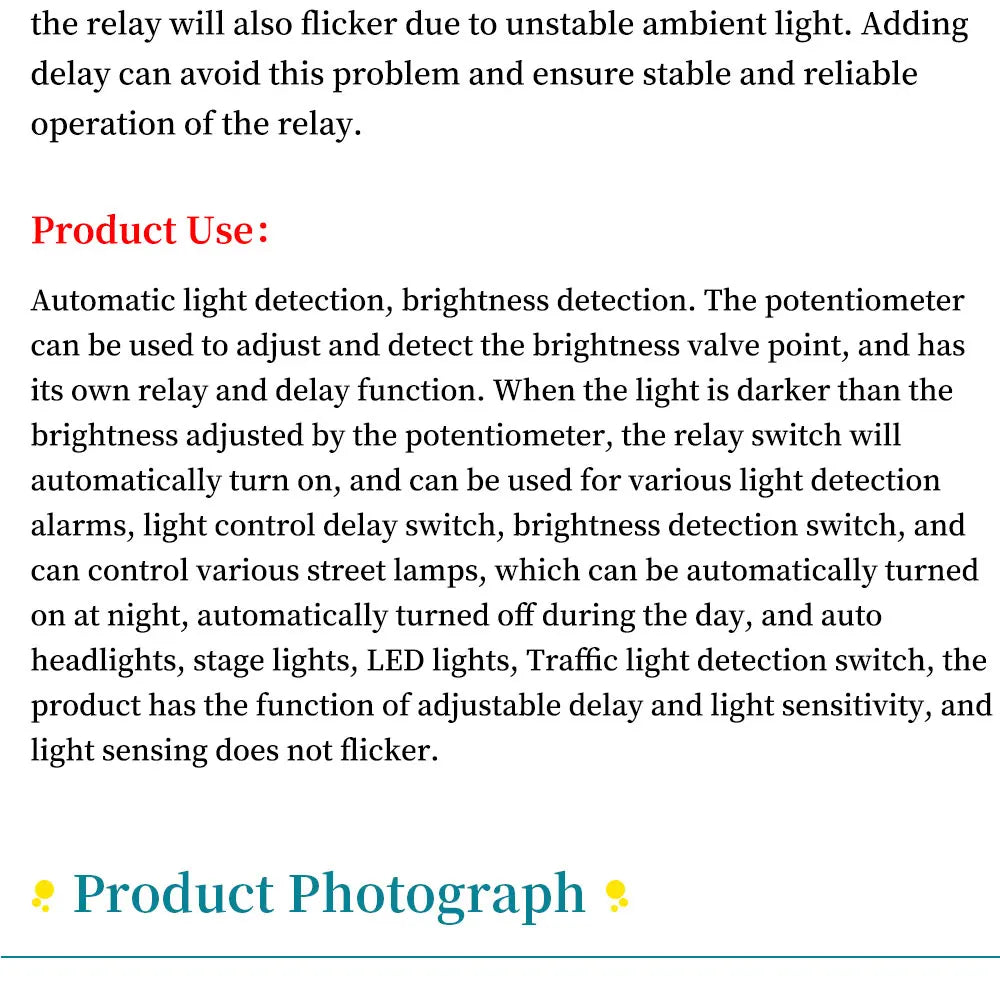

8. The module has time delay and can adjust the delay time to solve the flashing problem of the relay at the critical point of the light.

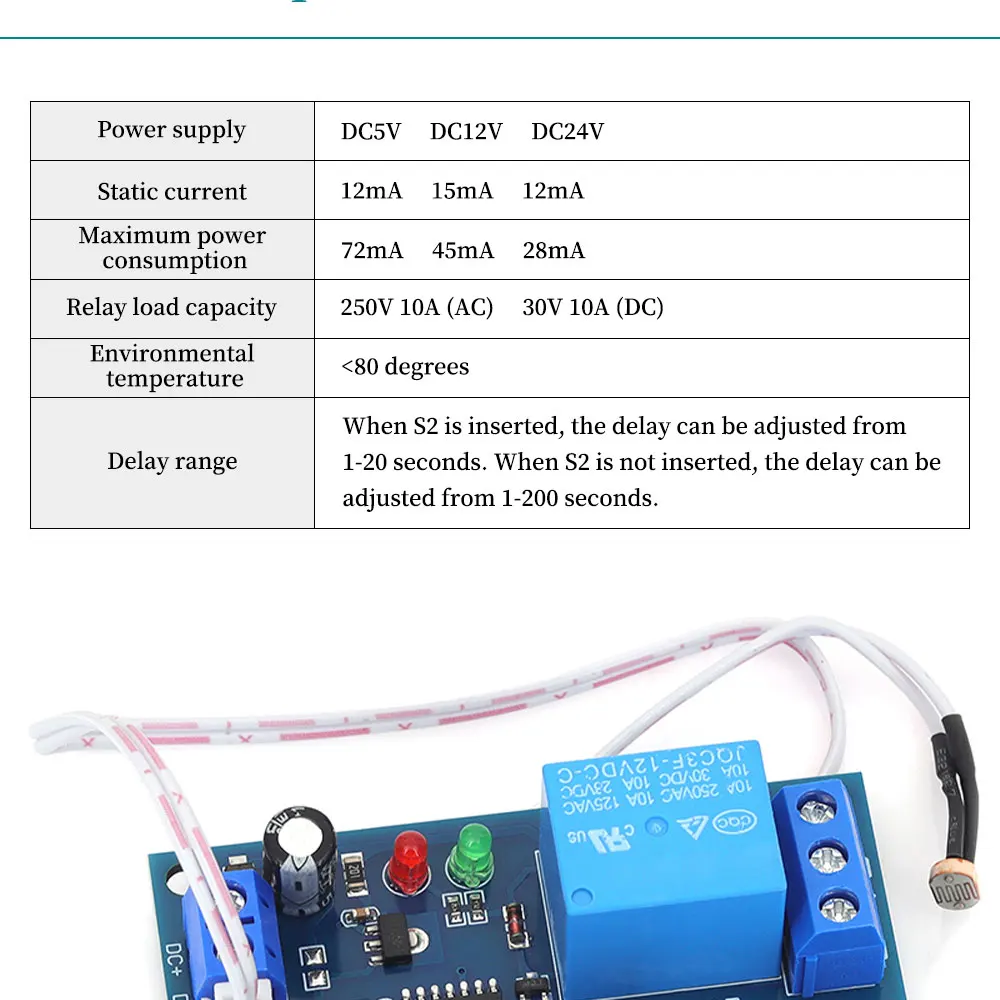

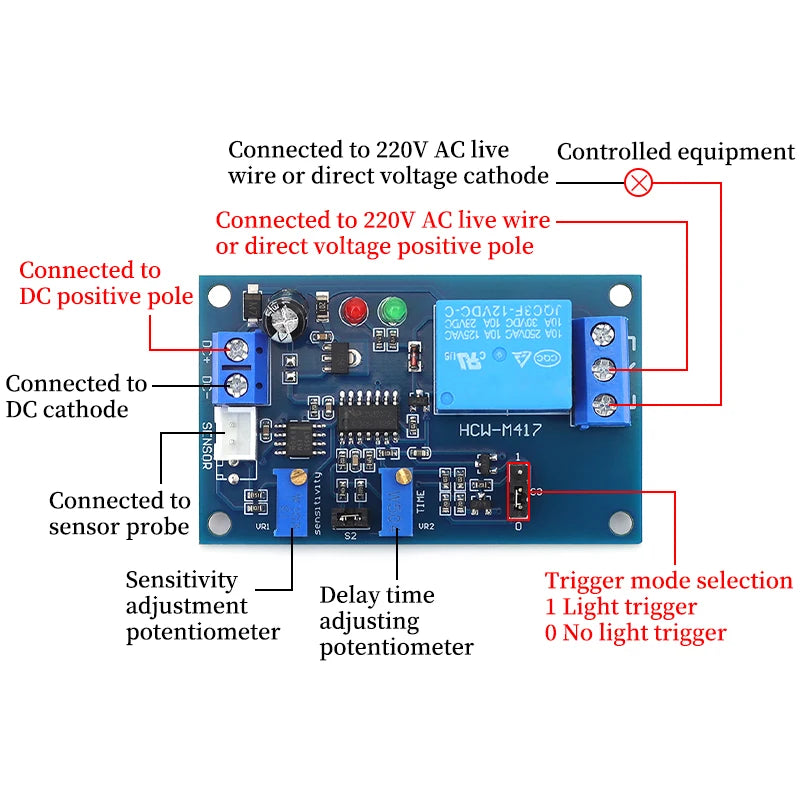

Product Parameters

Power supply: DC5V DC12V DC24V

Static current: 12mA 15mA 12mA

Maximum power consumption: 72mA 45mA 28mA

Load capacity of relay: 250V 10A (AC) 30V 10A (DC)

Ambient temperature: <80°

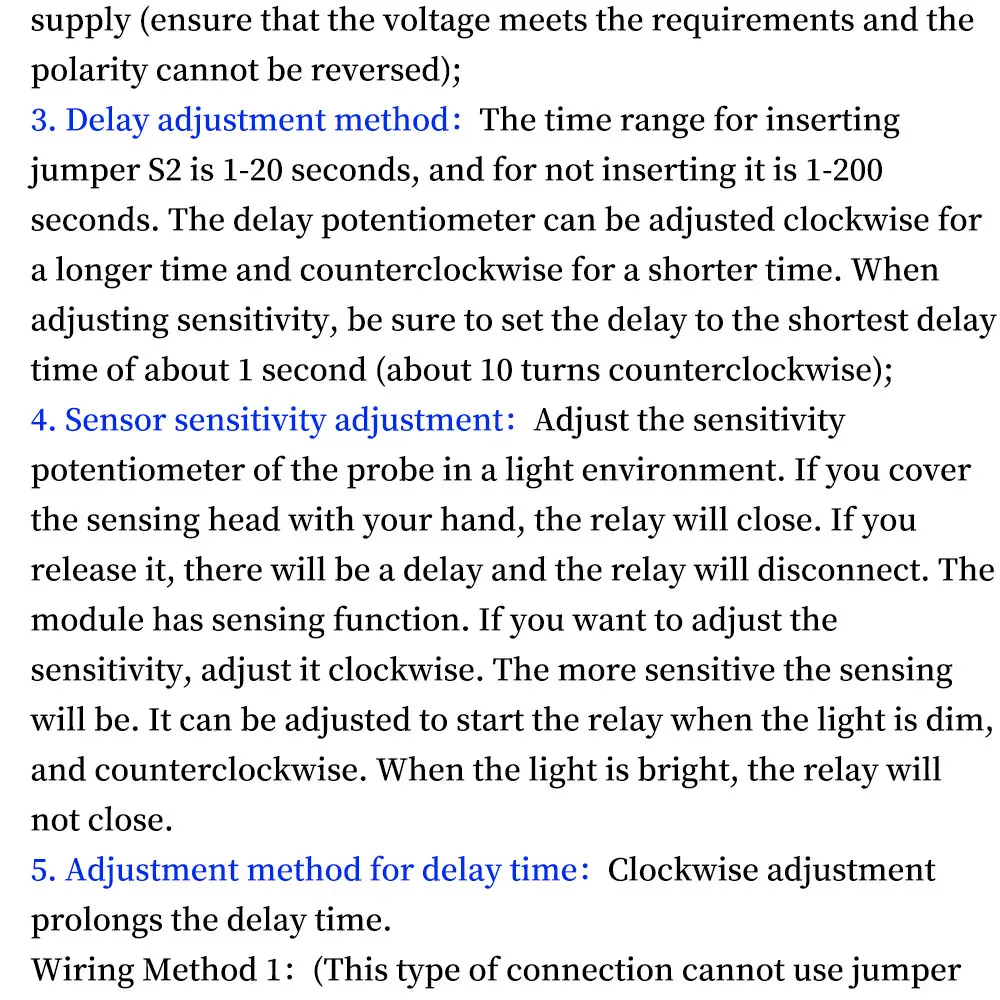

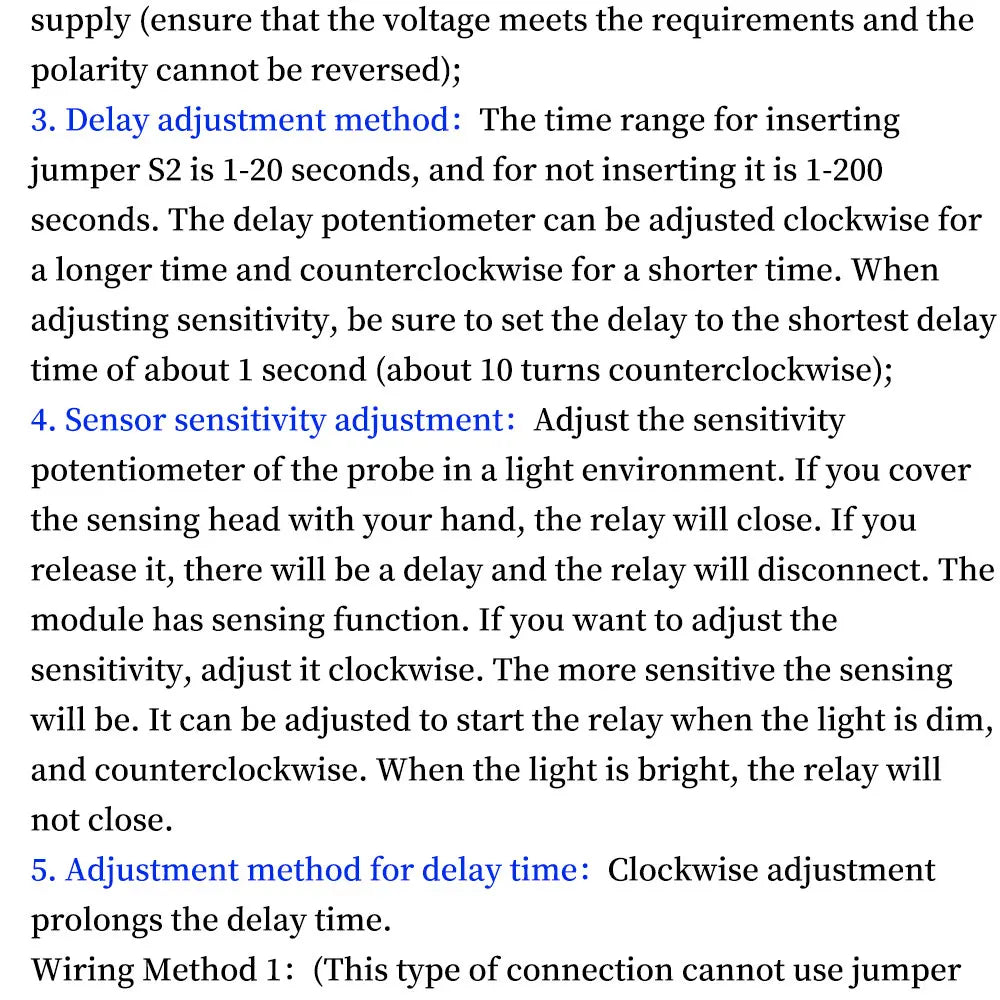

Delay range: when S2 is plugged in, the delay is 1-20s adjustable; when S2 is not plugged in, the delay is 1-200s adjustable
