5V 12V 24V Relay Module With Optocoupler Relay Output 1 2 4 6 8 16Way Relay Module For Arduino PLC Automation Equipment Control
5V 12V 24V Relay Module With Optocoupler Relay Output 1 2 4 6 8 16Way Relay Module For Arduino PLC Automation Equipment Control
$13.28
$13.28 $0.00
Size
Current Range
Description

SPECIFICATIONS

Brand Name: EARU,EARUELETRIC

Certification: CE

Choice: yes

Contact Load: Low Power,Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 1 2 4 6 8 Way

Origin: Mainland China,CN(Origin)

Power Source: DC,DC

Theory: Electromagnetic Relay,Electromagnetic Relay

Usage: General Purpose

Use: General Purpose

Voltage: 5V 12V 24V

is_customized: no

semi_Choice: yes

Parameters:

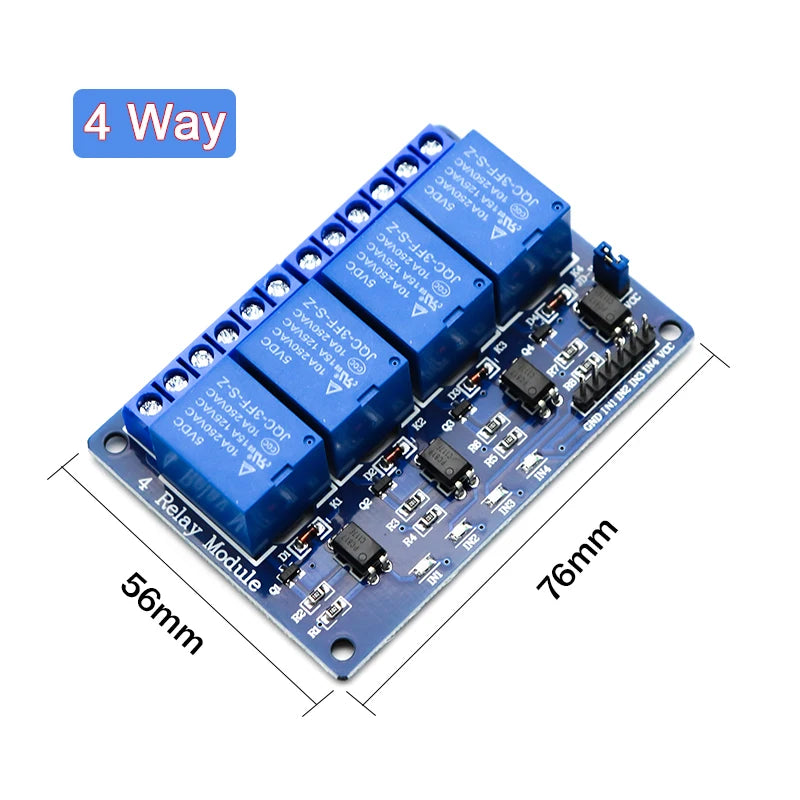

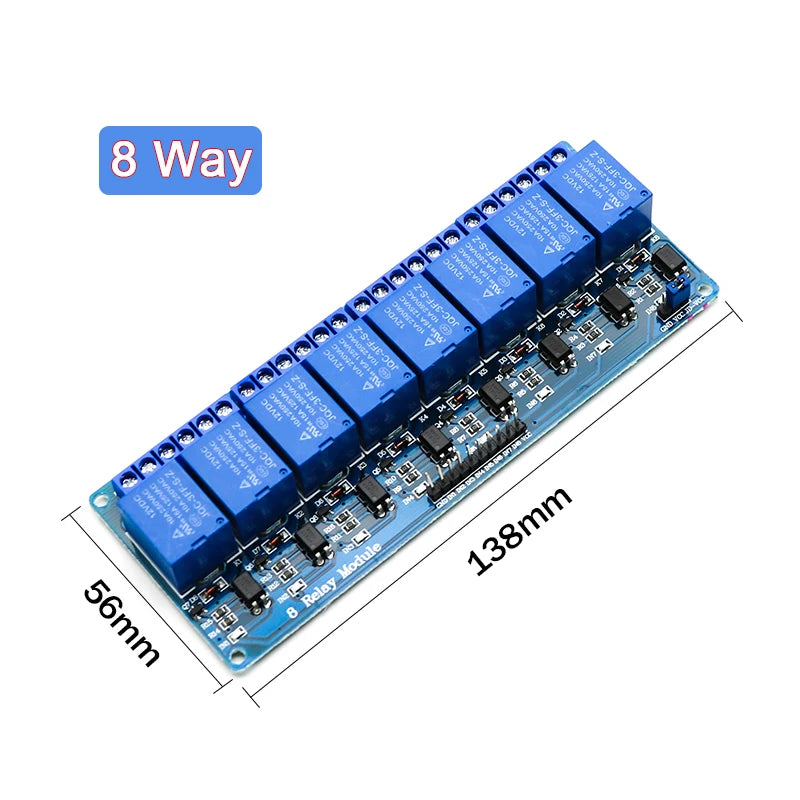

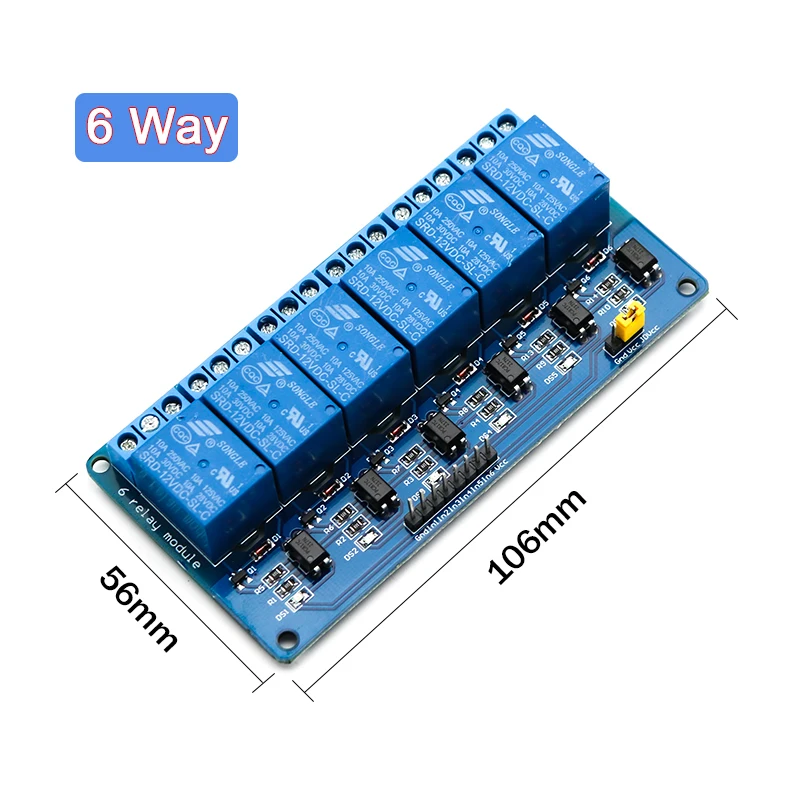

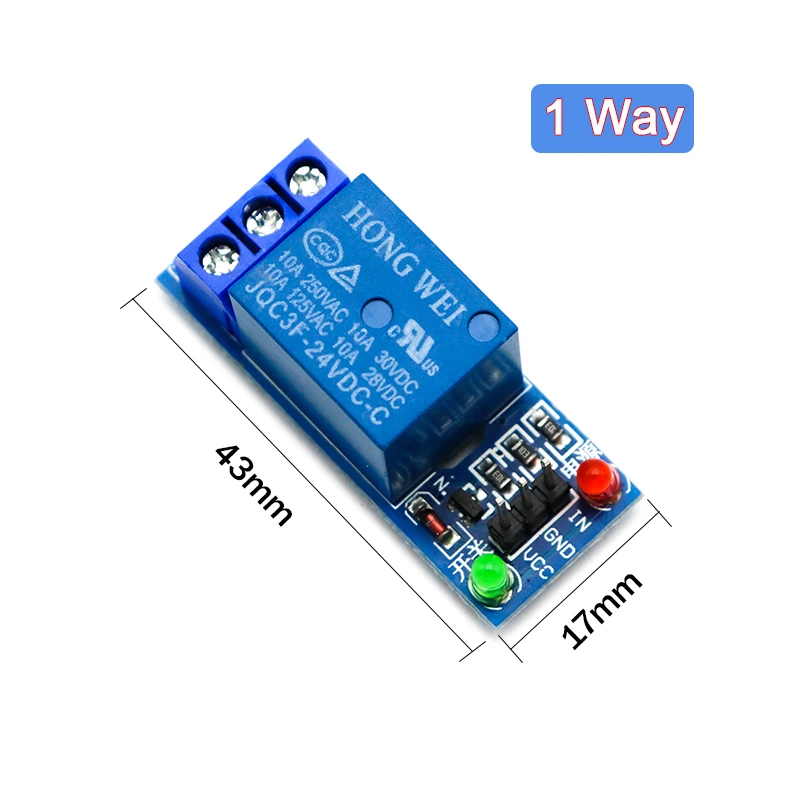

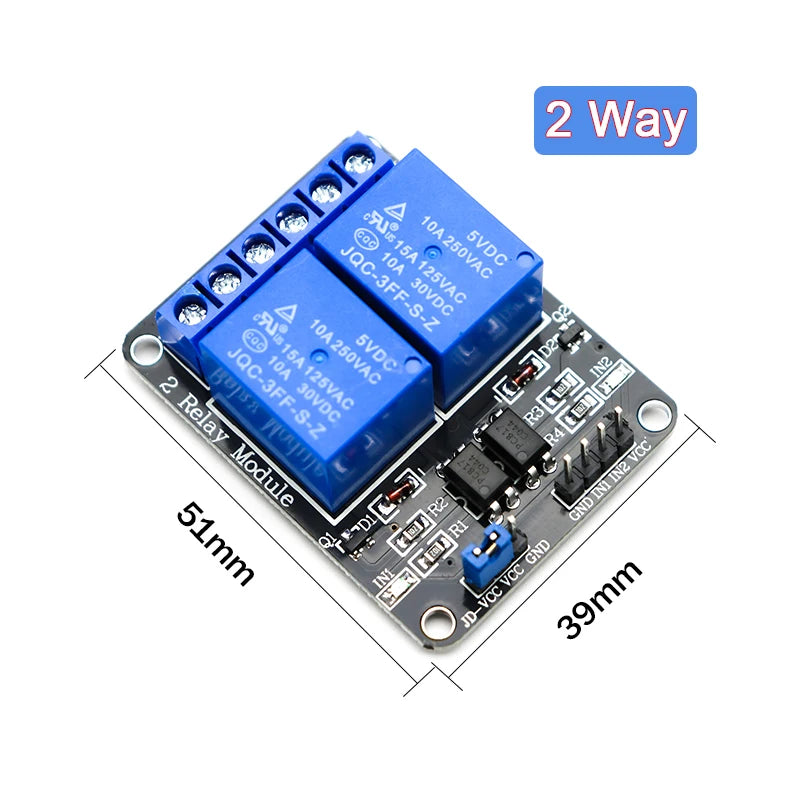

There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.

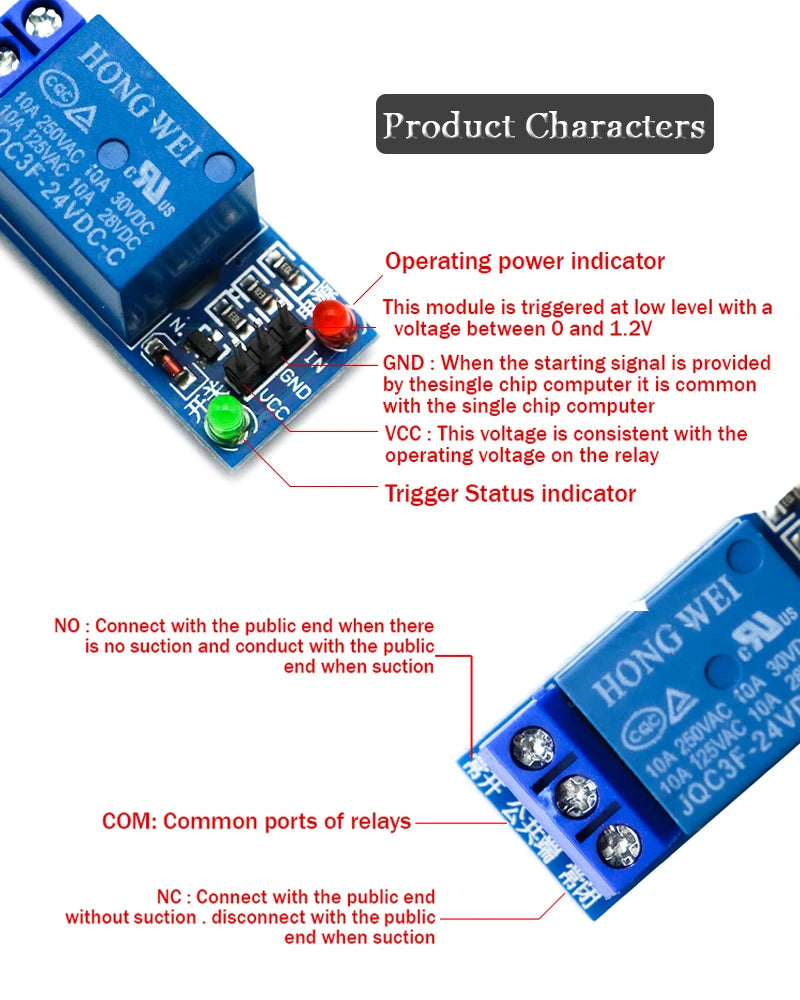

The relay uses high quality Songle relay, single pole double throw. a common end, a normally open end, and a normally closed end.
Optocoupler isolation, good anti-interference.
Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released.
VCC is the system power supply, and JD_VCC is the relay power supply.
Electrical parameters:

Supply voltage: DC 5V/12V/24V
Current: greater than 100mA
Load: 250V 10A AC or 30V 10A DC

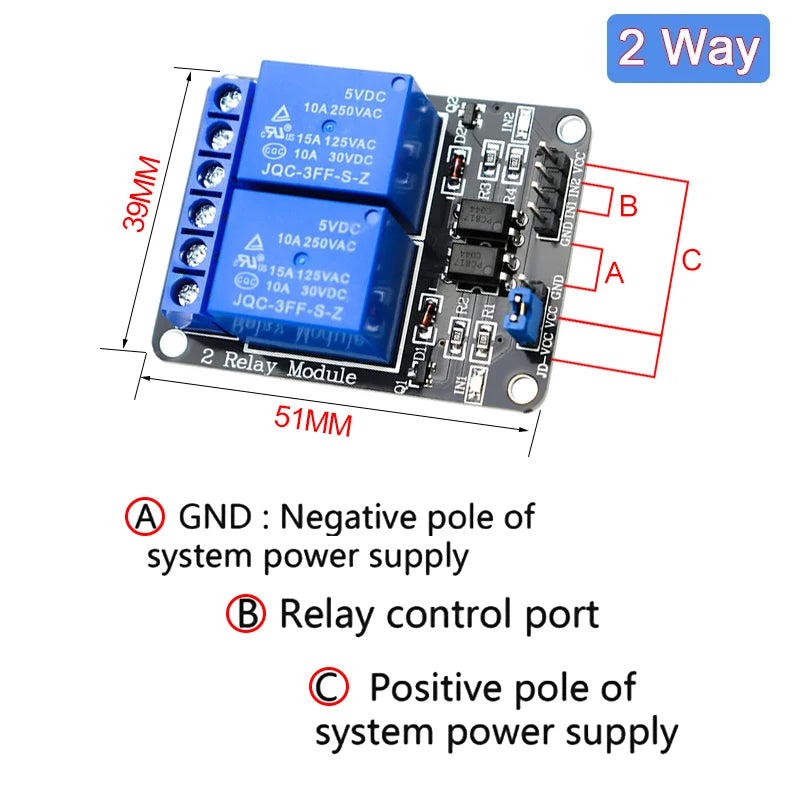

Wiring instructions:

VCC: system power supply positive
GND: system power supply negative

IN1--IN2: Relay Control Por
