SPECIFICATIONS

Average Life (hrs): more than 5000 hours

Brand Name: Xnbada

Certification: CCC,EMC,FCC,UL,CE,RoHs

Color Temp(K): RGB-2200K-6500K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 576/720

Luminous Flux: 249-2000

Model Number: WS2811 COB

Nominal Voltage: 5V/12V/24V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 7.36W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 576/720

Strip type: COB

Voltage: DC5V/DC12V/DC24V

Waterproof: No

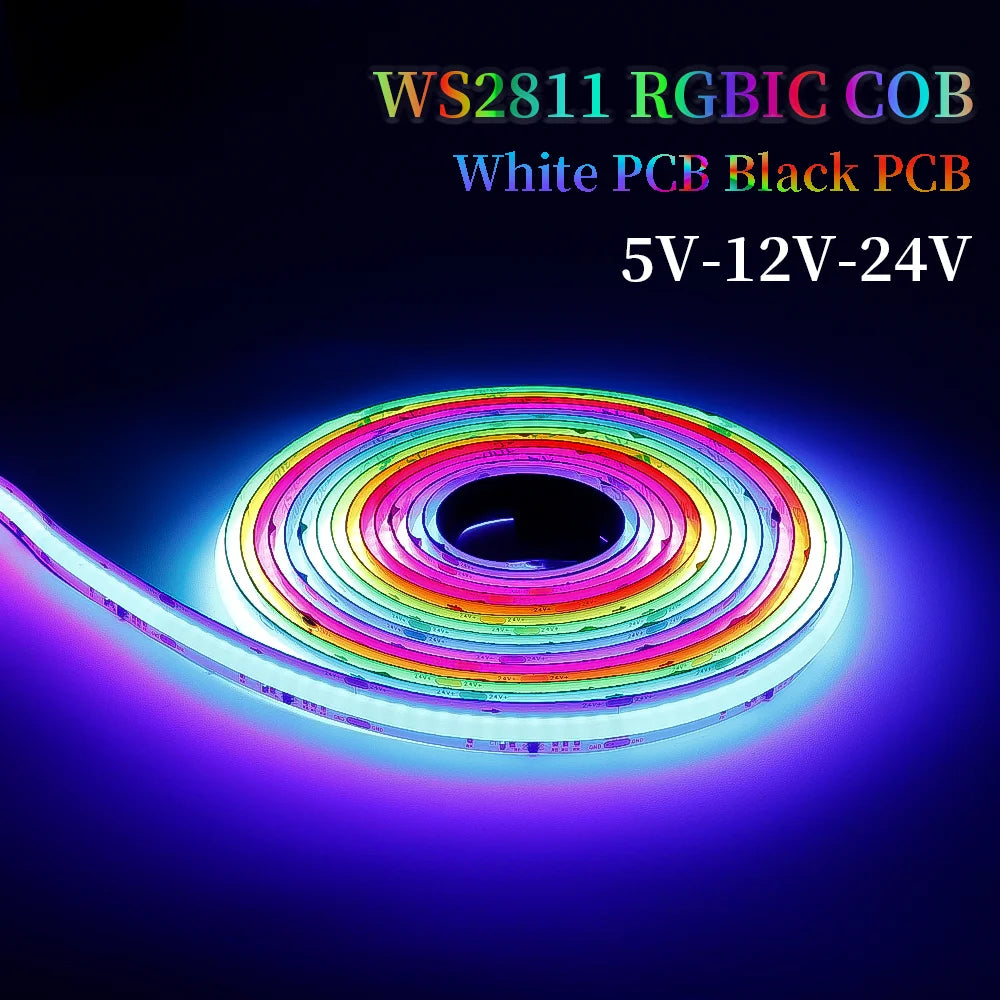

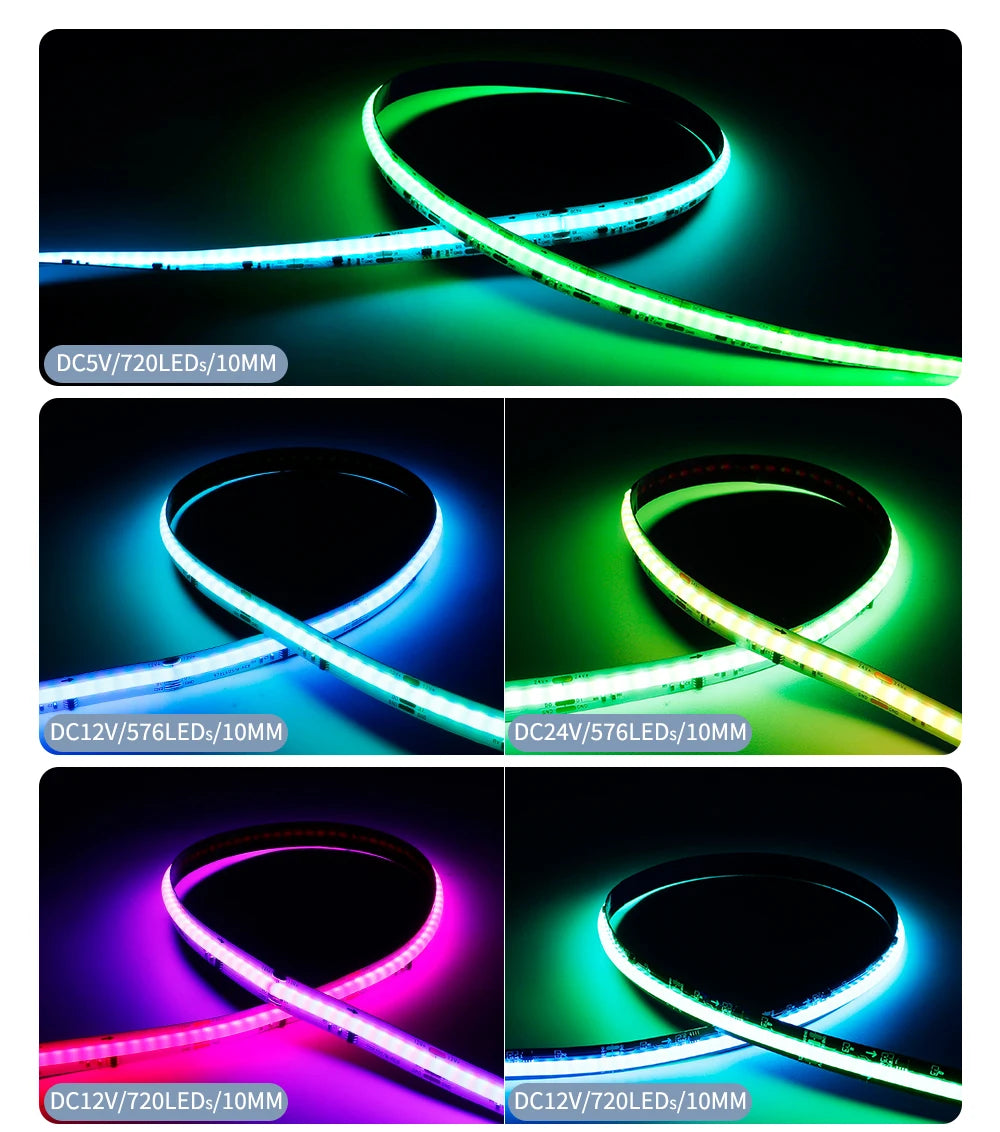

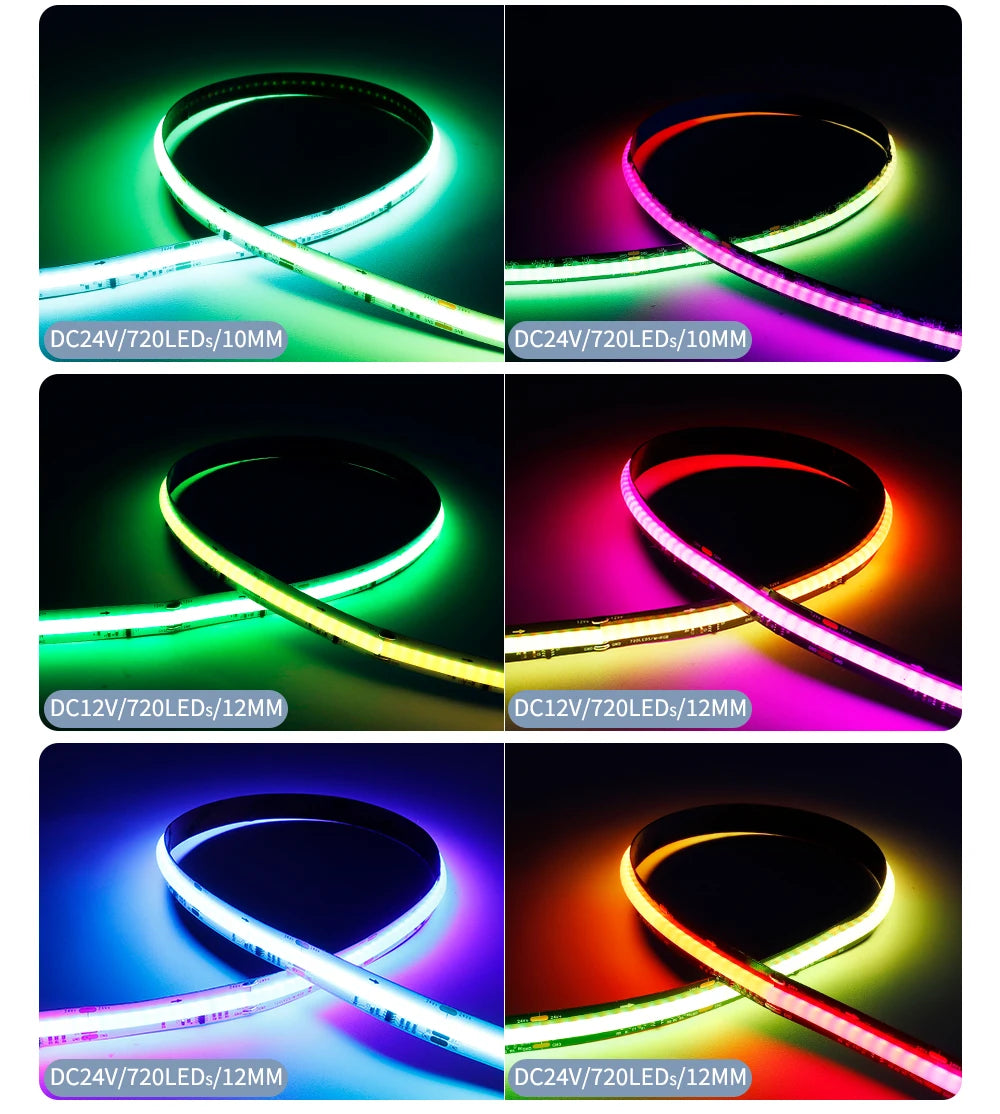

5V 12V 24V Smart SPI RGBIC LED COB Strip Light WS2811 576 720 LEDs Addressable Full color Flexible lights bar White/Black PCB

This link only has light strips. Power supply and intelligent controller not included

Specification:

Input Voltage:DC5V / DC12V / DC24V.

IC Type: FCOB RGB WS2811 IC.

Wattage: 5V-7.5W/m,12V-12W/m, 24V-21W/m.

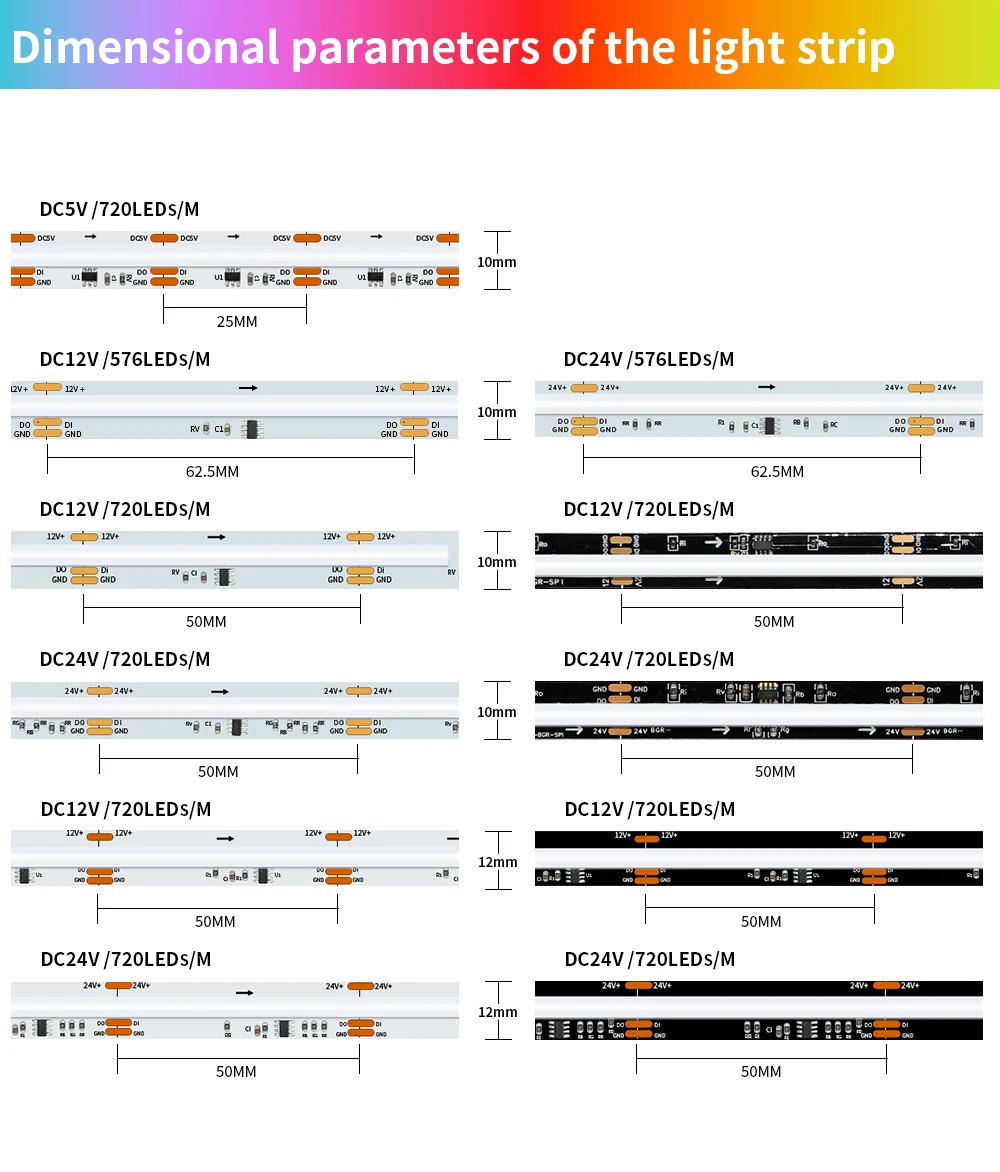

FPCB Width: 10mm PCB/12mm PCB.

LED Quantity:576LEDs/M 720 LEDs/M.

576LEDS/M:576LEDS/M only has white PCB

720LEDS/M has white PCB or Black PCB （Excluding 5V）

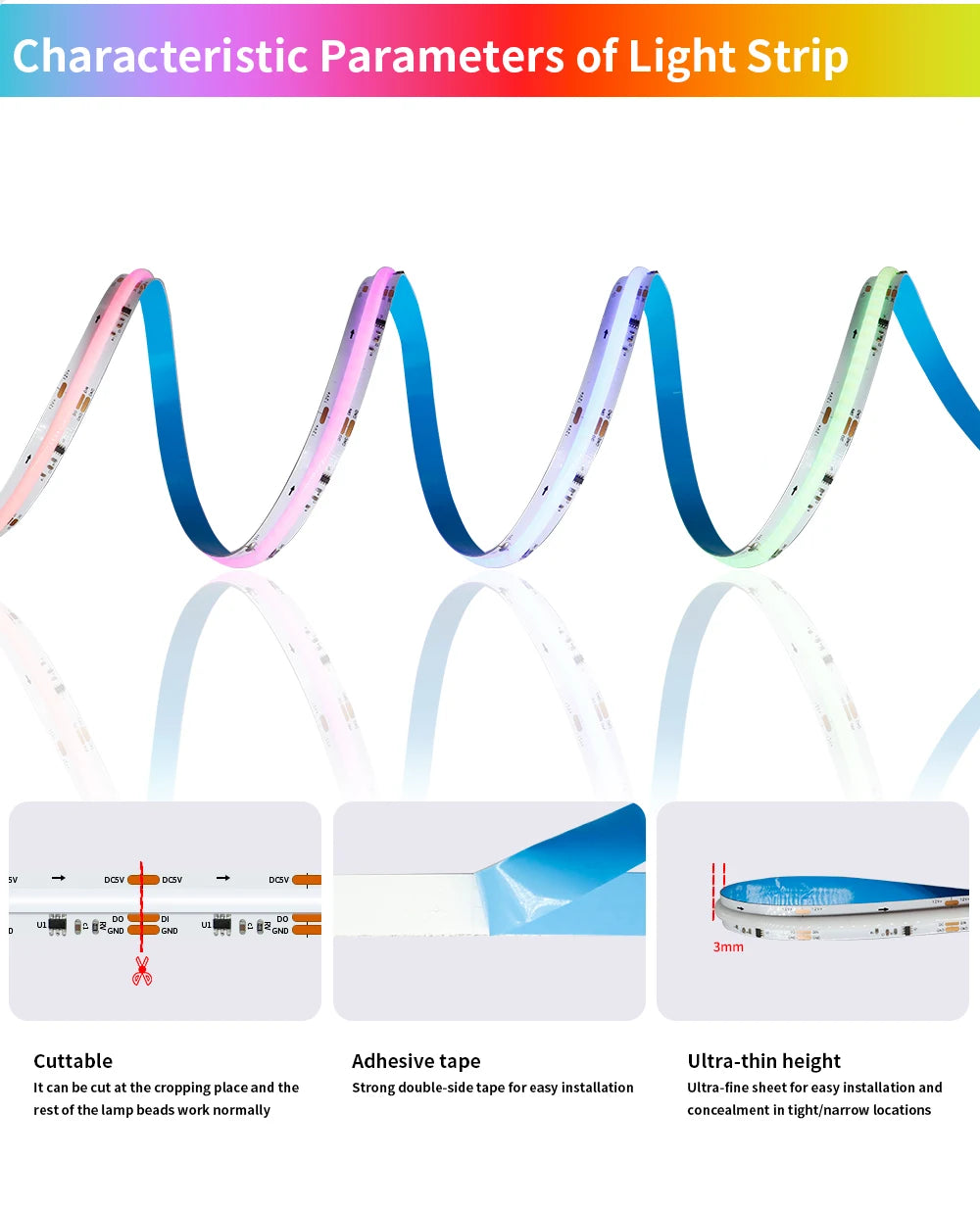

Cutting Length: every 50mm.

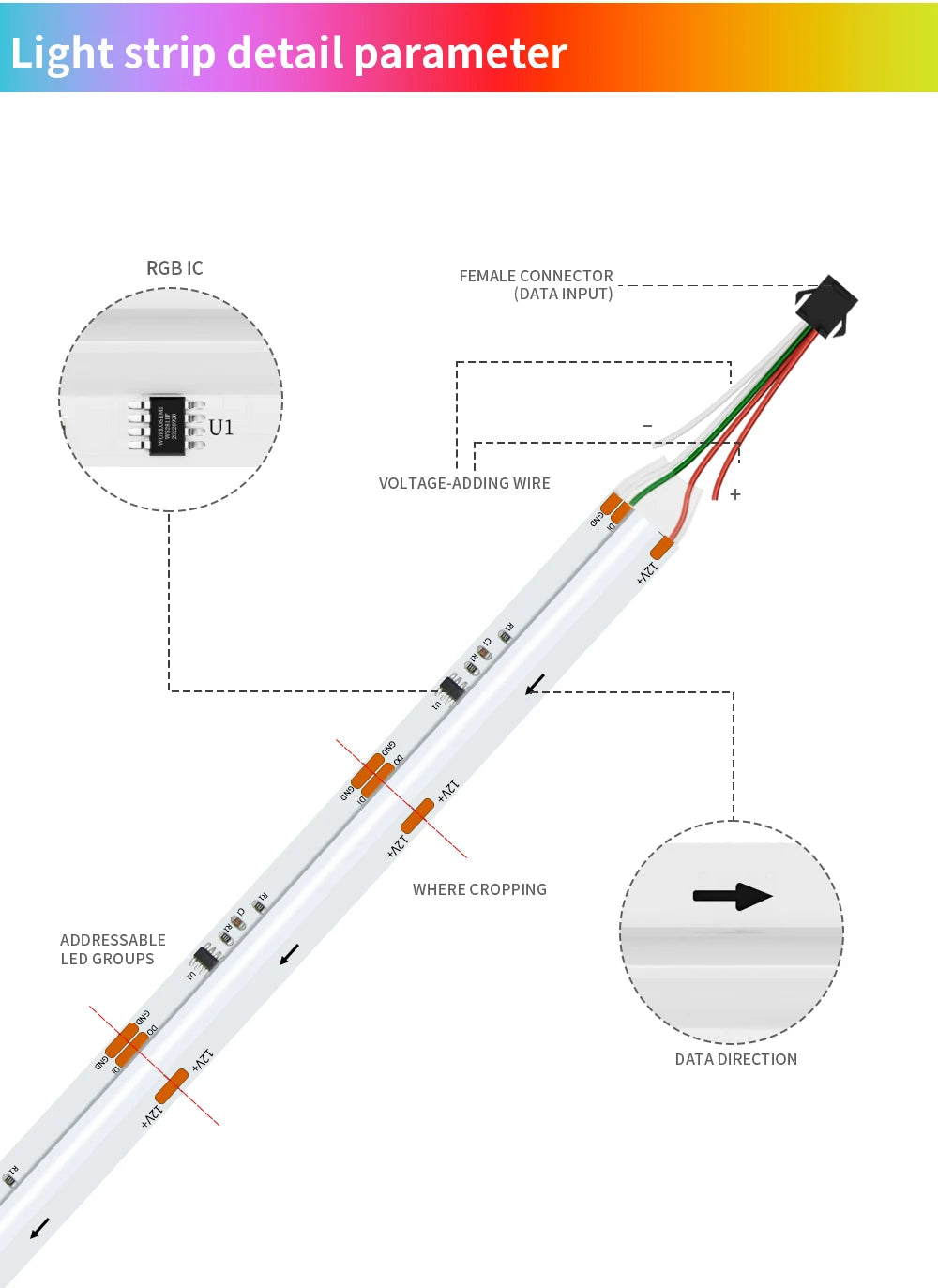

Individually Addressable: every 50mm can be unique controlled.

Color Rendering Index: Ra＞90.

Operation Temperature: -20℃-+45℃.

Storage Temperature: -20℃-+60℃.

View Angle: 180°.

Note:

a.Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.

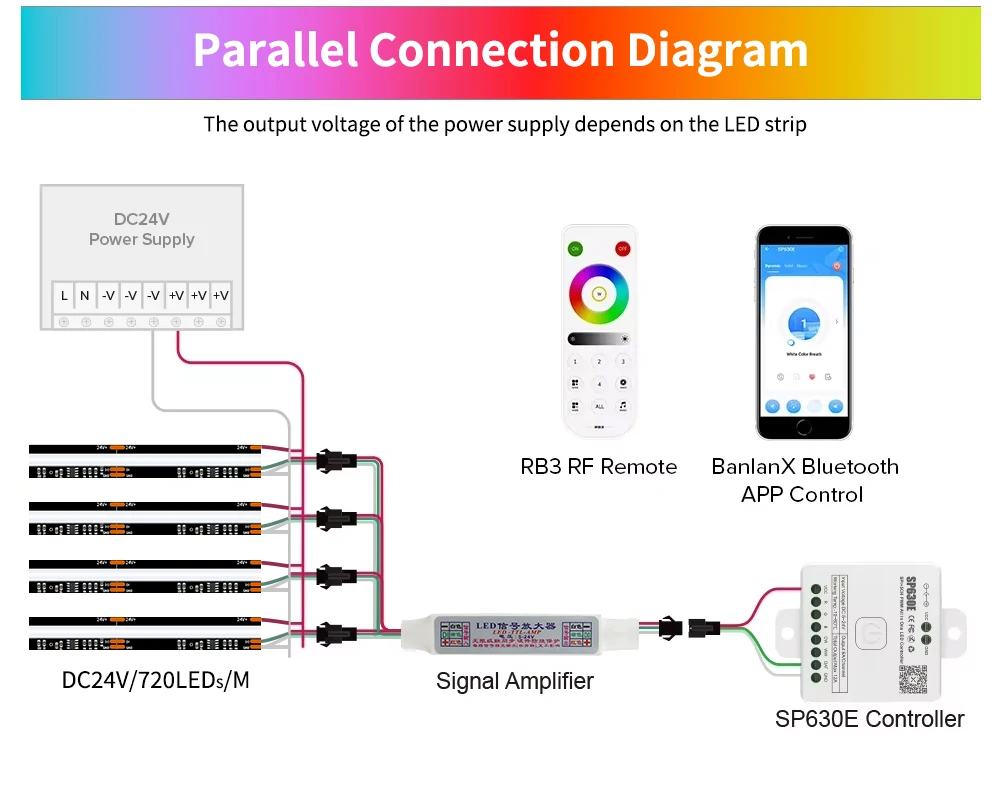

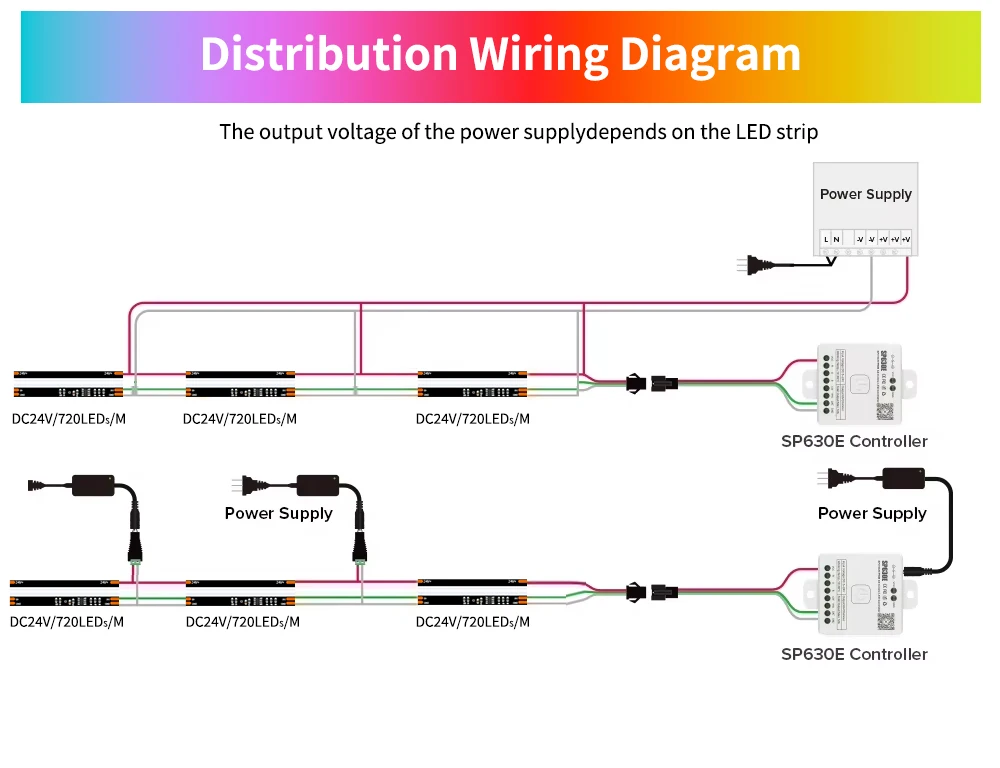

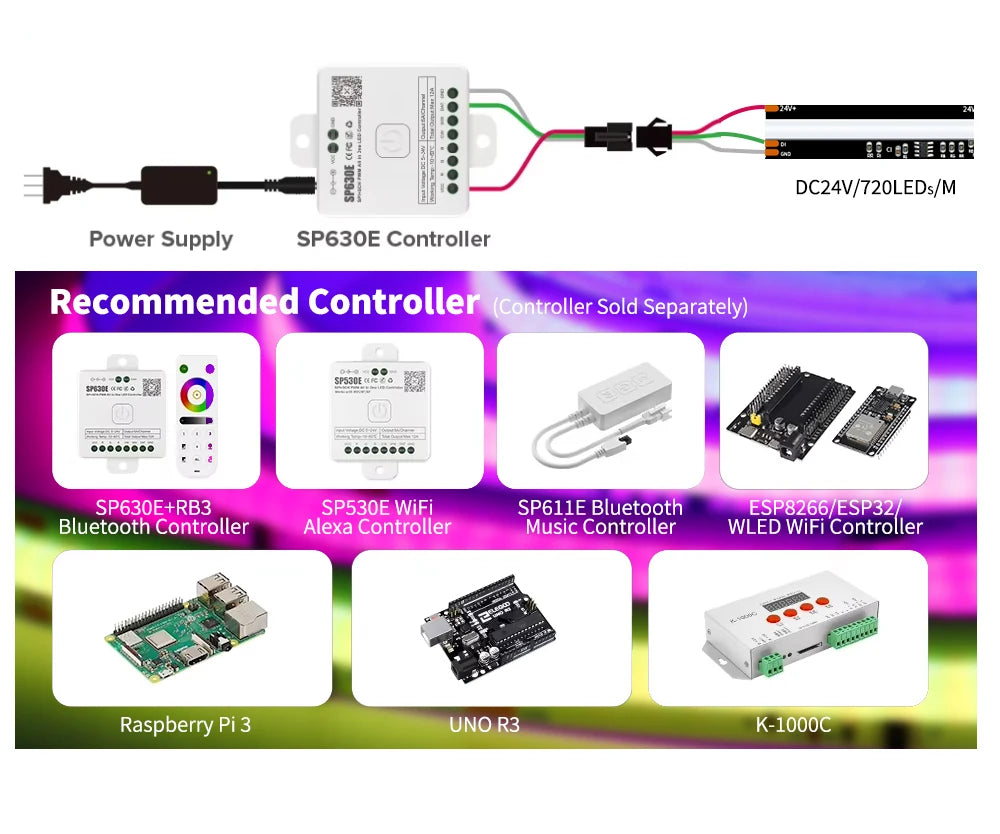

b.You need order a ws2811 led controller(Not Inlcude)and a 12V/24V led power supply(Not Inlcude) Light Up the COB led strip.

c.This LED Strip is Non-Waterproof.

d.This LED Strip is not Individually Addressable Led Strip:

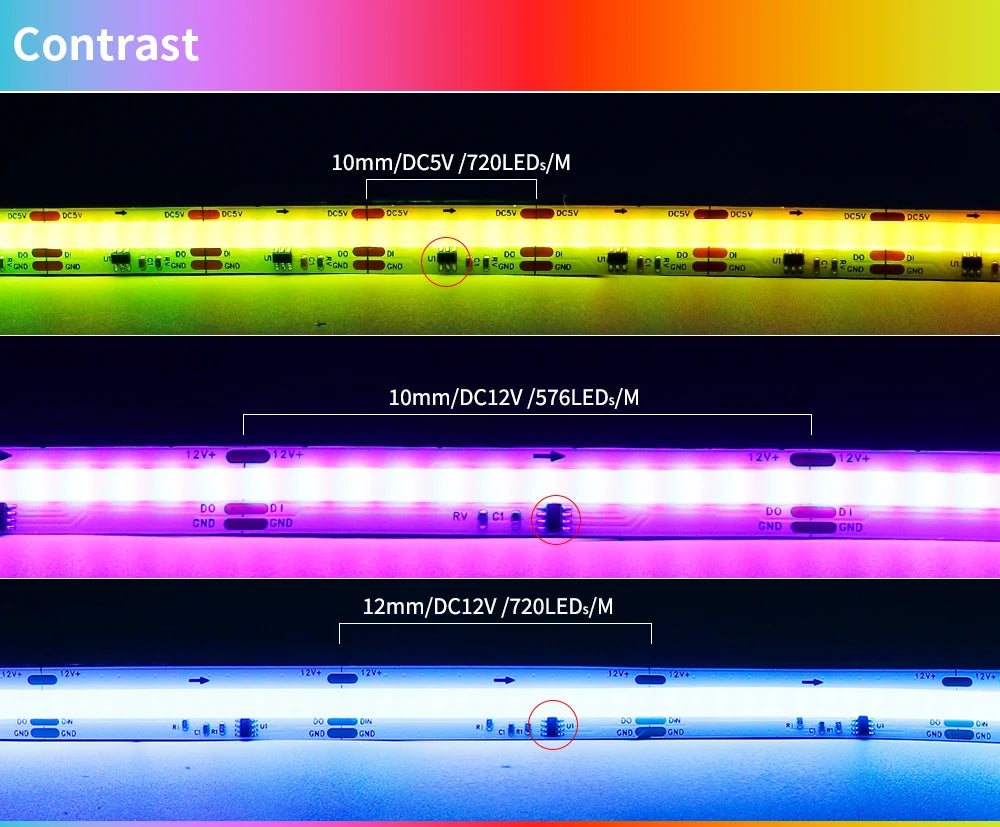

DC5V 720Leds/m---1 IC Control 18Leds

DC12V 576Leds/m---1 IC Control 36Leds

DC12/24V 720Leds/m---1 IC Control 36Leds

Advantages:

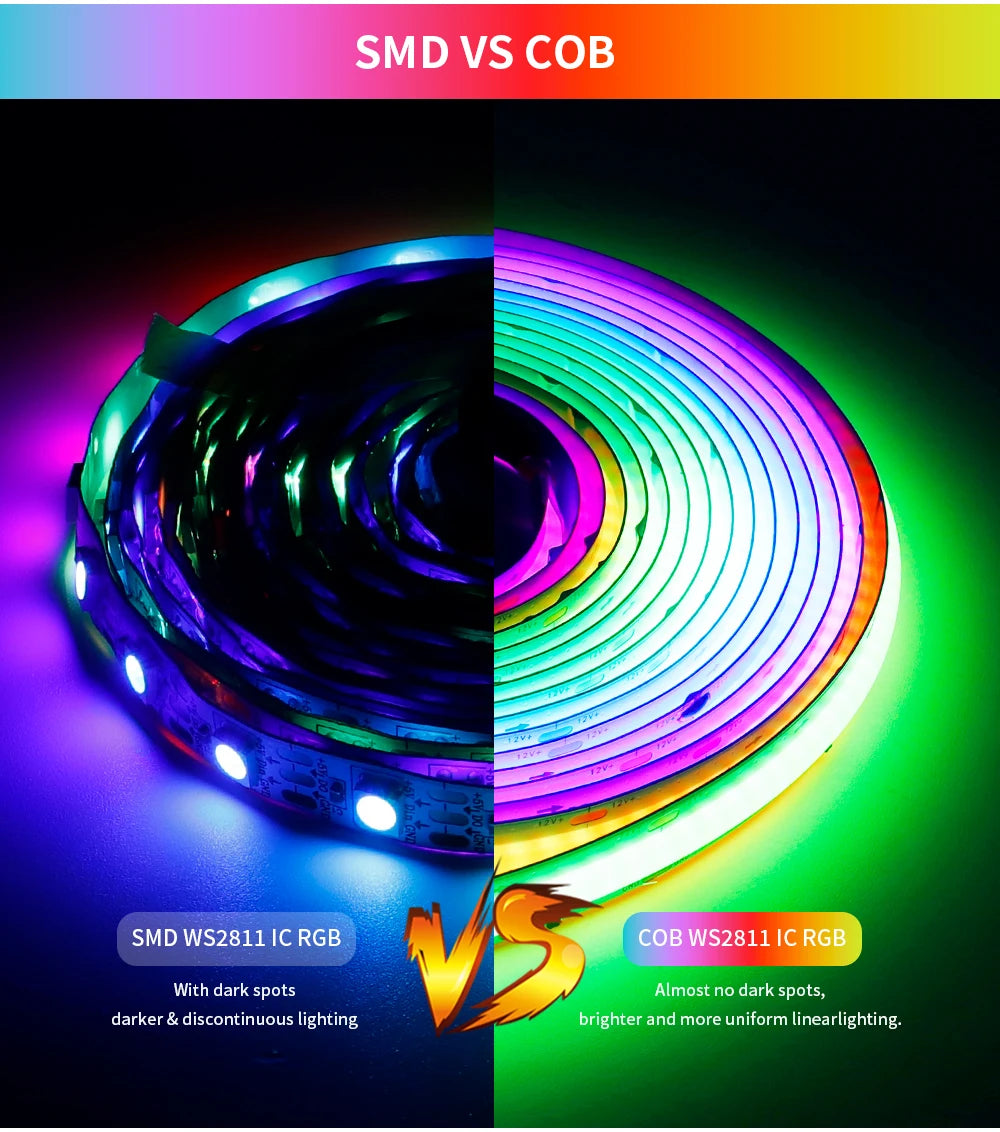

1. 720 chips are arranged in a linear way, integrated package, with uniform light color and no light spot;

2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;

3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;

4. DC5V DC12V 24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;

5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and firm and durable for pasting;

6. LED light source, energy
