SPECIFICATIONS

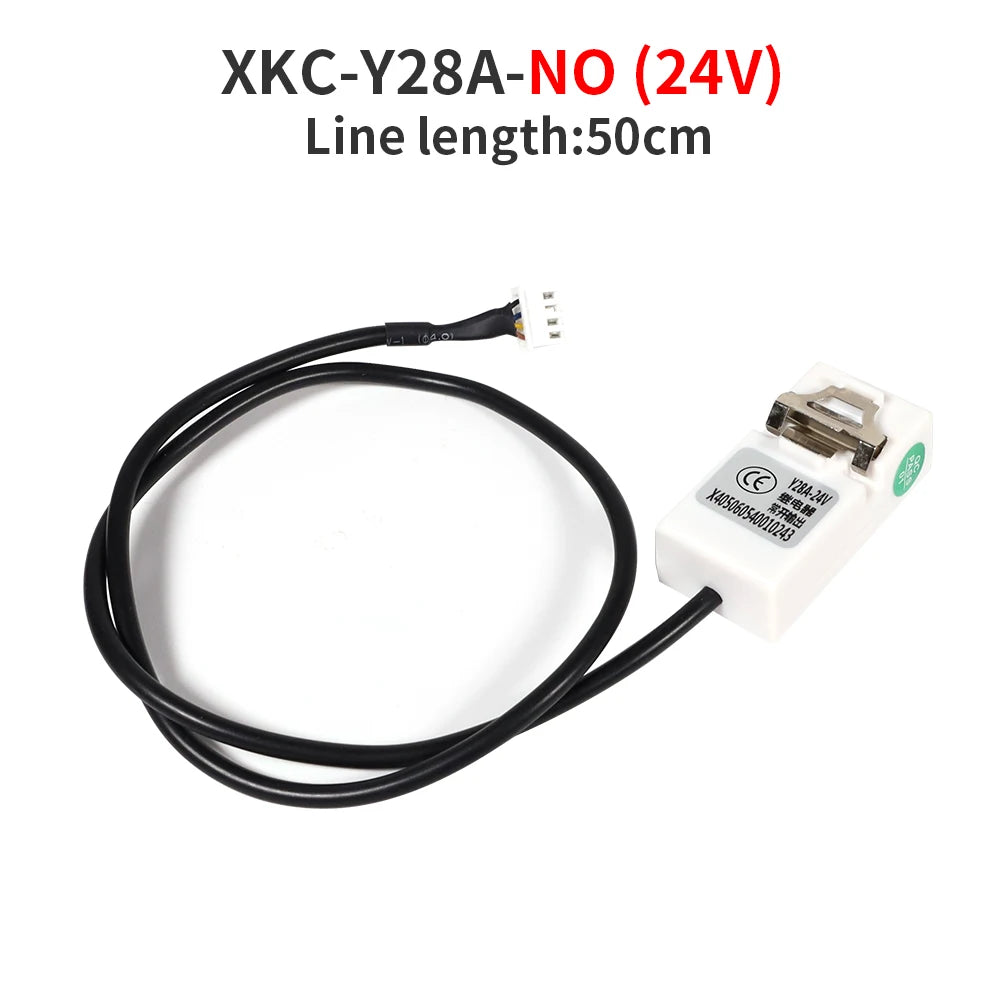

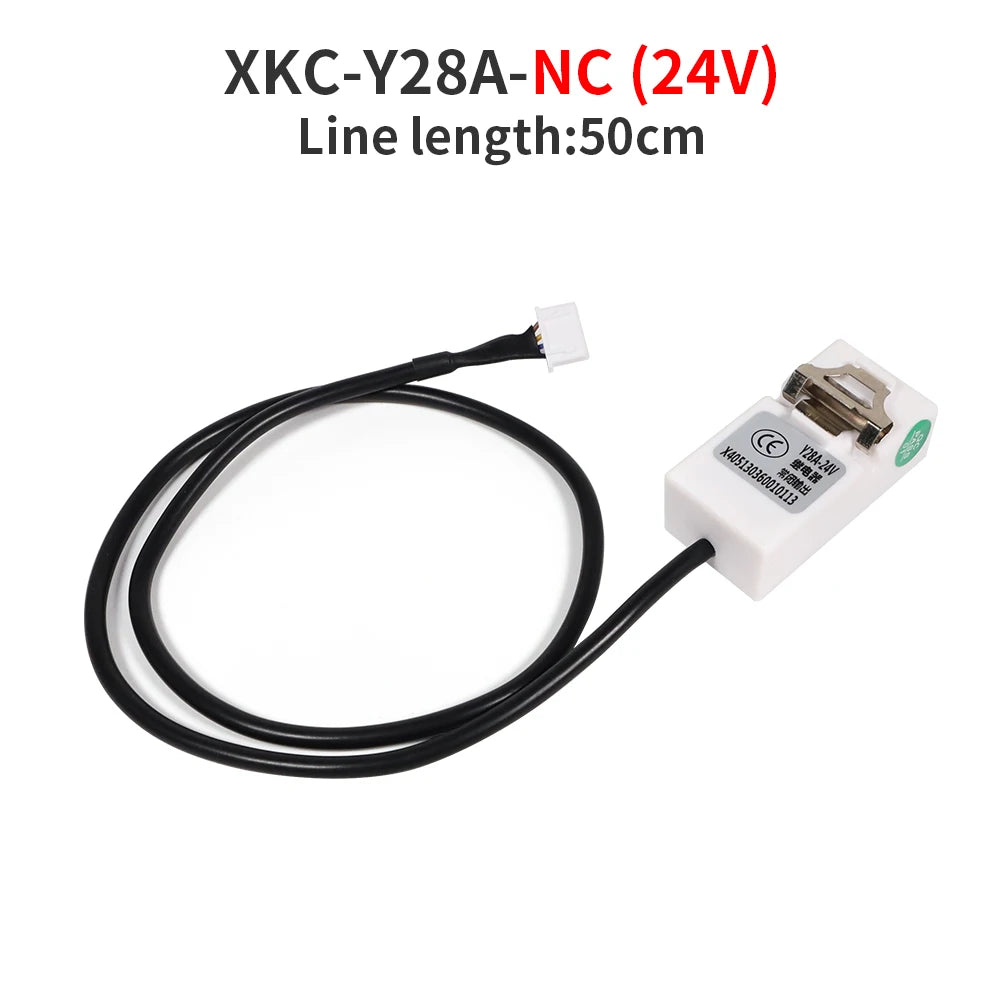

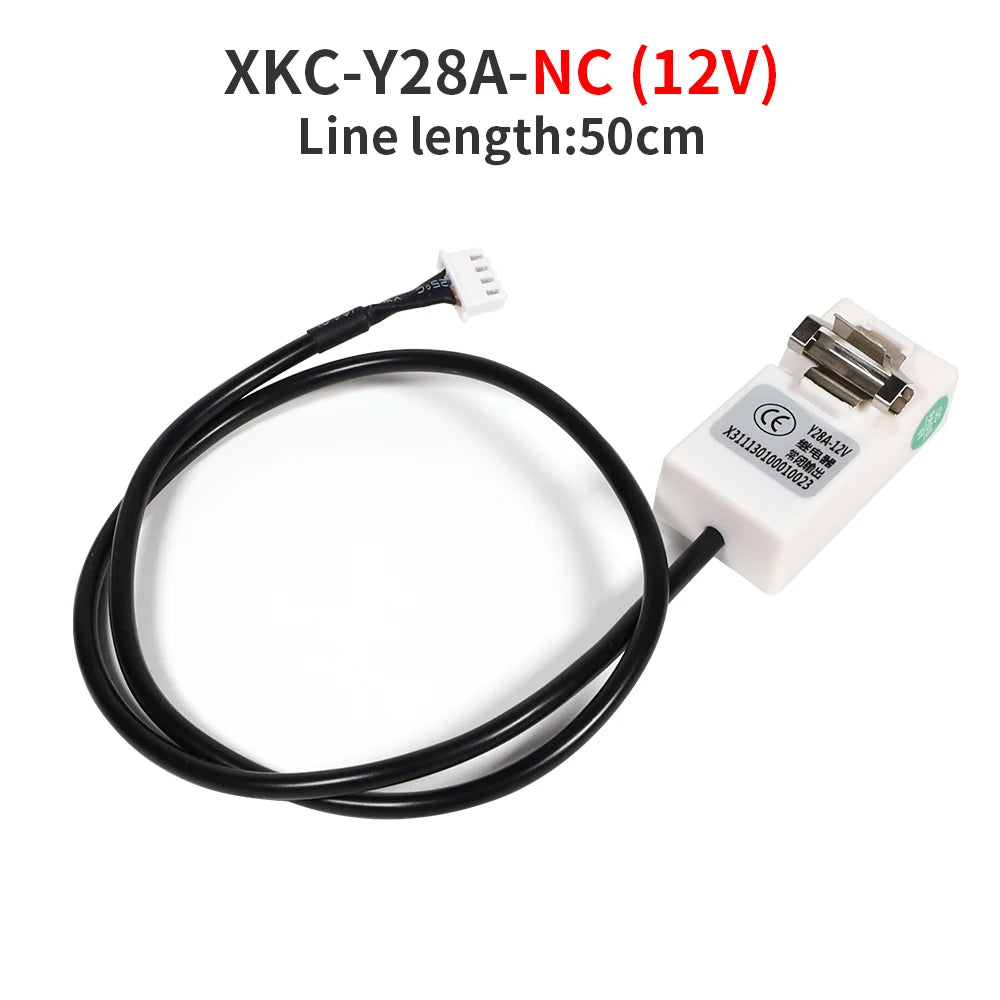

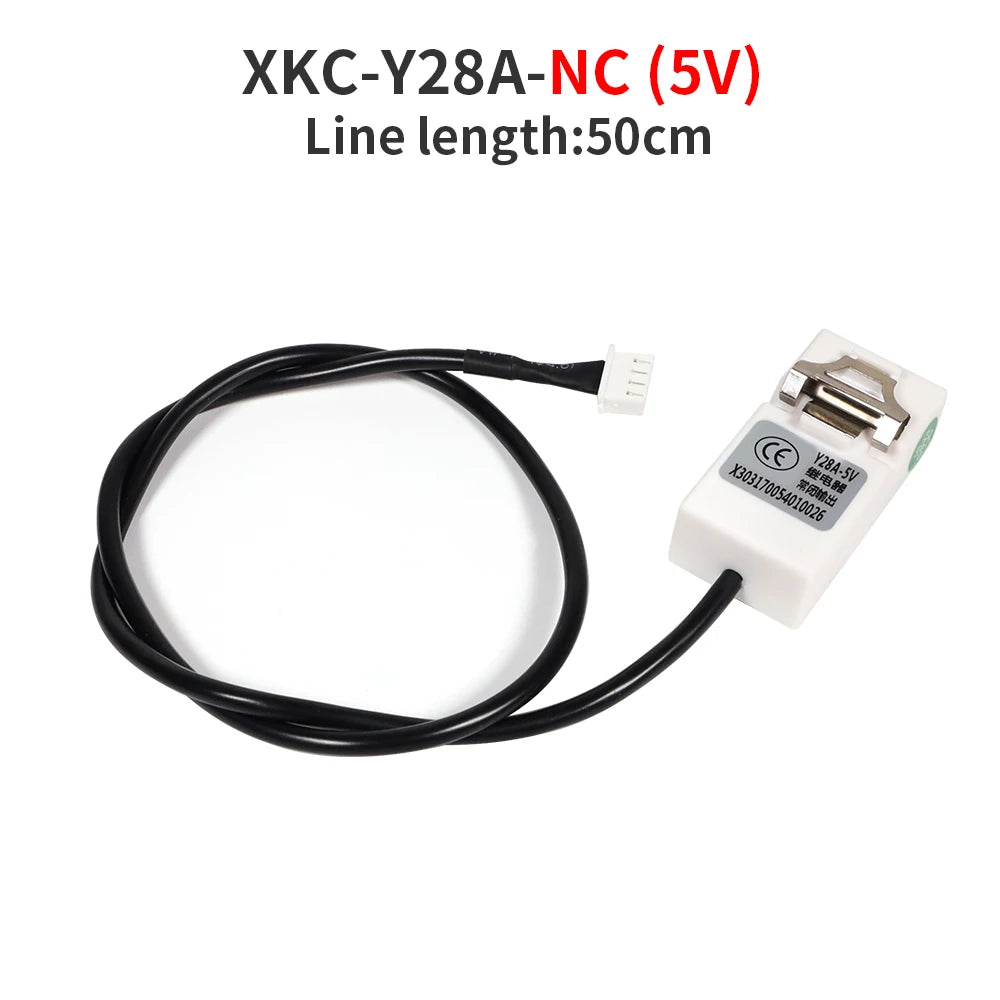

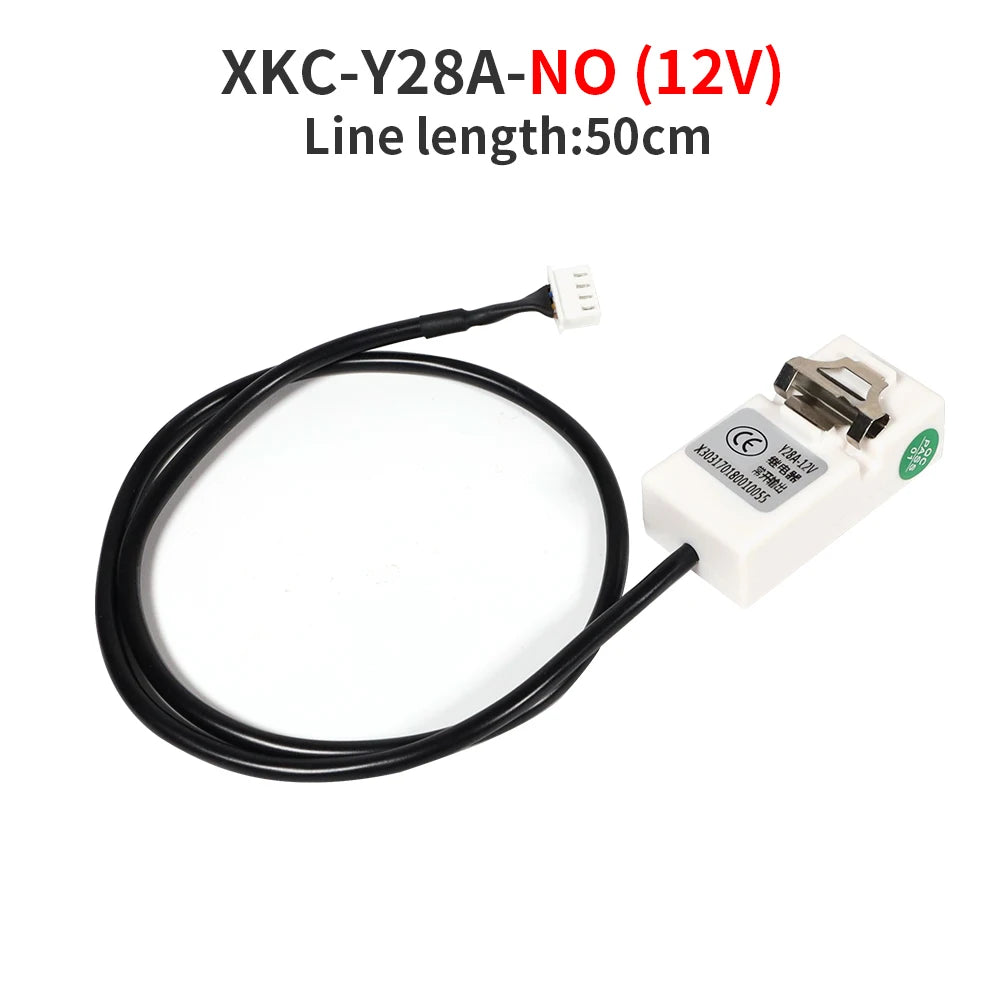

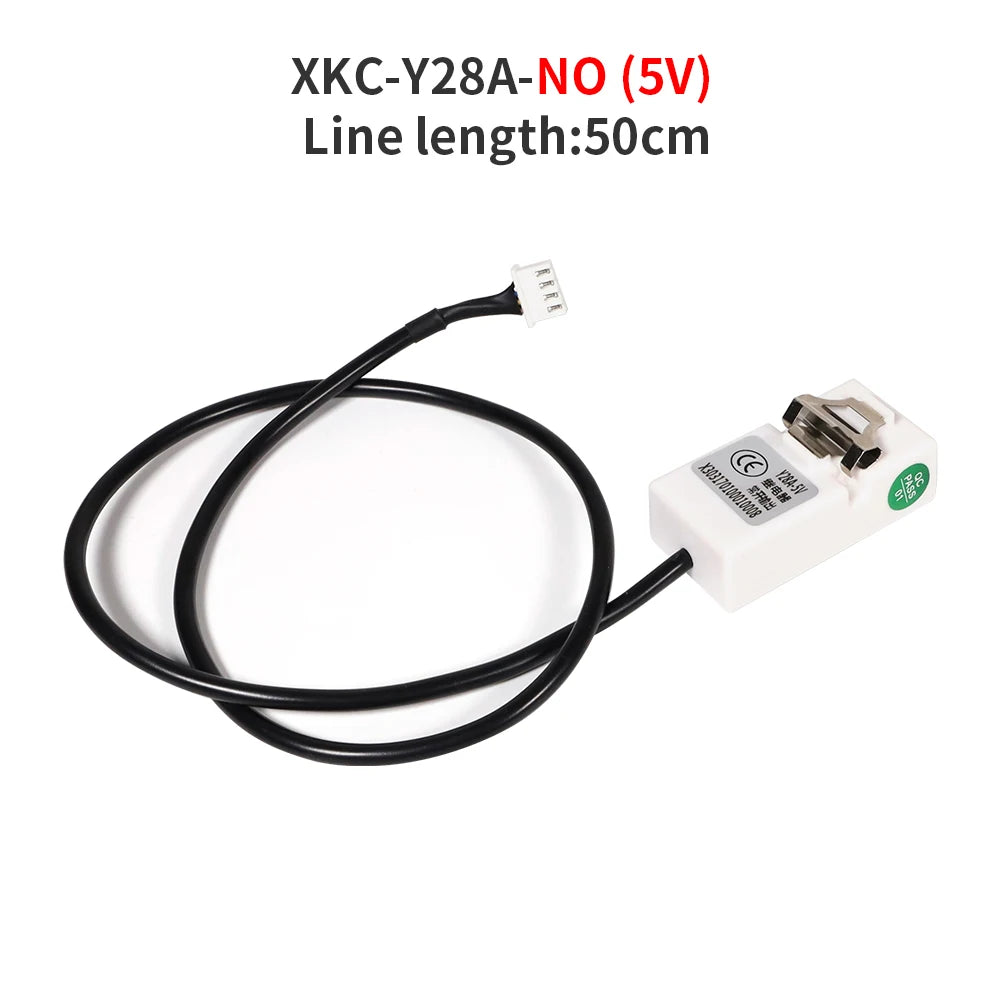

Normally open output interface ——Model: XKC-Y28A-NO (DC 5V), (DC 12V), (DC 24V)

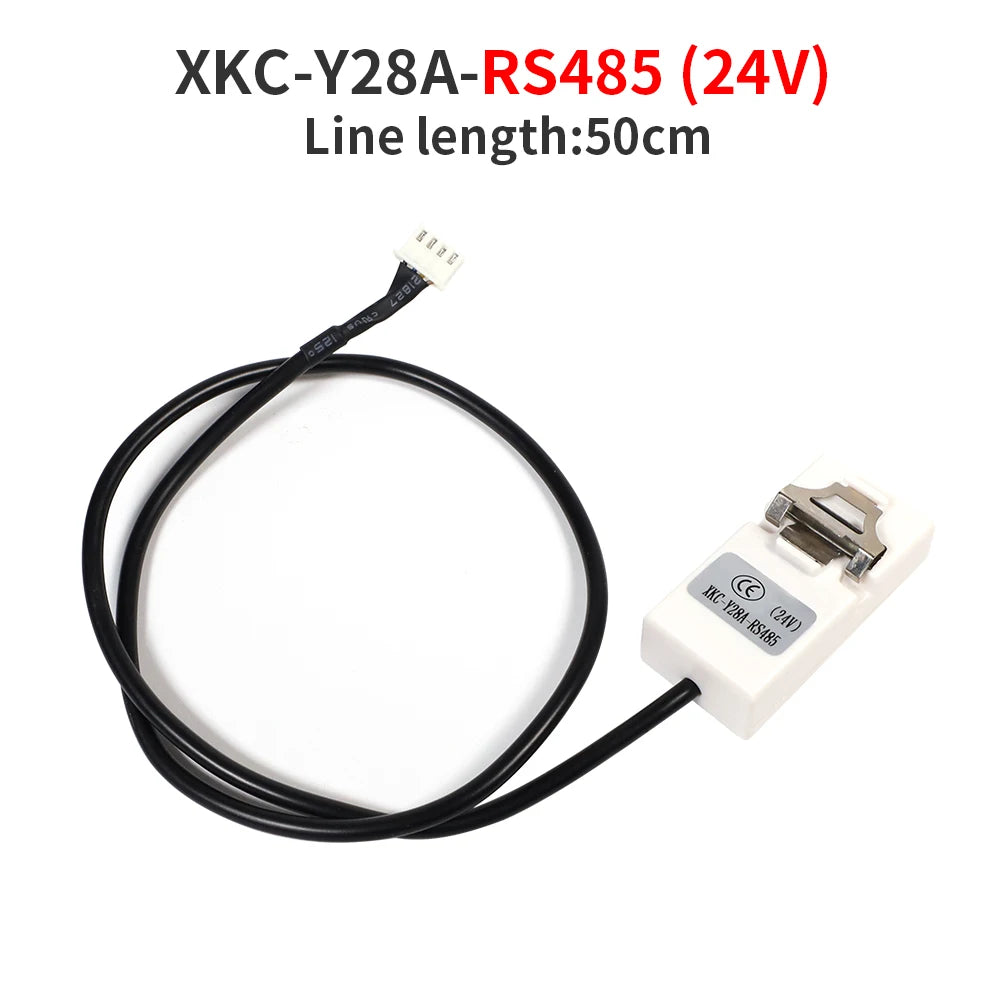

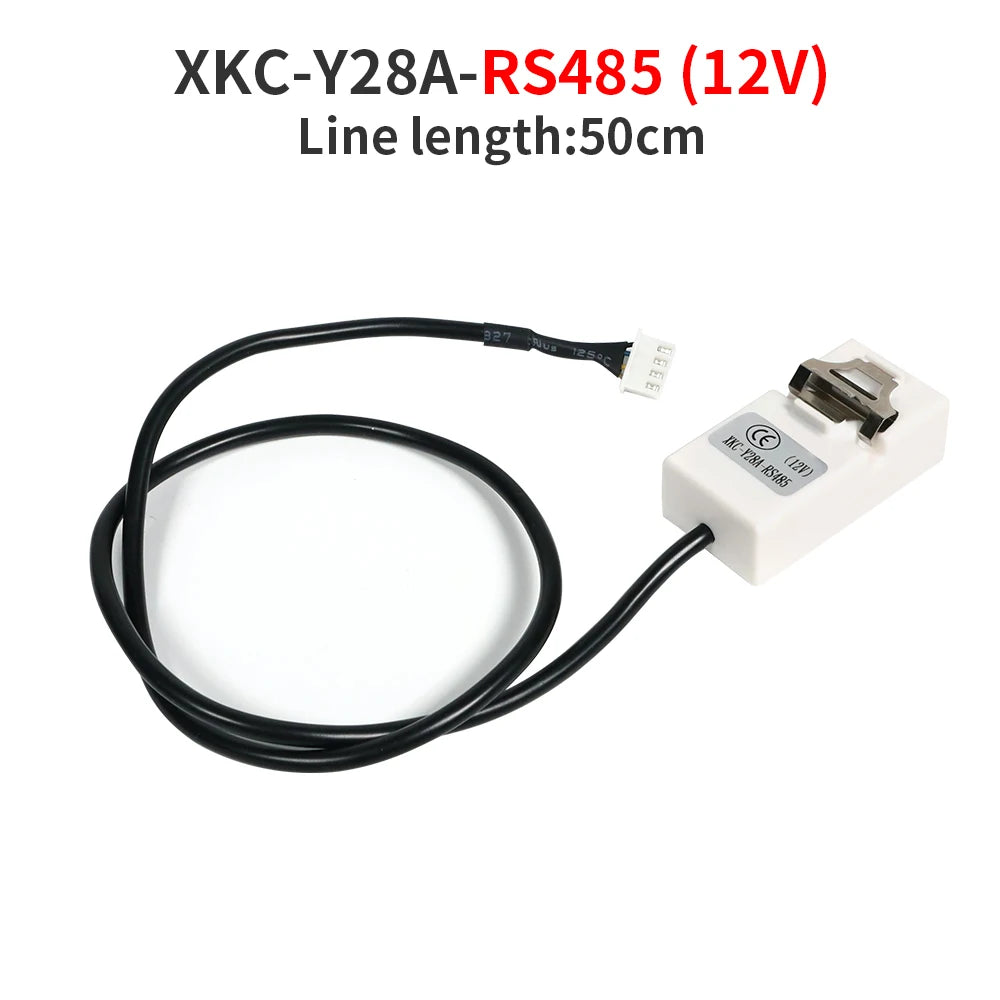

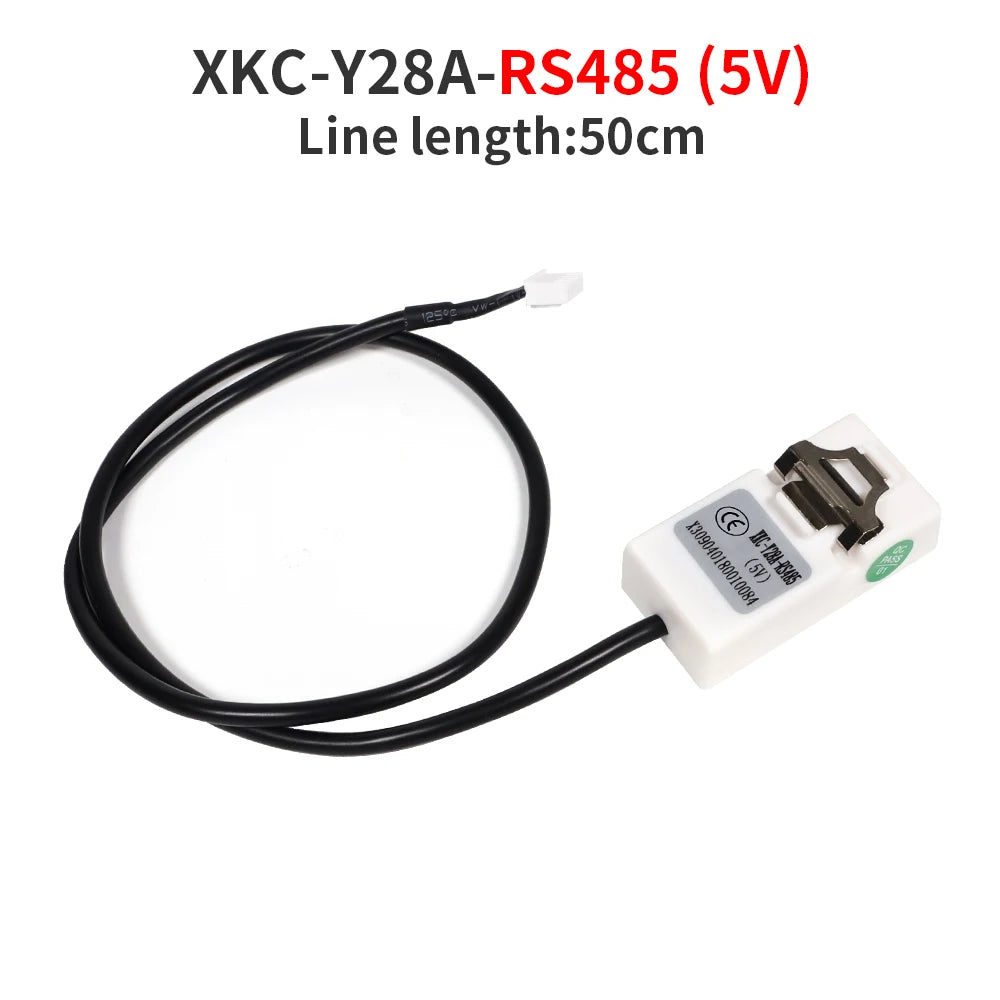

RS485 output interface------Model: XKC-Y28A-RS485 (DC 5V), (DC 12V), (DC 24V)

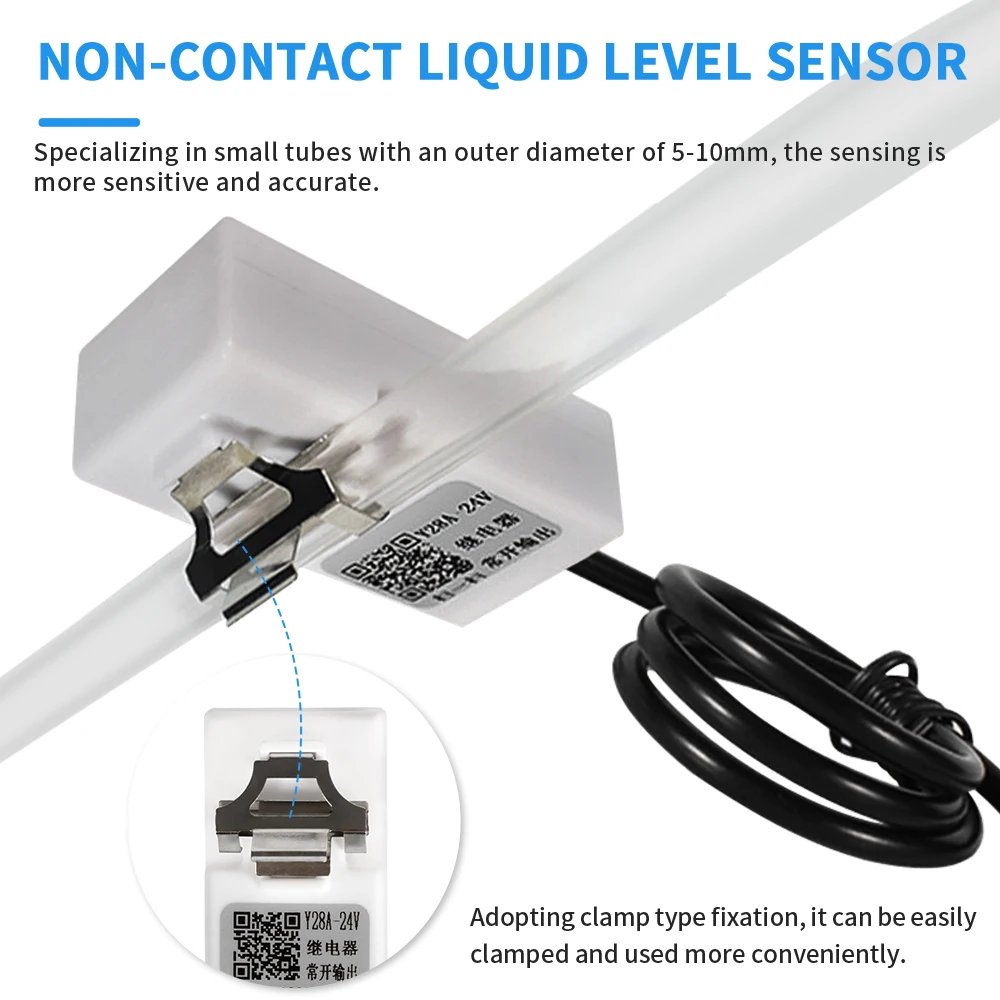

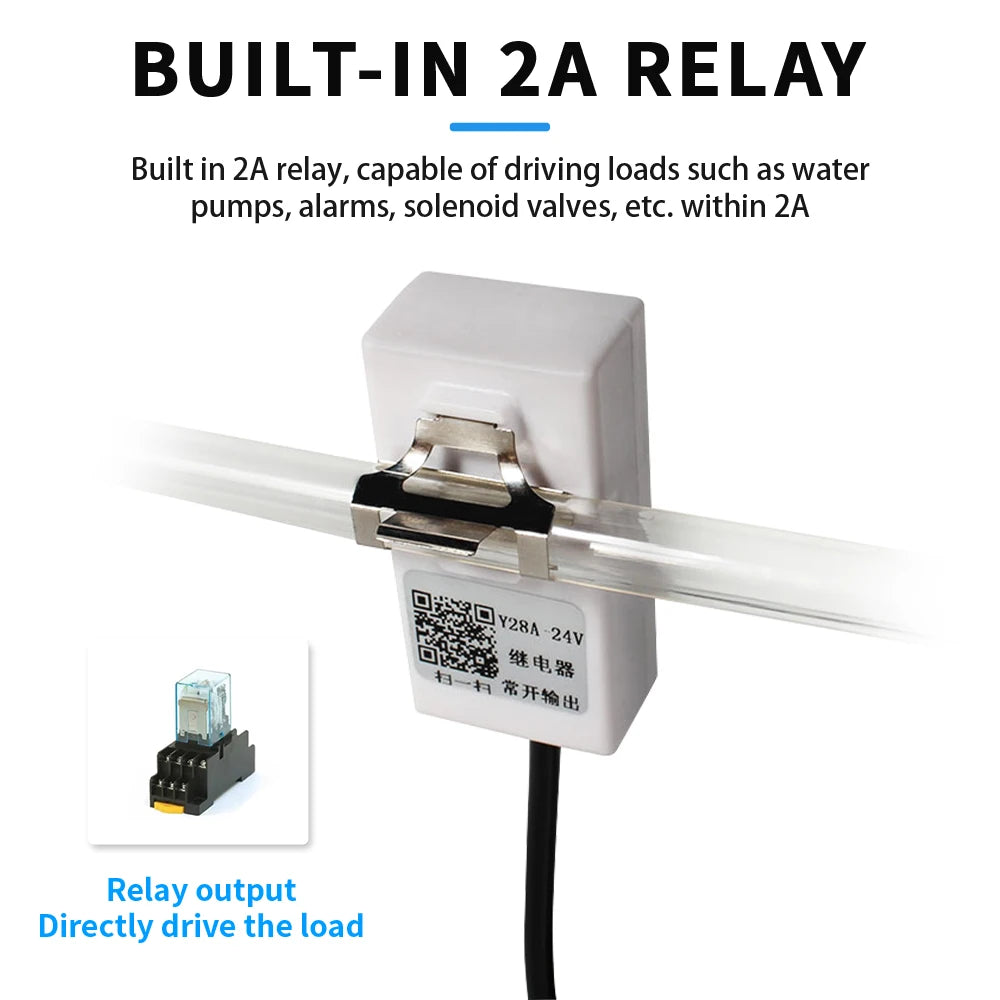

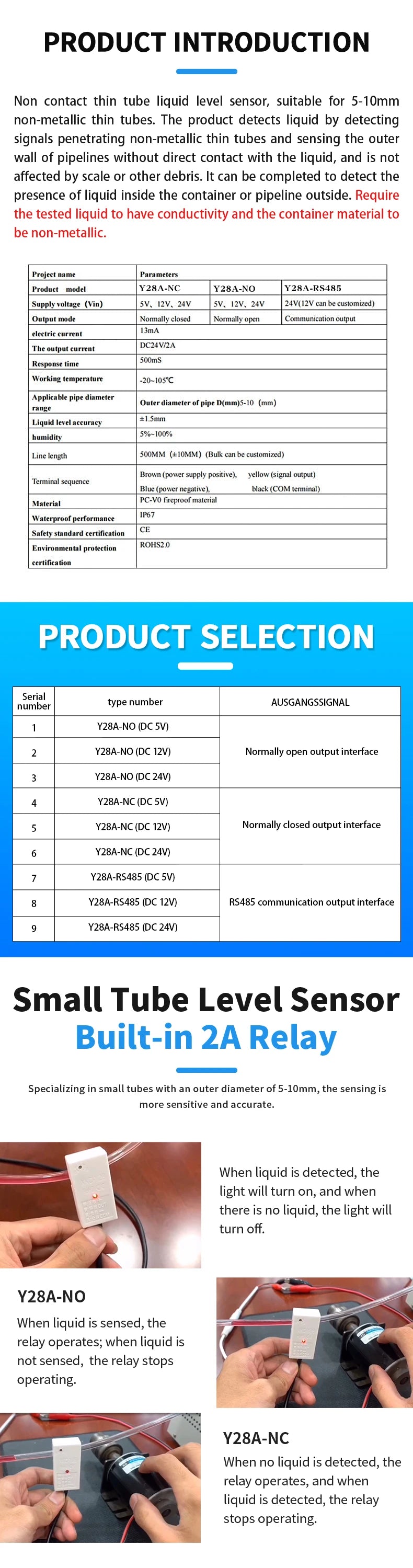

XKC-Y28A-NO/NC products are specially designed for non-metallic pipes (pipe outer diameter D≤10MM), respectively, relay normally open output and relay normally closed output;

Product Features

1. XKC-Y28A-NO/NC sensor, suitable for non-metallic pipes (pipe outer diameter D≤10MM) without direct contact with liquid, will not be corroded by strong acids and alkalis and other corrosive liquids, and will not be affected by scale or other debris Influence, it can be completed to detect whether there is liquid inside the container or pipeline.

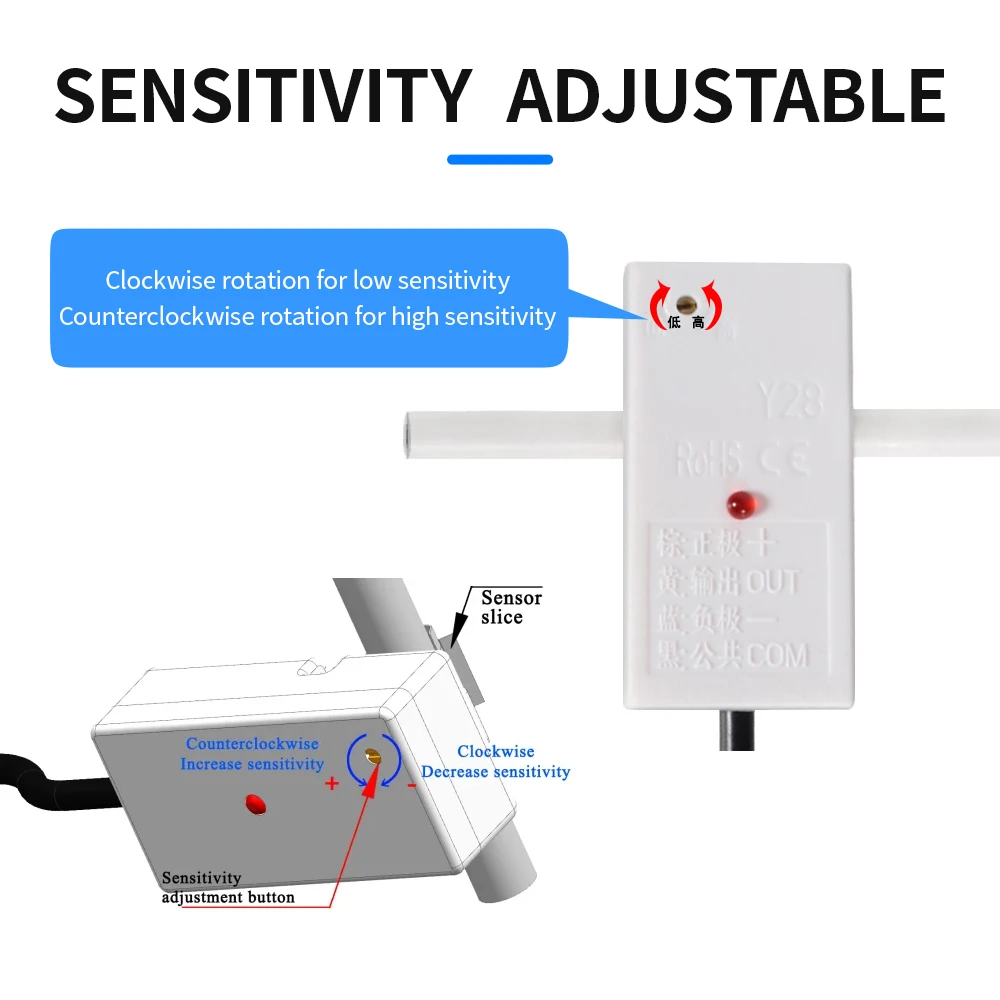

2. Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection.

3. The detection is accurate and stable, and the boiling water level can be detected.

4. Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.

5. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5V, 12V, 24V power adapters on the market.

6. Strong compatibility, penetrating various non-metallic container pipes, such as plastic, glass, ceramic and other containers, suitable for liquid level detection of various curved, arc, cylindrical containers or pipes.

7. The voltage can be selected (5V, 12V, 24V), suitable for connecting various circuits and product applications。

Supply voltage（Vin）：DC5-24V

electric current：13mA

Response time：500mS

Working temperature：-20~85℃

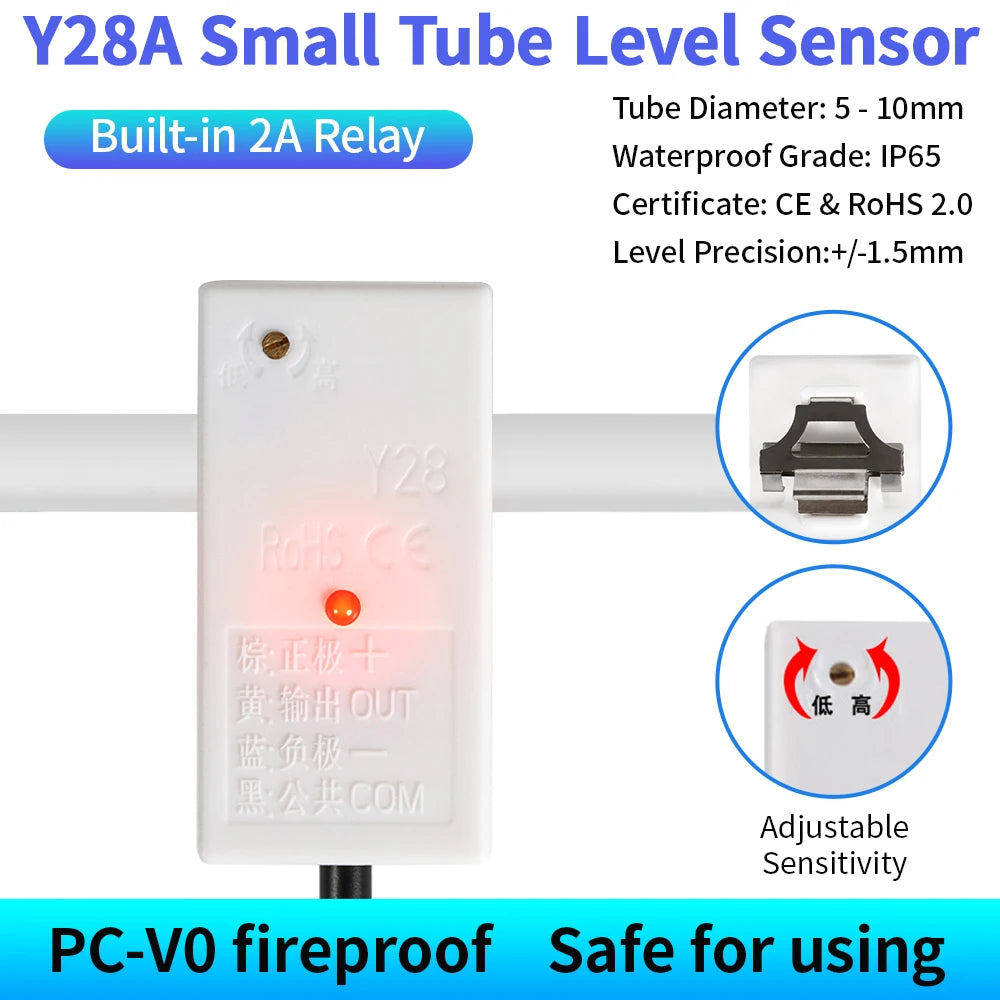

Applicable pipe diameter range：Outer diameter of pipe D(mm)5-10（mm）

Liquid level accuracy：±1.5mm

humidity：5%~100%

Line length：500MM（±10MM）(Bulk can be customized)

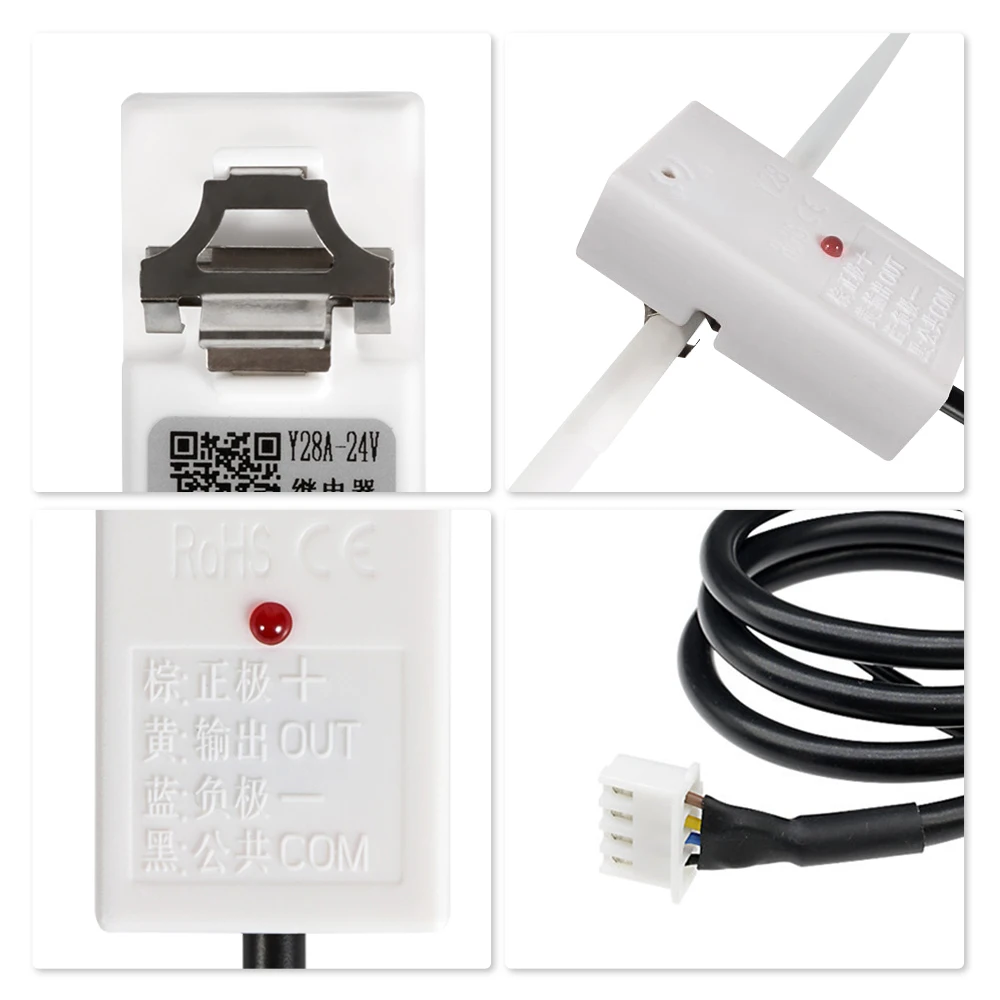

Terminal sequence：

Brown (power supply positive), yellow (signal output)

Blue (power negative), black (COM terminal)

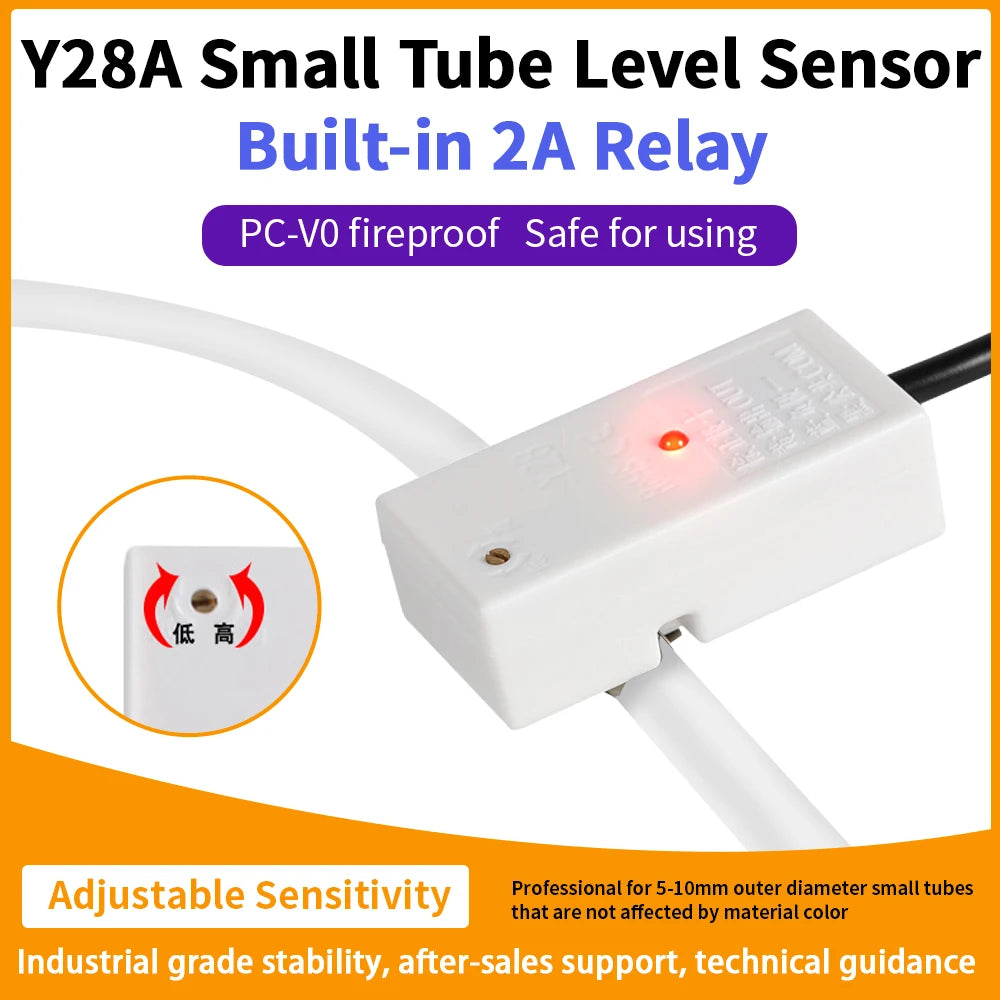

Material：PC-V0 fireproof material

Waterproof performance：IP65

Safety standard certification：CE

Environmental protection certification：ROHS2.0

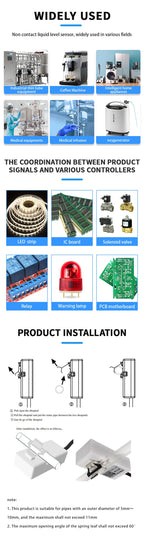

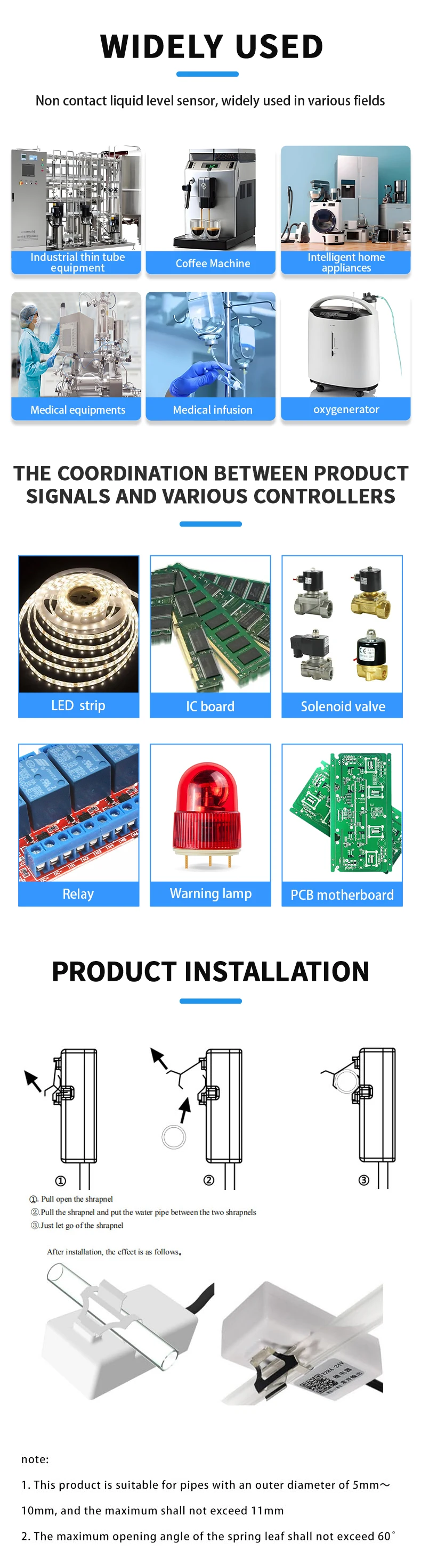

Installation method
