SPECIFICATIONS

Brand Name: NONE

Certification: ce,FCC,ROHS,UL,CE,RoHs

Choice: yes

Color Temp(K): rgb

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LEDs Number/M: 60

Luminous Flux: 249-2000

Model Number: S shaped

Nominal Voltage: 4.5V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Source: DC

Specifications (light beads / m): 60

Strip type: SMD

Voltage: 5v/12v

Waterproof: No

semi_Choice: yes

Features:
1. High-voltage CMOS process, 12V single-point single control.
2. Provides output channel current mismatch function, which can reduce electromagnetic interference and power supply spurs.
3. Defaults to not lighting up when powered on.
4. The chip has power-on protection and power-off protection functions to extend the chip's service life.
5. Available in SOP8 package type, operating environment ranges from -40°C to +85°C.
6. Each LED is independent, and you can set them to any color or animation you want.

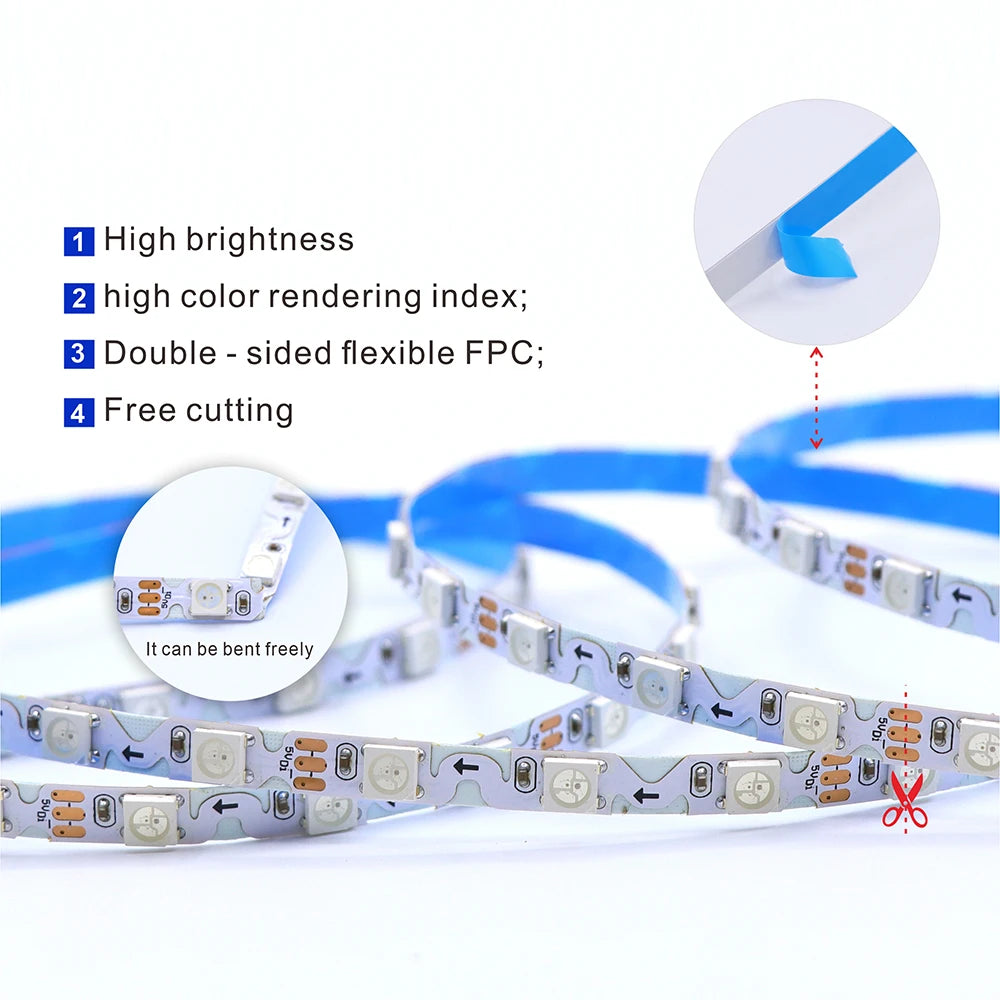

7. It is equipped with self-adhesive 3M tape on the back, so you can fix it on any dry and flat surface without screws or clips.
8. Both ends are equipped with 3-pin JST SM connectors, and the output side has separated power/ground wires, which makes them easy to connect to each other and route.

Specifications:
IC Type: 5050IC
Gray Scale: 256
Viewing Angle: 120°
Input Voltage: DC5V/12V
Color: Full-color 24-bit
Board Color: White/Black
Power: 18W/m, 0.3W/LED, 60LEDs/m
Recommended Power Supply: 5V2A/12V2A
Standard Roll Length: 1 meter/piece
Model: S LED Strip
Storage Temperature: -55 to +150°C
Operating Temperature: -40 to +85°C
Number of LEDs: 60leds

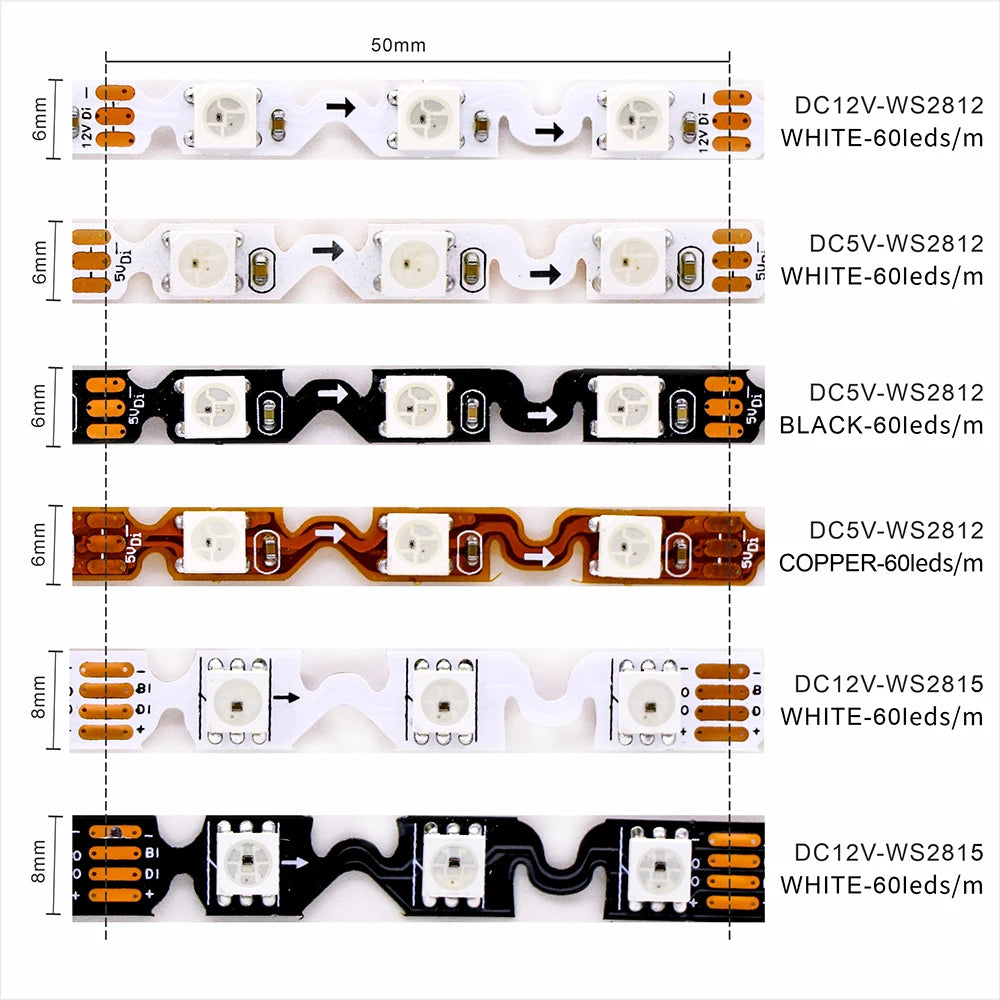

Distance Between Two LEDs: 11.40mm
Length x Width x Height: 1000mm x 6mm x 2mm
Wavelength (nm): Red: 620-650nm; Green: 520-525nm; Blue: 465-470nm
Waterproof Rating: IP30 (non-waterproof)

Package Includes:
1 x 1-meter RGB IP30 strip light
1 x 3-pin connector

Note:
Power adapter and controller are not included in the package!
Do not light it up for a long time when it is on the reel.
