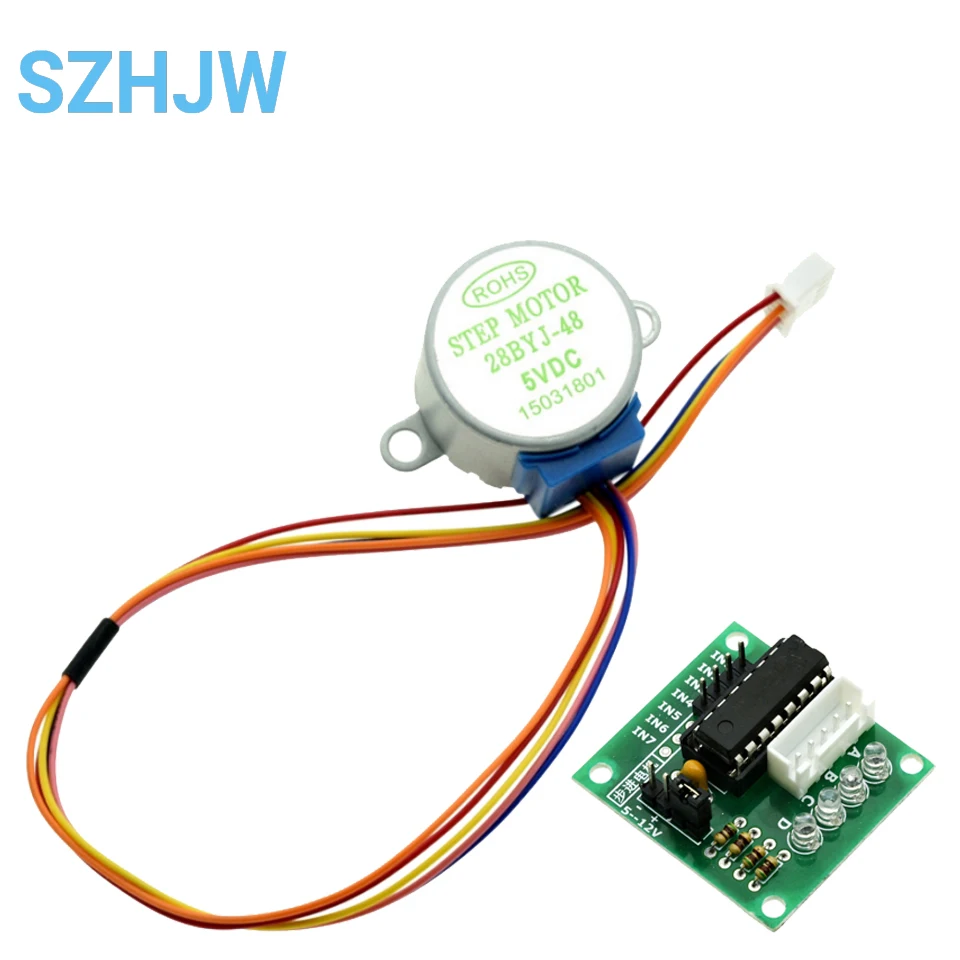

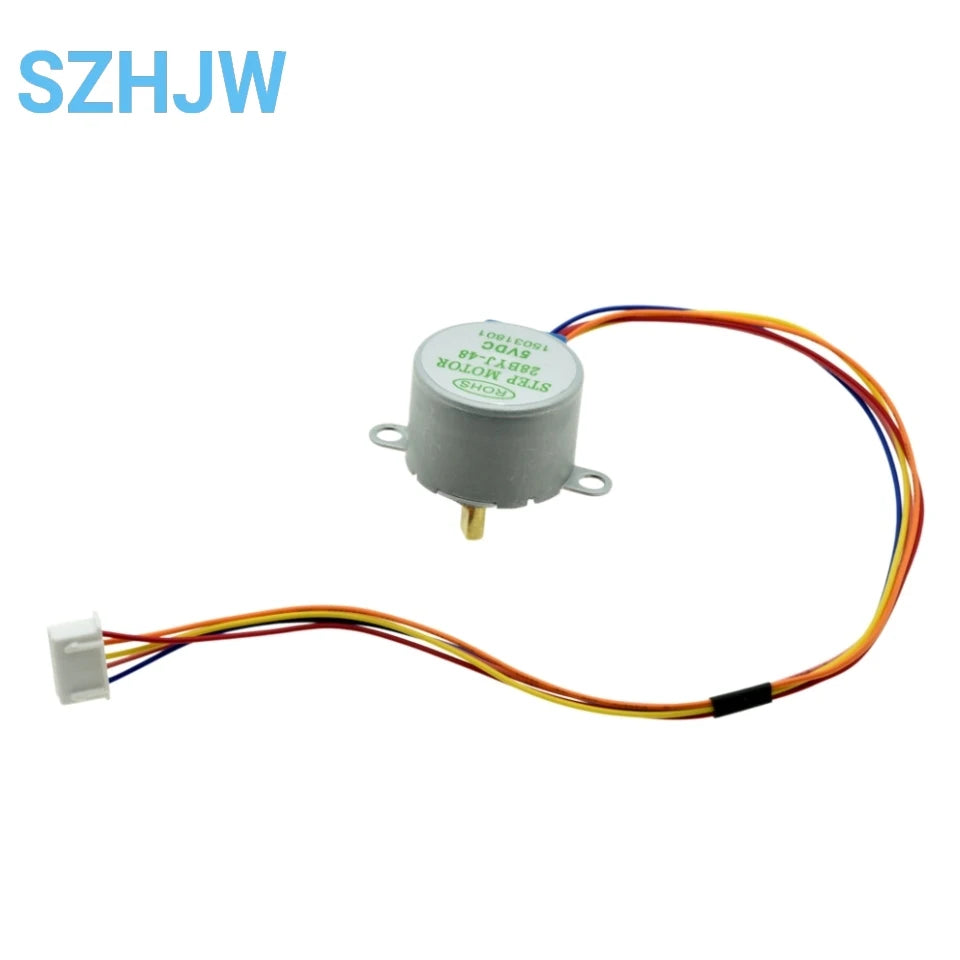

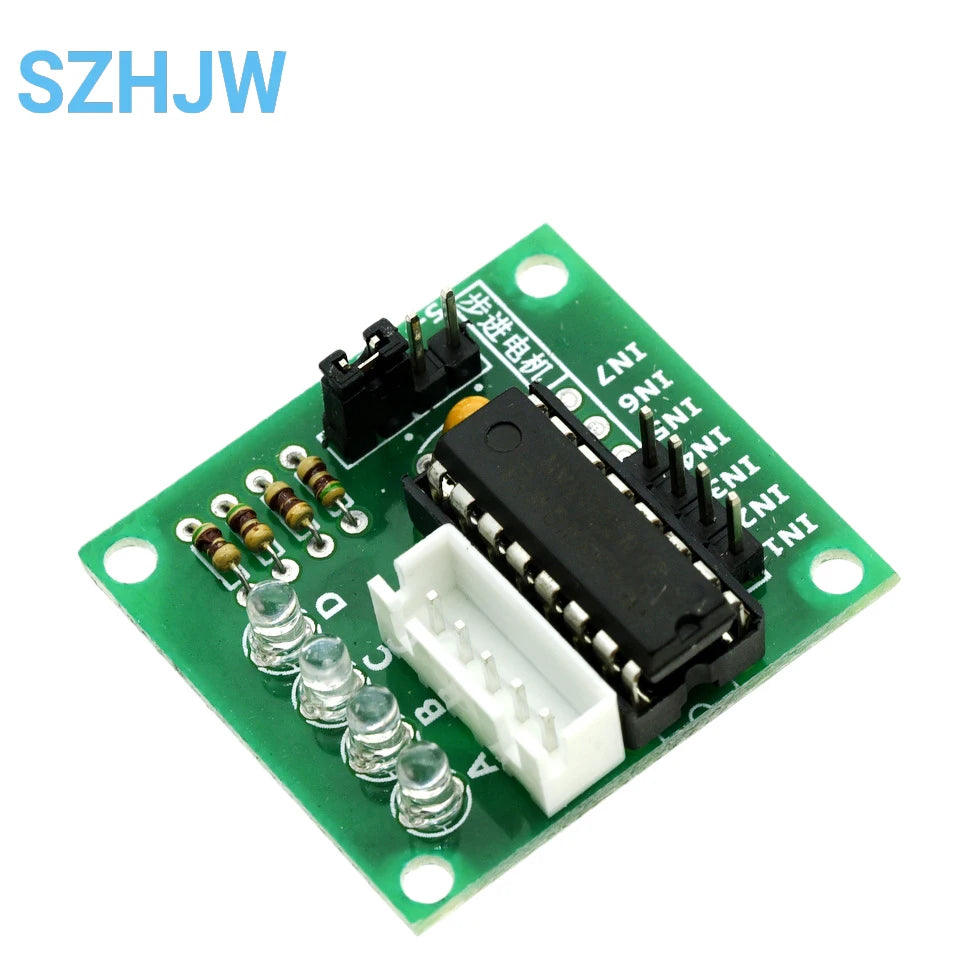

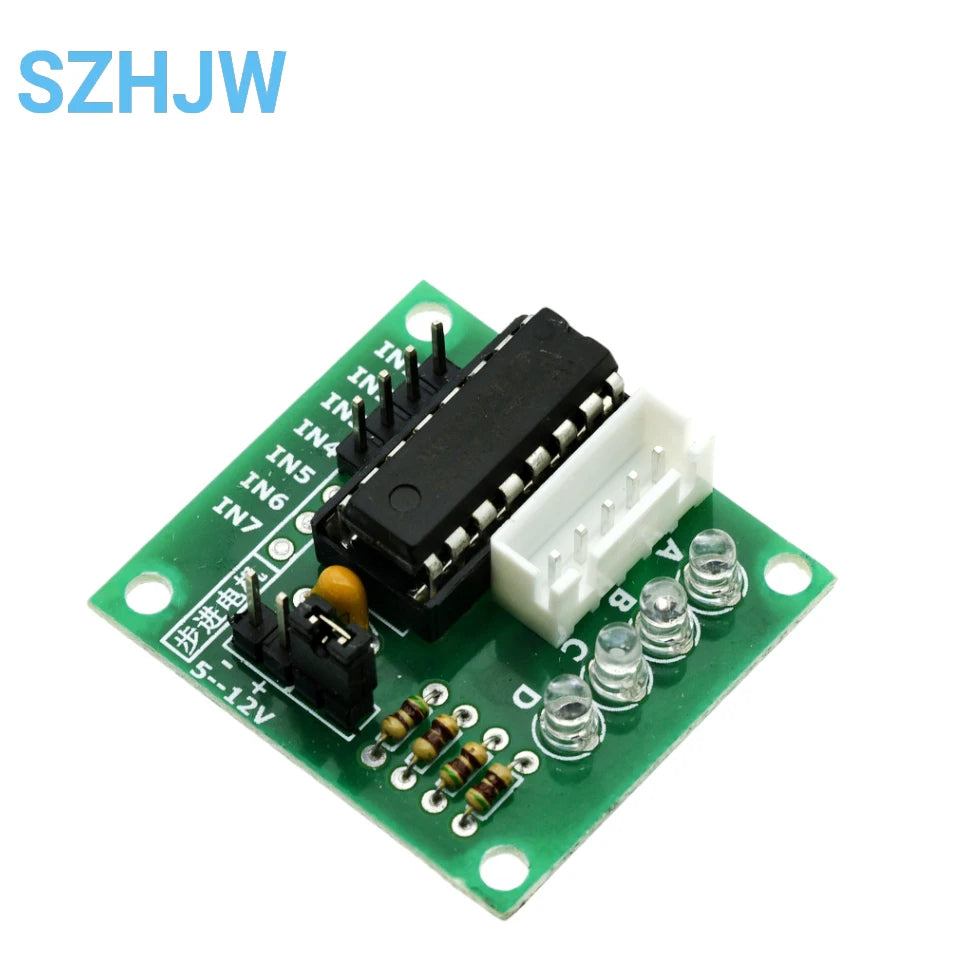

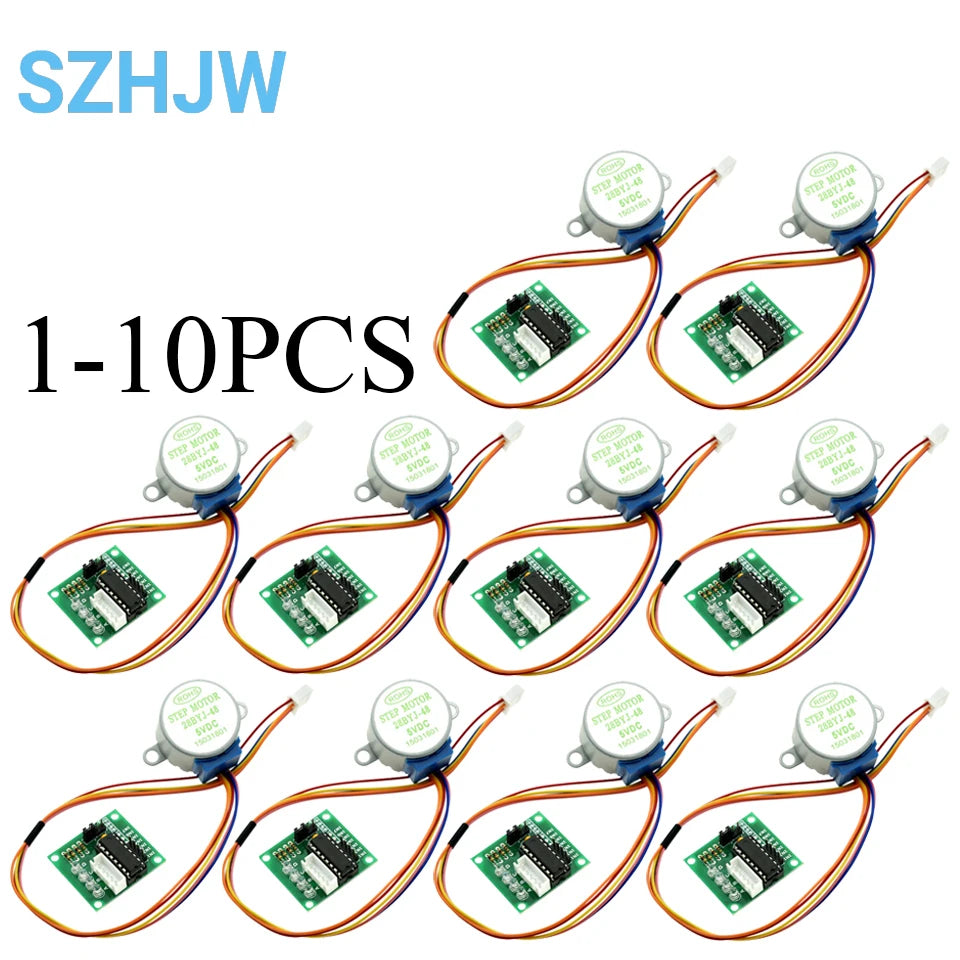

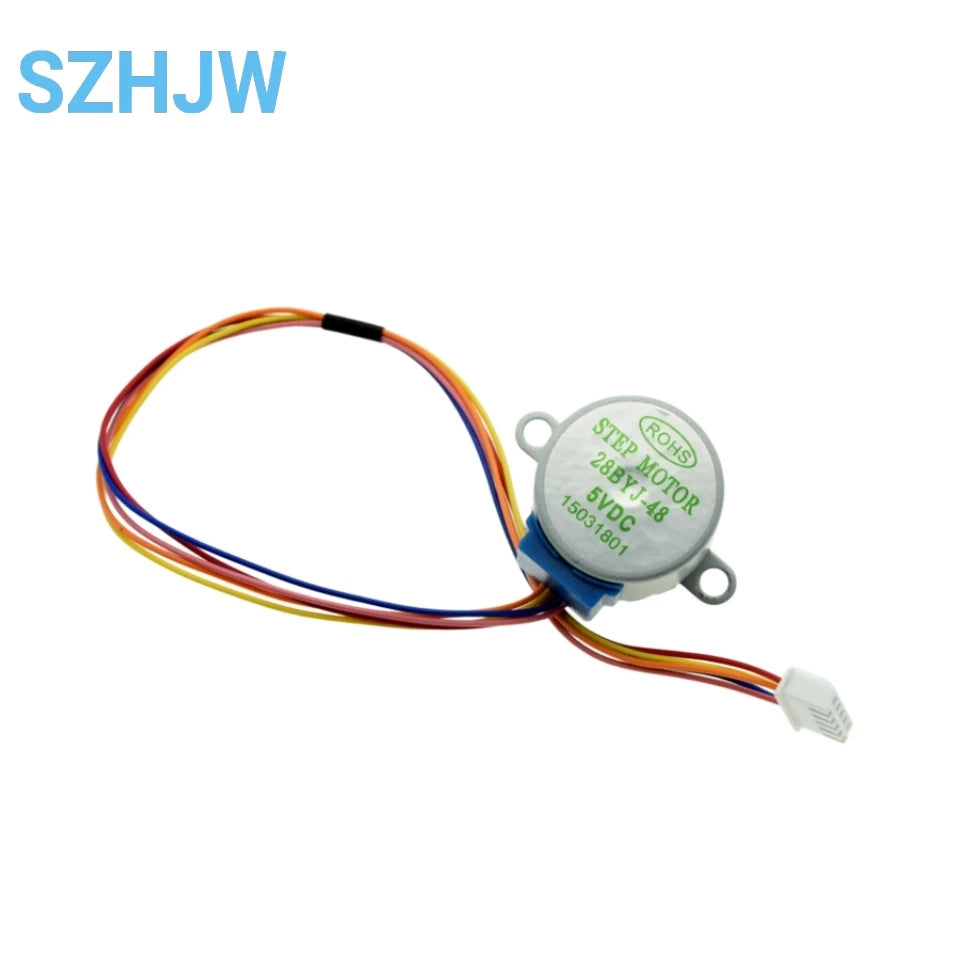

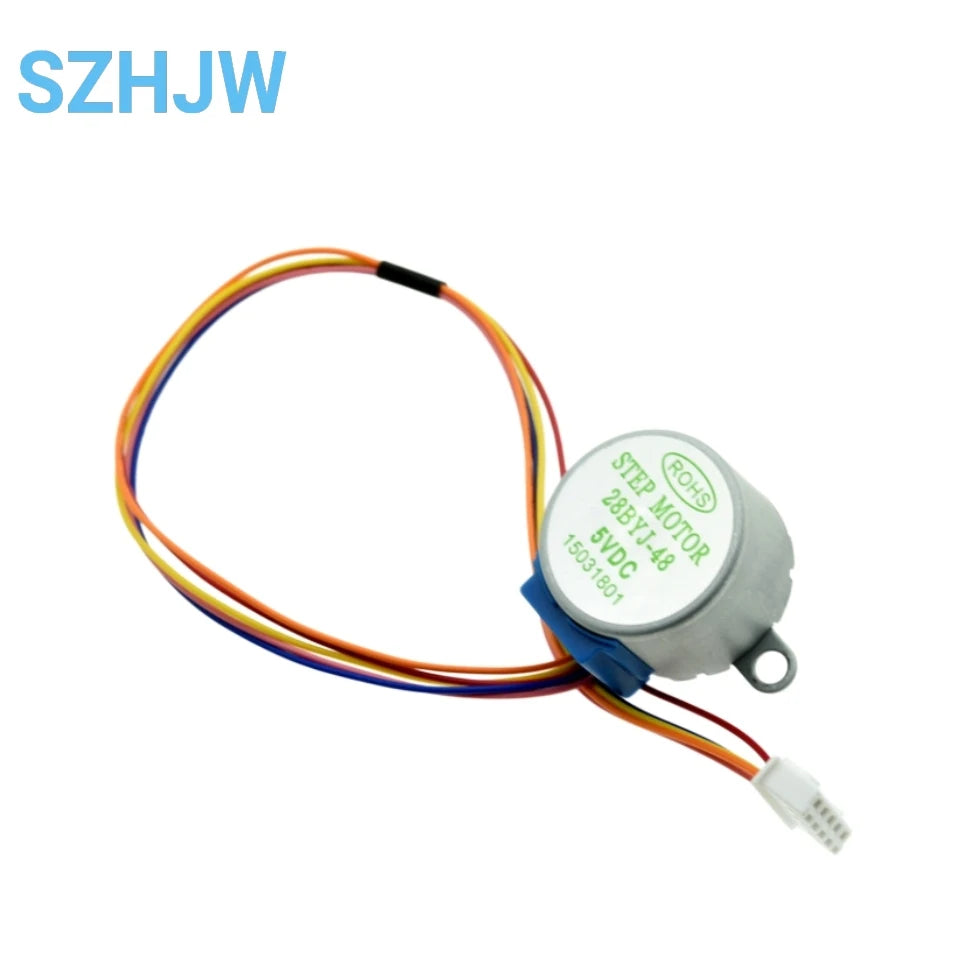

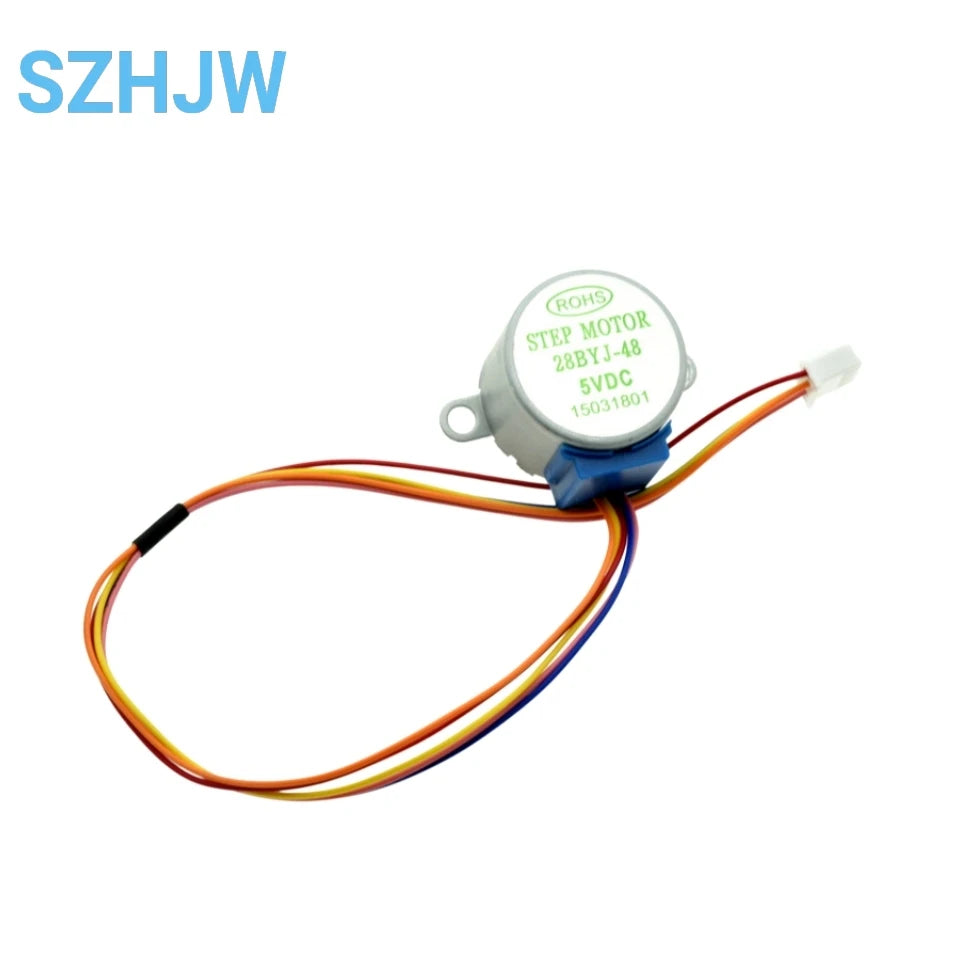

5V 28BYJ-48 Stepper Motor with ULN2003 Driver Board Test Module for Arduino Uno R3 Mega PIC MCU 4-Phase Step Motor DIY Kit
8YBJ-48 and ULN2003 / 1PCS
$18.90
Sale price
$18.90
Regular price
$0.00
Skip to product information
5V 28BYJ-48 Stepper Motor with ULN2003 Driver Board Test Module for Arduino Uno R3 Mega PIC MCU 4-Phase Step Motor DIY Kit
$18.90
Sale price
$18.90
Regular price
$0.00
Description
SPECIFICATIONS
Application: other
Brand Name: SZYTF
Choice: yes
Condition: New
Dissipation Power: n/a
High-concerned chemical: none
Operating Temperature: n/a
Origin: Mainland China
Supply Voltage: n/a
Type: Module
is_customized: Yes
semi_Choice: yes
Rated Voltage: DC5V
4-phase
Reduction Ratio: 1/64
Step Torque Angle: 5.625/64
DC Resistance: 200±7% (25)
Insulation Resistance: >10M (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)
Board Size: Approx. 29 ×21 mm
